  1. Oracle Operational Timing DataPaper 36571 Cary Millsap (cary.millsap@hotsos.com) Hotsos Enterprises, Ltd. OracleWorld 2003 / San Francisco, California USA 8:30a–9:30a Wednesday 10 September 2003

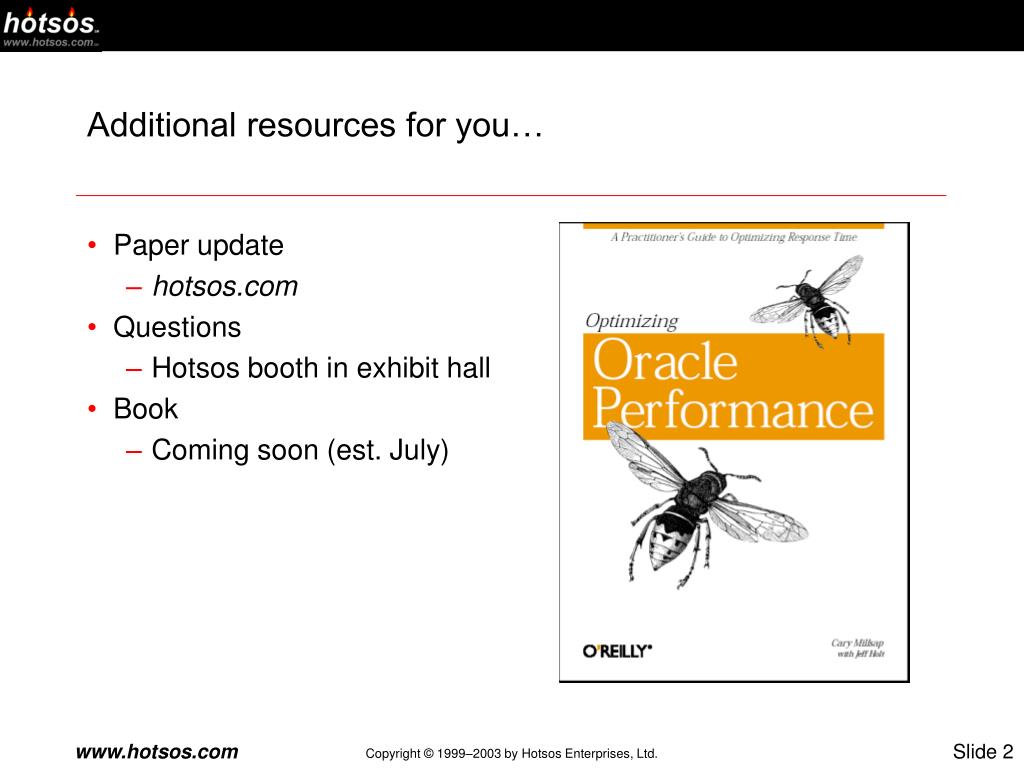

  2. Additional resources for you… • Paper update • hotsos.com • Questions • Hotsos booth in exhibit hall • Book • Coming soon (est. July)

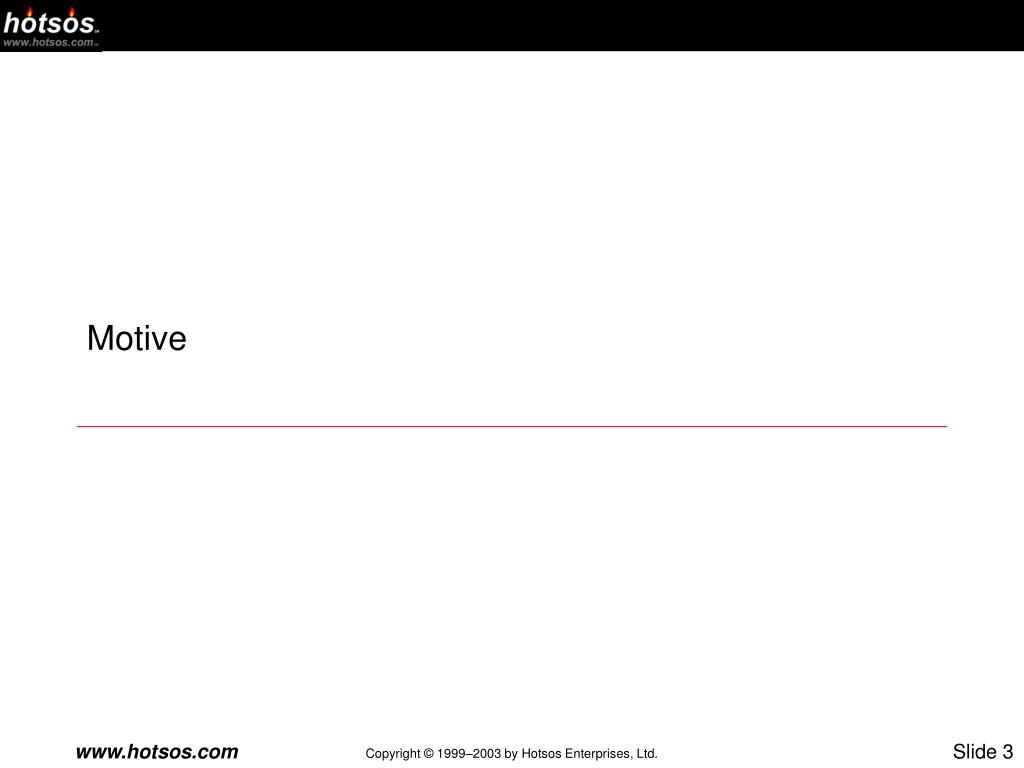

  3. Motive

  4. Three great “discoveries” are revolutionizing the effectiveness of Oracle performance analysts today. • User action focus • Response time focus • Amdahl’s Law • Recommendation • Eli Goldratt’s The Goal • “Goal readers are now doing the best work of their lives.”

  5. Great Discovery #1: user action focus. You can’t extrapolate detail from an aggregate. • Some problems can’t be detected by observing system-wide data • Hence, system-wide focus is not reliable • This is one reason “tuning” is so hard

  6. Example: What’s the problem here? It’s obvious, right? • CIO’s #1 problem • “We need PYUGEN to execute 2x faster” • DBA’s viewpoint • “The system’s number one wait event is latch free”

  7. Wrong. You can not trust system-wide data to guide your way. Resource profile for PYUGEN Response Time Component Duration # Calls Dur/Call ----------------------------- --------------- ----------- ------------ SQL*Net message from client 984.0s 49.6% 95,161 0.010340s SQL*Net more data from client 418.8s 21.1% 3,345 0.125208s db file sequential read 279.3s 14.1% 45,084 0.006196s CPU service 248.7s 12.5% 222,760 0.001116s unaccounted-for 27.9s 1.4% latch free 23.7s 1.2% 34,695 0.000683s log file sync 1.1s 0.1% 506 0.002154s SQL*Net more data to client 0.8s 0.0% 15,982 0.000052s log file switch completion 0.3s 0.0% 3 0.093333s enqueue 0.3s 0.0% 106 0.002358s SQL*Net message to client 0.2s 0.0% 95,161 0.000003s other 0.2s 0.0% ----------------------------- --------------- ----------- ------------ Total 1,985.4s 100.0%

  8. Great Discovery #2: response time focus. You can’t tell how long something tookby counting how many times it happened. • Try it…

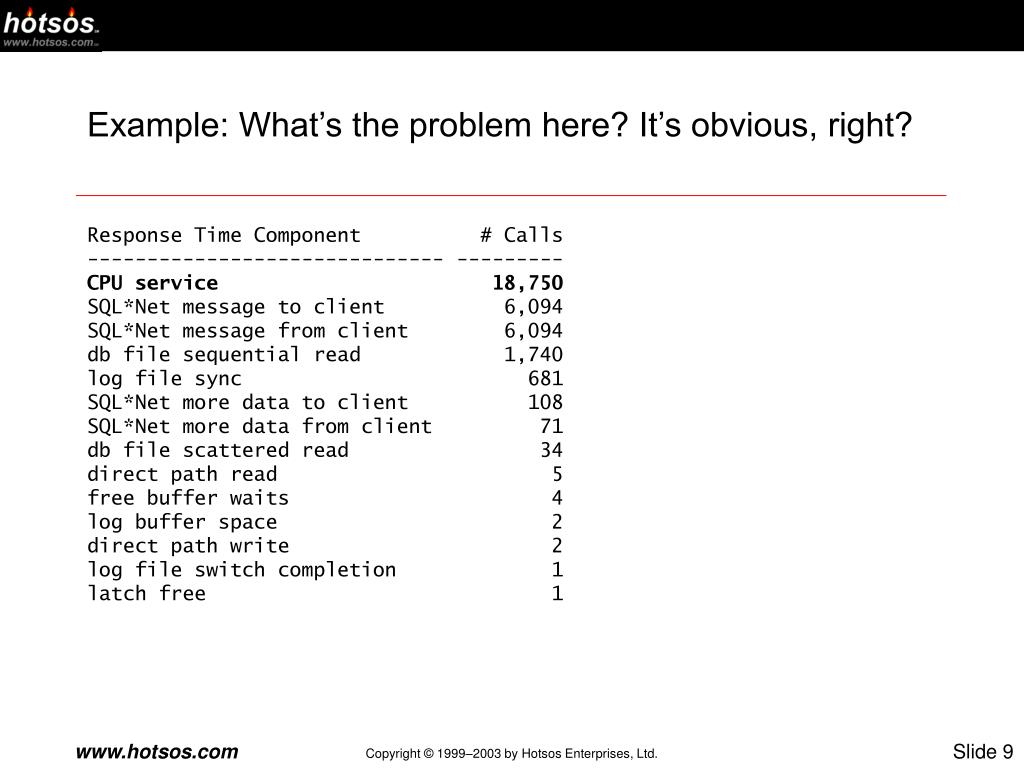

  9. Example: What’s the problem here? It’s obvious, right? Response Time Component # Calls ------------------------------ --------- CPU service 18,750 SQL*Net message to client 6,094 SQL*Net message from client 6,094 db file sequential read 1,740 log file sync 681 SQL*Net more data to client 108 SQL*Net more data from client 71 db file scattered read 34 direct path read 5 free buffer waits 4 log buffer space 2 direct path write 2 log file switch completion 1 latch free 1

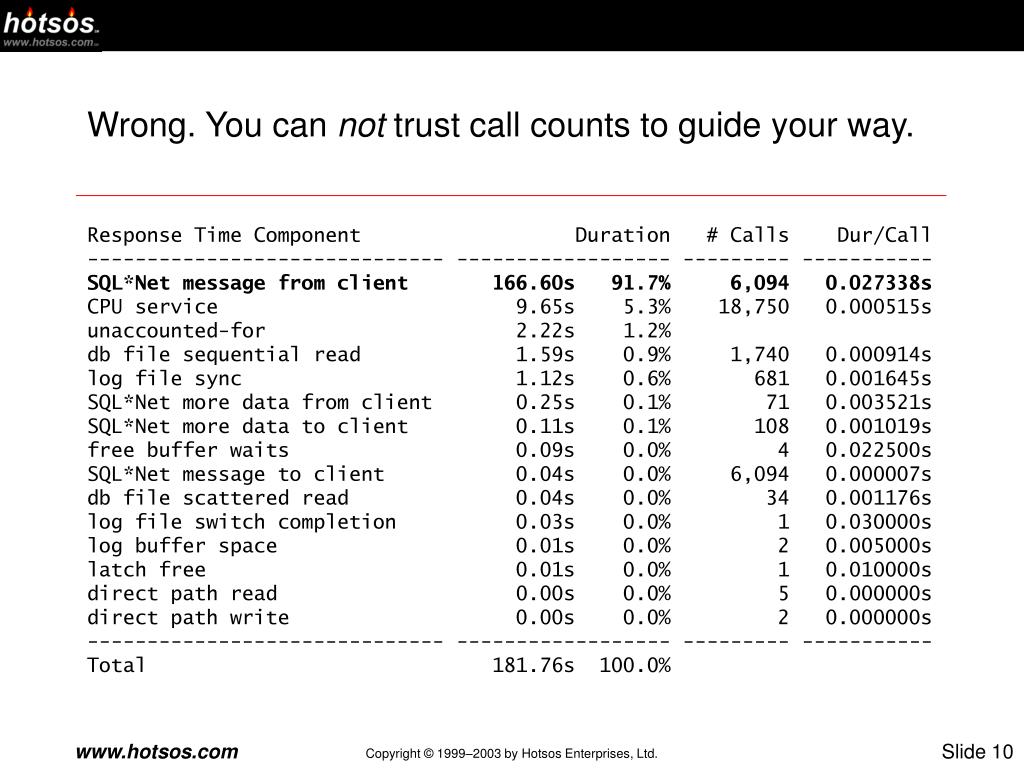

  10. Wrong. You can not trust call counts to guide your way. Response Time Component Duration # Calls Dur/Call ------------------------------ ------------------ --------- ----------- SQL*Net message from client 166.60s 91.7% 6,094 0.027338s CPU service 9.65s 5.3% 18,750 0.000515s unaccounted-for 2.22s 1.2% db file sequential read 1.59s 0.9% 1,740 0.000914s log file sync 1.12s 0.6% 681 0.001645s SQL*Net more data from client 0.25s 0.1% 71 0.003521s SQL*Net more data to client 0.11s 0.1% 108 0.001019s free buffer waits 0.09s 0.0% 4 0.022500s SQL*Net message to client 0.04s 0.0% 6,094 0.000007s db file scattered read 0.04s 0.0% 34 0.001176s log file switch completion 0.03s 0.0% 1 0.030000s log buffer space 0.01s 0.0% 2 0.005000s latch free 0.01s 0.0% 1 0.010000s direct path read 0.00s 0.0% 5 0.000000s direct path write 0.00s 0.0% 2 0.000000s ------------------------------ ------------------ --------- ----------- Total 181.76s 100.0%

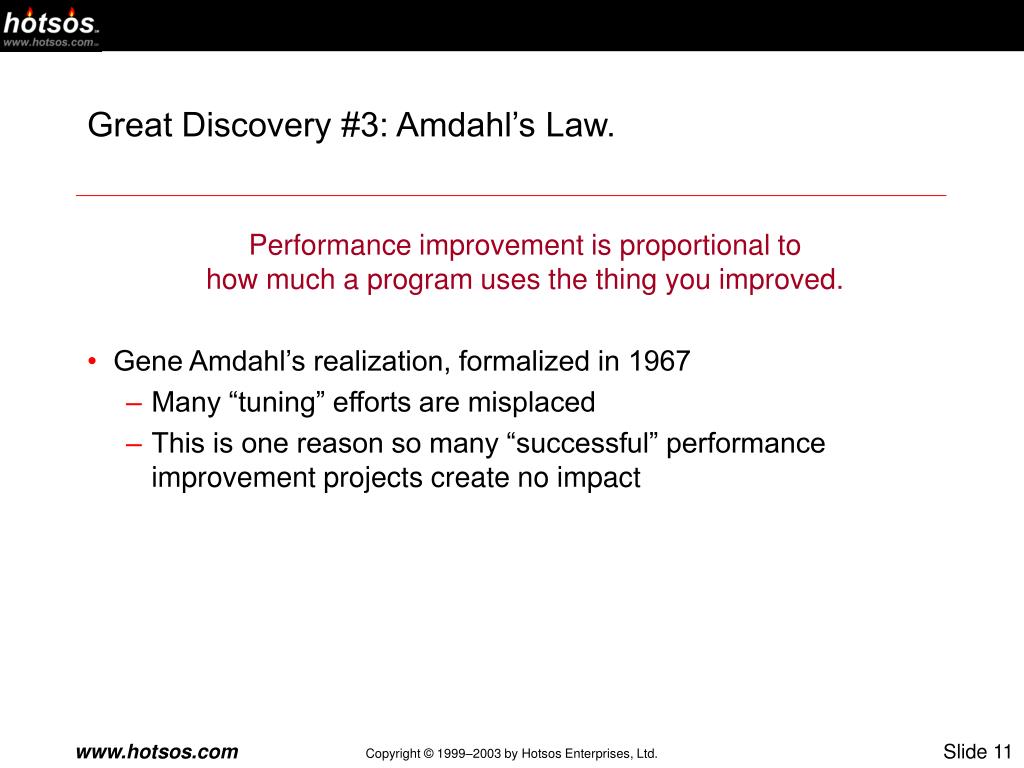

  11. Great Discovery #3: Amdahl’s Law. Performance improvement is proportional tohow much a program uses the thing you improved. • Gene Amdahl’s realization, formalized in 1967 • Many “tuning” efforts are misplaced • This is one reason so many “successful” performance improvement projects create no impact

  12. These great discoveries lead us to a simple, obviously efficient Oracle optimization strategy… Work first to reduce the biggest response time componentof a business’ most important user action. • Sounds easy • So why don’t people do it? • Because it’s hard to get response time data for a specific user action

  13. Oracle Operational Timing Data

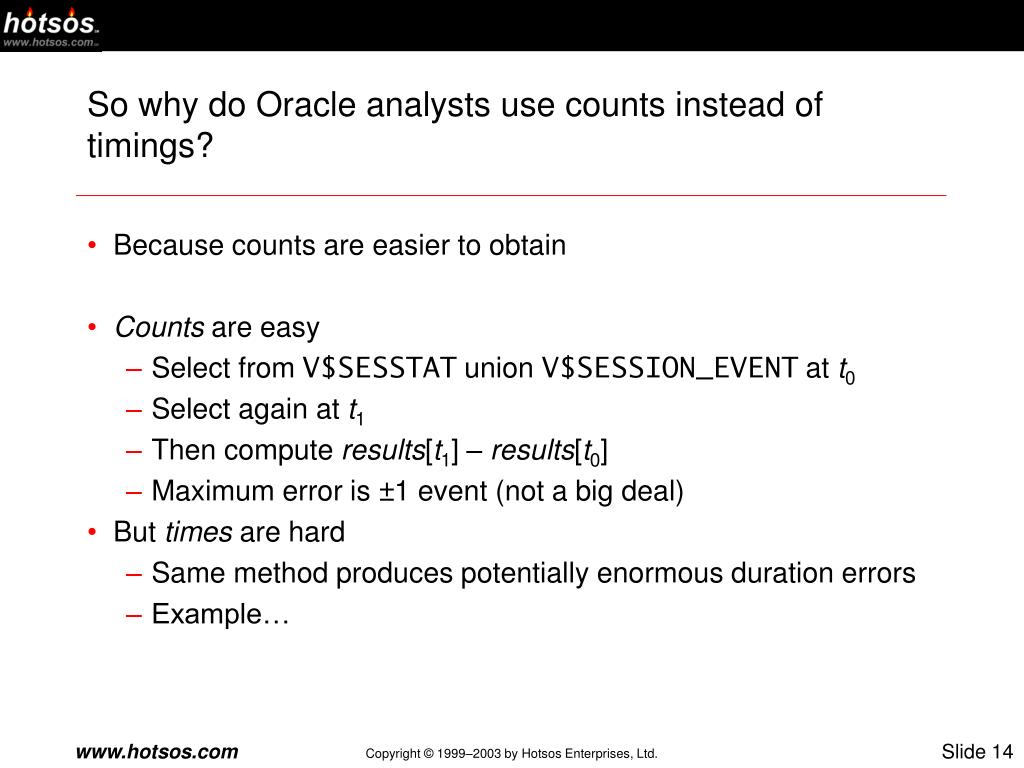

  14. So why do Oracle analysts use counts instead of timings? • Because counts are easier to obtain • Counts are easy • Select from V$SESSTAT union V$SESSION_EVENT at t0 • Select again at t1 • Then compute results[t1] – results[t0] • Maximum error is ±1 event (not a big deal) • But times are hard • Same method produces potentially enormous duration errors • Example…

  15. Accounting for response time with SQL queries of Oracle fixed view data is hard. $ perl vprof.pl --username=system --password=manager 8 Press <Enter> to mark time t0: Press <Enter> to mark time t1: Resource Profile for Session 8 t0 = 15:31:50.507000 t1 = 15:32:02.696000 interval duration = 12.189000s accounted-for duration = 23.510000s Response Time Component Duration (seconds) Calls Dur/Call ---------------------------------- -------------------- ------------ ---------- SQL*Net message from client 22.78 186.9% 2 11.390000 db file sequential read 0.60 4.9% 199 0.003015 CPU service 0.09 0.7% 2 0.045000 db file scattered read 0.04 0.3% 4 0.010000 SQL*Net message to client 0.00 0.0% 2 0.000000 unaccounted-for -11.32 -92.9% 1 -11.321000 ---------------------------------- -------------------- ------------ ---------- Total 12.19 100.0% Source: Millsap, C. 2003. Optimizing Oracle Performance, Sebastopol CA: O’Reilly (July 2003)

  16. One easy way out of the problem is to use Oracle’s extended SQL trace data. • Easy to activate • Low overhead if used sensibly • Produces a chronological record • Contains all the performance data you need in most cases • Doesn’t require any special tools to get started

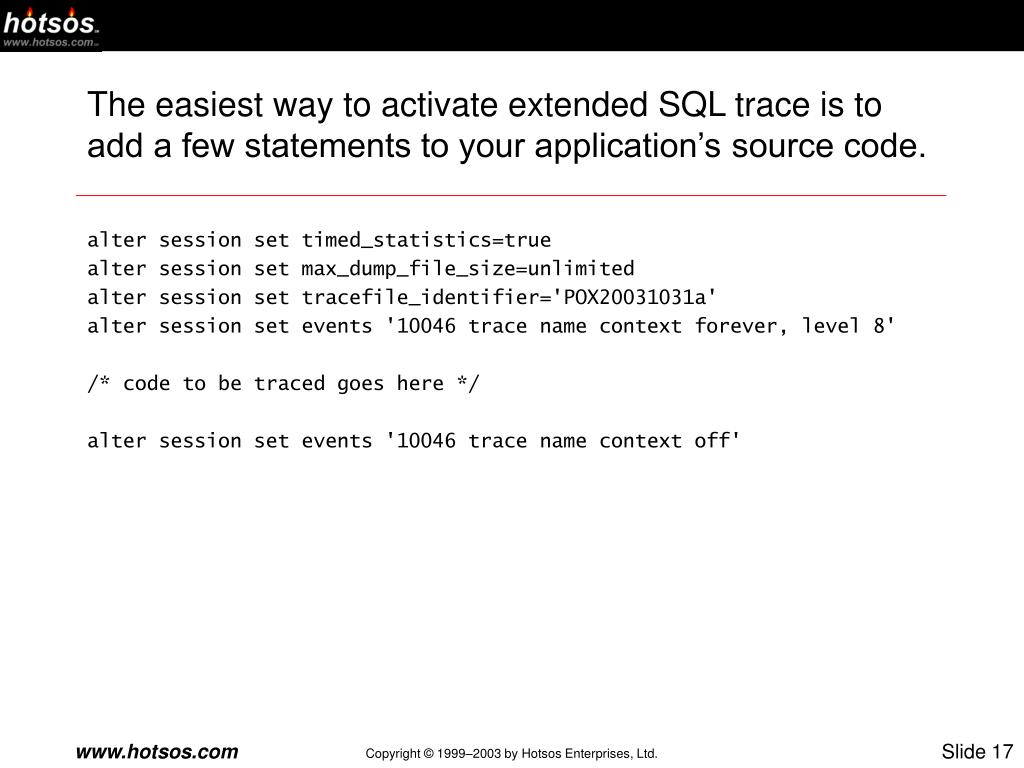

  17. The easiest way to activate extended SQL trace is to add a few statements to your application’s source code. alter session set timed_statistics=true alter session set max_dump_file_size=unlimited alter session set tracefile_identifier='POX20031031a' alter session set events '10046 trace name context forever, level 8' /* code to be traced goes here */ alter session set events '10046 trace name context off'

  18. Raw trace data lines are not so hard to understand. PARSE #54:c=20000,e=11526,p=0,cr=2,cu=0,mis=1,r=0,dep=1,og=0,tim=1017039304725071 EXEC #1:c=10000,e=12137,p=0,cr=22,cu=0,mis=0,r=1,dep=0,og=4,tim=1017039275981174 FETCH #3:c=10000,e=306,p=0,cr=3,cu=0,mis=0,r=1,dep=2,og=4,tim=1017039275973158 WAIT #1: nam='SQL*Net message to client' ela= 40 p1=1650815232 p2=1 p3=0 WAIT #1: nam='SQL*Net message from client' ela= 1709 p1=1650815232 p2=1 p3=0 WAIT #34: nam='db file sequential read' ela= 14118 p1=52 p2=2755 p3=1 WAIT #44: nam='latch free' ela= 1327989 p1=-1721538020 p2=87 p3=13

  19. The five fields I’ll speak about today are the cursor id, c, e, nam, and ela (see MetaLink 39817.1 for more info).

  20. There are two types of wait event: events issued within db calls, and calls issued between db calls. • Events issued between db calls are recognizable by nam • SQL*Net message from client • SQL*Net message to client • single-task message • pipe get • rdbms ipc message • pmon timer • smon timer • Most other events are issued within db calls

  21. A db call’s elapsed time is approximately its total CPU consumption plus the total duration of its wait events. WAIT #4: nam='db file sequential read' ela= 13060 p1=1 p2=53903 p3=1 WAIT #4: nam='db file sequential read' ela= 6978 p1=1 p2=4726 p3=1 FETCH #4:c=0,e=21340,p=2,cr=3,cu=0,mis=0,r=0,dep=1,og=4,tim=1033064137953092

  22. A whole trace file’s elapsed duration is the sum of the db call durations plus the sum of the between-call stuff. PARSE #9:c=0,e=0,p=0,cr=0,cu=0,mis=1,r=0,dep=0,og=4,tim=1716466757 WAIT #9: nam='SQL*Net message to client' ela= 0 p1=1413697536 p2=1 p3=0 WAIT #9: nam='SQL*Net message from client' ela= 3 p1=1413697536 p2=1 p3=0 ... PARSE #9:c=0,e=0,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=4,tim=1716466760

  23. Extended SQL trace is reliable for diagnosing the root cause of virtually any performance problem. • Method is reliable for even more problem types by isolating the “un-measured” components • M – measurement intrusion effect • E – quantization error • N – time spent not executing • U – un-instrumented Oracle code (systematic error + bugs) • S – CPU consumption that is counted twice

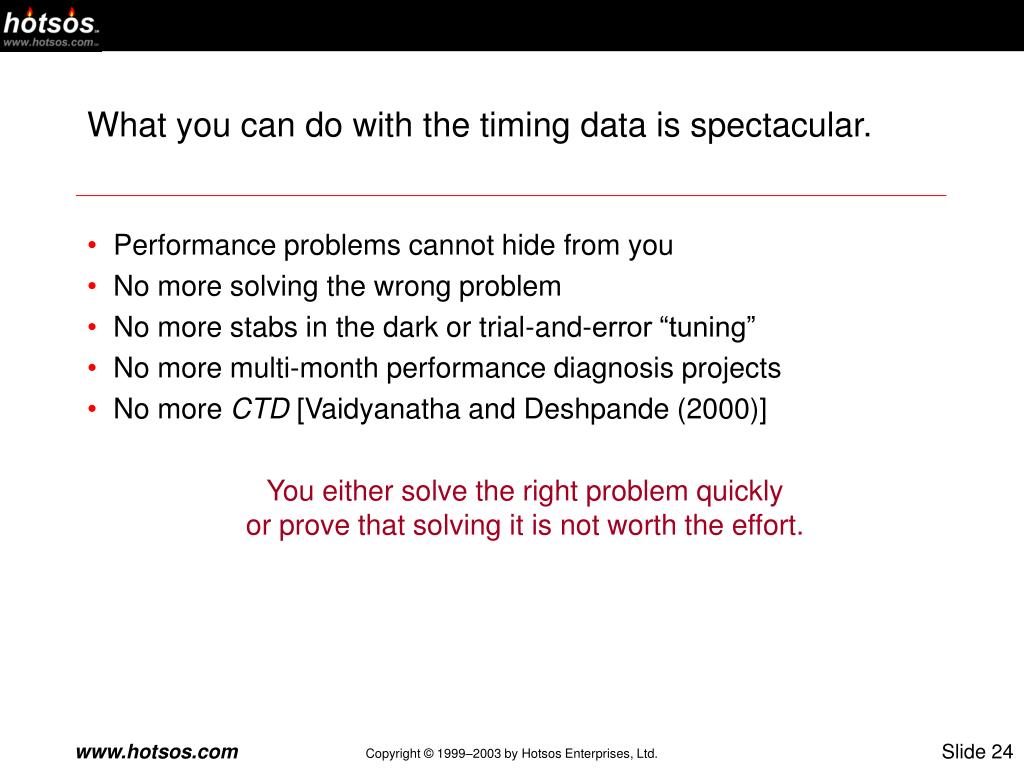

  24. What you can do with the timing data is spectacular. • Performance problems cannot hide from you • No more solving the wrong problem • No more stabs in the dark or trial-and-error “tuning” • No more multi-month performance diagnosis projects • No more CTD [Vaidyanatha and Deshpande (2000)] You either solve the right problem quicklyor prove that solving it is not worth the effort.

  25. Performance problems cannot hide from this method. • Partial laundry list of problems we’ve solved • System-wide problems, and specific user-action problems • Query mistakes: bad SQL, faulty indexing, data density, … • Application mistakes: excessive parsing, no arrays, … • Serialization mistakes: locks, latches, memory buffers, … • Network mistakes: protocol selection, bad segments, … • Disk I/O mistakes: poorly sized caches, imbalances, … • Capacity shortages: swapping, paging, …

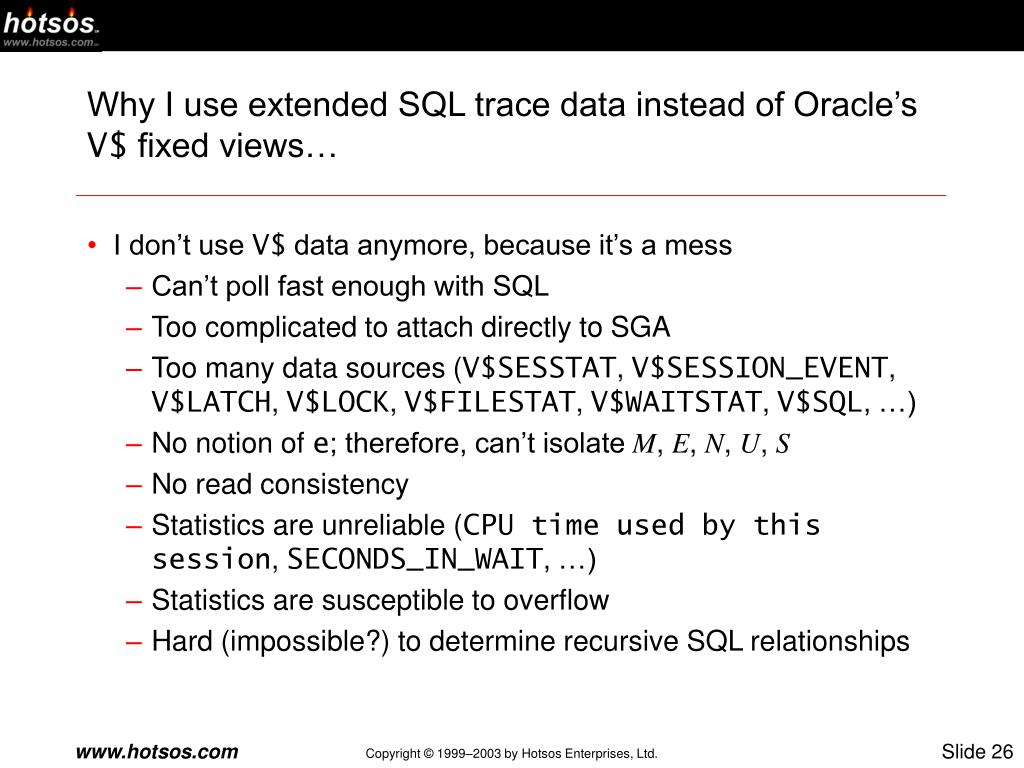

  26. Why I use extended SQL trace data instead of Oracle’s V$ fixed views… • I don’t use V$ data anymore, because it’s a mess • Can’t poll fast enough with SQL • Too complicated to attach directly to SGA • Too many data sources (V$SESSTAT, V$SESSION_EVENT, V$LATCH, V$LOCK, V$FILESTAT, V$WAITSTAT, V$SQL, …) • No notion of e; therefore, can’t isolate M, E, N, U, S • No read consistency • Statistics are unreliable (CPU time used by this session, SECONDS_IN_WAIT, …) • Statistics are susceptible to overflow • Hard (impossible?) to determine recursive SQL relationships

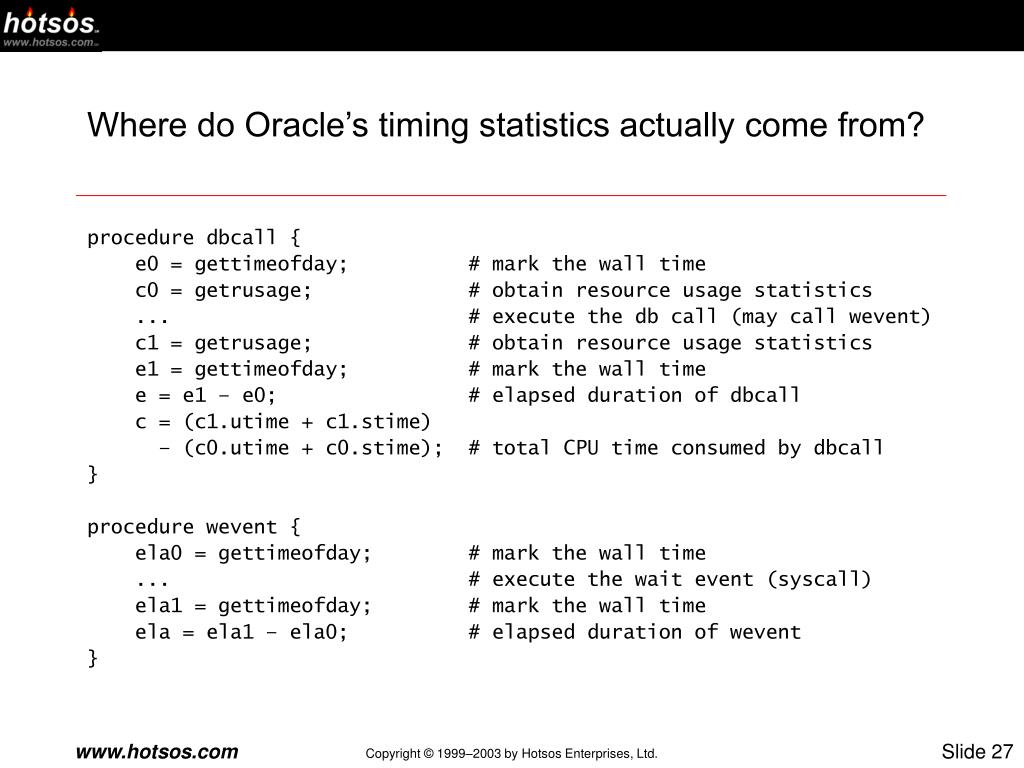

  27. Where do Oracle’s timing statistics actually come from? procedure dbcall { e0 = gettimeofday; # mark the wall time c0 = getrusage; # obtain resource usage statistics ... # execute the db call (may call wevent) c1 = getrusage; # obtain resource usage statistics e1 = gettimeofday; # mark the wall time e = e1 – e0; # elapsed duration of dbcall c = (c1.utime + c1.stime) – (c0.utime + c0.stime); # total CPU time consumed by dbcall } procedure wevent { ela0 = gettimeofday; # mark the wall time ... # execute the wait event (syscall) ela1 = gettimeofday; # mark the wall time ela = ela1 – ela0; # elapsed duration of wevent }

  28. Understanding where Oracle timings come from motivates all sorts of interesting research projects… • How to quantify measurement intrusion effect • How to bound quantization error • How to bound un-instrumented call effects • How to estimate the amount of kernel-mode time double-counting • …

  29. Questions & Answers

  30. Oracle Operational Timing DataPaper 36571 Cary Millsap (cary.millsap@hotsos.com) Hotsos Enterprises, Ltd. OracleWorld 2003 / San Francisco, California USA 8:30a–9:30a Wednesday 10 September 2003
