DNA Replication

DNA Replication. Chapter 25. DNA Polymerase (E. coli ex). Catalyzes synth of new DNA strand d(NMP) n + dNTP  d(NMP) n+1 + PPi 3’ –OH of newly synth’d strand attacks first phosphate of incoming dNTP Rxn thermodynamically favorable Why??. DNA Polymerase – cont’d.

jase
Download Presentation

DNA Replication

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. DNA Replication Chapter 25

  2. DNA Polymerase (E. coli ex) • Catalyzes synth of new DNA strand • d(NMP)n + dNTP  d(NMP)n+1 + PPi • 3’ –OH of newly synth’d strand attacks first phosphate of incoming dNTP • Rxn thermodynamically favorable • Why??

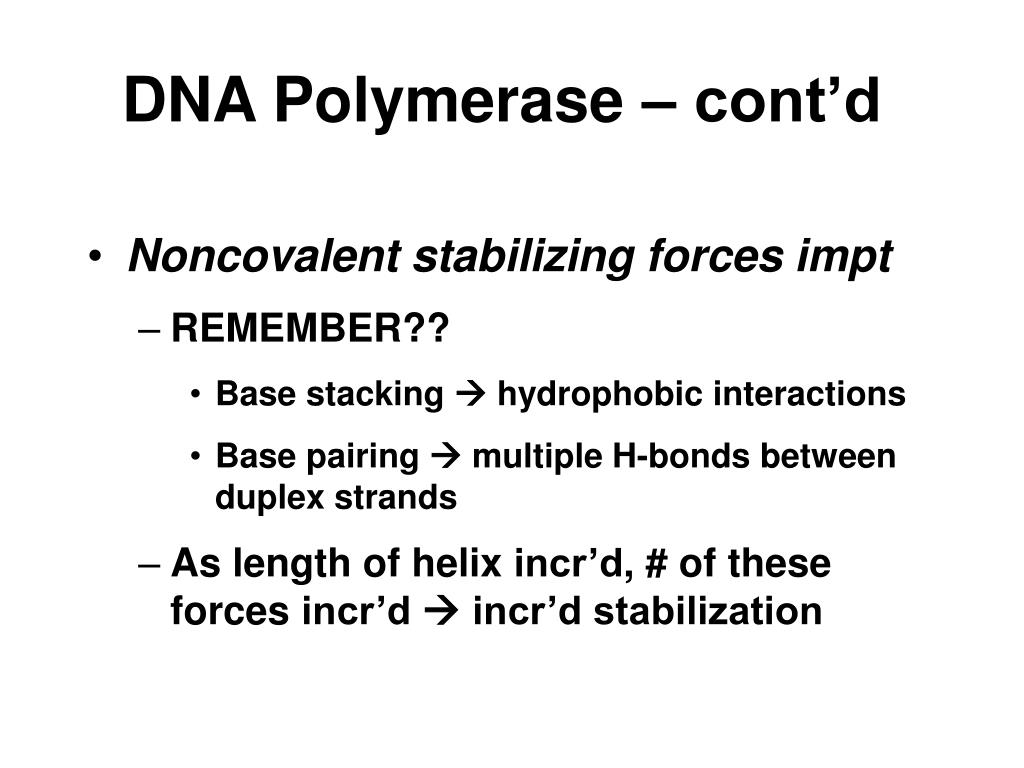

  3. DNA Polymerase – cont’d • Noncovalent stabilizing forces impt • REMEMBER?? • Base stacking  hydrophobic interactions • Base pairing  multiple H-bonds between duplex strands • As length of helix incr’d, # of these forces incr’d incr’d stabilization

  4. DNA Polymerase – cont’d • Can only add nucleotides to pre-existing strand • So problematic at beginning of repl’n • Problem solved by synth of ….

  5. DNA Polymerase – cont’d • Primers (25-5) • Synth’d by specialized enzymes • Nucleic acid segments complementary to template • Often RNA • Have free 3’ –OH that can attack dNTP

  6. DNA Polymerase – cont’d • Once DNA polymerase begins synth of DNA chain, can dissociate OR can continue along template adding more nucleotides to growing chain • Rate of synth DNA depends on ability of enz to continue w/out falling off • Processivity

  7. DNA Polymerase – Accuracy • Enz must ACCURATELY add correct nucleotide to growing chain • E. coli accuracy ~ 1 mistake per 109 – 1010 nucleotides added • Geometry of enz active site matches geom. of correct base pairs (25-6) • A=T, G=C fit • Other pairings don’t fit

  8. Fig.25-6

  9. Accuracy – cont’d • Enz has “back-up” proofreading ability • Its conform’n allows recognition of improper pairing • Has ability to cleave improperly paired bases (25-7) • Called 3’  5’ exonuclease activity • Enz won’t proceed to next base if previous base improper • Then catalyzes add’n of proper base • Increases accuracy of polymerization 102 – 103 X • Note: cell has other enz’s/mech’s to find/repair mistakes (mutations) after new helix synth’d w/ repl’n

  10. Fig.25-7

  11. 3 E. coli DNA Polymerases (Table 25-1) • I -- impt to polymerase activity • Slow (adds 16-20 nucleotides/sec) • Has 2 proofreading functions • Only 1 subunit • II – impt to DNA repair • Less polymerization activity • Several subunits

  12. 3 DNA Polymerases -- cont’d • III – principle repl’n enz • Much faster than polymerase I (adds 250-1000 nucleotides/sec) • Many subunits (Table 25-2) each w/ partic function • Encircles DNA; slides along helix (25-10) • One subunit “clamps” helix  better processivity

  13. Fig.25-10

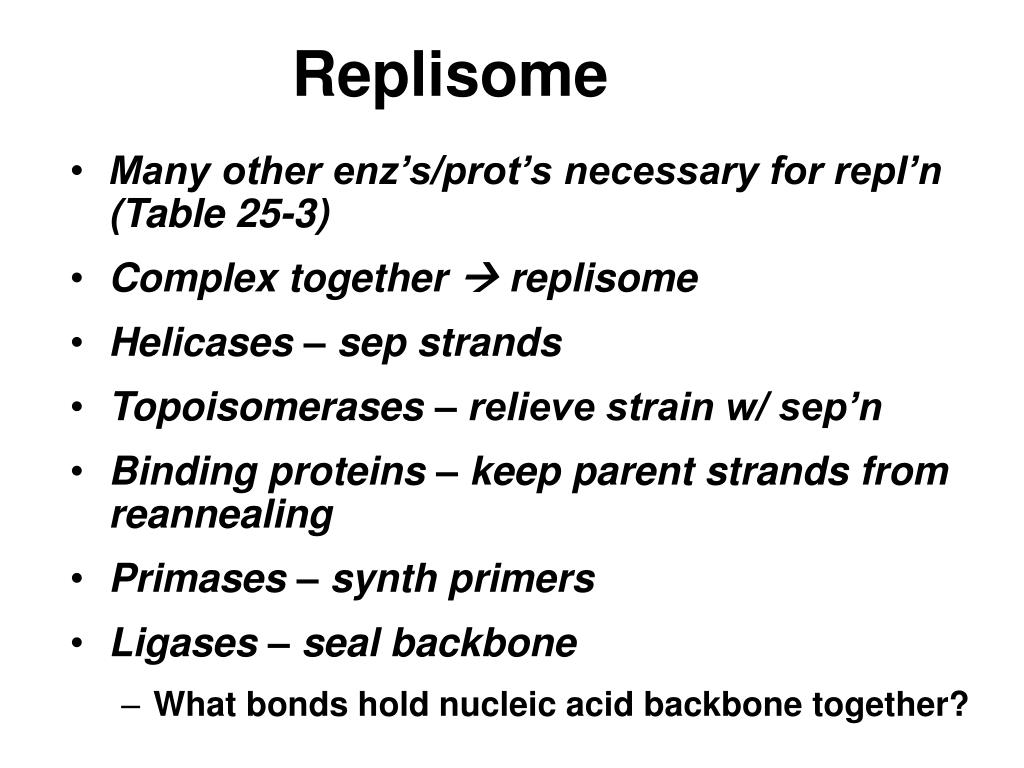

  14. Replisome • Many other enz’s/prot’s necessary for repl’n (Table 25-3) • Complex together  replisome • Helicases – sep strands • Topoisomerases – relieve strain w/ sep’n • Binding proteins – keep parent strands from reannealing • Primases – synth primers • Ligases – seal backbone • What bonds hold nucleic acid backbone together?

  15. Initiation – 1st Stage Repl’n • E. coli unique site = ori C (25-11) • 3 adjoining 13-nucleotide consensus seq’s • Non-consensus “spacer” nucleotides • 4 9-nucleotide consensus seq’s spaced apart • Consensus seq’s contain nucleotides in partic seq common to many species

  16. Initiation – cont’d • At ori C (at 4 9-‘tide seq area) (25-12) • ~20 DnaA mol’s (proteins) bind • Requires ATP •  nucleosome-like structure

  17. Initiation – cont’d •  Unwinding of helix (at 3 13-‘tide seq area) • ~13 nucleotides participate in unwinding • Requires ATP • Requires HU (histone-like protein)

  18. Initiation – cont’d • Unwound helix is stabilized • Requires DnaB, DnaC (proteins) • These bind to open helix • DnaB also acts as helicase • Unwinds DNA helix by 1000’s of bp’s

  19. Initiation – cont’d Result: • Nucleotide bases now exposed for base pairing in semiconservative repl'n • What does semiconservative mean? • Yields 2 repl’n forks

  20. Initiation – cont’d • Other impt repl’n factors at repl’n forks (Table 25-4) • SSB = Single Strand DNA Binding Protein • Stabilizes sep’d DNA strands • Prevents renaturation • DNA gyrase -- a topoisomerase • Relieves physical stress of unwinding • Note: in E. coli, repl’n is regulated ONLY @ initiation

  21. Elongation • Second stage of repl’n • Must synth both leading and lagging strands • REMEMBER: 1 parent strand 3'  5; its daughter can be synth'd 5'  3' easily. What about the other parent strand (runs 5'  3')?? • Follows init’n w/ successful unwinding  repl’n fork, stabilized by prot’s • So have parent strands available as templates for base-pairing  2 daughter dbl helices

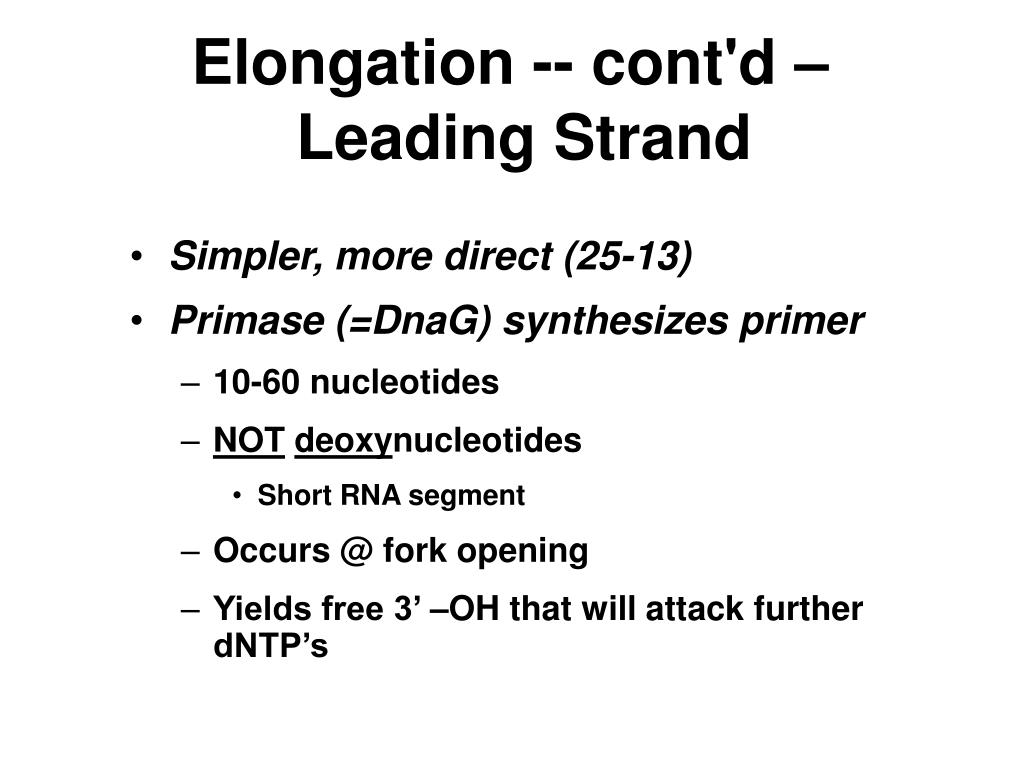

  22. Elongation -- cont'd – Leading Strand • Simpler, more direct (25-13) • Primase (=DnaG) synthesizes primer • 10-60 nucleotides • NOTdeoxynucleotides • Short RNA segment • Occurs @ fork opening • Yields free 3’ –OH that will attack further dNTP’s

  23. Leading Strand – cont’d • DNA polymerase III now associates • Catalyzes add’n of deoxy-nucleotides to 3’ –OH (25-5)

  24. Leading Strand – cont’d • Elongation of leading strand keeps up w/ unwinding of DNA @ repl’n fork • Gyrase/helicase unwind more DNA  further repl’n fork • SSB stabilizes single strand DNA til polymerase arrives • Synth continues 5’  3’ along daughter strand

  25. Fig.25-13

  26. Elongation -- cont'd – Lagging Strand • More complicated • REMEMBER: still need 5’  3’ synth, AND still need to have antiparallel strands. • Template strand here is 5’  3’ • Can’t synth continuous daughter strand 5’  3’ • Cell synth’s discontinuous DNA fragments (Okazaki fragments) that will be joined (25-13) • Must have several primers AND coordinated fork movement

  27. Fig.25-13

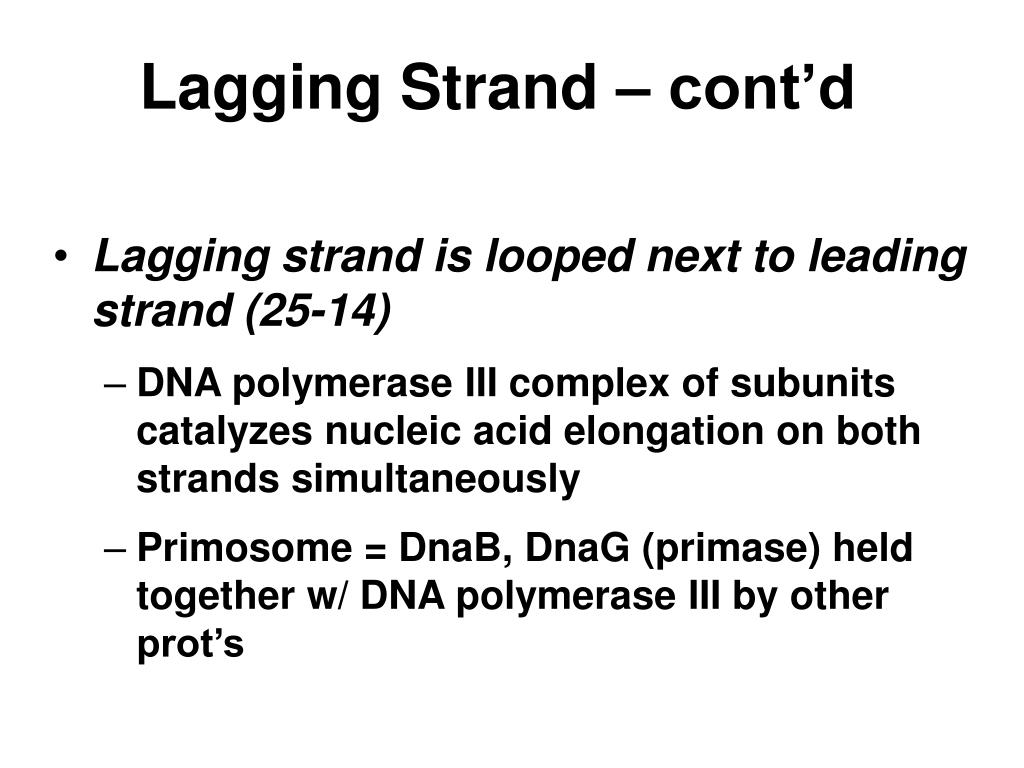

  28. Lagging Strand – cont’d • Lagging strand is looped next to leading strand (25-14) • DNA polymerase III complex of subunits catalyzes nucleic acid elongation on both strands simultaneously • Primosome = DnaB, DnaG (primase) held together w/ DNA polymerase III by other prot’s

  29. Fig.25-14

  30. Lagging Strand – cont’d • One subunit complex of DNA polymerase III moves along lagging strand @ fork in 3’  5’ direction (along parent) • Another subunit complex of polymerase III synth’s daughter strand along leading strand • At intervals, primase attaches to DnaB (helicase) • Here, primase catalyzes synth of primer (as on leading strand) • Also (once primer synth’d), primase directs “clamp” subunit of polymerase III to this site • This directs other polymerase III subunits to primer

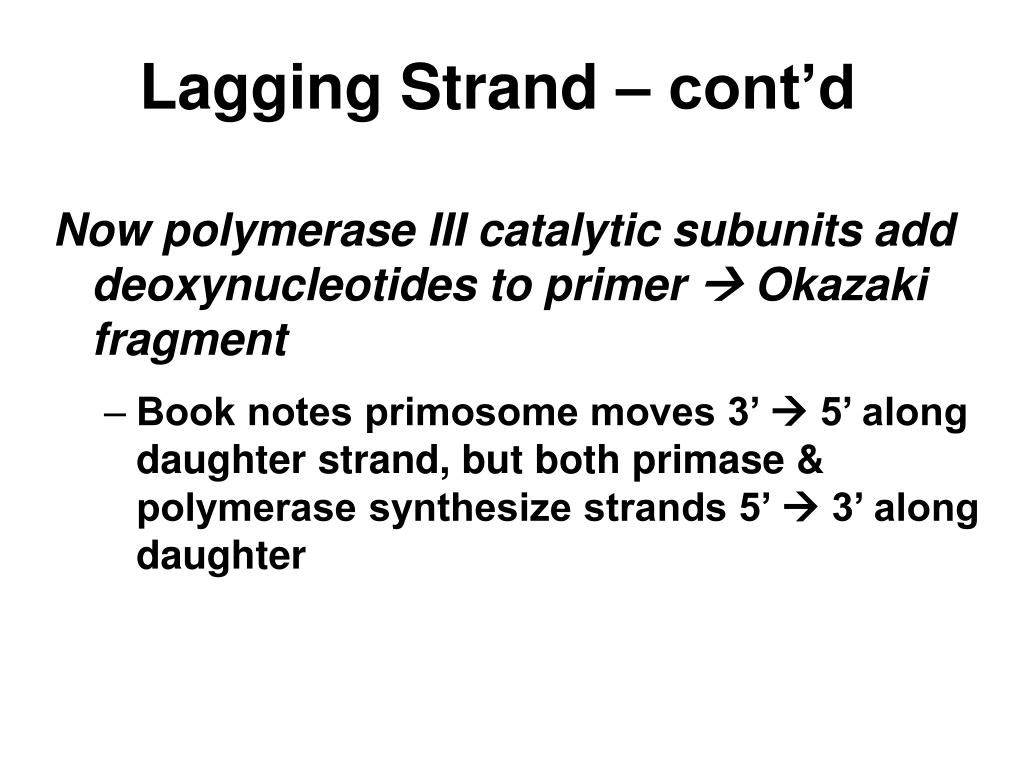

  31. Lagging Strand – cont’d Now polymerase III catalytic subunits add deoxynucleotides to primer  Okazaki fragment • Book notes primosome moves 3’  5’ along daughter strand, but both primase & polymerase synthesize strands 5’  3’ along daughter

  32. Fig.25-14

  33. Lagging Strand – cont’d • Okazaki fragments must be joined • DNA polymerase I exonuclease cleaves RNA primer (25-15) • DNA polymerase I simultaneously synth’s deoxynucleotide fragment • 10-60 nucleotides • Nicks between fragments

  34. Lagging Strand – cont’d • DNA ligase seals nicks between fragments (25-16) • Catalyzes synth of phosphodiester bond • NADH impt (coordination role?)

  35. Fig.25-16

  36. Termination • Repl'n has occurred bidirectionally @ 2 forks concurrently • E. coli genome is closed circular • So 2 repl'n forks will meet

  37. Termination – cont’d • Ter = seq of ~ 20 nucleotides (25-17) • Tus = prot's that bind Ter • When replisome encounters Ter-Tus • Replisome halted • Repl'n halted • Replisome complex dissociates

  38. Termination – cont’d • Result = 2 intertwined (catenated) circles • Topoisomerase IV nicks chains • One chain winds through other • 2 Complete genomes sep'd

  39. Eukaryotic DNA Replication • Repl'n mechanism & replisome structures similar to prokaryotes, BUT: • DNA more complex • Not all is coding for peptides • Chromatin packaging more complex • REMEMBER: nucleosomes, 30 nm fibers, nuclear scaffold, etc. • No single origination pt for repl'n • Many forks develop •  Simultaneous repl'ns bidirectionally • Forks move more slowly than in E. coli • But efficient because more forks

  40. Eukaryotic DNA Replication • Repl'n enzymes not yet fully understood • DNA polymerase a • In nucleus • Has subunit w/ primase activity • May be impt to lagging strand synth • DNA polymerase d • Assoc'd w/ a • Impt to attaching enz to nucleic acid chain • Has 3'  5' exonuclease ability (proofreading) • DNA polymerase e • Impt in repair

  41. Eukaryotic DNA Replication • Replisome proteins not yet fully understood • Found prot's similar to SSB prot's of E. coli • Termination seems to involve telomerases • Telomeres = seq's @ ends of chromosomes

  42. DNA Alterations • Need unaltered, correct nucleotide seq to code for correct aa's  correct peptides  correct proteins • Some changes acceptable • Some "wobble" in genetic code • Some DNA damage in mature cells can be fixed • DNA repair mechanisms avail for TT dimers (ex) • Have (more) other mature cells that can maintain homeostasis in organism • BUT -- if mispaired bases during repl'n  mutation in daughter cell (and her subsequent daughters)

  43. Definitions • Lesion = unrepaired DNA damage • Mammalian cell prod's > 104 lesions/day • Mutation = permanent change in nucleotide seq • Can be replicated during cell division • Results if DNA polymerase proofreading fails • May occur in unimpt region = Silent Mutation • Doesn't effect health of organism

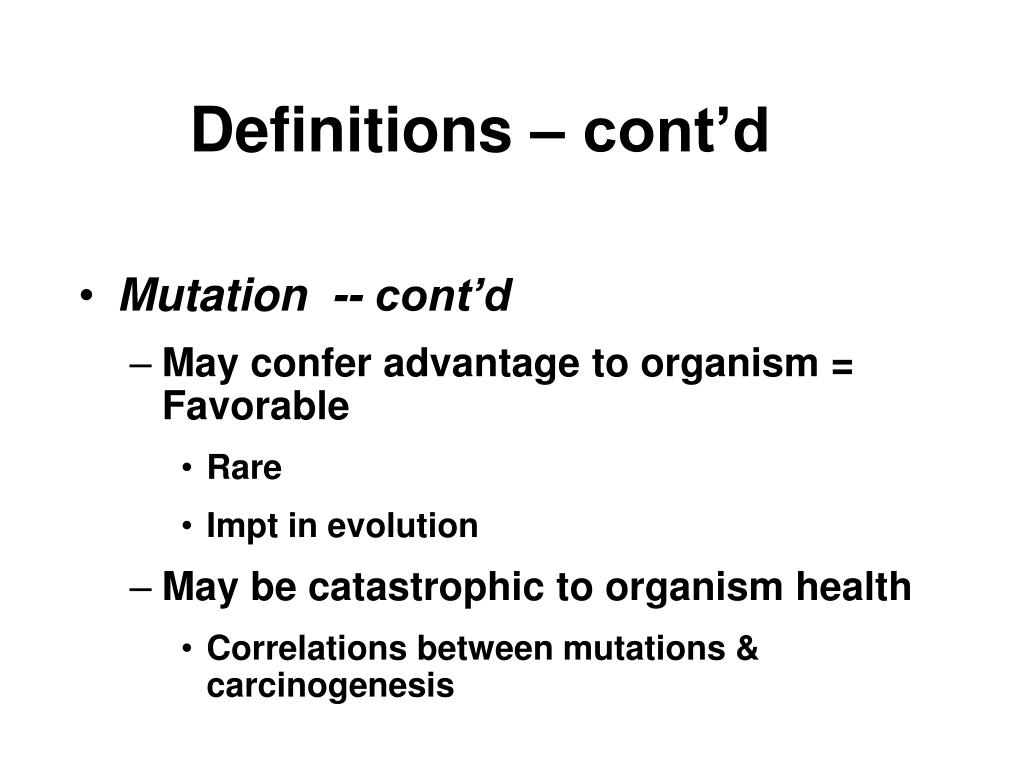

  44. Definitions – cont’d • Mutation -- cont’d • May confer advantage to organism = Favorable • Rare • Impt in evolution • May be catastrophic to organism health • Correlations between mutations & carcinogenesis

  45. DNA Repair • Cell has biochem mech's to repair damage to DNA • Though 104 lesions/day, mutations < 1/1,000 bp's • If repair mech's defective  disease/dysfunction • Ex: xeroderma pigmentosum • UV light  DNA lesions • No repair mech •  Skin cancers • Repair mech ex: base excision repair • Takes advantage of complementarity of strands

  46. Base Excision Repair • N-Glycosylases • Cleave N-glycosyl bonds • What parts of nucleic acid are joined by N-glycosyl bonds? • Several specific N-glycosylases • Each recognizes a common DNA lesion • Common -- bases altered by deamination events • Yields apurinic or apyrimidinic (AP) site

  47. Excision Repair – cont’d • Uracil Glycosylase -- ex • Deamination of cytosine  uracil (improper) • Enz recognizes, cleaves ONLY U in DNA • Not U in RNA • Not T in DNA •  AP site on DNA (25-22) • Would this be apurinic or apyrimidinic? • Leaves behind sugar-phosphate of original nucleotide

  48. Excision Repair – cont’d • Then other enz's (AP endonucleases) cleave several bases of mutated strand around AP site • Then DNA polymerase I catalyzes polymerization of proper nucleotides at site • Then DNA ligase seals nicks on sugar-phosphate backbone

  49. Fig.25-22
