Rear wing
Rear Wing

Pressure distribution around a

two element rear wing design

for a hill climb/sprint car.

Half scale wind tunnel data

was available for lift & drag…

Lift = 148N

Drag = 24N

PHOENICS results using the

same half scale dimensions…

Lift = 139N

Drag = 23N

Data courtesy of Simon McBeath

And the Wing Shop.


Rear wing1
Rear Wing

Time coloured stream-lines

to aid flow visualisation.

Stream-lines can also be

animated to show the movement of air.


Rear wing2
Rear Wing

Frontal view of stream-lines showing the generation of wing tip vortices.


Rear wing3
Rear Wing

Pressure contour across the middle of the wing. This can be toggled to show velocity.


Front wing
Front Wing

Velocity contour across the middle of the wing. This can be toggled to show pressure.


Front wing1
Front Wing

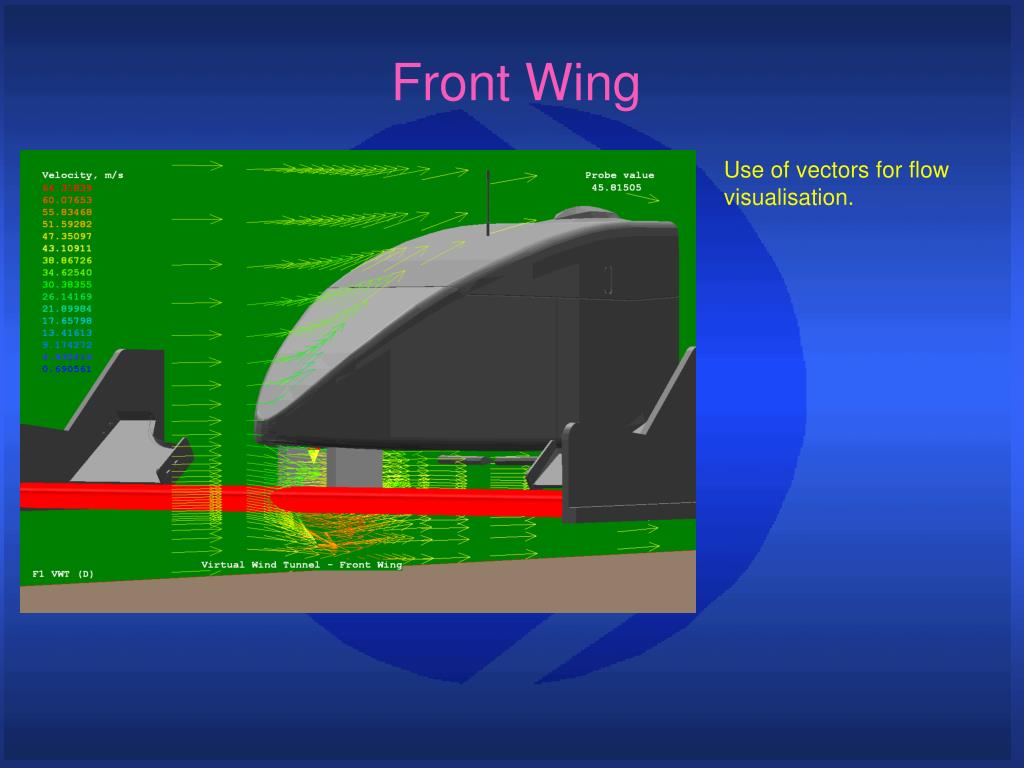

Use of vectors for flow visualisation.


END
