  1. Click to buy Test examples Fridge Sandwich maker Kettle #1 Iron Kettle #2 Air Conditioner Fax machine Electric Fan Toaster AC adaptor First Stop Safety

  2. Click to buy Fridge, Class I metal • Class I metal (no double box on rating plate) • Fuse 13A (stated on rating plate) • Plug in, and connect test lead to earth point • Switch ON Fridge and press Class I button • Check that Earth Continuity & Insulation Resistance is a Pass First Stop Safety

  3. Click to buy Kettle #1, Class I metal • Class I metal (no double box on rating plate) • Fuse 13A (3000W rated) • Plug in, and connect test lead to earth point • Switch ON Kettle and press Class I button • Check that Earth Continuity & Insulation Resistance is a Pass First Stop Safety

  4. Click to buy Kettle #2, Class I metal • Class I metal (no double box on rating plate) • Fuse 13A (2200W rated) • Plug in, and connect test lead to earth point • Switch ON Kettle and press Class I button • Check that Earth Continuity & Insulation Resistance is a Pass First Stop Safety

  5. Click to buy Fax Machine, Class I metal • Class I metal (no double box on rating plate) • Fuse 5A (Rating plate says 3.9A) • Plug in, and connect test lead to earth point • Switch ON Lamp and press Class I button • Check that Earth Continuity & Insulation Resistance is a Pass First Stop Safety

  6. Click to buy Toaster, Class I metal • Class I metal (no double box on rating plate) • Fuse 13A (800W rated) • Plug in, and connect test lead to earth point • Switch ON Toaster and press Class I button • Check that Earth Continuity & Insulation Resistance is a Pass First Stop Safety

  7. Click to buy Sandwich maker, Class I metal • Class I metal (no double box on rating plate) • Fuse 13A (700W rated) • Plug in, and connect test lead to earth point • Switch ON Sandwich maker and press Class I button • Check that Earth Continuity & Insulation Resistance is a Pass First Stop Safety

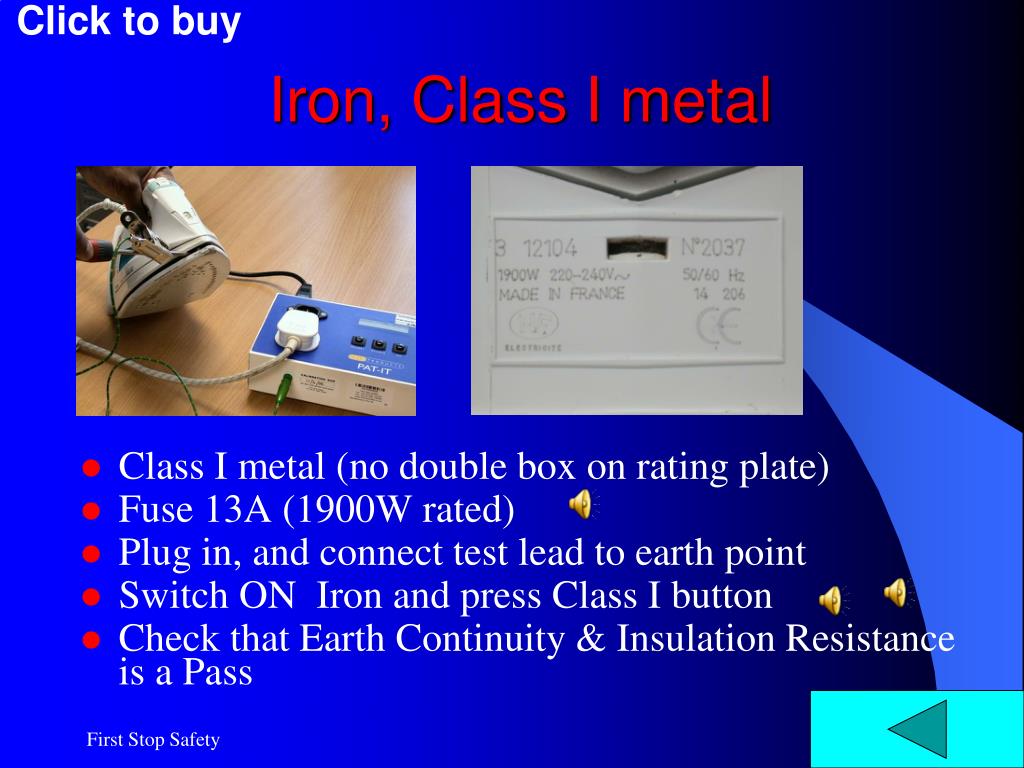

  8. Click to buy Iron, Class I metal • Class I metal (no double box on rating plate) • Fuse 13A (1900W rated) • Plug in, and connect test lead to earth point • Switch ON Iron and press Class I button • Check that Earth Continuity & Insulation Resistance is a Pass First Stop Safety

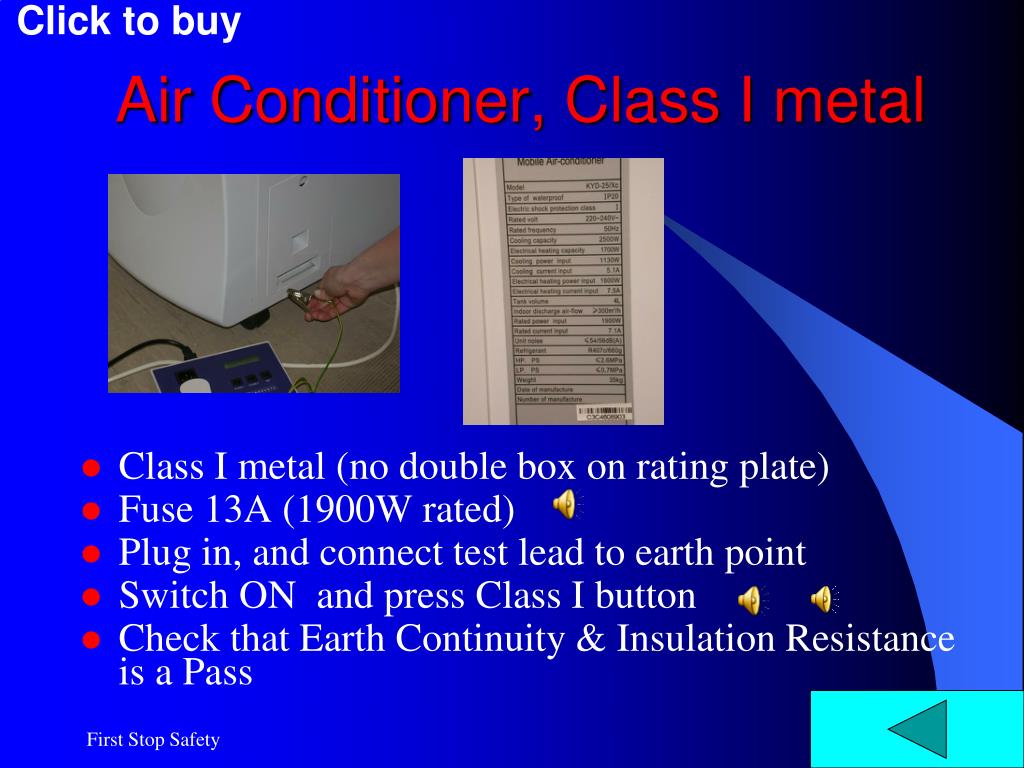

  9. Click to buy Air Conditioner, Class I metal • Class I metal (no double box on rating plate) • Fuse 13A (1900W rated) • Plug in, and connect test lead to earth point • Switch ON and press Class I button • Check that Earth Continuity & Insulation Resistance is a Pass First Stop Safety

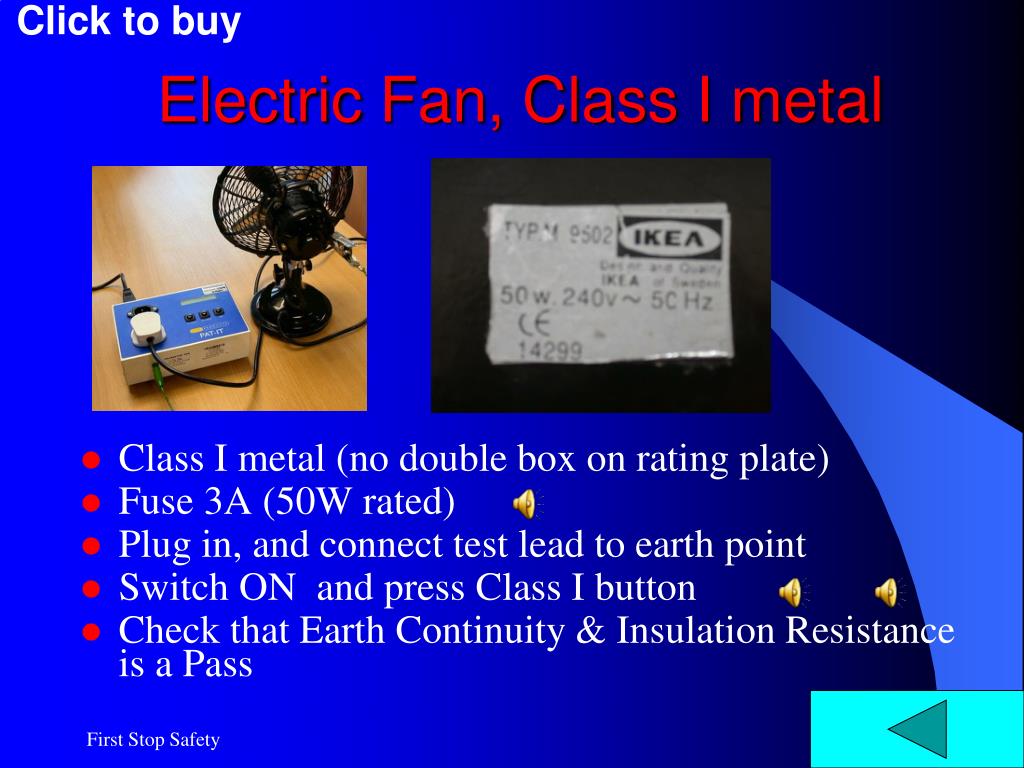

  10. Click to buy Electric Fan, Class I metal • Class I metal (no double box on rating plate) • Fuse 3A (50W rated) • Plug in, and connect test lead to earth point • Switch ON and press Class I button • Check that Earth Continuity & Insulation Resistance is a Pass First Stop Safety

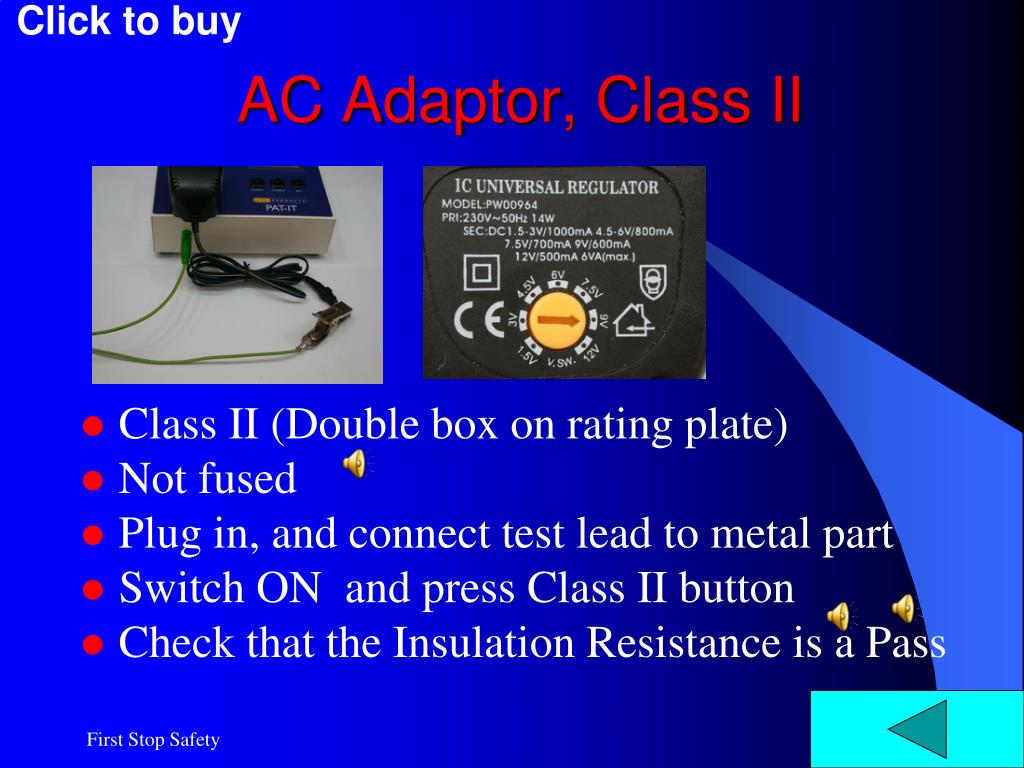

  11. Click to buy AC Adaptor, Class II • Class II (Double box on rating plate) • Not fused • Plug in, and connect test lead to metal part • Switch ON and press Class II button • Check that the Insulation Resistance is a Pass First Stop Safety
