  1. Statistical MIMO Radar Rick S. Blum ECE Department Lehigh University Collaborative Research with: Eran Fishler/NJIT Alex Haimovich/NJIT Dmitry Chizhik/Bell Labs Len Cimini/U. Del. Reinaldo Valenzuela/Bell Labs

  2. Overview • MIMO radar with angular diversity • MIMO radar channel • Spatial Resolution Gain • Diversity gain • Numerical results • Extensions – space-time code • Radar Information Theory (time permitting) • Conclusions

  3. Motivation • Radar targets provide a rich scattering environment. • Conventional radars experience target fluctuations of 5-25 dB. • Slow RCS fluctuations (Swerling I model) cause long fades in target RCS, degrading radar performance. • MIMO radar exploits the angular spread of the target backscatter in a variety of ways to extend the radar’s performance envelope. Backscatter as a function of azimuth angle, 10-cm wavelength [Skolnik 2003].

  4. Traditional Beamformer • A typical array radar is composed of many closely spaced antennas. • The performance of radar systems is limited by target RCS fluctuations, which are considered as unavoidable loss. • The common belief is that radar systems should maximize the received signal energy. This is made possible by the high correlation between the signals at the array elements. • Beamformermode: • Copy waveform

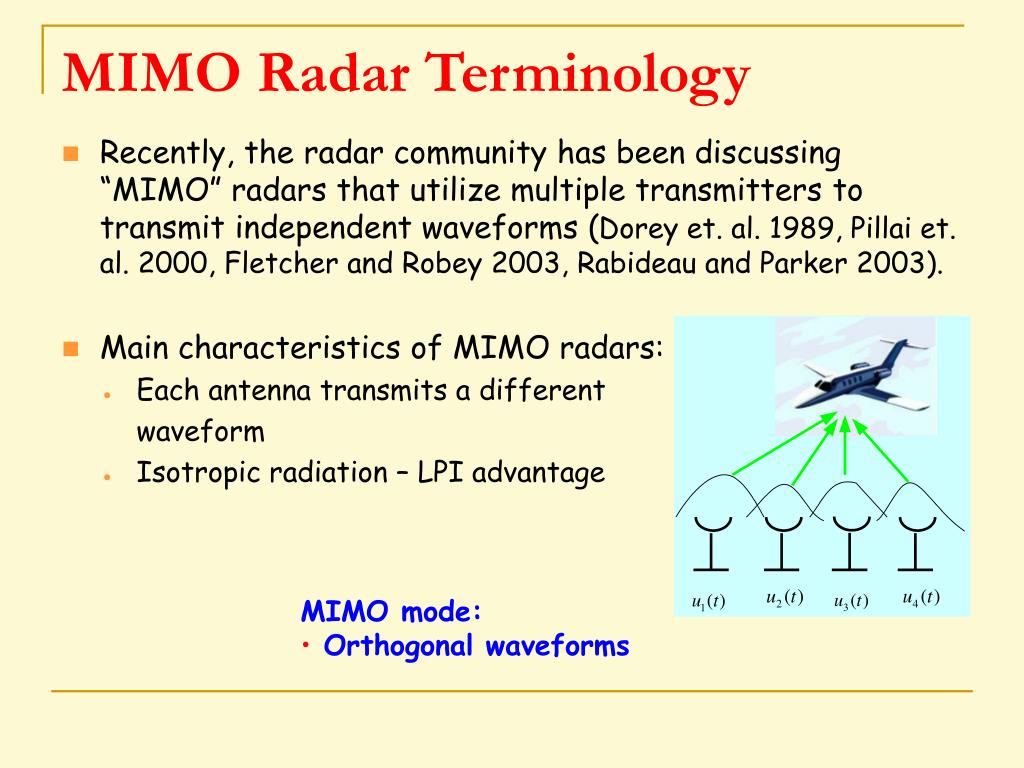

  5. MIMO Radar Terminology • Recently, the radar community has been discussing “MIMO” radars that utilize multiple transmitters to transmit independent waveforms (Dorey et. al. 1989, Pillai et. al. 2000, Fletcher and Robey 2003, Rabideau and Parker 2003). • Main characteristics of MIMO radars: • Each antenna transmits a different waveform • Isotropic radiation – LPI advantage • MIMO mode: • Orthogonal waveforms

  6. MIMO with Angular Diversity Angular spread- a measure of the variability of the signals received across the array. A high angular spread implies low correlation between target backscatter • MIMO mode: • Exploit angular spread • Orthogonal waveforms

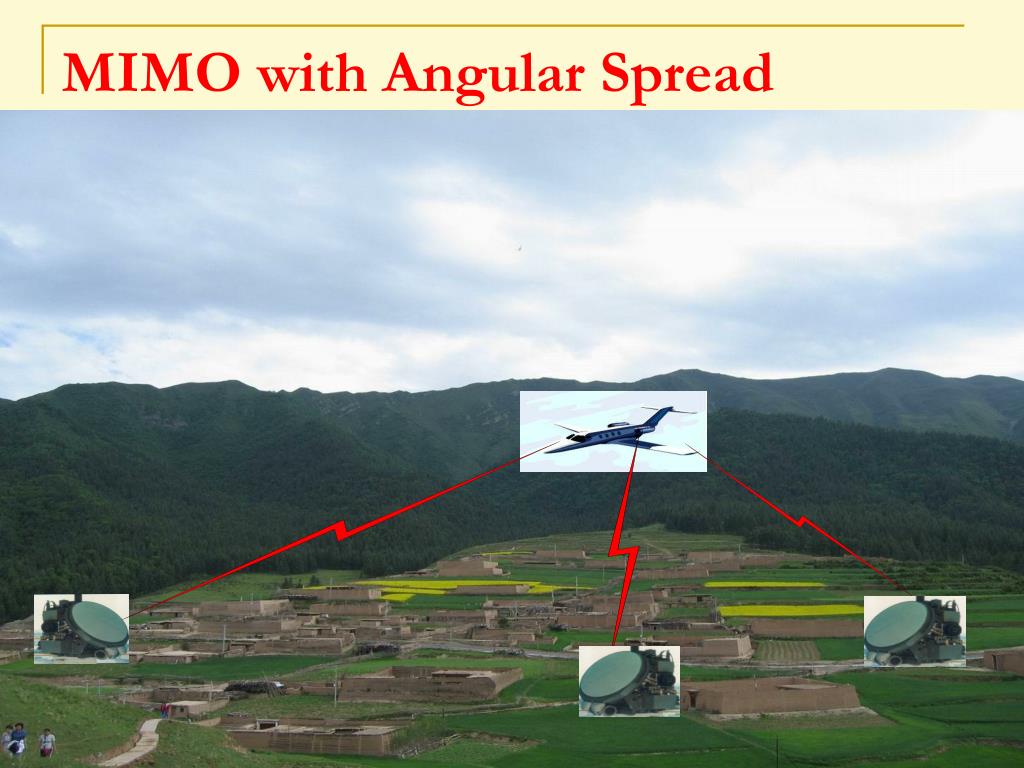

  7. MIMO with Angular Spread

  8. The Radar MIMO Concept • With MIMO radar, many "independent" radars collaborate to average out target fluctuations, while maintaining the ability to detect target (measure range, AOA). • MIMO radar offers the potential for significant gains: • Detection/estimation performance through diversity gain • Resolution performance through spatial resolution gain • A first step to a cooperative radar network.

  9. Signal Model • Point source assumption dominates current models used in radar theory. • This model is not adequate for an array of sensors with large spacing between array elements. • Distributed target model Many random scatterers

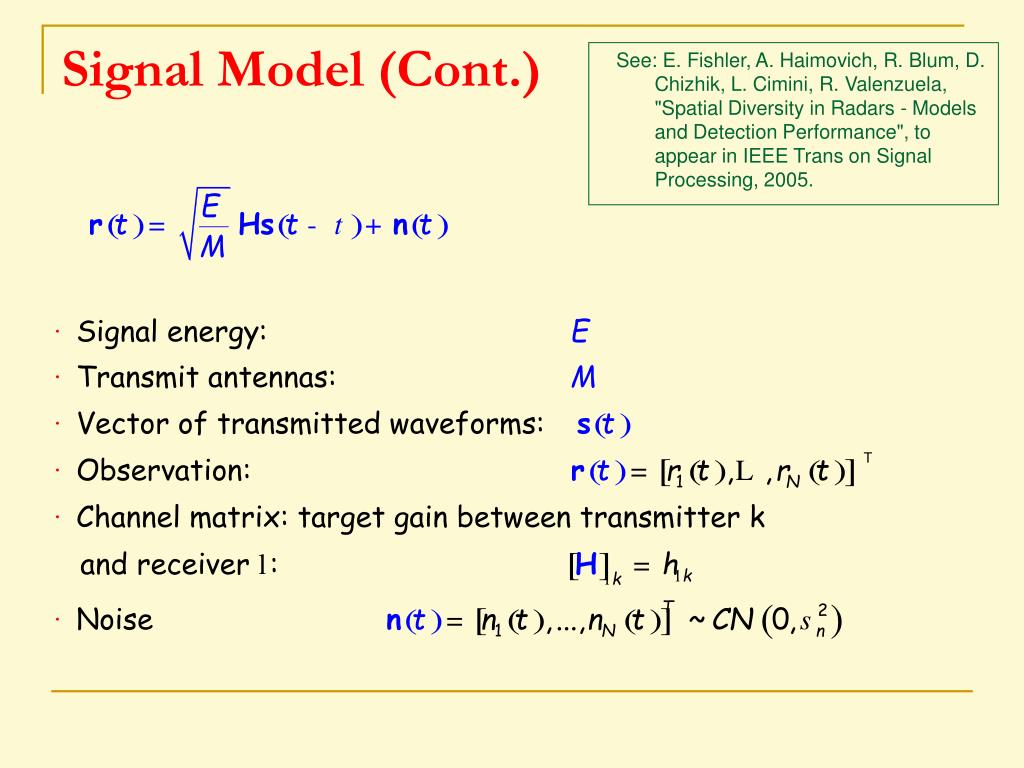

  10. Signal Model (Cont.) See: E. Fishler, A. Haimovich, R. Blum, D. Chizhik, L. Cimini, R. Valenzuela, "Spatial Diversity in Radars - Models and Detection Performance", to appear in IEEE Trans on Signal Processing, 2005. T

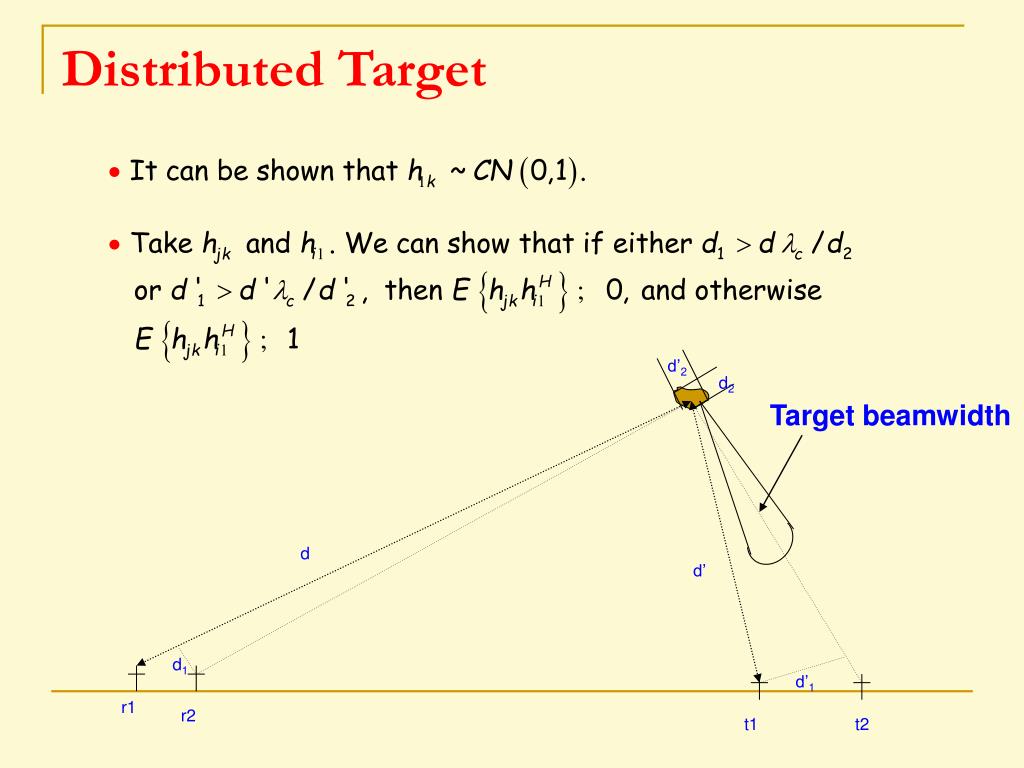

  11. Distributed Target d’2 d2 Target beamwidth d d’ d1 d’1 r1 r2 t1 t2

  12. Channel Matrix

  13. Spatial Resolution Gain • The rank of the channel matrix can be used to determine the number of dominant scatterers or the number of targets in the range resolution cell. • With suitable processing, this property of MIMO radar can be applied to enhance radar resolution by allowing the measurement of one scatterer at a time.

  14. Radar Detection Problem

  15. Detection with MIMO Radar

  16. UMP Test

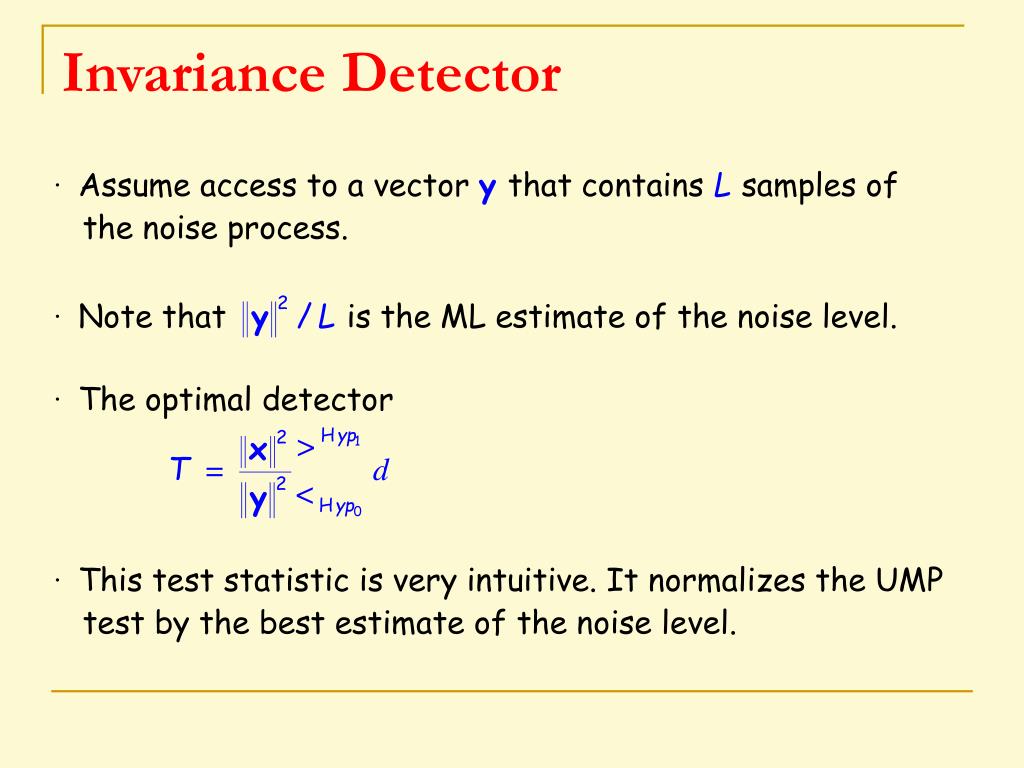

  17. Invariance Detector

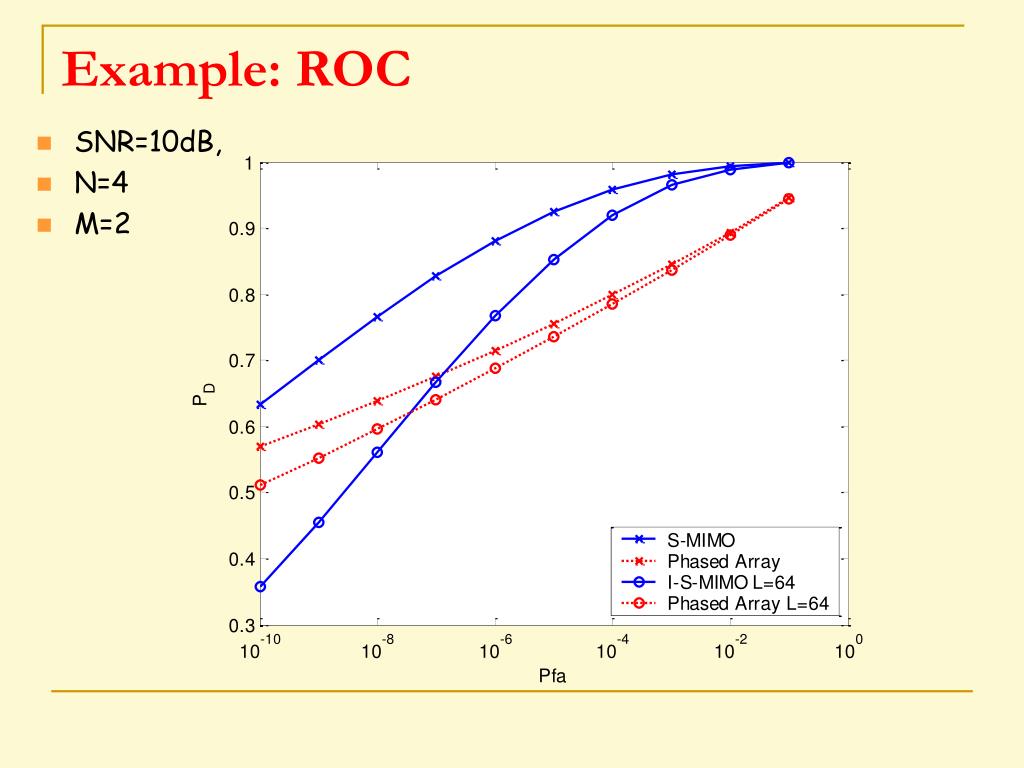

  18. Example: ROC • SNR=10dB, • N=4 • M=2

  19. Miss Probability • Probability of missed detections, M=2. • MIMO Diversity (red): MIMO is used to enhance SNR. • Beamforming (blue): isotropic transmission (MIMO mode), beamforming on receive.

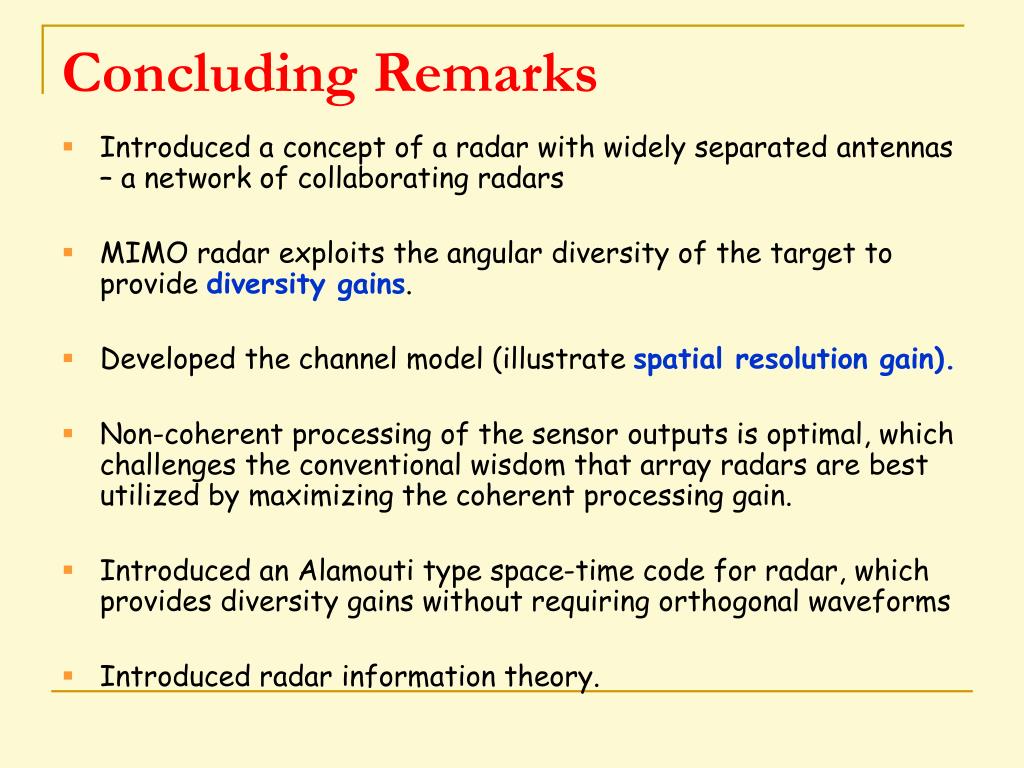

  20. Concluding Remarks • Introduced a concept of a radar with widely separated antennas – a network of collaborating radars • MIMO radar exploits the angular diversity of the target to provide diversity gains. • Developed the channel model (illustrate spatial resolution gain). • Non-coherent processing of the sensor outputs is optimal, which challenges the conventional wisdom that array radars are best utilized by maximizing the coherent processing gain. • Introduced an Alamouti type space-time code for radar, which provides diversity gains without requiring orthogonal waveforms • Introduced radar information theory.

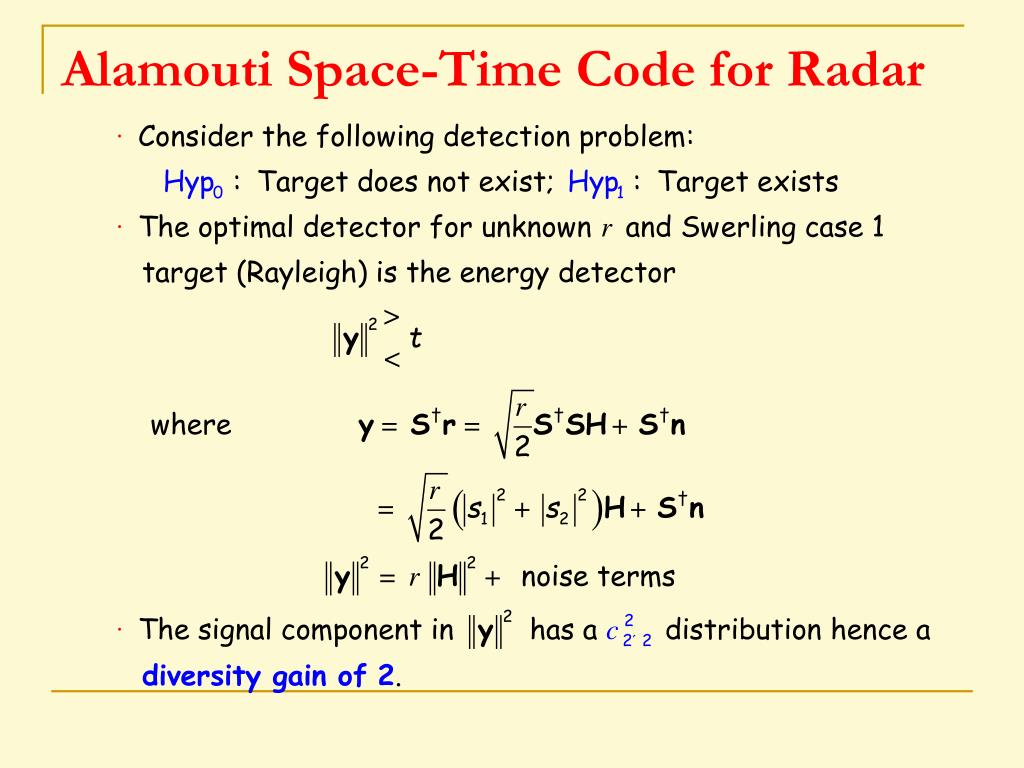

  21. Alamouti Space-Time Code for Radar

  22. Alamouti Space-Time Code for Radar

  23. Radar Information Theory • A fundamental approach to radar design and analysis • After initial breakthroughs by Davies and Woodwardat the time when Shannon theory was published, the field has been laying dormant. • In contrast, communication information theory has been an active and productive field leading to many breakthroughs in communications including MIMO. • We will show that radar IT: • Unifies seemingly disparate concepts • Provides insight into trade-offs among radar parameters • Guides radar design • May help us draw from the rich experience gained with comm IT.

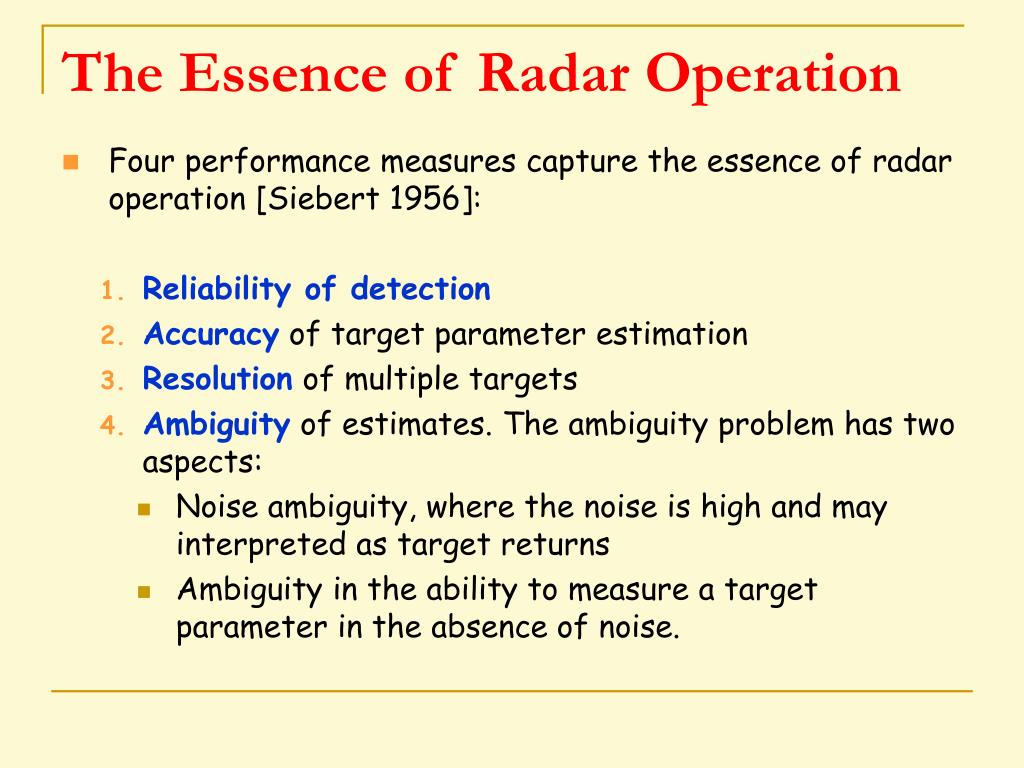

  24. The Essence of Radar Operation • Four performance measures capture the essence of radar operation [Siebert 1956]: • Reliability of detection • Accuracy of target parameter estimation • Resolution of multiple targets • Ambiguity of estimates. The ambiguity problem has two aspects: • Noise ambiguity, where the noise is high and may interpreted as target returns • Ambiguity in the ability to measure a target parameter in the absence of noise.

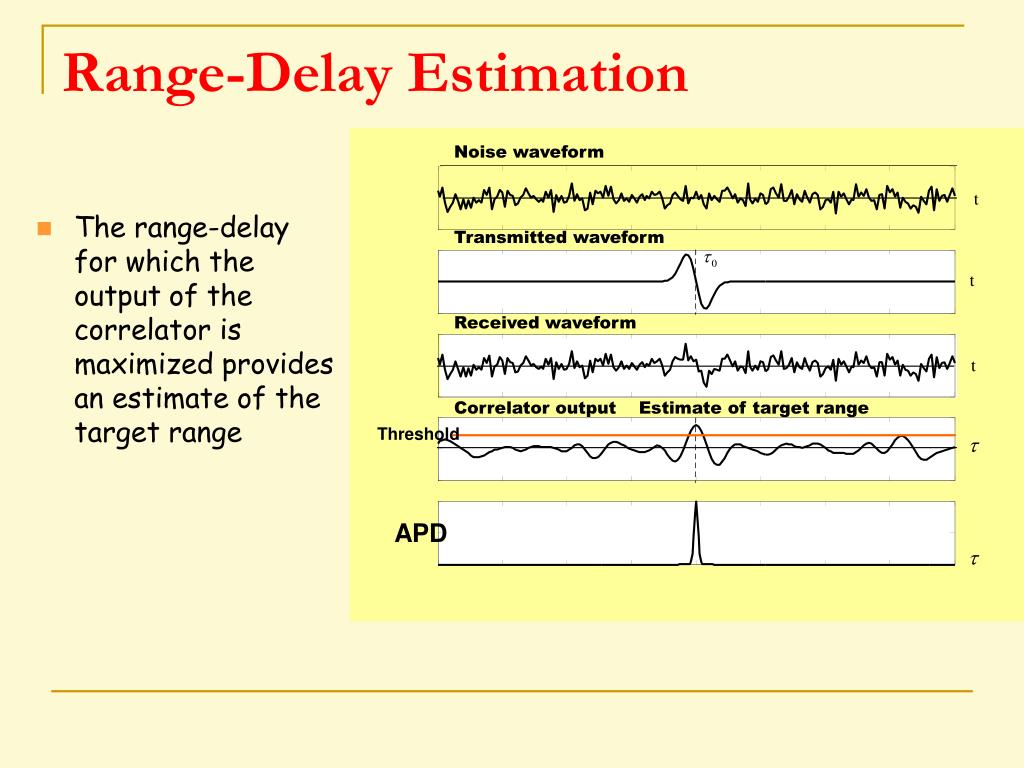

  25. Range-Delay Estimation Noisewaveform • The range-delay for which the output of the correlator is maximized provides an estimate of the target range Transmitted waveform Received waveform Correlator output Estimate of target range Threshold APD

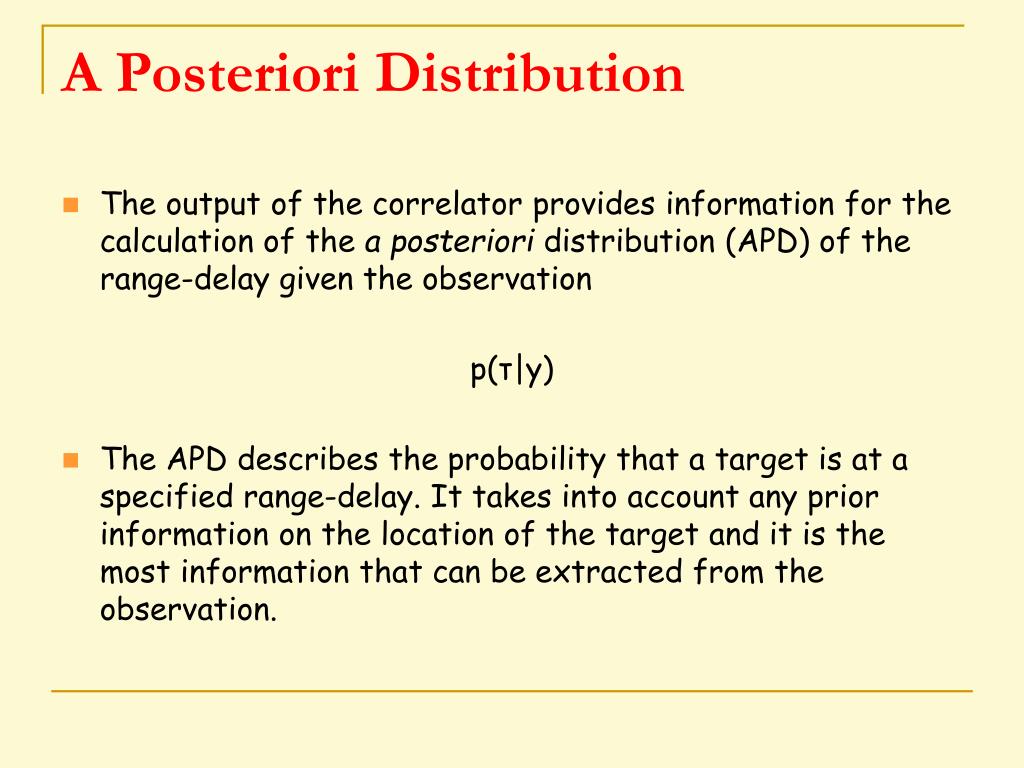

  26. A Posteriori Distribution • The output of the correlator provides information for the calculation of the a posteriori distribution (APD) of the range-delay given the observation p(τ|y) • The APD describes the probability that a target is at a specified range-delay. It takes into account any prior information on the location of the target and it is the most information that can be extracted from the observation.

  27. What Can We Learn from the APD? • Woodward (1952) has shown that the variance of the APD at the target’s range-delay is given by στ2 = 1/(β2ρ) β = bandwidth, ρ = SNR. • This variance is a measure of the accuracy of the range-delay estimation. • The expression reflects a power-bandwidthexchange: a deficit in each is compensated by increasing the other.

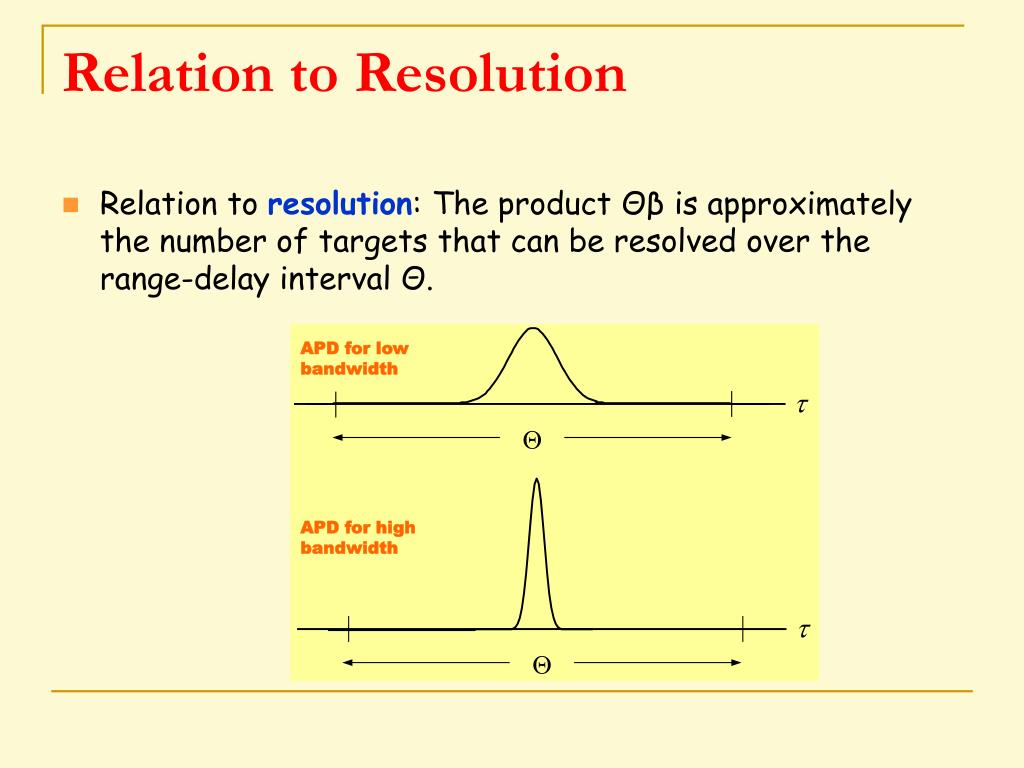

  28. Relation to Resolution • Relation to resolution: The product Θβ is approximately the number of targets that can be resolved over the range-delay interval Θ. APD for low bandwidth APD for high bandwidth

  29. Relation to Noise Ambiguity • Relation to ambiguity: At low-SNR and high bandwidth β, there are higher chances that noise might "pop up." • As the SNR increases, the noise peaks diminish in size compared to the target peak and the system transitions to a regime where true power-bandwidth exchange can take place.

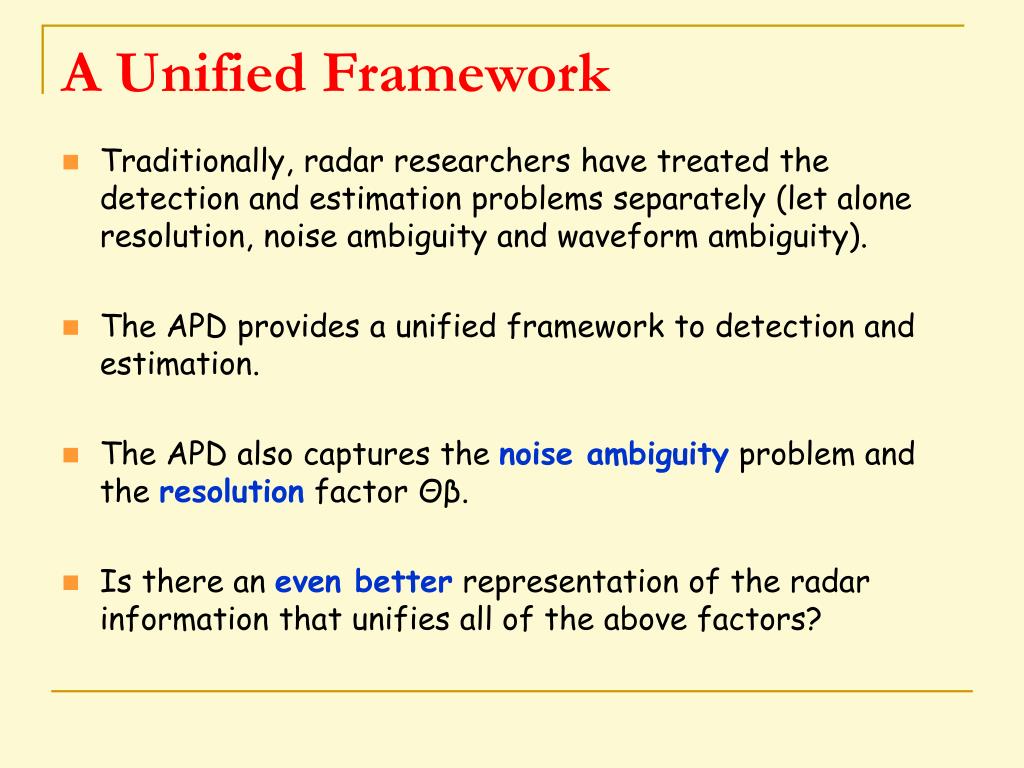

  30. A Unified Framework • Traditionally, radar researchers have treated the detection and estimation problems separately (let alone resolution, noise ambiguity and waveform ambiguity). • The APD provides a unified framework to detection and estimation. • The APD also captures the noise ambiguity problem and the resolution factor Θβ. • Is there an even better representation of the radar information that unifies all of the above factors?

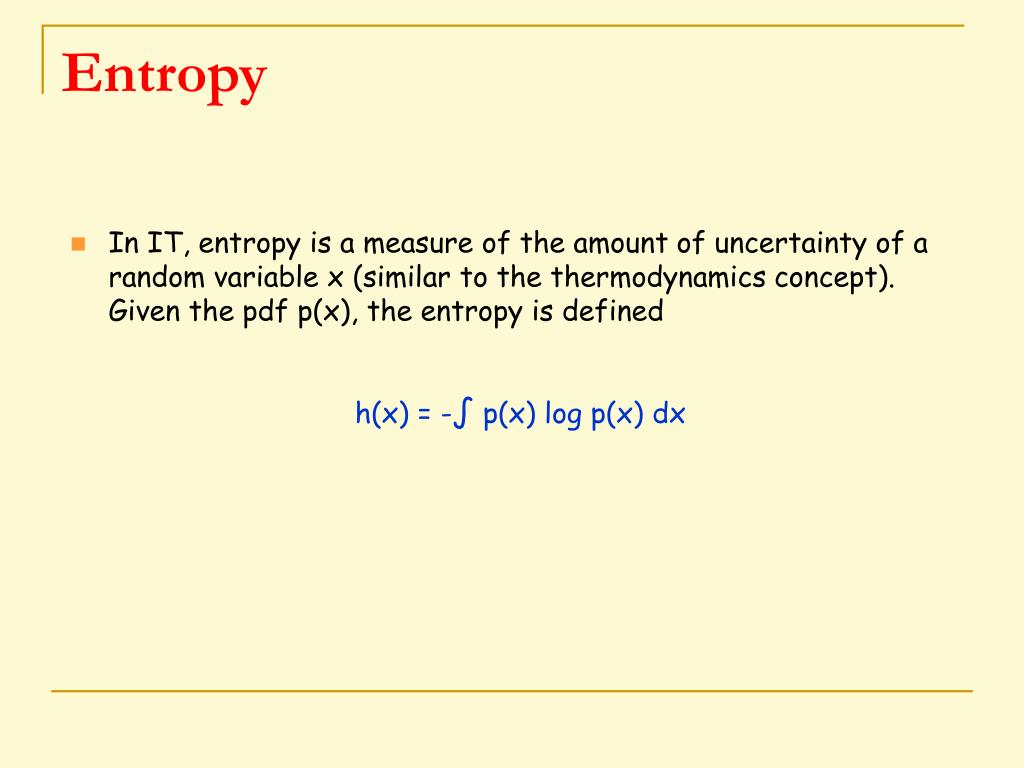

  31. Entropy • In IT, entropy is a measure of the amount of uncertainty of a random variable x (similar to the thermodynamics concept). Given the pdf p(x), the entropy is defined h(x) = -∫ p(x) log p(x) dx

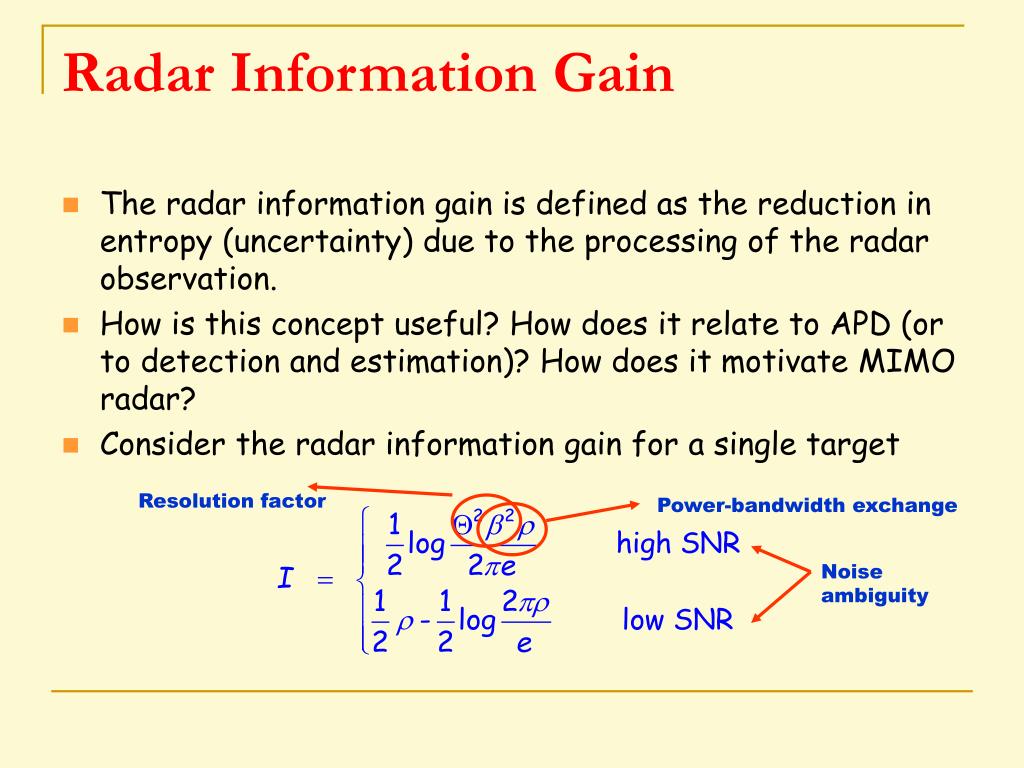

  32. Radar Information Gain • The radar information gain is defined as the reduction in entropy (uncertainty) due to the processing of the radar observation. • How is this concept useful? How does it relate to APD (or to detection and estimation)? How does it motivate MIMO radar? • Consider the radar information gain for a single target Resolution factor Power-bandwidthexchange Noise ambiguity

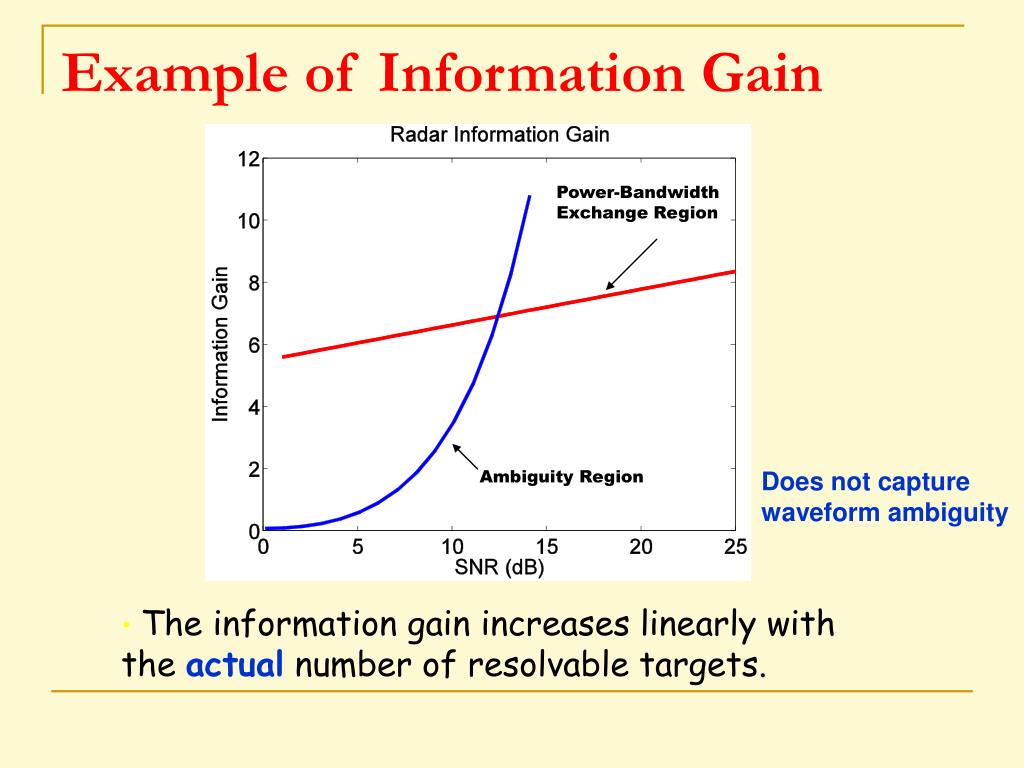

  33. Example of Information Gain Power-Bandwidth Exchange Region Does not capture waveform ambiguity Ambiguity Region • The information gain increases linearly with the actual number of resolvable targets.

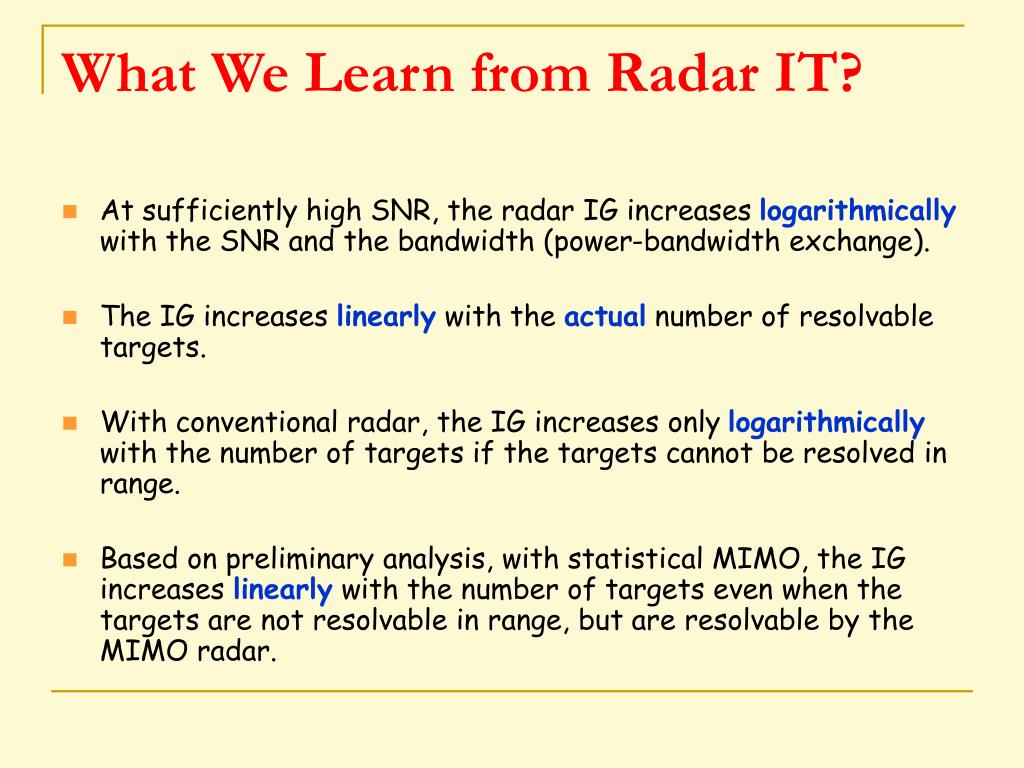

  34. What We Learn from Radar IT? • At sufficiently high SNR, the radar IG increases logarithmically with the SNR and the bandwidth (power-bandwidth exchange). • The IG increases linearly with the actual number of resolvable targets. • With conventional radar, the IG increases only logarithmicallywith the number of targets if the targets cannot be resolved in range. • Based on preliminary analysis, with statistical MIMO, the IG increases linearly with the number of targets even when the targets are not resolvable in range, but are resolvable by the MIMO radar.
