Presentation Transcript


Measures of association

Measures of Association

Categorical Variables


Today we will discuss

Today we will discuss

  • Purpose of Measures of Association with Categorical Variables

  • Different Measures of Association

    • When to use

    • How to calculate

    • How to interpret

  • The Different Measures of Association

    • Lambda

    • Yule’s Q

    • Goodman and Kruskal’s Gamma

    • Chi Square


Purpose of measures

Purpose of Measures

  • To determine the strength and sometimes the direction of relationship between variables.

  • Choice of Measures May Depend on

    • Level of measurement

    • Number of categories in variables

    • What you want to know about the relationship between the variables


Lambda

Lambda

  • Used with nominal level variables

  • Based on Proportionate Reduction in Error (PRE)

    • How much error would be reduced in predicting the distribution of the DV, if knew the distribution of IV compared to error if have no knowledge about IV.

  • Interpreting Lambda

    • Ranges from 0-1

    • 0 means no reduction in error

    • 1 means totally reduce PRE if knew IV distribution

    • Most scores are in between range of 0-1, a .30 or better is a good association.


Calculating lambda

Calculating Lambda

  • Information Needed

    • Number of errors knowing distribution of DV only

    • Number of fewer errors knowing the distribution of DV within categories of IV

  • To calculate

    • Lambda=item (2) above/ item (1) above


Yule s q

Yule’s Q

  • Use in a 2x2 Table

  • Indicates strength and direction of association between variables

  • Interpreting Yule’s Q

    • Range for positive association (+0.01) to (+1.00)

    • Range for negative association (-0.01) to (-1.00)

    • A zero indicates no association

    • SEE Box on page 401 of Baker to Interpret in words


Calculating yule s q

Calculating Yule’s Q

Arranging Categories of Tables

For Ordinal Variables arrange as follows:

Yule’s Q= ad-bc/ad+bc


Goodman and kruskal s gamma

Goodman and Kruskal’s Gamma

  • Extension of Yule’s Q

  • Used when Table is larger than 2X2

  • Interpreted in the same manner

  • Especially useful with Ordinal Variables

  • Table set-up for ordinal variables

    • Extend the set up for Yule’s Q

      • Columns for IV should go from Hi to Lowest value

      • Rows with DV should go from Hi to lowest value


Chi square

Chi Square

  • Use when variables are nominal or ordinal

  • Most commonly used test of significance

    • Tests of Independence

      • Chi square (2 ) measure if the relationship between the variables differs significantly from the model of independence or chance.

  • Interpretation of (2 )

    • The chances that the observed relationship between the variables would occur by chance.

    • Examine in combination with other measures of association to determine if relationship is statistically significant

    • Does not speak to direction of association or that one causes the other merely that the chances of observing such a value of (2 ) .


Calculating chi square

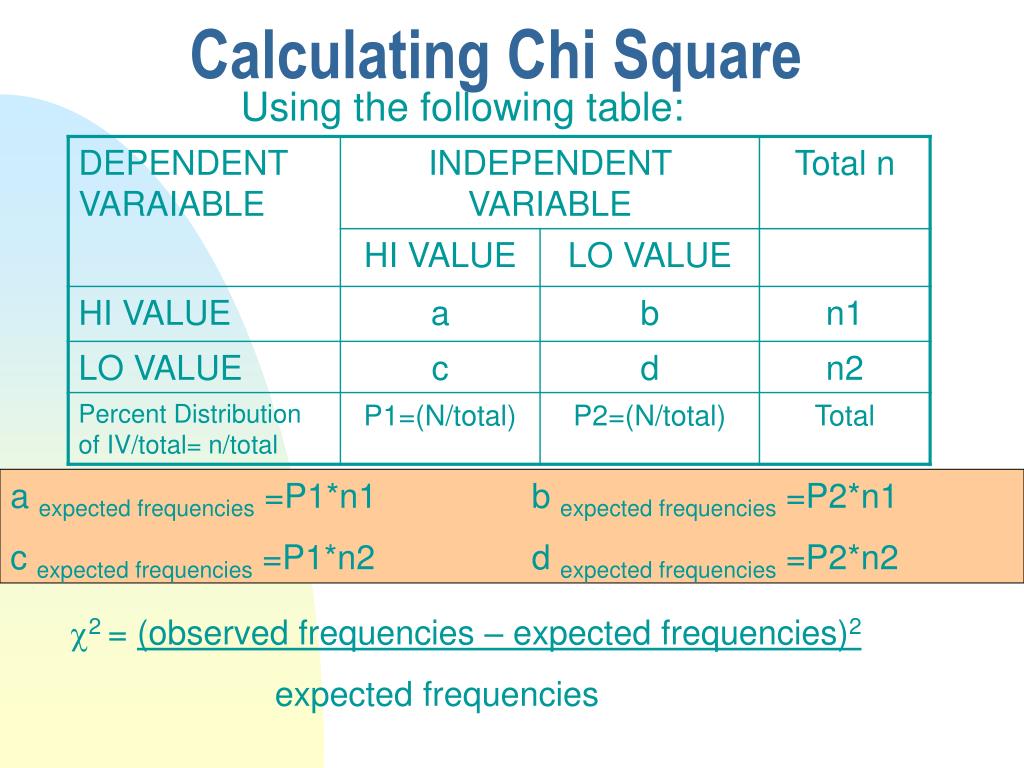

Calculating Chi Square

Using the following table:

a expected frequencies =P1*n1 b expected frequencies =P2*n1

c expected frequencies =P1*n2 d expected frequencies =P2*n2

2 = (observed frequencies – expected frequencies)2

expected frequencies


Significance of chi square

Significance of Chi Square

  • To determine probability that the value of 2 by chance must look it up in a chi square table (see p472 of Baker text)

  • Steps

    • Calculate 2

    • Calculate Degrees of Freedom for Table

      • DF = (r-1)(c-1)

    • Look up in Chi Square table to see the minimum value of 2 must achieve to assure less .05 probability that a chi square of the value you have occurred by chance.


Using spss

Using SPSS

  • All of the measures of association we have discussed are calculated by SPSS

  • Using Frequencies Procedure

    • Go to Crosstab command

    • Check the box with statistics and click on all of the items you wish SPP to calculate
