A Smalltalk Patterns Safari

Brian Foote

The Refactory, Inc.

Smalltalk Patterns Safari


Why patterns l.jpg
Why Patterns?

  • What’s New Here is that Nothing is New Here

  • Patterns are about what works

  • Patterns give us a way to talk about what works

  • Patterns distill experience

  • Patterns give us a pithy design vocabulary

Smalltalk Patterns Safari


Alexander on patterns l.jpg

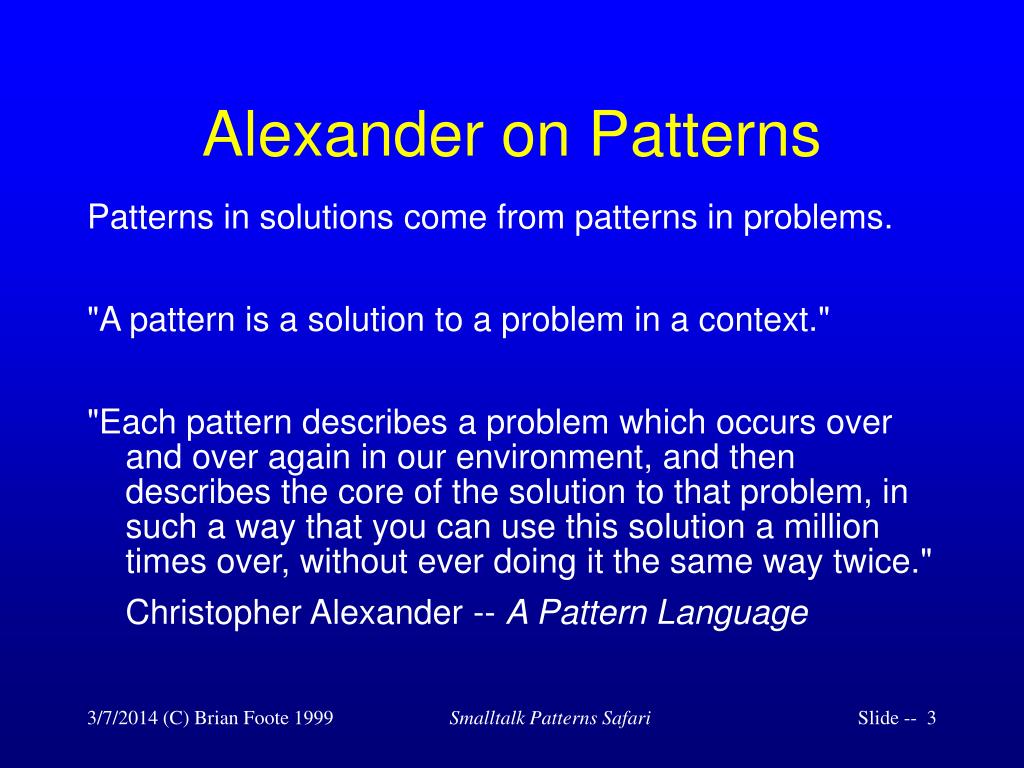

Alexander on Patterns

  • Patterns in solutions come from patterns in problems.

  • "A pattern is a solution to a problem in a context."

  • "Each pattern describes a problem which occurs over and over again in our environment, and then describes the core of the solution to that problem, in such a way that you can use this solution a million times over, without ever doing it the same way twice."

  • Christopher Alexander -- A Pattern Language

Smalltalk Patterns Safari


Why patterns in the wild l.jpg
Why Patterns in the Wild?

  • Learn where to look

  • Learn how to spot ‘em and recognize ‘em

  • See how they evolve

  • Appreciate their history, and our history

  • Understand their ecosystem and interdependence

  • Helps us discern and discover new ones

Smalltalk Patterns Safari


The gang of four the essential field guide l.jpg
The Gang of Four:The Essential Field Guide

  • Design Patterns: Elements of Reusable Object-Oriented Software

  • Erich Gamma, Richard Helm, Ralph Johnson, and John Vlissides

  • Addison Wesley, 1995

  • A landmark book that changed the way programmers think about building object-oriented programs

Smalltalk Patterns Safari


Dr johnson i presume l.jpg
Dr. Johnson, I presume?

  • Great explorers, like Livingstone and Johnson neither necessarily create nor invent, nor, do they even always “discover”

  • Often, their greatest skill is communication...

Smalltalk Patterns Safari


Your guide l.jpg
Your Guide

  • Over Twenty Years in the Bush...

  • Stalking Smalltalk since ‘81… or ‘85… Patterns?

  • An long-time associate of Dr. Johnson...

Smalltalk Patterns Safari


Field guides cont l.jpg
Field Guides (cont.)

  • The Design Patterns Smalltalk Companion

  • Alpert, Brown, and Woolf

  • Addison Wesley, 1998

  • Pattern-Oriented Software Architecture

  • Buschmann, Meunier, Rohnert, Sommerlad, and Stahl

  • Wiley, 1996

  • The Pattern Languages of Program Design Series

  • Volumes 1-4

  • Addison Wesley, 1995-2000

Smalltalk Patterns Safari


Visualworks the image a virtual veldt l.jpg
VisualWorks*The Image: A Virtual Veldt

  • The Cradle of Object-OrientedArchitecture

  • An Olduvai Gorge Teeming with Patterns

Smalltalk Patterns Safari


Gof design patterns l.jpg
GoF Design Patterns

  • Creational patterns

    • Abstract Factory

    • Builder

    • Factory Method

    • Prototype

    • Singleton

  • Structural patterns

    • Adapter

    • Bridge

    • Composite

    • Decorator

    • Facade

    • Flyweight

    • Proxy

  • Behavioral Patterns

    • Chain of Responsibility

    • Command

    • Interpreter

    • Iterator

    • Mediator

    • Memento

    • Observer

    • State

    • Strategy

    • Template Method

    • Visitor

Smalltalk Patterns Safari


The big five l.jpg
The Big Five

  • Lion

  • Leopard

  • Elephant

  • Buffalo

  • Rhino

  • Composite

  • Proxy

  • Strategy

  • Observer

  • Visitor

Smalltalk Patterns Safari


Objects within objects l.jpg
Objects within Objects

Smalltalk Patterns Safari


Composite l.jpg
Composite

  • Context:

    • Developing OO software

  • Problem:

    • Complex part-whole hierarchy has lots of similar classes.

      • Example: document, chapter, section, paragraph.

  • Forces

    • • simplicity -- treat composition of parts like a part

    • • power -- create new kind of part by composing existing ones

    • • safety -- no special cases, treat everything the same

Smalltalk Patterns Safari


Composite14 l.jpg
Composite

  • Idea: make abstract "component" class.

  • Alternative 1: every component has a (possibly empty) set of components.

Component

Children

Chapter

Paragraph

...

Problem: many components have no components

Smalltalk Patterns Safari


Composite15 l.jpg
Composite

Component

Container

Children

Leaf

Composite

  • Composite and Component have the exact same interface.

    • • interface for enumerating children

    • • Component implements Children() by returning empty set

    • • interface for adding/removing children?

Smalltalk Patterns Safari


Composite pattern l.jpg
Composite Pattern

Component

Container

Children

Leaf

Composite

  • Composite and Component have the exact same interface.

    • • interface for enumerating children

    • • Component implements Children() by returning empty set

    • • interface for adding/removing children?

Smalltalk Patterns Safari


Two design alternatives l.jpg
Two Design Alternatives

  • Component does not know what it is a part of.

    • Component can be in many composite.

    • Component can be accessed only through composite.

  • Component knows what it is a part of.

    • Component can be in only one composite.

    • Component can be accessed directly.

Smalltalk Patterns Safari


Component knows its composite l.jpg
Component Knows its Composite

  • Rules when component knows its single composite.

    • A is a part of B if and only if B is the composite of A.

  • Duplicating information is dangerous!

  • Problem: how to ensure that pointers from components to composite and composite to components are consistent.

Smalltalk Patterns Safari


Ensuring consistency l.jpg
Ensuring Consistency

  • The public operations on components and composites are:

    • • Composite can enumerate components.

    • • Component knows its container.

    • • Add/remove a component to/from the composite.

  • The operation to add a component to a composite updates the container of the component. There should be no other way to change the container of a component.

  • Smalltalk does not enforce private methods.

Smalltalk Patterns Safari


Example equipment l.jpg
Example: Equipment

Equipment

weight

  • weight

  • | total |

  • total := 0.

  • self childrenDo: [:each | total := total + each weight].

  • ^total

cost

...

FloppyDisk

CompositeEq.

Smalltalk Patterns Safari


Visualcomponent add l.jpg

VisualComponent>>add:

Smalltalk Patterns Safari


Composite pattern in visualworks l.jpg
Composite Pattern in VisualWorks

VisualComponent

Children

  • Most operations in CompositePart simply iterate over the children and repeat the operation on them.

VisualPart

ComposedText

Container

CompositePart

ListView

Smalltalk Patterns Safari


Compositepart l.jpg
CompositePart

  • addComponent: aVisualComponent

  • self isOpen

  • ifTrue: [ ... ]

  • ifFalse: [components addLast: aVisualComponent.

    • aVisualComponent container: self]

  • displayOn: aGraphicsContext

  • "Display each of the receiver's components."

  • | clipBox |

  • clipBox := aGraphicsContext clippingBounds.

  • components do:

  • [:component |

  • (component intersects: clipBox)

  • ifTrue: [component displayOn: aGraphicsContext copy]]

  • Smalltalk Patterns Safari


    Summary of composite l.jpg
    Summary of Composite

    • Composite is a kind of Component

    • Permits arbitrary hierarchies

    • Add/remove Component from Composite

    • Operations on Composite iterate over Components

    Smalltalk Patterns Safari


    Template method l.jpg
    Template Method

    • As plentiful as sawgrass...

    • Often associated with scavengers

    • e.g. printOn: aString

    Smalltalk Patterns Safari


    Factory method l.jpg
    Factory Method

    • Plentiful in the image...

    • View defaultControllerClass

    • UILookPolicy

    • XxxClass methods

    Smalltalk Patterns Safari


    Abstract factory l.jpg
    Abstract Factory

    Smalltalk Patterns Safari


    Builder l.jpg
    Builder

    • ClassBuilder

    • UI Builders

    Smalltalk Patterns Safari


    Prototype l.jpg
    Prototype

    • This isn’t Self, after all...

    • VisualWorks TextAttributes

    • Look for copy

    • Thinglab, Morphic...

    Smalltalk Patterns Safari


    Singleton l.jpg
    Singleton

    • All the Metaclasses...

    • ProcessScheduler

    • SourceFileManager

    • true, false, nil

    Smalltalk Patterns Safari


    Strategy l.jpg
    Strategy

    • Sundry Policies...

    Smalltalk Patterns Safari


    Observer pattern l.jpg
    Observer Pattern

    • Intent: Define a one-to-many dependency between objects so that when one object changes state, all its dependents are notified and updated automatically.

    observer/dependent

    Observer

    Update

    Subject

    AddDependent RemoveDependent Changed

    LineFigure

    Update

    endPoint

    RectangleFigure

    Smalltalk Patterns Safari


    Iterator l.jpg
    Iterator

    • Provide a way to access the elements of an aggregate object sequentially without exposing its underlying implementation.

    Iterator

    Aggregate

    First()

    Next()

    IsDone()

    CurrentItem()

    CreateIterator()

    ConcreteAggregate

    ConcreteIterator

    CreateIterator()

    Smalltalk Patterns Safari


    Iterator in smalltalk l.jpg
    Iterator in Smalltalk

    • 1) Internal iterator - iterate inside the Iterator

      • easy to use, not as powerful as external iterator

      • works well because of blocks

    • employees do: [:each | each name printOn: aStream]

    • 2) Combine Next() and CurrentItem() (Smalltalk Stream)

    • employeeStream := GeneralMotors employeeStream.

    • [employeeStream atEnd]

    • whileFalse:

    • [employeeStream next name printOn: aStream]

    Smalltalk Patterns Safari


    Proxy l.jpg
    Proxy

    • Provide a surrogate or placeholder for another object to control access to it

      • represent an object in a remote address space

      • create expensive objects on demand

      • check access rights

    • Proxy has same interface as “real subject”, and forwards operations to it

    Smalltalk Patterns Safari


    Proxy36 l.jpg
    Proxy

    Subject

    Client

    request

    ...

    realSubject

    Proxy

    RealSubject

    request

    request

    realSubject request

    Smalltalk Patterns Safari


    Proxy37 l.jpg
    Proxy

    • Remote proxy - first package arguments, then make remote procedure call.

    • Virtual proxy - compute objects, then forward request.

    • Protection proxy - check access rights, then forward request.

    Smalltalk Patterns Safari


    Creating an orphan l.jpg

    Creating an Orphan

    nil subclass: #Future

    instanceVariableNames: ‘semaphore '

    classVariableNames: ‘ '

    poolDictionaries: ' '

    category: ‘Reflection-Examples’

    In VisualWorks, ClassBuilder does the rest. Default implementations of doesNotUnderstand: and class are provided.

    Smalltalk Patterns Safari


    Locating orphans l.jpg

    Locating Orphans

    allBehaviorsDo: aBlock

    "Evaluate the argument, aBlock, for each kind of Behavior in the system (that is, Object and its subclasses,

    plus other classes that have no superclass)."

    Class rootsOfTheWorld do:

    [:cls |

    aBlock value: cls.

    cls allSubclassesDo: aBlock]

    Smalltalk Patterns Safari


    Terminology and taxonomy l.jpg
    Terminology and Taxonomy

    • Is this a Wildebeest?

    • A Gnu?

    • Class: MammaliaOrder: ArtiodactylaFamily: BovidaeGenus species:Connochaetes (flowing beard) taurinus (like a bull) albojubatus (white mane)

    Smalltalk Patterns Safari


    Decorator l.jpg

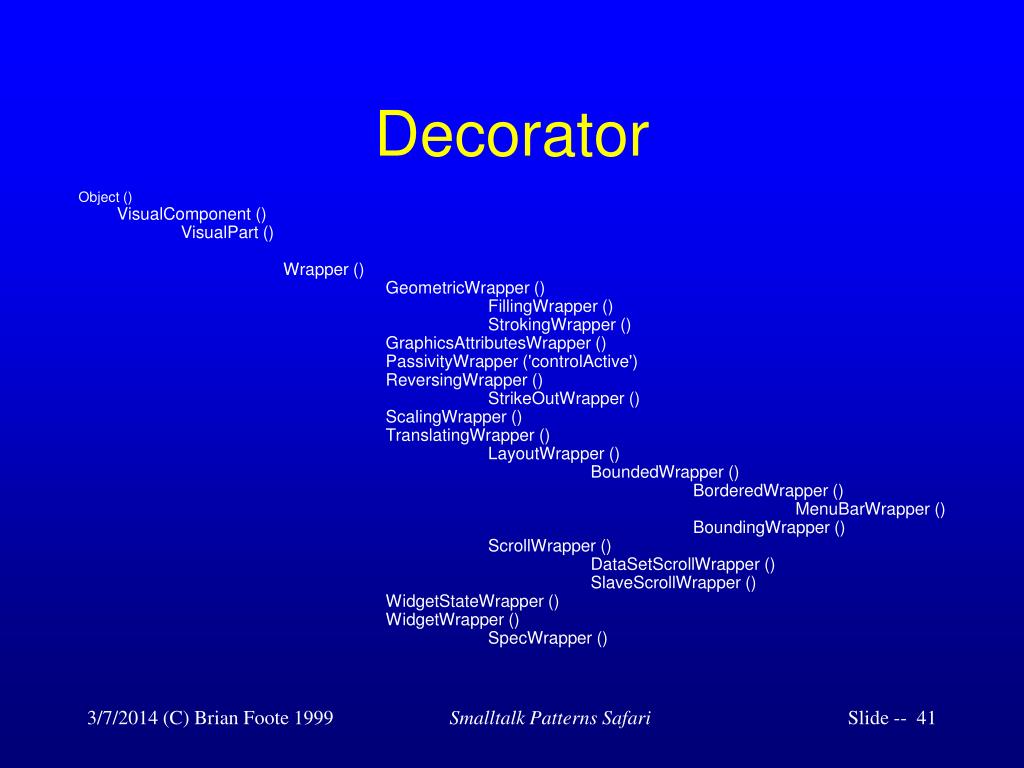

    Decorator

    • Object ()

    • VisualComponent ()

    • VisualPart ()

    • Wrapper ()

    • GeometricWrapper ()

    • FillingWrapper ()

    • StrokingWrapper ()

    • GraphicsAttributesWrapper ()

    • PassivityWrapper ('controlActive')

    • ReversingWrapper ()

    • StrikeOutWrapper ()

    • ScalingWrapper ()

    • TranslatingWrapper ()

    • LayoutWrapper ()

    • BoundedWrapper ()

    • BorderedWrapper ()

    • MenuBarWrapper ()

    • BoundingWrapper ()

    • ScrollWrapper ()

    • DataSetScrollWrapper ()

    • SlaveScrollWrapper ()

    • WidgetStateWrapper ()

    • WidgetWrapper ()

    • SpecWrapper ()

    Smalltalk Patterns Safari


    Adaptor l.jpg
    Adaptor

    • Aspect Adaptor

    • Pluggable Adaptor

    Smalltalk Patterns Safari


    Flyweight l.jpg
    Flyweight

    • Character

    Smalltalk Patterns Safari


    Chain of responsibility l.jpg
    Chain of Responsibility

    • VisualPart

    Smalltalk Patterns Safari


    Command l.jpg
    Command

    • MenuItem

    • Blocks are often used instead in Smalltalk, so this pattern is not as common in its pure form in this environment...

    Smalltalk Patterns Safari

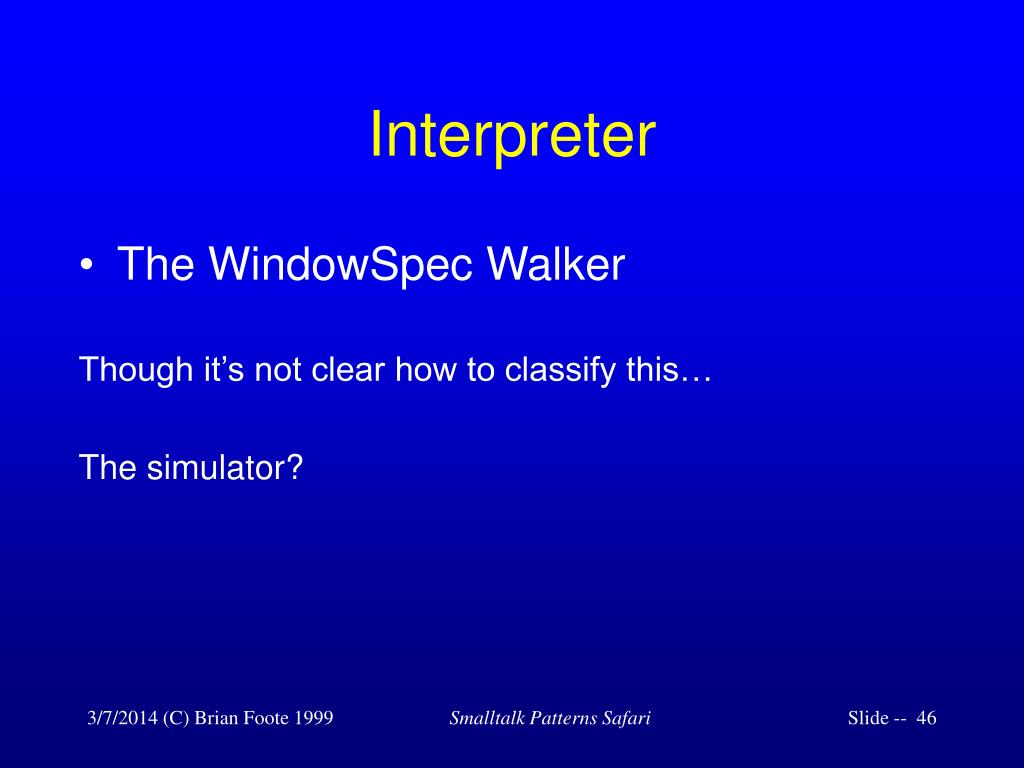

    Interpreter l.jpg
    Interpreter

    • The WindowSpec Walker

    • Though it’s not clear how to classify this…

    • The simulator?

    Smalltalk Patterns Safari


    Observer l.jpg
    Observer

    Smalltalk Patterns Safari


    Parse tree l.jpg

    Parse Tree

    Smalltalk Patterns Safari


    Visitor l.jpg
    Visitor

    • ProgramNodeEnumerator

    • This class provides a framework for recursively processing a program node tree. Program nodes of type <NodeType> should implement

    • nodeDo: anEnumerator

    • ^anEnumerator do<NodeType>: self ...arguments...

    • by analogy with the ProgramNodeBuilder messages

    • new<NodeType>[arguments]

    • The old node is the first argument, so that enumerators can preserve the comment and source information if they wish.

    • To rebuild each non-leaf node, the enumerator sends the message

    • self doNode: <argument>

    • which is implemented by default as

    • doNode: aNode

    • ^aNode nodeDo: self

    Smalltalk Patterns Safari

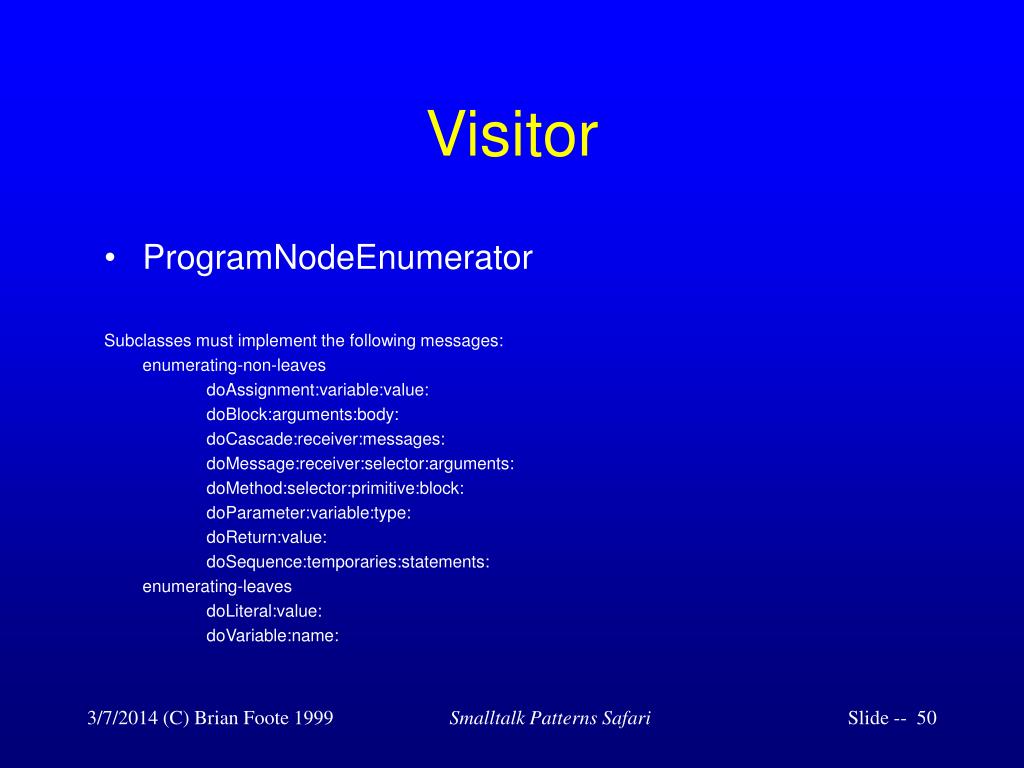

    Visitor50 l.jpg
    Visitor

    • ProgramNodeEnumerator

    • Subclasses must implement the following messages:

    • enumerating-non-leaves

    • doAssignment:variable:value:

    • doBlock:arguments:body:

    • doCascade:receiver:messages:

    • doMessage:receiver:selector:arguments:

    • doMethod:selector:primitive:block:

    • doParameter:variable:type:

    • doReturn:value:

    • doSequence:temporaries:statements:

    • enumerating-leaves

    • doLiteral:value:

    • doVariable:name:

    Smalltalk Patterns Safari


    Programnodeenumerator l.jpg
    ProgramNodeEnumerator

    • ProgramNodeEnumerator is a visitor for the Smalltalk-80 compiler.

    • Smalltalk compiler parse tree hierachy rarely changes.

    • There are lots of potential programs that need to traverse trees:

      • • consistency checkers

      • • program transformation

      • • metrics

    • It makes sense to keep these applications out of the parse tree.

    • Easy to make minor variations on tree walking applications.

    Smalltalk Patterns Safari


    Facade l.jpg
    Facade

    • Rarely seen in the image...

    • Perhaps the Smalltalk Compiler itself qualifies…

    Smalltalk Patterns Safari


    Bridge l.jpg
    Bridge

    • Elusive Quarry

    • Yelland’s paper from OOPSLA ‘96 discusses how Bridges might improve the image...

    Smalltalk Patterns Safari


    State l.jpg
    State

    • Have you seen one?

    Smalltalk Patterns Safari


    Memento l.jpg
    Memento

    • Nocturnal?

    • Seen in applications, like the Refactoring Browser

    • Difficult to find in the image...

    Smalltalk Patterns Safari


    Mediator l.jpg
    Mediator

    • Case can be made for models...

    Smalltalk Patterns Safari


    Gof design patterns57 l.jpg
    GoF Design Patterns

    • Creational patterns

      • Abstract Factory

      • Builder

      • Factory Method

      • Prototype

      • Singleton

    • Structural patterns

      • Adapter

      • Bridge

      • Composite

      • Decorator

      • Facade

      • Flyweight

      • Proxy

    • Behavioral Patterns

      • Chain of Responsibility

      • Command

      • Interpreter

      • Iterator

      • Mediator

      • Memento

      • Observer

      • State

      • Strategy

      • Template Method

      • Visitor

    Smalltalk Patterns Safari


    Bird on patterns l.jpg
    Bird on Patterns

    • Learn the patterns and then forget ‘em

    • -- Charlie Parker

    • http://www.hillside.net

    Smalltalk Patterns Safari


    Conserving infodiversity l.jpg
    Conserving Infodiversity

    • The Image: A Cyberworld Heritage Site

    Smalltalk Patterns Safari


    A victory over entropy l.jpg
    A Victory over Entropy

    • A stunning collective achievement

    • A temple to design

    • Incubator for architecture

    • A pattern hunter’s paradise

    Smalltalk Patterns Safari


    Contact information l.jpg
    Contact Information

    • Brian Foote

    • The Refactory, Inc.

    • 209 W. Iowa

    • Urbana, IL 61801

    • (217) 328-3523

    • http://www.laputan.org (H)

    • http://www.refactory.com (O)

    • [email protected]

    Smalltalk Patterns Safari


    ad
