Presentation Transcript


Smalltalk in a net world

Smalltalk in a .NET World

How to write a Smalltalk compiler without writing a VM

John Brant

[email protected]


Smalltalk

#Smalltalk

  • Open source Smalltalk compiler

  • Complete Source Available

  • Self hosting

  • Compiles Smalltalk directly to .NET executables and libraries


Building smalltalk

Building Smalltalk

  • Virtual Machine

    • .NET Virtual Machine

  • Compiler

    • RB parser

  • Class Library

    • ANSI Standard

  • Development tools (debuggers, browsers, etc.)


What s net anyway

What’s .NET Anyway?

  • Common class library (collections, GUI, sockets, database, etc.)

  • Common virtual machine and byte code instruction set

  • Language isn’t supposed to matter


Why net business reasons

Why .NET?(business reasons)

  • Backed by Microsoft

  • Lots of existing code

  • Allow Smalltalk to be used for applications that “require .NET”


Why net personal reasons

Why .NET?(personal reasons)

  • Build a Smalltalk compiler

  • Make an experimental platform

  • Learn .NET

  • Unemployed


Smalltalk vs net

Smalltalk vs. .NET


Smalltalk vs net ii

Smalltalk vs. .NET II


Dynamic typing

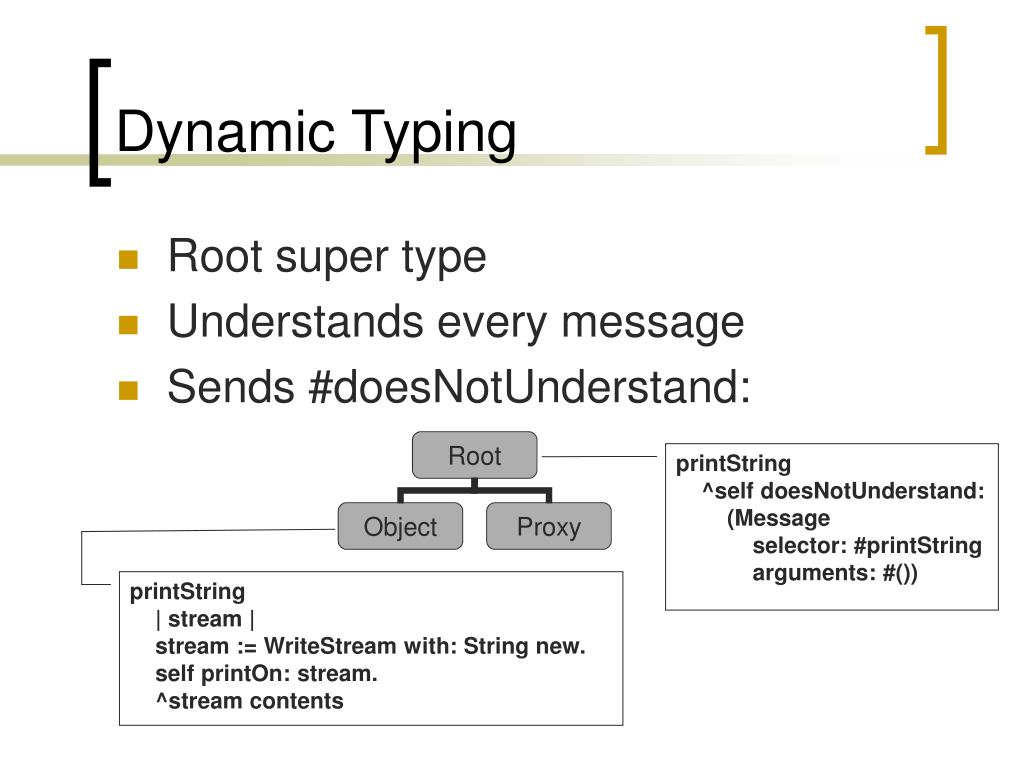

Dynamic Typing

  • Root super type

  • Understands every message

  • Sends #doesNotUnderstand:

printString

^self doesNotUnderstand:

(Message

selector: #printString

arguments: #())

printString

| stream |

stream := WriteStream with: String new.

self printOn: stream.

^stream contents


Null vs nil

method: aBoolean

| temp one |

aBoolean ifTrue: [temp := 5].

one := 1.

^temp + one

temp := nil.

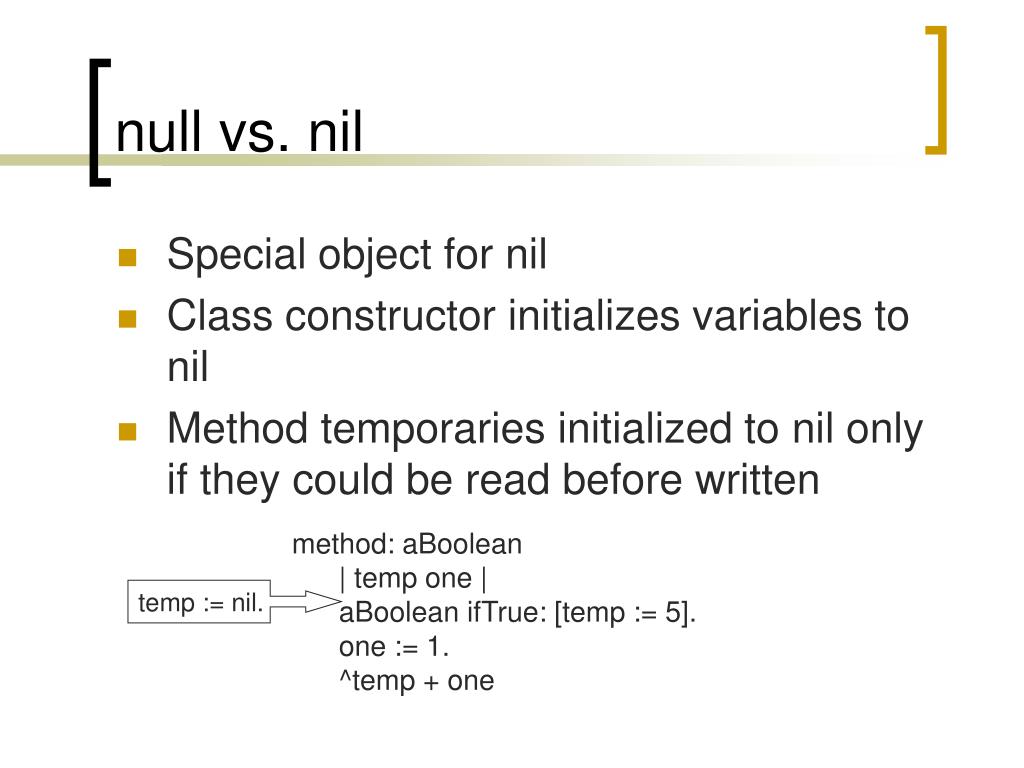

null vs. nil

  • Special object for nil

  • Class constructor initializes variables to nil

  • Method temporaries initialized to nil only if they could be read before written


Smallintegers

2r00001011

2r00000010

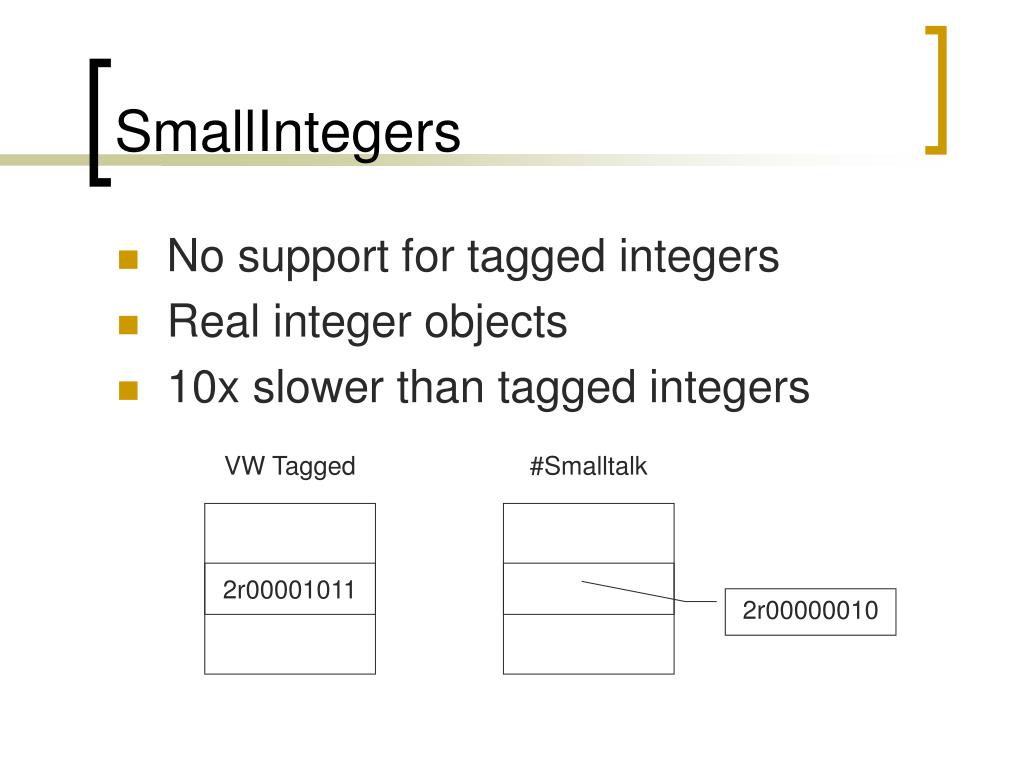

SmallIntegers

  • No support for tagged integers

  • Real integer objects

  • 10x slower than tagged integers

VW Tagged

#Smalltalk


Blocks

Blocks

  • Create class for each block

  • Create object from block class at runtime

method

^#(1) collect: (Method-Block new)

MonadicBlock subclass: Method-Block

instanceVariableNames: ‘’

value: each

^each + 1

method

^#(1) collect:

[:each | each + 1]


Block variables

method

arg

block

block

temp

arg

temp

temp

value

Block Variables

  • Variable references

    • Copied values (method/block arguments)

    • Active variables (temporaries)

arg

method: arg

| block temp |

block := [temp + arg].

temp := 5.

^block value

5


Block returns

method1

self method2: [^1]

method2: aBlock

#(2) do:

[:each |

aBlock value.

^each]

method1[ ]

method2[ ]

do:

method2

method1

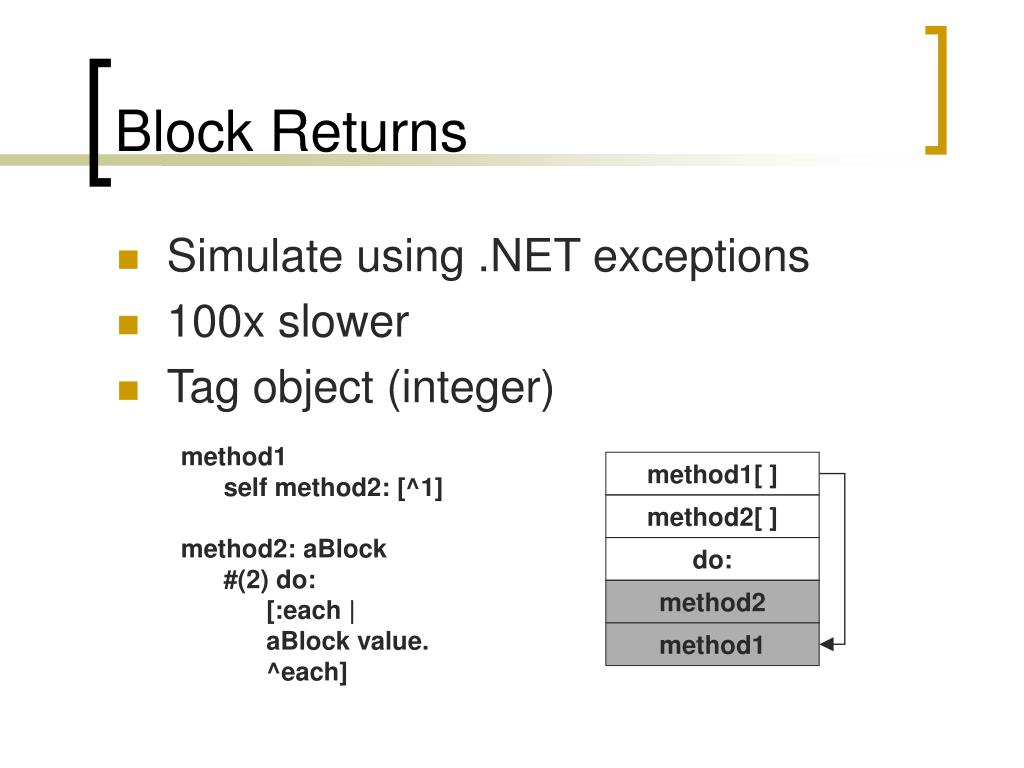

Block Returns

  • Simulate using .NET exceptions

  • 100x slower

  • Tag object (integer)


Primitives

Primitives

  • Some actions aren’t representable (e.g., identityHash, +, etc.)

  • Primitive tag

    • Only one per method

  • Compiler primitive: []

    • Used anywhere in method

    • User can add new primitives

    • Block code evaluated at compile time


Primitive example

Primitive Example

identityHash

^Compiler

primitive:

[:codeGenerator |

codeGenerator

call: (System.Object getMethod: 'GetHashCode');

constructNewObject: codeGenerator smalltalk

smallIntegerClass initializedConstructor]

evaluate: self


Optimized messages

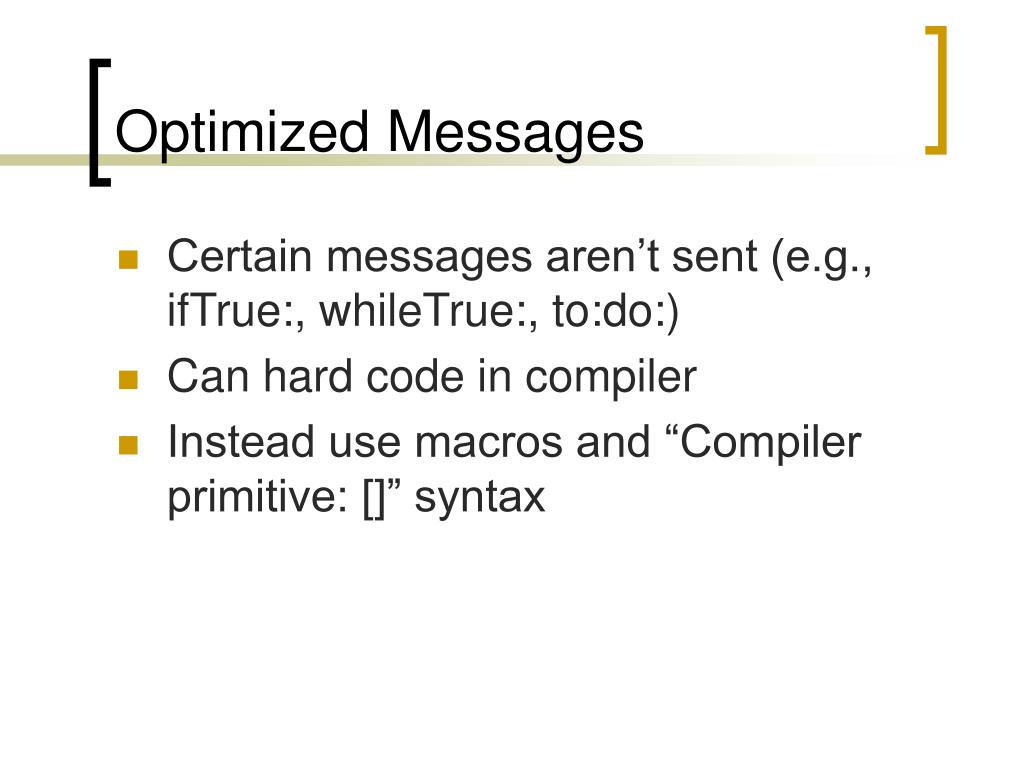

Optimized Messages

  • Certain messages aren’t sent (e.g., ifTrue:, whileTrue:, to:do:)

  • Can hard code in compiler

  • Instead use macros and “Compiler primitive: []” syntax


Macros

Macros

  • RB’s rewrite rules

    • [email protected] ifTrue: [email protected] Compiler primitive: [:codeGen :block | …] evaluate: [email protected] uses: [email protected]

  • Allows arbitrary optimizations (e.g., ifNil:  isNil ifTrue:)

  • Copy source interval for debugger


Connecting with net

Connecting with .NET

  • Over 2500 classes provided

  • Seamless integration

| algorithm stream |

algorithm := HashAlgorithm create: ‘MD5’.

stream := FileStream read: ‘rb.im’.

[algorithm computeHash: stream]

ensure: [stream close]


Connecting smalltalk to net

Connecting Smalltalk to .NET

  • Class references (Convert or System.Convert)

  • Typed Variables (System.Int32)

  • Generic ObjectWrapper

  • Messages for field, property, and method access

  • Constructors – #new* messages


Method arguments

Method arguments

  • First keyword for method name/rest can be anything

  • Arguments converted to .NET objects

    • is-a tests for arguments

  • Overloaded methods left-to-right, specific-to-generic

    • System.Console::Write(int/char/…/object)


Console example

Console Example

System.Console write: anObject

(anObject isKindOf: SmallInteger)

ifTrue: [System.Console write: anObject integer]

ifFalse:

[(anObject isKindOf: Character)

ifTrue: [System.Console write: anObject character]

ifFalse:

[(anObject isKindOf: String)

ifTrue: [System.Console write: anObject string]

ifFalse: [System.Console write: anObject]]]


Connecting net to smalltalk

Connecting .NET to Smalltalk

  • Events use add_EventName: / remove_EventName: methods

  • Delegates (#asDelegate:)

    Button new add_Click: ([:obj :args | …] asDelegate: EventHandler)

  • Exported Properties/Methods (specified by annotations)

  • Interfaces & subclasses (to do)


Smalltalk development version 1

#Smalltalk Development (Version 1)

  • Proof of concept

  • VisualWorks program

  • Compiled generated text file with ilasm (.NET’s assembler)

  • Not seamless


Smalltalk development version 2

#Smalltalk Development (Version 2)

  • Read .SIF files

  • VisualWorks DLL connection to .NET

  • Override qualified name lookup in VW to use .NET DLL

    • System.Int32 Parse: ‘1234’

  • System.Reflection.Emit generate .exe file directly


Smalltalk development version 3

#Smalltalk Development (Version 3)

  • Code based on Version 2

  • Self hosting

  • Complete .exe compiler

  • Compile three times (fixed point)

    • Old code compiling new code

    • New code compiling new code

    • Verify new code compiled new code valid


Benchmarks

Benchmarks


Future work

Future work

  • IDE (GUI builders, Browsers, etc.)

  • Add Subclassing/Interfaces

  • Optimizations

    • Reusing intermediate numerical values (e.g., i + j + k)

    • Type inferencing – eliminating SmallIntegers (e.g., 1 to: 10 do: [:i | ])

  • Write programs


Contact information

Contact Information

  • #Smalltalk

    • http://www.refactory.com/Software/SharpSmalltalk/

  • VisualWorks .NET DLL

    • http://www.rileywhite.com/software/assemblyconnect.html

  • .NET

    • http://www.microsoft.com/net/

    • http://www.go-mono.com/
