  1. Solid State Storage in Oracle Environments Mark Henderson & Rick Stehno

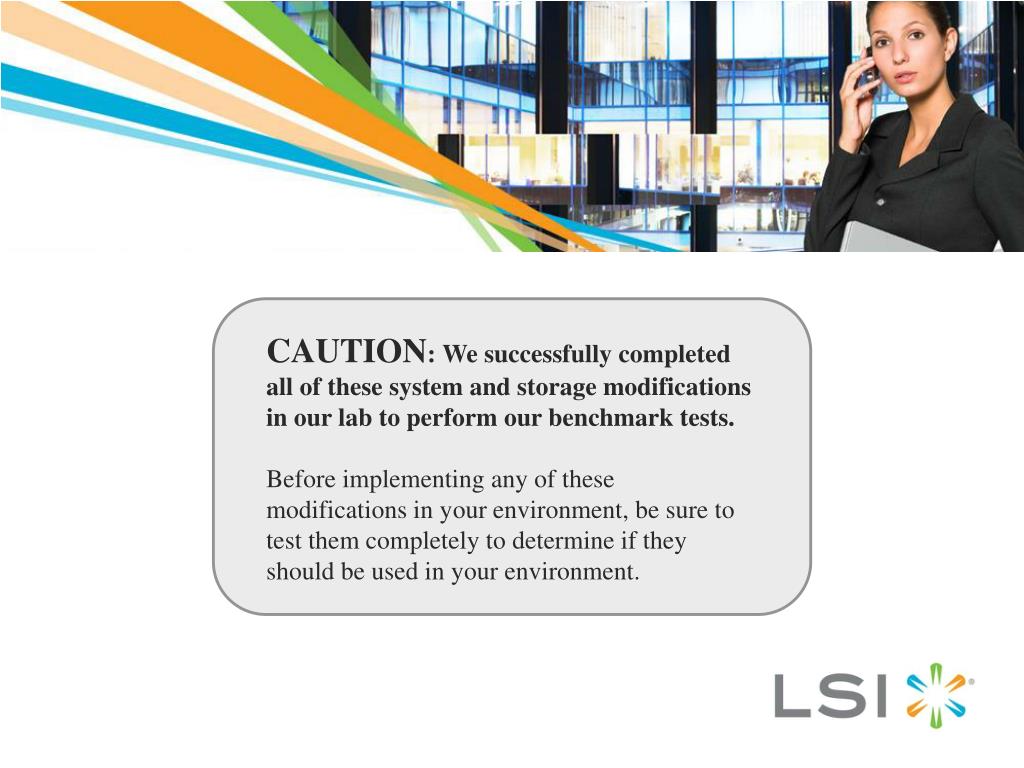

  2. CAUTION: We successfully completed all of these system and storage modifications in our lab to perform our benchmark tests. Before implementing any of these modifications in your environment, be sure to test them completely to determine if they should be used in your environment.

  3. LSI Overview Company Highlights • Focused on Storage and Networking • 12,000+ Patents and Patent Applications • $2.5B Annual Revenue • Global Presence, 3000+ Employees • 300,000+ Storage Systems Deployed IP 3% LSI-Oracle Partnership Networking 19% • 12 years of Successful Partnership Spanning Silicon, Boards and Storage Systems • Technology and Manufacturing Partner for the Oracle 2500 & 6000 Storage Systems • Designed and Tested for Interoperability with Oracle Operating Systems and Applications Storage Semiconductors 44% Storage Systems 34%

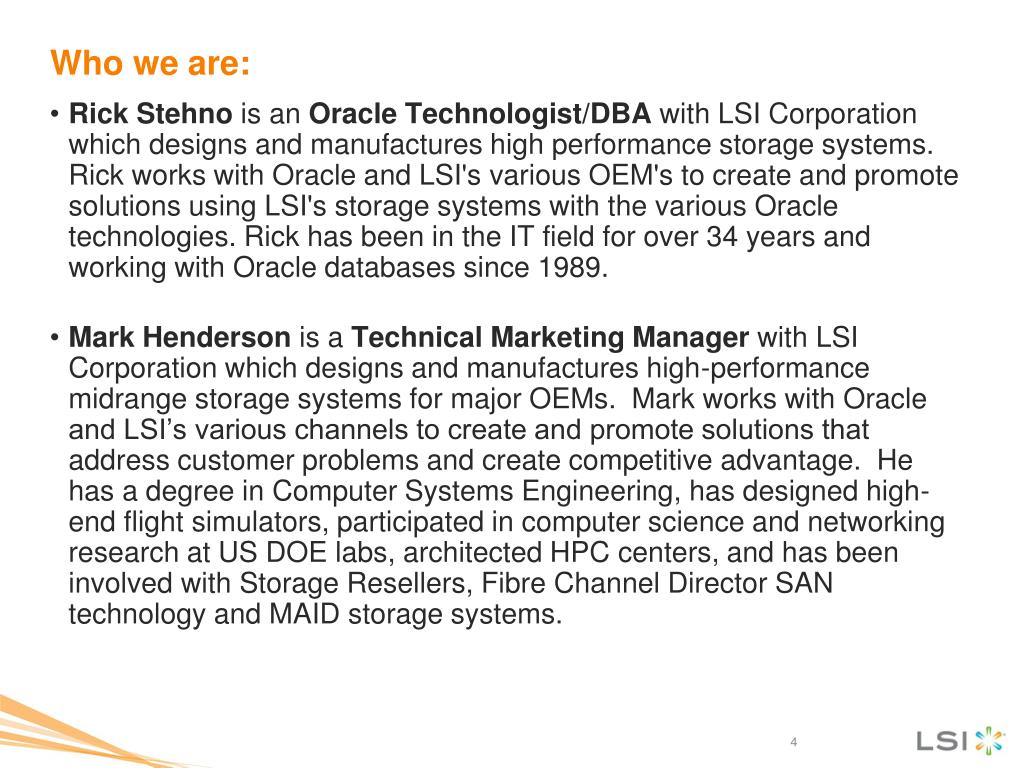

  4. Who we are: • RickStehno is an Oracle Technologist/DBA with LSI Corporation which designs and manufactures high performance storage systems. Rick works with Oracle and LSI's various OEM's to create and promote solutions using LSI's storage systems with the various Oracle technologies. Rick has been in the IT field for over 34 years and working with Oracle databases since 1989. • Mark Henderson is a Technical Marketing Manager with LSI Corporation which designs and manufactures high-performance midrange storage systems for major OEMs. Mark works with Oracle and LSI’s various channels to create and promote solutions that address customer problems and create competitive advantage. He has a degree in Computer Systems Engineering, has designed high-end flight simulators, participated in computer science and networking research at US DOE labs, architected HPC centers, and has been involved with Storage Resellers, Fibre Channel Director SAN technology and MAID storage systems.

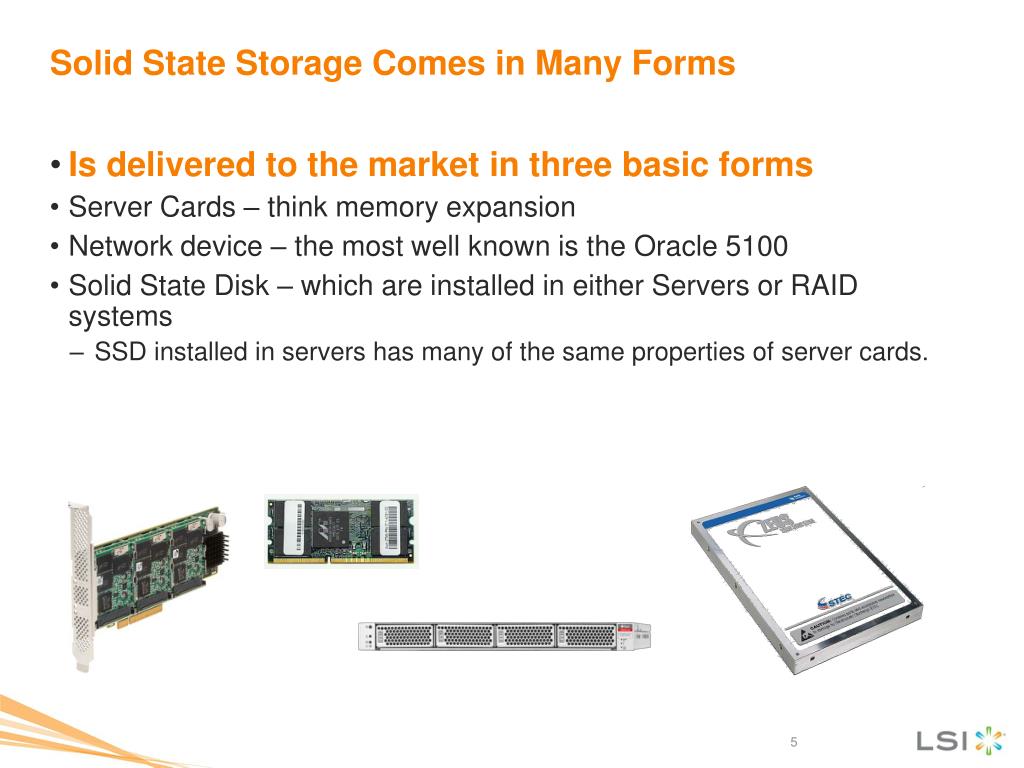

  5. Solid State Storage Comes in Many Forms • Is delivered to the market in three basic forms • Server Cards – think memory expansion • Network device – the most well known is the Oracle 5100 • Solid State Disk – which are installed in either Servers or RAID systems • SSD installed in servers has many of the same properties of server cards.

  6. Solid State Technology (And do you really care?) • Internally they are similar to a bunch of your average jump drives • Solid State Storage is a consumable resource – but don’t panic! • It wears out, not unlike regular old rotating disk drives • Bad blocks on drives, remapped sectors • There are two technologies that you may hear about • MLC Multi-Level cell • SLC Single-Level cell • The technology is simply a discussion of *cost*, not price.

  7. OK so now that I have this super fast device – what does that mean? The obvious, well isn’t… • It’s all equally accessible – no short stroking • While it doesn’t rotate, mixed reads and writes do slow it down • Scanning the Device for bad sectors is a thing of the past • It may not be necessary to stripe for performance • In cache cases you might not even need to mirror SSDs • Using Smart Flash Cache AND moving data objects to SSD decreased performance • Online Redo Logs are best handled by HDD because of the sequential writes

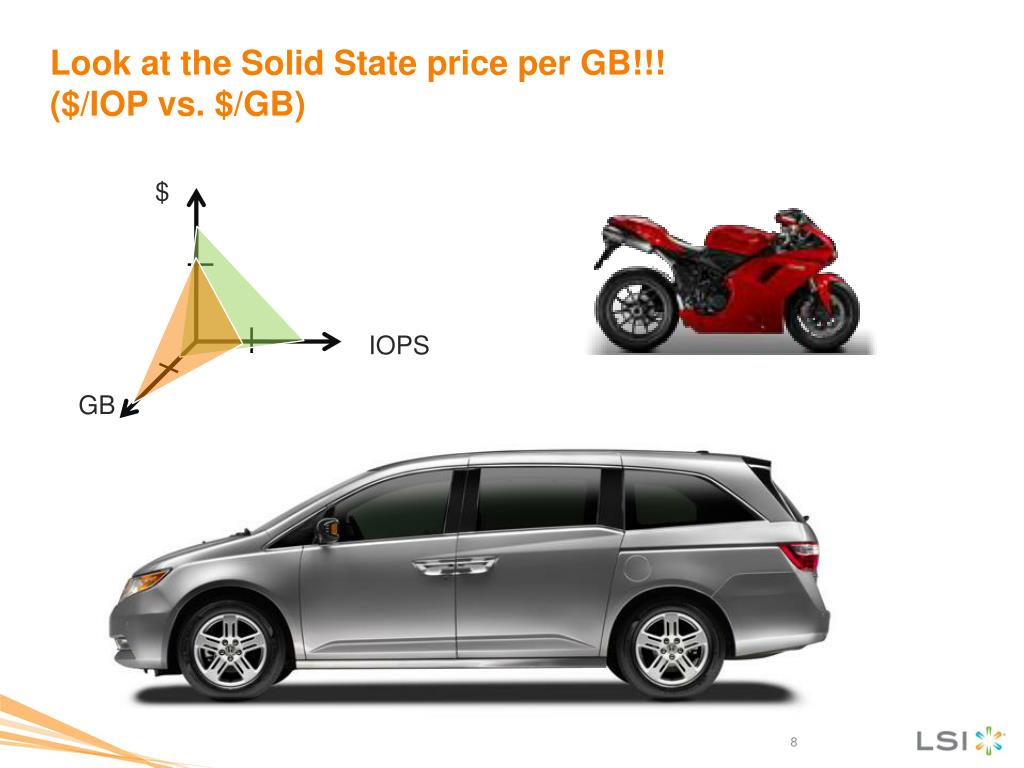

  8. Look at the Solid State price per GB!!!($/IOP vs. $/GB) $ IOPS GB

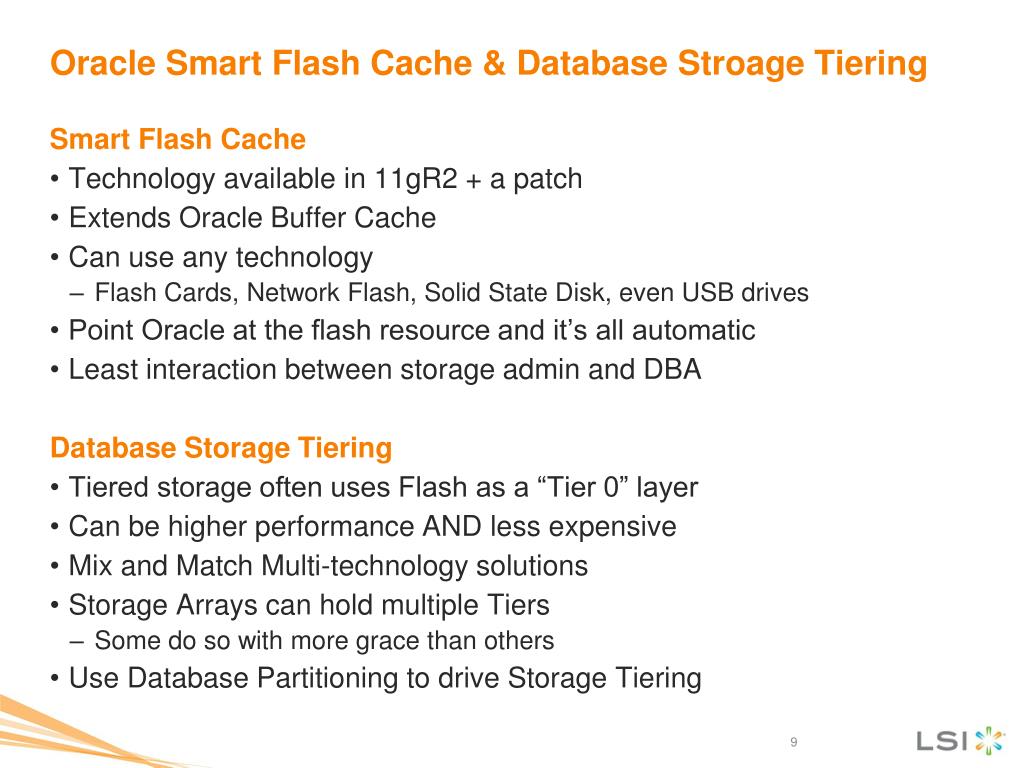

  9. Oracle Smart Flash Cache & Database Stroage Tiering Smart Flash Cache • Technology available in 11gR2 + a patch • Extends Oracle Buffer Cache • Can use any technology • Flash Cards, Network Flash, Solid State Disk, even USB drives • Point Oracle at the flash resource and it’s all automatic • Least interaction between storage admin and DBA Database Storage Tiering • Tiered storage often uses Flash as a “Tier 0” layer • Can be higher performance AND less expensive • Mix and Match Multi-technology solutions • Storage Arrays can hold multiple Tiers • Some do so with more grace than others • Use Database Partitioning to drive Storage Tiering

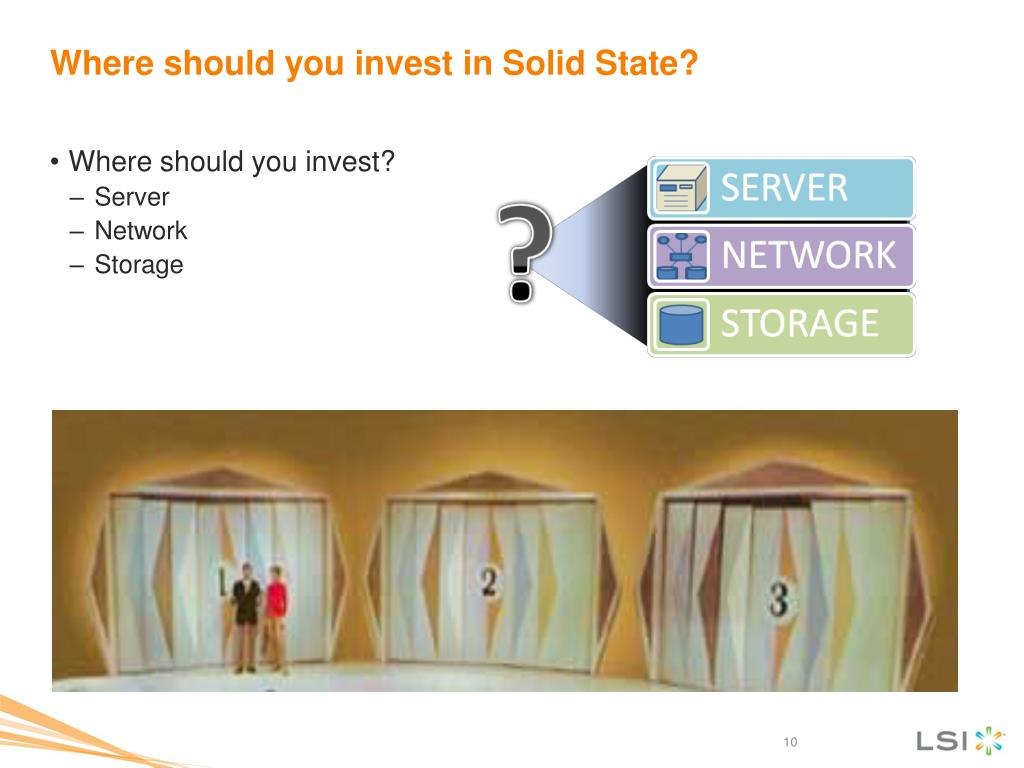

  10. Where should you invest in Solid State? • Where should you invest? • Server • Network • Storage

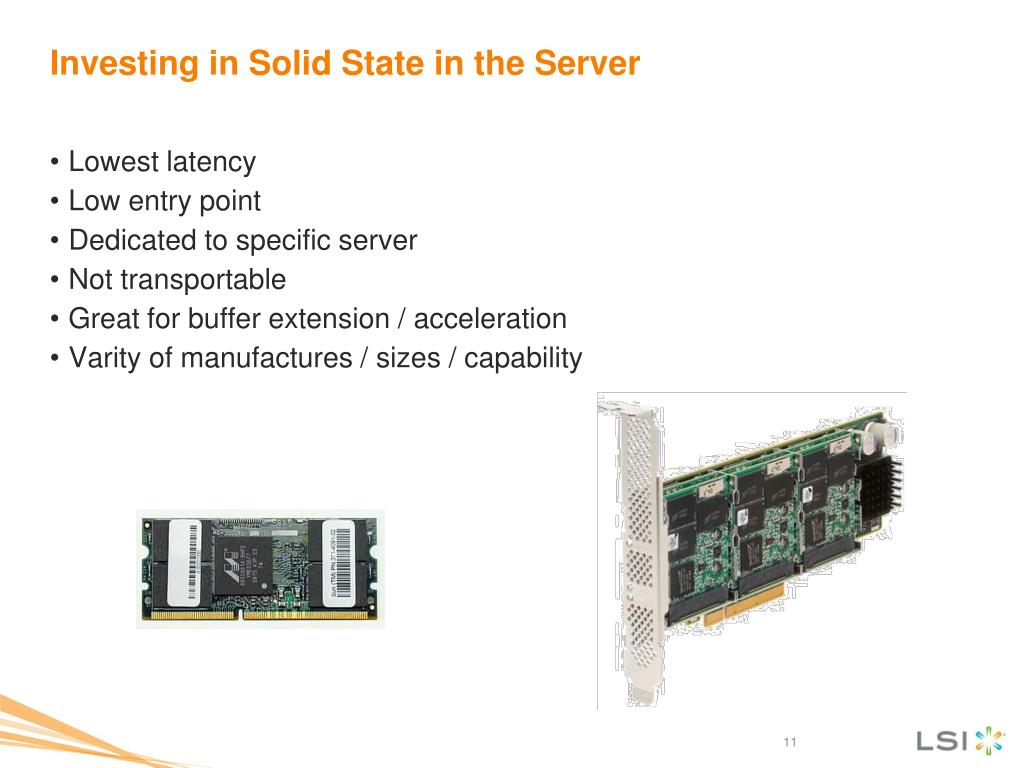

  11. Investing in Solid State in the Server • Lowest latency • Low entry point • Dedicated to specific server • Not transportable • Great for buffer extension / acceleration • Varity of manufactures / sizes / capability

  12. Investing in Solid State in the Network • Most dense flash storage • Looks like a drive • Partitionable x4 • Not sharable

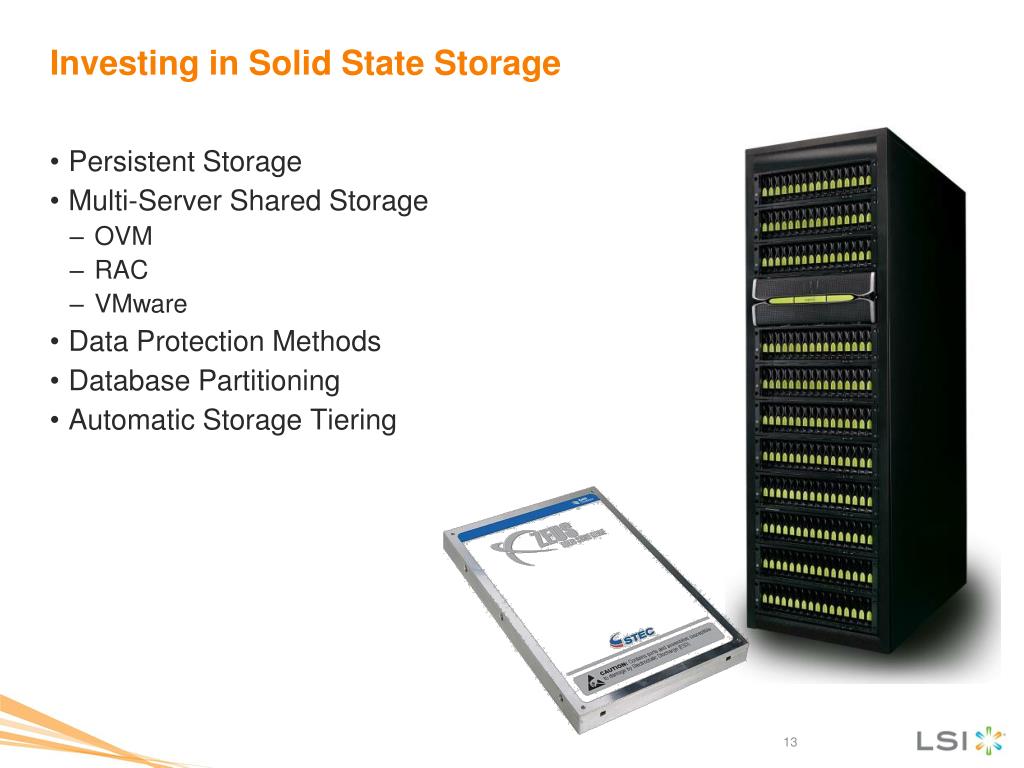

  13. Investing in Solid State Storage • Persistent Storage • Multi-Server Shared Storage • OVM • RAC • VMware • Data Protection Methods • Database Partitioning • Automatic Storage Tiering

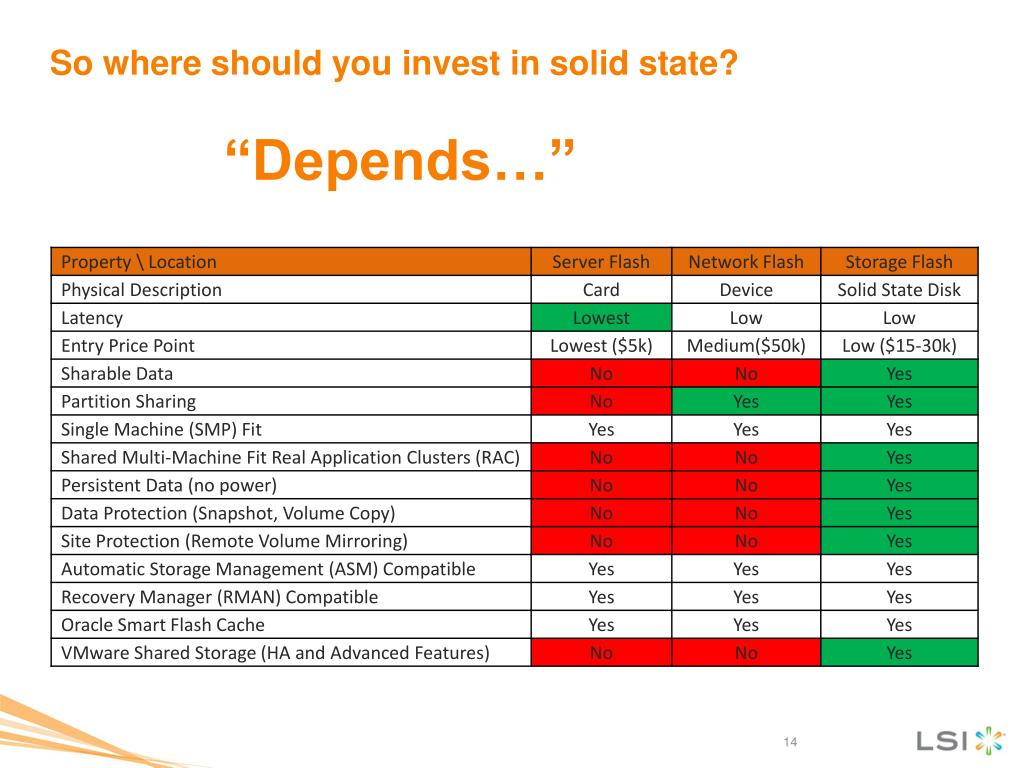

  14. So where should you invest in solid state? “Depends…”

  15. Moving the Bottleneck • High Performance array controller • Sustained throughput to the drives • Not just Cache numbers • And the rest of the system has to be able to use the faster speed… Server(s) FC Network Controller Drives

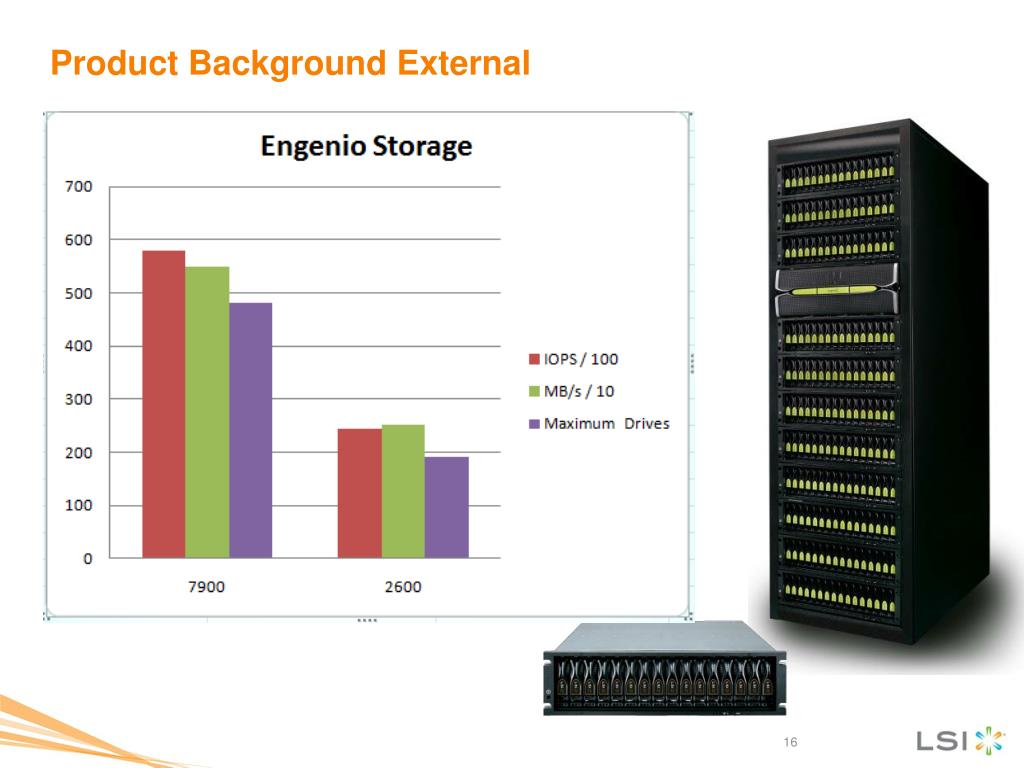

  16. Product Background External

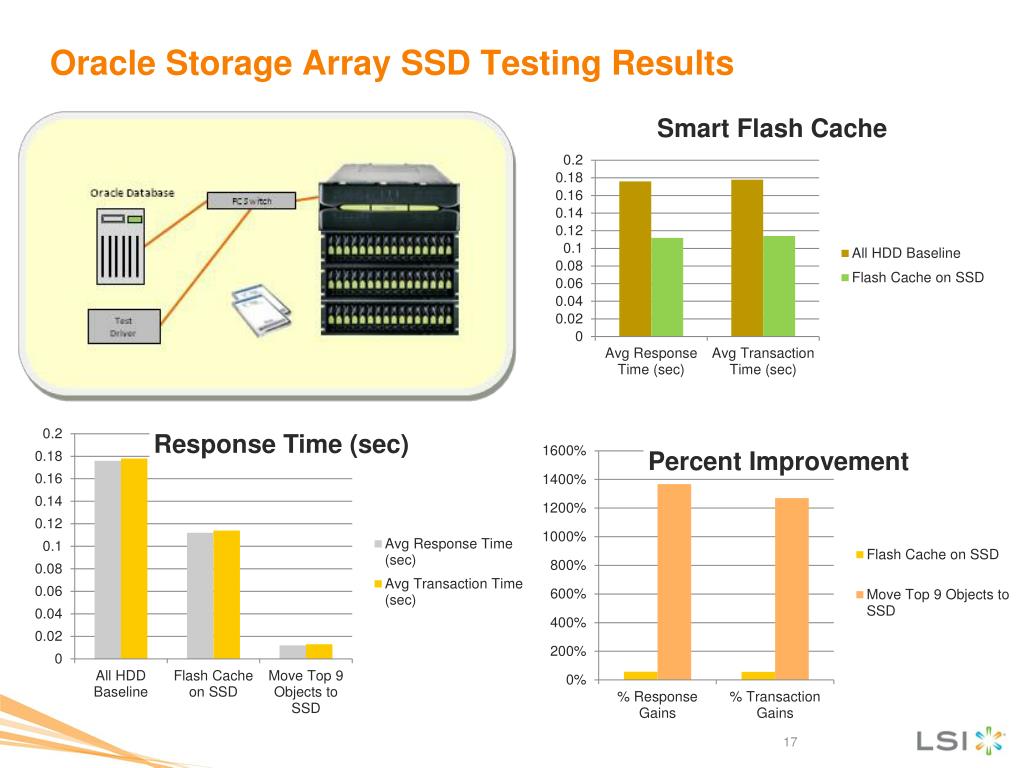

  17. Oracle Storage Array SSD Testing Results

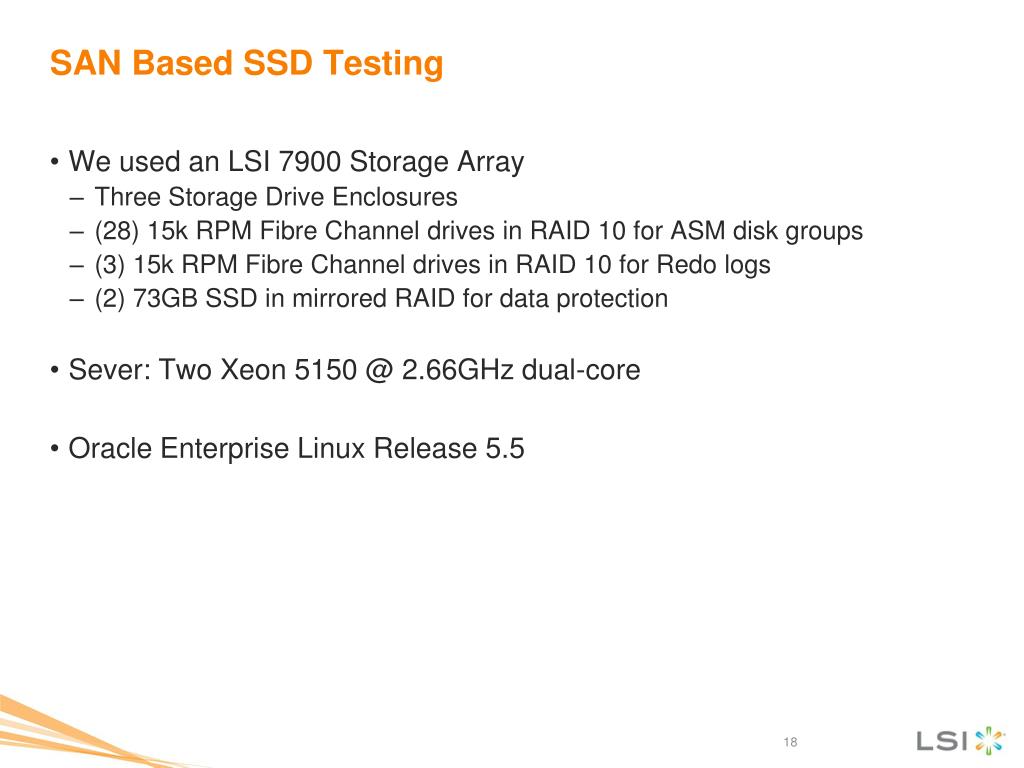

  18. SAN Based SSD Testing • We used an LSI 7900 Storage Array • Three Storage Drive Enclosures • (28) 15k RPM Fibre Channel drives in RAID 10 for ASM disk groups • (3) 15k RPM Fibre Channel drives in RAID 10 for Redo logs • (2) 73GB SSD in mirrored RAID for data protection • Sever: Two Xeon 5150 @ 2.66GHz dual-core • Oracle Enterprise Linux Release 5.5

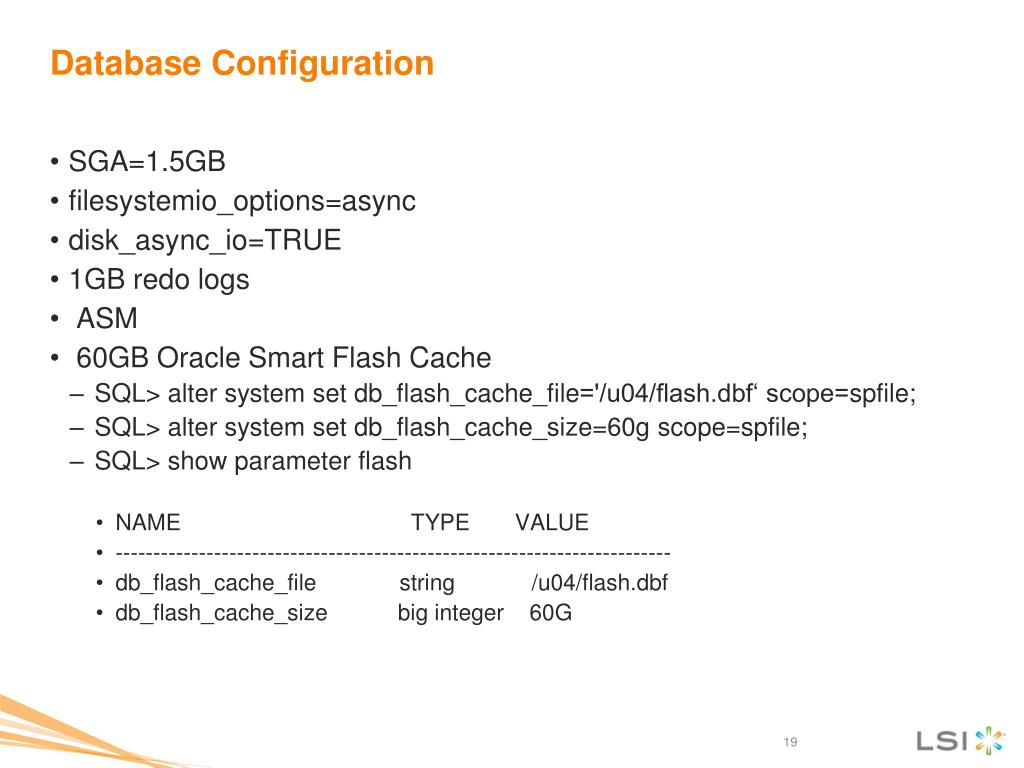

  19. Database Configuration • SGA=1.5GB • filesystemio_options=async • disk_async_io=TRUE • 1GB redo logs • ASM • 60GB Oracle Smart Flash Cache • SQL> alter system set db_flash_cache_file='/u04/flash.dbf‘ scope=spfile; • SQL> alter system set db_flash_cache_size=60g scope=spfile; • SQL> show parameter flash • NAME TYPE VALUE • ------------------------------------------------------------------------- • db_flash_cache_file string /u04/flash.dbf • db_flash_cache_size big integer 60G

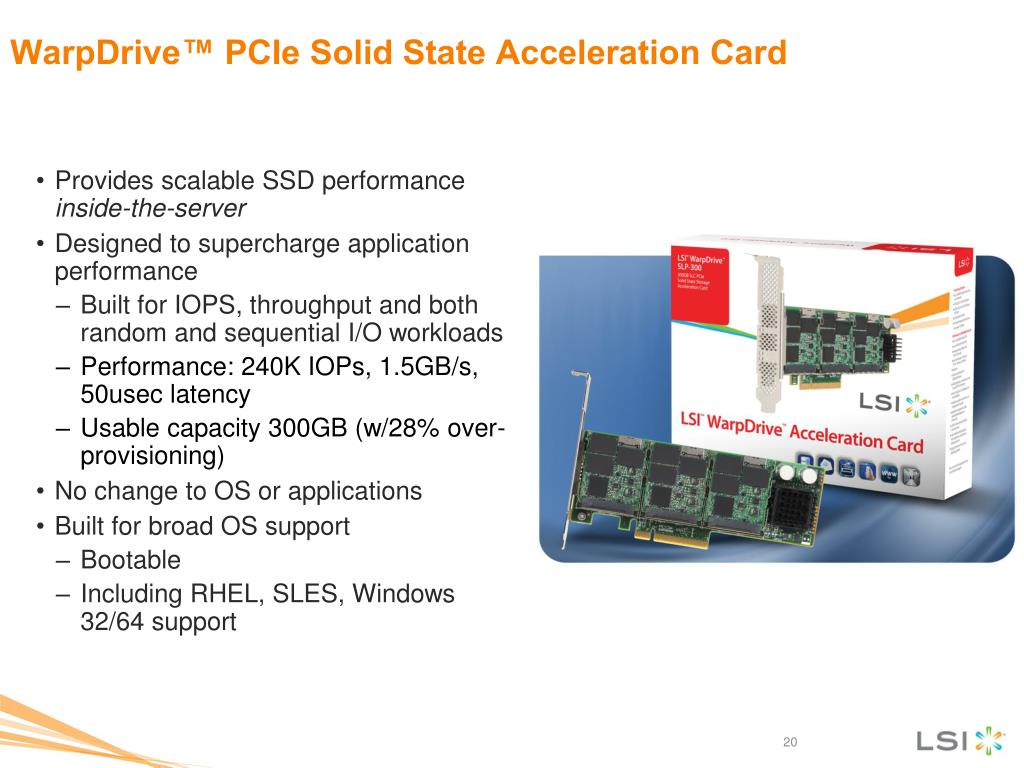

  20. WarpDrive™ PCIe Solid State Acceleration Card • Provides scalable SSD performance inside-the-server • Designed to supercharge application performance • Built for IOPS, throughput and both random and sequential I/O workloads • Performance: 240K IOPs, 1.5GB/s, 50usec latency • Usable capacity 300GB (w/28% over-provisioning) • No change to OS or applications • Built for broad OS support • Bootable • Including RHEL, SLES, Windows 32/64 support

  21. WarpDive Testing Configuration • HP ProLiant DL370 G6 • Dual Intel Xeon Processor X5570 • 48GB - 1333 DDR3 • LSI 9210-8i SAS host bus adapter • LSI SAS 2x36 Expander • 146GB 2.5-in. SFF 6G SAS 10K RPM drives • Software RAID 0 over 6 LUNs for the UNDO tablespace • Software RAID 0 over 6 LUNs for the Online REDO Logs • All tablespaces were striped over 10 individual LUNs when using HDD

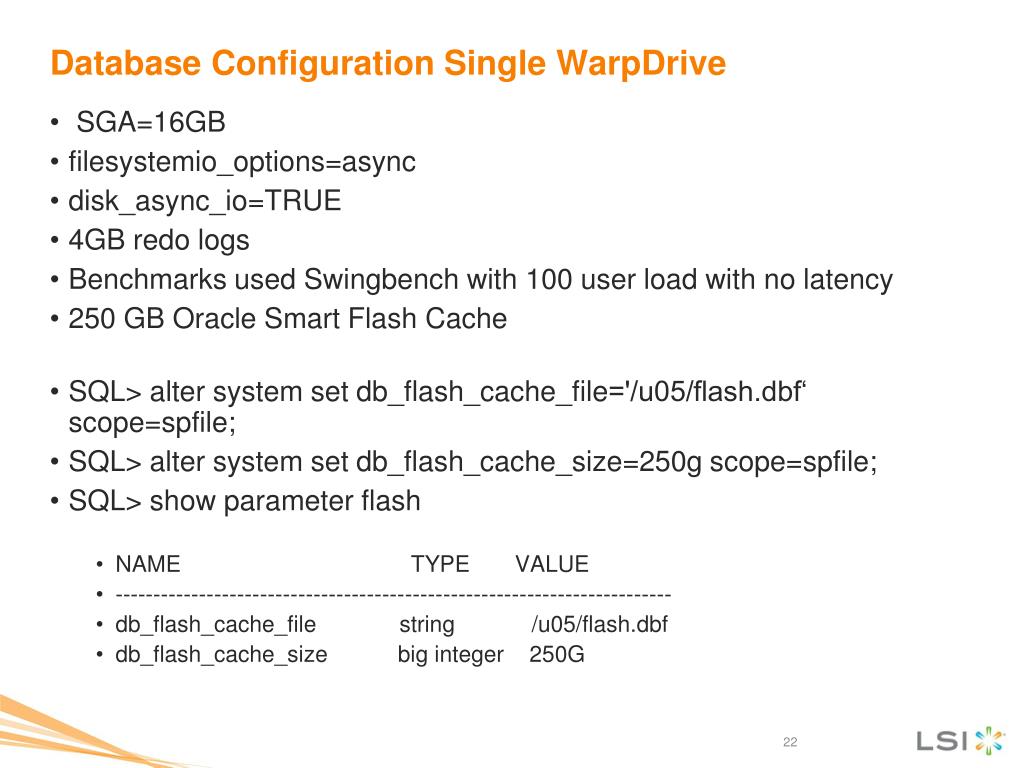

  22. Database Configuration Single WarpDrive • SGA=16GB • filesystemio_options=async • disk_async_io=TRUE • 4GB redo logs • Benchmarks used Swingbench with 100 user load with no latency • 250 GB Oracle Smart Flash Cache • SQL> alter system set db_flash_cache_file='/u05/flash.dbf‘ scope=spfile; • SQL> alter system set db_flash_cache_size=250g scope=spfile; • SQL> show parameter flash • NAME TYPE VALUE • ------------------------------------------------------------------------- • db_flash_cache_file string /u05/flash.dbf • db_flash_cache_size big integer 250G

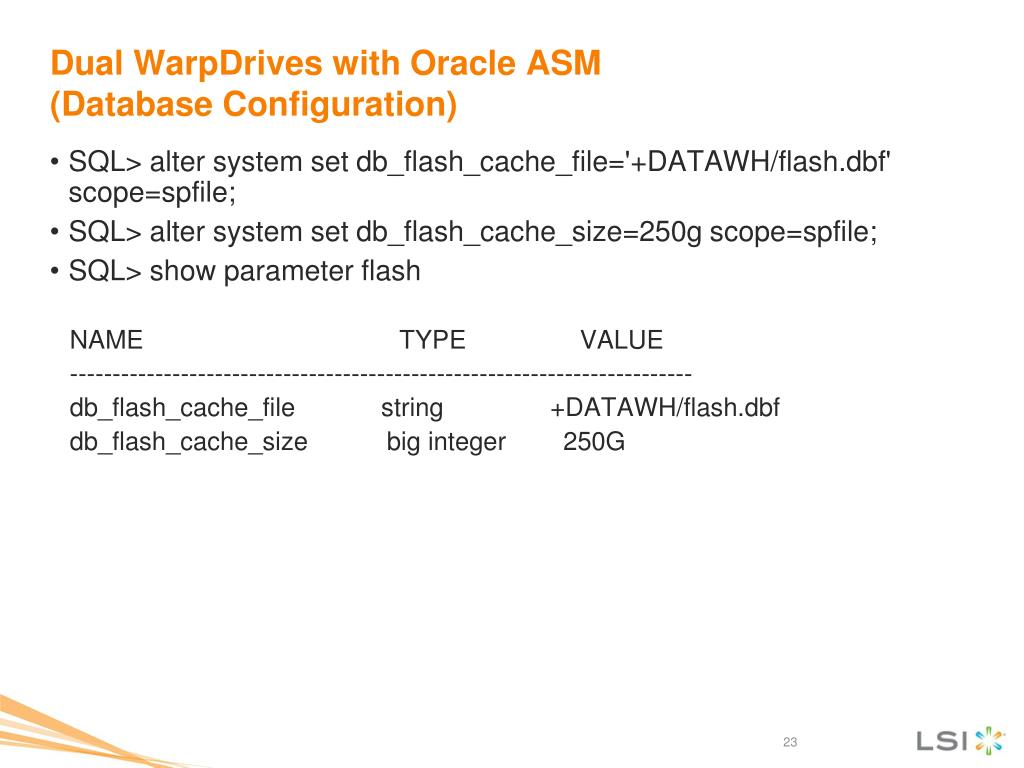

  23. Dual WarpDrives with Oracle ASM(Database Configuration) • SQL> alter system set db_flash_cache_file='+DATAWH/flash.dbf' scope=spfile; • SQL> alter system set db_flash_cache_size=250g scope=spfile; • SQL> show parameter flash NAME TYPE VALUE ------------------------------------------------------------------------- db_flash_cache_file string +DATAWH/flash.dbf db_flash_cache_size big integer 250G

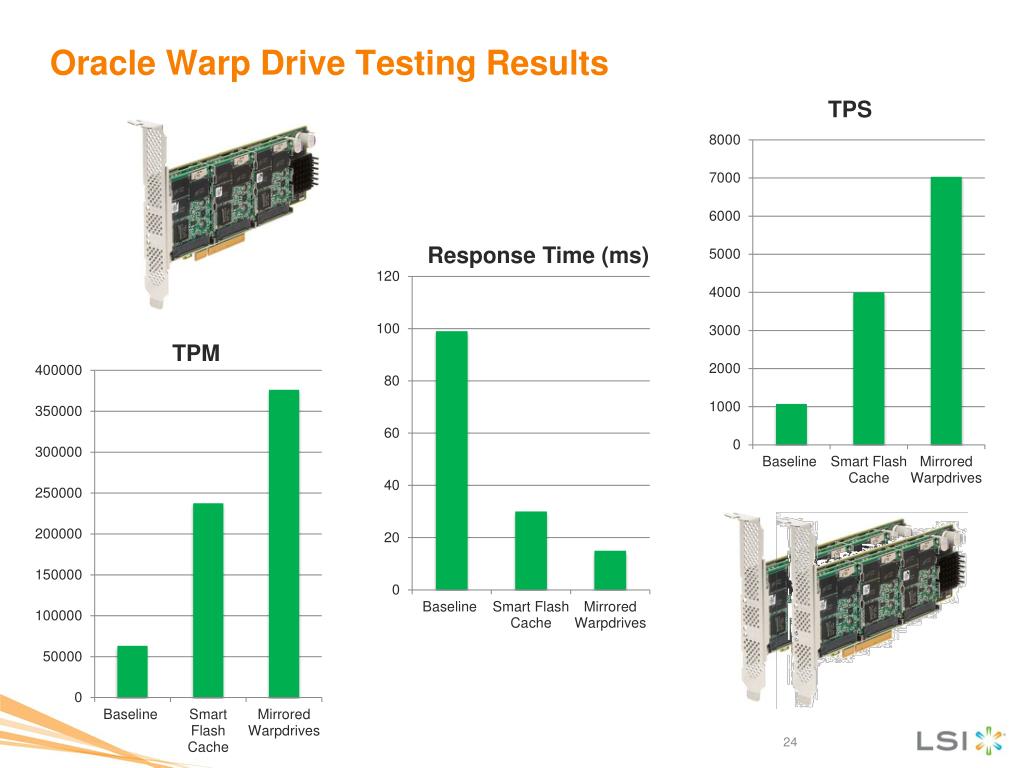

  24. Oracle Warp Drive Testing Results

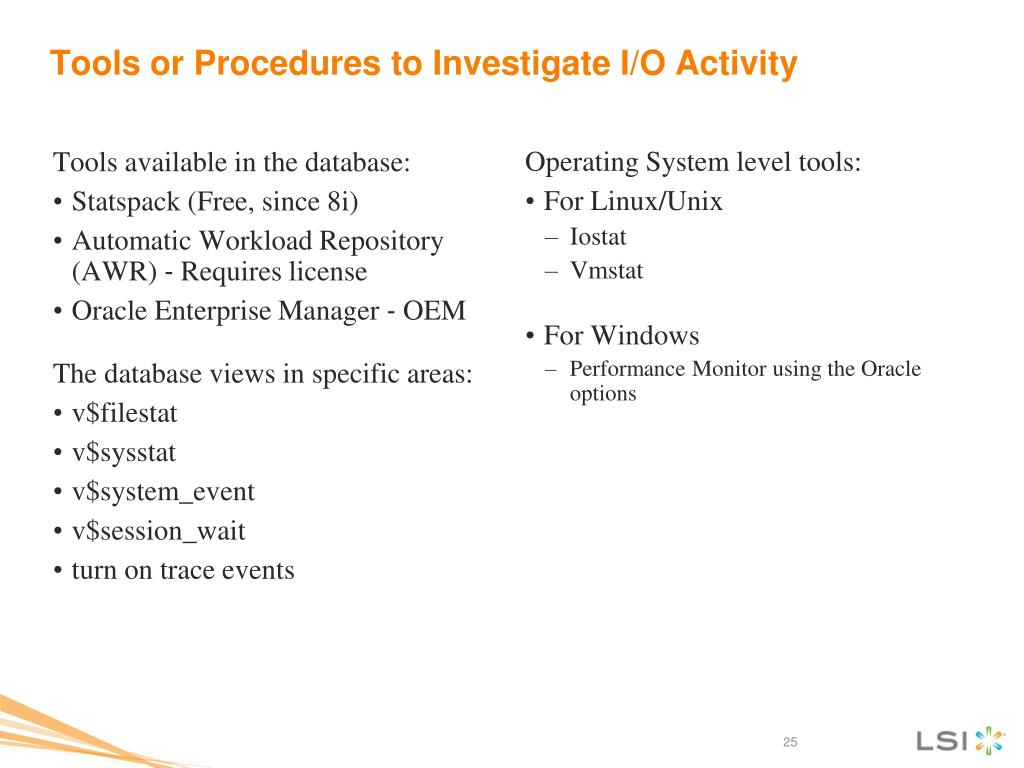

  25. Tools or Procedures to Investigate I/O Activity Tools available in the database: • Statspack (Free, since 8i) • Automatic Workload Repository (AWR) ‐ Requires license • Oracle Enterprise Manager ‐ OEM The database views in specific areas: • v$filestat • v$sysstat • v$system_event • v$session_wait • turn on trace events Operating System level tools: • For Linux/Unix • Iostat • Vmstat • For Windows • Performance Monitor using the Oracle options

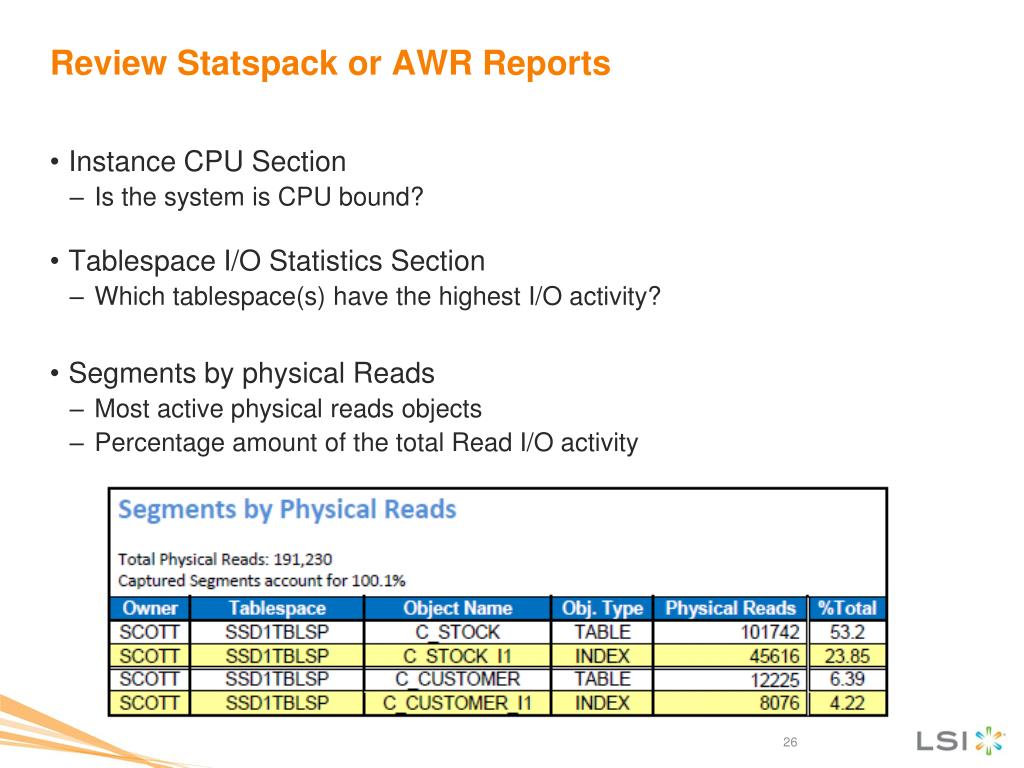

  26. Review Statspack or AWR Reports • Instance CPU Section • Is the system is CPU bound? • Tablespace I/O Statistics Section • Which tablespace(s) have the highest I/O activity? • Segments by physical Reads • Most active physical reads objects • Percentage amount of the total Read I/O activity

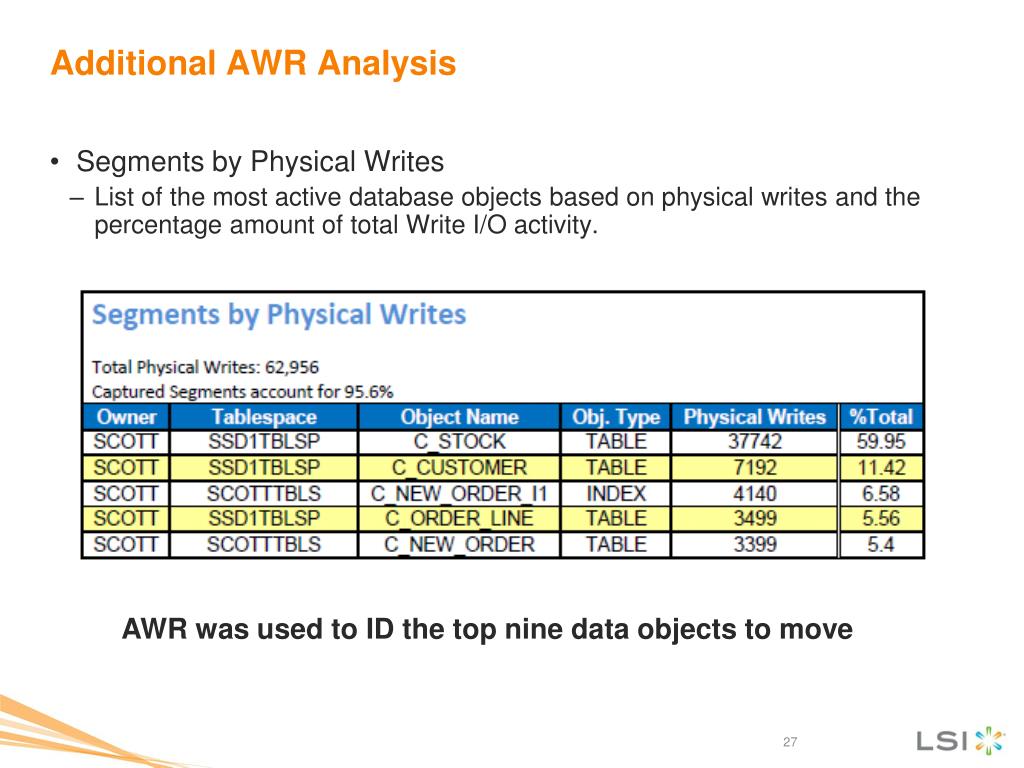

  27. Additional AWR Analysis • Segments by Physical Writes • List of the most active database objects based on physical writes and the percentage amount of total Write I/O activity. AWR was used to ID the top nine data objects to move

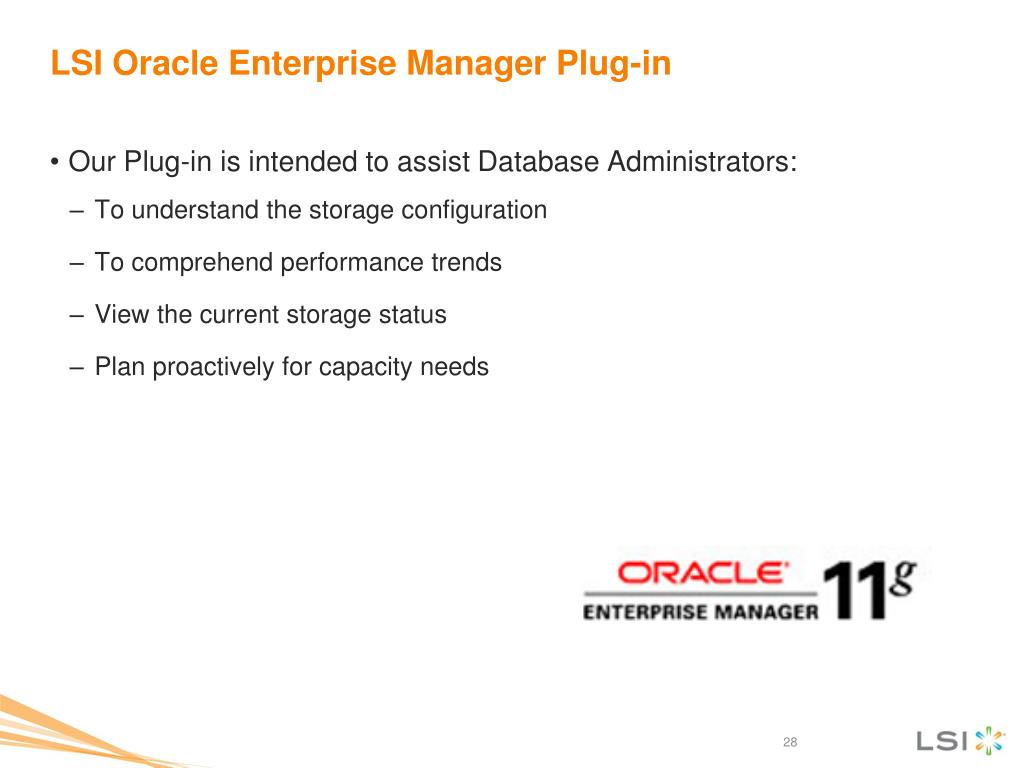

  28. LSI Oracle Enterprise Manager Plug-in • Our Plug-in is intended to assist Database Administrators: • To understand the storage configuration • To comprehend performance trends • View the current storage status • Plan proactively for capacity needs

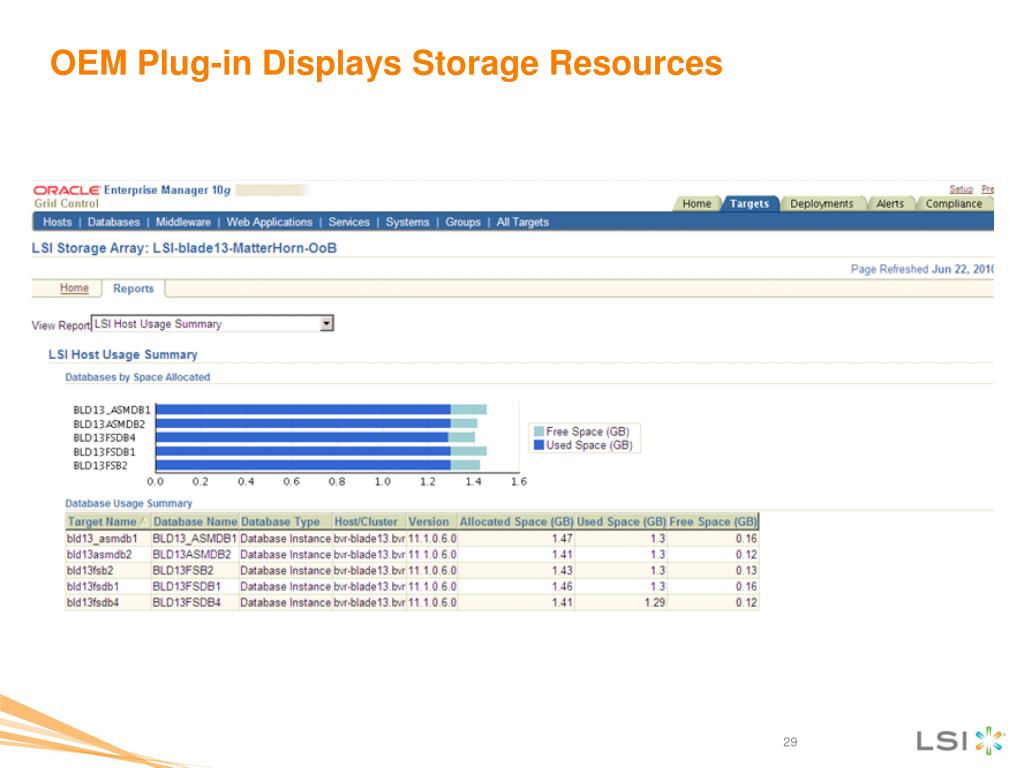

  29. OEM Plug-in Displays Storage Resources

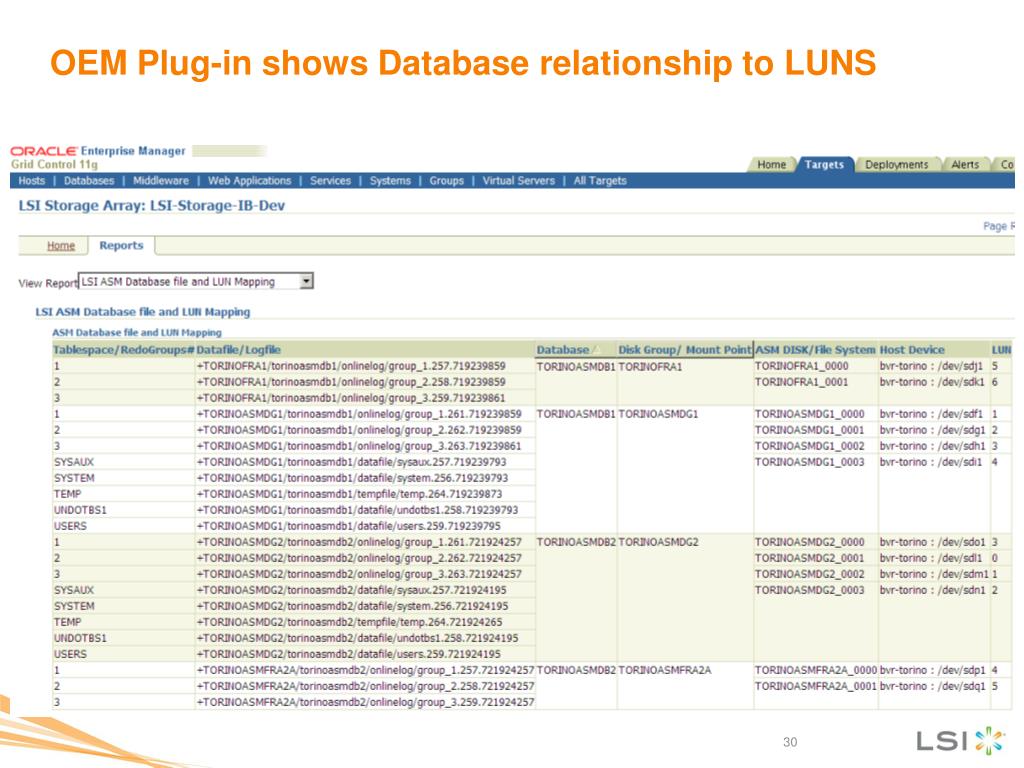

  30. OEM Plug-in shows Database relationship to LUNS

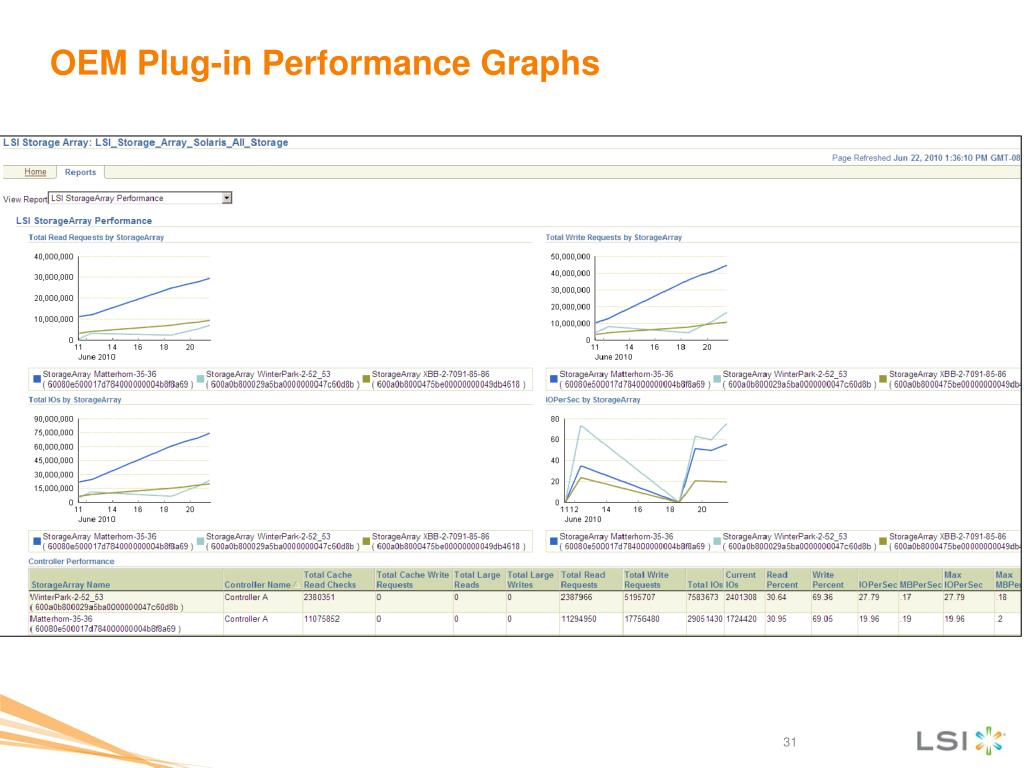

  31. OEM Plug-in Performance Graphs

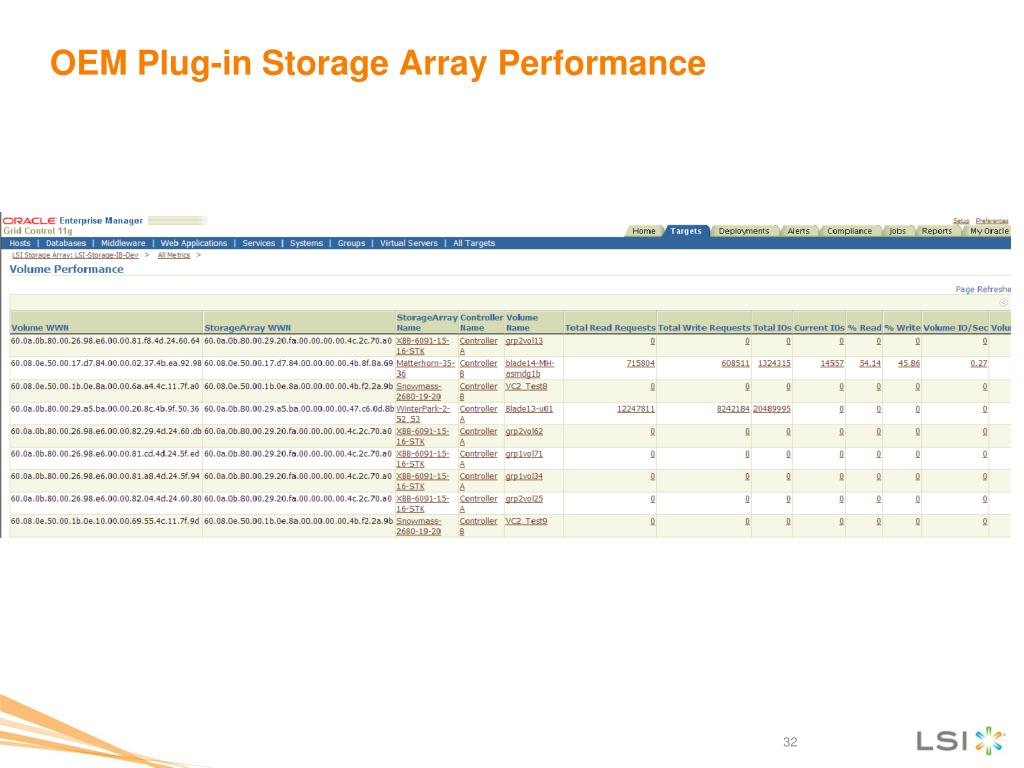

  32. OEM Plug-in Storage Array Performance

  33. Linux Tuning for Solid State Drives(both SAN based SSD and WarpDrive) • Align the SSD on a 4-KB boundary for optimal performance • Use EXT-2 to bypass filesystem journaling • eliminates double writes to the SSD • which increases performance • prolongs the life of the SSD • Modify the kernel I/O scheduler to NOOP for the SSD device • Used the noatimefilesystem mount option • eliminates the need for the system writes to the filesystem when objects are only being read

  34. Linux Tuning Test Observations • Test results using a 500 user load with just operating system tuning efforts applied: • Overall: 35% performance increase • These changes not only increased the performance when using a 100-user load, they also improved the performance of the higher user loads. • System performance did not drop dramatically when using the 500-user load

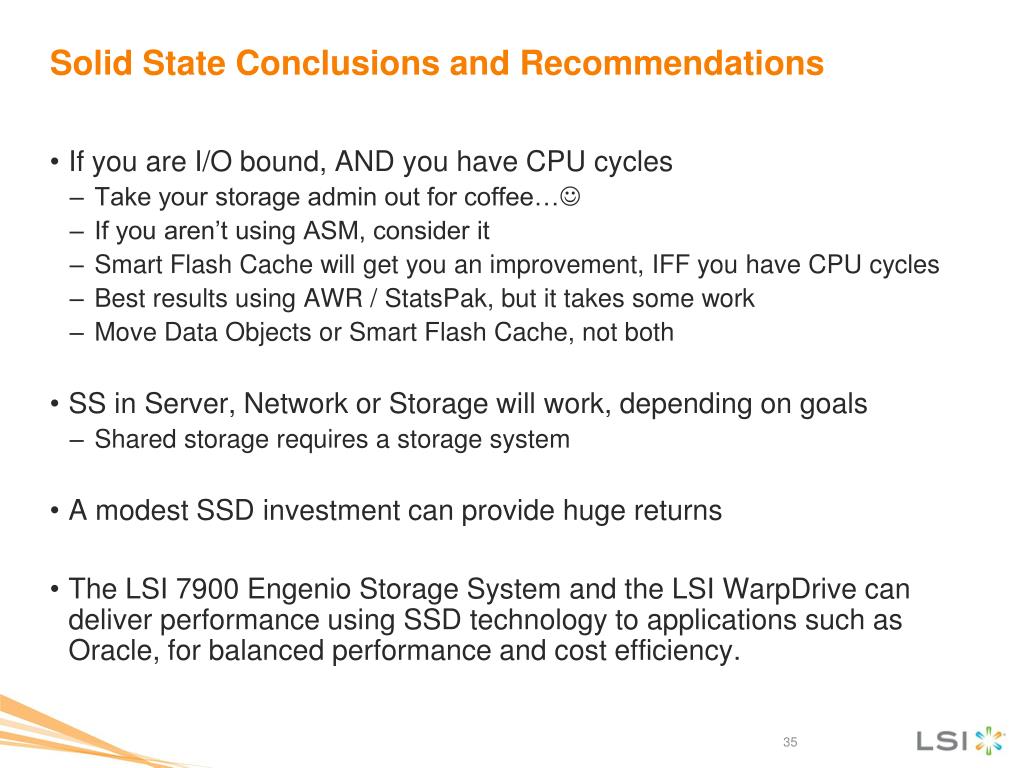

  35. Solid State Conclusions and Recommendations • If you are I/O bound, AND you have CPU cycles • Take your storage admin out for coffee… • If you aren’t using ASM, consider it • Smart Flash Cache will get you an improvement, IFF you have CPU cycles • Best results using AWR / StatsPak, but it takes some work • Move Data Objects or Smart Flash Cache, not both • SS in Server, Network or Storage will work, depending on goals • Shared storage requires a storage system • A modest SSD investment can provide huge returns • The LSI 7900 Engenio Storage System and the LSI WarpDrive can deliver performance using SSD technology to applications such as Oracle, for balanced performance and cost efficiency.

  36. Resources and Contact Information • Material taken from the following white papers: • Migration of Live Oracle Databases to LSI Storage • Oracle Storage Tiering within a LSI Engenio 7900 • Where to Invest in Flash in an Oracle Environment • Practical Application of Solid State Disk (SSD) to an Oracle Database on LSI Engenio Storage • Best Practices for Optimizing Oracle® Database Performance with the LSI™ WarpDrive™ Acceleration Card Rick.Stehno@lsi.com Mark.Henderson@lsi.com
