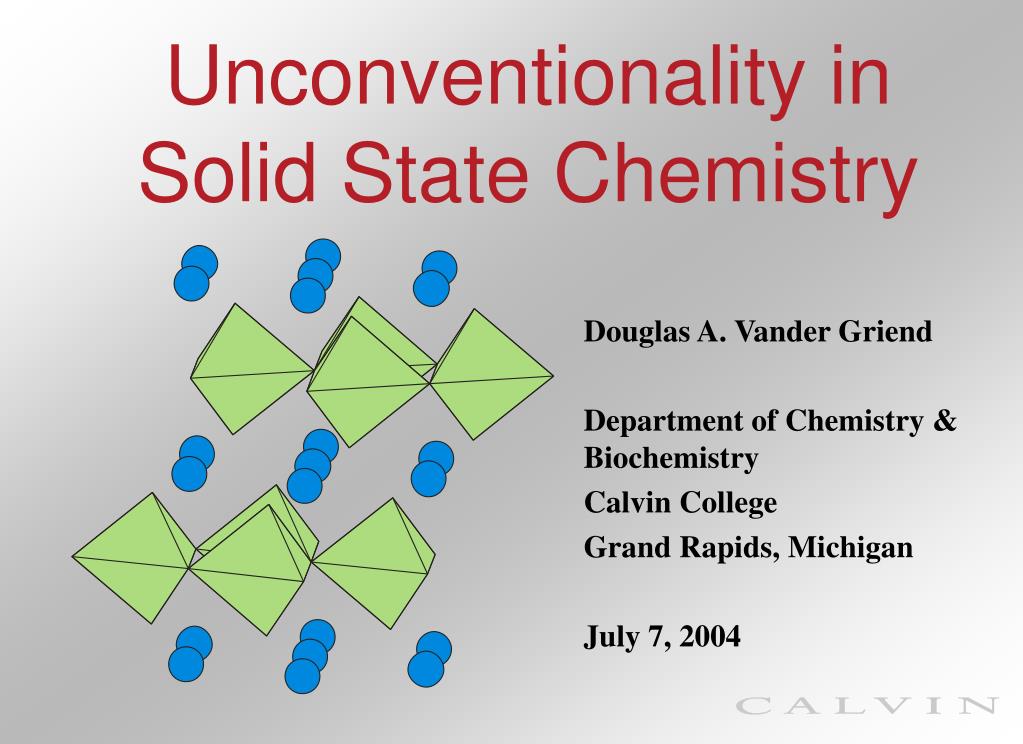

  1. Unconventionality in Solid State Chemistry Douglas A. Vander Griend Department of Chemistry & Biochemistry Calvin College Grand Rapids, Michigan July 7, 2004

  2. Unconventional • ŭn΄kën-věn΄shë-nël/ adjective • not bound by or in accordance with convention • being out of the ordinary • existing without precedent

  3. Conventional Solid State Structures

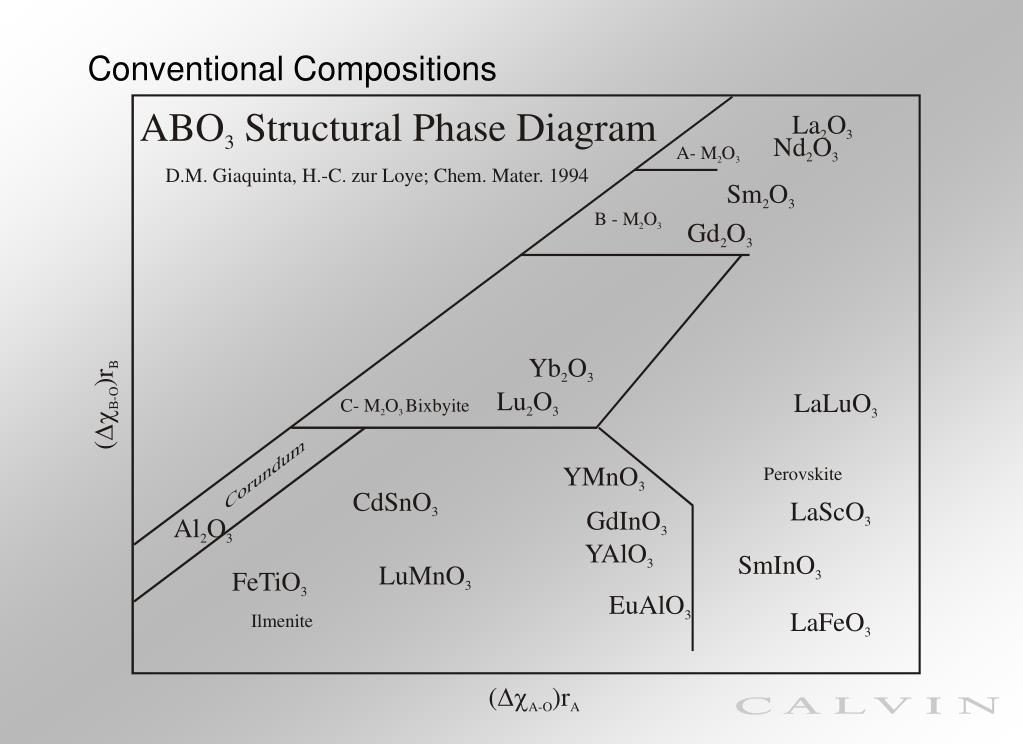

  4. Conventional Compositions

  5. Idealized Subcell for La3Cu2VO9 [A] [BO2+3/3] [A] [La] [(Cu/V)O2+3/3] [La]

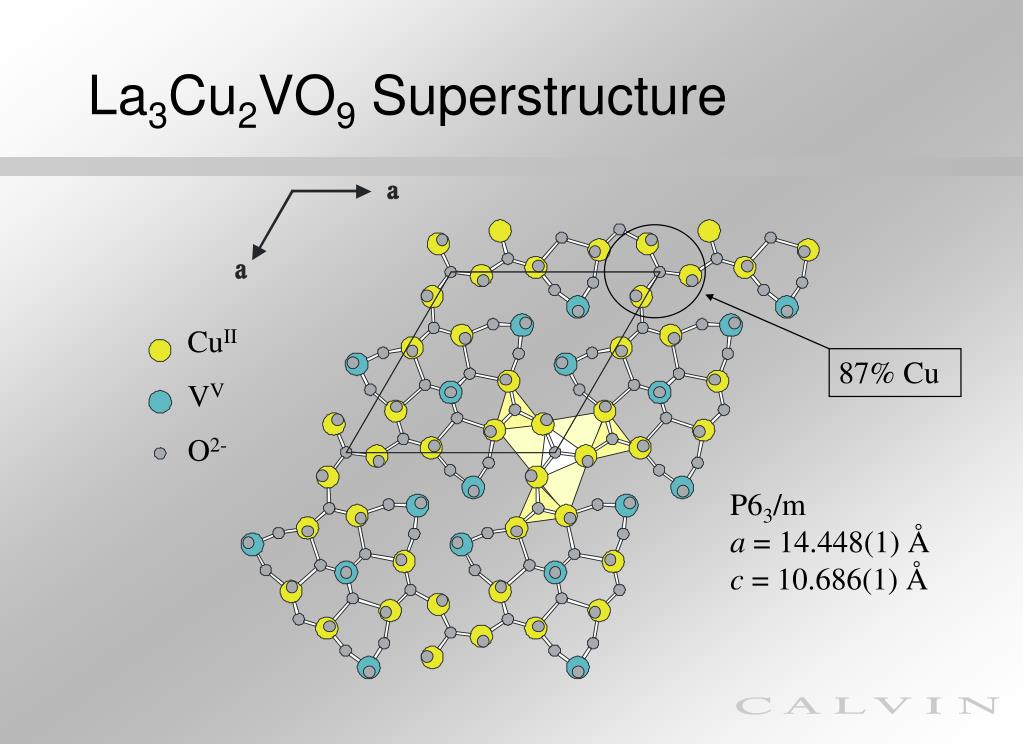

  6. La3Cu2VO9 Superstructure CuII 87% Cu VV O2- P63/m a = 14.448(1) Å c = 10.686(1) Å

  7. La3Cu2VO9: Frustrated Antiferromagnetism 1.68 mB 1.14 mB 100% Paramagnetic Inverse Molar Susceptibility (per copper) 0.56 mB 54% Paramagnetic 16% 0 100 300 400 200 Temperature (K)

  8. LaxLn3-xCu2VO9 Lattice Parameters

  9. Idealized Subcell of La4Cu3MoO12 [A] [BO2+3/3] [A] [La] [(Cu/Mo)O2+3/3] [La]

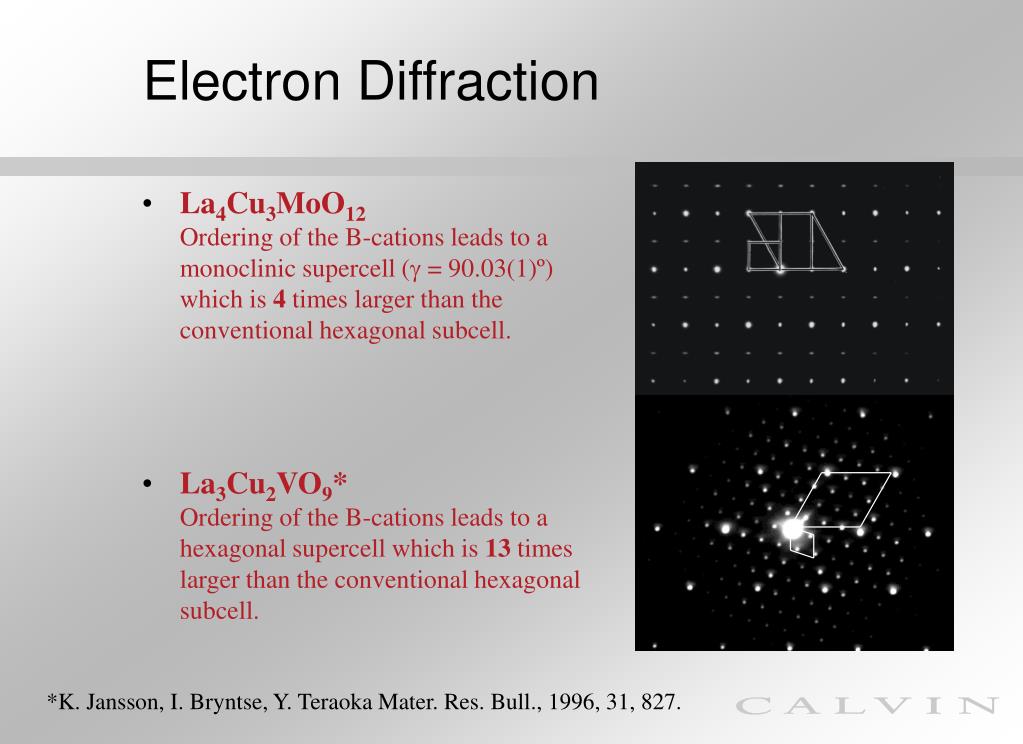

  10. Electron Diffraction • La4Cu3MoO12Ordering of the B-cations leads to a monoclinic supercell (g = 90.03(1)º) which is 4 times larger than the conventional hexagonal subcell. • La3Cu2VO9*Ordering of the B-cations leads to a hexagonal supercell which is 13 times larger than the conventional hexagonal subcell. *K. Jansson, I. Bryntse, Y. Teraoka Mater. Res. Bull., 1996, 31, 827.

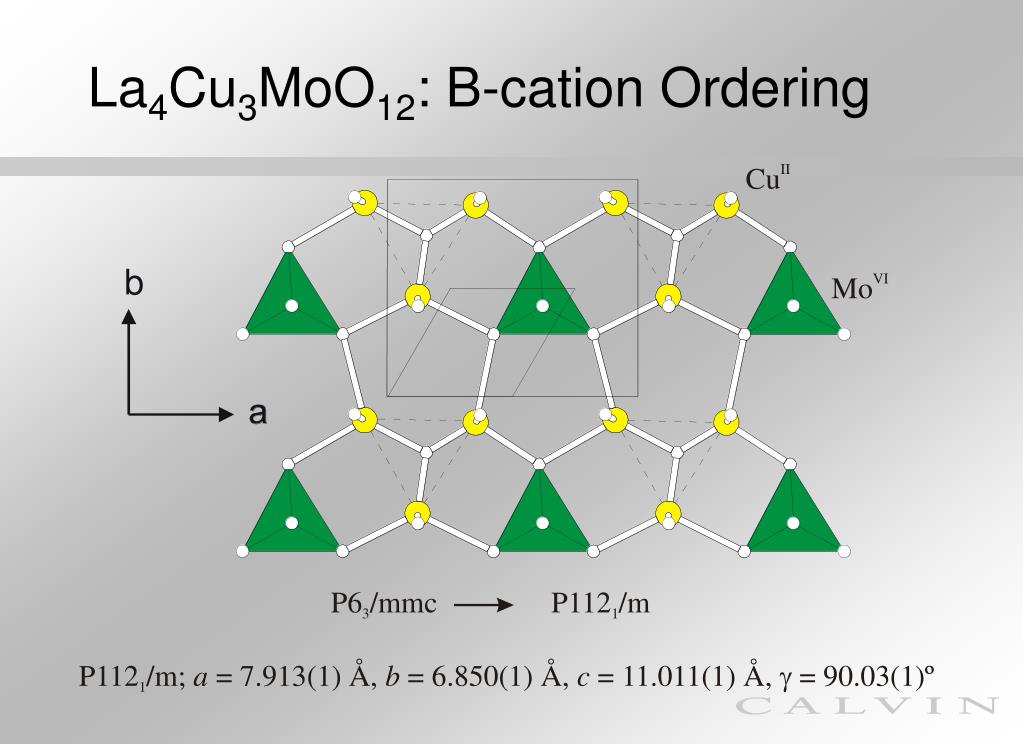

  11. La4Cu3MoO12: B-cation Ordering

  12. La4Cu3MoO12: Frustrated Antiferromagnetism 1.73 mB Inverse Molar Susceptibility (per copper) 100% Paramagnetic 1.02 mB 35% Paramagnetic Temperature (K)

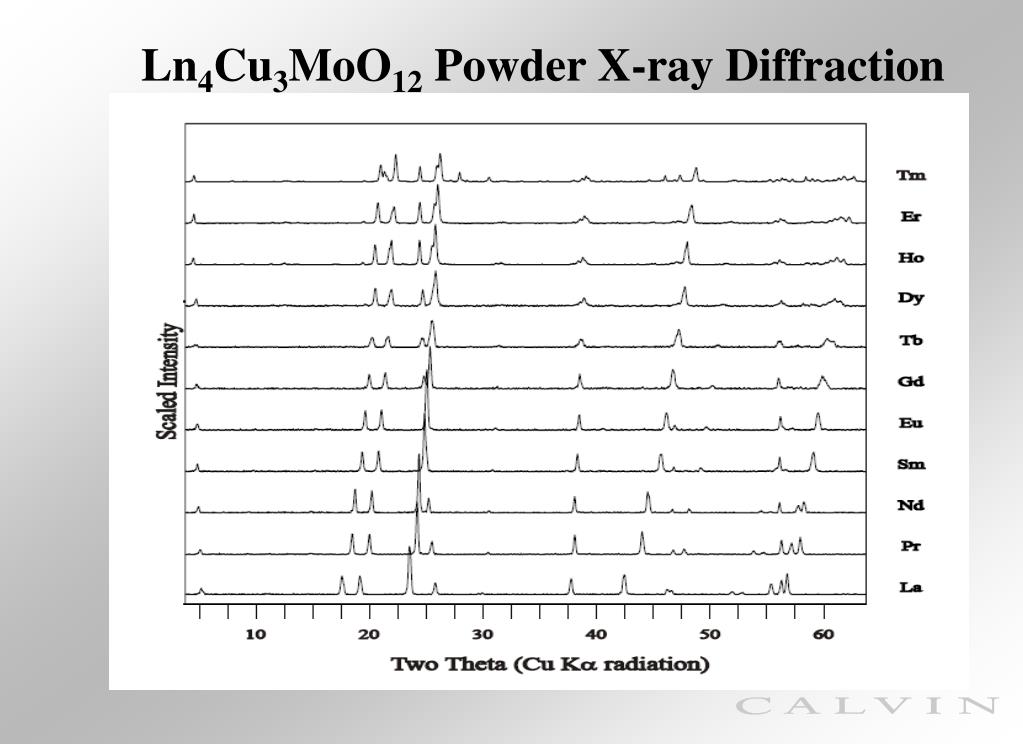

  13. Ln4Cu3MoO12 Powder X-ray Diffraction

  14. Ln4Cu3MoO12 Lattice Parameters

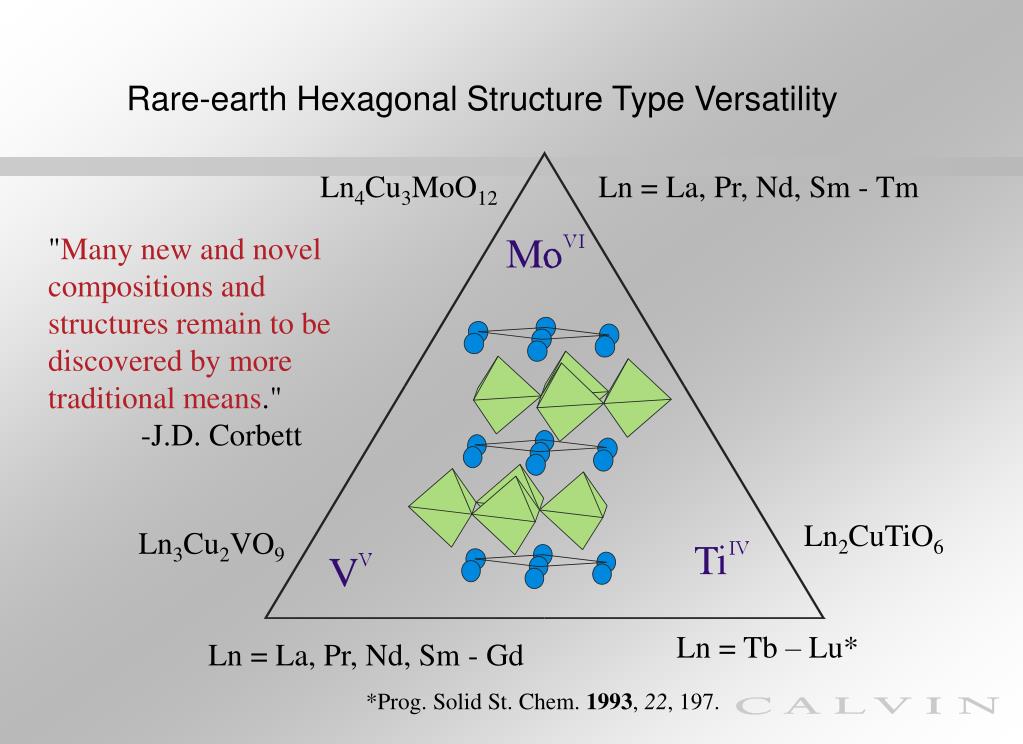

  15. Rare-earth Hexagonal Structure Type Versatility Ln4Cu3MoO12 Ln = La, Pr, Nd, Sm - Tm "Many new and novel compositions and structures remain to be discovered by more traditional means." -J.D. Corbett Ln2CuTiO6 Ln = Tb – Lu* Ln3Cu2VO9 Ln = La, Pr, Nd, Sm - Gd *Prog. Solid St. Chem. 1993, 22, 197.

  16. Formation of Single Phases • The primary goal of state synthesis is to form single phases • Single phases form if and only if their G is less than all possible multiphase mixtures at the reaction temperature. • The following examples demonstrate the importance of stoichiometric analysis in the search for novel materials.

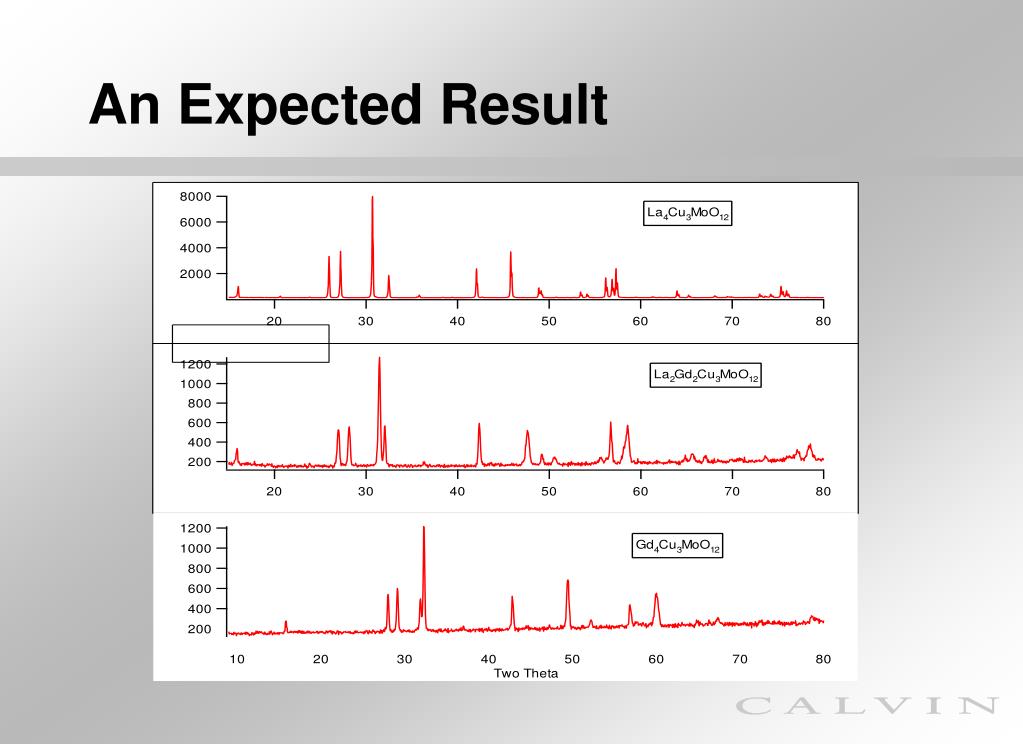

  17. An Expected Result

  18. An Unexpected Result

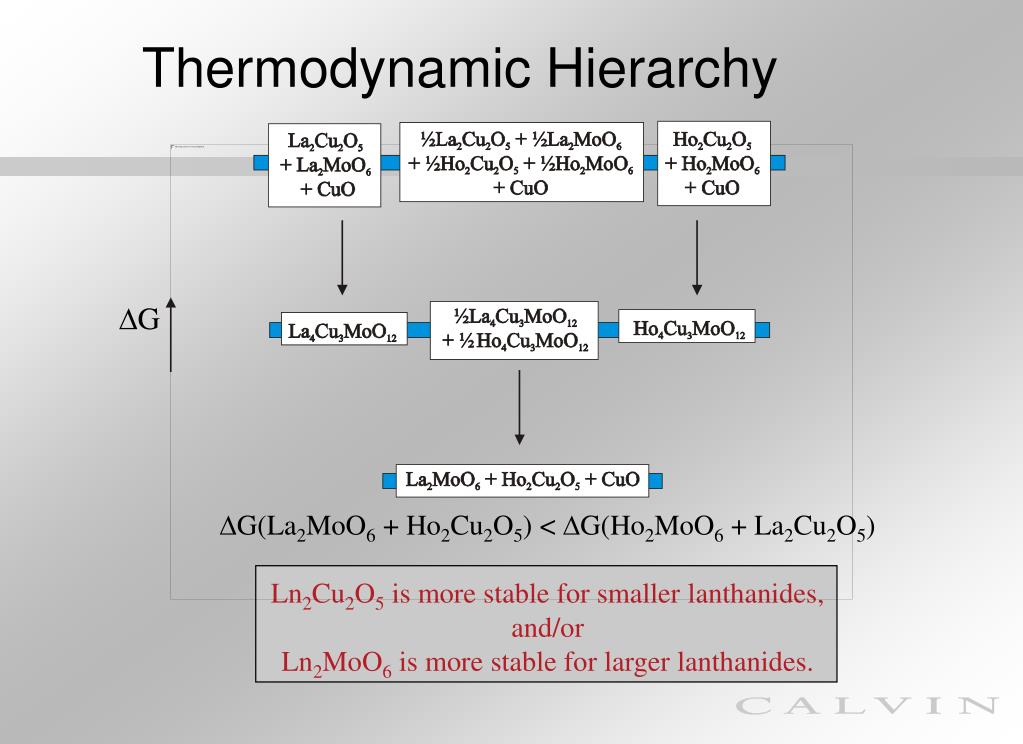

  19. Thermodynamic Hierarchy G G(La2MoO6 + Ho2Cu2O5) < G(Ho2MoO6 + La2Cu2O5) Ln2Cu2O5 is more stable for smaller lanthanides, and/or Ln2MoO6 is more stable for larger lanthanides.

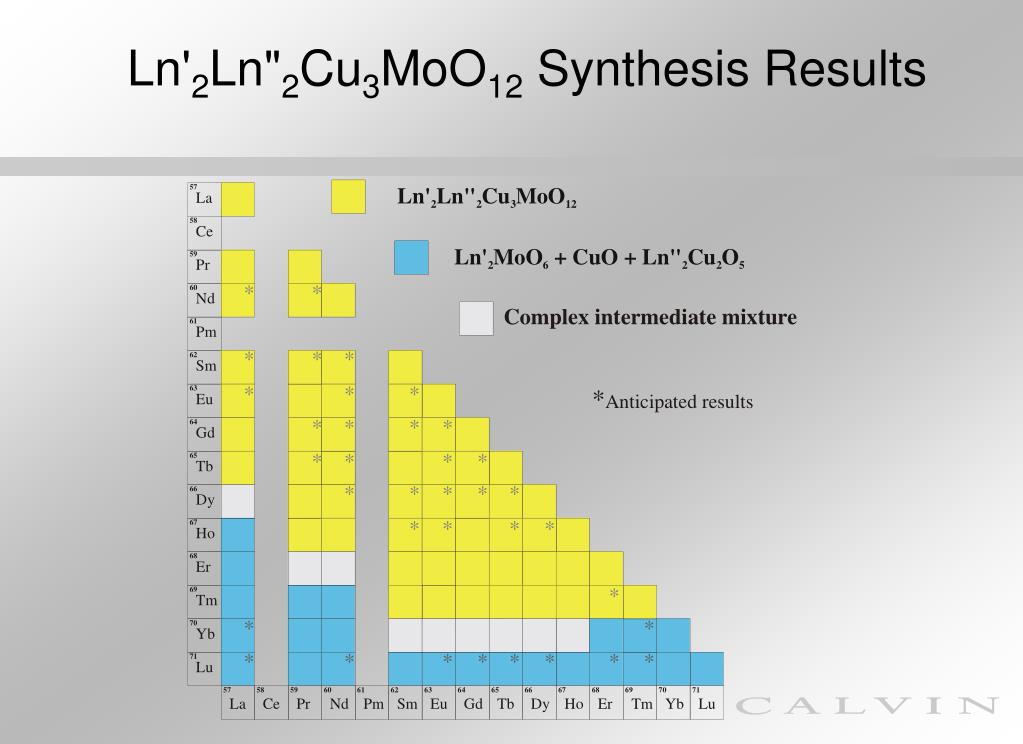

  20. Ln'2Ln"2Cu3MoO12 Synthesis Results

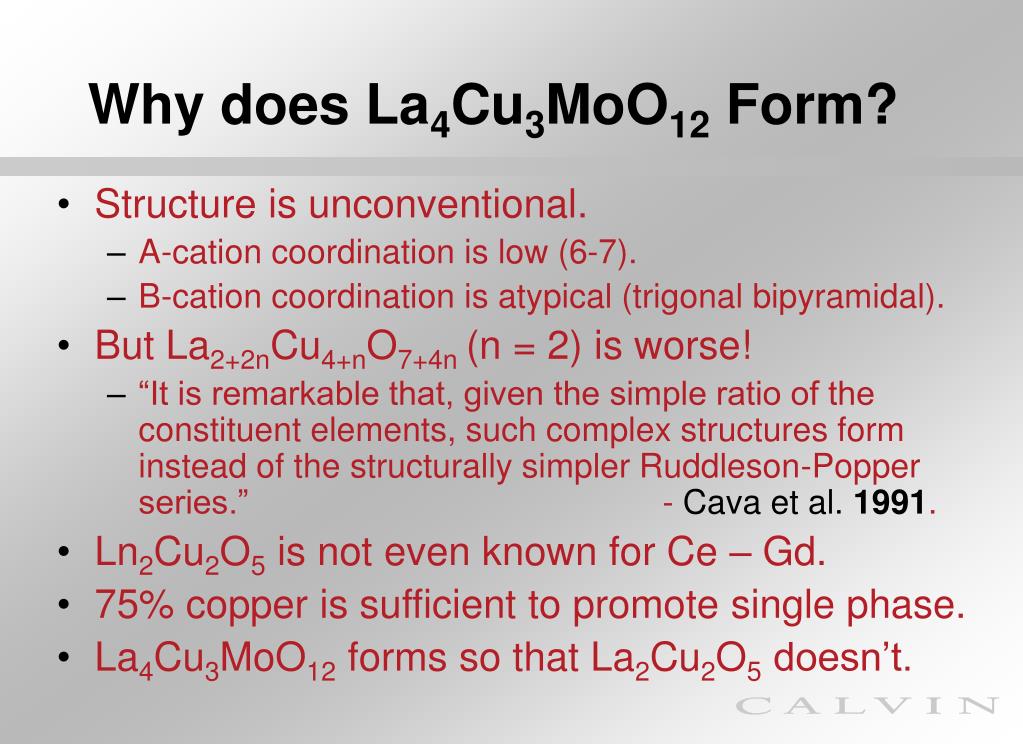

  21. Why does La4Cu3MoO12 Form? • Structure is unconventional. • A-cation coordination is low (6-7). • B-cation coordination is atypical (trigonal bipyramidal). • But La2+2nCu4+nO7+4n (n = 2) is worse! • “It is remarkable that, given the simple ratio of the constituent elements, such complex structures form instead of the structurally simpler Ruddleson-Popper series.” - Cava et al. 1991. • Ln2Cu2O5 is not even known for Ce – Gd. • 75% copper is sufficient to promote single phase. • La4Cu3MoO12 forms so that La2Cu2O5 doesn’t.

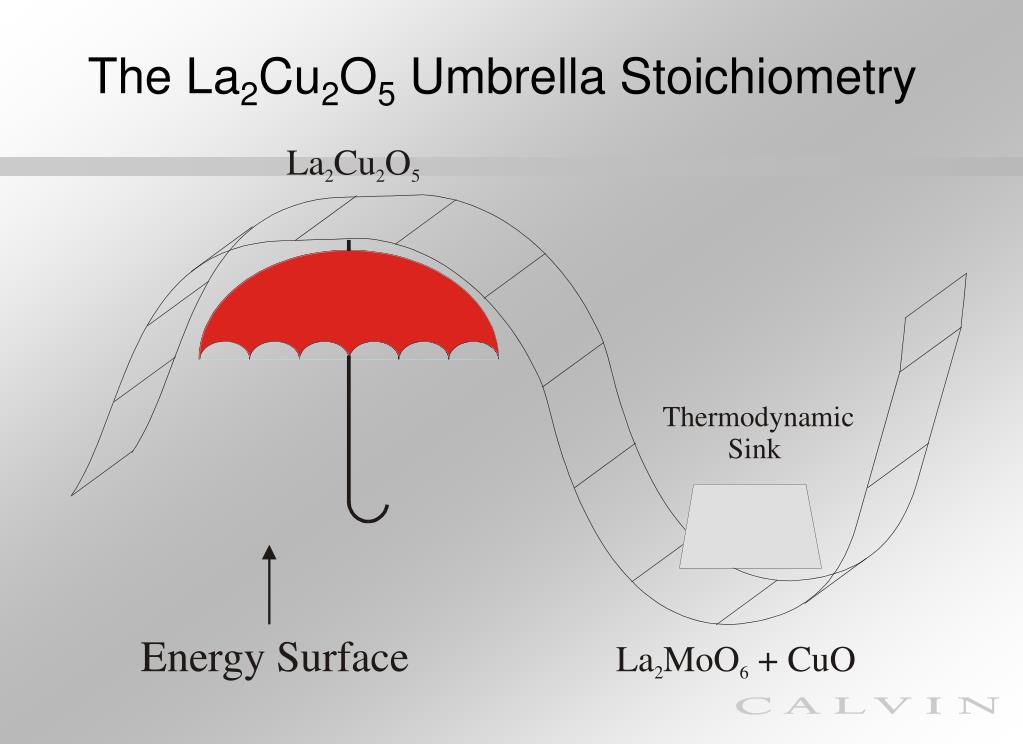

  22. The La2Cu2O5 Umbrella Stoichiometry

  23. La4Cu3+xMo1-xO12

  24. Why does Ho4Cu3MoO12 Form? • Ho2Cu2O5 isn’t the problem anymore. • Ho2MoO6 + CuO is the problem! • Ln2MoO6 changes structure between Nd and Sm. • 25% molybdenum is sufficient to promote single phase. • Ho4Cu3MoO12 forms so that Ho2MoO6 doesn’t.

  25. Ln2MoO6 Structural Shift Nd2MoO6 (I-42m) a = 4.0010 Å c = 15.7950 Å Sm2MoO6 (I2/a) a = 15.76 Å b = 11.26 Å c = 5.467 Å 2 (copper K)

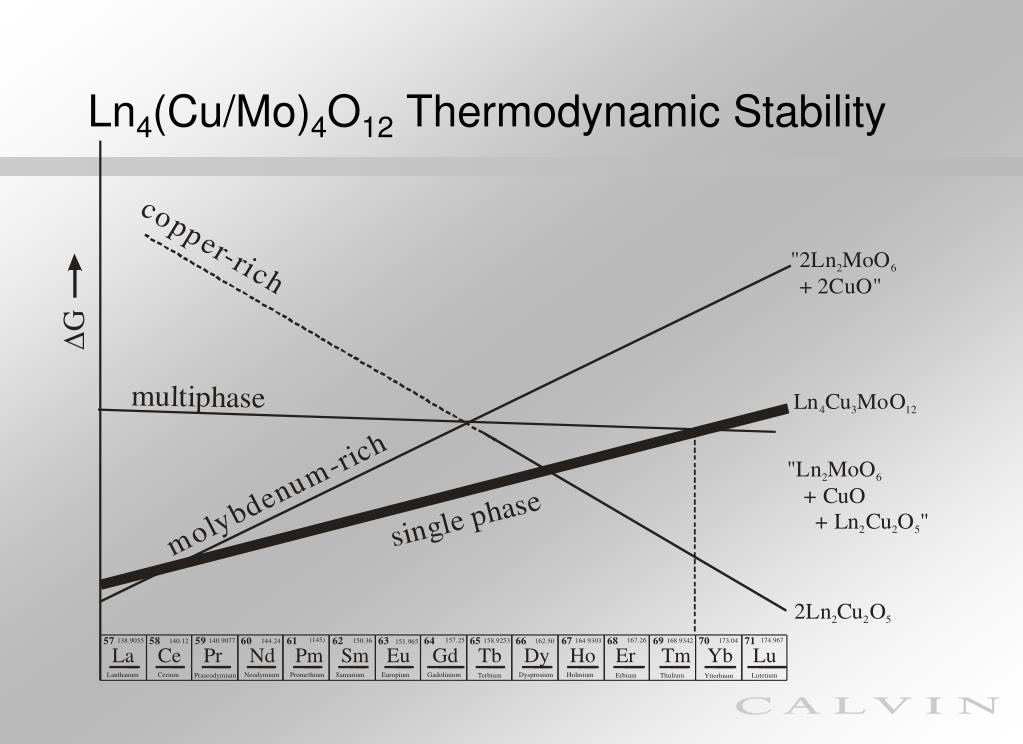

  26. Ln4(Cu/Mo)4O12 Thermodynamic Stability

  27. More Examples • La2CuSnO6 vs. La2Cu2O5 + La2Sn2O7 • La2Sn2O7, stable pyrochlore, infamous thermodynamic sink • La2CuSnO6, lone example of a layered double perovskite that forms at ambient pressure. • La2Ba2Cu2Ti2O11 vs. La2Cu2O5 + 2BaTiO3 • La2Ba2Cu2Ti2O11, layered quadruple perovskite • BaTiO3, well known for centuries. • All known phases exist because at least one of the phases in every multiphase alternative has a sufficiently high G. • Identifying and applying these Umbrella Stoichiometries is the key to a more rational search for novel matierals.

  28. Conclusions – searching for unconventionality • Umbrella stoichiometries promote single phase results by destabilizing multiphase alternatives. • Umbrella stoichiometries facilitate substitutions that shift compositions towards them. Example: La4Cu3+xMo1-xO12-2x 0  x  0.12 • Undiscovered phases likely exist near umbrella stoichiometries. • Phases discovered near umbrella stoichiometries will tend to be unconventional because they can be structurally discontent and still be the thermodynamic product of a solid state reaction.
