  1. Probe Test Results for 5 wafers of Ultimate-2 sensors • Outline: • Yield and wafer maps • Summary

  2. Yield and wafer maps – wafer 1,2 Vref2 high Vref2 low • Wafer 1: • good: 35 73% • bad: 10 21% • (?): 3 6% • Wafer 2: • good: 36 75% • bad: 8 17% • (?): 4 8%

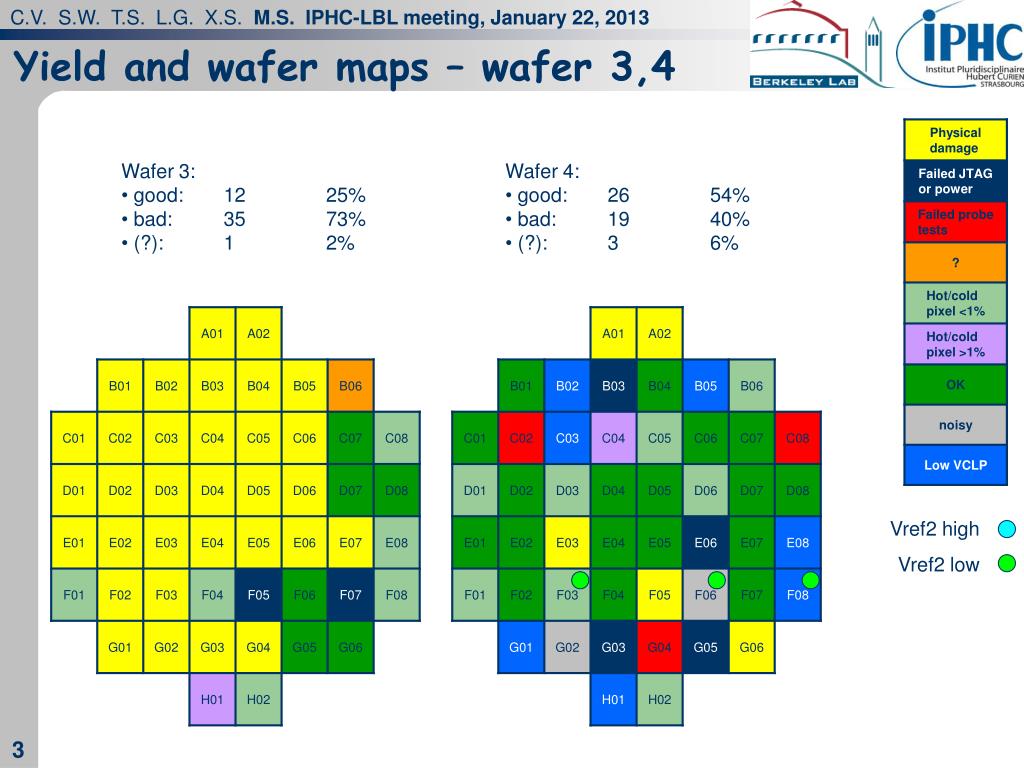

  3. Yield and wafer maps – wafer 3,4 Vref2 high Vref2 low • Wafer 3: • good: 12 25% • bad: 35 73% • (?): 1 2% • Wafer 4: • good: 26 54% • bad: 19 40% • (?): 3 6%

  4. Yield and wafer maps – wafer 5 Vref2 high Vref2 low • Wafer 5: • good: 35 73% • bad: 12 25% • (?): 1 2%

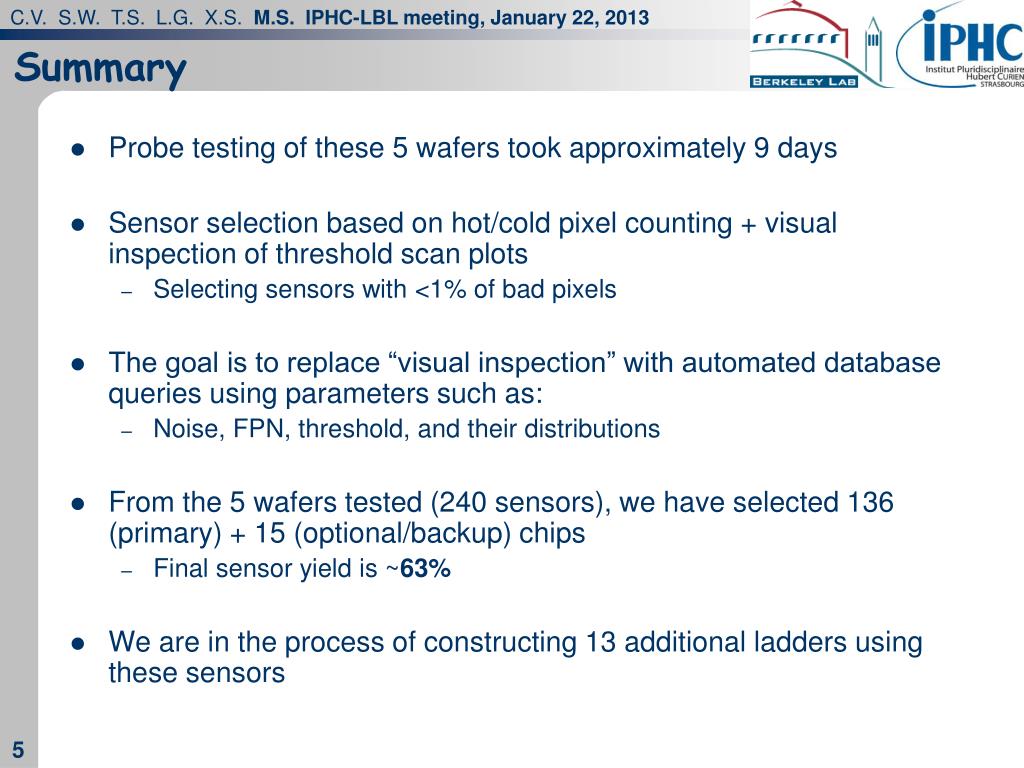

  5. Summary • Probe testing of these 5 wafers took approximately 9 days • Sensor selection based on hot/cold pixel counting + visual inspection of threshold scan plots • Selecting sensors with <1% of bad pixels • The goal is to replace “visual inspection” with automated database queries using parameters such as: • Noise, FPN, threshold, and their distributions • From the 5 wafers tested (240 sensors), we have selected 136 (primary) + 15 (optional/backup) chips • Final sensor yield is ~63% • We are in the process of constructing 13 additional ladders using these sensors
