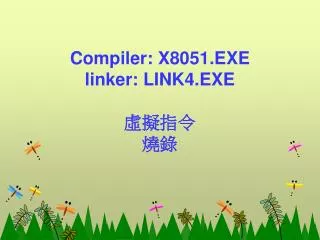

  1. Compiler: X8051.EXElinker: LINK4.EXE虛擬指令燒錄

  2. X8051.EXE

  3. 8051compiler編譯器:x8051.exe 輸入: *.asm 輸出: (1) *.lst (2) *.obj

  4. D: disk*.lst

  5. 無須副檔名led

  6. 無須副檔名led.obj

  7. LINK4.EXE

  8. 8051鏈結檔—link4.exe

  9. OFFSET FOR ‘CODE’

  10. INPUT FILE NAME

  11. OUTPUT FILE NAME

  12. LIBRARY FILE NAME

  13. H*.HEX

  14. 虛擬指令 1.ORG 編碼起始位址 Exam: ORG 0h 2.END 程式結束 3.DB 保留n個位元組 Exam: LOOP DB 3 4.EQU 定義符號 Exam: COUNT EQU 30 5. $ 目前位址 Exam: JMP $

  15. 程式燒錄(LEAP) • IC置放

  16. IC廠牌型號選擇

  17. 程式載入(*.HEX)

  18. 程式燒錄

  19. 燒錄結果
