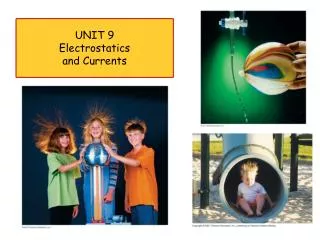

  1. UNIT 9Electrostatics and Currents

  2. Tuesday March 20th Electrostatics and Currents

  3. Tuesday, March 20 TODAY’S AGENDA • Electric Potential • Hw: Practice A (all) p599 UPCOMING… • Tues: Problem Quiz #2 (Electric Fields) • Wed:Capacitance • Thurs: Currentsand Resistance

  4. Chapter 16-17 Electrostatics and Current

  5. electron proton electron - + proton ConcepTest 24.1aElectric Potential Energy I 1)proton 2)electron 3)both feel the same force 4) neither – there is no force 5) they feel the same magnitude force but opposite direction A proton and an electron are in a constant electric field created by oppositely charged plates. You release the proton from the positive side and the electron from the negative side. Which feels the larger electric force?

  6. electron proton electron - + proton ConcepTest 24.1aElectric Potential Energy I 1)proton 2)electron 3)both feel the same force 4) neither – there is no force 5) they feel the same magnitude force but opposite direction A proton and an electron are in a constant electric field created by oppositely charged plates. You release the proton from the positive side and the electron from the negative side. Which feels the larger electric force? Since F = qEand the proton and electron have the same charge in magnitude, they both experience the same force. However, the forces point in opposite directions because the proton and electron are oppositely charged.

  7. electron proton electron - + proton ConcepTest 24.1bElectric Potential Energy II 1)proton 2)electron 3)both feel the same acceleration 4) neither – there is no acceleration 5) they feel the same magnitude acceleration but opposite direction A proton and an electron are in a constant electric field created by oppositely charged plates. You release the proton from the positive side and the electron from the negative side. Which has the larger acceleration?

  8. electron proton electron - + proton ConcepTest 24.1bElectric Potential Energy II 1)proton 2)electron 3)both feel the same acceleration 4) neither – there is no acceleration 5) they feel the same magnitude acceleration but opposite direction A proton and an electron are in a constant electric field created by oppositely charged plates. You release the proton from the positive side and the electron from the negative side. Which has the larger acceleration? Since F = maand the electron is much less massive than the proton, then the electron experiences the larger acceleration.

  9. Electrical Potential Energy of Two Charges • V1 is the electric potential due to q1 at some point P • The work required to bring q2 from infinity to P without acceleration is q2V1 • This work is equal to the potential energy of the two particle system

  10. The Electron Volt • The electron volt (eV) is defined as the energy that an electron gains when accelerated through a potential difference of 1 V • Electrons in normal atoms have energies of 10’s of eV • Excited electrons have energies of 1000’s of eV • High energy gamma rays have energies of millions of eV • 1 eV = 1.6 x 10-19 J

  11. Capacitance • A capacitor is a device used in a variety of electric circuits • The capacitance, C, of a capacitor is defined as the ratio of the magnitude of the charge on either conductor (plate) to the magnitude of the potential difference between the conductors (plates)

  12. Units: Farad (F) 1 F = 1 C / V A Farad is very large Often will see µF or pF V is the potential difference across a circuit element or device V represents the actual potential due to a given charge at a given location Capacitance, cont

  13. Parallel-Plate Capacitor • The capacitance of a device depends on the geometric arrangement of the conductors • For a parallel-plate capacitor whose plates are separated by air:

  14. Parallel-Plate Capacitor, Example • The capacitor consists of two parallel plates • Each have area A • They are separated by a distance d • The plates carry equal and opposite charges • When connected to the battery, charge is pulled off one plate and transferred to the other plate • The transfer stops when DVcap = DVbattery

  15. Electric Field in a Parallel-Plate Capacitor • The electric field between the plates is uniform • Near the center • Nonuniform near the edges • The field may be taken as constant throughout the region between the plates

  16. Applications of Capacitors – Camera Flash • The flash attachment on a camera uses a capacitor • A battery is used to charge the capacitor • The energy stored in the capacitor is released when the button is pushed to take a picture • The charge is delivered very quickly, illuminating the subject when more light is needed

  17. Applications of Capacitors – Computers • Computers use capacitors in many ways • Some keyboards use capacitors at the bases of the keys • When the key is pressed, the capacitor spacing decreases and the capacitance increases • The key is recognized by the change in capacitance

  18. Energy Stored in a Capacitor • Energy stored = ½ Q ΔV • From the definition of capacitance, this can be rewritten in different forms

  19. Application • Defibrillators • When fibrillation occurs, the heart produces a rapid, irregular pattern of beats • A fast discharge of electrical energy through the heart can return the organ to its normal beat pattern • In general, capacitors act as energy reservoirs that can be slowly charged and then discharged quickly to provide large amounts of energy in a short pulse

  20. Capacitors with Dielectrics • A dielectric is an insulating material that, when placed between the plates of a capacitor, increases the capacitance • Dielectrics include rubber, plastic, or waxed paper • C = κCo = κεo(A/d) • The capacitance is multiplied by the factor κ when the dielectric completely fills the region between the plates

  21. Capacitors with Dielectrics

  22. Dielectric Strength • For any given plate separation, there is a maximum electric field that can be produced in the dielectric before it breaks down and begins to conduct • This maximum electric field is called the dielectric strength

  23. An Atomic Description of Dielectrics • Polarization occurs when there is a separation between the “centers of gravity” of its negative charge and its positive charge • In a capacitor, the dielectric becomes polarized because it is in an electric field that exists between the plates

  24. More Atomic Description • The presence of the positive charge on the dielectric effectively reduces some of the negative charge on the metal • This allows more negative charge on the plates for a given applied voltage • The capacitance increases

  25. END
