Significant Figures

Significant Figures. But their friends call them sig figs…. “Only those who have the patience to do simple things perfectly will acquire the skill to do difficult things easily.” Johann von Shiller. Measurements. Numbers in science class are measurements, and have a meaning.

isaac-curry
Download Presentation

Significant Figures

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

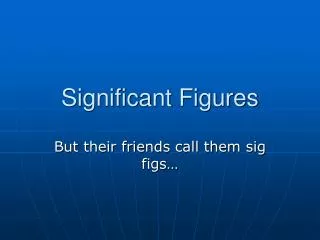

  1. Significant Figures But their friends call them sig figs…

  2. “Only those who have the patience to do simple things perfectly will acquire the skill to do difficult things easily.” • Johann von Shiller

  3. Measurements • Numbers in science class are measurements, and have a meaning. • In the measurement, .0045 cm, the zeros are just place holders for the measurement digits of 4 and 5. • We could rewrite this as 4.5x10-3 without losing any accuracy, so these zeros don’t matter as much as the 4 and five.

  4. Sig Figs • Numbers that are important in a measurement are called significant figures. • There are four simple rules we can follow to determine which numbers are sig figs in a measurement.

  5. Rule 1 • Every nonzero number is a sig fig. • 2300 has two sig figs, the 2 and the 3 • 12.43 has four sig figs • How about 724000? • Three sig figs!

  6. Rule 2 • Zeroes trapped are sig figs. • 203 has three sig figs • The two and three because of rule 1 • The zero is trapped, so it’s a sig fig • 1.024 has four sig figs • How many sig figs are in 609,000? • Three!

  7. Rule 3 • Zeros on the left are not sig figs. • .0045 has two sig figs • .0203 has three sig figs • How many sig figs are in .004903? • Four sig figs!

  8. Rule 4 • Final zeros to the right of the decimal are sig figs. • .04900 has four sig figs • 1.0030 has five sig figs • How many sig figs are in 3.00? • 3 sig figs!

  9. 7.50 4.304 .0070 4.200 x 102 3 4 2 4 (the 10 factor doesn’t count) How many sig figs are in each measurement?

  10. Why does this matter? • When we use measurements to do math, we often end up with more digits than we started with. • Ex. • Find the area of a triangle with a base of .3 cm and height of 1.5 cm. • Area = .225 cm2 • Problem, we have an answer that is accurate to the thousandths place, but the measurements were only accurate to the tenth.

  11. Old Man! I’m Confused! • I will show you a trick. • Remember: tricks are useful, but don’t confuse them with understanding…

  12. If there is a decimal… • If there is a decimal, we bring an arrow from the left… .0004560 • The arrow goes through any zeros. • It stops when it hits a number. • Everything left is a sig fig…

  13. If there is no decimal… • If there is no decimal, we bring an arrow from the right… 780000 • The arrow goes through any zeros. • It stops when it hits a number. • Everything left is a sig fig…

  14. Assignment • Page 51 • 83 and 84 • Add this to previous book work • Need help? More info on sig figs can be found on pages 38-39, including some samples.
