  1. MDX 101Lost in Cube Space

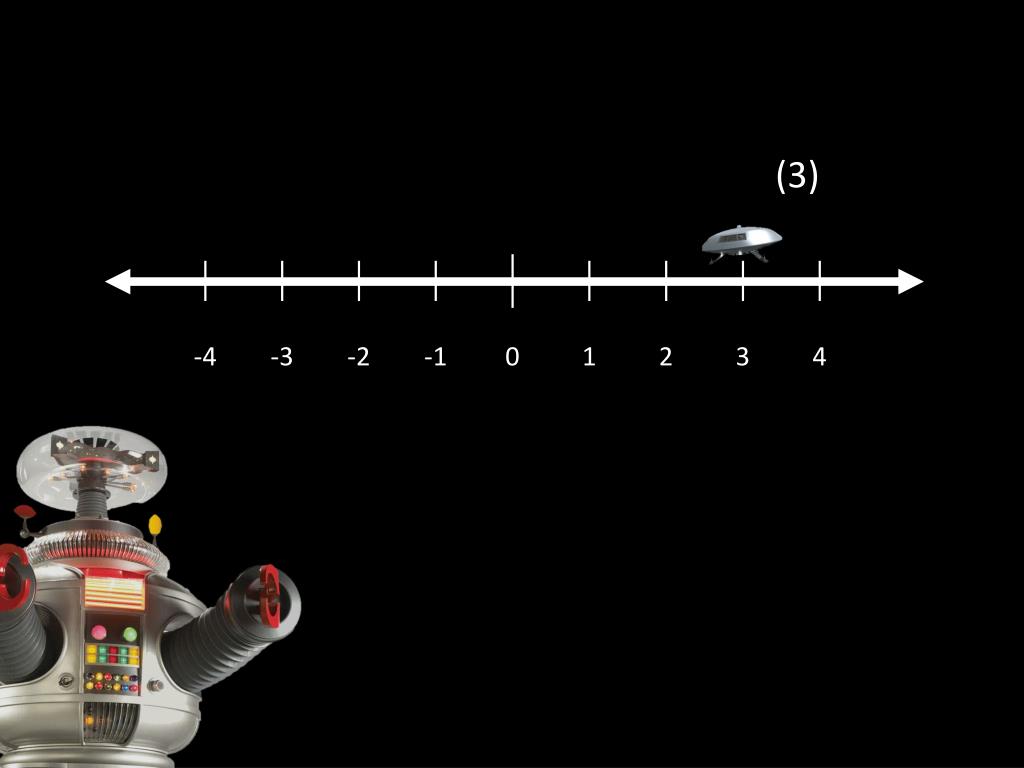

  2. (3) -4 -3 -2 -1 0 1 2 3 4

  3. y 4 3 2 (3, 2) 1 x -2 -4 -3 -2 -1 1 2 3 4 -3 -4

  4. y 4 3 (3, 2, 4) 2 Trippy. 1 4 3 x -2 -3 -2 -4 z -4 -3 -2 -1 1 2 3 4 -3 -4

  5. (x, y, z, ?) Freakin’ Sweet! (a1, a2, a3, a4) What the …?!

  6. (a1, a2, a3, a4) (a1, a2, a3, a4, a5) (a1, a2, a3, a4, a5, a6) (a1, a2, a3, a4, a5, a6, a7) (a1, a2, a3, a4, a5, a6, a7, a8) (a1, a2, … an)

  7. Cube Measure Group Σ Measure Member Attribute-Hierarchy

  8. [Product].[Category] • All Products • Accessories • Bikes • Clothing • Components

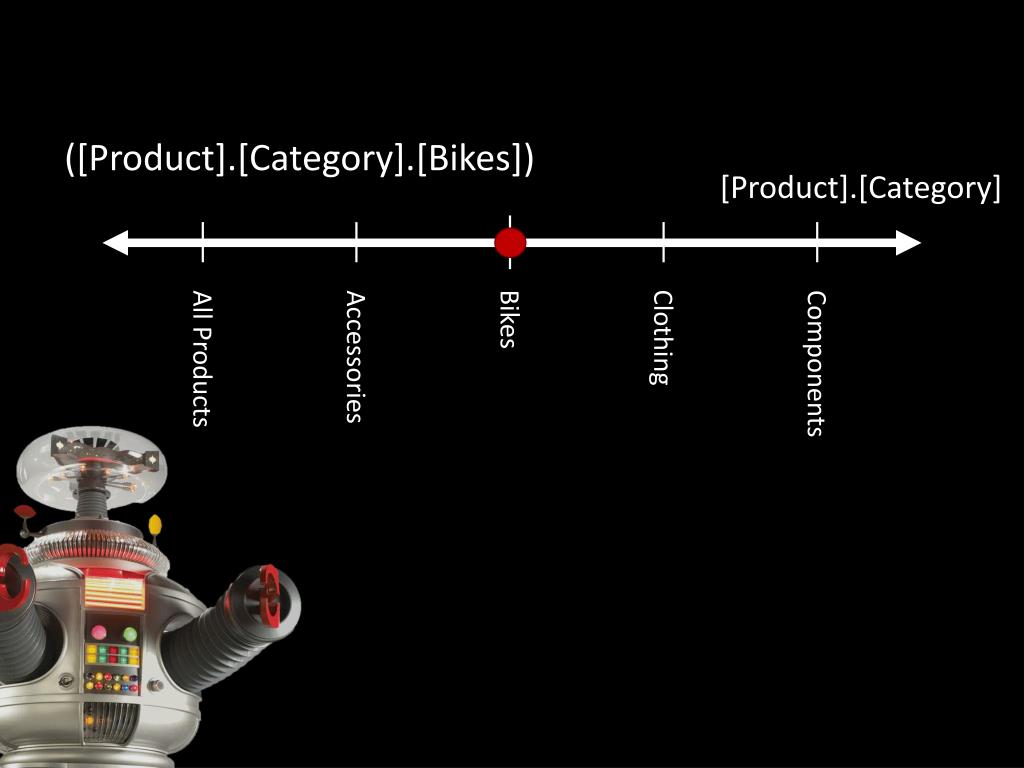

  9. ([Product].[Category].[Bikes]) [Product].[Category] Bikes Clothing Accessories All Products Components

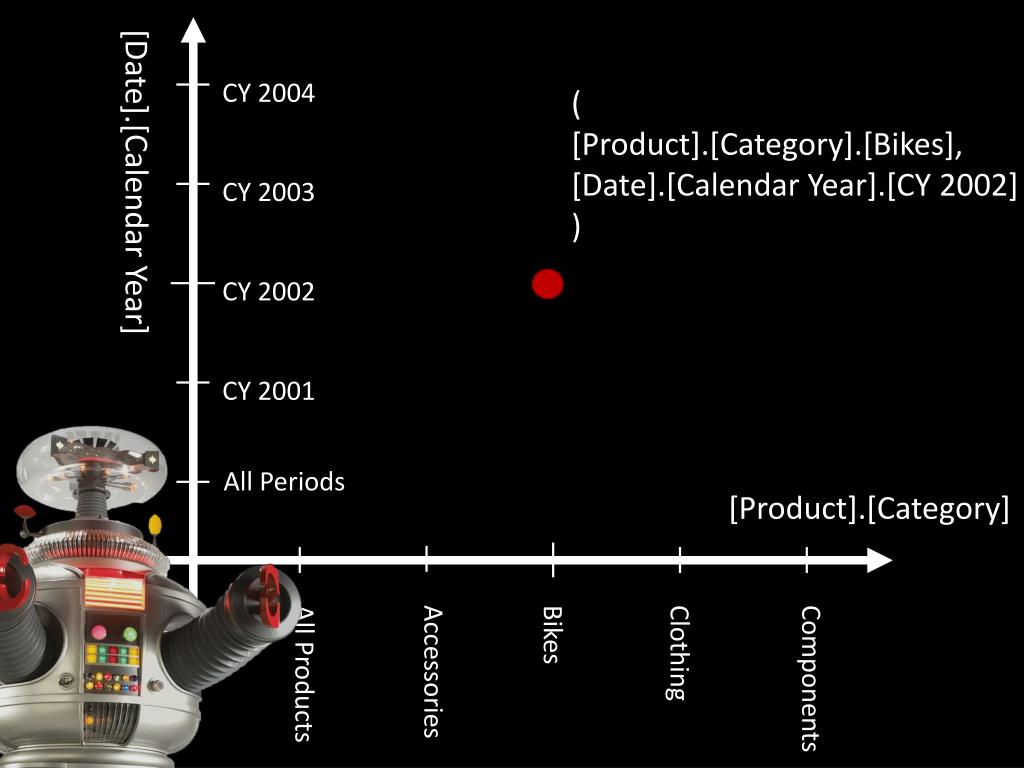

  10. CY 2004 ( [Product].[Category].[Bikes], [Date].[Calendar Year].[CY 2002]) [Date].[Calendar Year] CY 2003 CY 2002 CY 2001 All Periods [Product].[Category] Accessories Bikes All Products Components Clothing

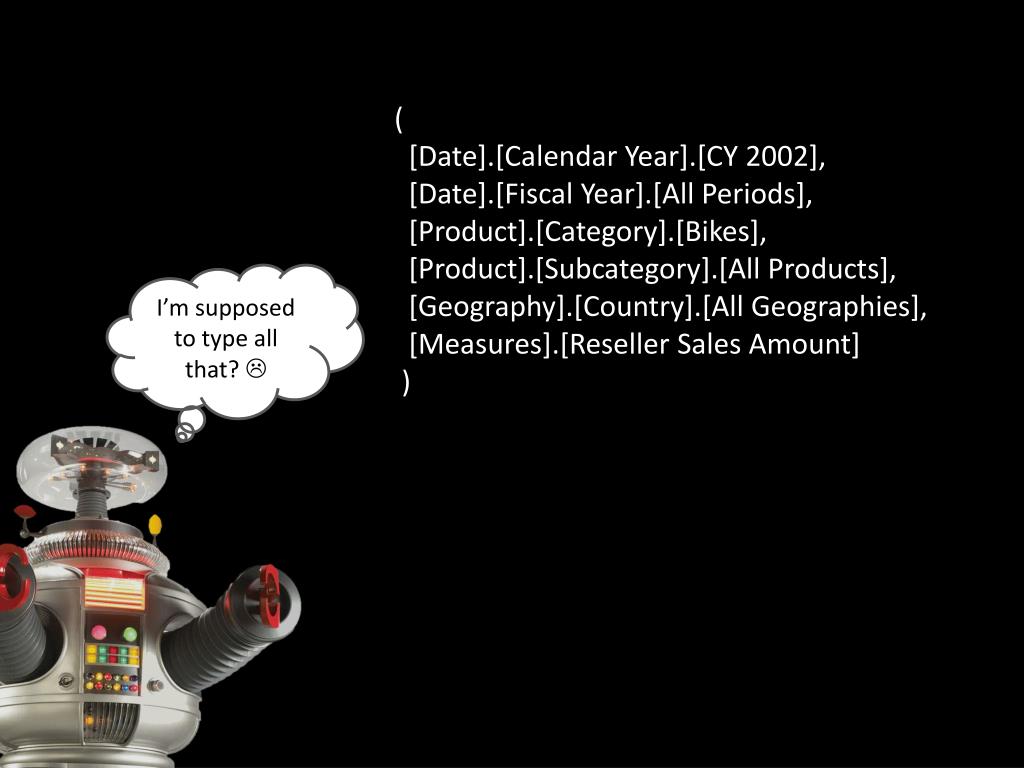

  11. ( [Date].[Calendar Year].[CY 2002], [Date].[Fiscal Year].[All Periods], [Product].[Category].[Bikes], [Product].[Subcategory].[All Products], [Geography].[Country].[All Geographies], [Measures].[Reseller Sales Amount] ) I’m supposed to type all that? 

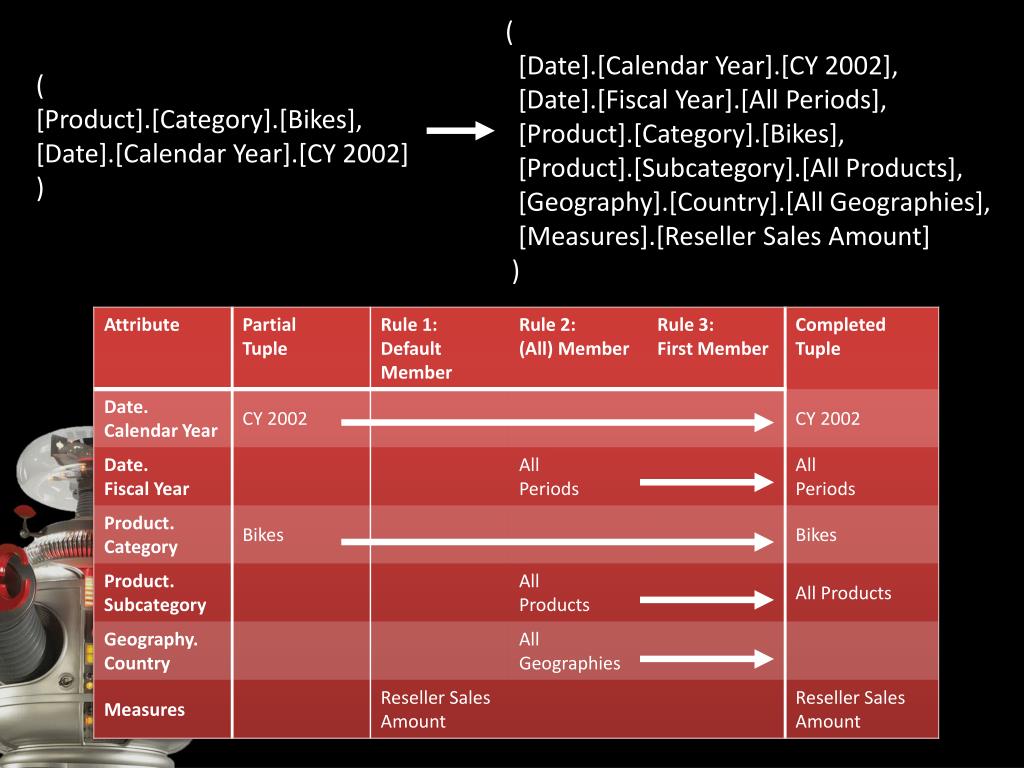

  12. ( [Date].[Calendar Year].[CY 2002], [Date].[Fiscal Year].[All Periods], [Product].[Category].[Bikes], [Product].[Subcategory].[All Products], [Geography].[Country].[All Geographies], [Measures].[Reseller Sales Amount] ) ( [Product].[Category].[Bikes], [Date].[Calendar Year].[CY 2002])

  13. SELECT [Date].[Calendar Year].Members on COLUMNS, [Product].[Category].Members on ROWSFROM [My Complex Cube]

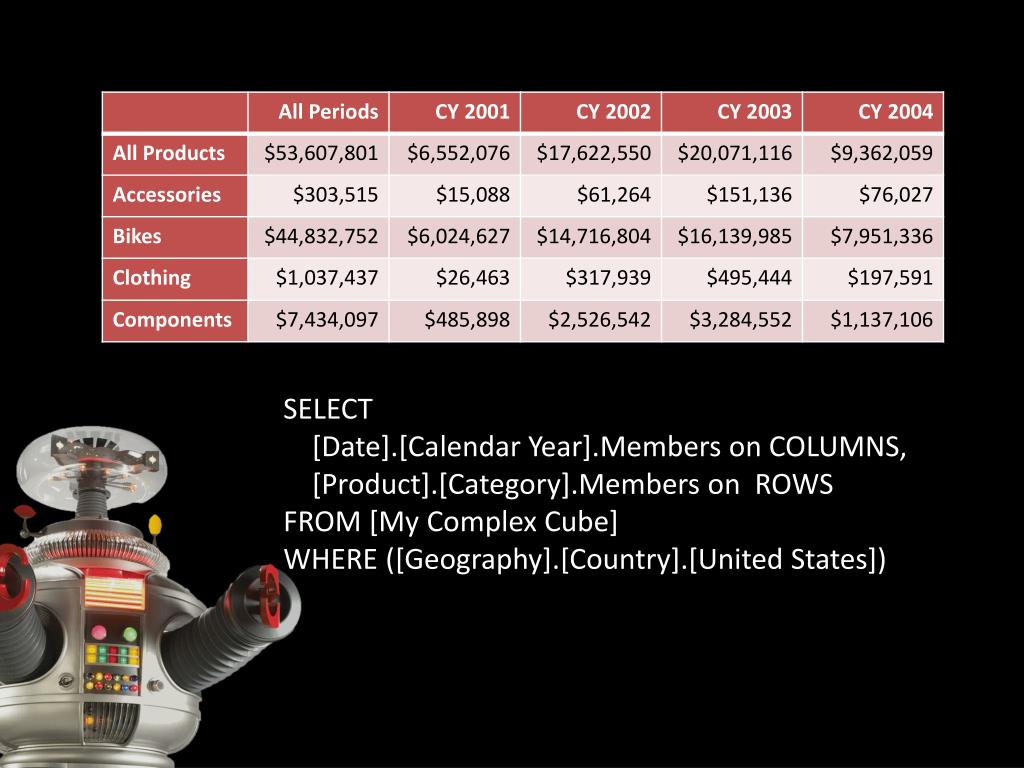

  14. SELECT [Date].[Calendar Year].Members on COLUMNS, [Product].[Category].Members on ROWSFROM [My Complex Cube]WHERE ([Geography].[Country].[United States])

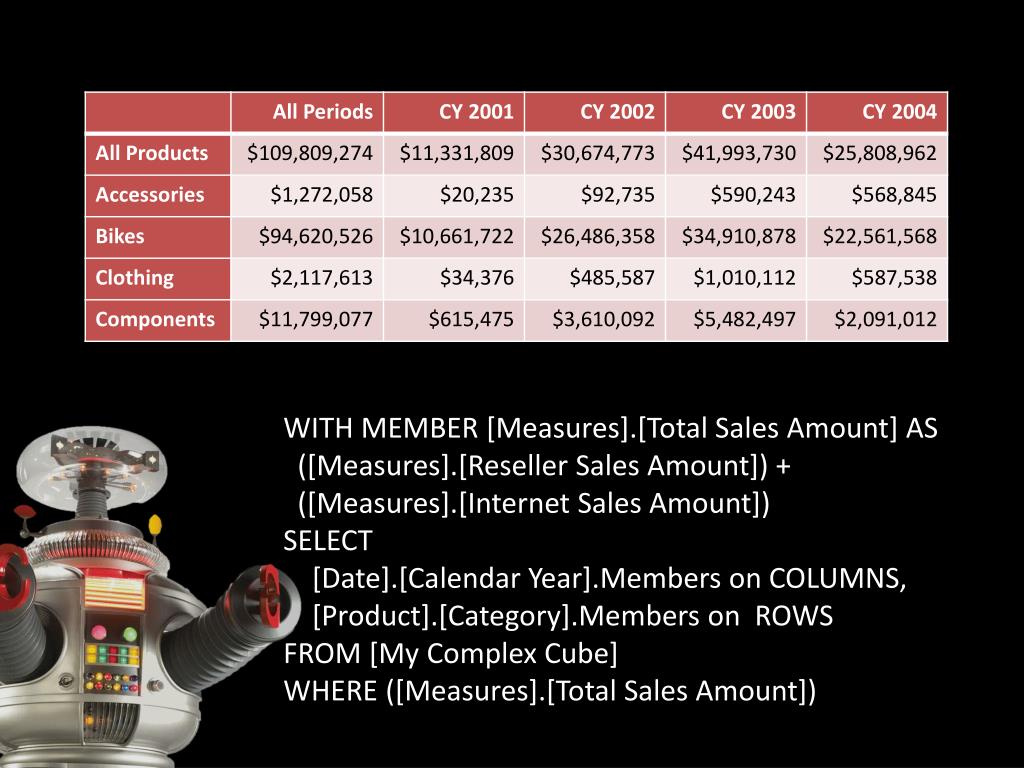

  15. WITH MEMBER [Measures].[Total Sales Amount] AS ([Measures].[Reseller Sales Amount]) + ([Measures].[Internet Sales Amount]) SELECT [Date].[Calendar Year].Members on COLUMNS, [Product].[Category].Members on ROWSFROM [My Complex Cube]WHERE ([Measures].[Total Sales Amount])
