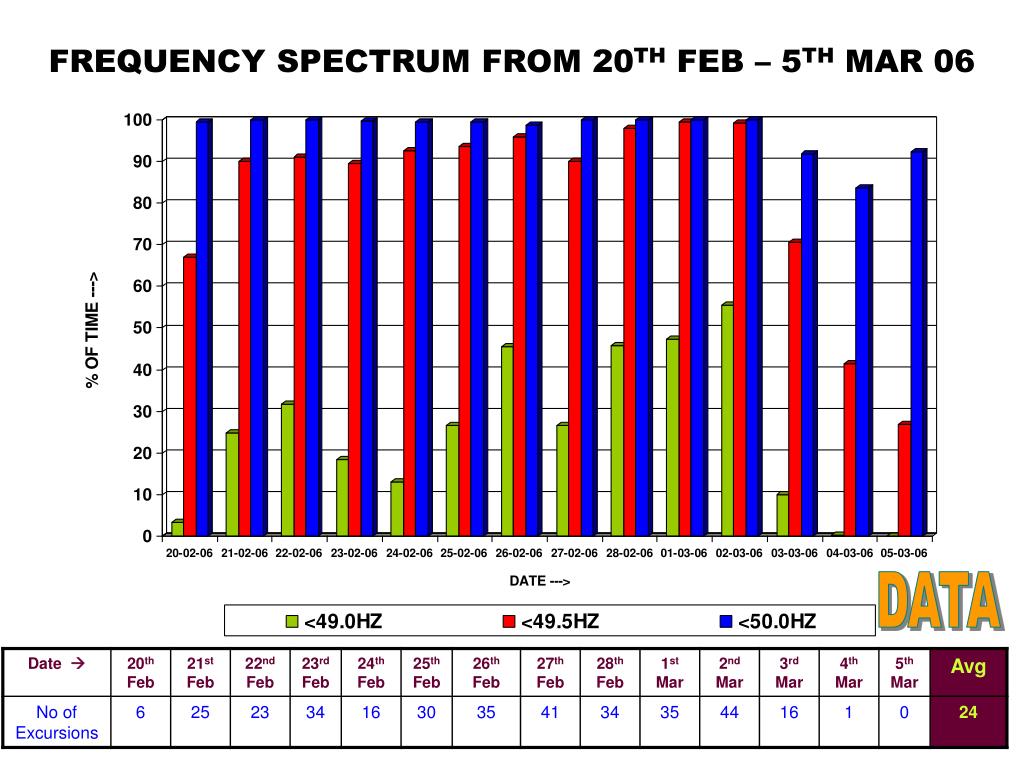

  1. FREQUENCY SPECTRUM FROM 20TH FEB – 5TH MAR 06 DATA

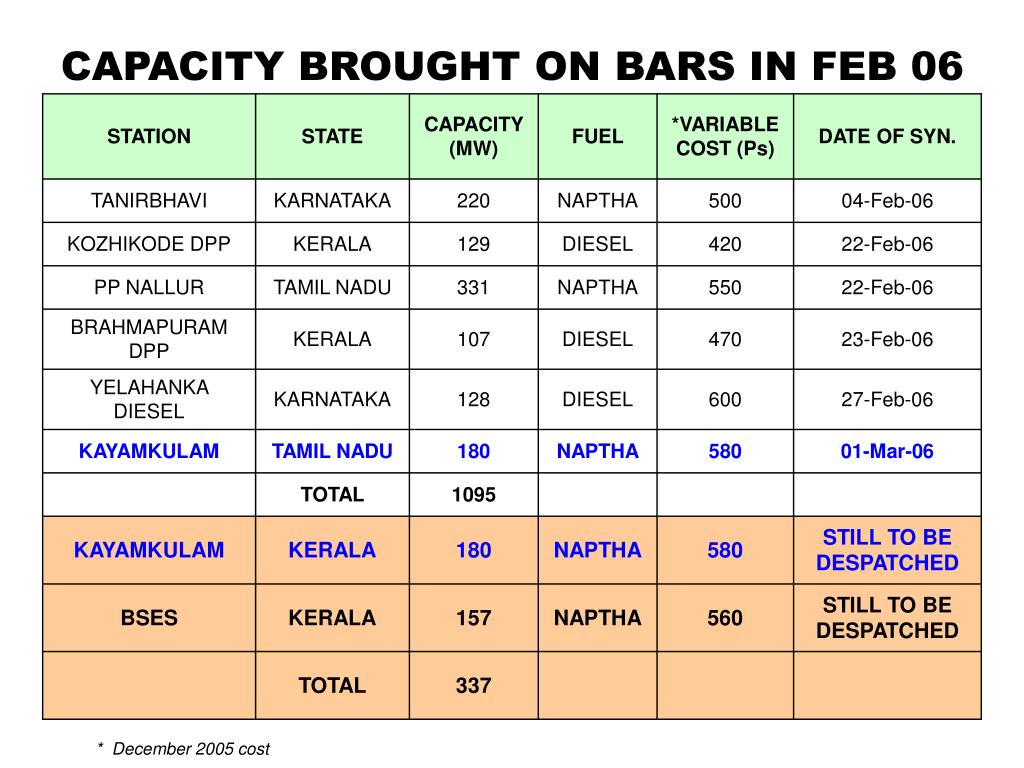

  2. CAPACITY BROUGHT ON BARS IN FEB 06 * December 2005 cost

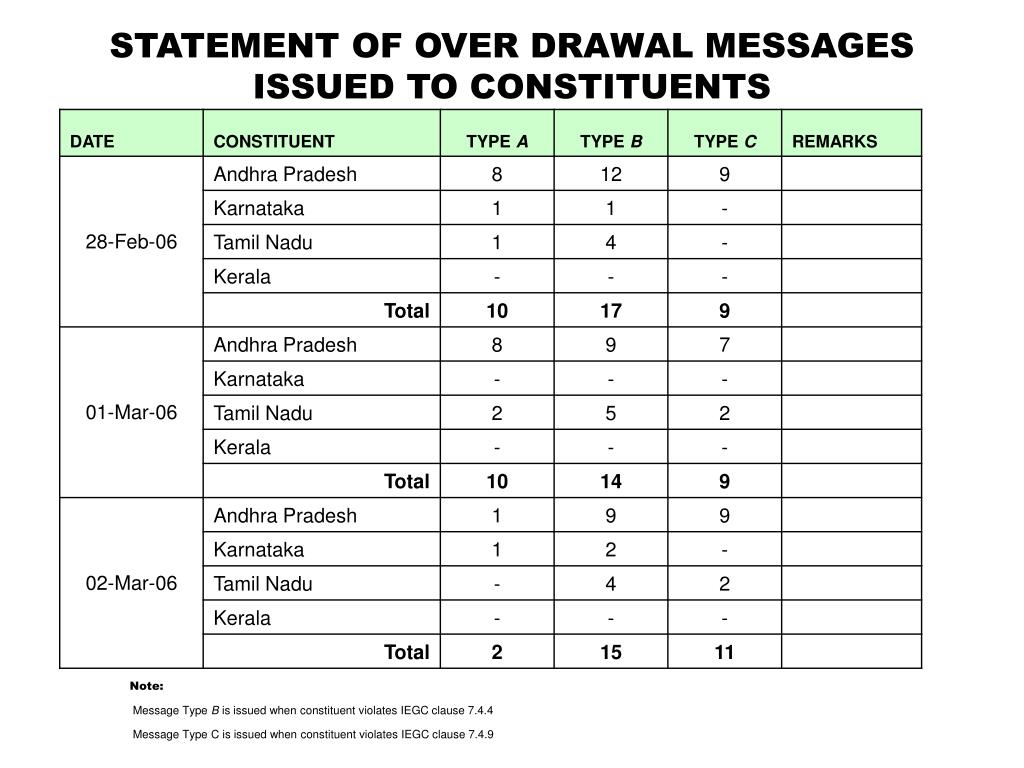

  3. STATEMENT OF OVER DRAWAL MESSAGES ISSUED TO CONSTITUENTS

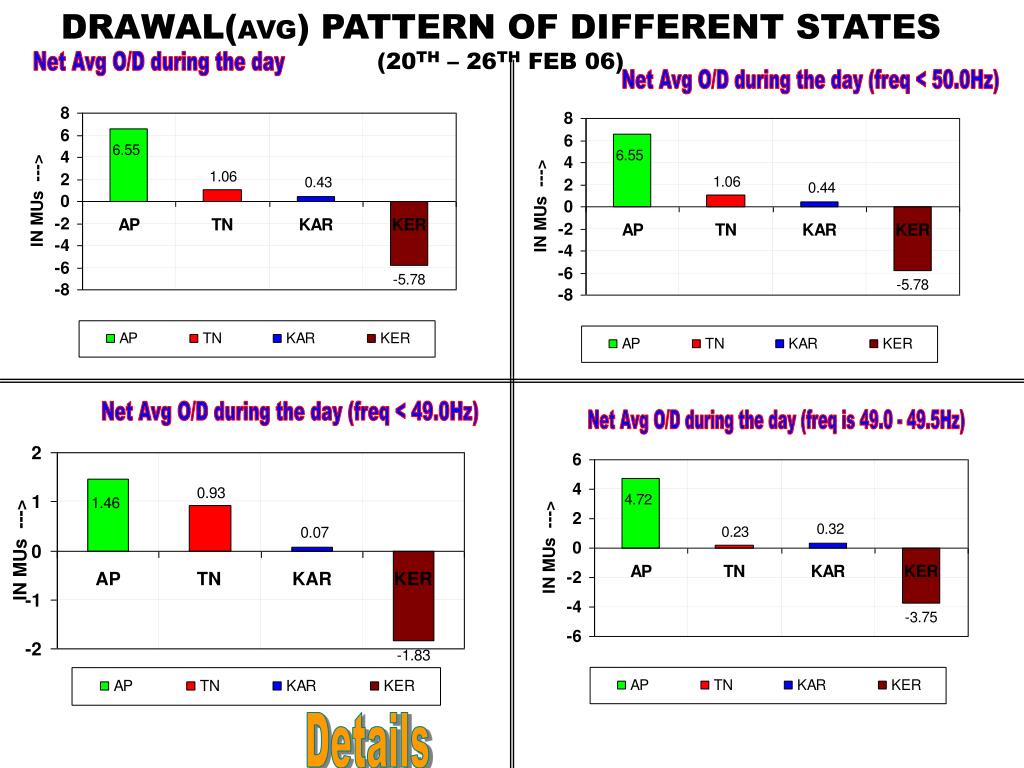

  4. DRAWAL(AVG) PATTERN OF DIFFERENT STATES(20TH – 26TH FEB 06) Net Avg O/D during the day Net Avg O/D during the day (freq < 50.0Hz) Net Avg O/D during the day (freq < 49.0Hz) Net Avg O/D during the day (freq is 49.0 - 49.5Hz) Details

  5. RESERVOIR LEVEL - COMPARISON

  6. PROPOSED ACTION PLAN • Action for load control to be initiated at 49.2 Hz • Advance planning for Peak Summer by States & Generators • Effect of Frequency correction during frequency less than 49.5 Hz. for operational control • Measures to harness all possible generation during high demand period • Modification in slope of UI curve
