  1. Chapter 3 Cell Structure and Function

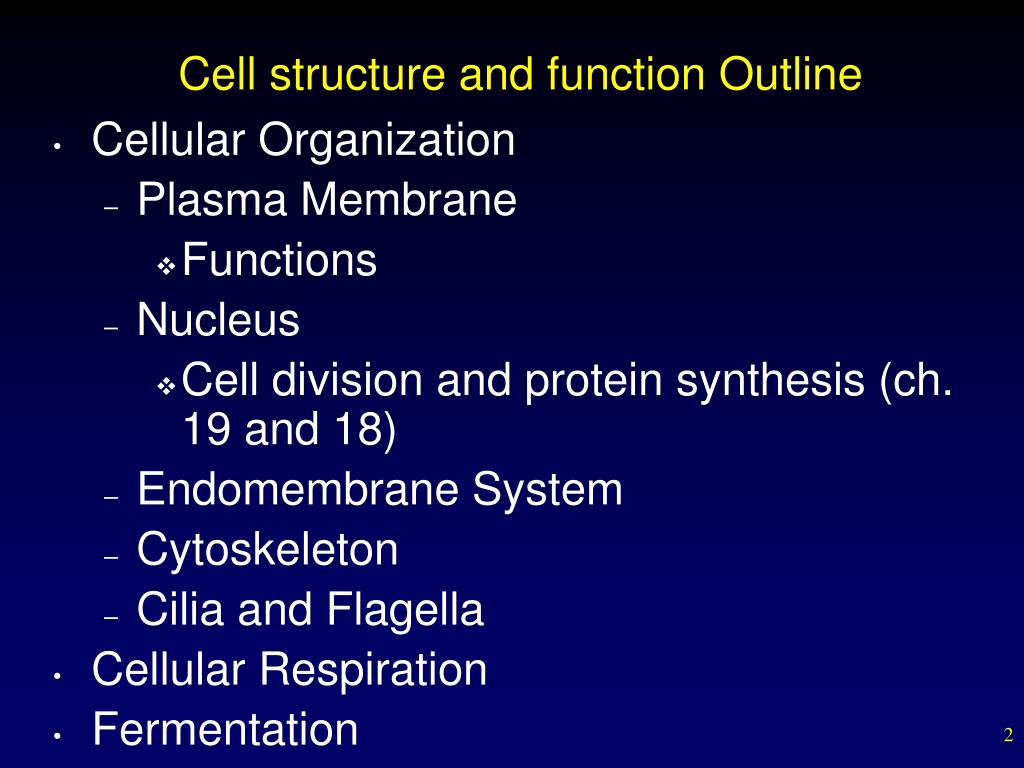

  2. Cell structure and function Outline • Cellular Organization • Plasma Membrane • Functions • Nucleus • Cell division and protein synthesis (ch. 19 and 18) • Endomembrane System • Cytoskeleton • Cilia and Flagella • Cellular Respiration • Fermentation

  3. Cellular Organization • Plasma membrane surrounds the cell and regulates entrance and exit of substances. • Nucleus is the centrally located structure containing chromosomes and is the control center of the cell. • Cytoplasm is the portion of the cell between the nucleus and plasma membrane.

  4. Cellular Organization • Organelles are small membranous structures, each with a specific function. • Cytoskeleton is a network of interconnected filaments and microtubules in the cytoplasm that maintain cell shape.

  5. Plasma Membrane • Plasma membrane is a phospholipid bilayer with attached or embedded proteins. • Polar head and non-polar tails. • Form spherical bilayer when placed in water. • Plasma membrane proteins form receptors, conductors, or enzymes in metabolic reactions.

  6. Plasma Membrane Model

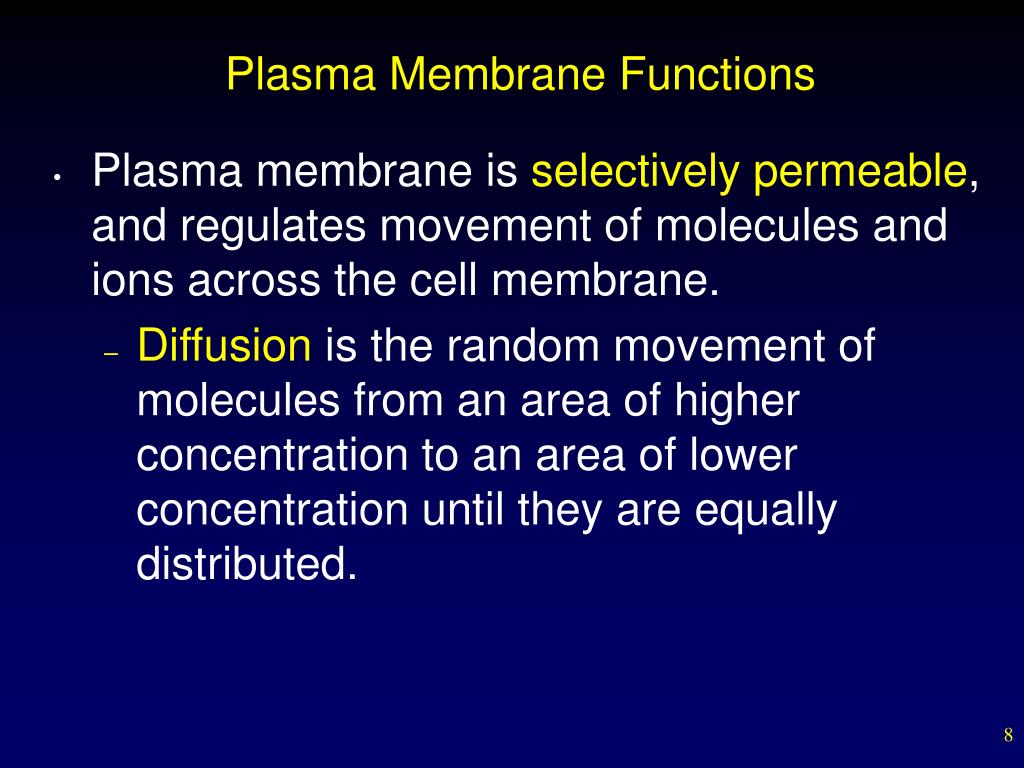

  7. Plasma Membrane Functions • Plasma membrane is selectively permeable, and regulates movement of molecules and ions across the cell membrane. • Diffusion is the random movement of molecules from an area of higher concentration to an area of lower concentration until they are equally distributed.

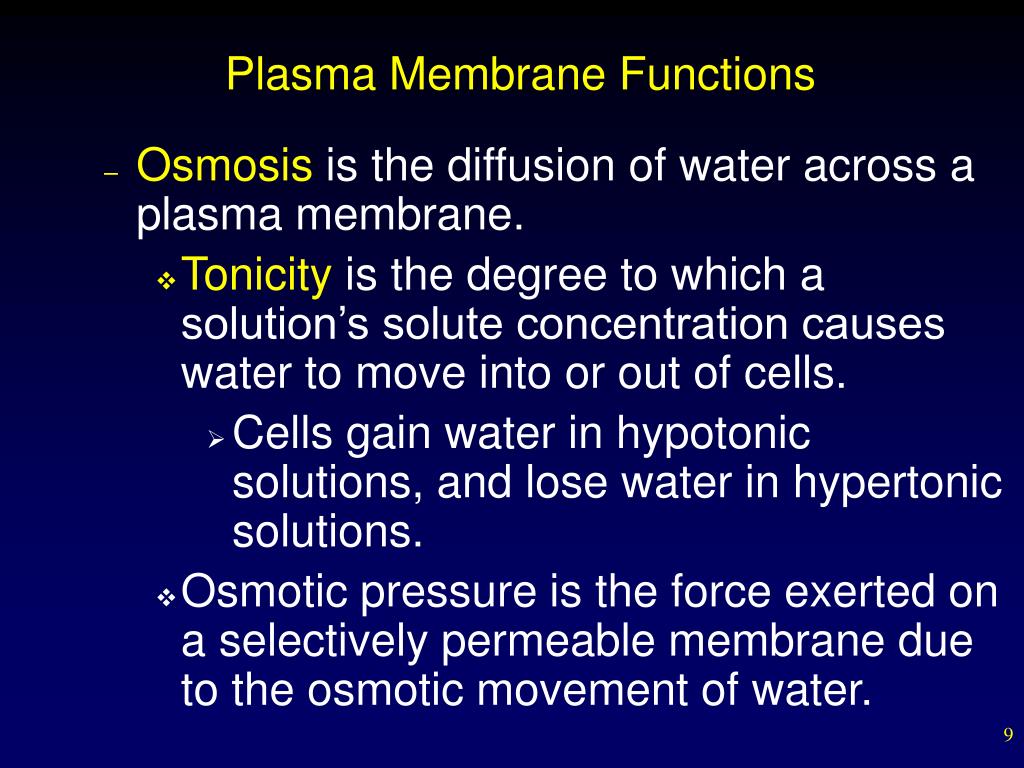

  8. Plasma Membrane Functions • Osmosis is the diffusion of water across a plasma membrane. • Tonicity is the degree to which a solution’s solute concentration causes water to move into or out of cells. • Cells gain water in hypotonic solutions, and lose water in hypertonic solutions. • Osmotic pressure is the force exerted on a selectively permeable membrane due to the osmotic movement of water.

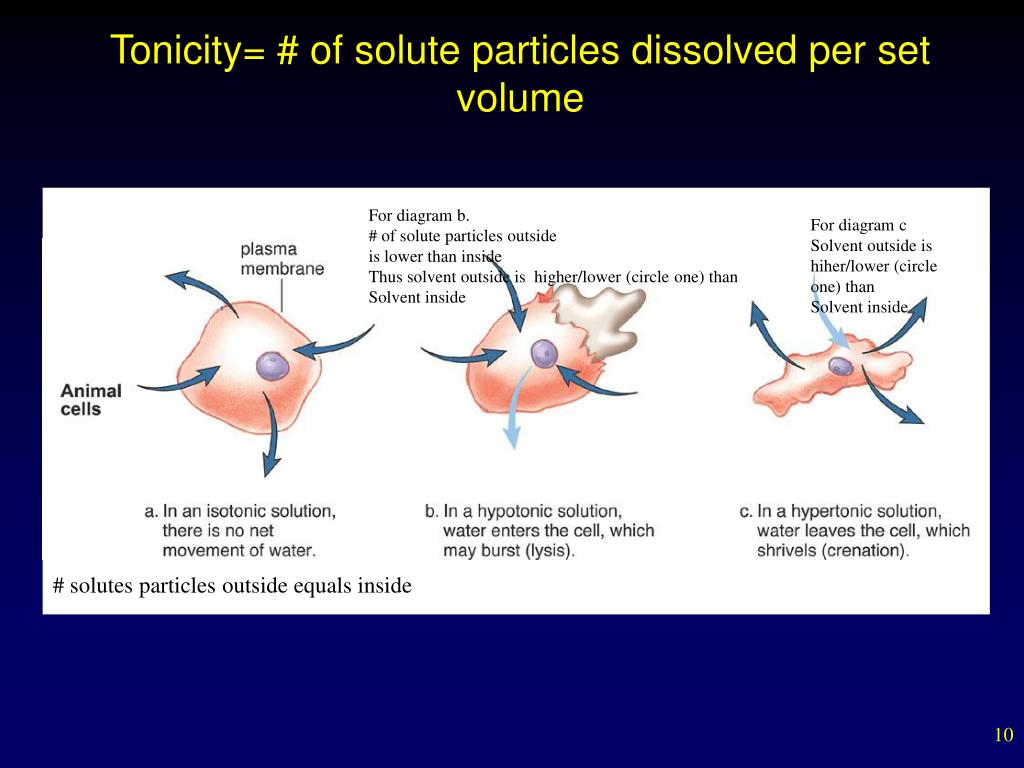

  9. Tonicity= # of solute particles dissolved per set volume For diagram b. # of solute particles outside is lower than inside Thus solvent outside is higher/lower (circle one) than Solvent inside For diagram c Solvent outside is hiher/lower (circle one) than Solvent inside # solutes particles outside equals inside

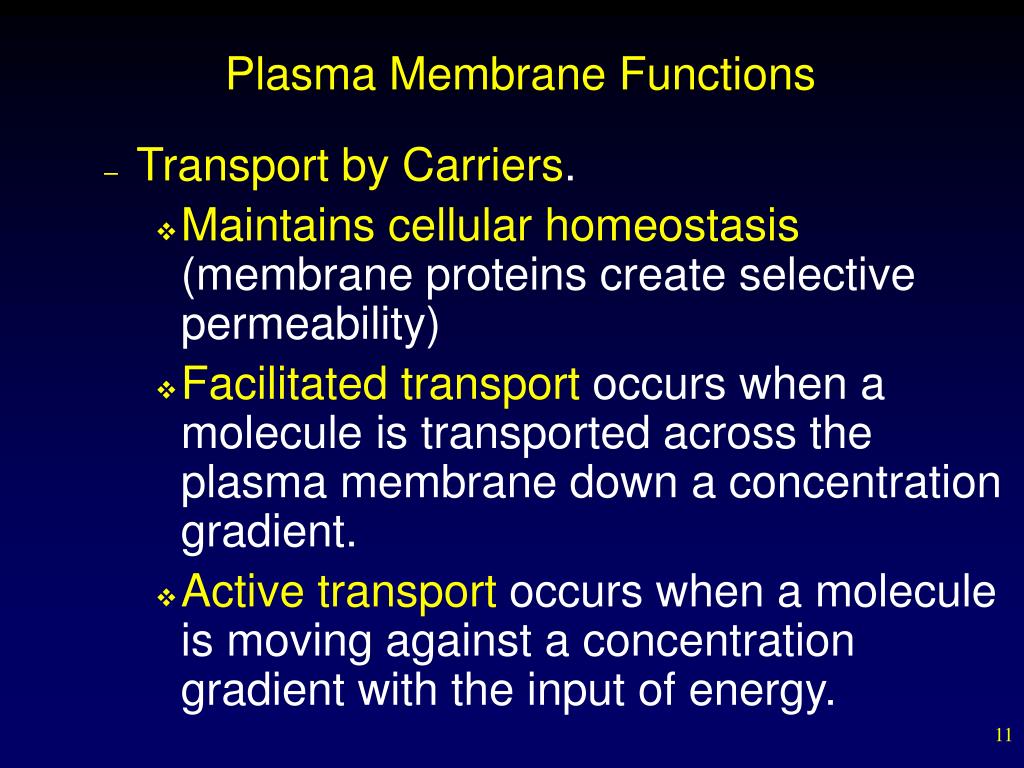

  10. Plasma Membrane Functions • Transport by Carriers. • Maintains cellular homeostasis (membrane proteins create selective permeability) • Facilitated transport occurs when a molecule is transported across the plasma membrane down a concentration gradient. • Active transport occurs when a molecule is moving against a concentration gradient with the input of energy.

  11. Active Transport- things that normally do not get across the cell membrane

  12. Plasma Membrane Functions • Transport by Carriers. • Endocytosis occurs when a portion of the plasma membrane invaginates to envelop a substance and then pinches off to form an intracellular vesicle. • Exocytosis occurs when a vesicle fuses with the plasma membrane as secretion occurs.

  13. The Nucleus • The nucleus stores genetic information that determines body cell characteristics and metabolic functioning. • Nucleus is separated from the cytoplasm by a nuclear envelope. • Contains nuclear pores to permit passage of proteins and ribosomal subunits.

  14. Ch. 19 DNA and RNA Structure and Function • DNA is the genetic material found principally in chromosomes. • In between cell divisions, chromosomes exist in long fine threads of chromatin. • When a cell is about to divide, chromosomes coil and condense.

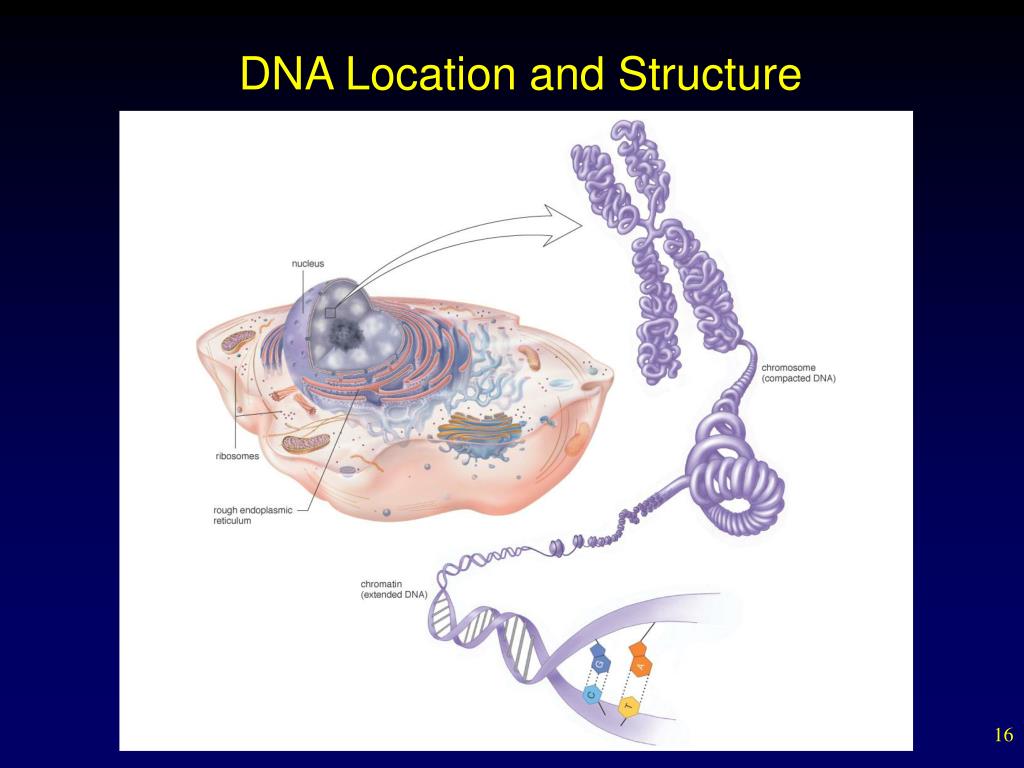

  15. DNA Location and Structure

  16. DNA Structure and Replication • DNA is a sequential series of joined nucleotides. • Sugar (deoxyribose), phosphate, and base. • Adenine (A). • Thymine (T). • Cytosine (C). • Guanine (G). nucleotides

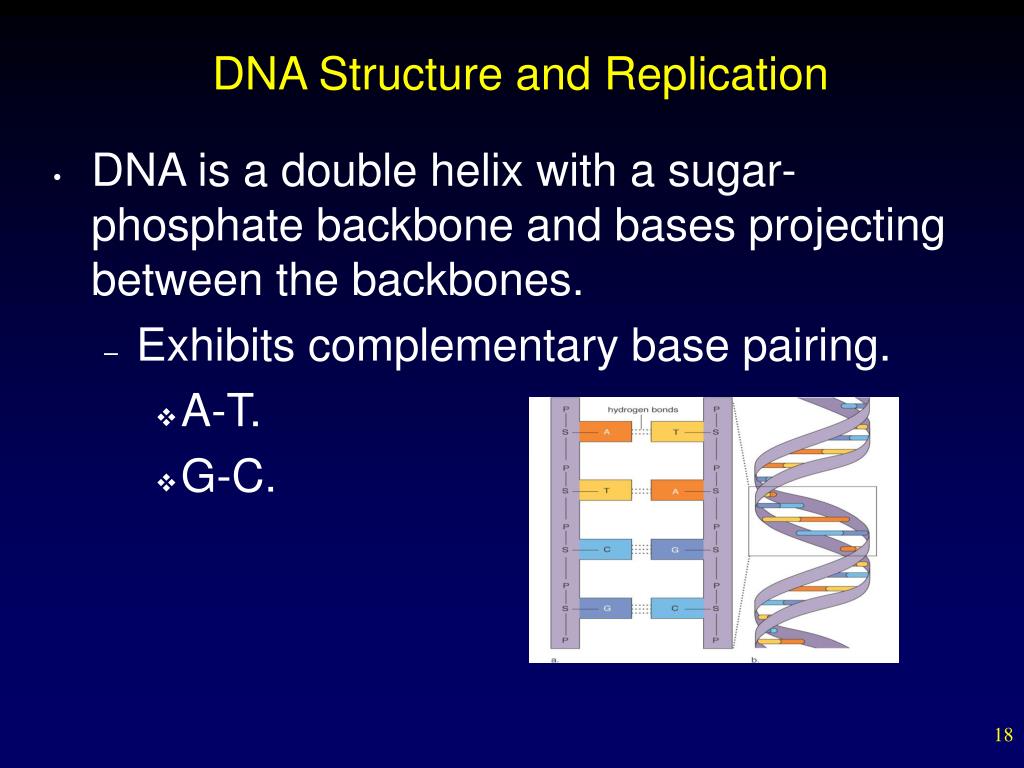

  17. DNA Structure and Replication • DNA is a double helix with a sugar-phosphate backbone and bases projecting between the backbones. • Exhibits complementary base pairing. • A-T. • G-C.

  18. DNA Replication- for cell reproduction/division • Replication Steps. • Hydrogen bonds between strands break and the molecule unzips. • New nucleotides fit beside parental strand. • DNA polymerase joins new nucleotides. • Two complete molecules present, each with one old strand and one new strand. • Semi-conservative replication.

  19. DNA Replication/ cell division Mitosis and Meiosis (replacing cells or making babies)

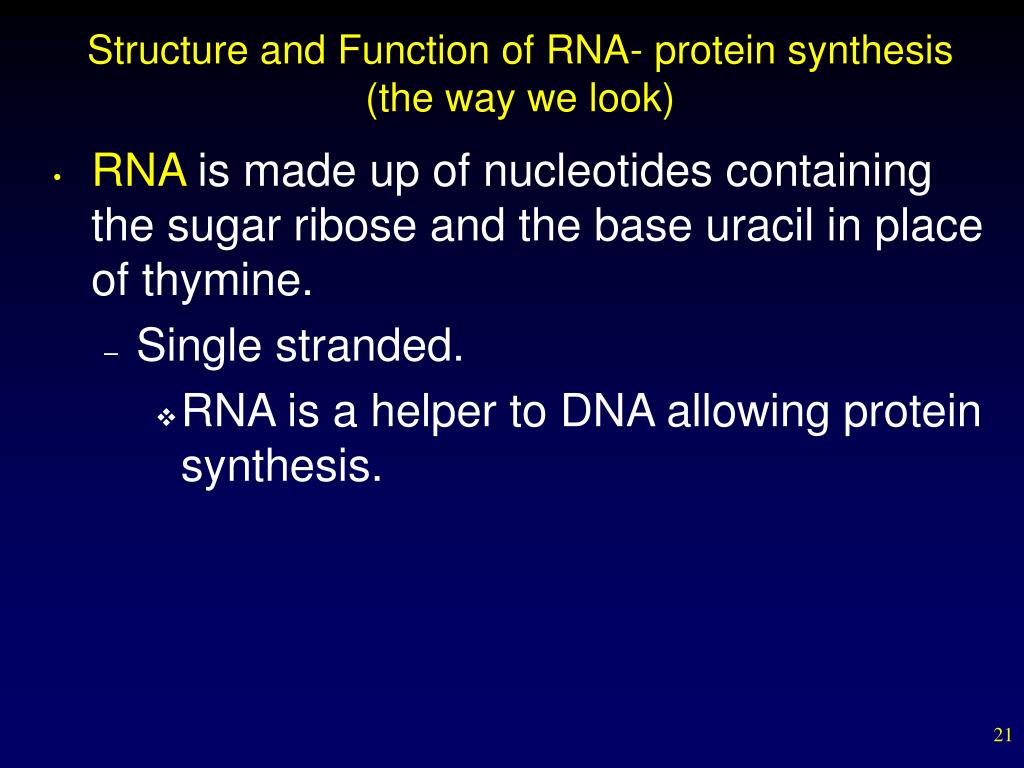

  20. Structure and Function of RNA- protein synthesis (the way we look) • RNA is made up of nucleotides containing the sugar ribose and the base uracil in place of thymine. • Single stranded. • RNA is a helper to DNA allowing protein synthesis.

  21. Types of RNA • Ribosomal RNA. • Joins with proteins made in the cytoplasm to form the subunits of ribosomes. • Messenger RNA. • Carries genetic information from DNA to the ribosomes in the cytoplasm where protein synthesis occurs. • Transfer RNA. • Transfers amino acids to the ribosomes where amino acids are joined.

  22. Gene Expression • Structure and Function of Proteins. • Proteins are composed of amino acids. • Proteins differ because the number and order of their amino acids differ.

  23. DNA Code • Genetic code is essentially universal. • Contains a triplet code. • Every three bases represents one amino acid. • Transcription. • Strand of mRNA forms that is complementary to a portion of DNA. • Triplet of mRNA is termed a codon.

  24. Processing of mRNA • Most human genes are interrupted by introns. • Intragene segments interrupt gene segments, exons. • During processing, introns are removed and exons are joined to form an mRNA molecule.

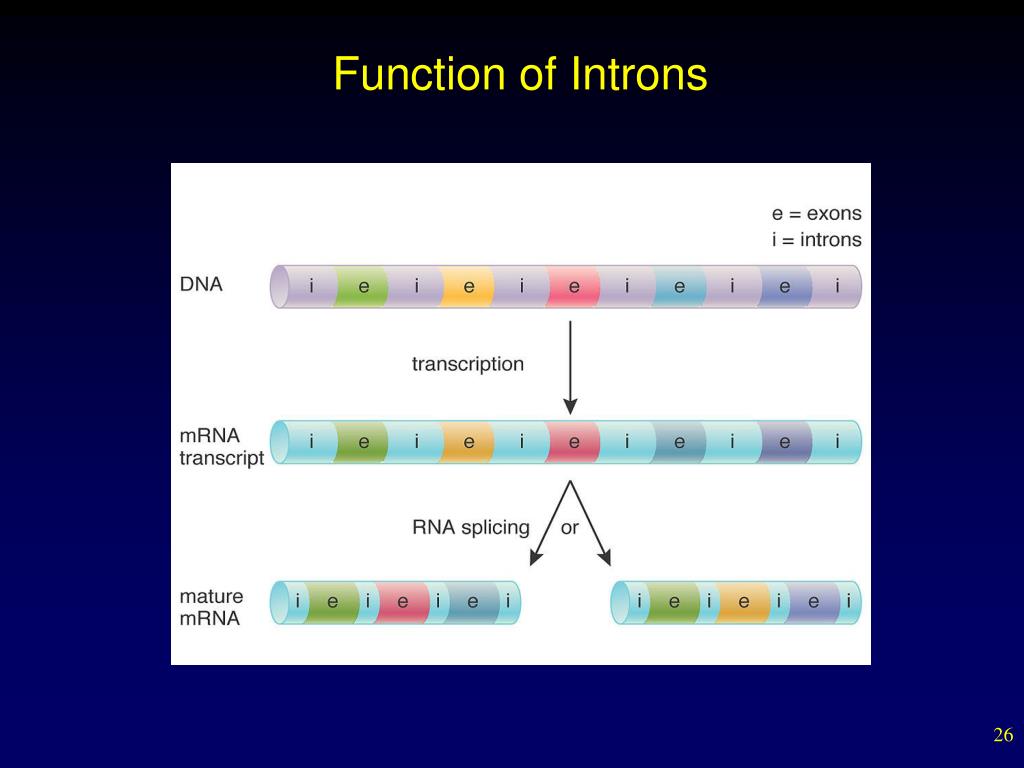

  25. Function of Introns

  26. Translation • Translation is the synthesis of a polypeptide under the direction of an mRNA molecule. • Transfer RNA molecules bring amino acids to the ribosomes. • Anticodon is triplet complementary to an mRNA codon. • Polypeptide synthesis requires three steps. • Initiation. • Elongation. • Termination.

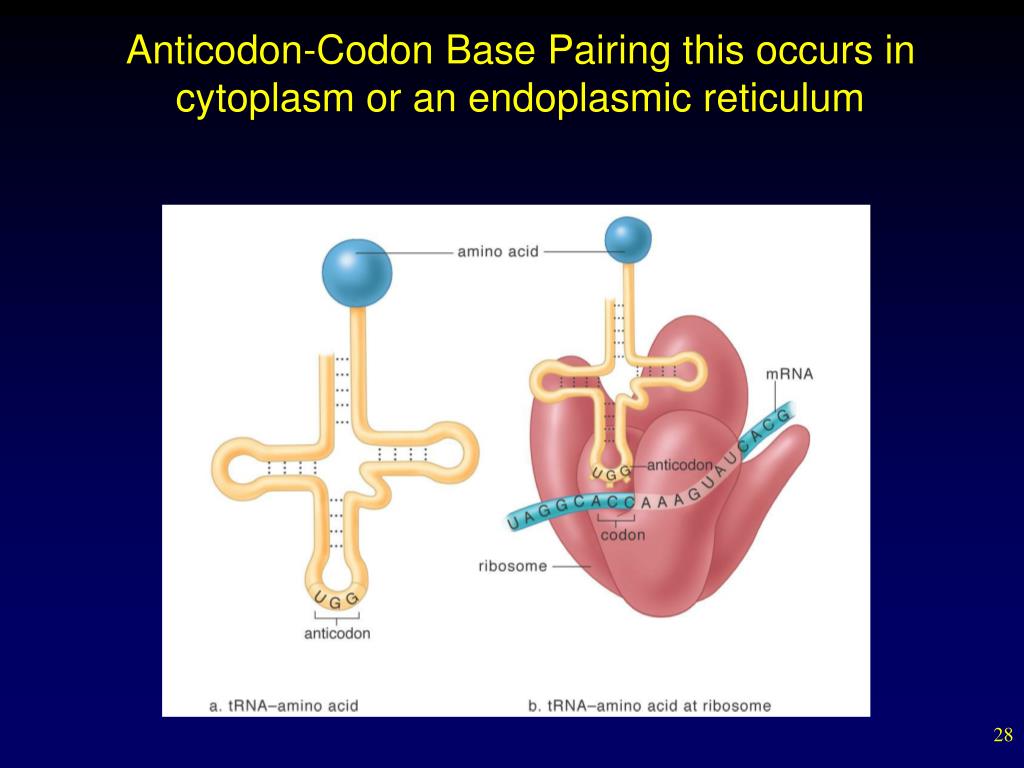

  27. Anticodon-Codon Base Pairing this occurs in cytoplasm or an endoplasmic reticulum

  28. Regulation of Gene Expression • Gene Regulation Mechanisms. • Transcriptional control. • Posttranscriptional control. • Translational control. • Posttranslational control.

  29. Ch. 18 Genotype and Phenotype • Genotype refers to an individual’s genes. • Alleles are alternate forms of a gene. • Dominant alleles are assigned uppercase letters, while recessive alleles are assigned lowercase letters. • Homozygous Dominant = EE. • Homozygous Recessive = ee. • Heterozygous = Ee. • Phenotype refers to an individual’s physical appearance.

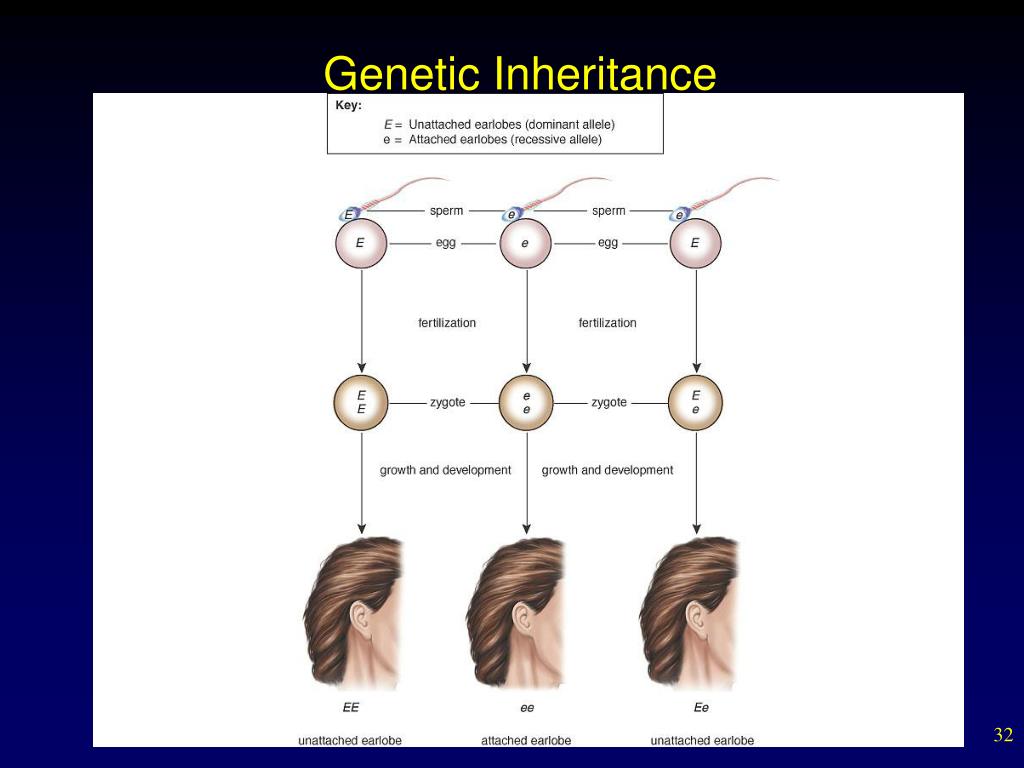

  30. Genetic Inheritance

  31. Dominant/Recessive Traits • Forming the Genes. • Reduction of chromosome number occurs when pairs of chromosomes separate as meiosis occurs.

  32. Gametogenesis

  33. Nucleus and Nuclear Membrane

  34. Ribosomes • Ribosomes are found singly or in groups (polyribosomes) in the cytoplasm. • Function in protein synthesis.

  35. The Endomembrane System- also function in protein synthesis • Endoplasmic Reticulum. • System of membranous channels and saccules. • Rough ER is studded with ribosomes and synthesizes proteins. • Smooth ER synthesizes phospholipids, as well as various other functions.

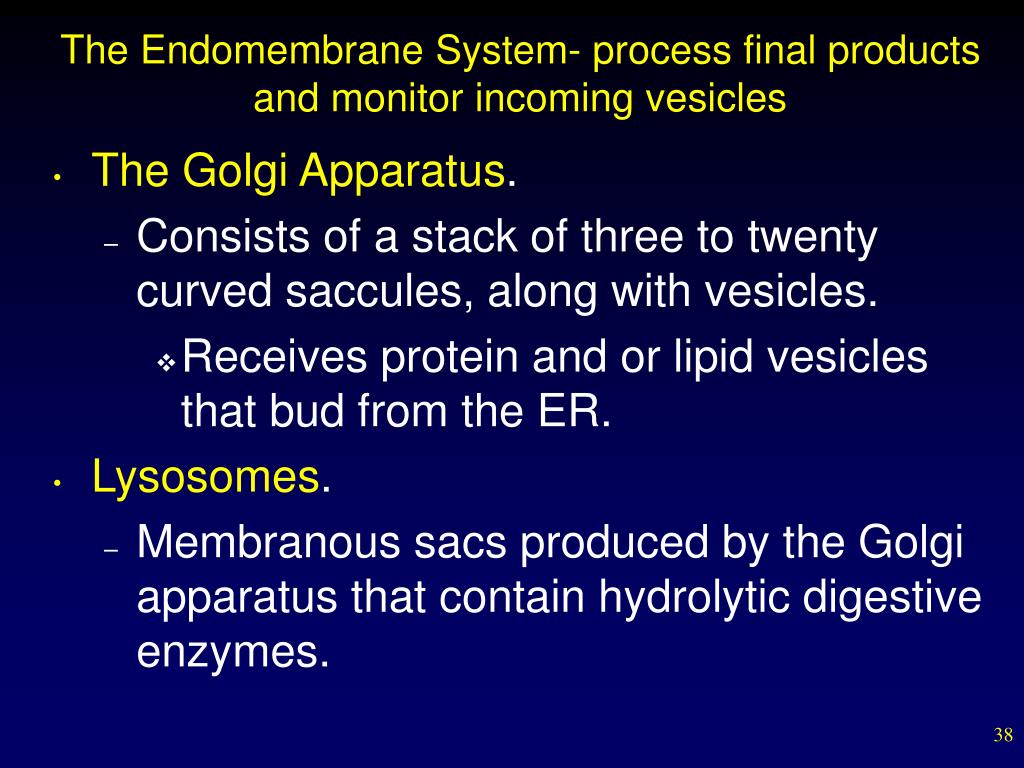

  36. The Endomembrane System- process final products and monitor incoming vesicles • The Golgi Apparatus. • Consists of a stack of three to twenty curved saccules, along with vesicles. • Receives protein and or lipid vesicles that bud from the ER. • Lysosomes. • Membranous sacs produced by the Golgi apparatus that contain hydrolytic digestive enzymes.

  37. Endomembrane System

  38. Mitochondria- The “powerhouse” • Mitochondria are double-membrane organelles involved in cellular respiration. • Site of ATP production.

  39. The Cytoskeleton • The cytoskeleton is formed of several types of filamentous structures that give the cell its shape and organelles the ability to move about the cell. • Microtubules. • Actin Filaments.

  40. Centrioles • Centrioles are short cylinders composed of microtubules that are involved in spindle formation during cell division

  41. Cilia and Flagella • Cilia and flagella (cilium, flagellum) are projections that move in an undulating or whipping fashion. • Cilia tend to be shorter while flagella tend to be longer.

  42. Cellular Metabolism • Cellular metabolism includes all the chemical reactions that occur in a cell. • Often organized into metabolic pathways. • Most regulated by feedback inhibition.

  43. Enzymes and Coenzymes • When an enzyme speeds up a reaction, the participating reactants are called the enzyme’s substrates. • Many enzymes require cofactors for assistance. • Some cofactors may accept or donate atoms to the reaction.

  44. Enzymatic Action

  45. Cellular Respiration • Glucose breakdown requires three sub-pathways. • Glycolysis. • Citric Acid Cycle. • Electron Transport System. • Altogether, the breakdown of one glucose molecule results in 36 ATP molecules.

  46. Cellular Respiration

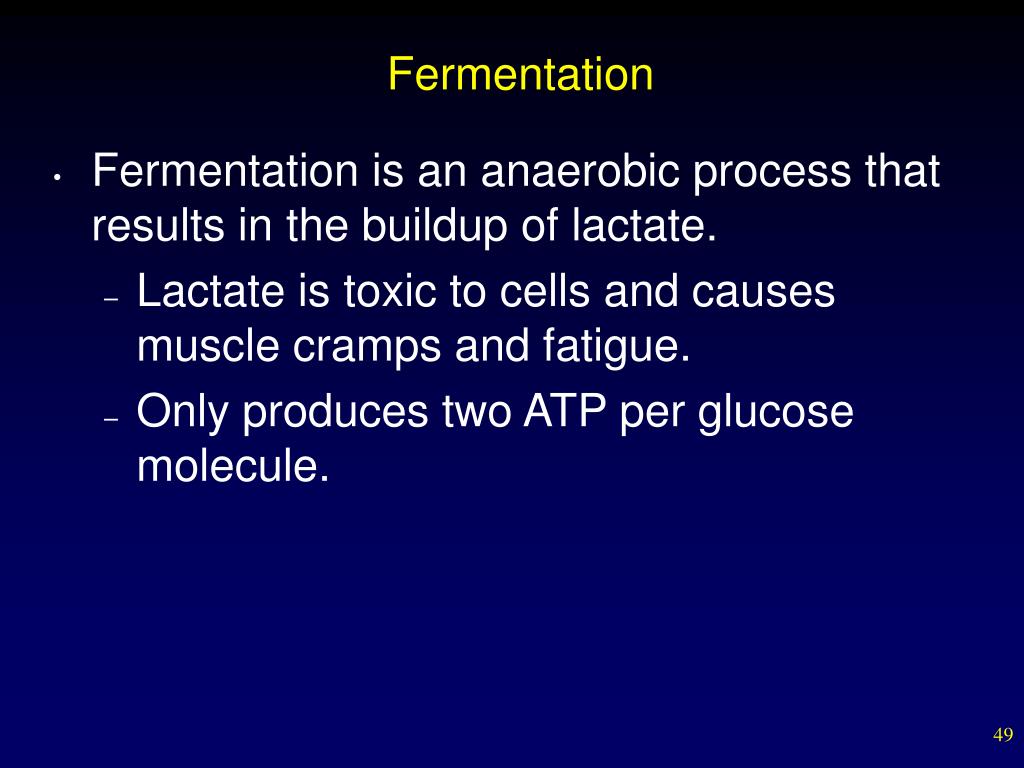

  47. Fermentation • Fermentation is an anaerobic process that results in the buildup of lactate. • Lactate is toxic to cells and causes muscle cramps and fatigue. • Only produces two ATP per glucose molecule.

  48. Lecture Review • Describe the function and structure of the cell membrane. • Define isotonic, hypotonic and hypertonic solutions. • Describe the nucleus and its contents including the process of protein sysnthesis and cell reproduction (cell division- mitosis and meiosis). • Describe cell metabolism (cell respiration) anaerobic and aerobic
