Presentation Transcript


Eece 374 microprocessor architecture and applications chapter 2

EECE 374: Microprocessor Architecture and ApplicationsChapter 2


Agenda

Agenda

  • Programming model

  • Memory addressing

    • Real-mode addressing

    • Protected-mode addressing

    • Memory paging

    • Flat mode memory


Programming model

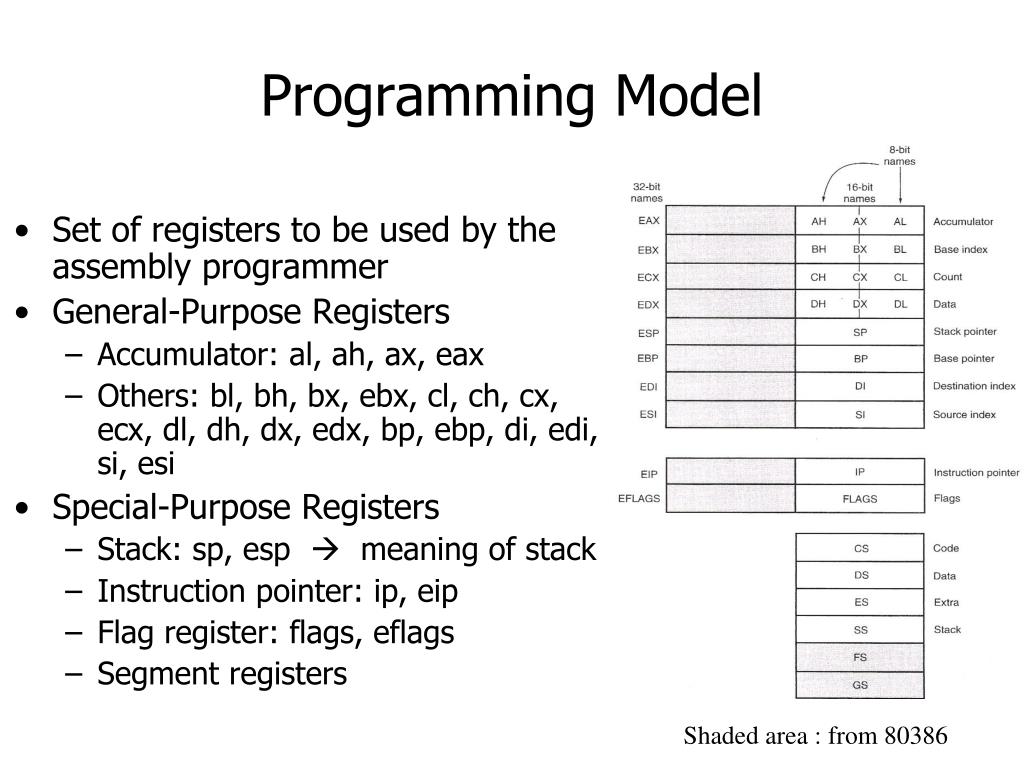

Programming Model

  • Set of registers to be used by the assembly programmer

  • General-Purpose Registers

    • Accumulator: al, ah, ax, eax

    • Others: bl, bh, bx, ebx, cl, ch, cx, ecx, dl, dh, dx, edx, bp, ebp, di, edi, si, esi

  • Special-Purpose Registers

    • Stack: sp, esp  meaning of stack

    • Instruction pointer: ip, eip

    • Flag register: flags, eflags

    • Segment registers

Shaded area : from 80386


Accessing registers with different sizes

Accessing Registers with Different Sizes

  • A part of register can be accessed

  • Only rightmost 8/16/32 bits of 64b register are byte, word and double words

Register sizeOverride bits AccessedExample

8 bitsB7-0MOV R9B, R10B

16 bitsW15-0MOV R10W, AX

32 bitsD31-0MOV R14D, R15D

64 bits-63-0MOV R13, R12


Multipurpose registers

Multipurpose Registers


Special purpose registers

Special Purpose Registers


Eece 374 microprocessor architecture and applications chapter 2

Flag Register

C(carry) : holds the carry after addition or the borrow after subtraction

P(parity) : 0 for odd, 1 for even parity

A(auxiliary carry) : holds the carry or borrow between bit 3 and 4

Z(zero) : 1(result is 0), 0(result is not zero)

S(sign) : 0(positive), 1(negative)

T(trap) : enables trapping after each instruction for on-chip debugging

I(interrupt) : enables(1) or disables(0) interrupt request from INTR pin

D(direction) : increment(0) or decrement(1) of DI/SI for string instructions

O(overflow) : out of range(1) of signed numbers operation


Examples of flag bits

Examples of Flag Bits

  • Overflow V = C4 XOR C5

Scheme of Parallel Adder


Segment registers

Segment Registers


Code relocation issue

Code Relocation Issue

00001

00015 // # iterations

0010-1

0011 5 // result

0100LD R1 0000

0101LD R2 0001

0110LD R3 0010

0111ADD R0 R0 R1

1000ADD R2 R2 R3

1001BRNZ 0111

1010ST 0011 R0

1011…

1100…

1101…

1110…

1110…

0000…

0001…

0010…

0011…

01001

01015 // # iterations

0110-1

0111 5 // result

1000LD R1 0100

1001LD R2 0101

1010LD R3 0110

1011ADD R0 R0 R1

1100ADD R2 R2 R3

1101BRNZ 1011

1110ST 0111 R0

1111…

Addresses need to be changed on every code relocation


Memory addressing

Memory Addressing

  • Real-mode addressing

    • 1MB address space

    • Only mode used in 8086 and 8088 microprocessors

  • Protected-mode addressing

    • Mode used to support a larger memory address space

  • Memory paging

  • Flat mode memory


Eece 374 microprocessor architecture and applications chapter 2

An Example of Real-Mode Addressing

Maximum address = FFFFF

Segment = 1000

Offset = F000


Segments

Segments

  • Segment size = maximum 64KB

  • Segments can overlap with each other

  • Code Segment (cs)

    • Holds code to be executed

  • Data Segment (ds)

    • Holds general data used in the program

    • Other segments  es (for strings), fs, gs

  • Stack Segment (ss)

    • Holds data in a “default” location that can be accessed with “push” and “pop” instructions

      • LIFO (last-in-first-out) data structure


Segments1

Segments

00001

00015 // # iterations

0010-1

0011 5 // result

0100LD R1 0000

0101LD R2 0001

0110LD R3 0010

0111ADD R0 R0 R1

1000ADD R2 R2 R3

1001BRNZ 0011

1010ST 0011 R0

1011…

1100…

1101…

1110…

1110…

  • Code Segment (cs)

    • Holds code to be executed

  • Data Segment (ds)

    • Holds general data used in the program

    • Other segments  es (for strings), fs, gs

  • Stack Segment (ss)

    • Holds data in a “default” location that can be accessed with “push” and “pop” instructions

      • LIFO (last-in-first-out) data structure

DS

CS


Real mode addressing

Real-Mode Addressing

  • Address = segment*10h + offset

    • Example: cs = 3034h, offset = 1234h

      • Address = (3034h) * (10h) + (1234h) = 31574h

    • Question (note: ds points to data segment):

      • ds = aabbh, offset = 432fh  address?

3034

cs:

offset:

+

1234

address:

31574


More examples

More Examples


Eece 374 microprocessor architecture and applications chapter 2

Four Memory Segments

Segments can be overlapped


Segments can be overlapped

Segments can be overlapped


Protected mode addressing

Protected Mode Addressing

  • How to access 4GB (32b) memory space?

  • Segment register contains a selector that selects a descriptor from a descriptor table

  • The descriptor describes the memory segment’s location, length, and access rights


How to access memory using a descriptor

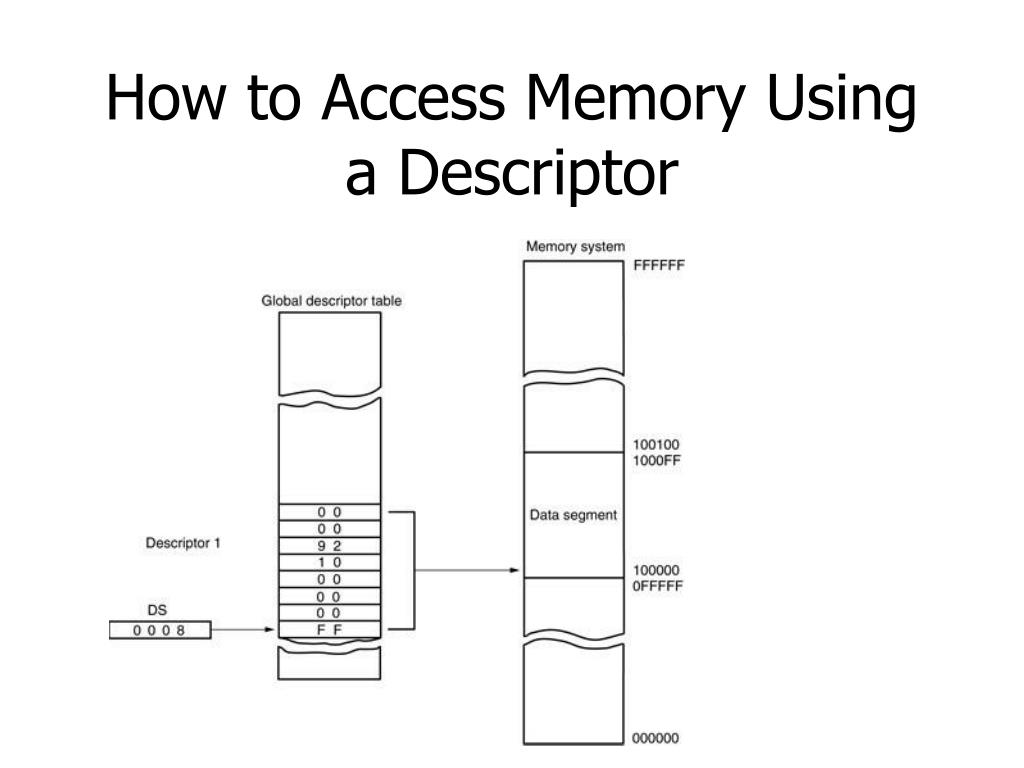

How to Access Memory Using a Descriptor


Contents of segment register

Contents of Segment Register

  • It selects one of 8192 descriptors from oneof two tables of descriptors (global and local descriptor tables)

  • Requested Privilege Level (RPL) requests the access privilege level of a memory segment.

    • If privilege levels are violated, system normally indicates an application or privilege level violation


  • How to access memory using a descriptor1

    How to Access Memory Using a Descriptor


    Descriptors

    Descriptors


    Descriptors1

    Descriptors

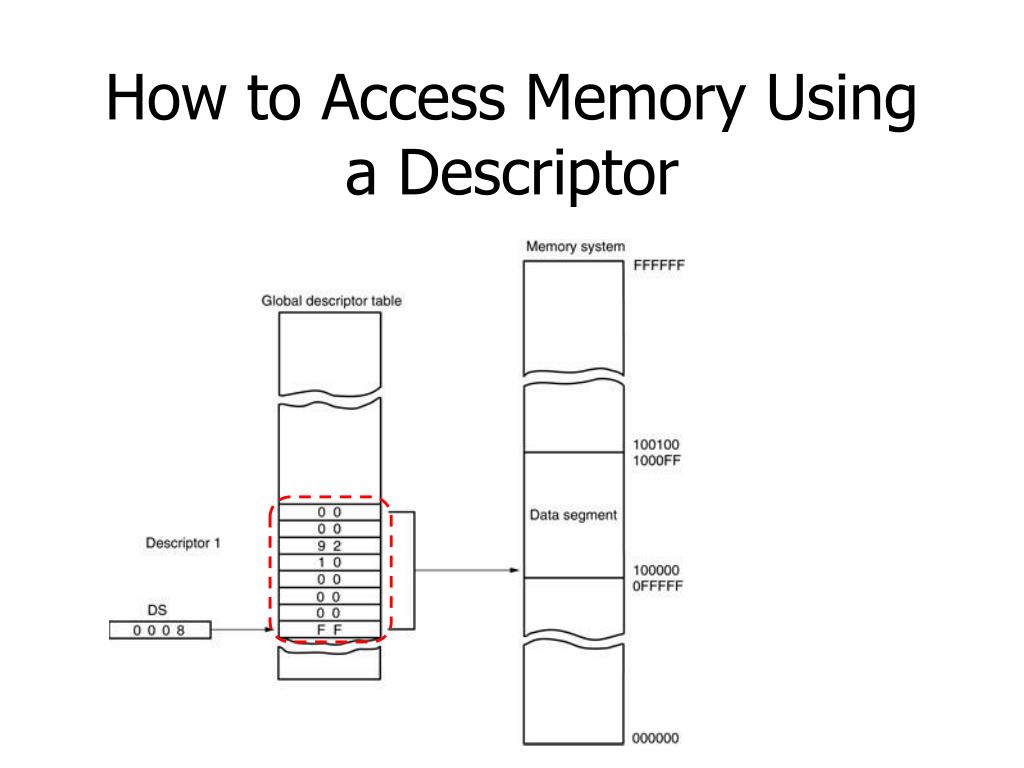

    How to access memory using a descriptor2

    How to Access Memory Using a Descriptor

    Why DS ranges

    00100000H~

    001000FFH?


    Descriptor example

    Descriptor Example

    0 0 0 0 9 2 1 0

    0 0 0 0 0 0 F F

    G = 0

    Base = 00100000H

    Limit = 00FFH

    00100000H~

    001000FFH


    Descriptors cont d

    Descriptors (Cont’d)

    • The base address of the descriptor indicates the starting location of the memory segment

      • segments may begin at any address

    • The G, or granularity bit allows two granularities of segment length

      • G = 1  4KB granularity, G = 0  1B granularity

      • Example

        • Base=0H, Limit = FFFFFH

        • If G=0, memory segment can range between 0 and FFFFFH (1MB)

        • If G=1, it can range between 0 and FFFFFFFFH (4GB)


    Access rights in descriptor

    Access Rights in Descriptor


    Program invisible registers

    Program Invisible Registers


    Program invisible registers cont d

    Program Invisible Registers (Cont’d)

    • Global and local descriptor tables are found in the memory system (with very long latency)

    • To access & specify the table addresses, 80286–Core2 contain program-invisible registers

      • Not directly addressed by software

    • Each segment register contains a program-invisible portion used in the protected mode

      • Often called cache memory because cache is any memory that stores information

      • Different from instruction/data cache!


    Program invisible registers cont d1

    Program Invisible Registers (Cont’d)

    • When a new segment number is placed in a segment register, the microprocessor accesses a descriptor table and loads the descriptor into the program-invisible portion of the segment register

      • held there and used to access the memory segment until the segment number is changed

    • This allows the microprocessor to repeatedly access a memory segment without referring to the descriptor table

      • hence the term cache


    Memory paging

    Memory Paging

    • The memory paging mechanism allows any physical memory location to be assigned to any linear address

    • Linear address is defined as the address generated by a program

    • Physical address is the actual memory location accessed by a program

    • With memory paging, the linear address is invisibly translated to any physical address


    Memory paging cont d

    Memory Paging (Cont’d)

    • The linear address, as generated by software, is broken into three sections that are used to access the page directory entry, page table entry, and memory page offset address.


    Paging mechanism

    Paging Mechanism


    Control register

    Control Register


    Address and directory page table entry

    Address and Directory/Page Table Entry

    Address

    Entry in directory

    or page table


    Paging example

    Paging Example

    • If the entry 0 of page table (of entry 0 of page table directory) contains address 00100000H, then

    • When the program accesses a location between 00000000H and 00000FFFH, the microprocessor physically addresses location 00100000H–00100FFFH

    0

    00100000H


    Memory paging cont d1

    Memory Paging (Cont’d)

    • Only one page directory in the system

    • The page directory contains 1024 doubleword addresses that locate up to 1024 page tables

    • Page directory and each page table are 4K bytes in length

    • Each entry in the page directory corresponds to 4M bytes of physical memory

    • Each entry in the page table repages 4K bytes of physical memory


    Flat memory

    Flat Memory


    Flat memory1

    Flat Memory

    • A flat mode memory system is one in which there is no segmentation

      • does not use a segment register to address a location in the memory

    • First byte address is at 00 0000 0000H; the last location is at FF FFFF FFFFH

      • address is 40-bits

    • The segment register still selects the privilege level of the software


    Flat memory cont d

    Flat Memory (Cont’d)

    • Real mode system is not available if the processor operates in the 64-bit mode

    • Protection and paging are allowed in the 64-bit mode

    • The CS register is still used in the protected mode operation in the 64-bit mode

    • Most programs today are operated in the IA32 compatible mode

      • current software operates properly, but this will change in a few years as memory becomeslarger and most people have 64-bit computers


    Summary

    Summary


    Homework problems in chapter 2

    Homework: Problems in Chapter 2

    • To do: 7, 9, 27, 33, 43, 45

    • 14, address for CS:IP

      • CS=1000H, IP=2000H  ??

      • CS=3456H, IP=ABCDH  ??


    Homework problems in chapter 21

    Homework: Problems in Chapter 2

    • To do: 7, 9, 27, 33, 43, 45

    • 14, address for CS:IP

      • CS=1000H, IP=2000H  12000H

      • CS=3456H, IP=ABCDH  3F12DH


    Problems in chapter 2

    Problems in Chapter 2

    • 26

      • For an 80286 descriptor that contains a base address of A00000H and a limit of 1000H, what starting and ending locations are addressed by this descriptor?

    • 28

      • For a Core2 (386-P4) descriptor that contains a base address of 00280000H, a limit of 00010H, and G=1, what starting and ending locations are addressed by this descriptor?


    Problems in chapter 21

    Problems in Chapter 2

    • 26

      • For an 80286 descriptor that contains a base address of A00000H and a limit of 1000H, what starting and ending locations are addressed by this descriptor?

      • A00000H-A01000H

    • 28

      • For a Core2 (386-P4) descriptor that contains a base address of 00280000H, a limit of 00010H, and G=1, what starting and ending locations are addressed by this descriptor?

      • 00280000H-00290FFFH


    Problems in chapter 22

    Problems in Chapter 2

    • 26

      • For an 80286 descriptor of 000000A000001000H, what starting and ending locations are addressed by this descriptor?

    • 28

      • For a Core2 (386-P4) descriptor of 0080002800000010H, what starting and ending locations are addressed by this descriptor?
