  1. Operating Systems CSC 2001

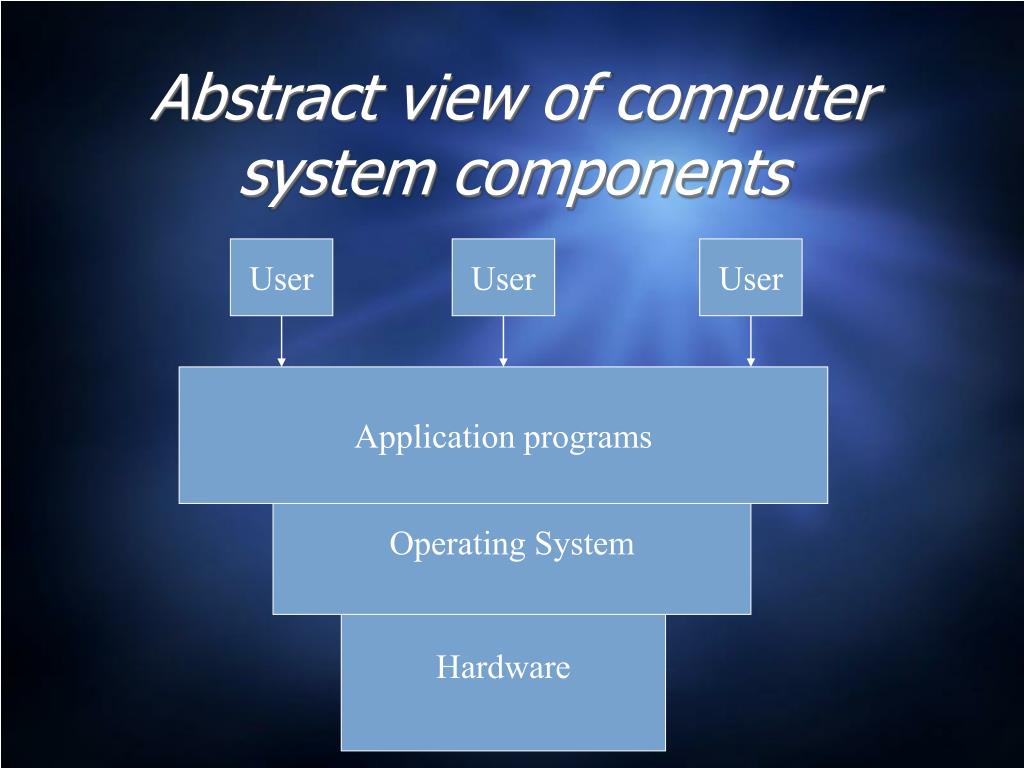

  2. Abstract view of computer system components User User User Application programs Operating System Hardware

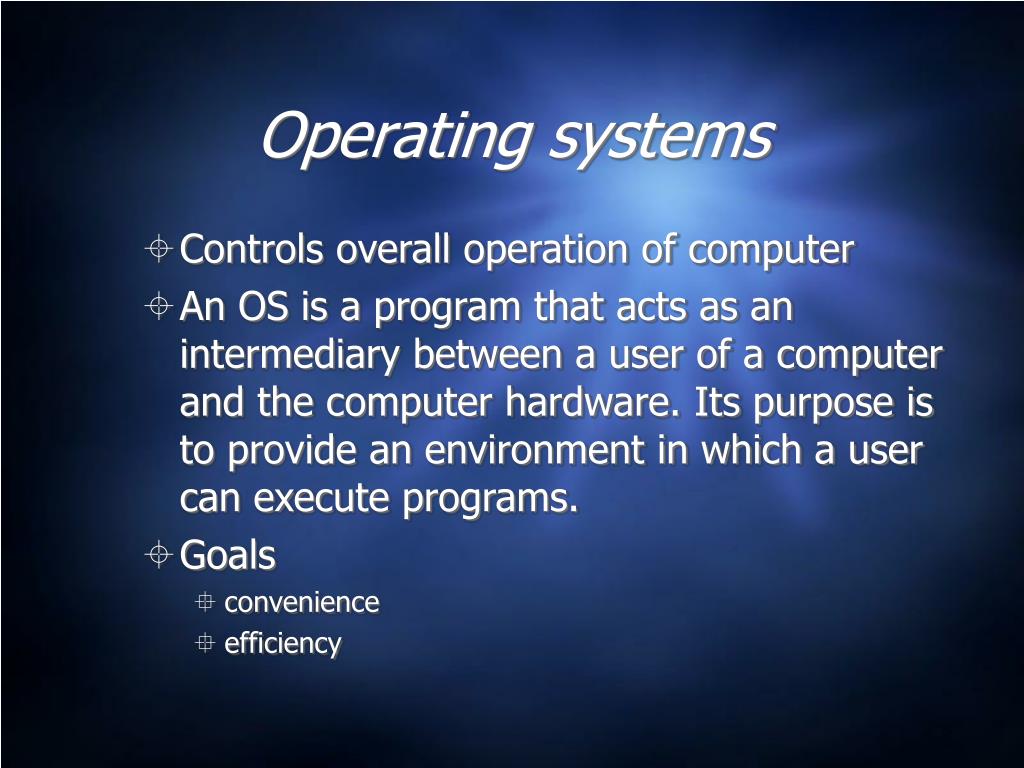

  3. Operating systems • Controls overall operation of computer • An OS is a program that acts as an intermediary between a user of a computer and the computer hardware. Its purpose is to provide an environment in which a user can execute programs. • Goals • convenience • efficiency

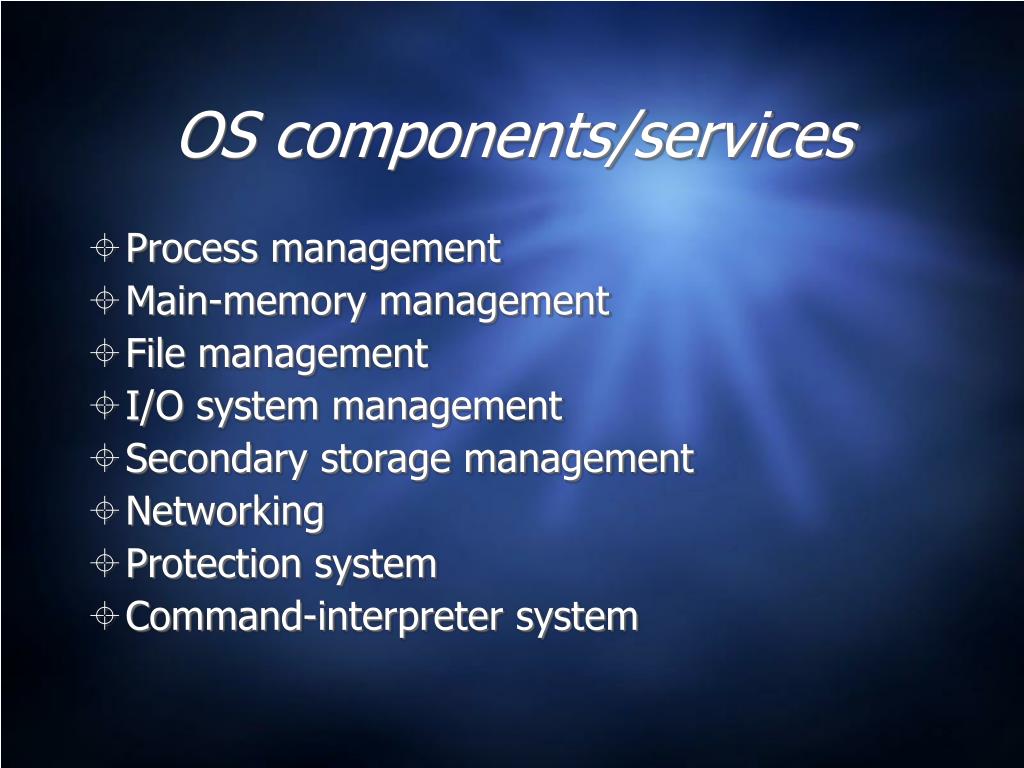

  4. OS components/services • Process management • Main-memory management • File management • I/O system management • Secondary storage management • Networking • Protection system • Command-interpreter system

  5. Overview • Earlier, what is an OS and, at a high level, what does it do. • Now, look in more details at… • Coordinating machine activities • Managing competition for machine resources

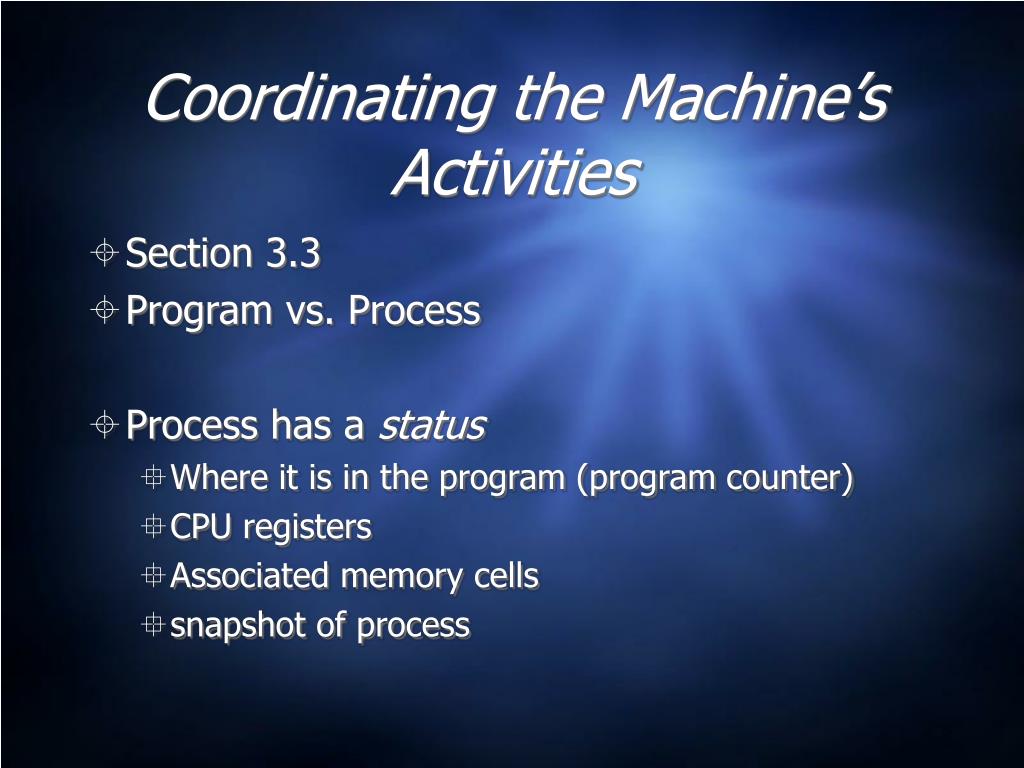

  6. Coordinating the Machine’s Activities • Section 3.3 • Program vs. Process • Process has a status • Where it is in the program (program counter) • CPU registers • Associated memory cells • snapshot of process

  7. Managing processes • scheduler • maintains list of processes • adds, deletes • process table • process id, priority, memory area, ready or waiting

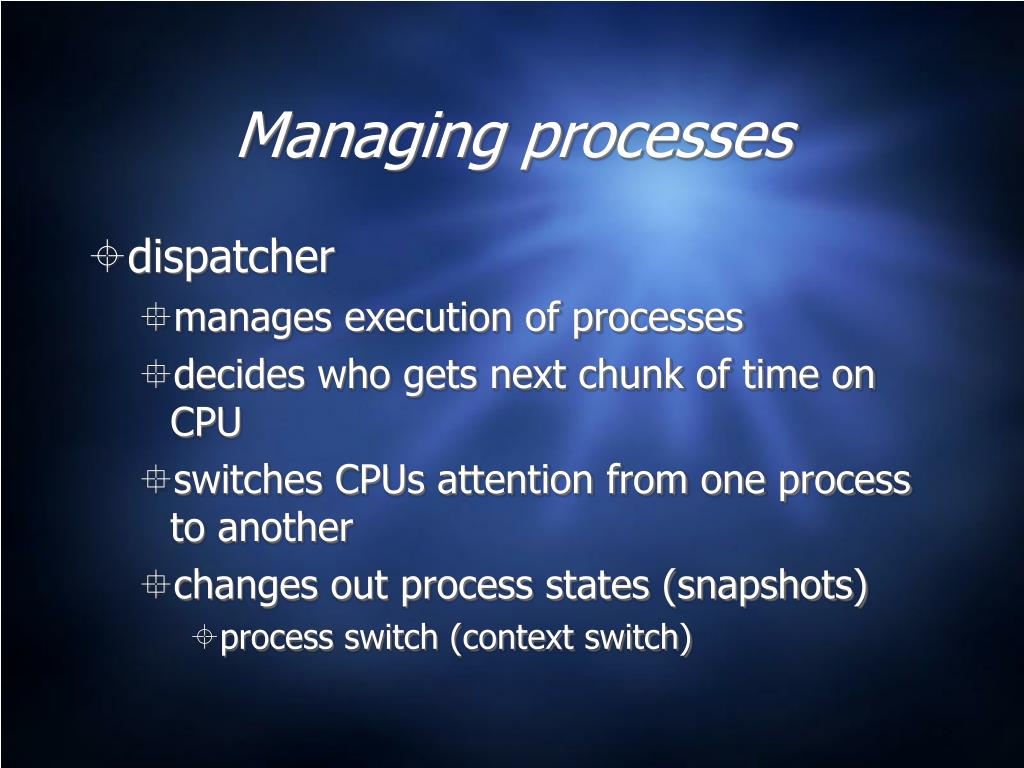

  8. Managing processes • dispatcher • manages execution of processes • decides who gets next chunk of time on CPU • switches CPUs attention from one process to another • changes out process states (snapshots) • process switch (context switch)

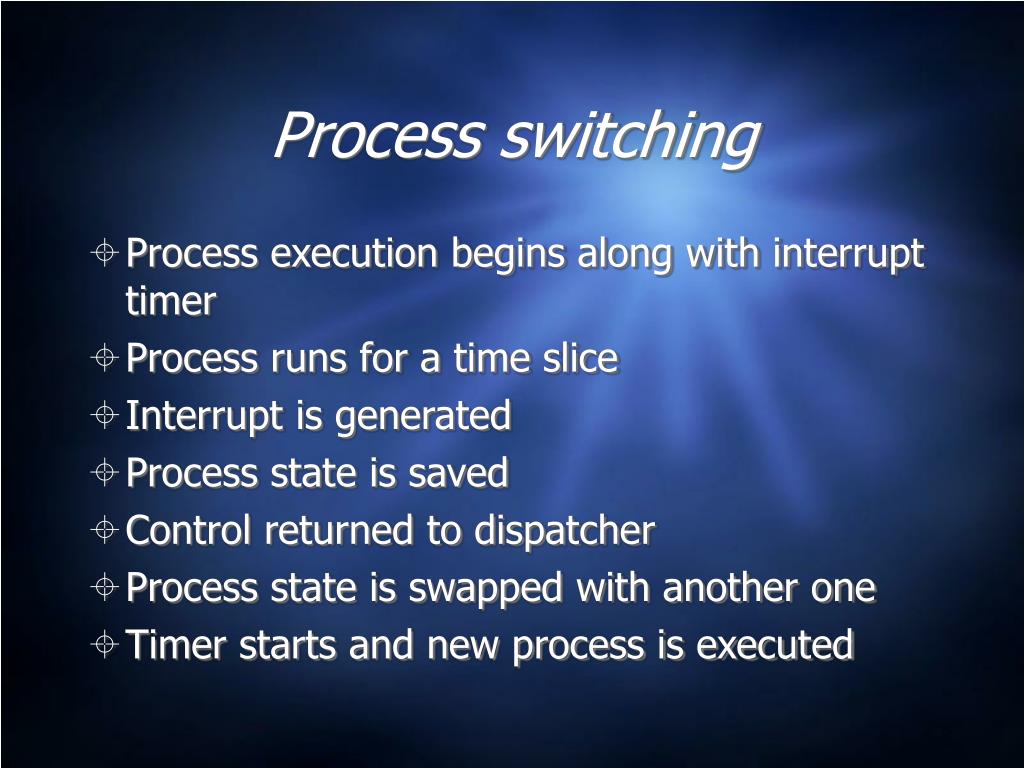

  9. Process switching • Process execution begins along with interrupt timer • Process runs for a time slice • Interrupt is generated • Process state is saved • Control returned to dispatcher • Process state is swapped with another one • Timer starts and new process is executed

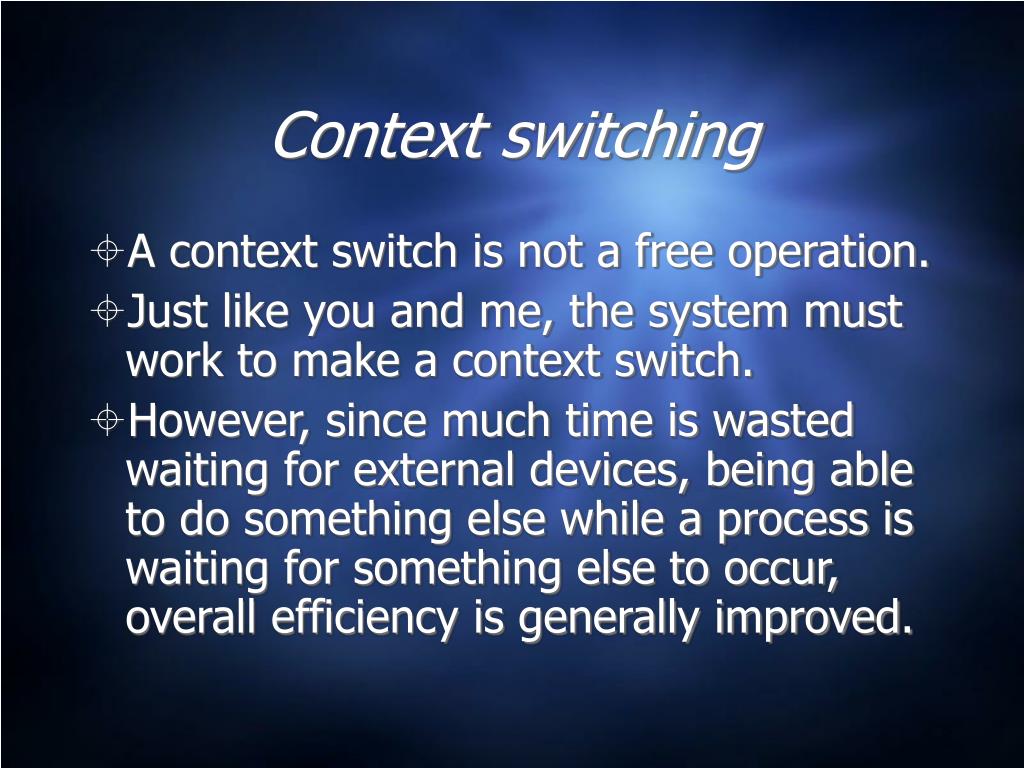

  10. Context switching • A context switch is not a free operation. • Just like you and me, the system must work to make a context switch. • However, since much time is wasted waiting for external devices, being able to do something else while a process is waiting for something else to occur, overall efficiency is generally improved.

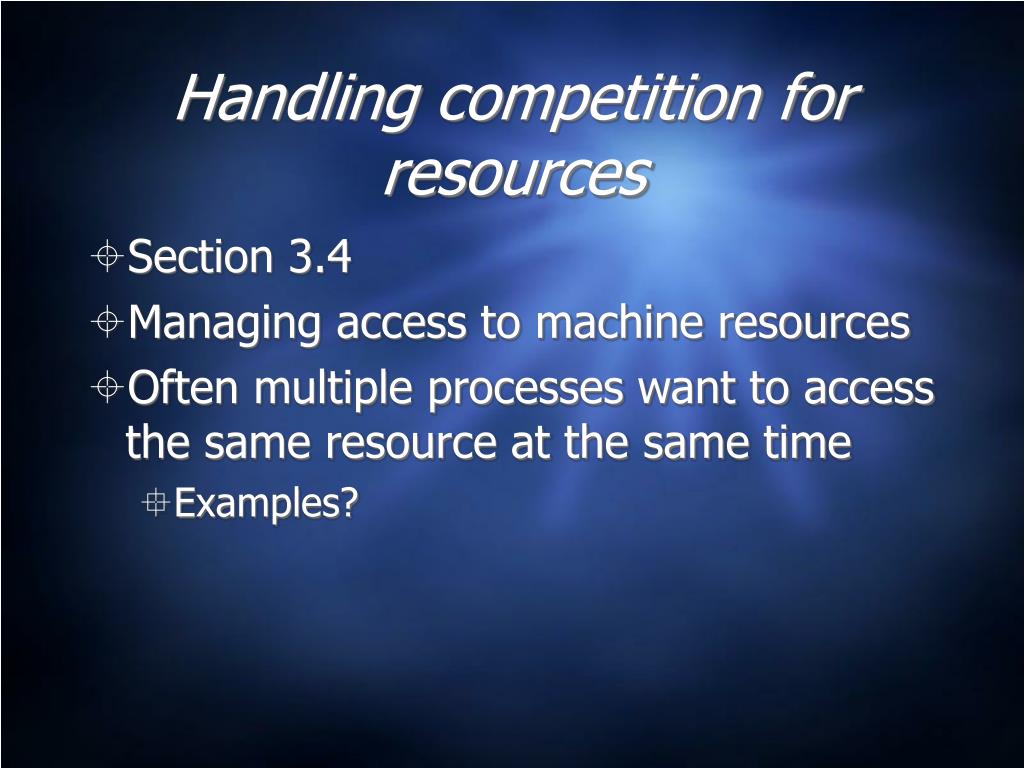

  11. Handling competition for resources • Section 3.4 • Managing access to machine resources • Often multiple processes want to access the same resource at the same time • Examples?

  12. Ideas?

  13. Semaphores • A flag for whether or not the resource is available • Problem of an interrupt in the middle of setting the flag • Test-and-set instruction (single step)

  14. Deadlock • Process 1: has printer, waiting for the tape drive • Process 2: has tape drive, waiting for printer • What’s wrong here? • Solutions • Try to avoid a deadlock • Force a process to release a held resource
