  1. RIGGING AND LIFTING AWARENESS PRINSIP KERJA CRANE First Lever Principles W x a = b x F Kondisi Balance

  2. RIGGING AND LIFTING AWARENESS Metode First Lever Principles on Mobile Crane Kondisi Balance

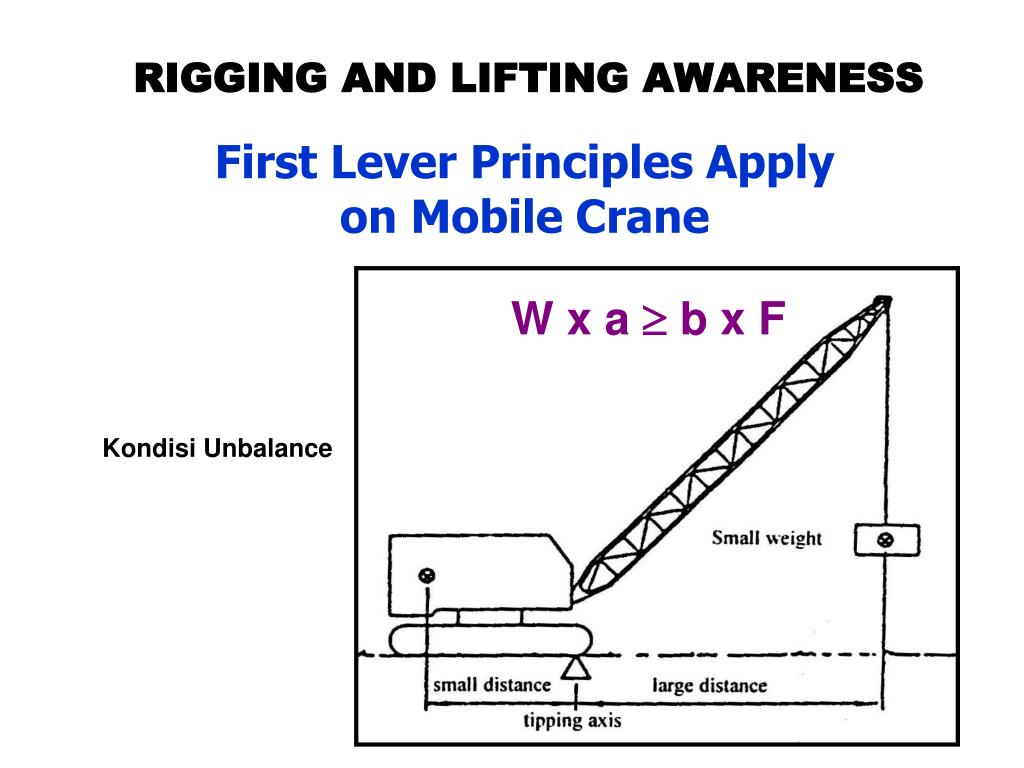

  3. RIGGING AND LIFTING AWARENESS First Lever Principles Apply on Mobile Crane W x a  b x F Kondisi Unbalance

  4. RIGGING AND LIFTING AWARENESS FUNGSI DAN JENIS CRANE FUNGSI Mengangkat & menurunkanbeban vertical, memindahkan horizontal JENIS Mobile Crane Truck Crane

  5. RIGGING AND LIFTING AWARENESS Knuckle Crane Self Propelled (Cherry Pickers) Crane

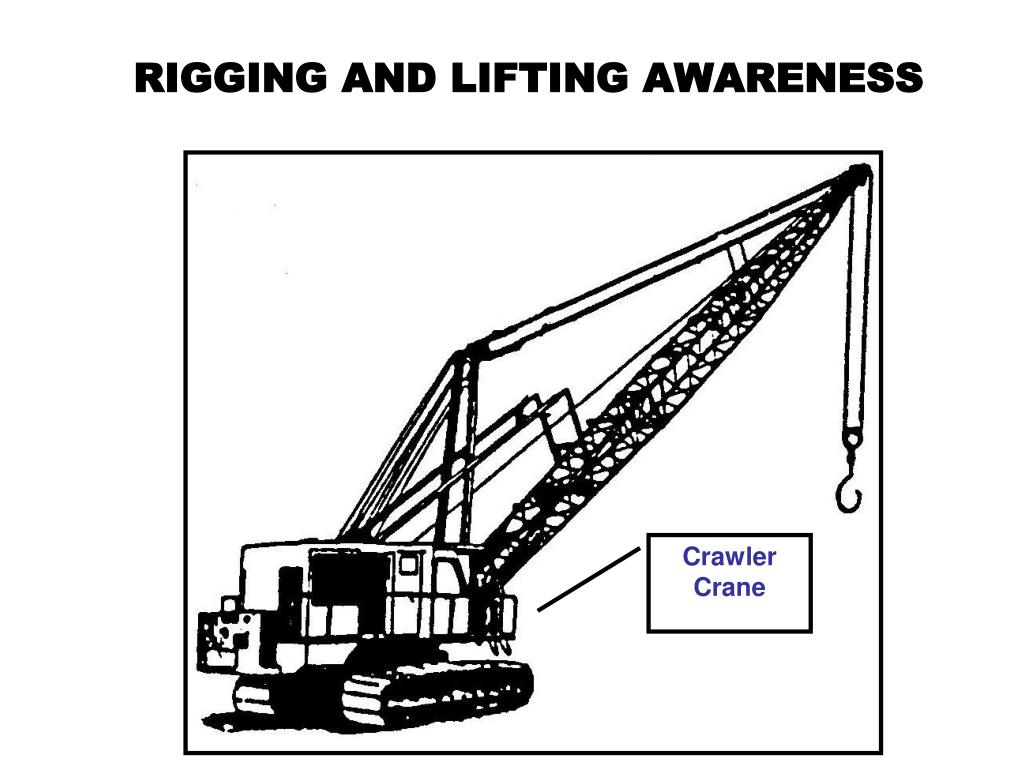

  6. RIGGING AND LIFTING AWARENESS Crawler Crane

  7. RIGGING AND LIFTING AWARENESS Overhead Crane Travelling crane Gantry crane Wall Crane Cantilever crane

  8. RIGGING AND LIFTING AWARENESS Tower Crane

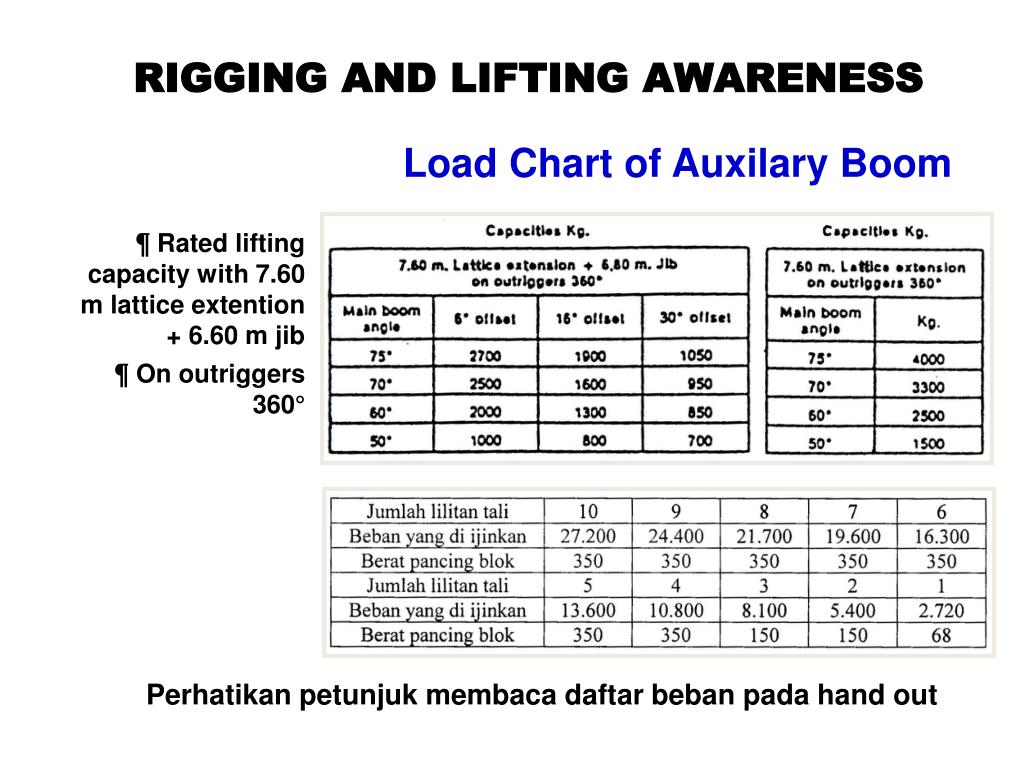

  9. RIGGING AND LIFTING AWARENESS Load Chart of Auxilary Boom ¶ Rated lifting capacity with 7.60 m lattice extention + 6.60 m jib ¶ On outriggers 360° Perhatikan petunjuk membaca daftar beban pada hand out
