Facial rigging

Facial rigging

By MZ

[email protected]


This demo includes

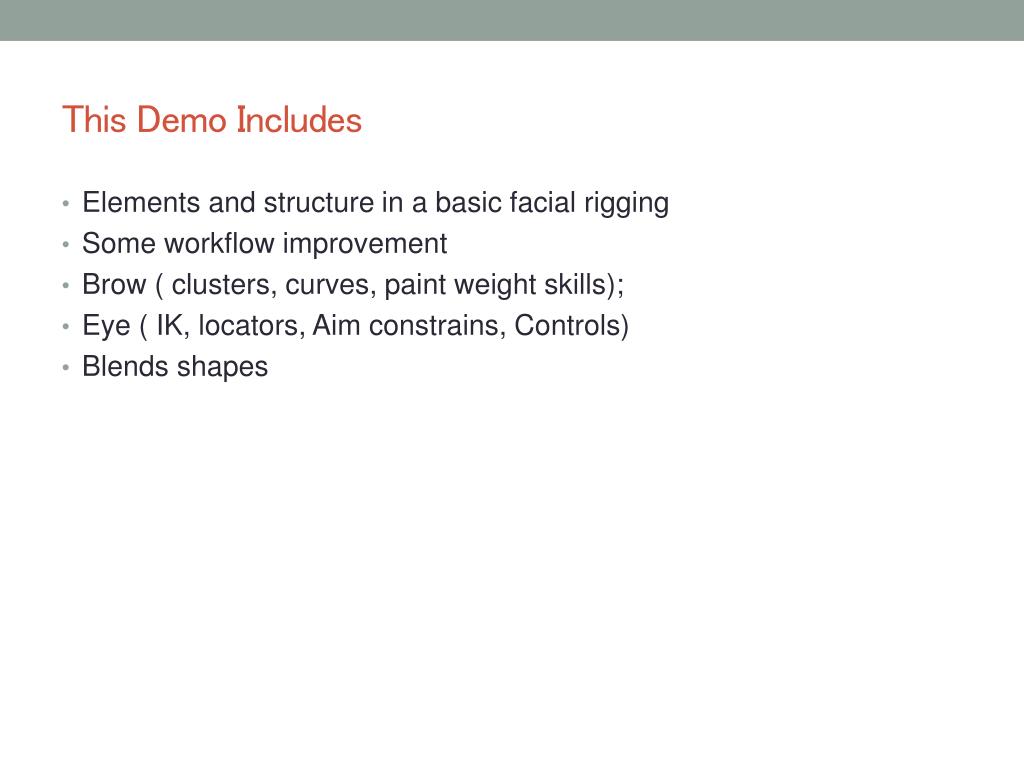

This Demo Includes

  • Elements and structure in a basic facial rigging

  • Some workflow improvement

  • Brow ( clusters, curves, paint weight skills);

  • Eye ( IK, locators, Aim constrains, Controls)

  • Blends shapes

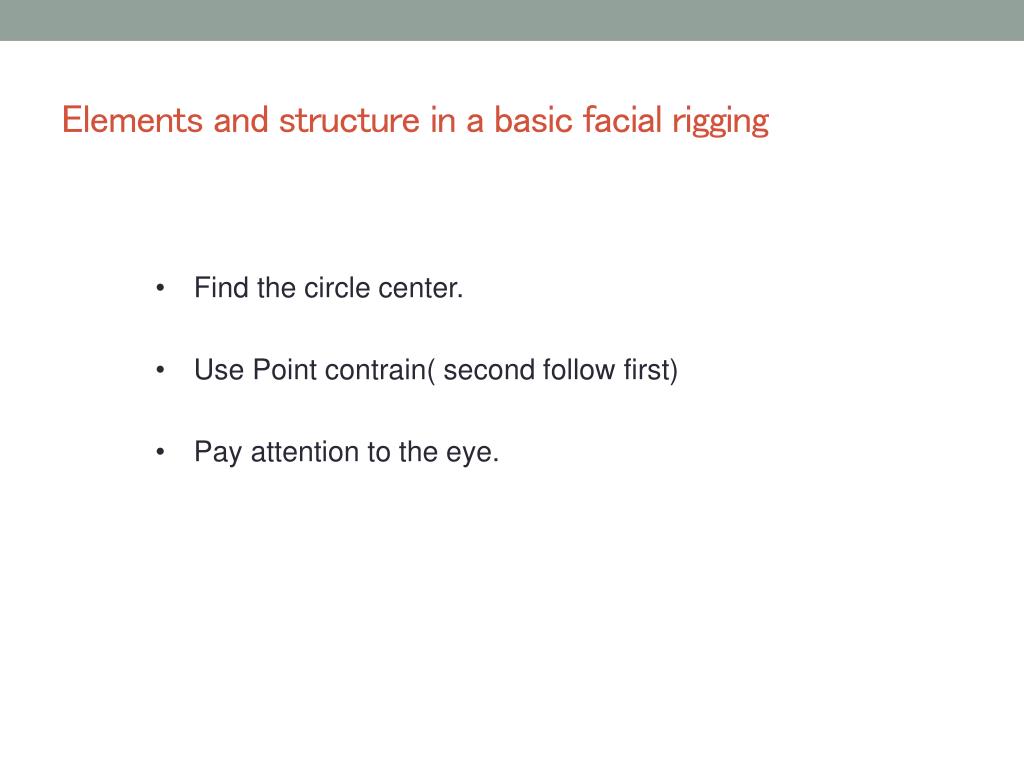

Elements and structure in a basic facial rigging

Elements and structure in a basic facial rigging

  • Find the circle center.

  • Use Point contrain( second follow first)

  • Pay attention to the eye.


Facial rigging

brow

  • Curves- clusters influence of the clusters to the curveinfluence of the curves to the skin

  • Select the surface, shift select the curves. Leave use geometry checked on. If we use joint we’d like to turn it down. Default weight zero.

  • Curves and clusters underscore the upper jaw


Facial rigging

Picture 1: Influence of the clusters to the curve


Facial rigging

eye

  • Rig the eye IK handles take them underscored the upper jaw bone.

  • Front view Make curves center pivot snap at the IK handle drag to the right place

  • Freeze transformation rename  center control (control both curves)

  • Point constrain  remove point constrain  rename and

  • freeze transformation take the side controls patrents To center control

  • Clean the attributes controls + Ikhandles( choose ikRPsolver)  point

  • constrain


Facial rigging

eye

  • We want full control of the eye, so the eye’s control won’t be affected by other

  • Animation controls.

  • We want the orientation of the eyes targeting the center of the eye group the side

  • Control reset settings of aim constrain  set a world up vector to avoid flipping.


Facial rigging

eye

  • Fleshy eye –when the eye balls rotates, the eye lid moves a little bit to simulate real eyes.

  • Shift the eye lip while the eye ball rotates.

  • Create a locator in the center of the eye ball.

  • Orient

  • Surface selected > sculpt > match position of the locator < parent the sculpt to the locator


Facial rigging

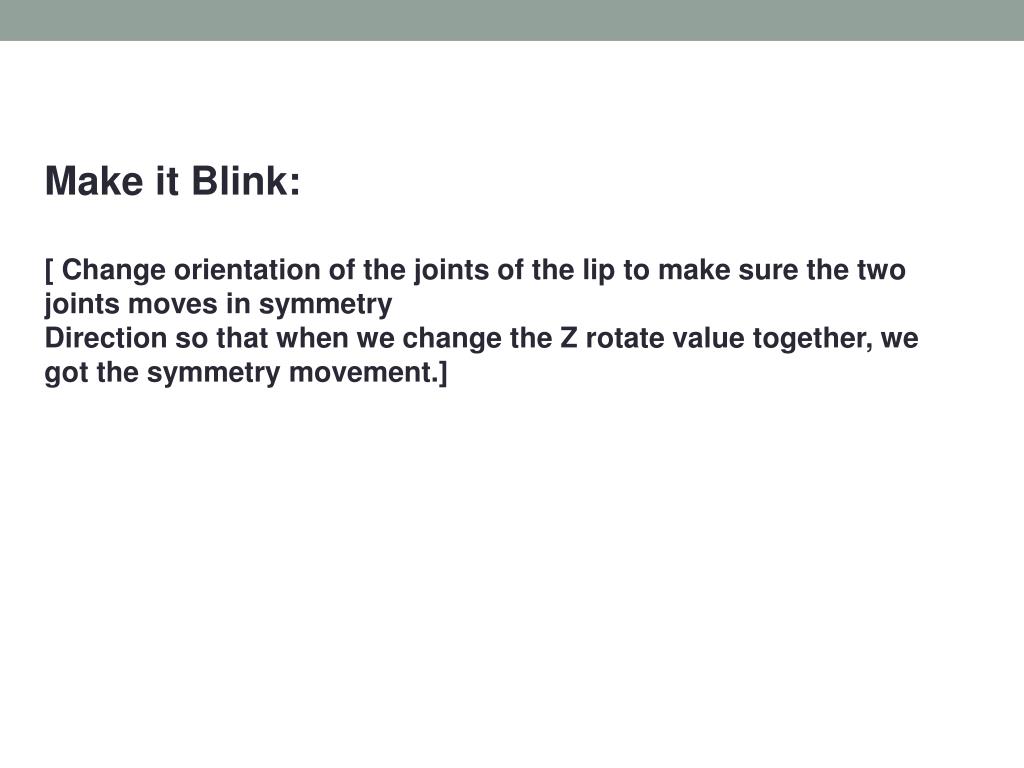

Make it Blink:

[ Change orientation of the joints of the lip to make sure the two joints moves in symmetry

Direction so that when we change the Z rotate value together, we got the symmetry movement.]


Facial rigging

  • ModifyAdd attributes( left_upper_lid, left_lower_lip, right_upper lip, right _lower_lip) to the middle curve  Choose Keyable go to windows  connection editor load the middle cure for the left, load the lip joints for the right as showed in picture 2 match the attributes as picture 3:

Picture 2

Picture 3


Blendshape

Blendshape

  • BaseObject duplicate  move aside (targetObject)

  • Change the shape of TargetObject( Don’t change the topology)

     What would be the next?


Facial rigging

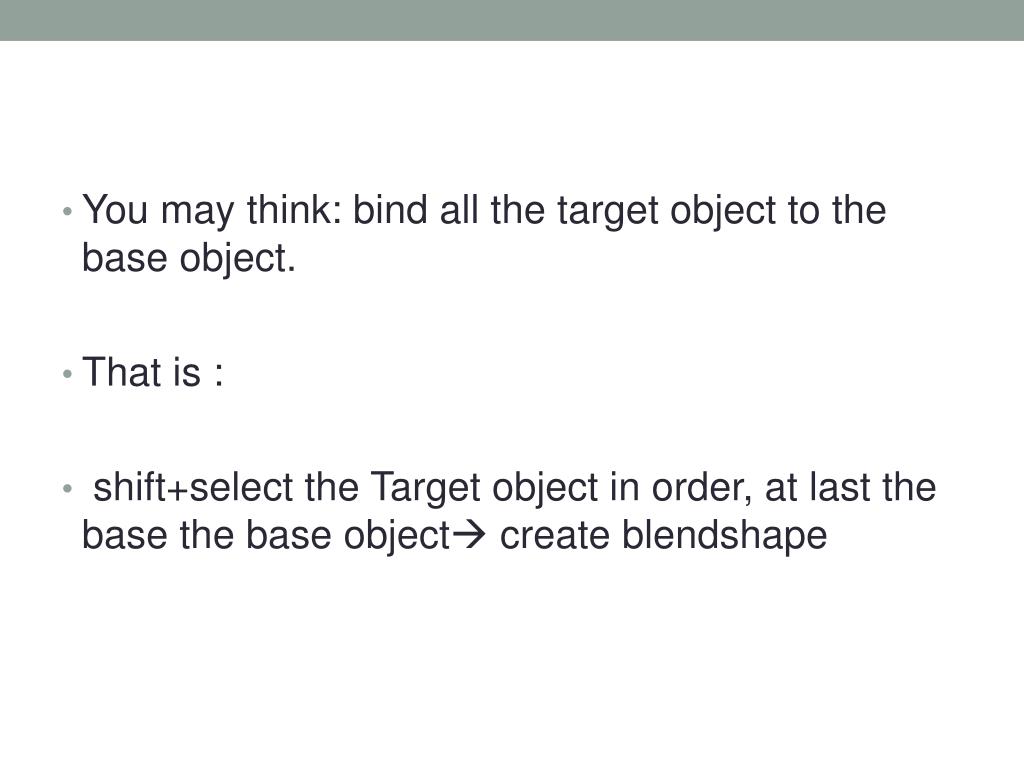

  • You may think: bind all the target object to the base object.

  • That is :

  • shift+select the Target object in order, at last the base the base object create blendshape


Facial rigging

  • The problem is: You can’t add more target after binding since the head is always attached with the body part. And sometimes you need to take a reference.


Facial rigging

A better way: Use the attribute attachment.

1. create a target object (T1)as the bridge of base object and other target objects. Create a joint and bind

picture 4


Facial rigging

  • 2. select (T1), shift + Base Object + create deformers  blend shape (make sure the deformation order is Front of chain under the blend shape options), showed in picture 4

picture 5


Facial rigging

To create more blend shapes, you just need to duplicate the T1. Shift +select the Target object in order, at last the T1 create blend shape. You may want to use the soft modification tool to create the blend shapes. Showed in the picture 6.

picture 6: soft modification tool


Facial rigging

  • The next you may be interested in:

  • Talking circle

  • Set driven keys to make controls


Facial rigging

  • Thanks !

  • Any questions, send me an Email:

    [email protected]
