Presentation Transcript


Property of lear siegler

Property of Lear Siegler


Property of lear siegler

METAR


Aviation routine weather report metar

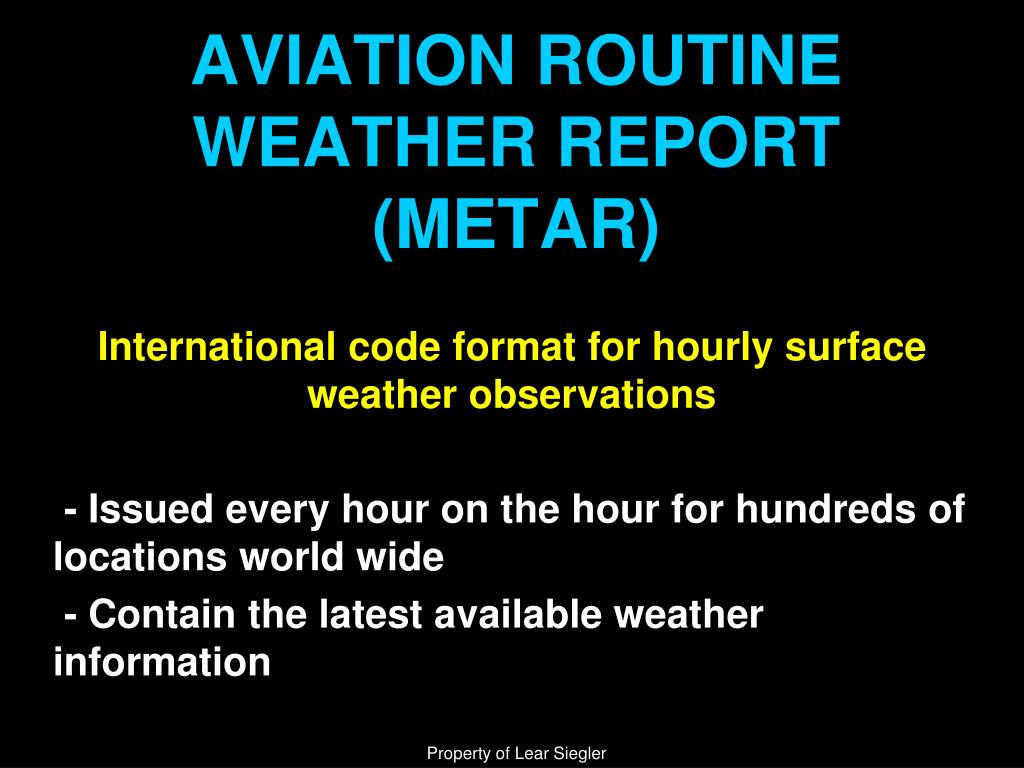

AVIATION ROUTINE WEATHER REPORT(METAR)

International code format for hourly surface weather observations

- Issued every hour on the hour for hundreds of locations world wide

- Contain the latest available weather information

Property of Lear Siegler


Purpose

PURPOSE

TO PROVIDE THE PILOT WITH THE LATEST WEATHER CONDITIONS AT A DESTINATION, ALTERNATE OR ANY OTHER STATION

Property of Lear Siegler


Conditions reported

CONDITIONS REPORTED

Type of report

Station identifier (four letters)

Date and time of observation

Winds

Visibility

Precipitation and obscurations

Sky condition

Temperature and dew point

Altimeter setting

Remarks

Property of Lear Siegler


Elo 1

ELO 1

Interpret the heading of a METAR report


Type report

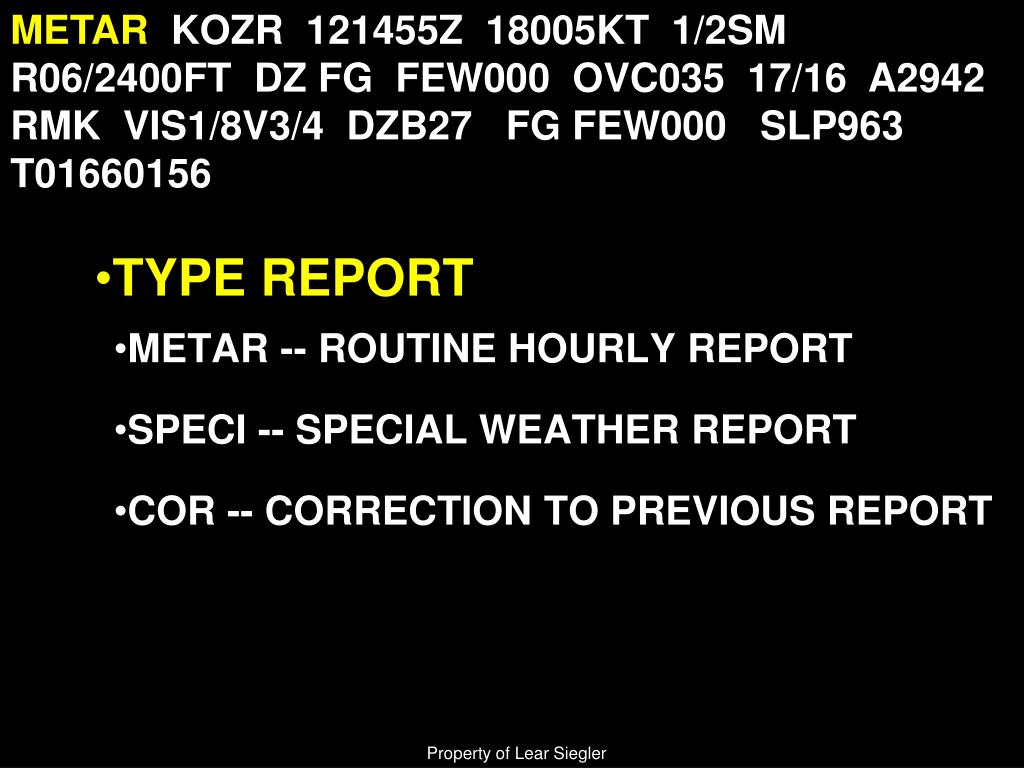

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

TYPE REPORT

METAR -- ROUTINE HOURLY REPORT

SPECI -- SPECIAL WEATHER REPORT

COR -- CORRECTION TO PREVIOUS REPORT

Property of Lear Siegler


Station identifier

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

STATION IDENTIFIER

KOZR -- Cairns AAF.

KMXF -- Maxwell AFB

KLSF -- Lawson AAF.

KBIX -- Keesler AFB.

KBKF -- Buckley

KFCS -- Butts AAF.

KFLV -- Sherman AAF.

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • DATE & TIME

  • All times in UTC ( ZULU)

Z- 5 = CDT

Z- 6 = CST

Property of Lear Siegler


Elo 2

ELO 2

Interpret the wind information


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • SURFACE WIND

  • Wind direction in reference to TRUE north and is reported to the nearest 10°.

  • Wind speed is a 2 minute average reported to the nearest knot .

  • Calm wind is shown as 00000KT.

  • VRB is used when direction is variable and speed is less than or equal to 6 knots. Example: VRB05KT

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 20015KT180V260 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

METAR KOZR 121455Z 20015KT180V260 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • SURFACE WIND

  • Gust - fluctuations in wind speed of 10kts or more between peaks and lulls. Example: 20015G25KT

  • Varying. A “V” is used when wind varies 60° or more and the wind is greater than 6KTS

  • Peak Wind. Peak wind is reported in remarks when instantaneous speed is greater than 25 knots. Example: RMK 22030/15

Property of Lear Siegler


Elo 3

ELO 3

Interpret the visibility information


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • PREVAILING VISIBILITY

  • Visibility - The greatest horizontal distance specified objects can be seen and identified. Reported in miles and fractions of miles.

  • Prevailing visibility - The greatest horizontal distance that specified objects can be seen over at least one-half of the horizon, not necessarily continuous.

Property of Lear Siegler


Property of lear siegler

1/2SM

1/16SM

7/8SM

3/8SM

Prevailing Visibility 1/2SM

Property of Lear Siegler


Property of lear siegler

11/2SM

3/4SM

7/8SM

1/2SM

Prevailing Visibility 7/8SM

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • PREVAILING VISIBILITY

  • Variable visibility is explained in the

  • remarks section

  • Sector Visibility

  • RMK VIS N 2

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • Runway Visual Range (RVR)

- Only given when the prevailing visibility is 1SM or less and/or the RVR value is 6000FT or less.

- R06/Runway 06 plus L,C, or R

- 2400FTVisibility, M400FT P6000FT

- R06L/2000V4000FTVariability

KOZR 221736Z 09009KT 1SM R06/3500VP6000FT +RA BR OVC008 22/21 A2999 RMK AO2A RAB1714 SLP155 $

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT

METAR KMXF 121455Z 19006KT 3/8SM

METAR KLSF 121455Z 31010KT 8SM

METAR KBIX121455Z 24012G23KT 11/2SM

METAR KBKF121455Z 34012KT 7SM

METAR KFCS 121452Z 33008KT 60SM

METAR KFLV 121455Z 03004KT 4SM

METAR KMIB 121455Z 01024KT 1/2SM

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • Precipitation

  • Intensity indicators

  • Descriptors

  • Obscurations

  • Other

Present Weather

  • Descriptors

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27E47 FG FEW000 SLP963 T01660156

Note:

The time precipitation began and/or ended will be shown in the remarks section

  • PRECIPITATION SYMBOLS

RA- rain

SN- snow

DZ- drizzle

PL- ice pellets

GR- hail

SG - snow grains

GS- snow pellets

IC- ice crystals

UP- unknown precipitation

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ

  • INTENSITY INDICATORS

LIGHT –

MODERATE NO SIGN

HEAVY +

NOTE: INTENSITY INDICATORS APPLY TO THE FIRST PRECIPITATION SHOWN

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • DESCRIPTORS

BC - PATCHES

BL - BLOWING

DR - LOW DRIFTING

FZ - SUPERCOOLED/FREEZING

MI - SHALLOW

PR - PARTIAL

SH - SHOWERS

TS - THUNDERSTORM

Property of Lear Siegler


Property of lear siegler

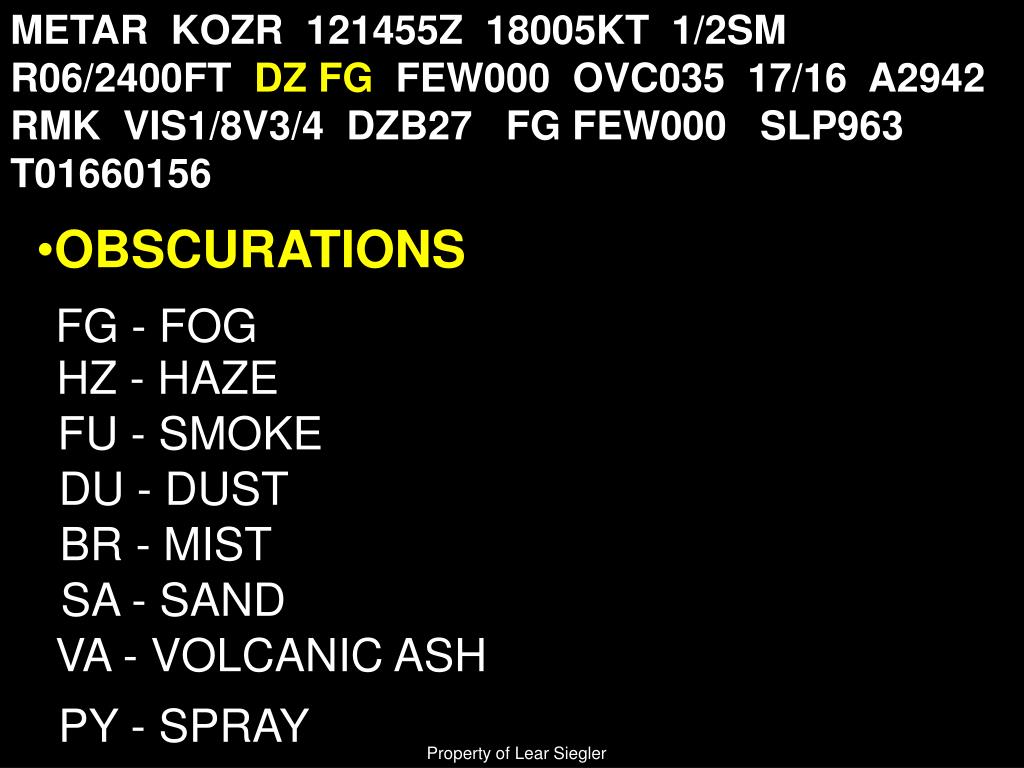

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • OBSCURATIONS

FG - FOG

HZ - HAZE

FU - SMOKE

DU - DUST

BR - MIST

SA - SAND

VA - VOLCANIC ASH

PY - SPRAY

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • OTHER

PO - DUST/SAND SWIRLS

SQ - SQUALLS

FC - FUNNEL CLOUD

+FC - TORNADO

SS - SANDSTORM

DS - DUSTSTORM

Property of Lear Siegler


Property of lear siegler

INTENSITY

DESC

PRECIP

DESC

OBSC

OTHER

FG

RA

BL

BC

SQ

+

HZ

SN

BL

FC

DR

FU

DZ

_

DR

+FC

DU

SH

PL

FZ

SS

BR

TS

GR

MI

DS

SA

FZ

SG

PR

VA

PO

GS

IC

PY

UP

RA

FG

SH

BC

Property of Lear Siegler


Property of lear siegler

INTENSITY

DESC

PRECIP

DESC

OBSC

OTHER

FU

DU

BR

SA

VA

FG

RA

GS

SH

MI

FG

RA

BL

BC

SQ

+

HZ

SN

BL

FC

DR

DZ

_

DR

+FC

SH

PL

FZ

SS

TS

GR

MI

DS

FZ

SG

PR

PO

GS

IC

PY

UP

Property of Lear Siegler


Property of lear siegler

INTENSITY

DESC

PRECIP

DESC

OBSC

OTHER

FU

DU

BR

SA

VA

FG

RA

BL

BC

SQ

+

HZ

SN

BL

FC

DR

DZ

_

DR

+FC

SH

PL

FZ

SS

TS

GR

MI

DS

FZ

SG

PR

PO

GS

IC

PY

UP

+TSRAPL BLPY

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT -DZ

METAR KMXF 121455Z 19006KT 3/8SM -RA

METAR KLSF 121455Z 31010KT 8SM RA

METAR KBIX121455Z 24012G23KT 11/2SM TSRA

METAR KBKF121455Z 34012KT 7SM

METAR KFCS 121452Z 33008KT 60SM FZDZ

METAR KFLV 121455Z 03004KT 4SM -SN

METAR KMIB 121455Z 01024KT 1/2SM +SN

Property of Lear Siegler


Elo 4

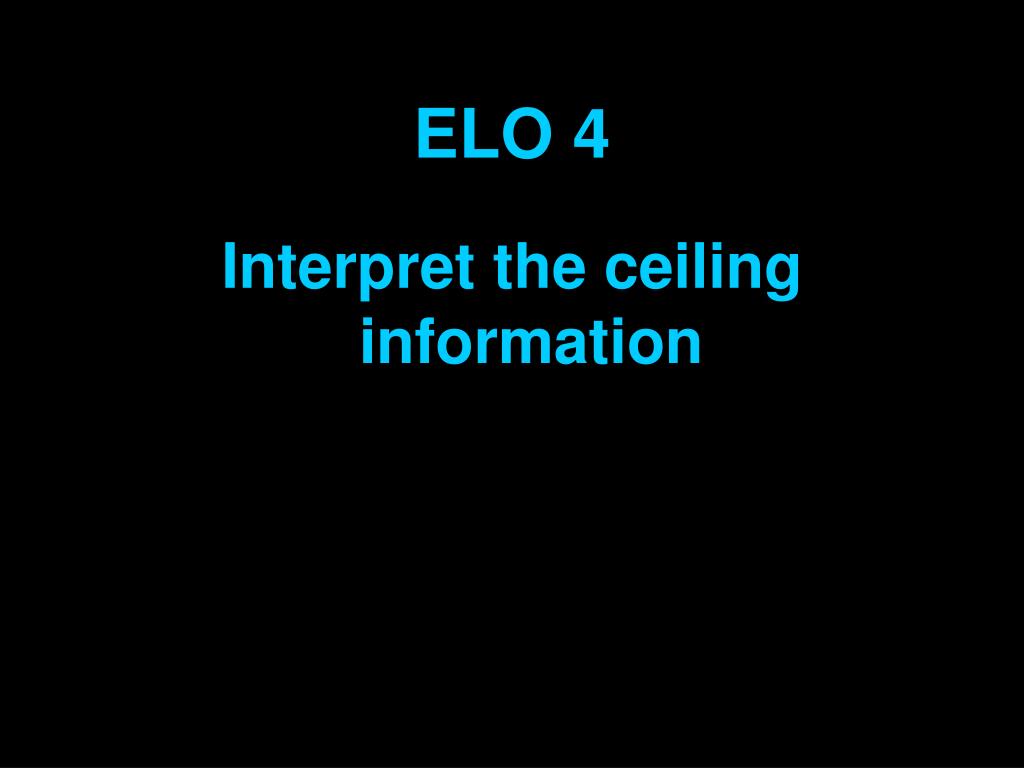

ELO 4

Interpret the ceiling information


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • SKY CONDITION

  • SKC/CLR

  • FEW - 1 to 2 Octas

  • SCT - 3 to 4 Octas

  • BKN - 5 to 7 Octas

  • OVC - 8 OCTAS

Property of Lear Siegler


Property of lear siegler

CEILING

DEFINED AS THE LOWEST LAYER ALOFT REPORTED AS BROKEN OR OVERCAST. IF THE SKY IS TOTALLY OBSCURED, THE VERTICAL VISIBILITY SHALL BE THE CEILING.

Property of Lear Siegler


Property of lear siegler

1000

3000

3000

2000

1000

2000

Observation

point

SCT 020

BKN 030

FEW 010

Ceiling 030

Property of Lear Siegler


Property of lear siegler

1000

3000

3000

2000

1000

2000

Observation

point

OVC 030

SCT 010

SCT 020

Ceiling 030

Property of Lear Siegler


Property of lear siegler

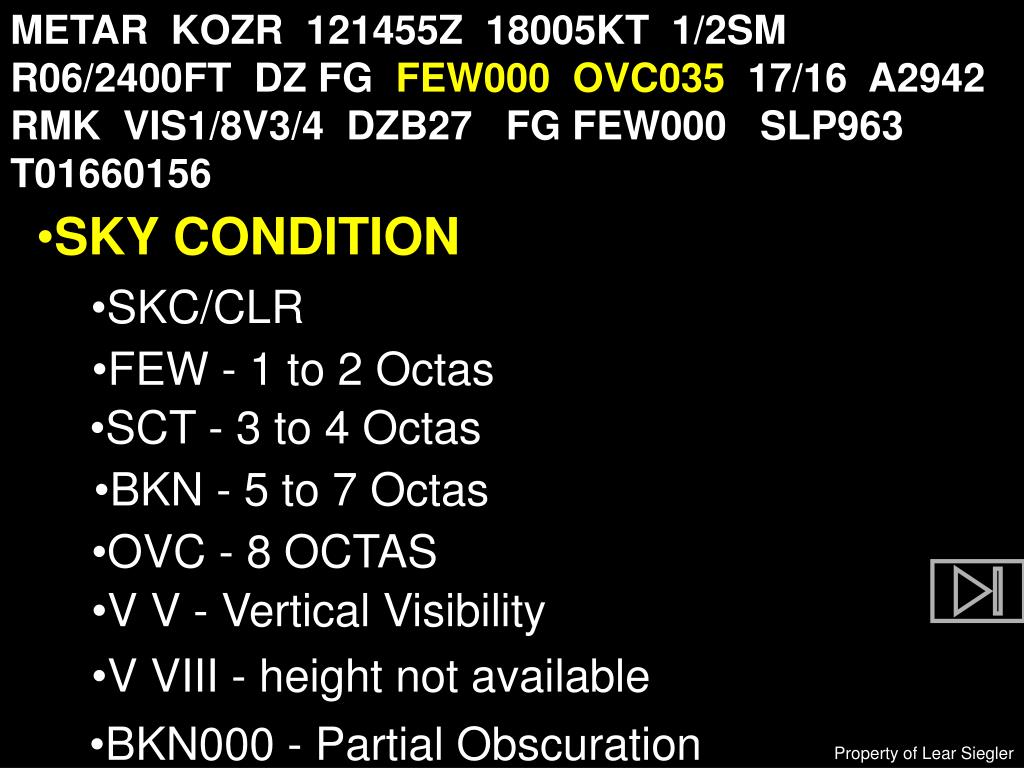

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • SKY CONDITION

  • SKC/CLR

  • FEW - 1 to 2 Octas

  • SCT - 3 to 4 Octas

  • BKN - 5 to 7 Octas

  • OVC - 8 OCTAS

  • V V - Vertical Visibility

  • V VIII - height not available

  • BKN000 - Partial Obscuration

Property of Lear Siegler


Property of lear siegler

SKC

Property of Lear Siegler


Property of lear siegler

CEILING- THE LOWEST LAYER REPORTED

AS BROKEN OR OVERCAST. IF THE SKY IS TOTALLY

OBSCURED, THE VERTICAL VISIBILITY SHALL BE

THE CEILING.

Property of Lear Siegler


Property of lear siegler

Vertical Visibility:

1. The distance that the observer can see vertically into an indefinite ceiling.

2. The height corresponding to the top of a ceiling light projector beam.

3. The height at which a ceiling balloon completely disappears.

IF THE SKY IS TOTALLY OBSCURED, THE VERTICAL VISIBILITY SHALL BE THE CEILING.

EXAMPLE: VV004 “ Indefinite Ceiling 400 feet”

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • PARTIAL OBSCURATIONS

  • FEW000 - 1/8 to 2/8 sky obscured - Few clouds less than 50ft

  • SCT000 - 3/8 to 4/8 sky obscured - Scattered clouds less than 50ft

  • BKN000 - 5/8 to7/8 sky obscured - Broken clouds less than 50ft

Property of Lear Siegler


Elo 5

ELO 5

Interpret the surface temperature and dewpoint information


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • TEMPERATURE / DEWPOINT

  • In CelsiusM for Minus

  • 2 Degree spread for saturation

  • If temperature missing, group is omitted

  • If dew point missing, only temp shown Ex: 17/

Property of Lear Siegler


Property of lear siegler

METAR KBKF121455Z 34012KT 7SM CLR 2/M4

METAR KFCS 121452Z 33008KT 60SM FZDZ SCT150 BKN250 M3/M7

METAR KFLV 121455Z 03004KT 4SM -SN HZ OVCOO6M27/M28

METAR KMIB 121455Z 01024KT 1/2SM +SN BLSN OVC040M21/M22


Elo 6

ELO 6

Interpret altimeter setting information


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • ALTIMETER SETTING

  • A2982Inches of Mercury

Property of Lear Siegler


Elo 7

ELO 7

Interpret the remarks contained a a METAR report


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

FG FEW000

  • REMARKS

  • Partial Obscurations (and their causes)

    • FG FEW000, HZ SCT000, VA BKN000

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

VIS1/8V3/4

  • VARIABLE PREVAILING VISIBILITY

    • VIS 3/4V1 1/2

  • REMARKS

  • VARIABLE CEILING HEIGHT

  • - CIG BKN025 V OVC

  • VARIABLE SKY CONDITION

    • -SCT025 V BKN


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

DZB27

  • REMARKS

  • BEGINNING AND ENDING

    • TSB20E44, RAE50, SNB41E54


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • REMARKS

  • HZALQDS

  • CIGRGD

  • SVR DWNDFTS NR MTNS

  • CB EBDD IN OVC

  • CB W MOV E, TCU OHD

  • SHRA U SE

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000

T01660156

SLP963

SLP963

  • REMARKS

  • SEA-LEVEL PRESSURE

    • SLP963

= 996.3

SLP132

= 1013.2

= 986.6

SLP866

SLP170

= 1017.0

SLP996

= 999.6

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • TEMP / DEWPOINT IN TENTHS

    • Positive Temperatures prefixed with “0”

    • Negative Temperatures prefixed with “1”

x

x

T01660156

Property of Lear Siegler


Elo 8

ELO 8

Decode / interpret a METAR report


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • REMARKS

  • A01

  • A02

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • REMARKS

  • LTG

  • CC

  • CG

  • CA

  • IC

LTGICCC

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • REMARKS

  • LTG

  • OCNL - Occasional

  • FRQ - Frequent

  • CONS - Continuous

FRQ LTGCC NE, CONS LTGCG SW

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • REMARKS

  • DSNT - Distant, 10 to 30 SM from station

  • VC – Vicinity, within 5 to 10 SM from station

  • OHD - Overhead

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

  • REMARKS

  • THUNDERSTORM LOCATION

    • TS OHD MOV N, TS DSNT S MOV N

  • HAILSTONE SIZE

    • GR 1 3/4

  • VIRGA

    • VIRGA SW

  • PRESSURE RISING / FALLING RAPIDLY

    • PRESRR, PRESFR

Property of Lear Siegler


Property of lear siegler

METAR KOZR 121455Z 18005KT 1/2SM R06/2400FT DZ FG FEW000 OVC035 17/16 A2942 RMK VIS1/8V3/4 DZB27 FG FEW000 SLP963 T01660156

METAR KMXF 121455Z 19006KT 3/8SM -RA FGHZ VV003 18/18 A2984 RMK RAB40 SLP105 T01830183

METAR KLSF 121455Z 31010KT 8SM RA VV007 17/15 A2987 RMK RAB10E15B25 T01680146

METAR KBIX 121455Z 24012G23KT 11/2SM TSRAGR SCT020 BKN030 20/17 A3003 RMK TSB40GRB50

CIG 028V032 SLP210 T02000167

Property of Lear Siegler


Property of lear siegler

Safety First…

“A weather observation is only useful to the extent that the pilot understands it.”


Fm 1 230 references for today

FM 1-230 Referencesfor today

  • METARs Appendix B


Fm 1 230 references for tomorrow

FM 1-230 Referencesfor tomorrow…

  • Surface Analysis Chart 18-4

  • Weather Depiction Chart 18-5

  • Radar Summary 18-8


Property of lear siegler

The end


Property of lear siegler

STOP

Abandon hope all ye who enter here

You are entering the hidden slide Zone


Property of lear siegler

Break

Time


Property of lear siegler

If you run, you'll only die tired!!

BREAK TIME


Property of lear siegler

BREAK!

BREAK!

BREAK!

BREAK!

BREAK!

BREAK!

BREAK!

BREAK!

BREAK!

BREAK!

BREAK!

BREAK!

BREAK!

BREAK!

BREAK!

BREAK!

BREAK!

BREAK!

BREAK!


Property of lear siegler

BREAK TIME


Property of lear siegler

REVIEW


Property of lear siegler

Review


Property of lear siegler

BREAK TIME!!!!


  • Login
