  1. Cleaning“New Masonry”Workshop

  2. Cleaning Committee • Diedrich Technologies • Fabrikem • PROSOCO • Weathershield, Inc. • St. Marys Cement Thank You!

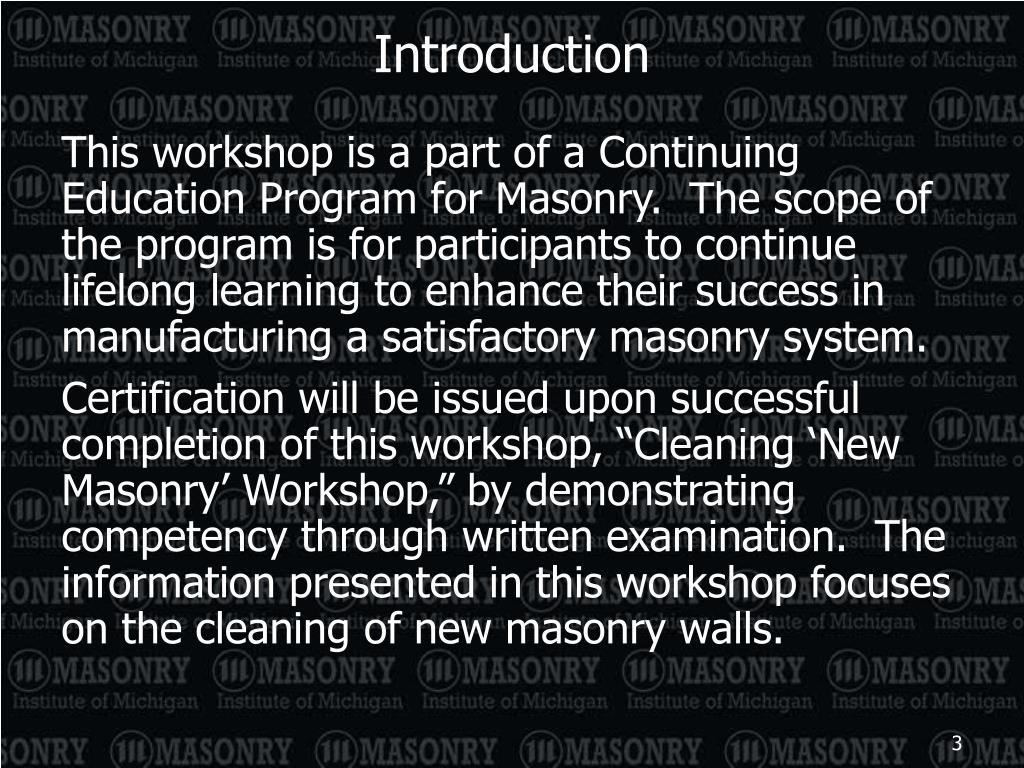

  3. Introduction • This workshop is a part of a Continuing Education Program for Masonry. The scope of the program is for participants to continue lifelong learning to enhance their success in manufacturing a satisfactory masonry system. • Certification will be issued upon successful completion of this workshop, “Cleaning ‘New Masonry’ Workshop,” by demonstrating competency through written examination. The information presented in this workshop focuses on the cleaning of new masonry walls.

  4. Introduction • The information has been based on the Building Code Requirements for Masonry Structures (ACI 530-02/ASCE 5-02/TMS 402-02). Acknowledgements to Diedrich Technologies, Fabrikem, Prosoco for product information and literature; the Brick Industry Association, the Cast Stone Institute, the Environmental Protection Agency, the Indiana Limestone Institute, Michigan Occupational Safety and Health Administration (MIOSHA), the National Concrete Masonry Association, the Rocky Mountain Masonry Institute, and the Portland Cement Association.

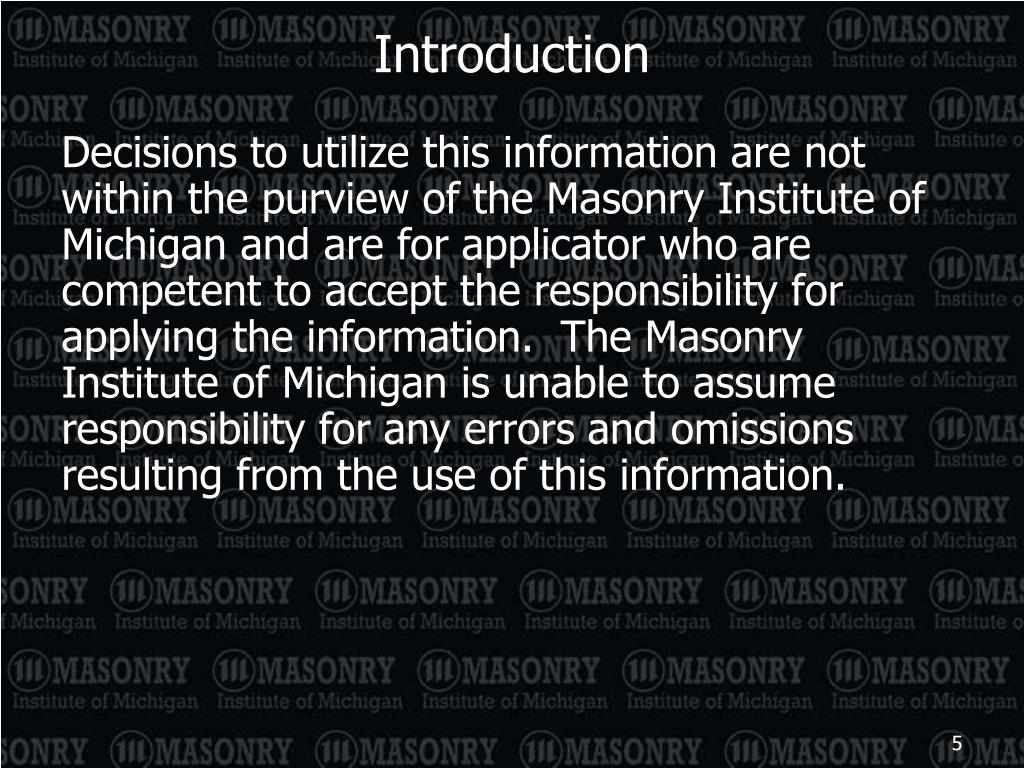

  5. Introduction • Decisions to utilize this information are not within the purview of the Masonry Institute of Michigan and are for applicator who are competent to accept the responsibility for applying the information. The Masonry Institute of Michigan is unable to assume responsibility for any errors and omissions resulting from the use of this information.

  6. Agenda • Masonry Units • Mortar • Grout • Building Code Requirements • MIM and Masonry Associations CleaningRecommendations • Red Clay Brick • Light Colored Clay Brick • Architectural Concrete Block (smooth, split, ribbed) • Architectural Concrete Block (burnished) • Concrete Brick • Natural Stone (limestone) • Cast Stone • Calcium Silicate • References

  7. Before masonry looks like this…

  8. It looks like this.

  9. Masonry Units

  10. Clay Masonry Units(Brick)

  11. High Pressure (Improper Cleaning) New photo

  12. Vanadium Stain (green or yellow stains)(Improper Cleaning) These stains are usually from vanadium salts. They may be found on red, buff or white clay products; however, they are most objectionable and more readily apparent on the lighter-colored units. The chloride salts of vanadium require highly acidic leaching solutions, and are usually the result of washing brickwork with acid cleaning solutions.

  13. Manganese Stain(Improper Cleaning) Under certain conditions, tan or brown, and sometimes gray staining may occur on the mortar joints of brickwork. Occasionally, the brown stain will streak down onto the faces of the brick. This type of stain is the result of the use of manganese dioxide as a coloring agent in the units.

  14. Building Bloom(Stain) A source of moisture which may cause "new building bloom" and contribute to future occurrences of efflorescence in a building is the water which enters the assembly during construction. The improper protection of a building during construction may significantly contribute to future problems, including efflorescence.

  15. Efflorescence(Stain) Efflorescence is a crystalline deposit of water-soluble salts on the surface of brick masonry. Although efflorescence is unsightly and a nuisance to remove, it is usually not harmful to the brick masonry. By definition efflorescence is water soluble and can be cleaned. Efflorescence is usually white in color; however, all white stains on brick masonry are not necessarily efflorescence.

  16. Lime Run (Calcium Carbonate)(Stain) Carbonate deposits, if they occur, usually appear as a gray-white, crusty spot in the form of a vertical "run-down" shape on the face of the wall. …."lime run" is not directly a result of lime in the mortar. Carbonate deposits nearly always occur at a small hole or opening in the face of the masonry. These carbonate stains can be removed using a weak solution of hydrochloric acid, applied directly to the deposit. Care must be taken to properly wet the wall area first and rinse it thoroughly after cleaning. This is especially true when removing carbonate deposits from light-colored brick

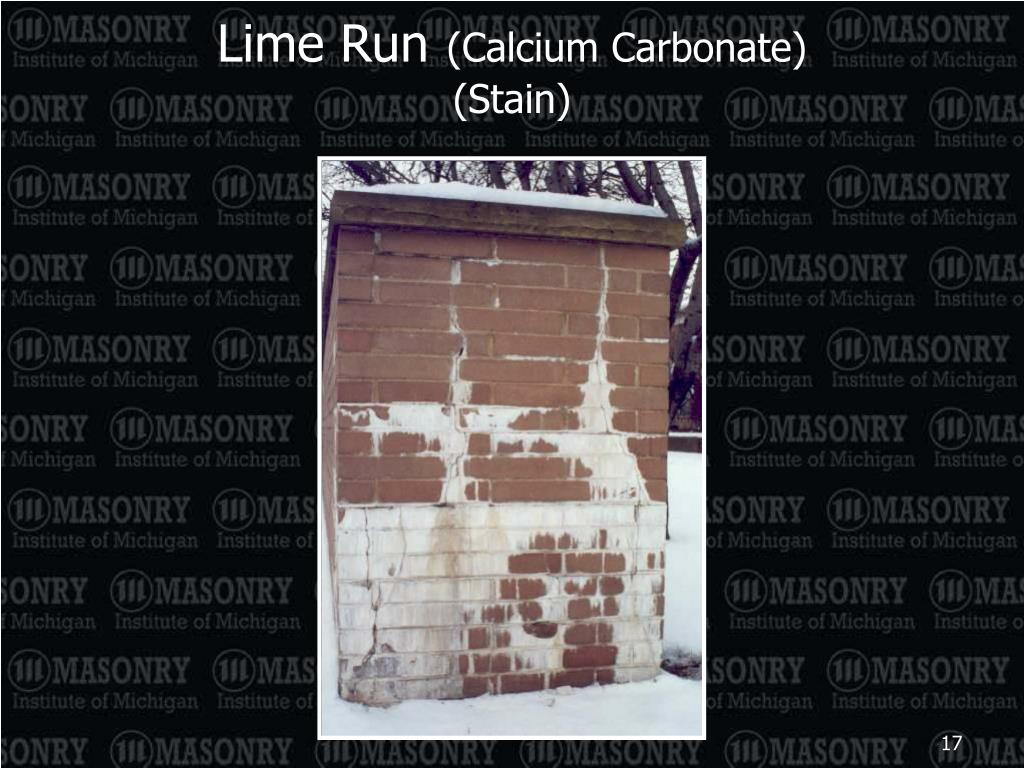

  17. Lime Run(Calcium Carbonate)(Stain)

  18. Burned Mortar Joint(Improper Cleaning)

  19. Frozen Mortar(Improper Protection)

  20. Improper Cleaning

  21. Concrete Masonry Units

  22. Color Washout(Improper Cleaning)

  23. Masonry Acid Burn(Muriatic Acid)(Improper Cleaning) Aggressive: creates uneven appearance erodes mortar, reduces weather resistance

  24. Building Bloom(Stain)

  25. Lime Run(Calcium Carbonate)(Stain)

  26. Improper Cleaning Sure Clean 600

  27. Overlapping(Improper Cleaning)

  28. Washout(Improper Cleaning)

  29. Not Saturating the Surface(Improper Cleaning)

  30. Natural Stone

  31. Calcium Silicate

  32. Cast Stone

  33. Banding

  34. Mortar

  35. Mortar A mixture consisting of cementitious materials, fine aggregate, water, and with or without admixtures, that is used to construct unit masonry assemblies

  36. Purpose Hold units together Accommodate unit tolerances

  37. Purpose Provide water penetration resistance Hold units apart

  38. Properties Plastic (Mason) Workability Flow Water Retentivity Stiffening Characteristics Board Life Hardened (Designer) Bond Extensibility/Plastic Flow Compressive Strength Durability

  39. Workability Most important plastic property Supports weight of units Spreads easily Adheres to vertical surfaces

  40. Bond Complete and intimate contact between mortar and unit is essential for good bond

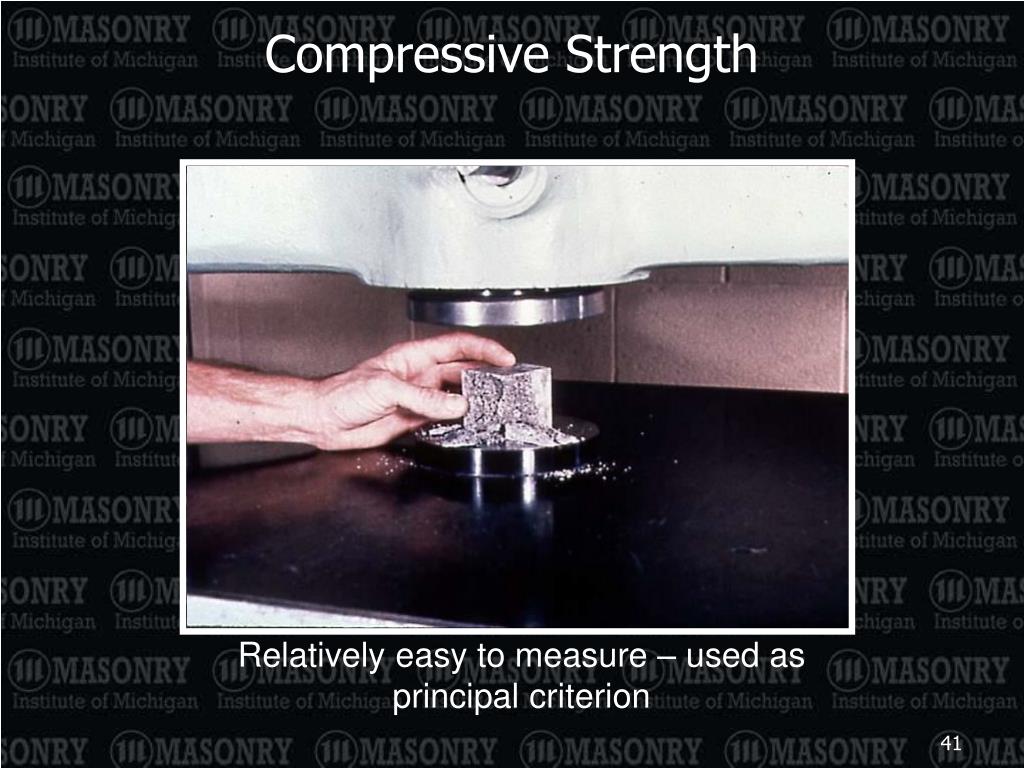

  41. Compressive Strength Relatively easy to measure – used as principal criterion

  42. Types • A1 A2 B C D • MASONW ORK X

  43. Mortar Materials cement aggregate water lime admixtures

  44. Cement Portland cement masonry cement Portland cement air entraining additives water repellency agents mortar cement similar to masonry cement requires lower air content flexural bond strength requirement

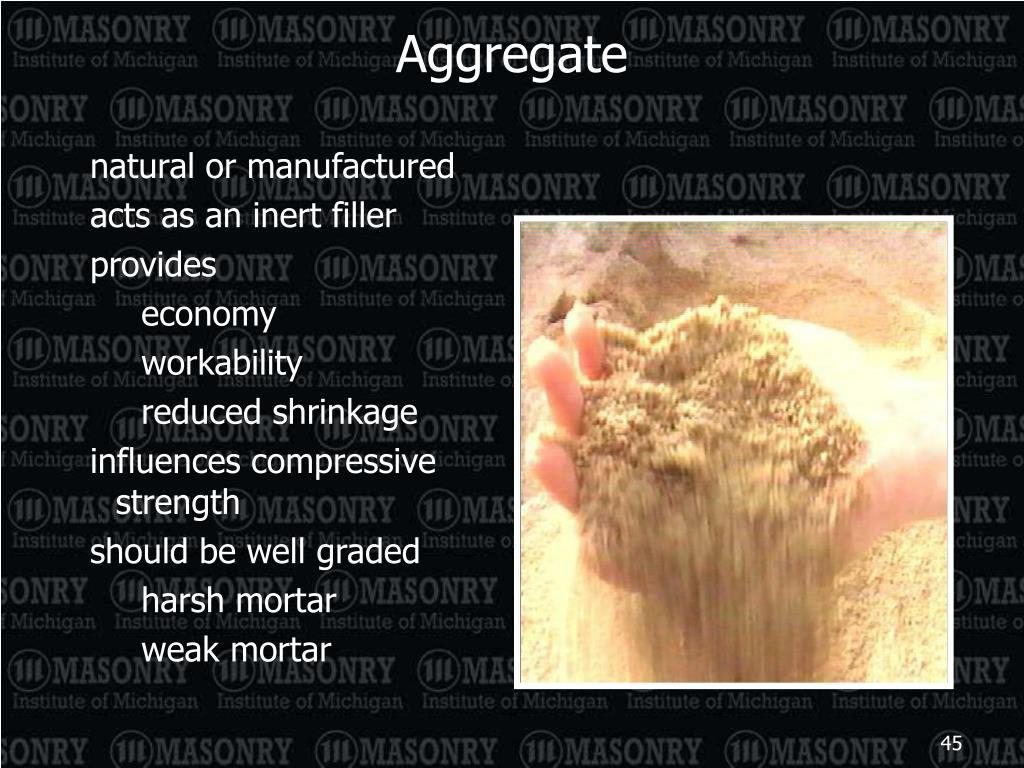

  45. Aggregate natural or manufactured acts as an inert filler provides economy workability reduced shrinkage influences compressive strength should be well graded harsh mortar weak mortar

  46. Water contributes to workability hydration of cement carbonation of lime suction of units potable use the maximum amount of water needed for workability retempering

  47. Lime contributes to workability water retentivity elasticity autogenous healing

  48. Admixtures A wide variety of admixtures for masonry mortars is available to the masonry industry. In general, they are classified as: air entrainment water retentivity water repellency workability accelerated set color no chlorides Only used when specified

  49. Mortar • Wall System • (Above Grade Walls) Suggested Type • Veneer N • Reinforced Masonry N or S • Unreinforced Masonry S

  50. Masonry veneer non-structural Reinforced masonry design based on the cracked section (steel reinforcement resists tension only) Unreinforced masonry design based on the uncracked section (masonry resists tension only) Specify the weakest mortar that meets structural requirements.
