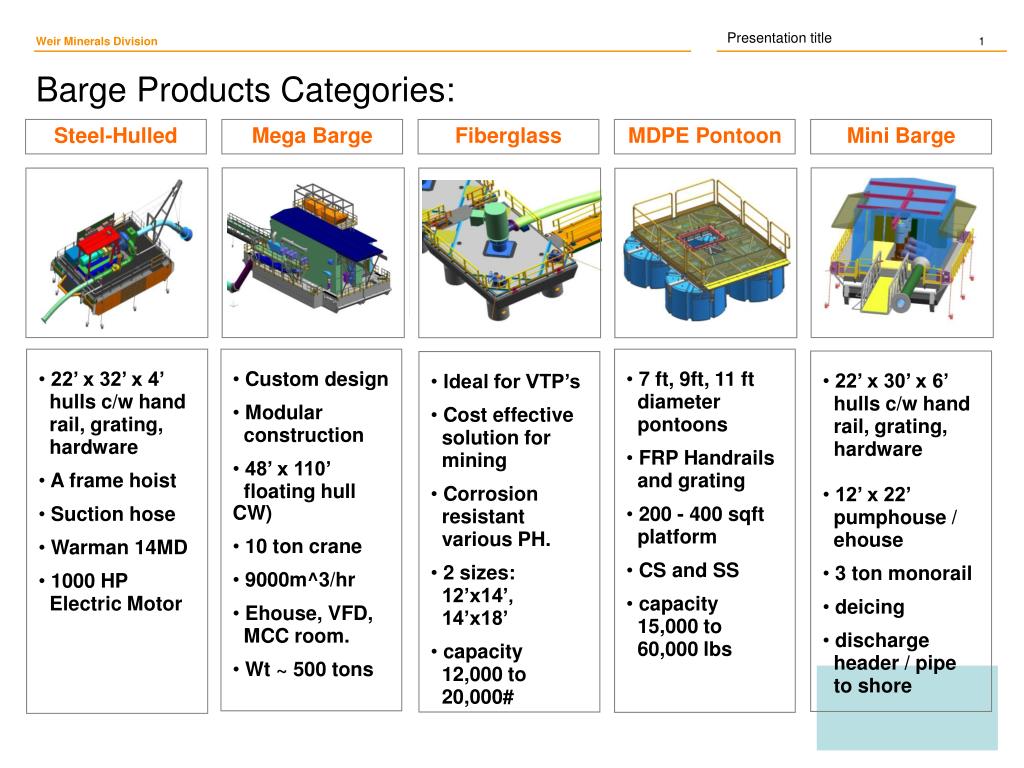

  1. Barge Products Categories: Steel-Hulled Mega Barge Fiberglass MDPE Pontoon Mini Barge • 22’ x 32’ x 4’ • hulls c/w hand • rail, grating, • hardware • A frame hoist • Suction hose • Warman 14MD • 1000 HP • Electric Motor • Custom design • Modular • construction • 48’ x 110’ • floating hull CW) • 10 ton crane • 9000m^3/hr • Ehouse, VFD, • MCC room. • Wt ~ 500 tons • 7 ft, 9ft, 11 ft • diameter • pontoons • FRP Handrails • and grating • 200 - 400 sqft • platform • CS and SS • capacity • 15,000 to • 60,000 lbs • 22’ x 30’ x 6’ • hulls c/w hand • rail, grating, • hardware • 12’ x 22’ • pumphouse / • ehouse • 3 ton monorail • deicing • discharge • header / pipe • to shore • Ideal for VTP’s • Cost effective • solution for • mining • Corrosion • resistant • various PH. • 2 sizes: • 12’x14’, • 14’x18’ • capacity • 12,000 to • 20,000#

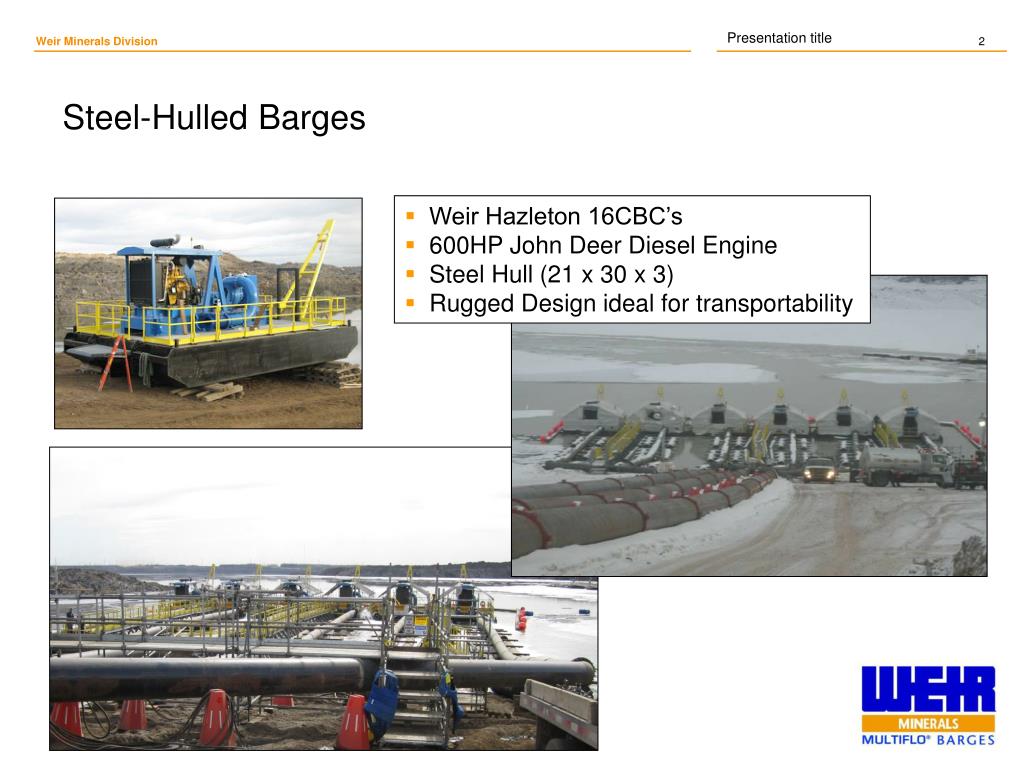

  2. Steel-Hulled Barges • Weir Hazleton 16CBC’s • 600HP John Deer Diesel Engine • Steel Hull (21 x 30 x 3) • Rugged Design ideal for transportability

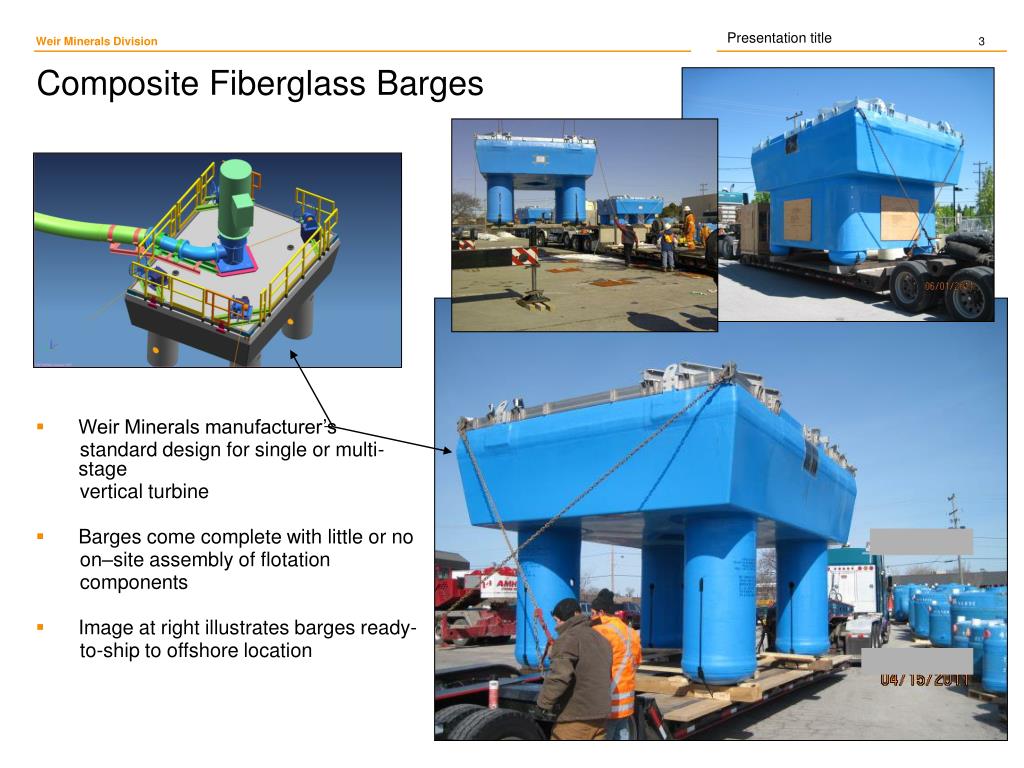

  3. Composite Fiberglass Barges • Weir Minerals manufacturer’s standard design for single or multi-stage vertical turbine • Barges come complete with little or no on–site assembly of flotation components • Image at right illustrates barges ready- to-ship to offshore location

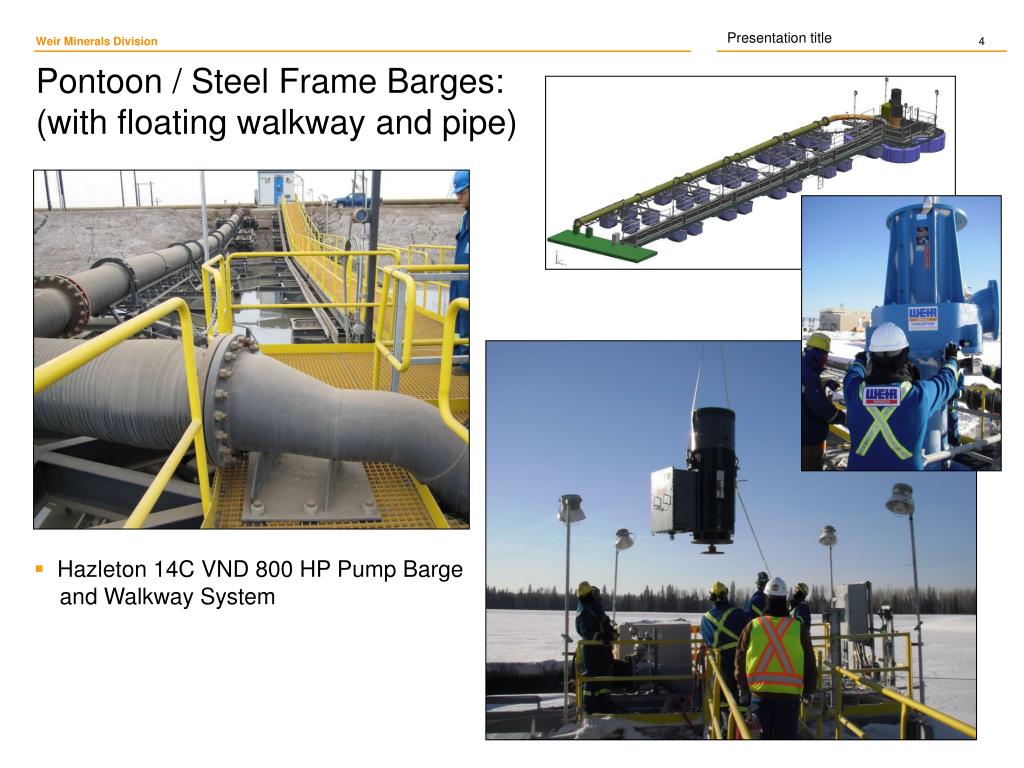

  4. Pontoon / Steel Frame Barges:(with floating walkway and pipe) • Hazleton 14C VND 800 HP Pump Barge and Walkway System

  5. Pontoon / Steel Frame Barges:(with floating walkway and pipe) • Hazleton Vertical Cantilevers (2) – Trimble County Barge

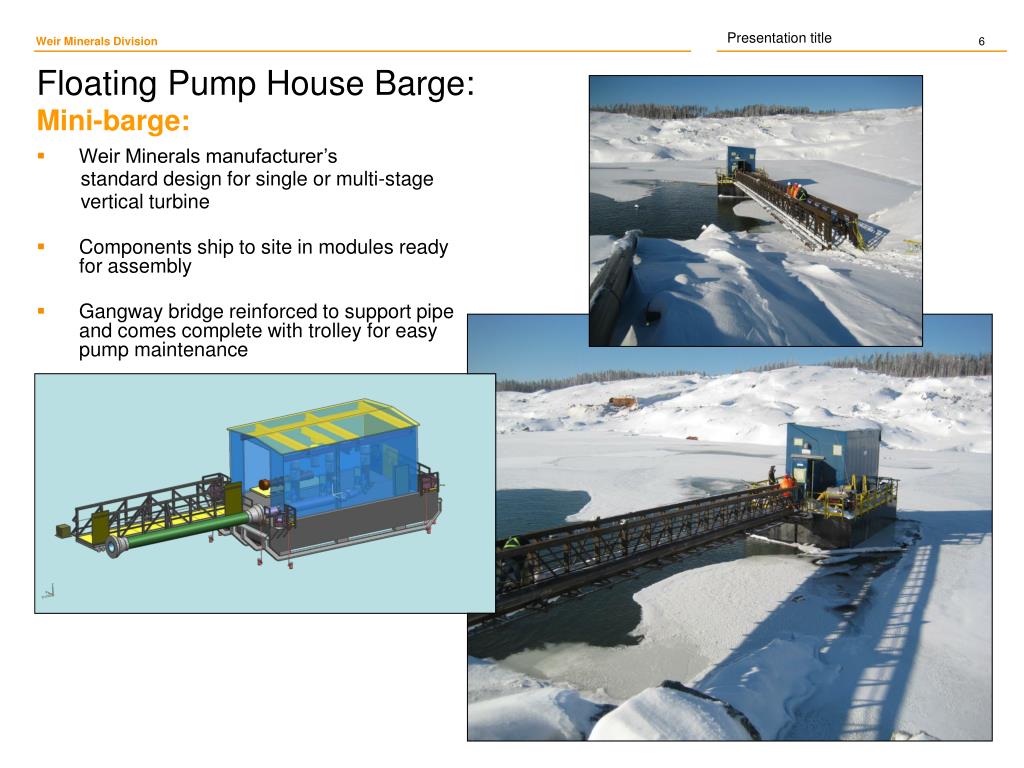

  6. Floating Pump House Barge:Mini-barge: • Weir Minerals manufacturer’s standard design for single or multi-stage vertical turbine • Components ship to site in modules ready for assembly • Gangway bridge reinforced to support pipe and comes complete with trolley for easy pump maintenance

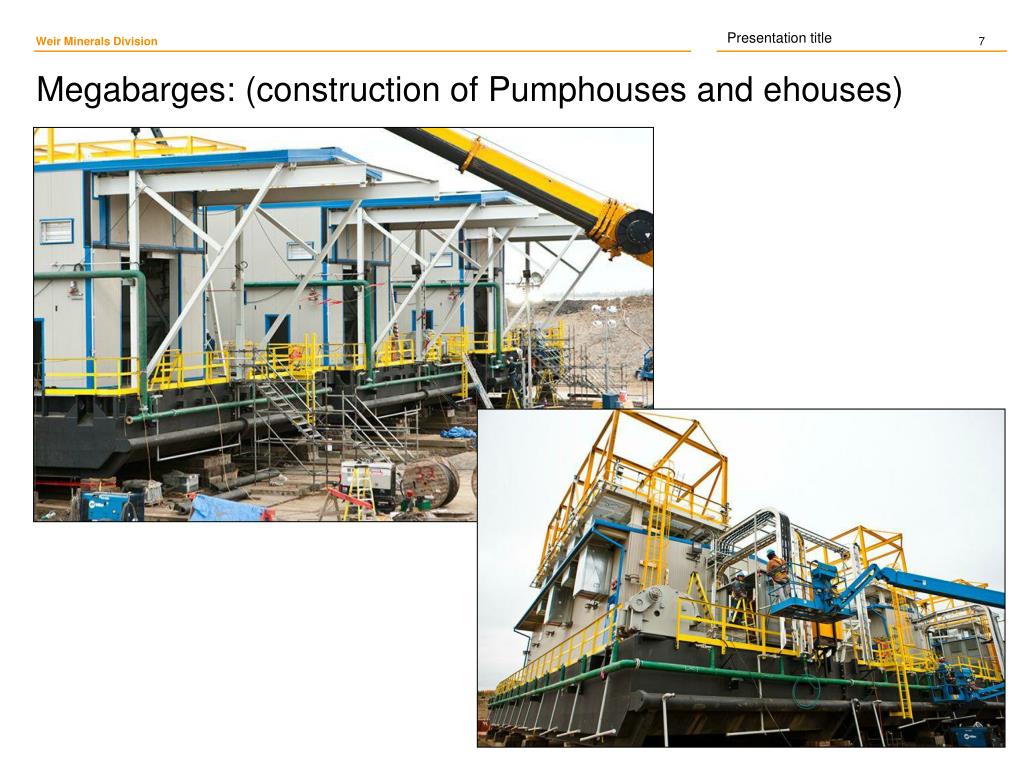

  7. Megabarges: (construction of Pumphouses and ehouses)

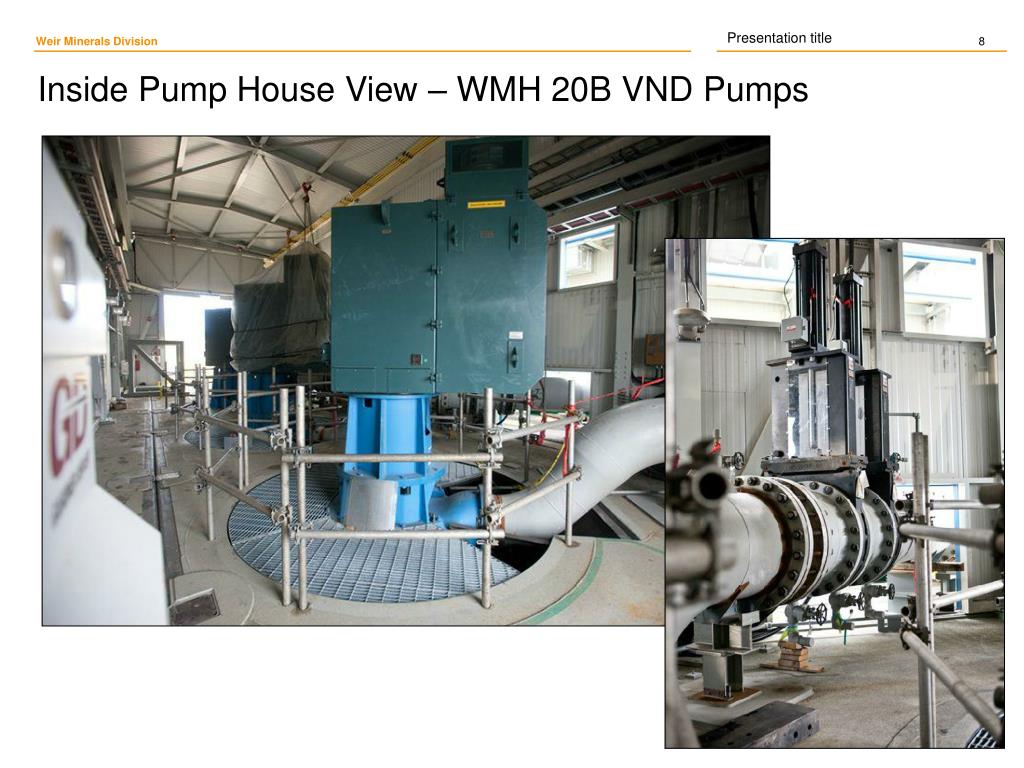

  8. Inside Pump House View – WMH 20B VND Pumps

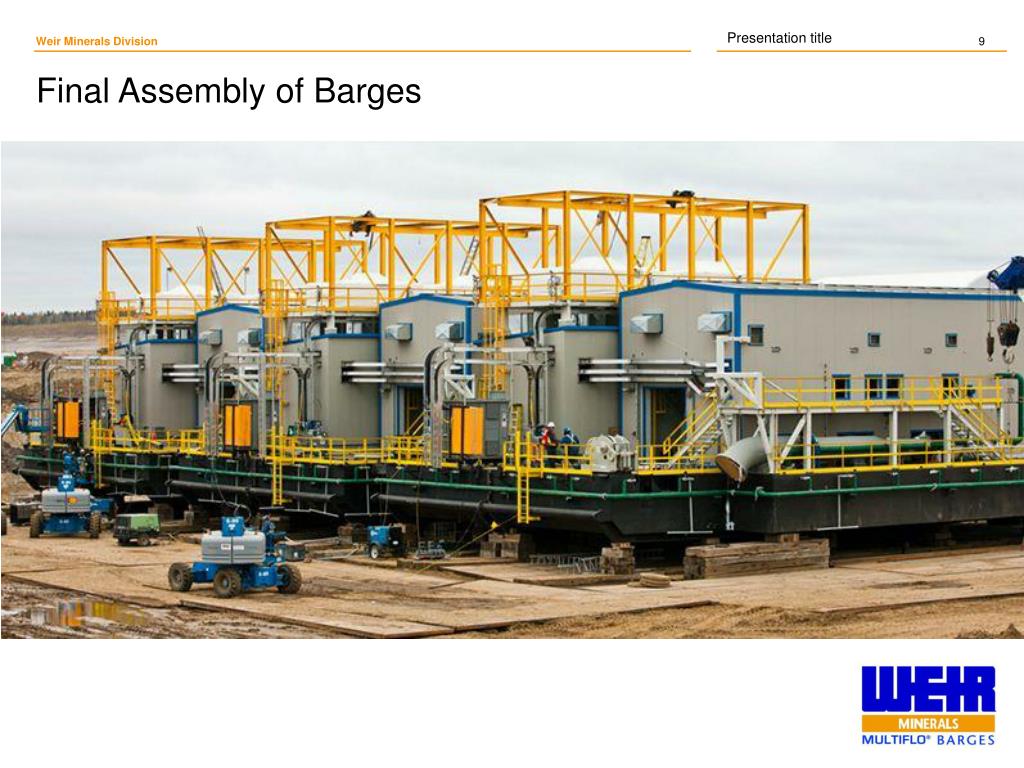

  9. Final Assembly of Barges

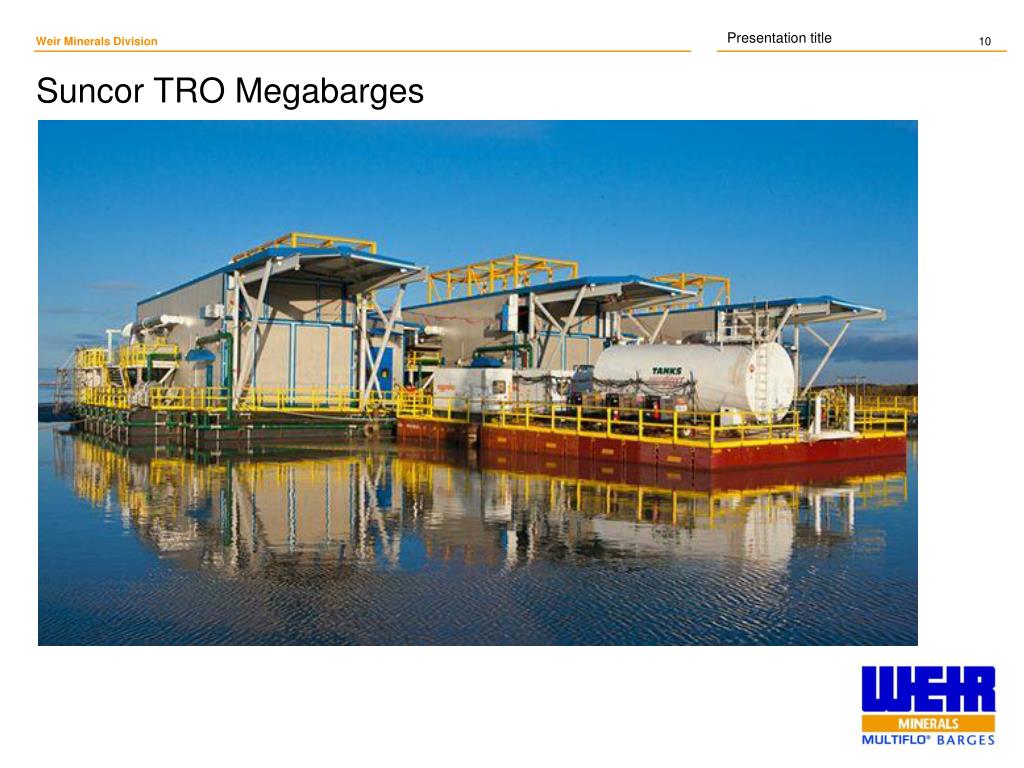

  10. Suncor TRO Megabarges
