CSC 660: Advanced OS

Scheduling

CSC 660: Advanced Operating Systems


Topics
Topics

  • Basic Concepts

  • Scheduling Policy

  • The O(1) Scheduler

  • Runqueues

  • Priority Arrays

  • Calculating Priorities and Timeslices.

  • Scheduler Interrupts.

  • Sleeping and Waking.

  • The schedule() function

  • Multiprocessor Scheduling

  • Soft Realtime Scheduling

CSC 660: Advanced Operating Systems


Basic concepts
Basic Concepts

Scheduler

Selects a process to run and allocates CPU to it.

Provides semblence of multitasking on single CPU.

Scheduler is invoked when:

Process blocks on an I/O operation.

A hardware interrupt occurs.

Process time slice expires.

Kernel thread yields to scheduler.

CSC 660: Advanced Operating Systems


Types of processes

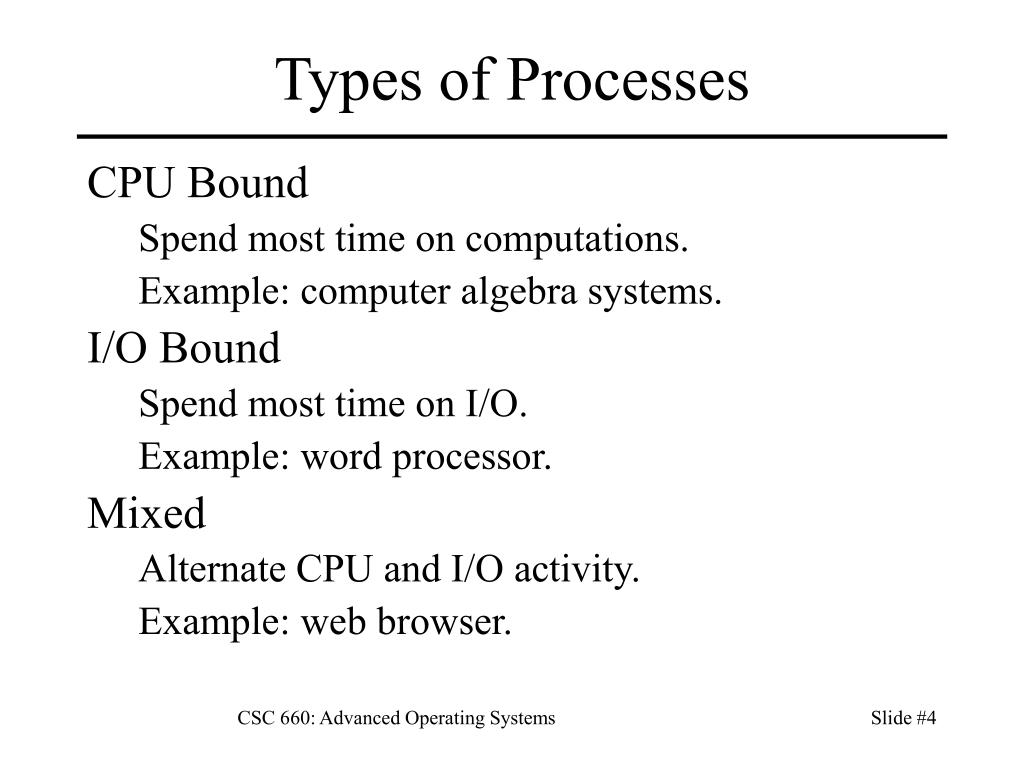

Types of Processes

CPU Bound

Spend most time on computations.

Example: computer algebra systems.

I/O Bound

Spend most time on I/O.

Example: word processor.

Mixed

Alternate CPU and I/O activity.

Example: web browser.

CSC 660: Advanced Operating Systems


Alternating cpu and i o bursts

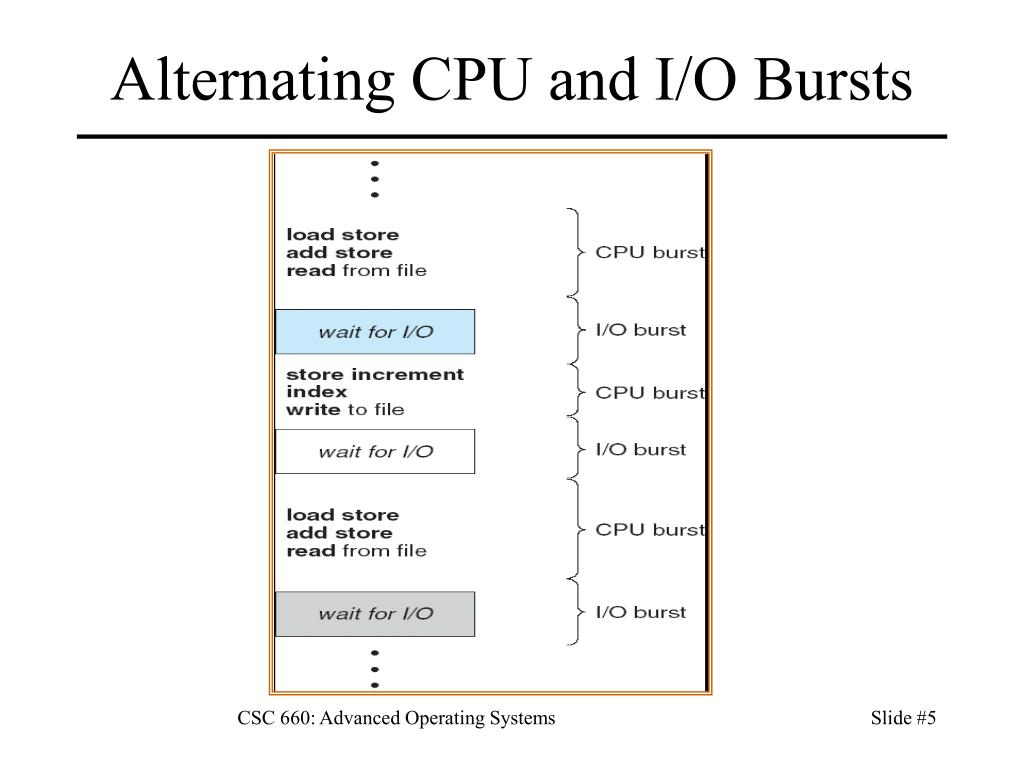

Alternating CPU and I/O Bursts

CSC 660: Advanced Operating Systems

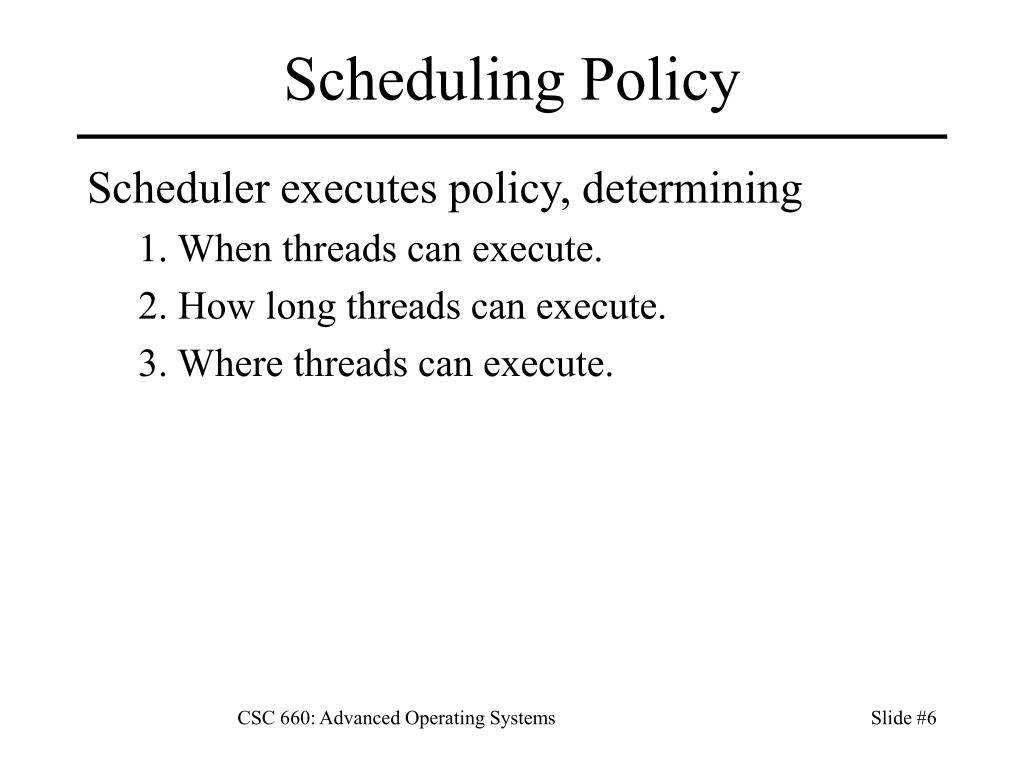

Scheduling policy
Scheduling Policy

Scheduler executes policy, determining

1. When threads can execute.

2. How long threads can execute.

3. Where threads can execute.

CSC 660: Advanced Operating Systems


Scheduling policy goals

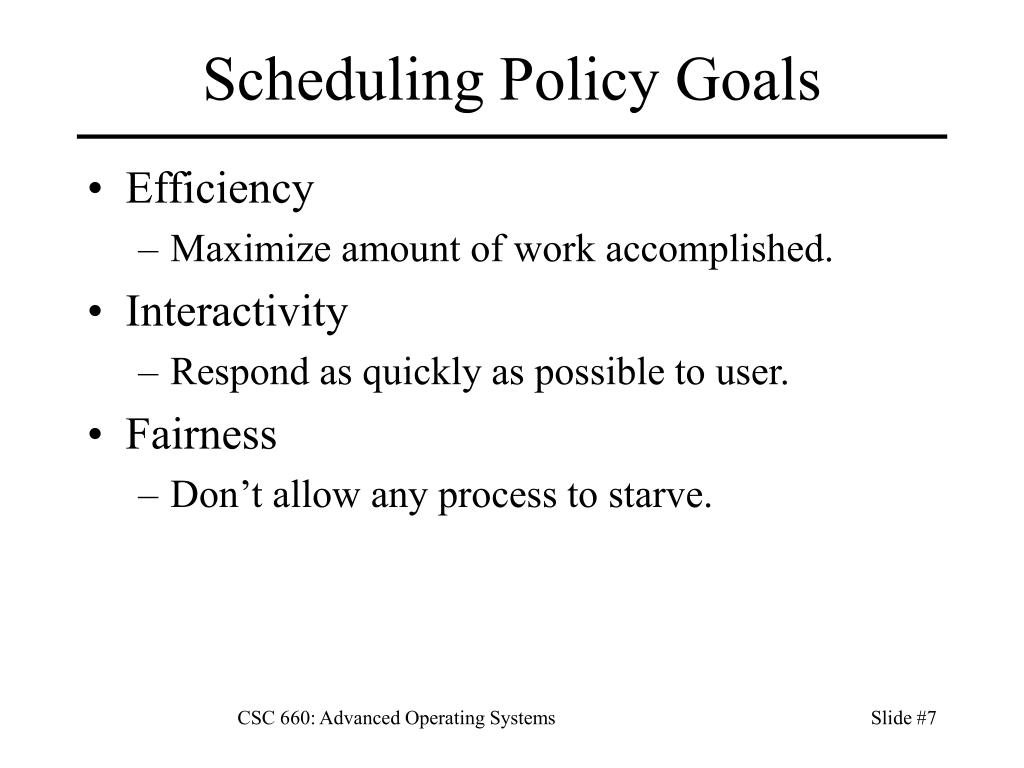

Scheduling Policy Goals

  • Efficiency

    • Maximize amount of work accomplished.

  • Interactivity

    • Respond as quickly as possible to user.

  • Fairness

    • Don’t allow any process to starve.

CSC 660: Advanced Operating Systems


Which goal is most important

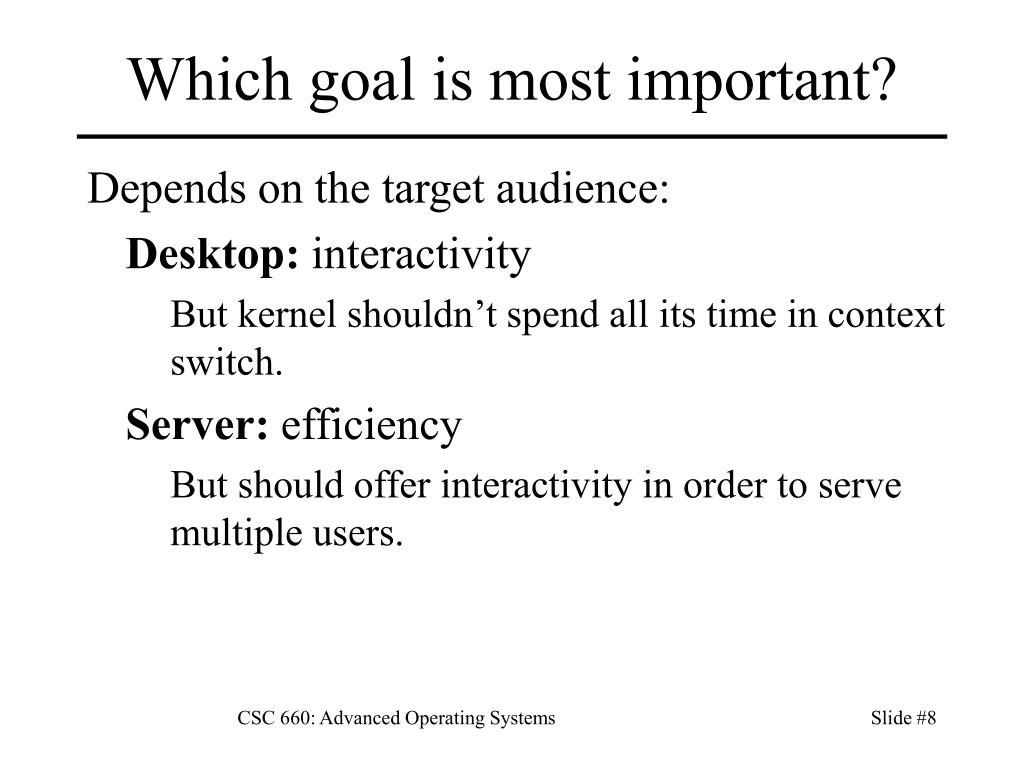

Which goal is most important?

Depends on the target audience:

Desktop: interactivity

But kernel shouldn’t spend all its time in context switch.

Server: efficiency

But should offer interactivity in order to serve multiple users.

CSC 660: Advanced Operating Systems


Pre 2 6 scheduler
Pre-2.6 Scheduler

O(n) algorithm at every process switch:

1. Scanned list of runnable processes.

2. Computed priority of each task.

3. Selected best task to run.

CSC 660: Advanced Operating Systems


The o 1 scheduler

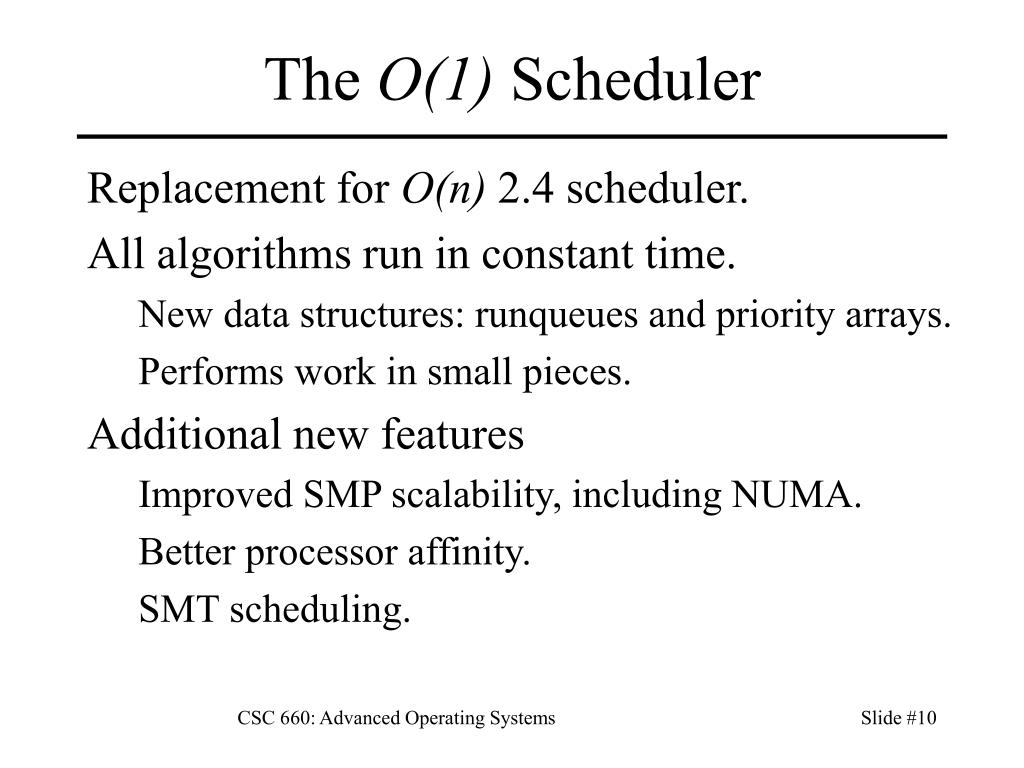

The O(1) Scheduler

Replacement for O(n) 2.4 scheduler.

All algorithms run in constant time.

New data structures: runqueues and priority arrays.

Performs work in small pieces.

Additional new features

Improved SMP scalability, including NUMA.

Better processor affinity.

SMT scheduling.

CSC 660: Advanced Operating Systems


Runqueues
Runqueues

List of runnable processes on a processor.

Each runnable process is a member of precisely one runqueue.

Runqueue data:

Lock to prevent concurrency problems.

Pointers to current and idle tasks.

Priority arrays which contain actual tasks.

Statistics

CSC 660: Advanced Operating Systems


Runqueues1
Runqueues

struct runqueue {

spinlock_t lock;

unsigned long nr_running;

unsigned long long nr_switches;

unsigned long expired_timestamp, nr_uninterruptible;

unsigned long long timestamp_last_tick;

task_t *curr, *idle;

struct mm_struct *prev_mm;

prio_array_t *active, *expired, arrays[2];

int best_expired_prio;

atomic_t nr_iowait;

}

CSC 660: Advanced Operating Systems


Priority arrays
Priority Arrays

Each runqueue contains 2 priority arrays

Active array

Expired array

Basis for O(1) performance:

Scheduler always runs highest priority task.

Round robin for multiple equal priority tasks.

Priority array finds highest task O(1) operation.

Using two arrays allows transitions between epochs by switching active and expired pointers.

CSC 660: Advanced Operating Systems

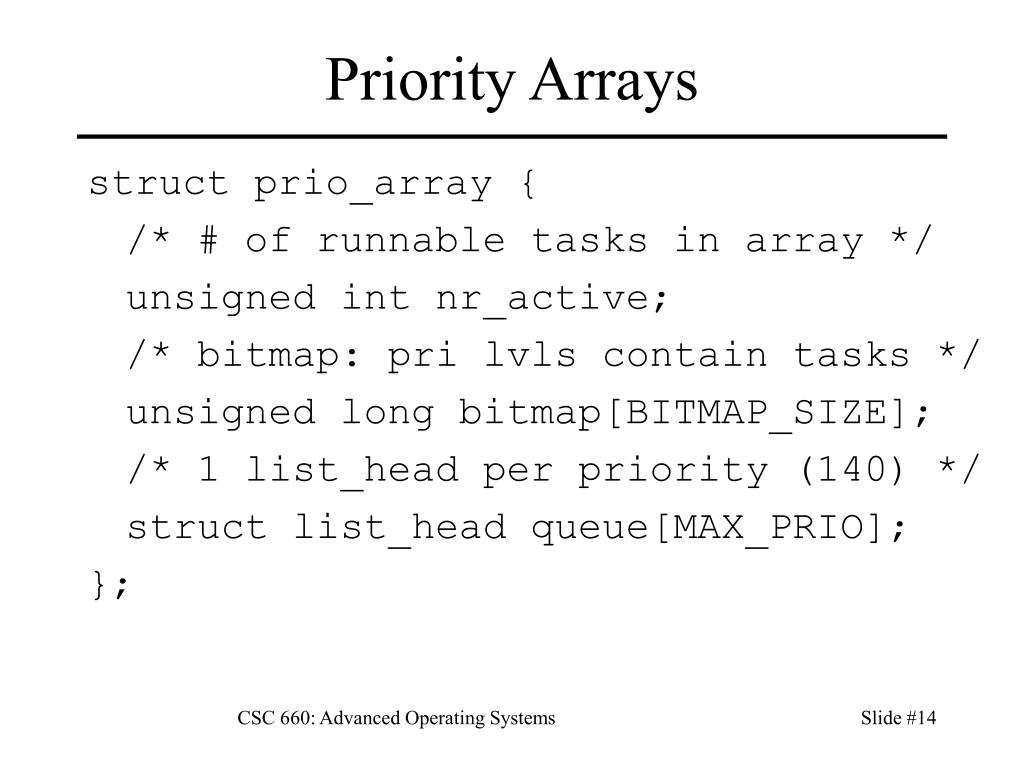

Priority arrays1
Priority Arrays

struct prio_array {

/* # of runnable tasks in array */

unsigned int nr_active;

/* bitmap: pri lvls contain tasks */

unsigned long bitmap[BITMAP_SIZE];

/* 1 list_head per priority (140) */

struct list_head queue[MAX_PRIO];

};

CSC 660: Advanced Operating Systems

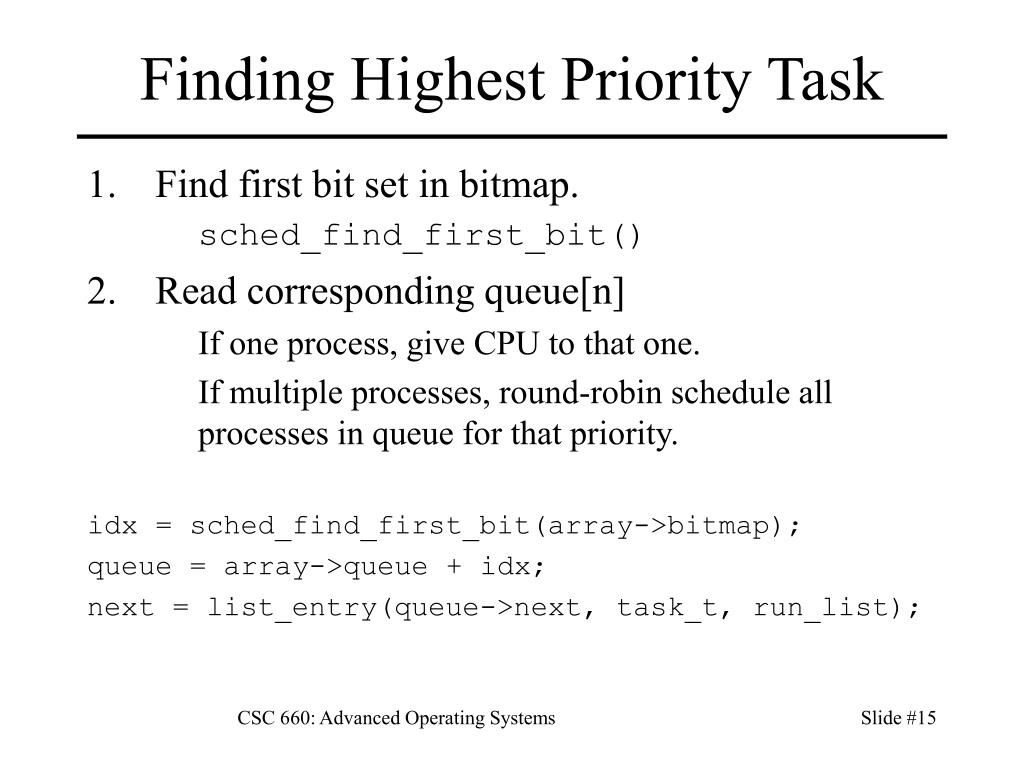

Finding highest priority task
Finding Highest Priority Task

  • Find first bit set in bitmap.

    sched_find_first_bit()

  • Read corresponding queue[n]

    If one process, give CPU to that one.

    If multiple processes, round-robin schedule all processes in queue for that priority.

    idx = sched_find_first_bit(array->bitmap);

    queue = array->queue + idx;

    next = list_entry(queue->next, task_t, run_list);

CSC 660: Advanced Operating Systems


What if no runnable task exists
What if no runnable task exists?

System runs the swapper task (PID 0).

Each CPU has its own swapper process.

CSC 660: Advanced Operating Systems


Running out of timeslice

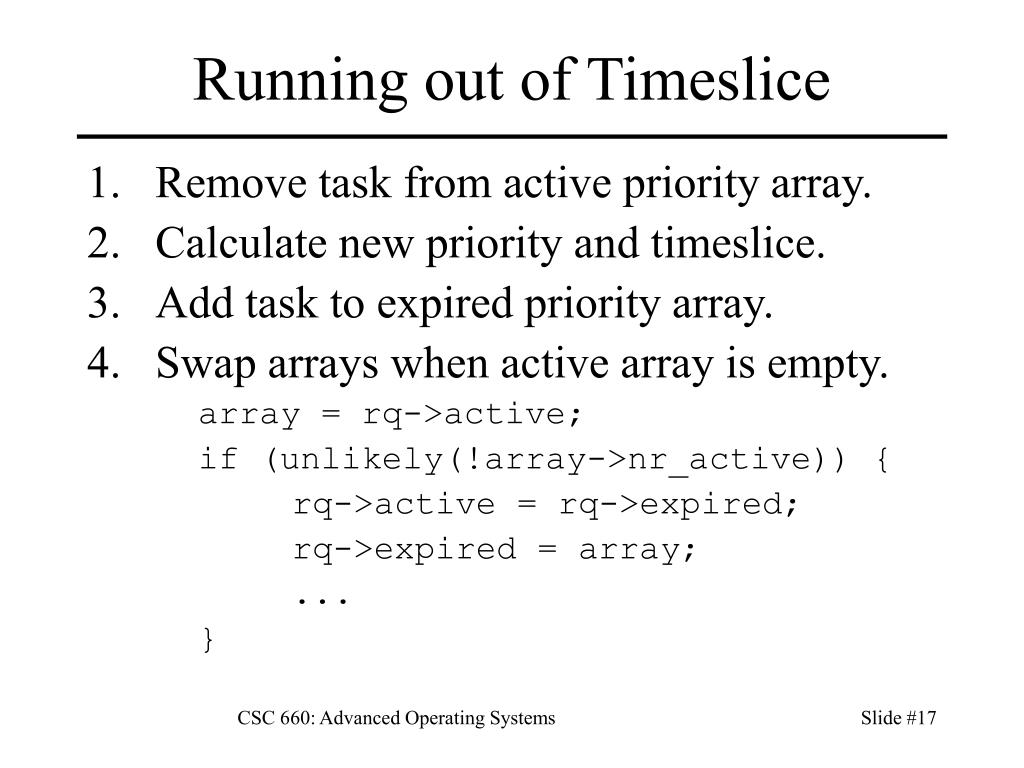

Running out of Timeslice

  • Remove task from active priority array.

  • Calculate new priority and timeslice.

  • Add task to expired priority array.

  • Swap arrays when active array is empty.

    array = rq->active;

    if (unlikely(!array->nr_active)) {

    rq->active = rq->expired;

    rq->expired = array;

    ...

    }

CSC 660: Advanced Operating Systems


Static and dynamic priorities
Static and Dynamic Priorities

Initial priority value called the nice value.

Set via the nice() system call.

Static priority is nice value + 120.

Stored in current->static_prio.

Ranges from 100 (highest) to 139 (lowest).

Scheduling based on dynamic priority.

Bonuses and penalties according to interactivity.

Stored in current->prio.

Calculated by effective_prio() function.

CSC 660: Advanced Operating Systems


Dynamic priority policy
Dynamic Priority Policy

Increase priority of interactive processes.

Favor I/O-bound over CPU-bound.

Need heuristic for determining interactivity.

Use time spent sleeping vs. runnable time.

Sleep average

Stored in current->sleep_avg.

Incremented when task becomes runnable.

Decremented for each timer tick task runs.

Scaled to produce priority bonus ranging 0..10.

CSC 660: Advanced Operating Systems


Calculating priority
Calculating Priority

/* Scale sleep_avg to range 0..MAX_BONUS */

#define CURRENT_BONUS(p) \

(NS_TO_JIFFIES((p)->sleep_avg) * MAX_BONUS / \

MAX_SLEEP_AVG)

static int effective_prio(task_t *p)

{

int bonus, prio;

bonus = CURRENT_BONUS(p) - MAX_BONUS / 2;

prio = p->static_prio - bonus;

return prio;

}

CSC 660: Advanced Operating Systems


Time slices
Time Slices

Time slice duration critical to performance.

Too short: high overhead from context switches.

Too long: loss of apparent multitasking.

Interactive processes and time slices

Interactive processes have high priority.

Pre-empt CPU bound tasks on kbd/ptr interrupts.

Long time slices slow start of new tasks.

CSC 660: Advanced Operating Systems


Calculating timeslice
Calculating Timeslice

Initial Timeslice

On fork(), parent + child divide remaining time evenly.

Stored in current->time_slice.

Recalculating Timeslices

Time Slice = (140 – static priority) x 20 if static < 140

= (140 – static priority) x 5 if static >= 140

CSC 660: Advanced Operating Systems


Scheduler interrupts
Scheduler Interrupts

  • Scheduler interrupt: scheduler_tick()

    • Invoked every 1ms by a timer interrupt.

  • Decrements task’s time slice.

  • If a higher priority task exists,

    • Higher priority task is given CPU.

    • Current task remains in TASK_RUNNING state.

  • If time slice expired,

    • Moved to expired priority array.

    • If highly interactive, may be re-inserted into active priority array.

CSC 660: Advanced Operating Systems


Sleeping and waking

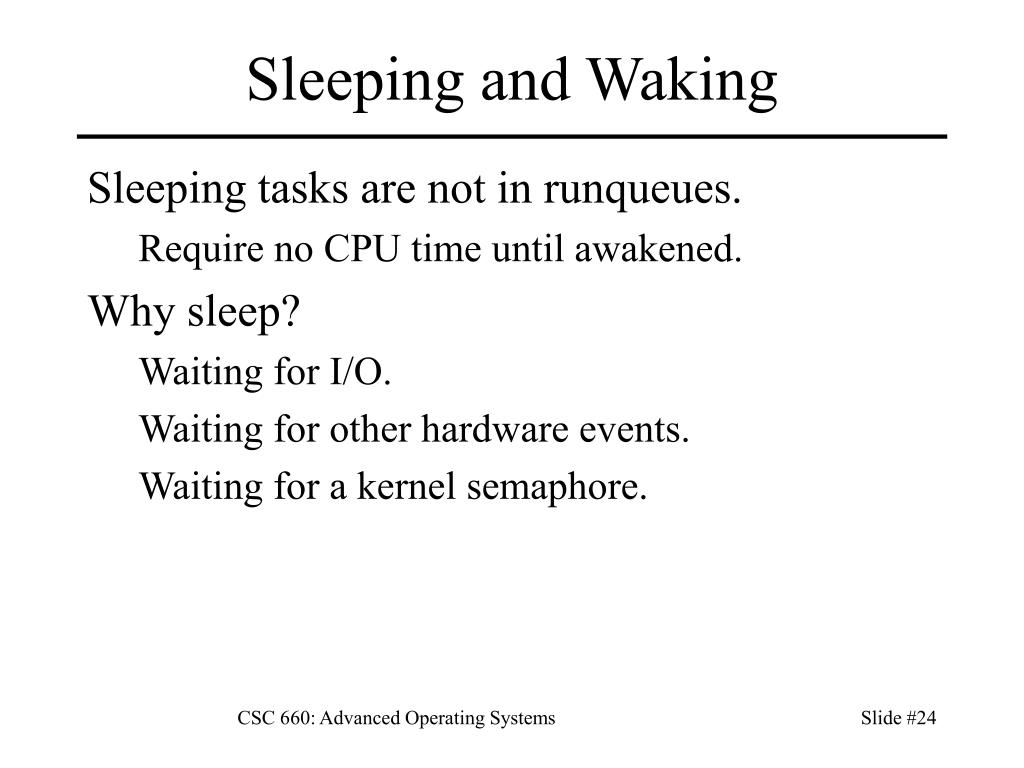

Sleeping and Waking

Sleeping tasks are not in runqueues.

Require no CPU time until awakened.

Why sleep?

Waiting for I/O.

Waiting for other hardware events.

Waiting for a kernel semaphore.

CSC 660: Advanced Operating Systems

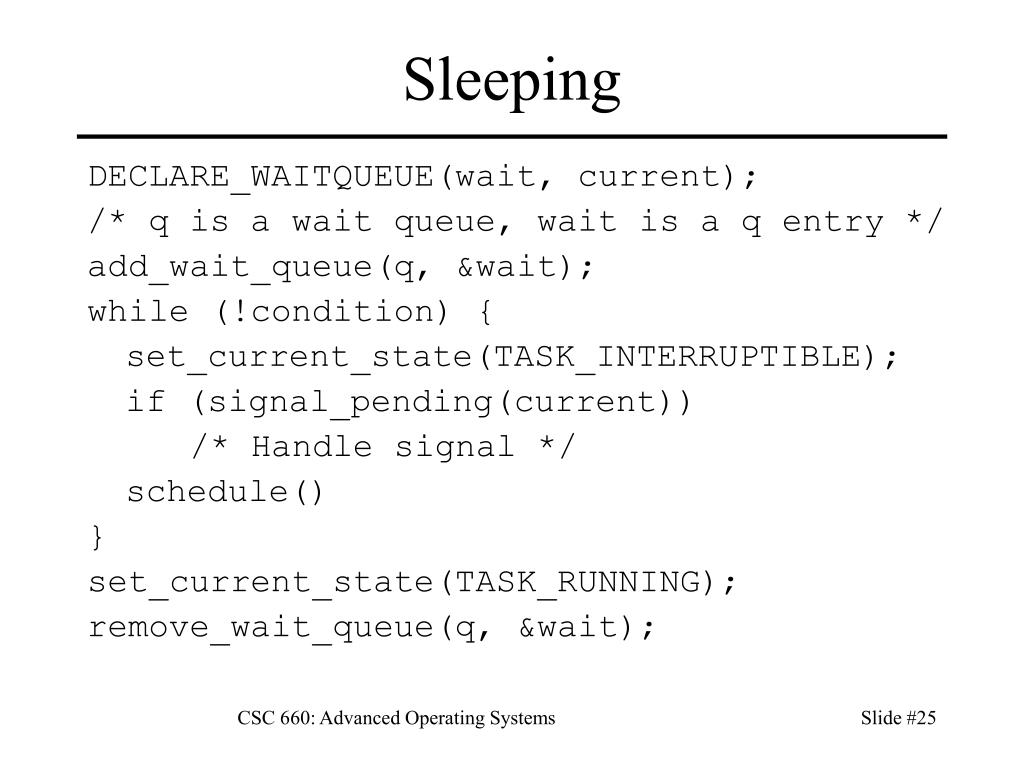

Sleeping
Sleeping

DECLARE_WAITQUEUE(wait, current);

/* q is a wait queue, wait is a q entry */

add_wait_queue(q, &wait);

while (!condition) {

set_current_state(TASK_INTERRUPTIBLE);

if (signal_pending(current))

/* Handle signal */

schedule()

}

set_current_state(TASK_RUNNING);

remove_wait_queue(q, &wait);

CSC 660: Advanced Operating Systems


Waking

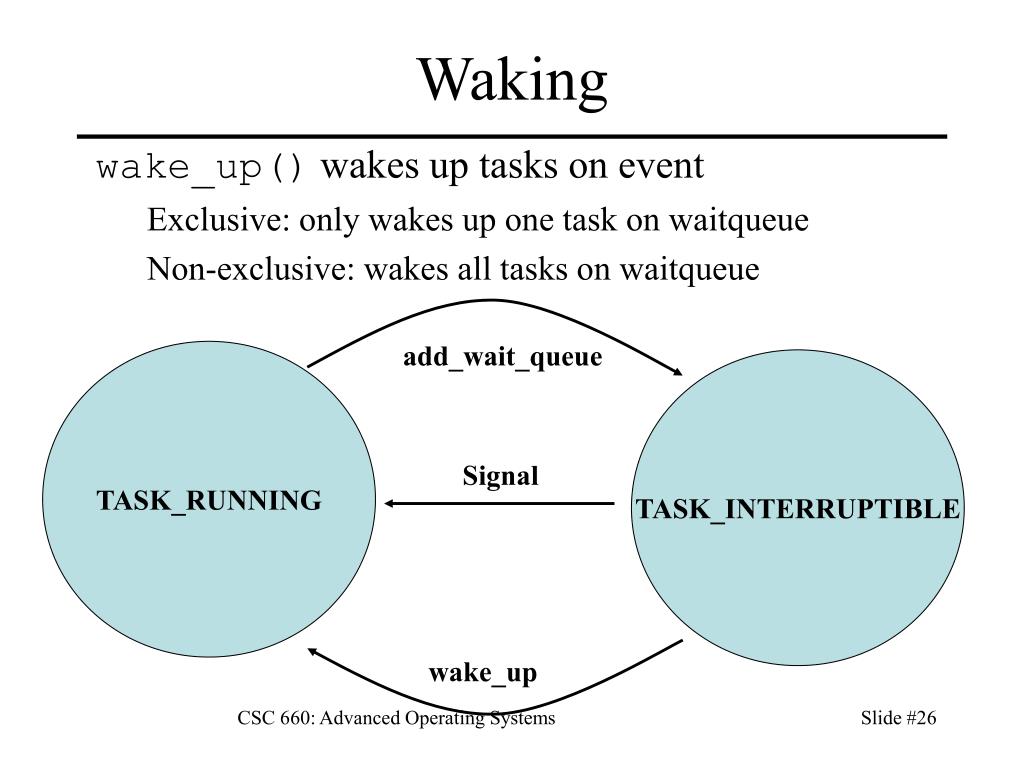

Waking

wake_up() wakes up tasks on event

Exclusive: only wakes up one task on waitqueue

Non-exclusive: wakes all tasks on waitqueue

add_wait_queue

TASK_RUNNING

TASK_INTERRUPTIBLE

Signal

wake_up

CSC 660: Advanced Operating Systems

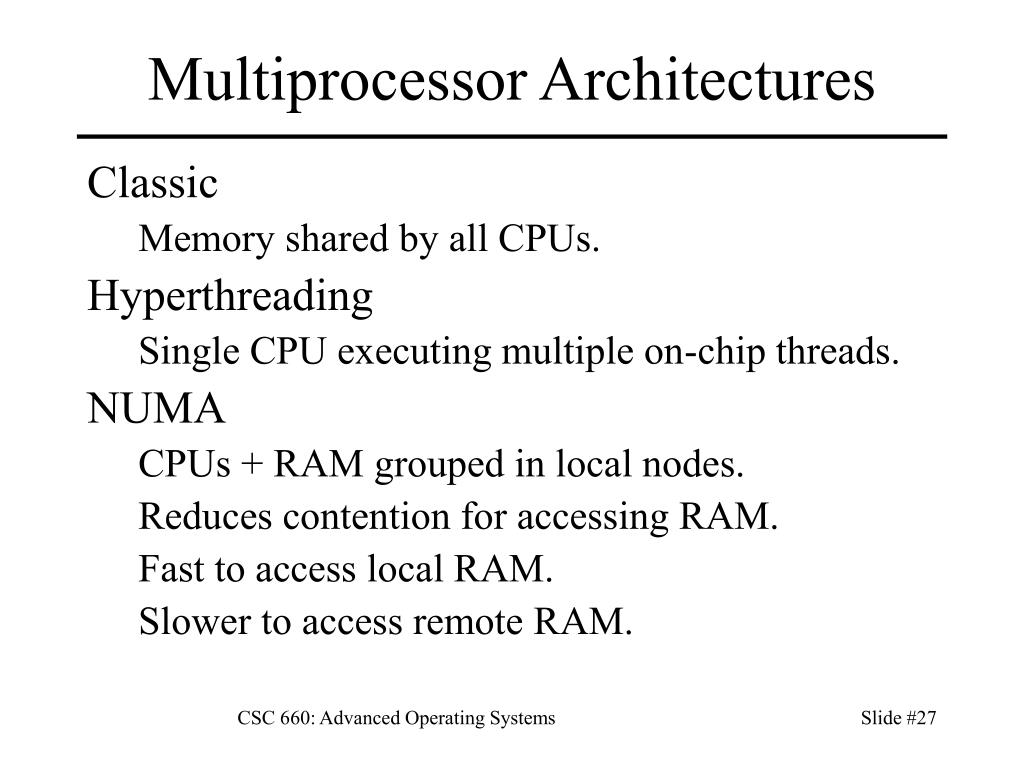

Multiprocessor architectures
Multiprocessor Architectures

Classic

Memory shared by all CPUs.

Hyperthreading

Single CPU executing multiple on-chip threads.

NUMA

CPUs + RAM grouped in local nodes.

Reduces contention for accessing RAM.

Fast to access local RAM.

Slower to access remote RAM.

CSC 660: Advanced Operating Systems

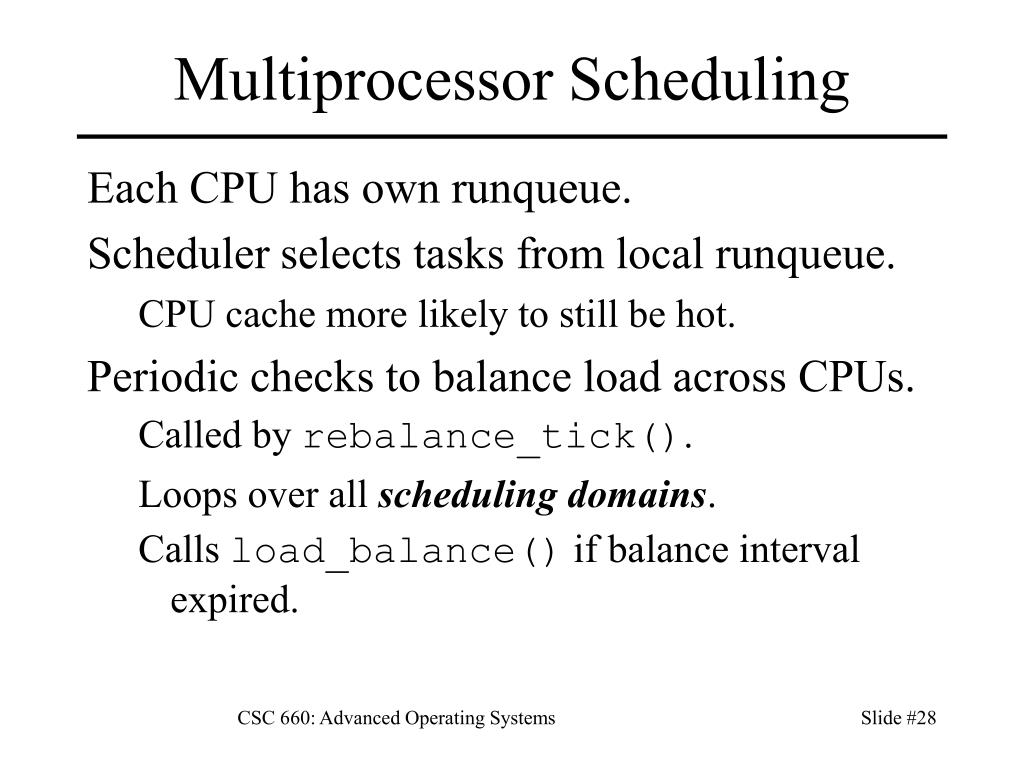

Multiprocessor scheduling
Multiprocessor Scheduling

Each CPU has own runqueue.

Scheduler selects tasks from local runqueue.

CPU cache more likely to still be hot.

Periodic checks to balance load across CPUs.

Called by rebalance_tick().

Loops over all scheduling domains.

Calls load_balance() if balance interval expired.

CSC 660: Advanced Operating Systems


Load balance
load_balance()

  • Acquires this_rq->lock spin lock.

  • Finds busiest CPU with > 1 process.

  • If no busiest or current CPU is busiest, terminates.

  • Obtains spin lock on busiest CPU.

  • Pull tasks from busiest CPU to local runqueue.

  • Releases locks.

CSC 660: Advanced Operating Systems


Move tasks
move_tasks()

Searches for runnable tasks in expired runqueue.

Then scans active runqueue.

Call pull_task() to move task if all true:

Task not currently being executed.

Local CPU is in cpus_allowed bitmask.

At least one of the following is true:

Local CPU is idle.

Multiple attempts to move processes have failed.

Process is not cache hot.

CSC 660: Advanced Operating Systems

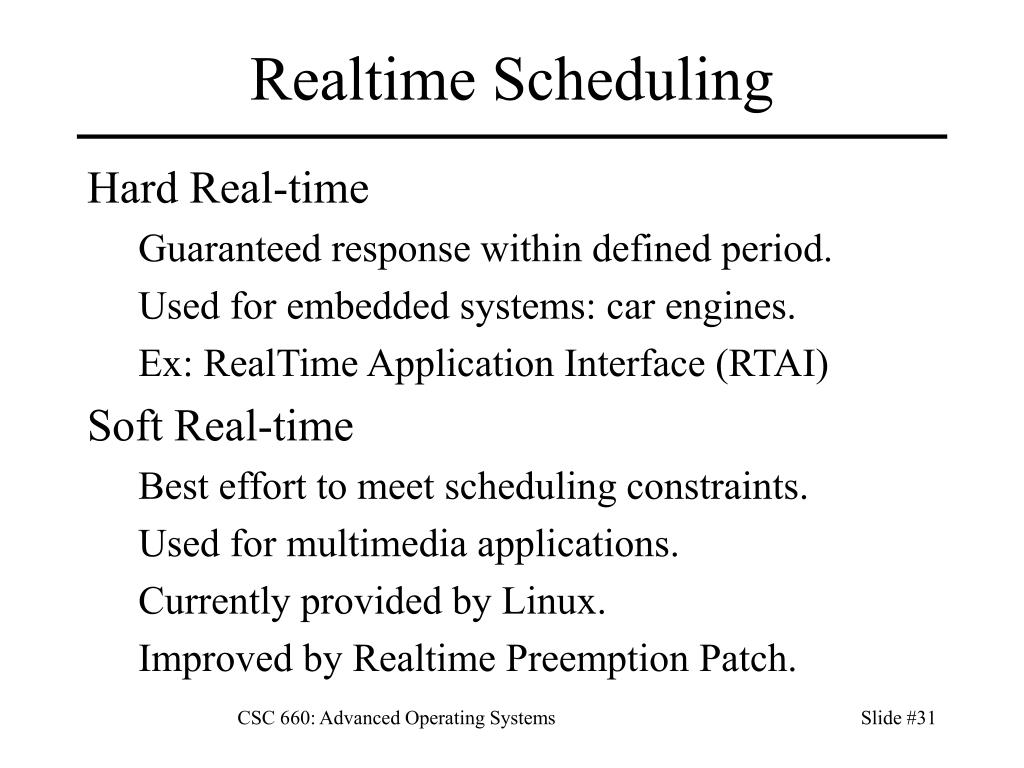

Realtime scheduling
Realtime Scheduling

Hard Real-time

Guaranteed response within defined period.

Used for embedded systems: car engines.

Ex: RealTime Application Interface (RTAI)

Soft Real-time

Best effort to meet scheduling constraints.

Used for multimedia applications.

Currently provided by Linux.

Improved by Realtime Preemption Patch.

CSC 660: Advanced Operating Systems


Soft realtime scheduling
Soft Realtime Scheduling

Scheduling Priorities

RT have higher priorities than any non-RT tasks.

RT priorities are static, ranging 1-99, not dynamic.

If RT tasks are runnable, no other tasks can run.

Scheduling Policies

SCHED_NORMAL (non-realtime)

SCHED_FIFO

SCHED_RR

CSC 660: Advanced Operating Systems

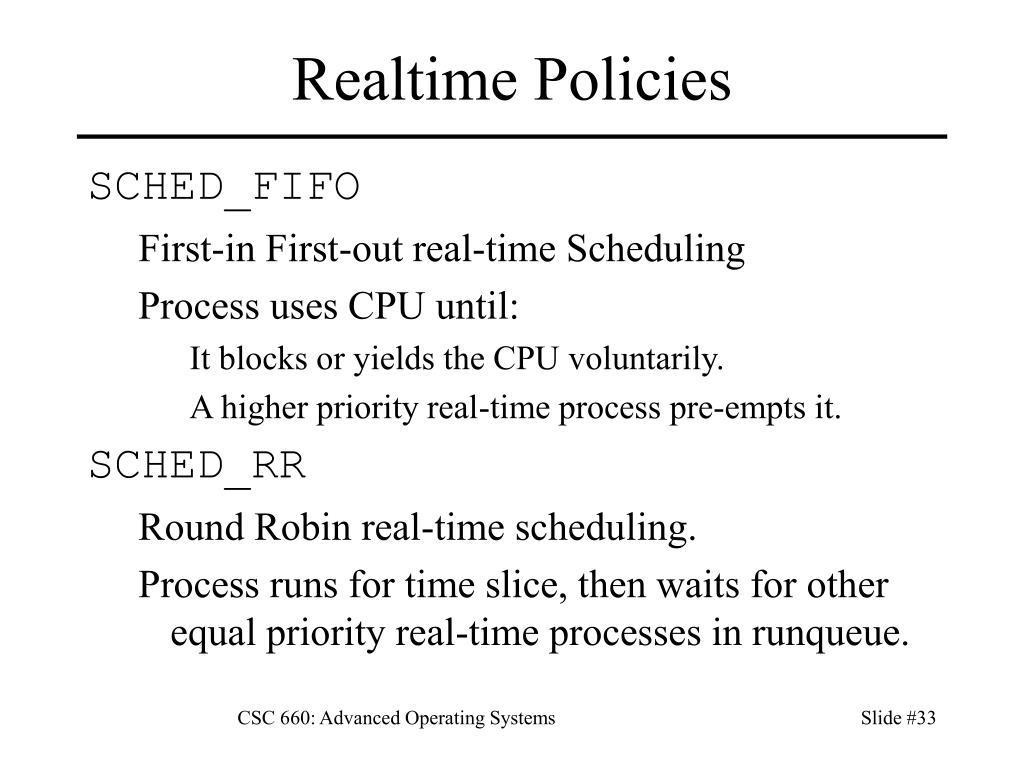

Realtime policies
Realtime Policies

SCHED_FIFO

First-in First-out real-time Scheduling

Process uses CPU until:

It blocks or yields the CPU voluntarily.

A higher priority real-time process pre-empts it.

SCHED_RR

Round Robin real-time scheduling.

Process runs for time slice, then waits for other equal priority real-time processes in runqueue.

CSC 660: Advanced Operating Systems


Realtime process replacement
Realtime Process Replacement

Realtime processes replaced only when:

Pre-empted by a high-priority RT process.

Process performs a blocking operation.

Process is stopped or killed by a signal.

Process invokes sched_yield() system call.

SCHED_RR process has exhausted its time slice.

CSC 660: Advanced Operating Systems


Realtime system calls

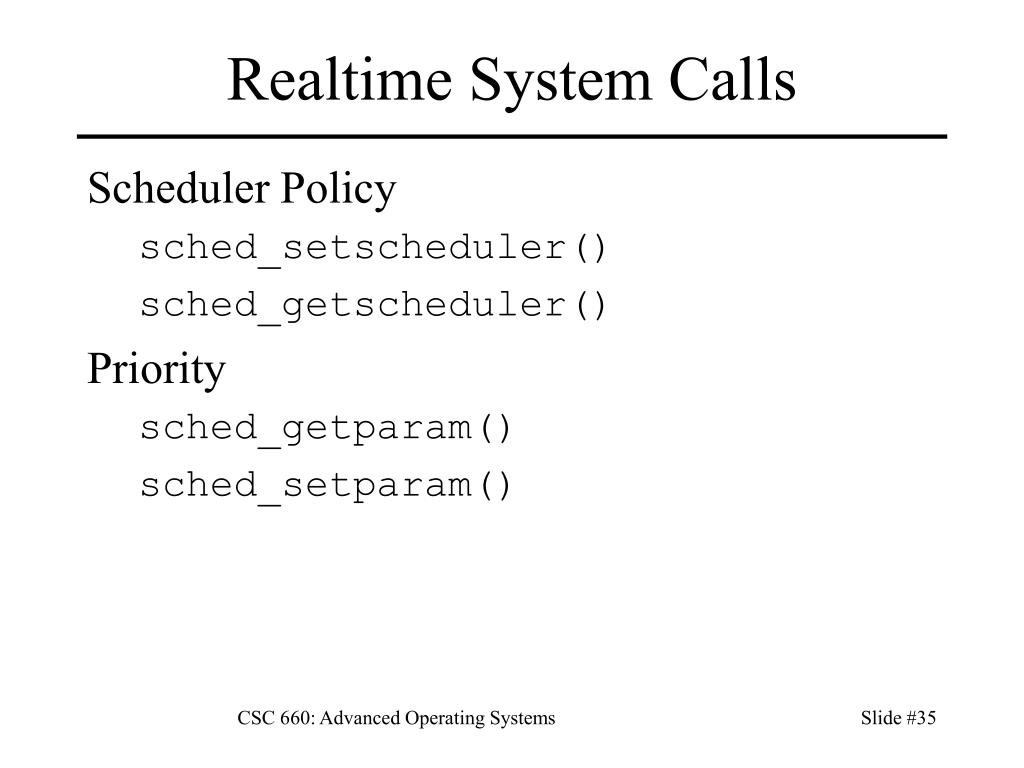

Realtime System Calls

Scheduler Policy

sched_setscheduler()

sched_getscheduler()

Priority

sched_getparam()

sched_setparam()

CSC 660: Advanced Operating Systems


Yielding the processor

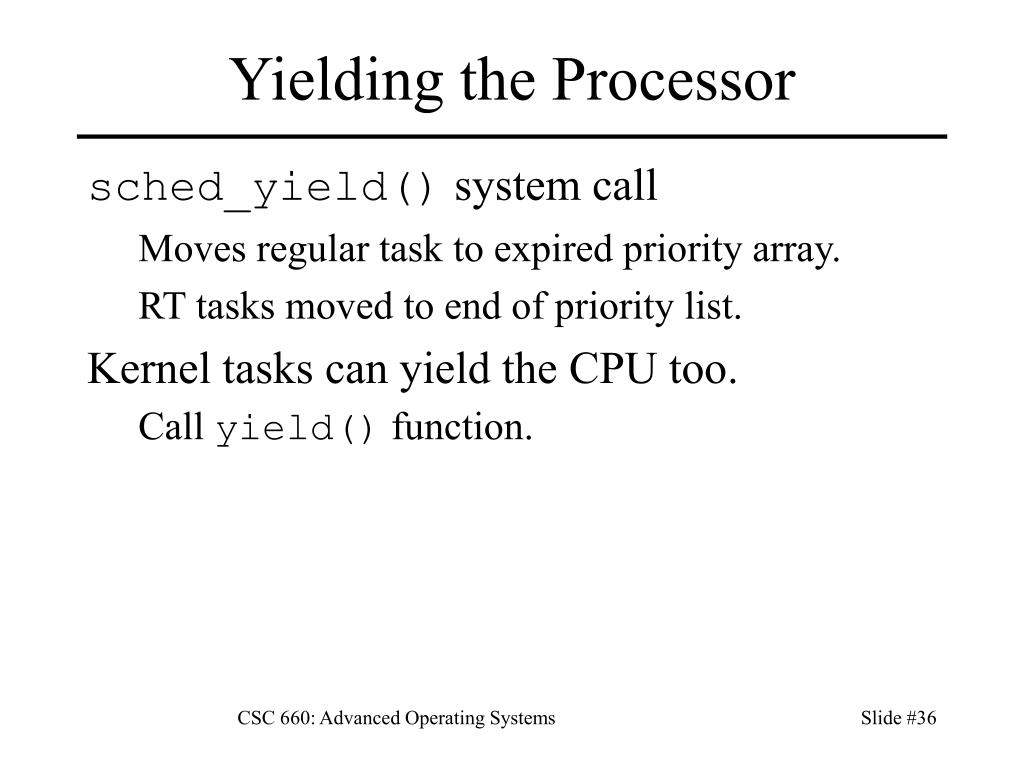

Yielding the Processor

sched_yield() system call

Moves regular task to expired priority array.

RT tasks moved to end of priority list.

Kernel tasks can yield the CPU too.

Call yield() function.

CSC 660: Advanced Operating Systems


References
References

  • Josh Aas, “Understanding the Linux 2.6.8.1 Scheduler,” http://josh.trancesoftware.com/linux/, 2005.

  • Daniel P. Bovet and Marco Cesati, Understanding the Linux Kernel, 3rd edition, O’Reilly, 2005.

  • Corbet, “Realtime preemption and read-copy-update,” Linux Weekly News, http://lwn.net/Articles/129511/, March 29, 2005.

  • Robert Love, Linux Kernel Development, 2nd edition, Prentice-Hall, 2005.

  • Claudia Rodriguez et al, The Linux Kernel Primer, Prentice-Hall, 2005.

  • RTAI, http://www.rtai.org/, 2006.

  • Peter Salzman et. al., Linux Kernel Module Programming Guide, version 2.6.1, 2005.

  • Avi Silberchatz et. al., Operating System Concepts, 7th edition, 2004.

  • Andrew S. Tanenbaum, Modern Operating Systems, 3rd edition, Prentice-Hall, 2005.

CSC 660: Advanced Operating Systems


ad
