Chapter 5.4 Notes: Use Medians and Altitudes

Chapter 5.4 Notes: Use Medians and Altitudes. Goal: You will use medians and altitudes of triangles. Medians A median of a triangle is a segment from a vertex to the midpoint of the opposite side. The three medians of a triangle are concurrent.

Download Presentation

Chapter 5.4 Notes: Use Medians and Altitudes

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Chapter 5.4 Notes: Use Medians and Altitudes Goal: You will use medians and altitudes of triangles.

  2. Medians • A median of a triangle is a segment from a vertex to the midpoint of the opposite side. • The three medians of a triangle are concurrent. • The point of concurrency, called the centroid, is inside the triangle.

  3. Theorem 5.8 Concurrency of Medians of a Triangle: The medians of a triangle intersect at a point that is two thirds of the distance from each vertex to the midpoint of the opposite side. Ex.1: In ∆RST, Q is the centroid and SQ = 8. Find QW and SW.

  4. Ex.2: In ∆HJK, P is the centroid and JP = 12. Find PT and JT. Ex.3: The vertices of ∆FGH are F(2, 5), G(4, 9), and H(6, 1). What is the coordinates of the centroid P of ∆FGH?

  5. Ex.4: There are three paths through a triangular park. Each path goes from the midpoint of one edge to the opposite corner. The paths meet at point P. a. If SC = 2100 ft, find PS and PC. b. If BT = 1000 ft, find TC and BC. c. If PT = 800 ft, find PA and TA.

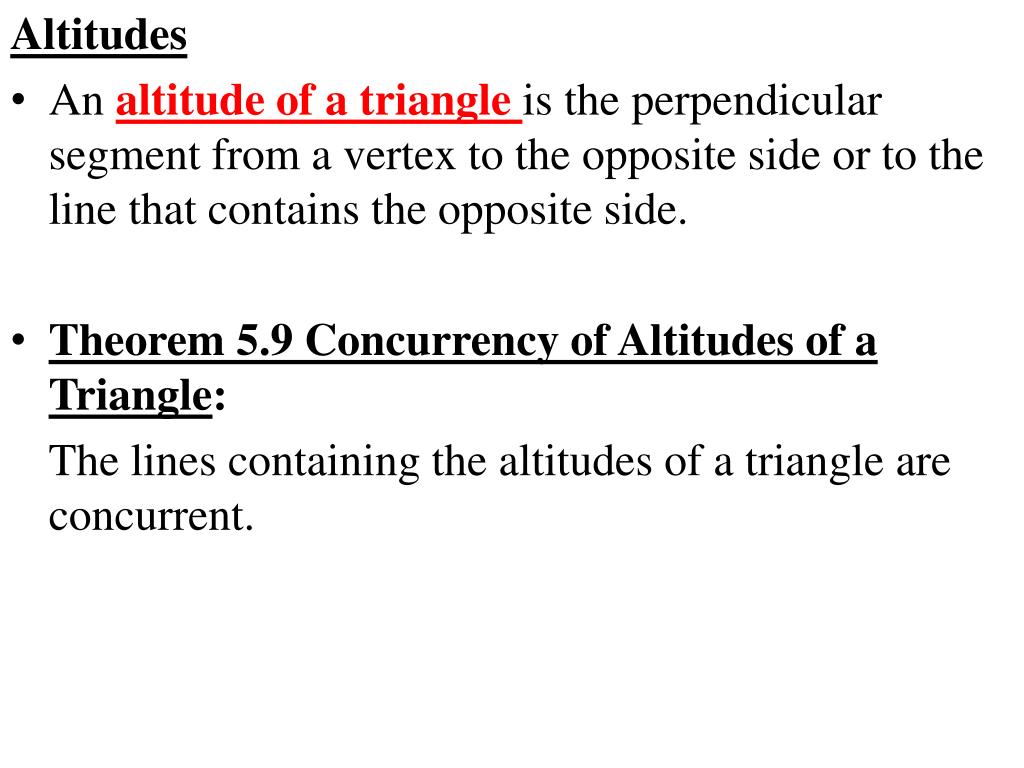

  6. Altitudes • An altitude of a triangle is the perpendicular segment from a vertex to the opposite side or to the line that contains the opposite side. • Theorem 5.9 Concurrency of Altitudes of a Triangle: The lines containing the altitudes of a triangle are concurrent.

  7. Concurrency of Altitudes • The point at which the lines containing the three altitudes of a triangle intersect is called the orthocenter of the triangle. Ex.5: Find the orthocenter P in an acute, a right, and an obtuse triangle. Isosceles Triangles • In an isosceles triangle, the perpendicular bisector, angle bisector, median, and altitude from the vertex angle to the base are all the same segment.

  8. In an equilateral triangle, this is true for the special segment from any vertex. Ex.6: Prove that the median to the base of an isosceles triangle is an altitude. Ex.7: Copy the triangle in example 6 and find its orthocenter. Ex.8: The vertices of ∆ABC are A(1, 5), B(5, 7), and C(9, 3). What are the coordinates of the centroid of ∆ABC?
