3. Magnetic Order • Microscopic order in a magnet • Ferro magnetic state • Antiferro magnetic state

4. Quantum and classical AF Heisenberg model for 2 spins Eigen state which we get handling the Schrödinger equation

5. Example for Real materials • Example：Shastry-Sutherland model[1] and SrCu2(BO3)2[2] Singlet (Dimer) state [3] or :O :B :Cu :Sr :spin 1/2 :Strong AF bond :Weak AF bond [1]B. S.Shastry and B. Sutherland Physica108B (1981) 1069-1070 [2] H. Kageyama ,et.al. Phys. Rev. Lett. 82, 3168 (1999) [3]K. Sparta et. al. Eur. Phys. J. B 19 (2001) 507-516

6. What’s ? • Math(the x-y plane) The vector is expressed by 2 basis vectors; • Quantum mechanics(spin ½) • The wavefunction is likely; Using and , the vector is rewritten as; Defining and , the wave function is expresses like a vector; y or r x

7. N spin problem 1 spin problem Wave function : (2 DoF) 2×2matrix. … 2 spin problem 4×4matrix. (22=4 DoF) Nspin problem :2N×2Nmatrix :2NDoF

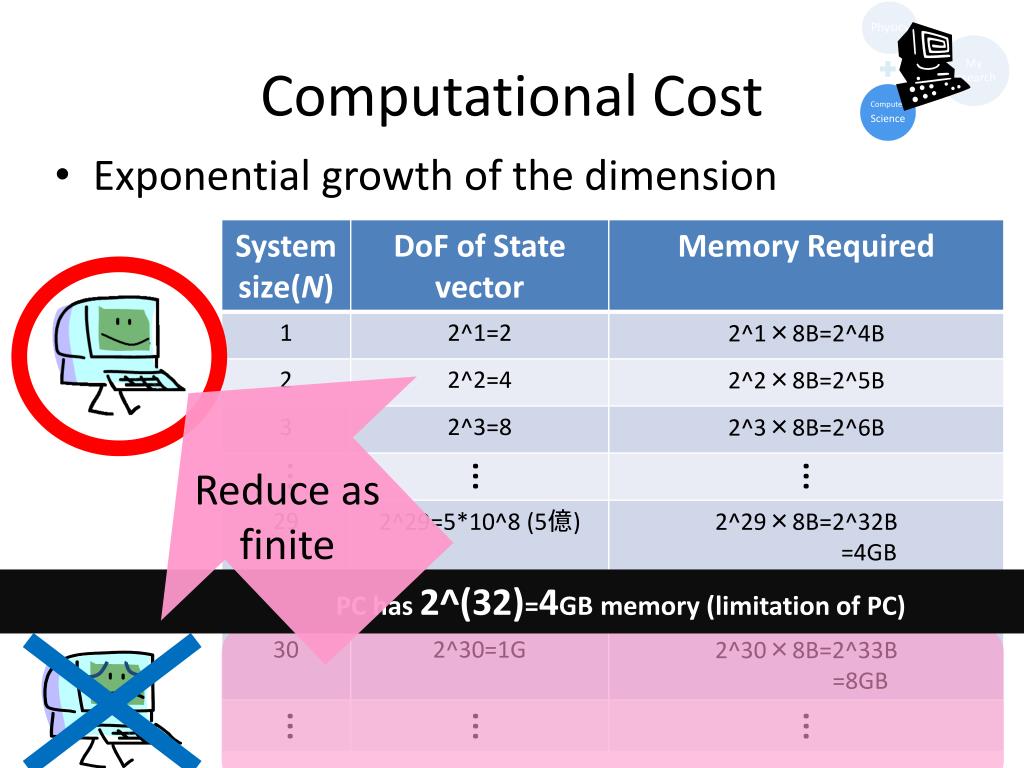

8. Computational Cost • Exponential growth of the dimension … … … … … … … … … Reduce as finite PC has 2^(32)=4GB memory (limitation of PC)

9. Motivation • Our motivation is to develop the computational methods to overcome the limitation of PC. • Generally, “to improve” means to get better accuracy. [4] ΔE Our Study MPS[4] DMRG[1] Very strong for 1D system MERA[2] Promising for 2D system TTN[3] ・simple ・possibility for 2D system Degree of freedom Degree of freedom [1] Steven R. White , Phys. Rev. Lett. 69, 2863-2866 (1992). [2] G. Evenbly and G. Vidal, Phys.Lev. B 79, 144108 (2009). [3] L. Tagliacozzo, G. Evenbly, and G.Vidal , Phys. Rev. B 80, 235127 (2009). [4] F. Verstraete et al . PRL 93,227205(2004)

10. My research Algorithms Numerical Result

11. What’s TTN? We prepare the wave function for the spins using tree-like network. Tree • My research Tensor Network TTN for 4 site system TTN for 16 site system

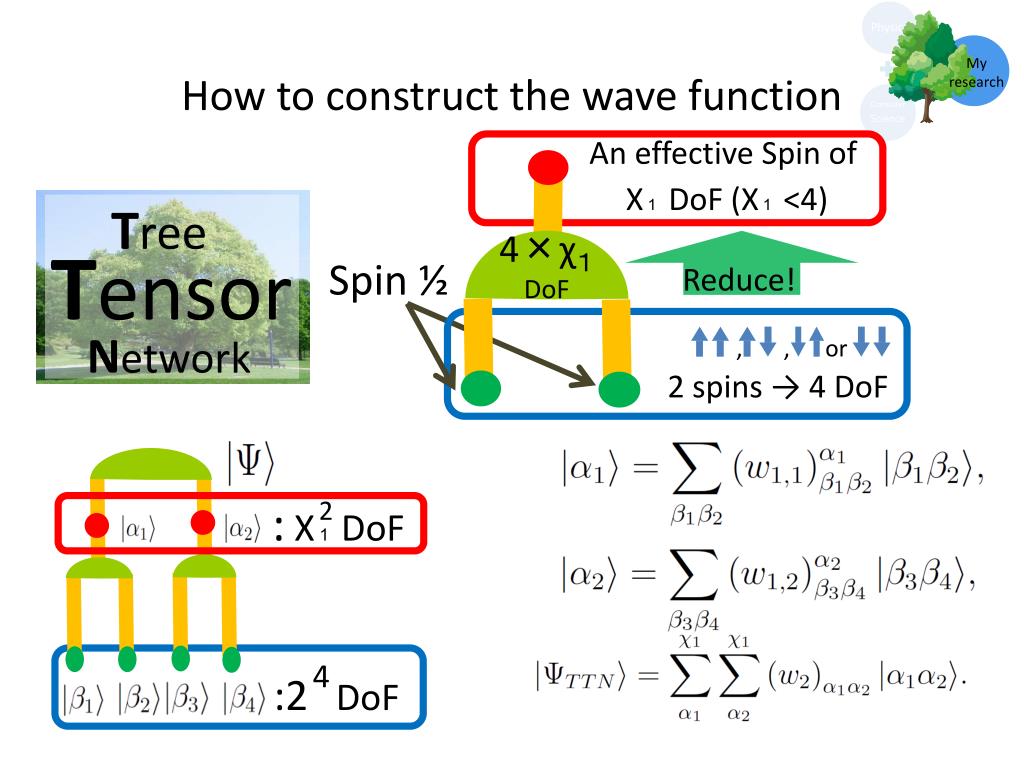

12. How to construct the wave function An effective Spin of Χ１DoF (Χ１<4) Spin ½ 4×χ１ DoF Tree : Χ１DoF 2 , , or 2 spins → 4 DoF Tensor • My research Network 4 :2DoF Reduce!

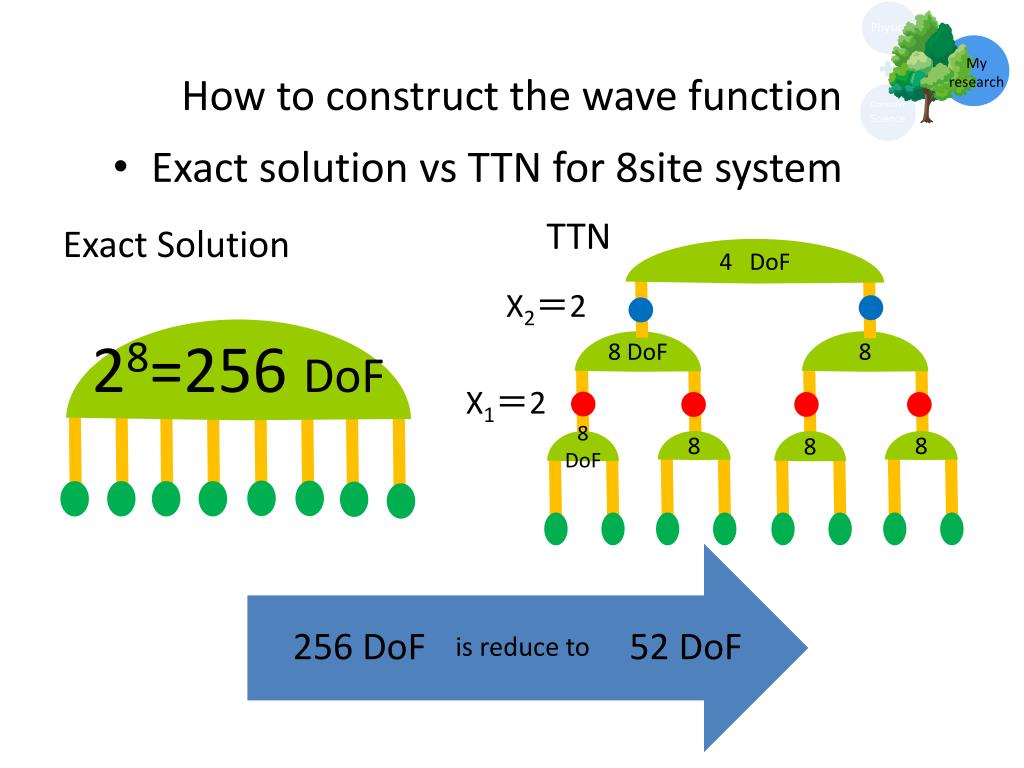

13. How to construct the wave function • Exact solution vs TTN for 8site system TTN Exact Solution Χ2＝2 4DoF 28=256 DoF • My research Χ1＝2 8 8DoF 8 8 8 8 DoF

14. VP • TTN[1] and TTN VP（our study) • VP does not change the DoF. • The energy is expected to be reduced. P • My research [1]L. Tagliacozzo, G. Evenbly, and G.Vidal , Phys. Rev. B 80, 235127 (2009). (a) (b) (c) (d) (e) Fig:4. Calculated entanglement entropy(EE) for α＝１ .

15. Model: Hamiltonian • Hamiltonian for the demonstration : 1＆2D Heisenberg model with Bond alternation 16site, 2D PBC • My research 4site, 1D preodic boundary condition(PBC) J1=1.0, J2=1.0 For J1=1.0, J2=0.0 →Dimerstate is The ground state. (a) (b) (c) (d) (e) Fig:4. Calculated entanglement entropy(EE) for α＝１ .

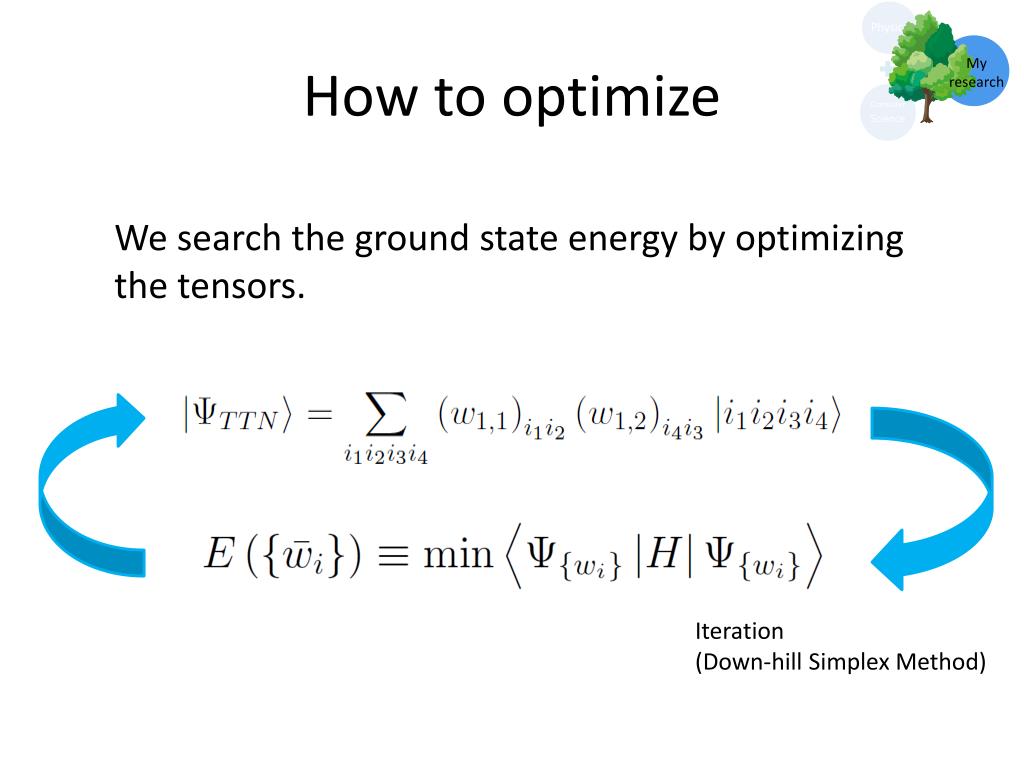

16. How to optimize We search the ground state energy by optimizing the tensors. • My research Iteration (Down-hill Simplex Method)

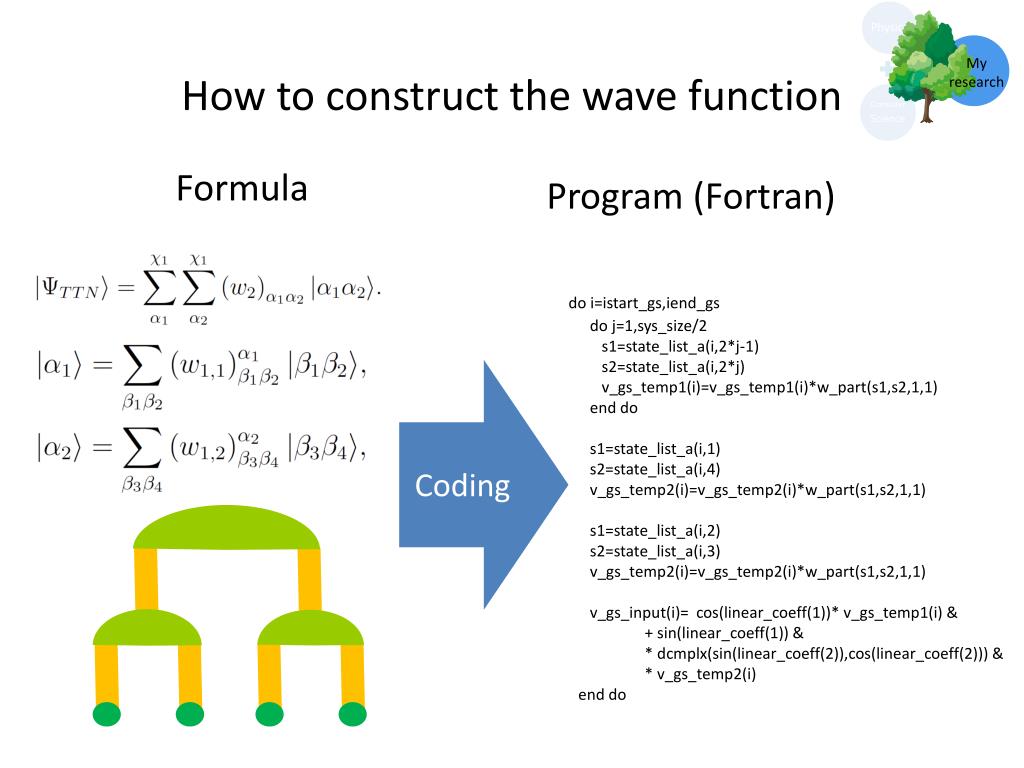

17. How to construct the wave function Formula Program (Fortran) do i=istart_gs,iend_gs do j=1,sys_size/2 s1=state_list_a(i,2*j-1) s2=state_list_a(i,2*j) v_gs_temp1(i)=v_gs_temp1(i)*w_part(s1,s2,1,1) end do s1=state_list_a(i,1) s2=state_list_a(i,4) v_gs_temp2(i)=v_gs_temp2(i)*w_part(s1,s2,1,1) s1=state_list_a(i,2) s2=state_list_a(i,3) v_gs_temp2(i)=v_gs_temp2(i)*w_part(s1,s2,1,1) v_gs_input(i)= cos(linear_coeff(1))* v_gs_temp1(i) & + sin(linear_coeff(1)) & * dcmplx(sin(linear_coeff(2)),cos(linear_coeff(2))) & * v_gs_temp2(i) end do Coding • My research

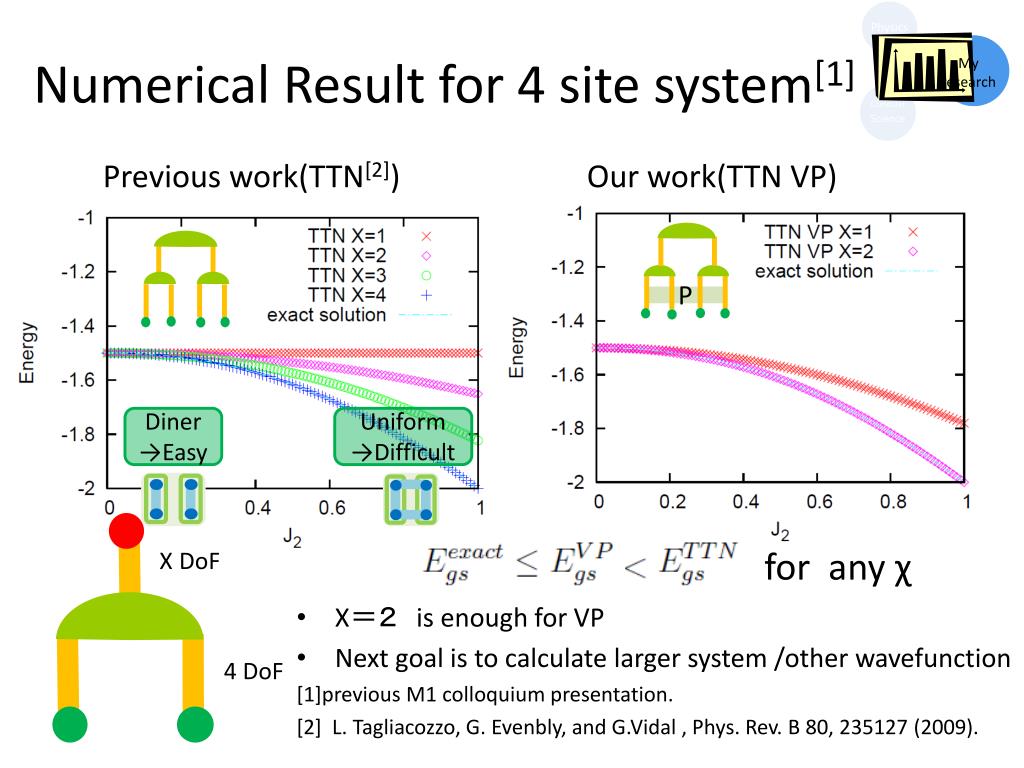

18. Numerical Result for 4 site system[1] Previous work(TTN[2]) Our work(TTN VP) • Χ＝２　is enough for VP • Next goal is to calculate larger system /other wavefunction [1]previous M1 colloquium presentation. [2] L. Tagliacozzo, G. Evenbly, and G.Vidal , Phys. Rev. B 80, 235127 (2009). Diner →Easy Uniform →Difficult ΧDoF for any χ • My research 4 DoF P (a) (b) (c) (d) (e) Fig:4. Calculated entanglement entropy(EE) for α＝１ .

19. Numerical result 8site • 8site 1D PBC(Uniform chain) Energy χ２ (χ1,χ2)=(1,1) χ１ (2,1) (2,2) (2,3) (3,1) (2,4) (4,1) (3,2) Reduced (3,3) • My research P

20. Numerical result 8site 〈Previous Work〉 TTN with Sz conservation[4] TTN[1] MERA[3] MPS[2] 〈Our Work〉 • My research [1] L. Tagliacozzo, G. Evenbly, and G.Vidal , Phys. Rev. B 80, 235127 (2009). [2] F. Verstraete, D. Porras, and J. I. Cirac , Phys. Rev. Lett. 93, 227205 (2004). [3] G. Evenbly and G. Vidal, Phys. Lev. B 79, 144108 (2009). [4] S. Singh, R. N. C. Pfeifer, and G. Vidal, arXiv:1008.4774v1. P T T T

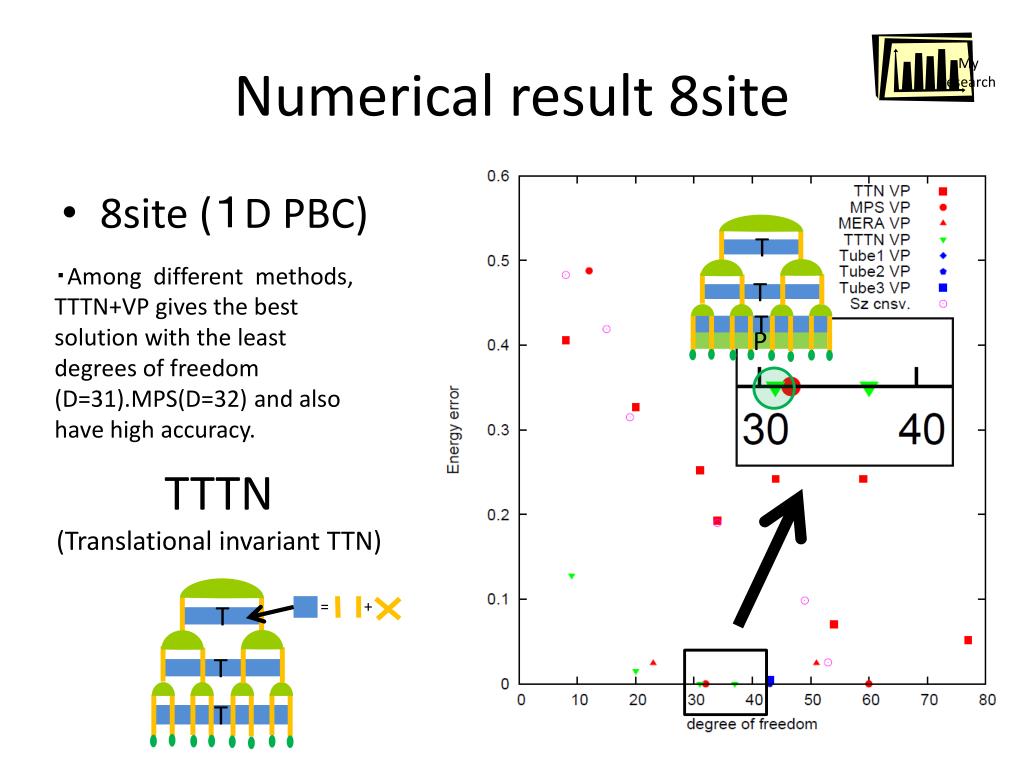

21. Numericalresult 8site • 8site (１DPBC) ・Among different methods, TTTN+VP gives the best solution with the least degrees of freedom (D=31).MPS(D=32) and also have high accuracy. P TTTN (Translational invariant TTN) • My research = + T T T T T T

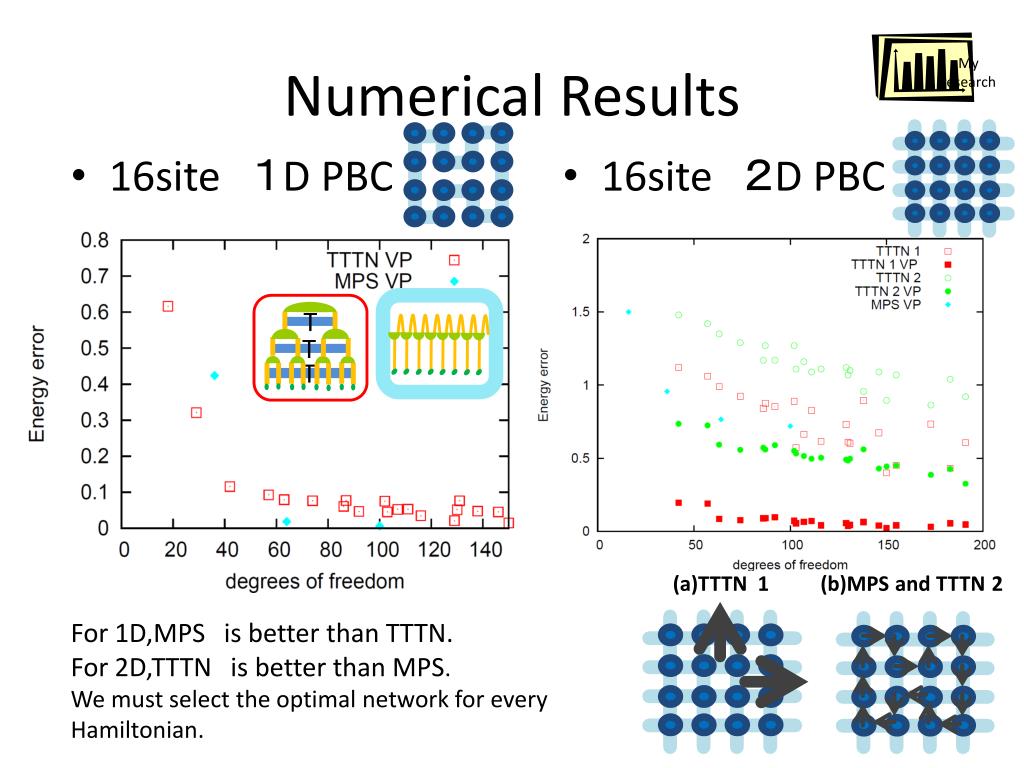

22. Numerical Results • 16site　２D PBC • 16site　１D PBC (a)TTTN 1(b)MPS and TTTN2 • My research For 1D,MPSis better than TTTN. For 2D,TTTNis better than MPS. We must select the optimal network for every Hamiltonian. T T T

23. Summary • We calculated the ground state of 4,(8,16)spin system. • Our result showed that VP(vector projection) reduces the calculated energy for any case. • We obtained the exact energy for 8 site system(using TTTN+VP). • For 16 site 2D system, TTTN +VP won MPS +VP. • We confirmed the fact that MPS +VP is powerful foｒ 1D system but is not for 2D.

24. Future Work Future work To Calculate … • larger system. (36site system is our goal.) • using other networks. • Models for real materials such as Shastry-Sutherland model,2D frustrated system.
