  1. xNOTAM Encoding exercises xNOTAM Workshop #2 Brussels, 20-21 November 2007 Item 9 European Organisation for the Safety of Air Navigation

  2. 1.NOTAM Sample (A1543/07 NOTAMN Q) EBBU/QMRLT/IV/NBO/A /000/999/5054N00429E005 A) EBBR B) 0711011830 C) 0711061830 E) RWY 25L CLSD FOR DEP.)

  3. 1.Event

  4. 1.Event

  5. 1.Affected features

  6. 1.Affected features New Airport/Heliport Usage

  7. 1.Timeslices

  8. 1.Timeslices

  9. 2.NOTAM Sample (J4585/07 NOTAMN Q) EGPX/QRDCA/IV/BO /W /000/245/5839N00445W011 A) EGPX B) 0710010800 C) 0710011444 E) DANGER AREA EG D802 ACTIVE F) SFC G) 24500FT AMSL)

  10. 2.Event [J4585/07] EG D802 Active 2007-10-01 08:00 2007-10-01 14:44 (J4585/07 NOTAMN Q) EGPX/QRDCA/IV/BO /W /000/245/5839N00445W011 A) EGPX B) 0710010800 C) 0710011444 E) DANGER AREA EG D802 ACTIVE F) SFC G) 24500FT AMSL)

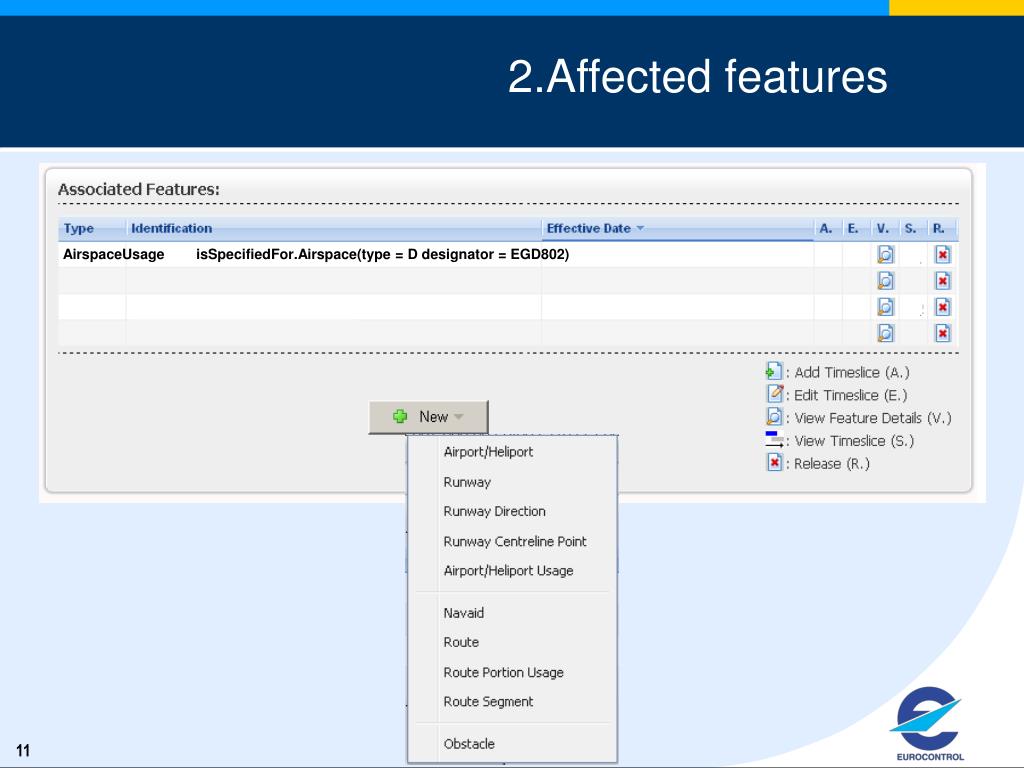

  11. 2.Affected features AirspaceUsage isSpecifiedFor.Airspace(type = D designator = EGD802)

  12. 2.Timeslices 2007-10-01 08:00 2007-10-01 14:44 2005-01-01 08:00 INACTIVE statusActivation ACTIVE upperLimit 24500 FT upperLimitReference MSL lowerLimit GND lowerLimitReference isSpecifiedFor Airspace D, EGD802

  13. 3.NOTAM Sample (A1542/07 NOTAMN Q) EBBU/QOBCE/IV/M /A /000/999/5054N00429E005 A) EBBR B) 0711011830 C) 0711061830 E) CRANE ERECTED IN THE AXIS RWY 25L. 400M AT THE END OF RWY 25L. 70M/AMSL. NO ICAO MARKINGS.)

  14. 3.Event [A1542/07] Temporary crane at EBBR 2007-11-01 18:30 2007-11-06 18:30 (A1542/07 NOTAMN Q) EBBU/QOBCE/IV/M /A /000/999/5054N00429E005 A) EBBR B) 0711011830 C) 0711061830 E) CRANE ERECTED IN THE AXIS RWY 25L. 400M AT THE END OF RWY 25L. 70M/AMSL. NO ICAO MARKINGS.)

  15. 3.Affected features New Obstacle

  16. 3.Timeslices 2007-11-01 18:30 2007-11-06 18:30 2007-11-01 18:30 2007-11-06 18:30 type CRANE markingPattern V hasPointShape.Latitude 505400.00N hasPointShape.Longitude 0042900.00N hasPointShape.elevation 70 M hasAnnotation.note In the axis of RWY 25L. 400 M at the end of RWY 25L hasAnnotation.property hasPointShape

  17. 4.NOTAM Sample (B6268/07 NOTAMR B6005/07 Q) LIMM/QNMCT/IV/BO /AE/000/999/4411N01204E025 A) LIPK B) 0710011552 C) 0712202200 EST E) VOR/DME 'ITA' ON TEST DO NOT USE. REF NOTAM B4981/07 AND AIP AGA 2-19.3.3)

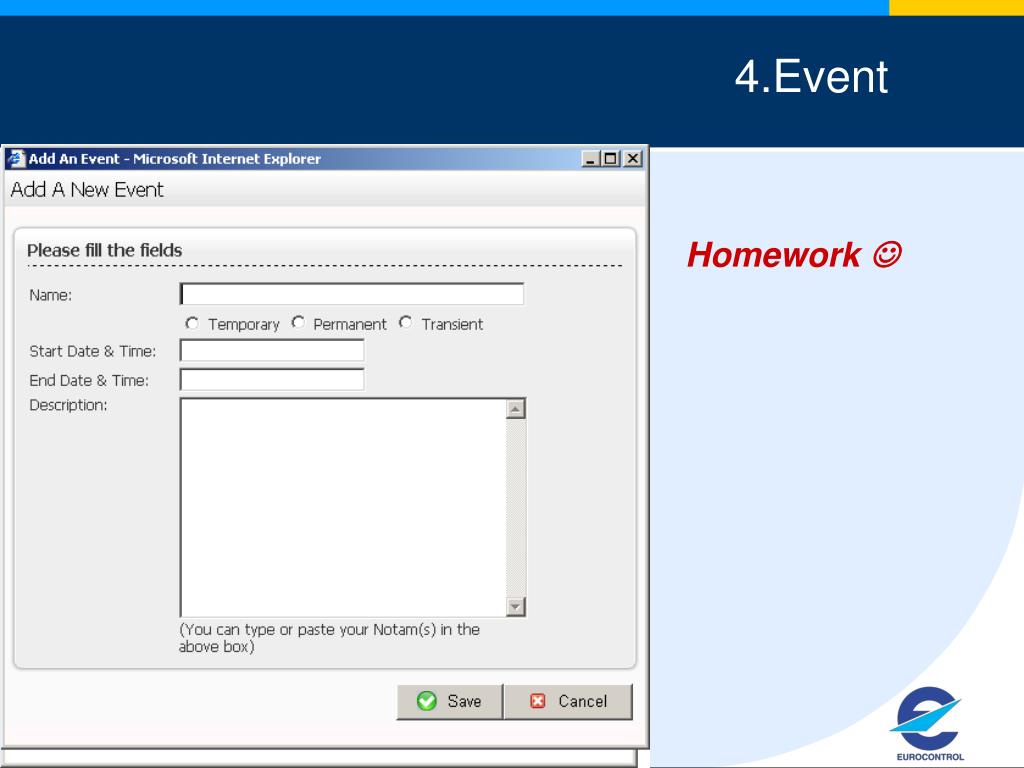

  18. 4.Event Homework 

  19. 4.Affected features

  20. 4.Timeslices

  21. 5.NOTAM Sample (C0249/07 NOTAMN Q) LSAS/QWALW/IV/BO /AW/000/050/4711N00744E002 A) LSPL B) 0709011000 C) 0709021600 D) 01 1000-1600, 02 0600-1600 E) AIR DISPLAY WILL TAKE PLACE AD LANGENTHAL, RADIUS 2.5 KM (4711N00744E, RADIUS 1.4 NM). AREA TO BE AVOIDED. F) GND G) 5000FT AMSL)

  22. 5.Event [C0249/07] Air display AD Langenthal 2007-09-01 10:00 2007-09-02 16:00 (C0249/07 NOTAMN Q) LSAS/QWALW/IV/BO /AW/000/050/4711N00744E002 A) LSPL B) 0709011000 C) 0709021600 D) 01 1000-1600, 02 0600-1600 E) AIR DISPLAY WILL TAKE PLACE AD LANGENTHAL, RADIUS 2.5 KM (4711N00744E, RADIUS 1.4 NM). AREA TO BE AVOIDED. F) GND G) 5000FT AMSL)

  23. 5.Affected features Airspace Airspace Usage

  24. 5.Timeslices 2007-09-01 10:00 2007-09-02 16:00 2007-09-01 10:00 2007-09-02 16:00 type D designator ? LSR10001 name AIR_DISPLAY_LANGENTHAL upperLimit 5000 FT upperLimitReference MSL lowerLimit GND lowerLimitReference 471100.00N hasHorizontalBoundary.Circle.Centre.Lat/Long 0074400.00E hasHorizontalBoundary.Radius 1.4 NM

  25. 5.Timeslices 2007-09-01 10:00 2007-09-02 16:00 2007-09-01 10:00 2007-09-02 16:00 statusActivation ACTIVE upperLimit 5000 FT upperLimitReference MSL lowerLimit GND lowerLimitReference activity AIRSHOW isActiveBy SAT 10:00 – 16:00 SUN 06:00 – 16:00 isSpecifiedFor Airspace R, AIR_DISPLAY_LANGENTHAL

  26. 6.NOTAM Sample (A1614/07 NOTAMN Q) LZBB/QARLC/IV/NBO/E /000/999/4847N01941E116 A) LZBB B) 0710010500 C) 0710311400 D) 01-05 08-11 15-18 22-25 0500-1300, 12 19 26 0500-1000, 29-31 0600-1400 E) CDR 1 AWY P182 BTN EKLUS-BERVA CLSD FM FL155 TO FL245 DUE TO ACTIVATION OF LZR221A AND LZR221B. REF ENR 3.3, ENR 5.1.2.)

  27. 6. AIP Content – Baseline information

  28. 6.Event [A1614/07] P182 EKLUS-BERKA closed 155-245 2007-10-01 05:00 2007-10-31 14:00 (A1614/07 NOTAMN Q) LZBB/QARLC/IV/NBO/E /000/999/4847N01941E116 A) LZBB B) 0710010500 C) 0710311400 D) 01-05 08-11 15-18 22-25 0500-1300, 12 19 26 0500-1000, 29-31 0600-1400 E) CDR 1 AWY P182 BTN EKLUS-BERVA CLSD FM FL155 TO FL245 DUE TO ACTIVATION OF LZR221A AND LZR221B. REF ENR 3.3, ENR 5.1.2.)

  29. 6.Affected features RoutePortionUsage affects P182, startsAt EKLUS, endsAt BERVA

  30. 6.Timeslices 2007-10-01 05:00 2007-10-31 14:00 2007-10-01 05:00 2007-10-31 14:00 direction FORWARD cardinalDirection NE? routeAvailability COND CLSD categoryCDR CDR_1 upperLimit 245 FL upperLimitReference STD 155 FL lowerLimit STD lowerLimitReference

  31. 6.Timeslices UTC 01-10 05-10 ANY 05:00 13:00 UTC 08-10 11-10 ANY 05:00 13:00 UTC 15-10 18-10 ANY 05:00 13:00 UTC 22-10 25-10 ANY 05:00 13:00 UTC 12-10 12-10 ANY 05:00 10:00 UTC 19-10 19-10 ANY 05:00 10:00 UTC 26-10 26-10 ANY 06:00 14:00 UTC 29-10 31-10 ANY 06:00 14:00
