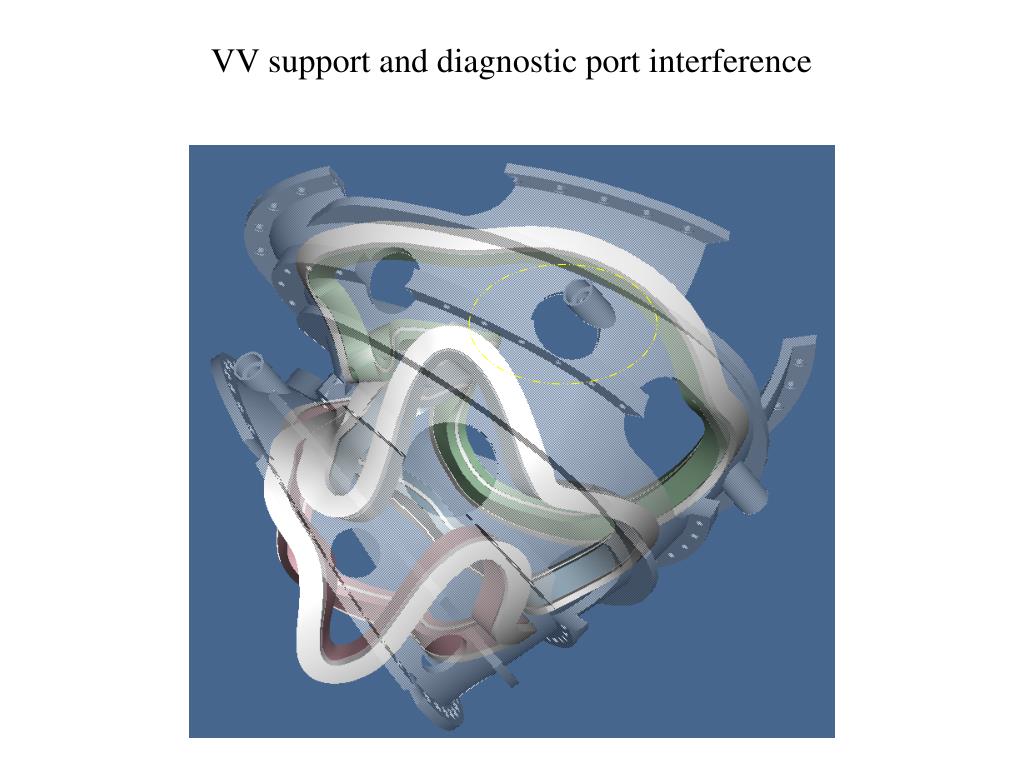

  1. VV support and diagnostic port interference

  2. Section thru port opening

  3. Port location after rotating port Location Before: Torordial angle 17 deg Poloidal angle 47 deg Location after rotation Torordial angle 18.5 deg Poloidal angle 56 deg Port dia 10” od before and after

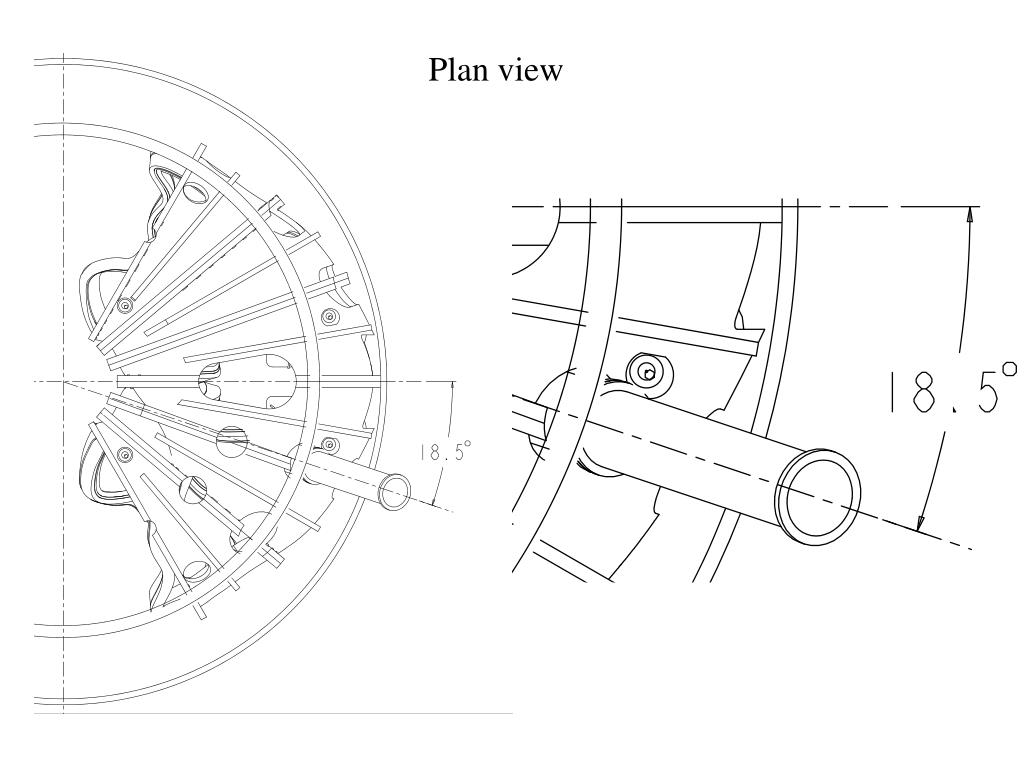

  4. Plan view

  5. Section view after rotation

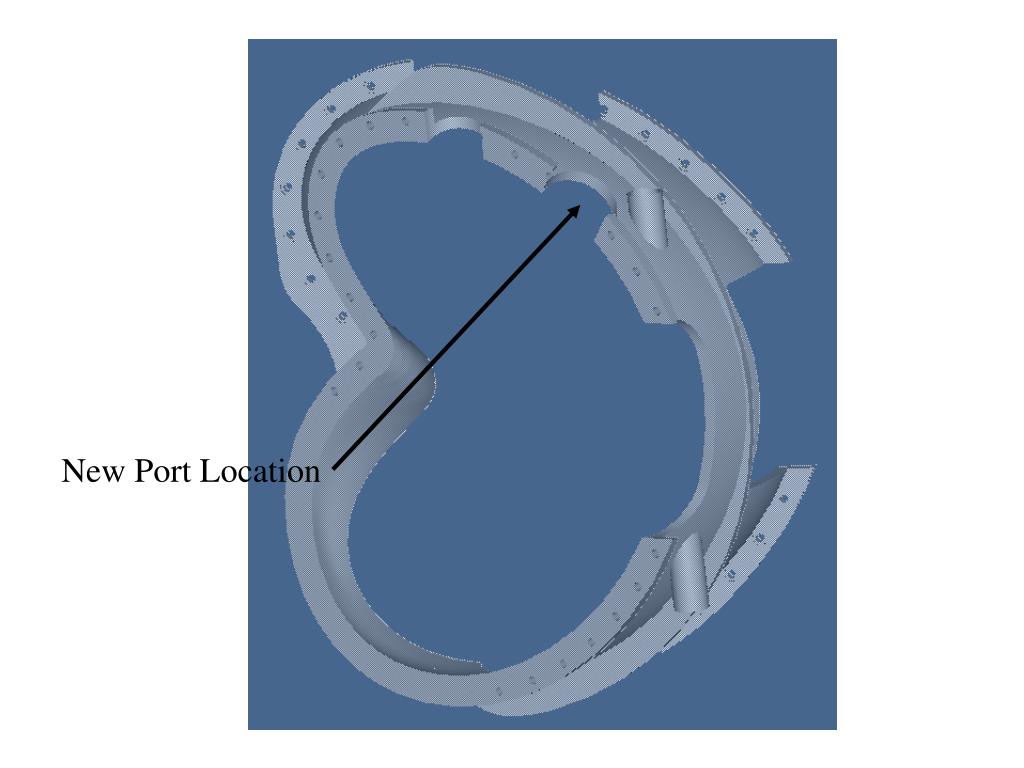

  6. New Port Location

  7. Reduced port dia. From 10” od to 8” od. While a 10” od may work with additional tweaking reducing the od to 8” seems to assure clearance for now.

  8. From Tom Brown’s Power Point file

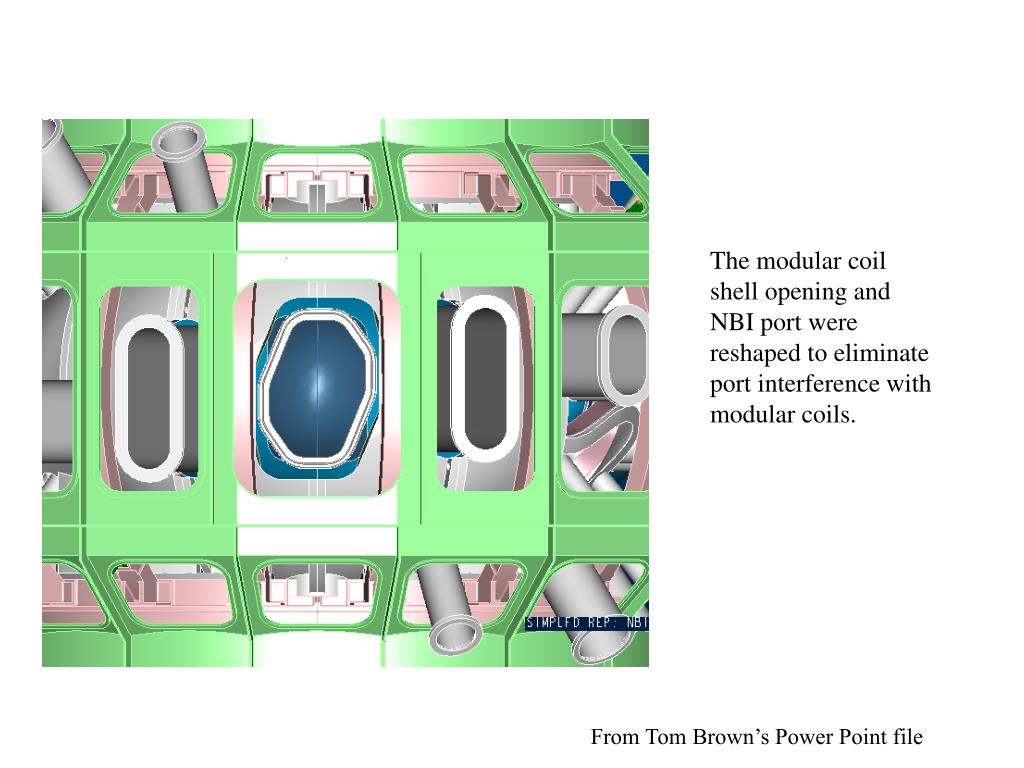

  9. The modular coil shell opening and NBI port were reshaped to eliminate port interference with modular coils. From Tom Brown’s Power Point file

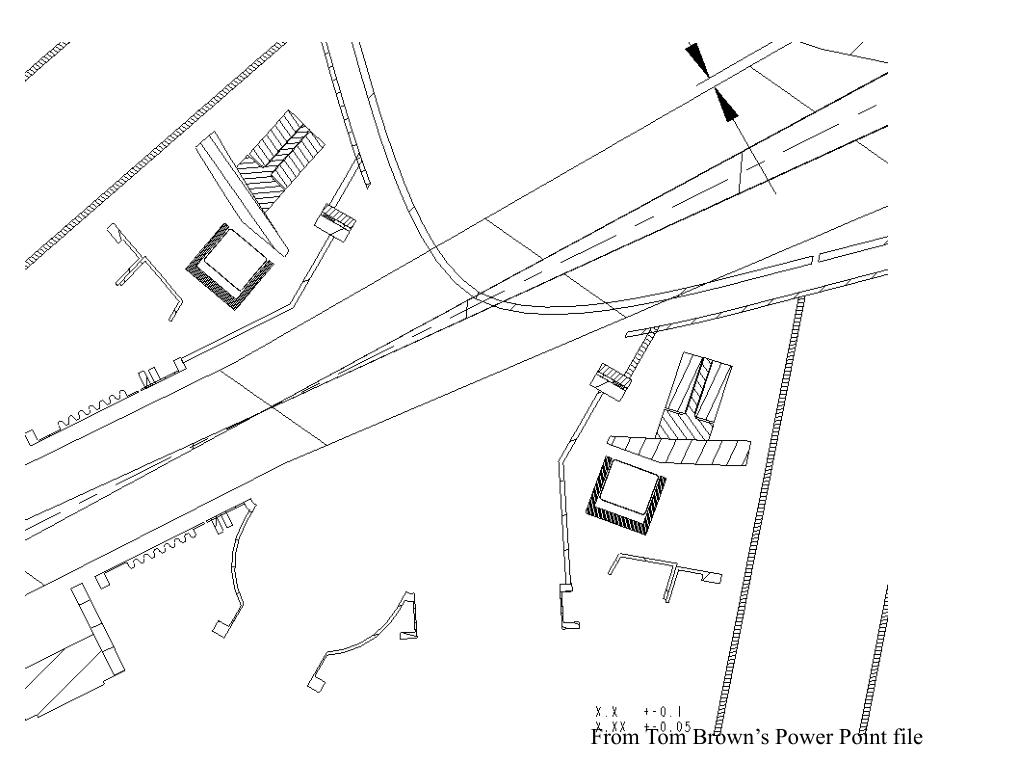

  10. From Tom Brown’s Power Point file

  11. From Tom Brown’s Power Point file

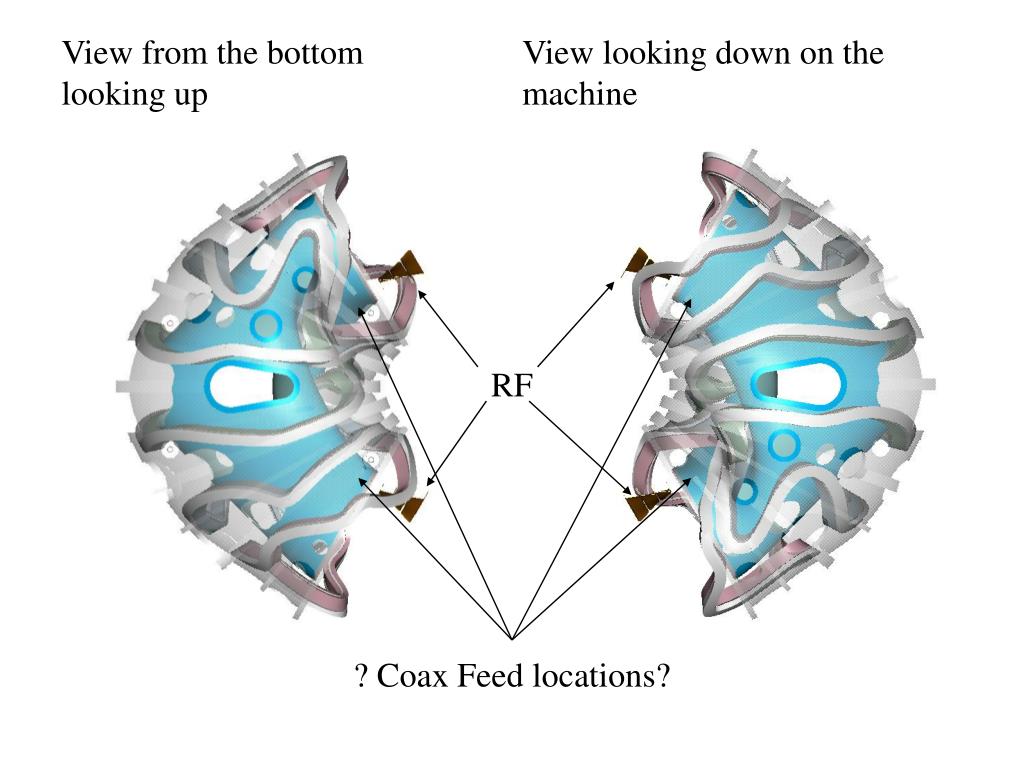

  12. View from the bottom looking up View looking down on the machine RF ? Coax Feed locations?

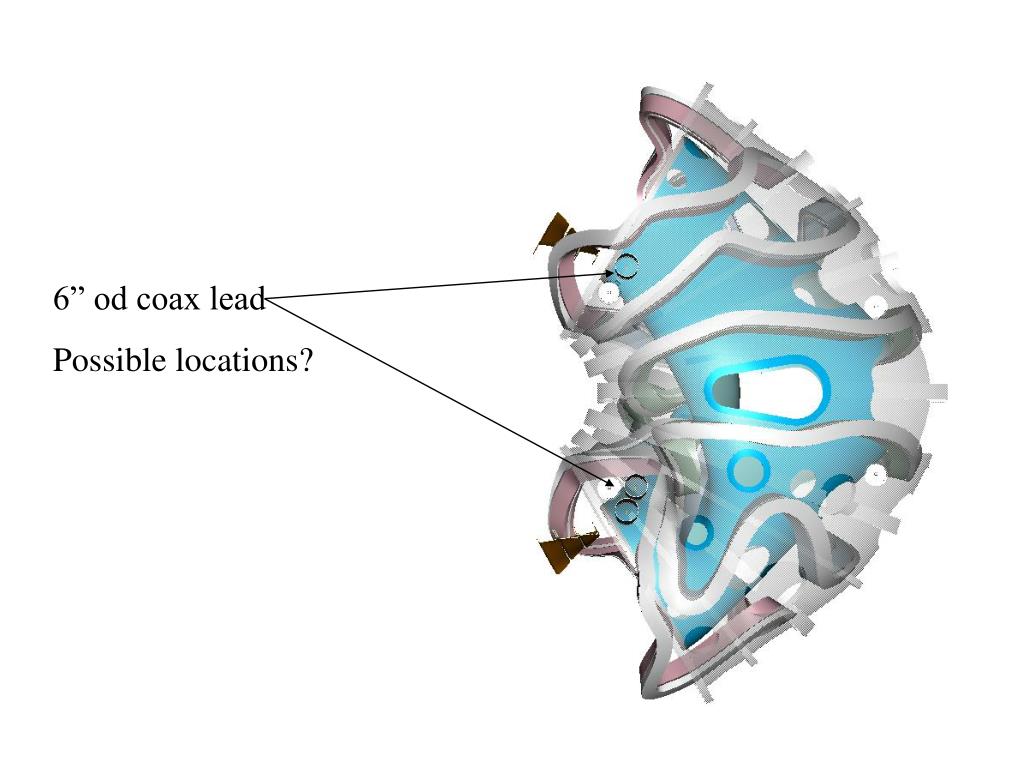

  13. 6” od coax lead Possible locations?

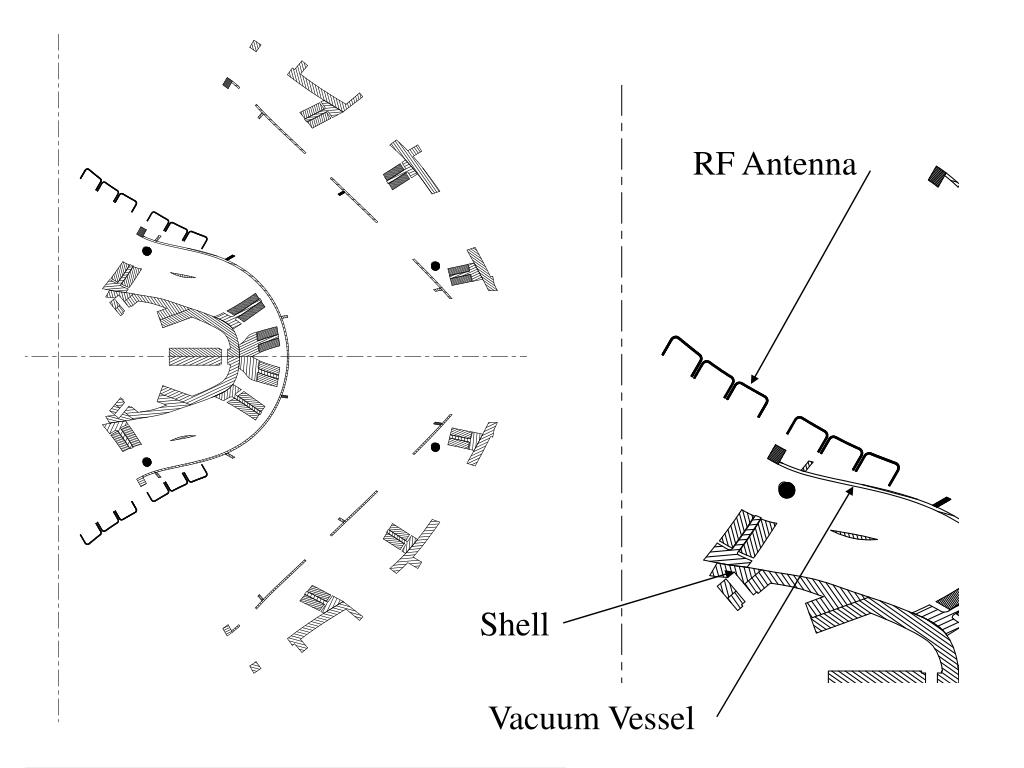

  14. RF Antenna Shell Vacuum Vessel

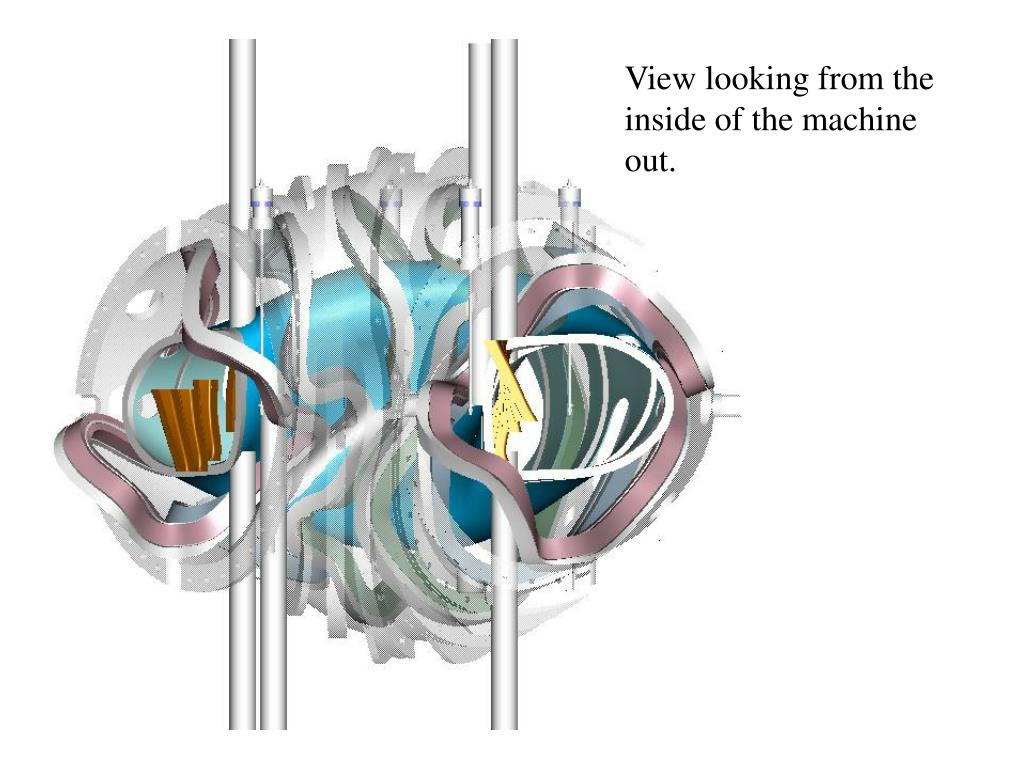

  15. View looking from the inside of the machine out.
