  1. Detecting Duplicates over Sliding Windows with RAM-Efficient Detached Counting Bloom Filter Arrays Jiansheng Wei†, Hong Jiang‡, Ke Zhou†, Dan Feng†, Hua Wang† †School of Computer, Huazhong University of Science and Technology, Wuhan, ChinaWuhan National Laboratory for Optoelectronics, Wuhan, China‡Dept. of Computer Science and Engineering, University of Nebraska-Lincoln, Lincoln, NE, USA

  2. Background and Motivation • Duplicate detection is an important technique for monitoring and analysing data streams. • Recent studies estimate that about 294 billion emails are sent per day all over the world in 2010 [1] and around 89.1% of them are spam emails [2]. • If all the emails must be scanned for the purposes of anti-spam, anti-virus or homeland security, it is important for the email server to quickly identify duplicates and analyse only unique emails. • Since the real-world data streams can be updated frequently and grow to very large sizes, it is impractical to trace and analyse all the elements in such data streams. [1] The Radicati Group, Inc. (2010) Email Statistics Report, 2010-2014. [2] Symantec Corp. (2010) MessageLabs Intelligence: 2010 Annual Security Report.

  3. Background and Motivation • Existing approaches usually employ a decaying window model to evict stale items and record the most recent elements. • Landmark Window Model • Jumping Window Model • Sliding Window Model The challenge is how to design a membership representation scheme that supports fast search, insertion and deletion of time-ordered elements with low RAM consumption.

  4. Background and Motivation • To achieve high space efficiency and maintain high query performance, Bloom filters (BFs) have been widely used to represent membership of static data sets. • A BF for representing a static set S = {e1, e2, …, en} of n elements consists of an array of m bits and a group of k independent hash functions h1, …, hk with the range of {1, …, m}. • A BF faces challenges when dealing with a dynamic set, i.e., it does not support element deletion. Fig. 1 Insert elements into a Bloom filter. False positive: y is probably a member; No false negative: z is definitely not a member. Fig. 2 Query a Bloom filter.

  5. Outline • Background and Motivation • The DCBA Scheme • Analysis and Evaluation • Conclusions

  6. The DCBA Scheme • A detachedcounting Bloom filtersarray (DCBA) consists of an array of detachedcounting Bloom filters (DCBFs) that are homogeneous and share the same hash functions. • A DCBF is a Bloom filter (BF) with each of its bits being associated with a counter, which functions as a timer to record the timestamp of the represented element. • All the timers of a DCBF are further grouped into a timer array (TA) to improve the access efficiency.

  7. The DCBA Scheme • A window with size N slides over a data stream, and all the monitored elements are represented by an array of g DCBFs with each having a capacity of N/(g−1) elements. Fig. 3 Using DCBA to represent a sliding window in a single node.

  8. The DCBA Scheme • The g DCBFs logically function as a circular FIFO queue. • Fully-filled DCBFs will be retained for query only until its elements become stale, and the corresponding timer array (TA) that can consume a great amount of memory space may be optionally offloaded to hard disks or flash store to save RAM resources. Fig. 3 Using DCBA to represent a sliding window in a single node.

  9. The DCBA Scheme • A DCBA can also be split and maintained by r nodes, where each node holds a group of g DCBFs. All the r×g DCBFs logically function as a circular FIFO queue, and there is a filling DCBF and a decaying DCBF to accommodate fresh elements and evict stale elements respectively. Fig. 4 Using DCBA to represent a sliding window in a decentralized (clustered) system.

  10. The DCBA Scheme • Bits belonging to different BFs but with the same offset are mapped and stored in the same bit vector so that they can be read or written simultaneously in a single memory access. • Considering that k hash functions are used and shared among the DCBFs, the memory access complexity of querying an item will be O(k) rather than O(k×g). • If a positive is produced by the decaying BF, the associated decaying TA will be queried to check whether the item has already expired. Fig. 5 The in-memory structure of a DCBA.

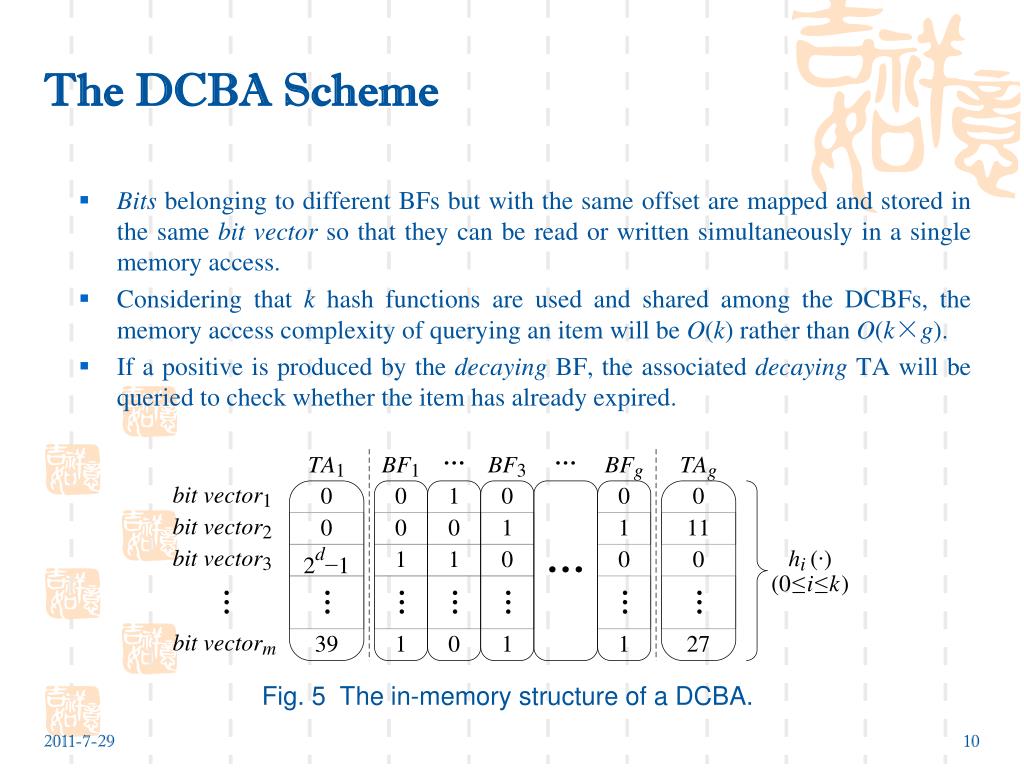

  11. The DCBA Scheme • The bit width d of each timer is fundamentally determined by the capacity of the DCBA. Suppose that the capacity of a DCBA is N, each DCBF will be designed to hold N/(g−1) elements, and each timer will contain d=⌈log2N/(g−1)⌉ bits to count from 0 to N/(g−1)−1, where 0 denotes the oldest timestamp. • E.g., if a DCBF is designed to accommodate 1M (220) elements, then each constructing timer will consume 20 bits to count from 0 to 220−1. Fig. 5 The in-memory structure of a DCBA.

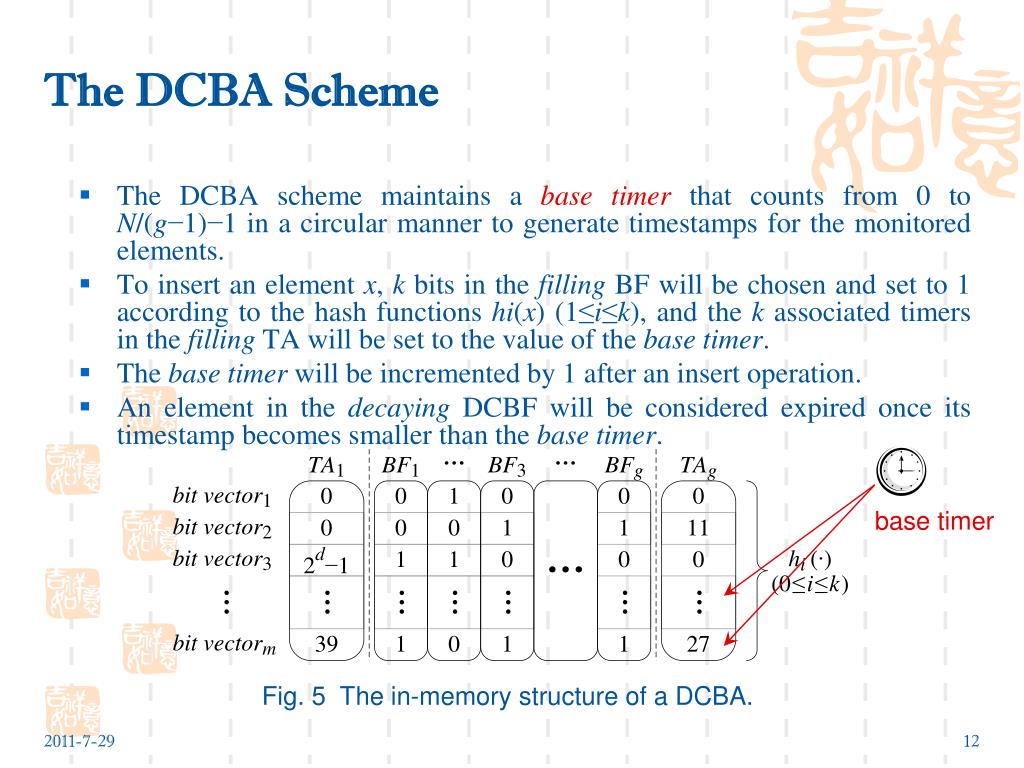

  12. The DCBA Scheme • The DCBA scheme maintains a base timer that counts from 0 to N/(g−1)−1 in a circular manner to generate timestamps for the monitored elements. • To insert an element x, k bits in the filling BF will be chosen and set to 1 according to the hash functions hi(x) (1≤i≤k), and the k associated timers in the filling TA will be set to the value of the base timer. • The base timer will be incremented by 1 after an insert operation. • An element in the decaying DCBF will be considered expired once its timestamp becomes smaller than the base timer. base timer Fig. 5 The in-memory structure of a DCBA.

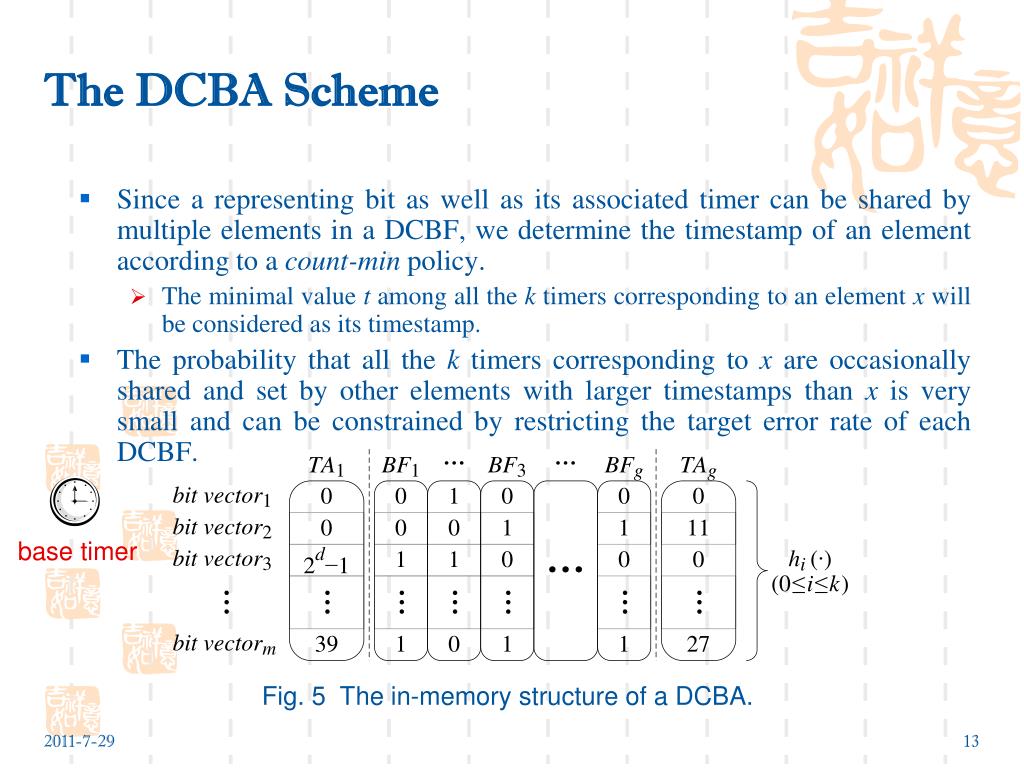

  13. The DCBA Scheme • Since a representing bit as well as its associated timer can be shared by multiple elements in a DCBF, we determine the timestamp of an element according to a count-min policy. • The minimal value t among all the k timers corresponding to an element x will be considered as its timestamp. • The probability that all the k timers corresponding to x are occasionally shared and set by other elements with larger timestamps than x is very small and can be constrained by restricting the target error rate of each DCBF. base timer Fig. 5 The in-memory structure of a DCBA.

  14. Outline • Background and Motivation • The DCBA Scheme • Analysis and Evaluation • Conclusions

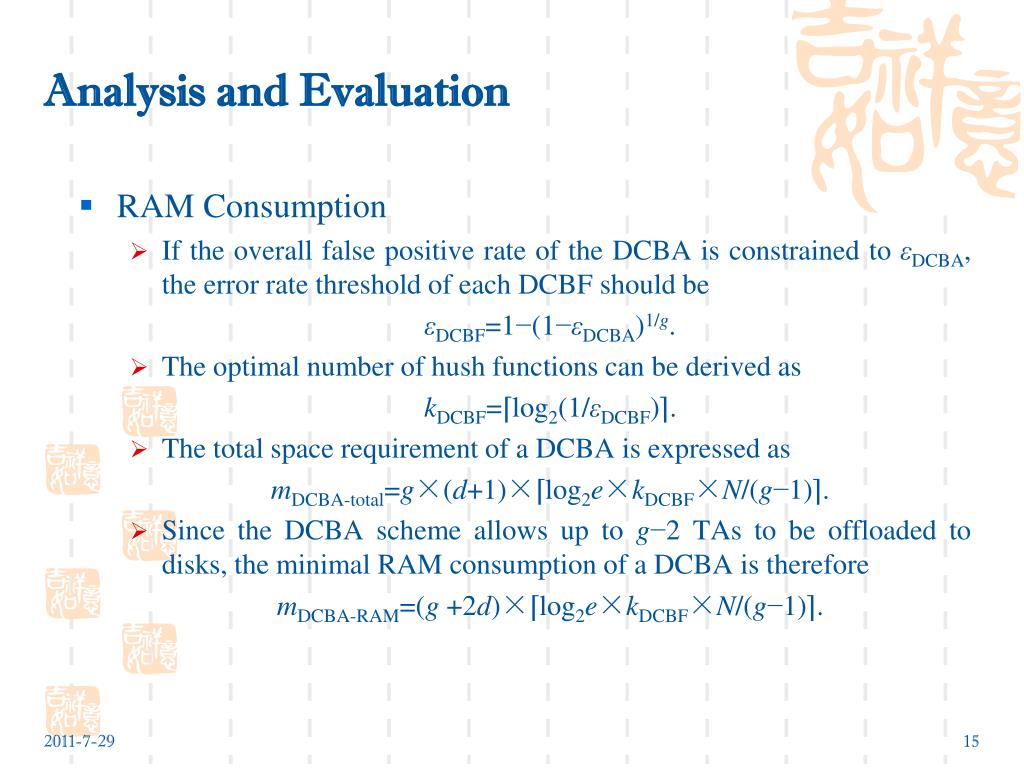

  15. Analysis and Evaluation • RAM Consumption • If the overall false positive rate of the DCBA is constrained to εDCBA, the error rate threshold of each DCBF should be εDCBF=1−(1−εDCBA)1/g. • The optimal number of hush functions can be derived as kDCBF=⌈log2(1/εDCBF)⌉. • The total space requirement of a DCBA is expressed as mDCBA-total=g×(d+1)×⌈log2e×kDCBF×N/(g−1)⌉. • Since the DCBA scheme allows up to g−2 TAs to be offloaded to disks, the minimal RAM consumption of a DCBA is therefore mDCBA-RAM=(g +2d)×⌈log2e×kDCBF×N/(g−1)⌉.

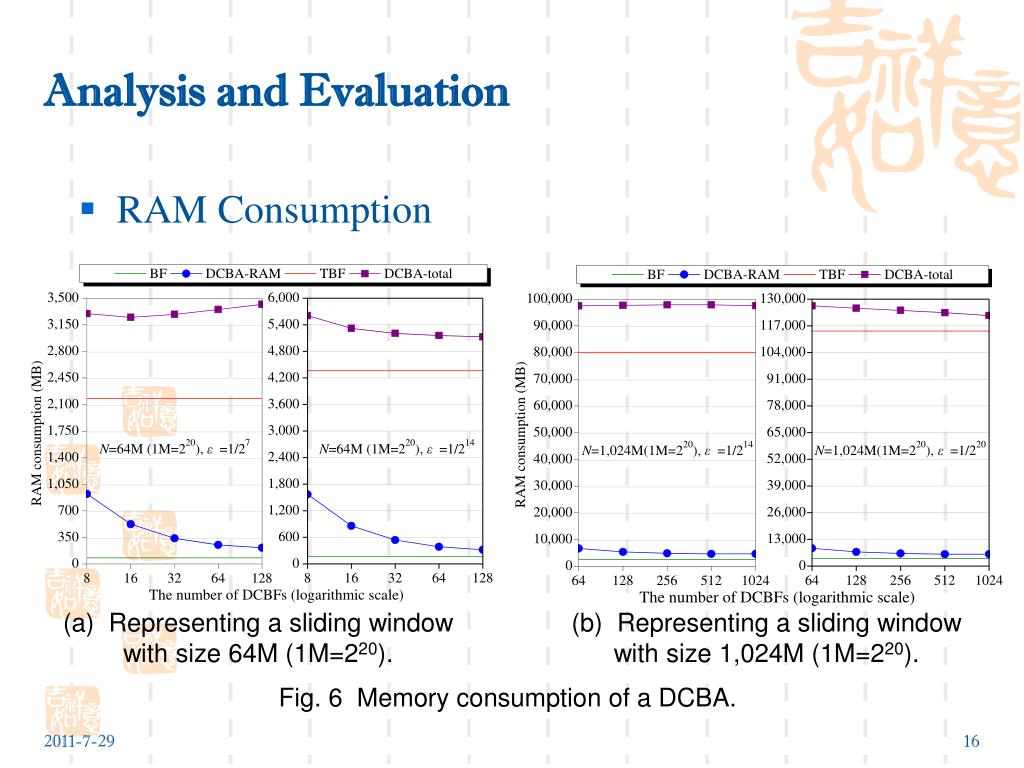

  16. Analysis and Evaluation • RAM Consumption (a) Representing a sliding window with size 64M (1M=220). (b) Representing a sliding window with size 1,024M (1M=220). Fig. 6 Memory consumption of a DCBA.

  17. Analysis and Evaluation • We have collected a sequence of 2,026,005,927 chunk fingerprints that contains 83,733,597 unique elements, which provides a real-world data set for measuring the performance and query accuracy of the DCBA scheme. • The experimental server that maintains a DCBA for monitoring the chunk fingerprint stream over a sliding window is configured as follows: • a 32-bit Windows operating system • a quad-core CPU running at 2 GHz • 4×2GB RAM • 16×1TB hard disks organized as a RAID-5 partition • 2 gigabit network interface cards.

  18. Analysis and Evaluation • Query Performance (a) Representing a sliding window with an error rate threshold of 1/27. (b) Representing a sliding window with an error rate threshold of 1/214. Fig. 7 Average query performance of a DCBA.

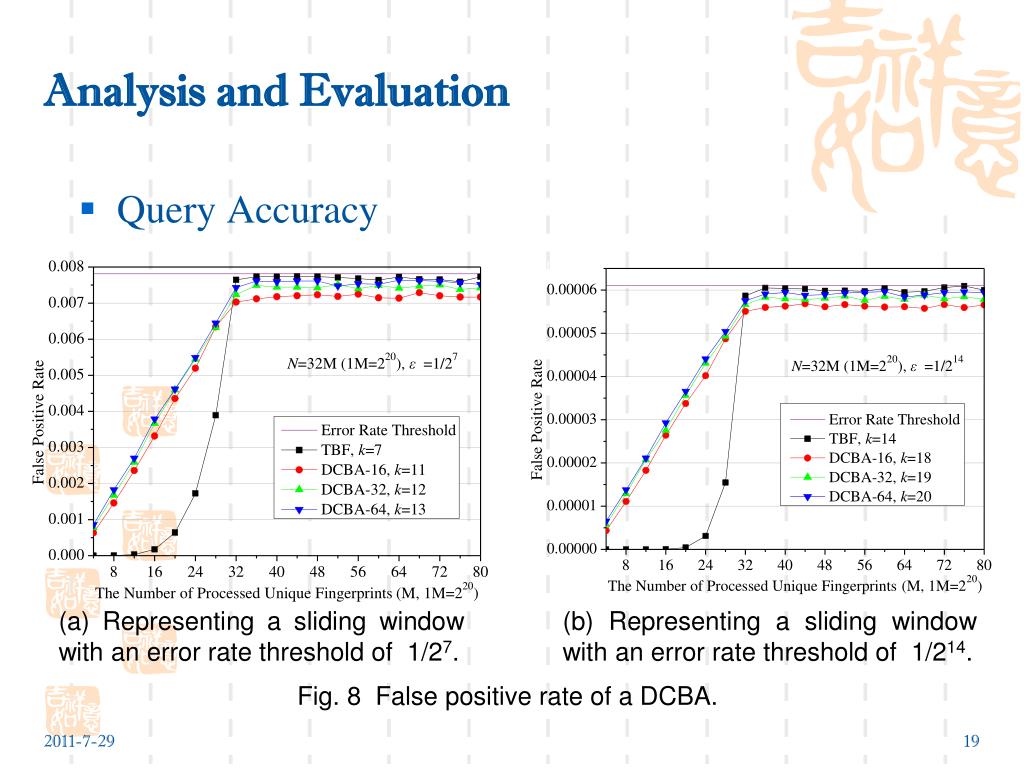

  19. Analysis and Evaluation • Query Accuracy (a) Representing a sliding window with an error rate threshold of 1/27. (b) Representing a sliding window with an error rate threshold of 1/214. Fig. 8 False positive rate of a DCBA.

  20. Outline • Background and Motivation • The DCBA Scheme • Analysis and Evaluation • Conclusions

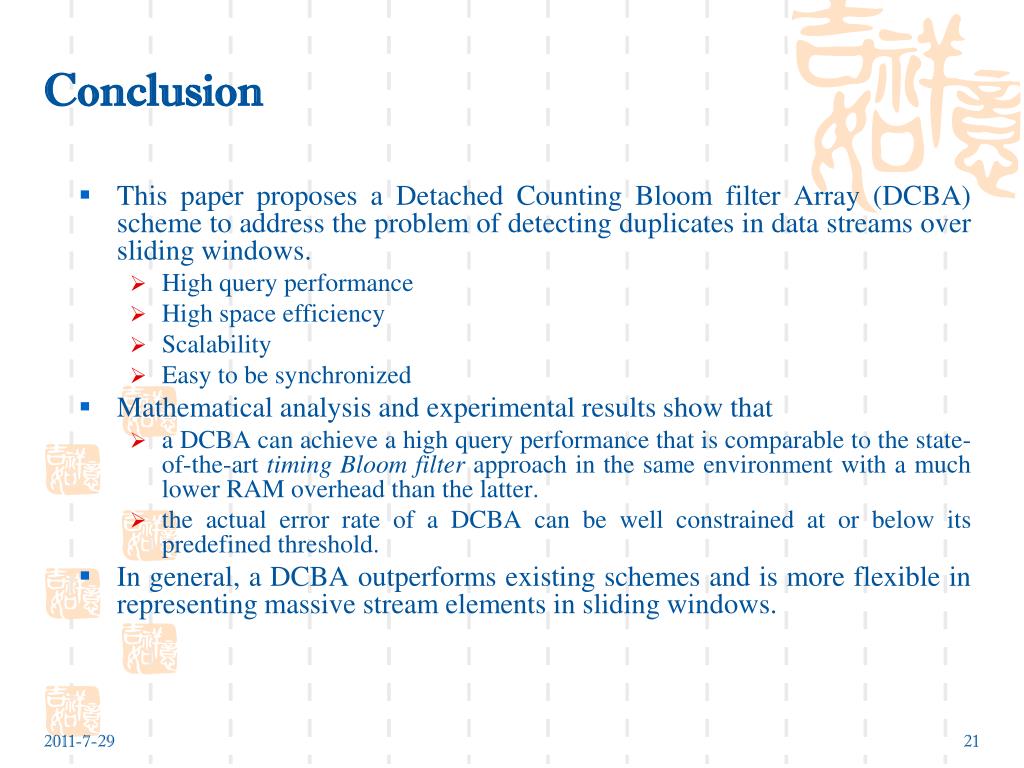

  21. Conclusion • This paper proposes a Detached Counting Bloom filter Array (DCBA) scheme to address the problem of detecting duplicates in data streams over sliding windows. • High query performance • High space efficiency • Scalability • Easy to be synchronized • Mathematical analysis and experimental results show that • a DCBA can achieve a high query performance that is comparable to the state-of-the-art timing Bloom filter approach in the same environment with a much lower RAM overhead than the latter. • the actual error rate of a DCBA can be well constrained at or below its predefined threshold. • In general, a DCBA outperforms existing schemes and is more flexible in representing massive stream elements in sliding windows.
