Imaging in melanoma local guidelines

IMAGING IN MELANOMA –local guidelines

Dr Andrea J Howes

Consultant Radiologist

St Helens and Knowsley NHS Trust


Local imaging guidelines how to image

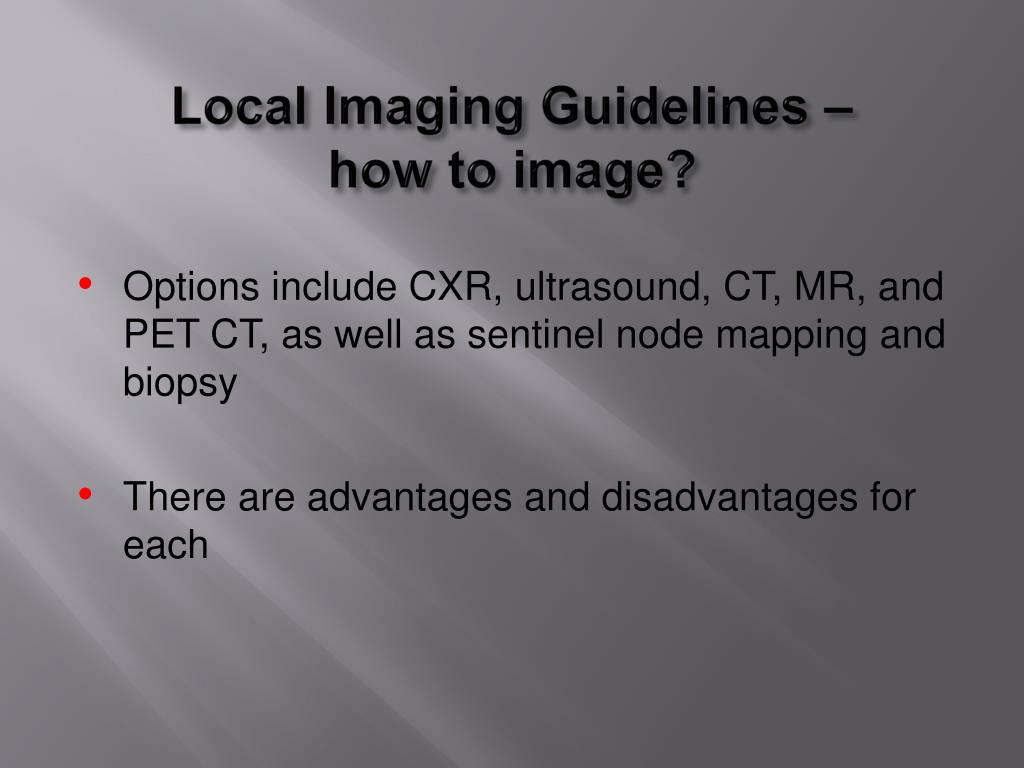

Local Imaging Guidelines – how to image?

  • Options include CXR, ultrasound, CT, MR, and PET CT, as well as sentinel node mapping and biopsy

  • There are advantages and disadvantages for each


Local imaging guidelines how to image1

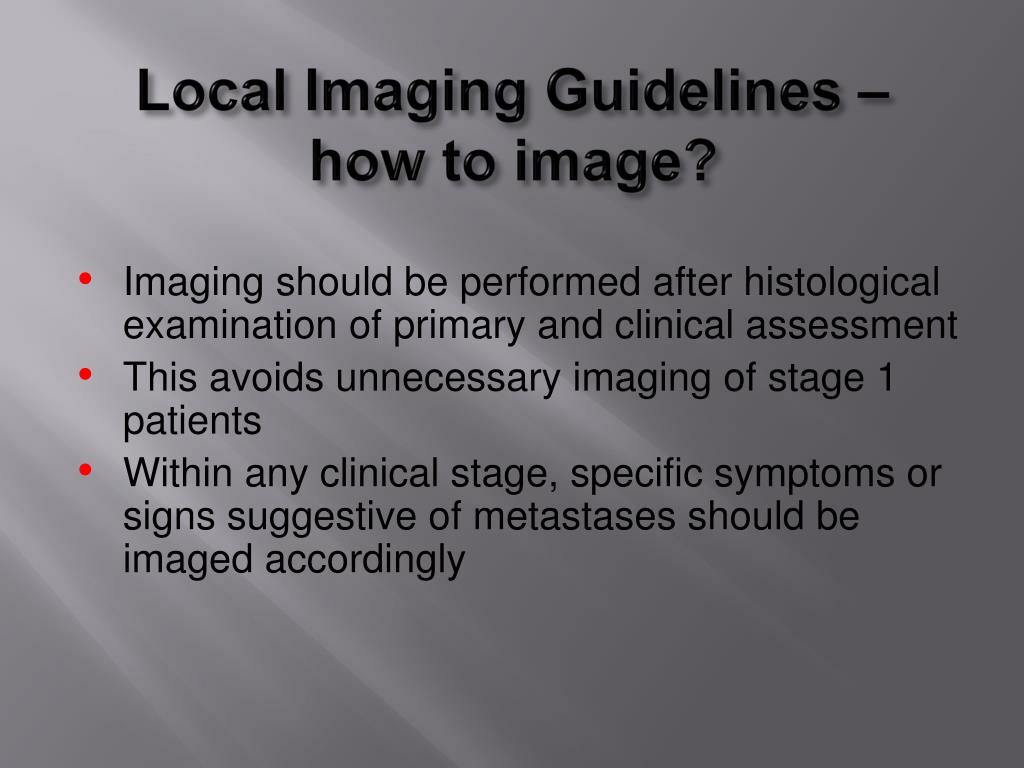

Local Imaging Guidelines – how to image?

  • Imaging should be performed after histological examination of primary and clinical assessment

  • This avoids unnecessary imaging of stage 1 patients

  • Within any clinical stage, specific symptoms or signs suggestive of metastases should be imaged accordingly


Stage 1

Stage 1

  • There is no evidence for any benefit of imaging in stage 1 disease


Stage 2

Stage 2

  • SLNB is performed locally for further staging

  • This is expensive and time consuming so CXR and US should be performed prior to this (although no evidence for imaging in stage 2A)

  • CT results in large numbers of false positives with resulting anxiety, re-scan and high radiation burden


Stage 3

Stage 3

  • Positive SLNB or clinical adenopathy

  • CT of chest / abdomen for nodes in neck or axilla and abdomen / pelvis for groin nodes

  • Yield low if nodes not palpable (0.5 – 3.7%)

  • Yield higher if palpable nodes (4 – 16%)

  • MR of neck nodes may be helpful

  • False positives are still a significant problem


Stage 4

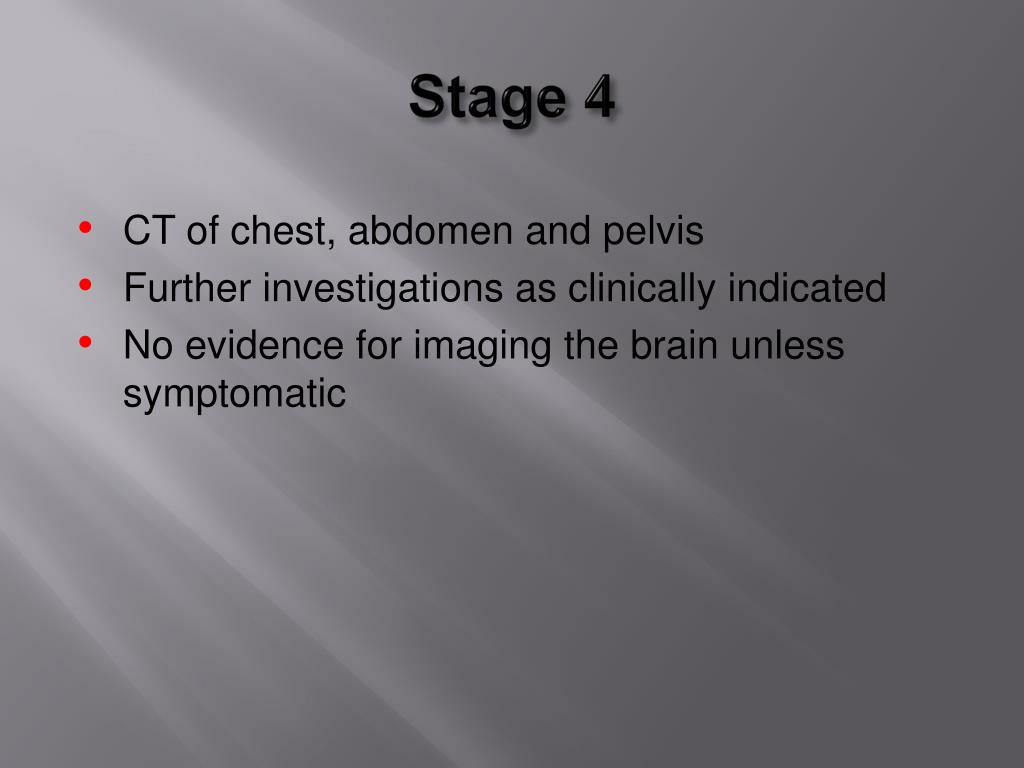

Stage 4

  • CT of chest, abdomen and pelvis

  • Further investigations as clinically indicated

  • No evidence for imaging the brain unless symptomatic


Pet ct

PET CT

  • Indications for PET CT are very specific nationally

  • Locally, the only melanoma indication is where metastectomy is being considered eg: in a patient with a pulmonary nodule, to establish whether it is a metastasis and to look for evidence of other disease not seen at CT


Reference

REFERENCE

“Role of Imaging Investigations in the Staging of Primary Cutaneous Melanoma – Recommended Guidelines for MCCN with Summary of Available Evidence.”

Dr J C Herbert October 2009


Sentinel lymph node biopsy in melanoma the whiston experience

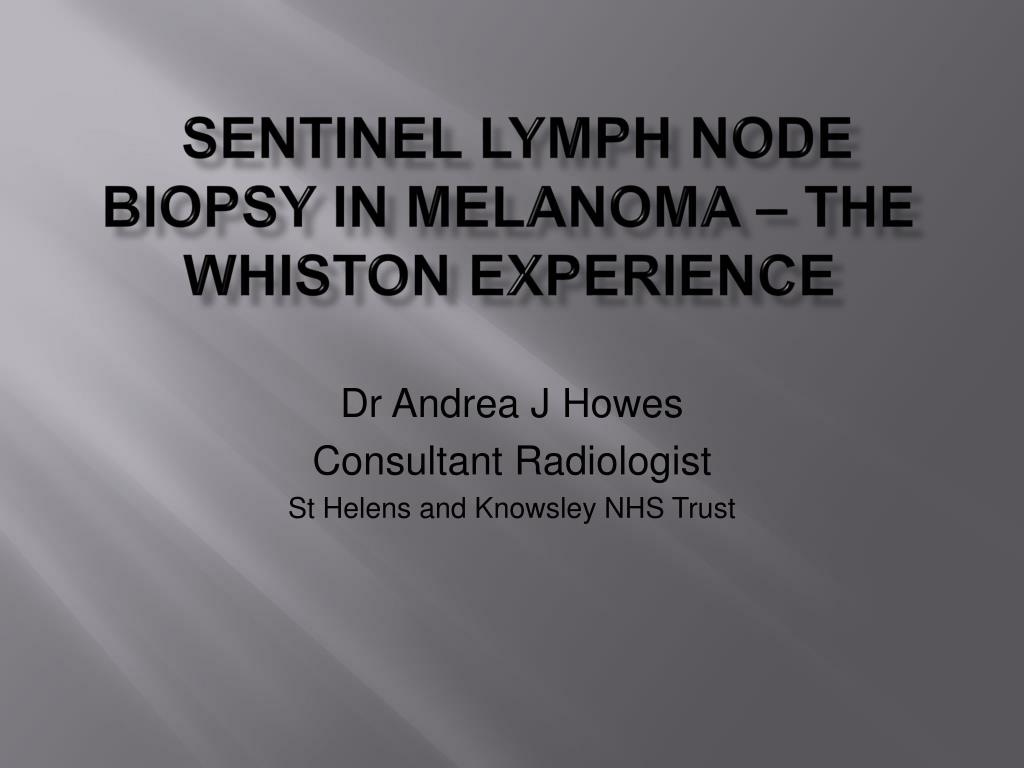

SENTINEL LYMPH NODE BIOPSY IN MELANOMA – THE WHISTON EXPERIENCE

Dr Andrea J Howes

Consultant Radiologist

St Helens and Knowsley NHS Trust


Consultant radiologist experience

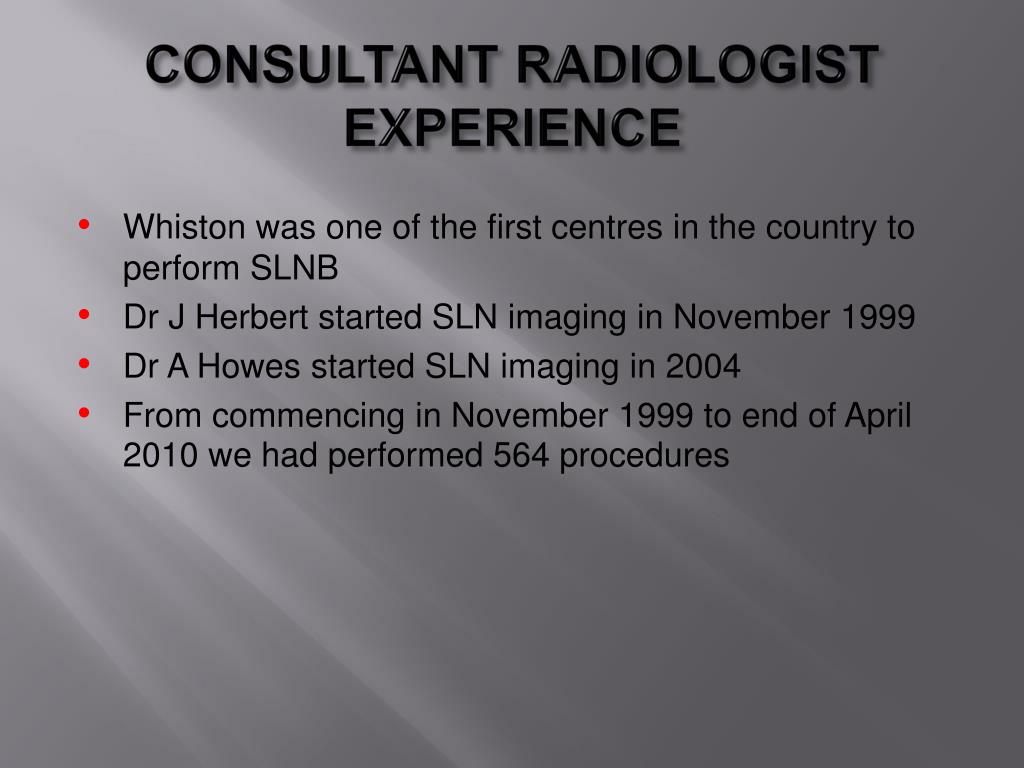

CONSULTANT RADIOLOGIST EXPERIENCE

  • Whiston was one of the first centres in the country to perform SLNB

  • Dr J Herbert started SLN imaging in November 1999

  • Dr A Howesstarted SLN imaging in 2004

  • From commencing in November 1999 to end of April 2010 we had performed 564 procedures


Nuclear medicine department requirements

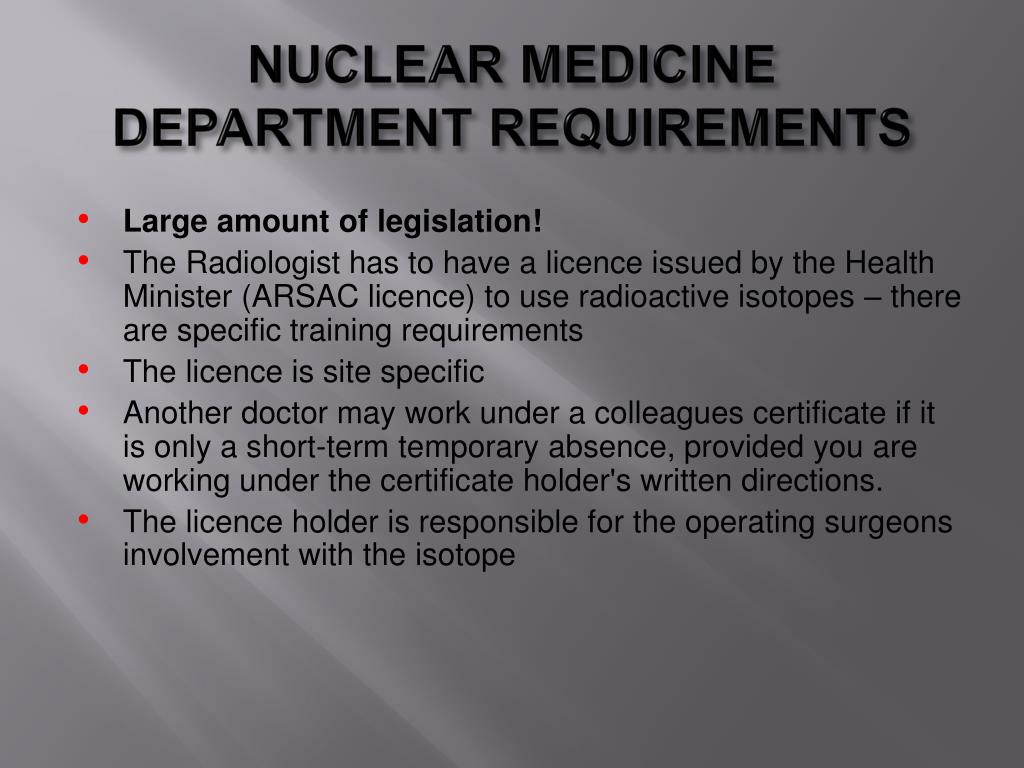

NUCLEAR MEDICINE DEPARTMENT REQUIREMENTS

  • Large amount of legislation!

  • The Radiologist has to have a licence issued by the Health Minister (ARSAC licence) to use radioactive isotopes – there are specific training requirements

  • The licence is site specific

  • Another doctor may work under a colleagues certificate if it is only a short-term temporary absence, provided you are working under the certificate holder's written directions.

  • The licence holder is responsible for the operating surgeons involvement with the isotope


Nuclear medicine department requirements1

NUCLEAR MEDICINE DEPARTMENT REQUIREMENTS

  • The department also has to be appropriately licensed (including the HSE) and needs access to a radiopharmacy (with appropriate transport licensing if required)

  • Single or dual headed gamma camera

  • SPECT CT capability may be of benefit

  • Appropriately trained radiographers / nuclear medicine technicians


What does it involve

WHAT DOES IT INVOLVE?

  • Time consuming!

  • Technitium 99m (Tc99m) labelled colloid

  • Injected intradermally around primary excision site

  • Dynamic images obtained allow visualisation of channels and can be useful to resolve problems such as kinks in channels (20 minutes, 60 images each – AP and lateral)


What does it involve1

WHAT DOES IT INVOLVE?

  • Static images are obtained – usually AP and lateral (5 minutes each)

  • These images are used for marking with a Cobalt-57 tipped “pen”

  • Static oblique images (further 5 minutes) obtained to confirm position and depth

  • Position checked with gamma probe


Imaging in melanoma local guidelines

Melanoma site

SN


Imaging in melanoma local guidelines

Melanoma site

SN

2nd


Imaging in melanoma local guidelines

SN

Melanoma site

SN

SN


Imaging in melanoma local guidelines

SN

Melanoma site

SN


Spect ct

SPECT CT

  • A new dual headed camera with SPECT CT (Single Photon Emission Computed Tomography CT) was installed in 2005

  • SPECT CT provides SPECT images, low dose CT for anatomical localisation and fused images

  • This adds considerably to the time taken and the radiation dose, but has apparently proven invaluable in terms of surgery


Our use of spect ct

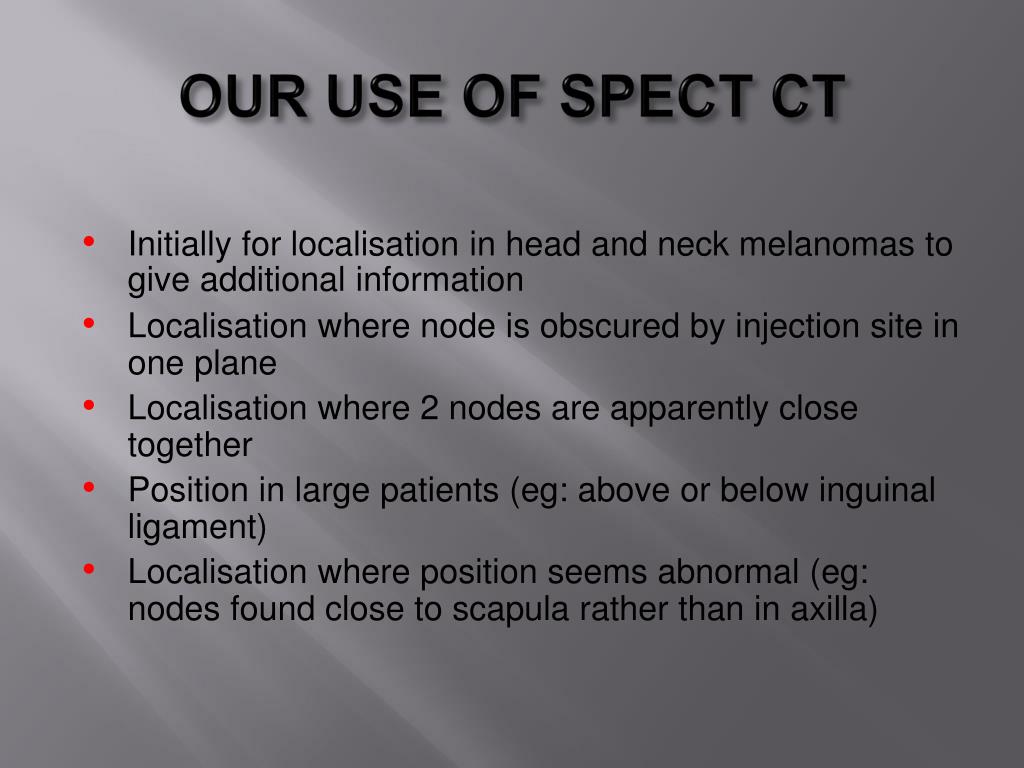

OUR USE OF SPECT CT

  • Initially for localisation in head and neck melanomas to give additional information

  • Localisation where node is obscured by injection site in one plane

  • Localisation where 2 nodes are apparently close together

  • Position in large patients (eg: above or below inguinal ligament)

  • Localisation where position seems abnormal (eg: nodes found close to scapula rather than in axilla)


Numbers

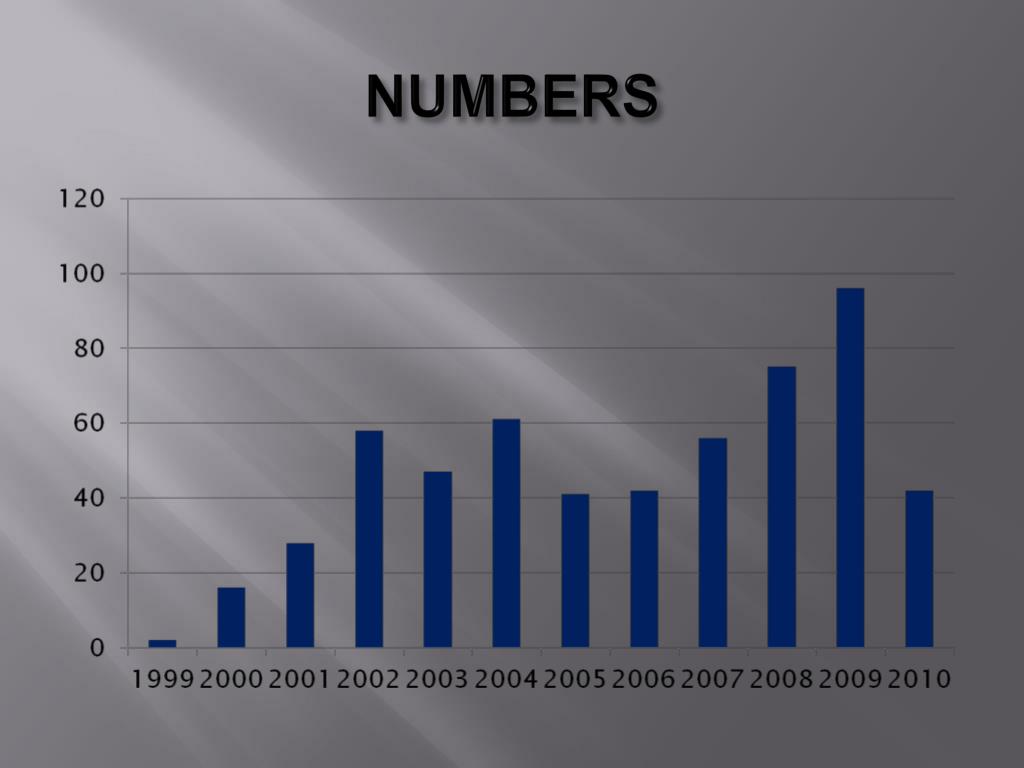

NUMBERS


Spect ct numbers

SPECT CT NUMBERS


Spect ct by area

SPECT CT BY AREA


Progress

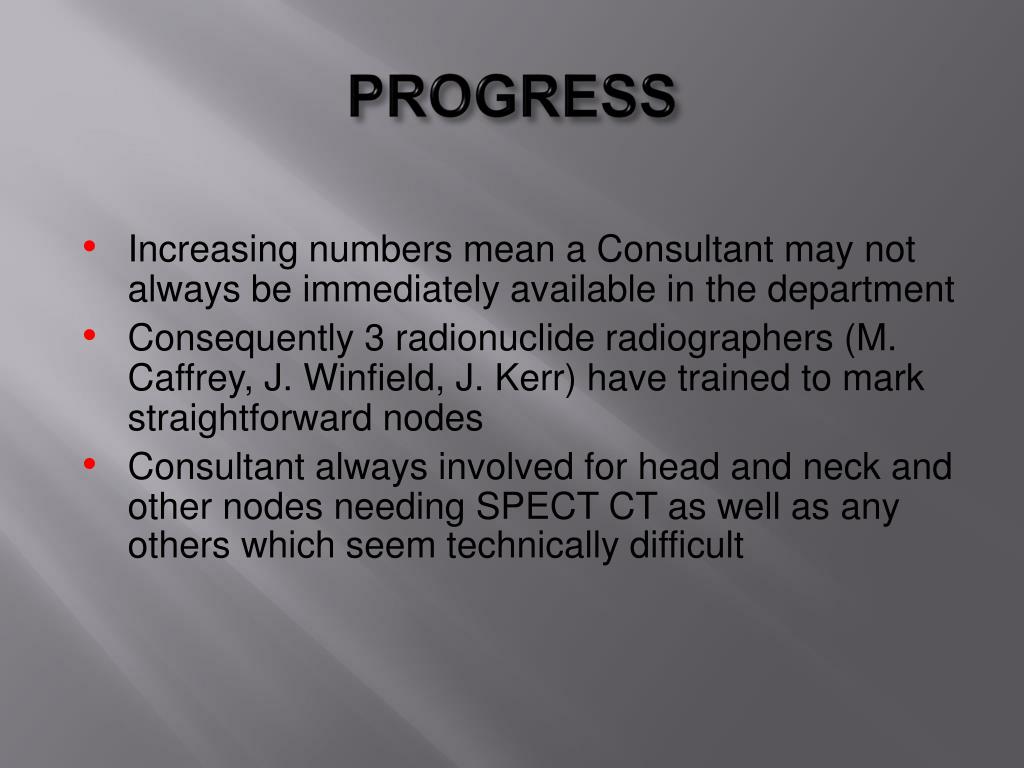

PROGRESS

  • Increasing numbers mean a Consultant may not always be immediately available in the department

  • Consequently 3 radionuclide radiographers (M. Caffrey, J. Winfield, J. Kerr) have trained to mark straightforward nodes

  • Consultant always involved for head and neck and other nodes needing SPECT CT as well as any others which seem technically difficult
