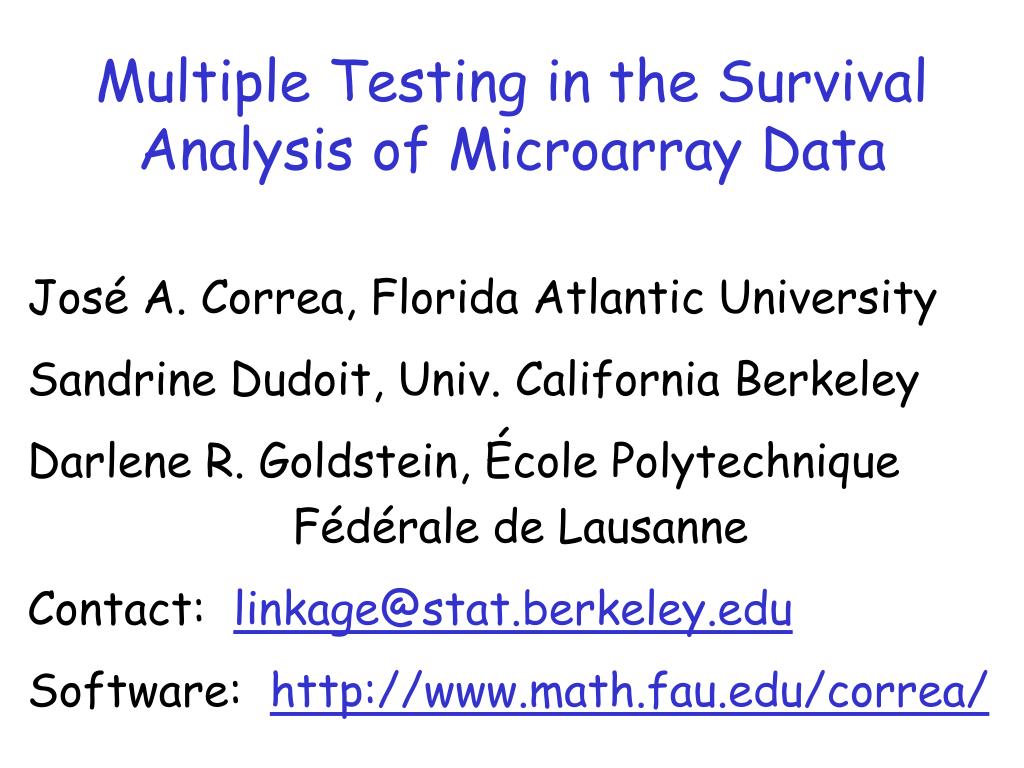

  1. Multiple Testing in the Survival Analysis of Microarray Data José A. Correa, Florida Atlantic University Sandrine Dudoit, Univ. California Berkeley Darlene R. Goldstein, École Polytechnique Fédérale de Lausanne Contact: linkage@stat.berkeley.edu Software: http://www.math.fau.edu/correa/

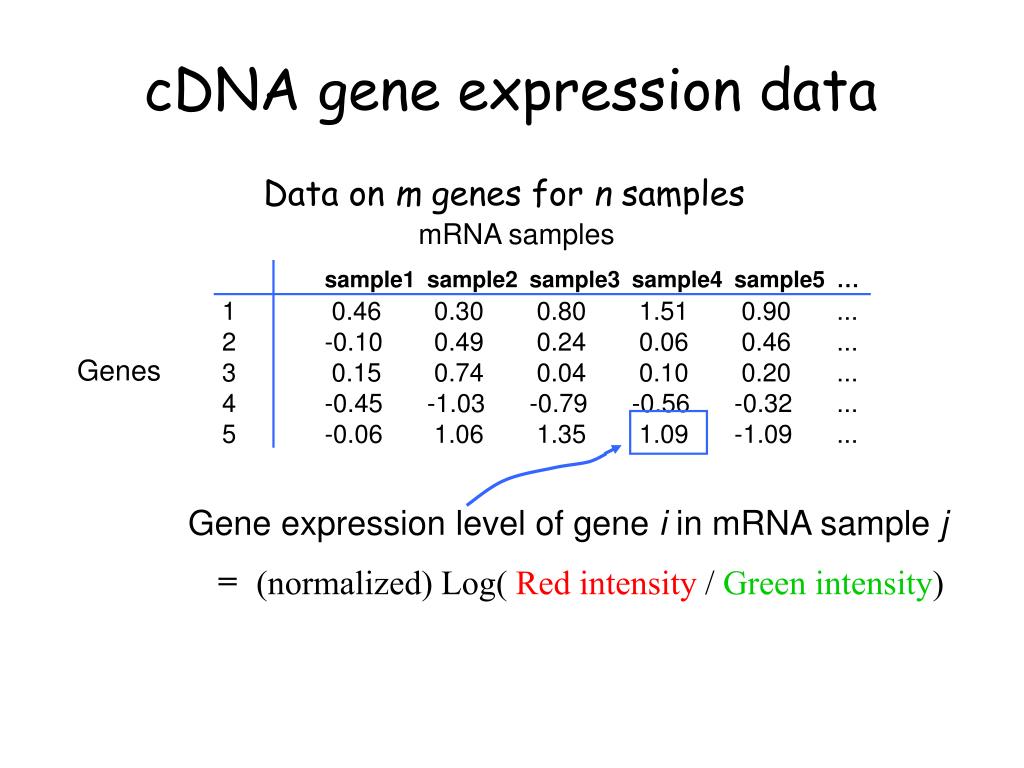

  2. cDNA gene expression data mRNA samples Data on m genes for n samples sample1 sample2 sample3 sample4 sample5 … 1 0.46 0.30 0.80 1.51 0.90 ... 2 -0.10 0.49 0.24 0.06 0.46 ... 3 0.15 0.74 0.04 0.10 0.20 ... 4 -0.45 -1.03 -0.79 -0.56 -0.32 ... 5 -0.06 1.06 1.35 1.09 -1.09 ... Genes Gene expression level of gene i in mRNA samplej = (normalized) Log(Red intensity / Green intensity)

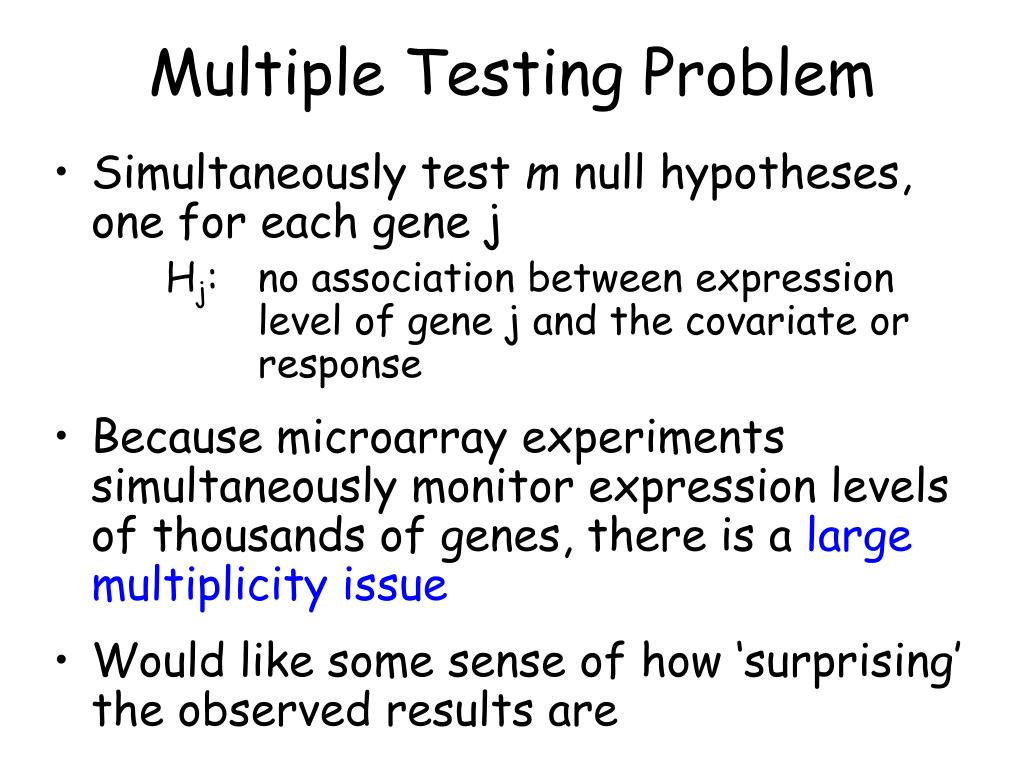

  3. Multiple Testing Problem • Simultaneously test m null hypotheses, one for each gene j Hj: no association between expression level of gene j and the covariate or response • Because microarray experiments simultaneously monitor expression levels of thousands of genes, there is a large multiplicity issue • Would like some sense of how ‘surprising’ the observed results are

  4. Hypothesis Truth vs. Decision Decision Truth

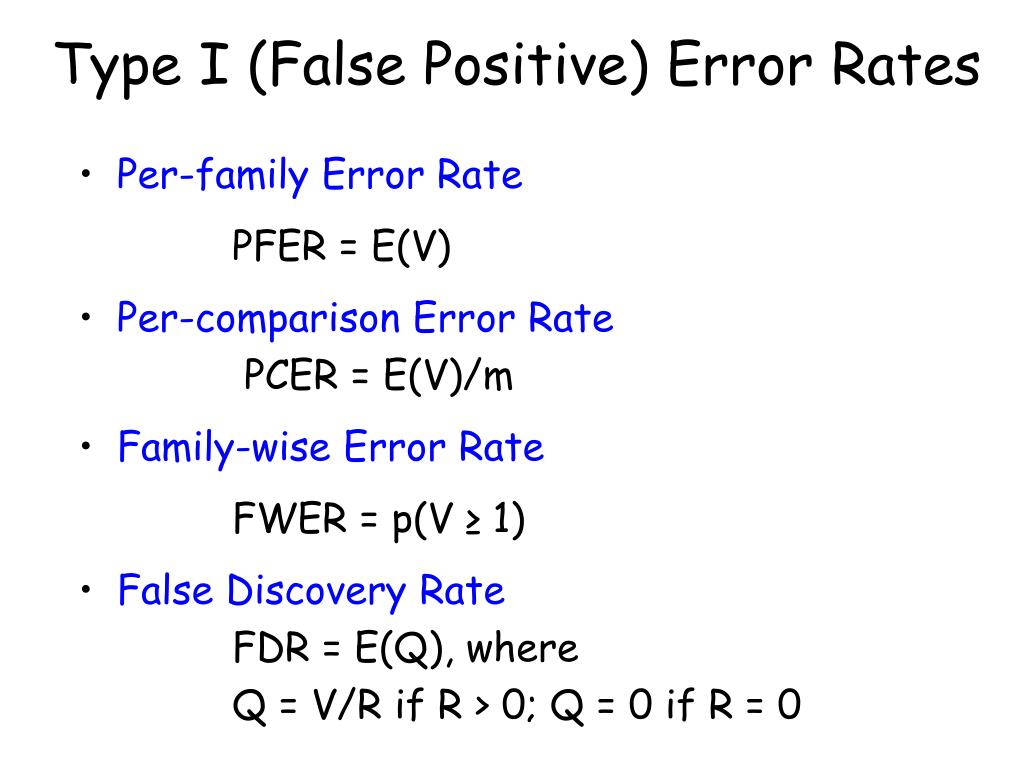

  5. Type I (False Positive) Error Rates • Per-family Error Rate PFER = E(V) • Per-comparison Error Rate PCER = E(V)/m • Family-wise Error Rate FWER = p(V ≥ 1) • False Discovery Rate FDR = E(Q), where Q = V/R if R > 0; Q = 0 if R = 0

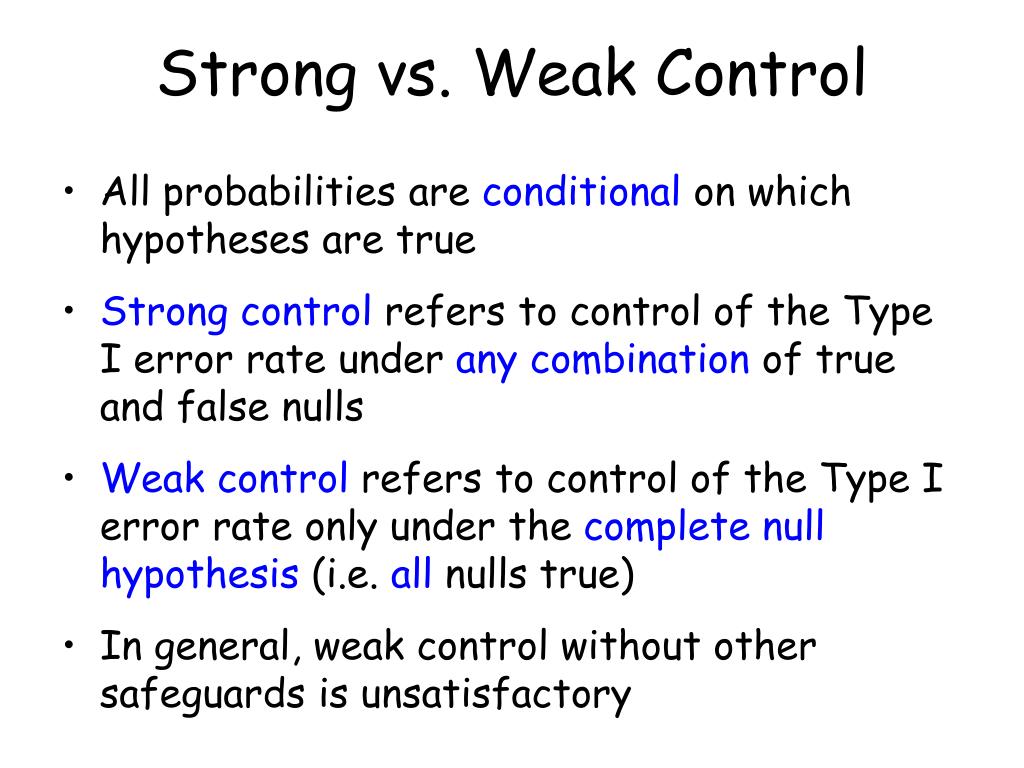

  6. Strong vs. Weak Control • All probabilities are conditional on which hypotheses are true • Strong control refers to control of the Type I error rate under any combination of true and false nulls • Weak control refers to control of the Type I error rate only under the complete null hypothesis (i.e. all nulls true) • In general, weak control without other safeguards is unsatisfactory

  7. Comparison of Type I Error Rates • In general, for a given multiple testing procedure, PCER  FWER  PFER, and FDR  FWER, with FDR = FWER under the complete null

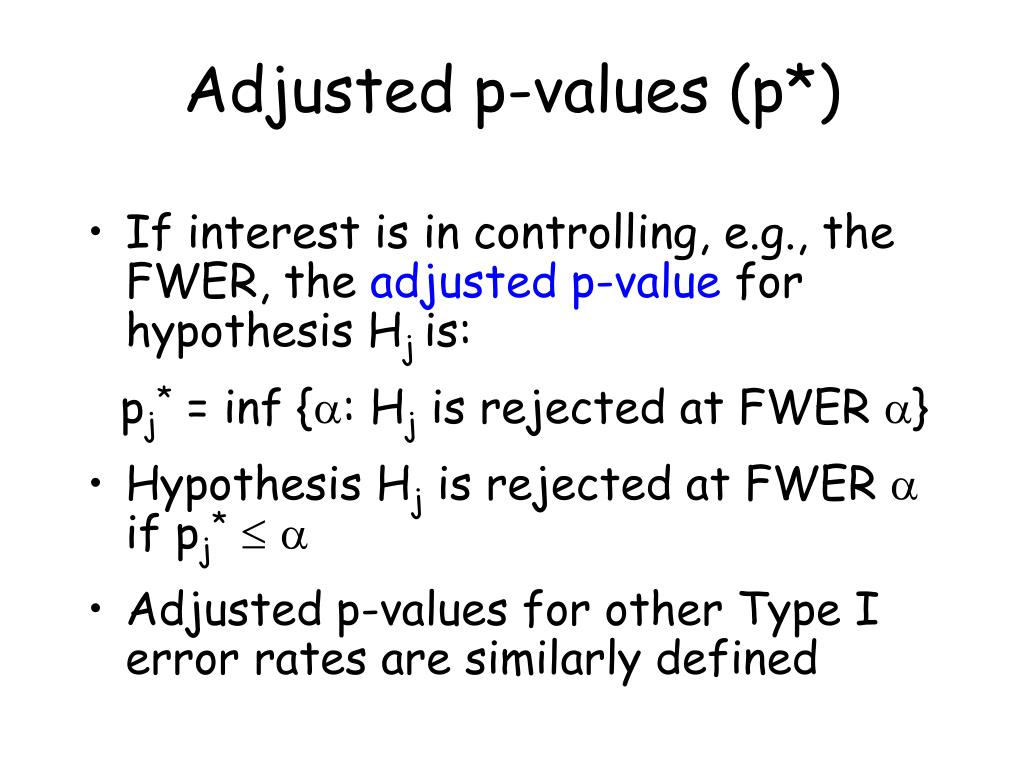

  8. Adjusted p-values (p*) • If interest is in controlling, e.g., the FWER, the adjusted p-value for hypothesis Hj is: pj* = inf {: Hj is rejected at FWER } • Hypothesis Hj is rejected at FWER  if pj* • Adjusted p-values for other Type I error rates are similarly defined

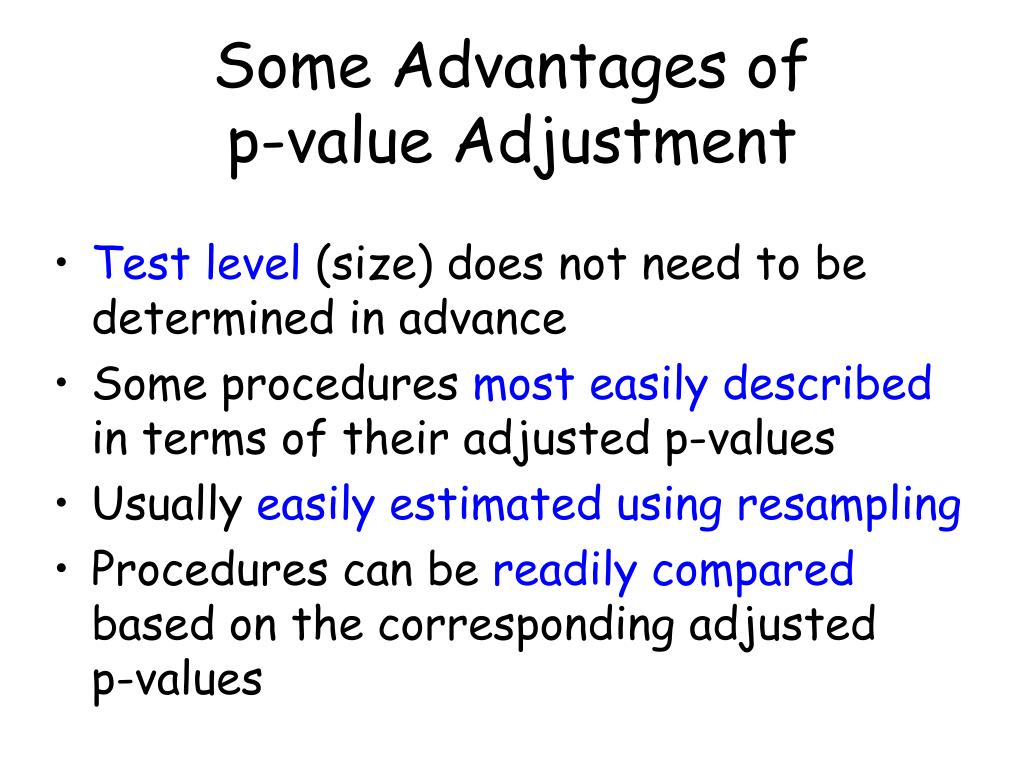

  9. Some Advantages of p-value Adjustment • Test level (size) does not need to be determined in advance • Some procedures most easily described in terms of their adjusted p-values • Usually easily estimatedusing resampling • Procedures can be readily compared based on the corresponding adjusted p-values

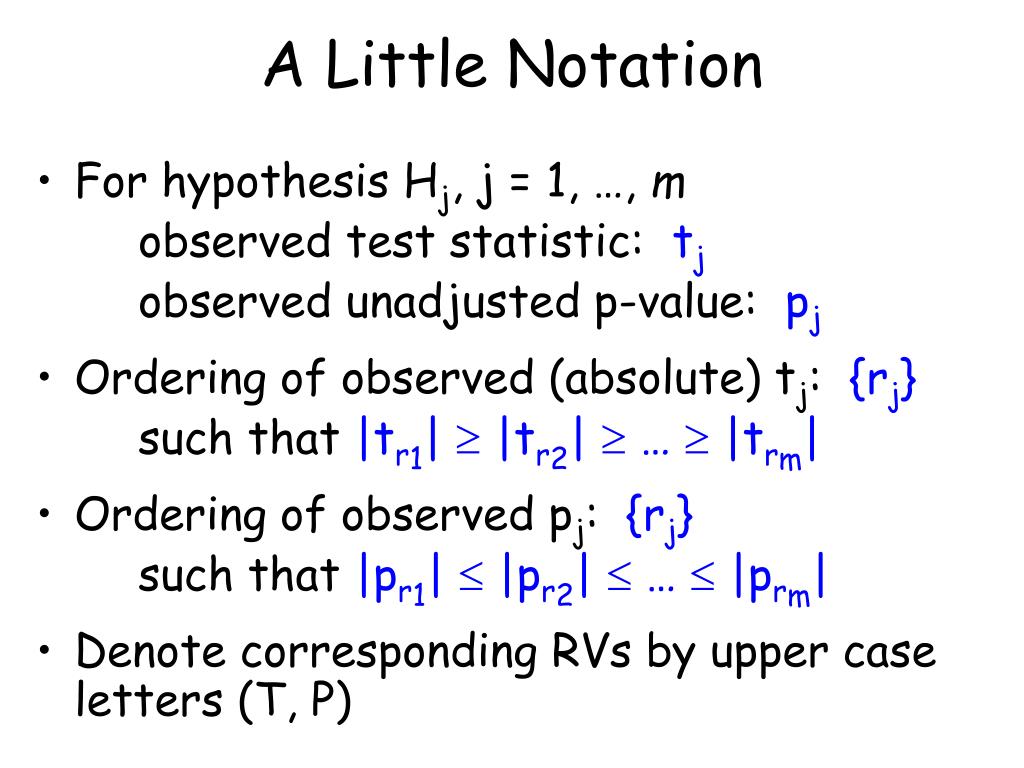

  10. A Little Notation • For hypothesis Hj, j = 1, …, m observed test statistic: tj observed unadjusted p-value: pj • Ordering of observed (absolute) tj: {rj} such that |tr1|  |tr2|  …  |trm| • Ordering of observed pj: {rj} such that |pr1|  |pr2| …  |prm| • Denote corresponding RVs by upper case letters (T, P)

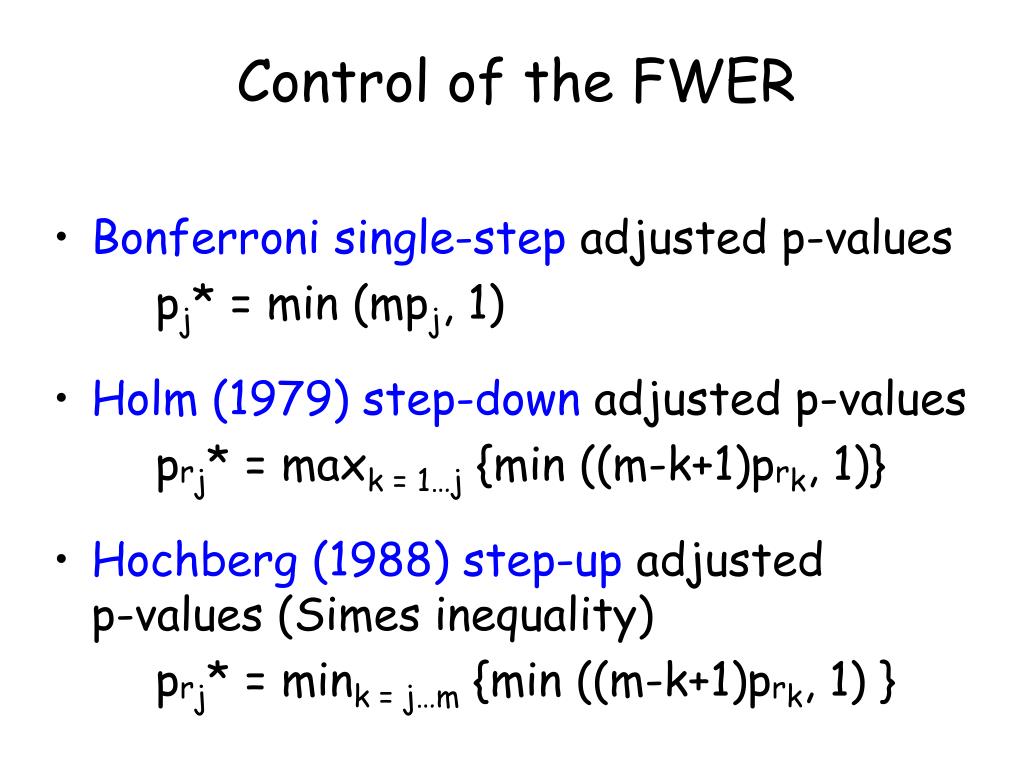

  11. Control of the FWER • Bonferroni single-step adjusted p-values pj* = min (mpj, 1) • Holm (1979)step-down adjusted p-values prj* = maxk = 1…j {min ((m-k+1)prk, 1)} • Hochberg (1988) step-up adjusted p-values (Simes inequality) prj* = mink = j…m {min ((m-k+1)prk, 1) }

  12. Control of the FWER • Westfall & Young (1993) step-down minP adjusted p-values prj* = maxk = 1…j { p(maxl{rk…rm} Pl prkH0C )} • Westfall & Young (1993) step-down maxT adjusted p-values prj* = maxk = 1…j { p(maxl{rk…rm} |Tl| ≥ |trk| H0C )}

  13. Westfall & Young (1993) Adjusted p-values • Step-down procedures: successively smaller adjustments at each step • Take into account the joint distribution of the test statistics • Less conservative than Bonferroni, Holm, or Hochberg adjusted p-values • Can be estimated by resampling but computer-intensive (especially for minP)

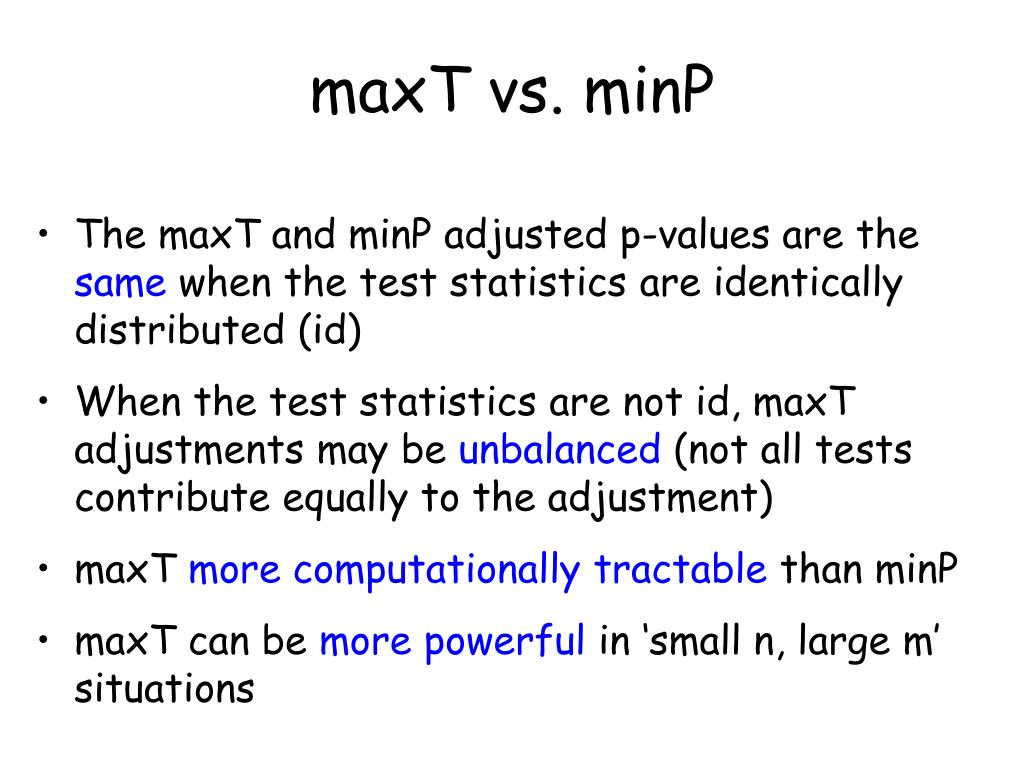

  14. maxT vs. minP • The maxT and minP adjusted p-values are the same when the test statistics are identically distributed (id) • When the test statistics are not id, maxT adjustments may be unbalanced (not all tests contribute equally to the adjustment) • maxT more computationally tractable than minP • maxT can be more powerful in ‘small n, large m’ situations

  15. Control of the FDR • Benjamini & Hochberg (1995): step-up procedure which controls the FDR under some dependency structures prj* = mink = j…m { min ([m/k] prk, 1) } • Benjamini & Yuketieli (2001): conservative step-up procedure which controls the FDR under general dependency structures prj* = mink = j…m { min (m[1/j]/k] prk, 1) } • Yuketieli & Benjamini (1999): resampling based adjusted p-values for controlling the FDR under certain types of dependency structures

  16. Identification of Genes Associated with Survival • Data: survival yi and gene expression xij for individuals i = 1, …, n and genes j = 1, …, m • Fit Cox model for each gene singly: h(t) = h0(t)exp(jxij) • For any gene j = 1, …, m, can test Hj: j = 0 • Complete null H0C: j = 0 for all j = 1, …, m • The Hj are tested on the basis of the Wald statistics tj and their associated p-values pj

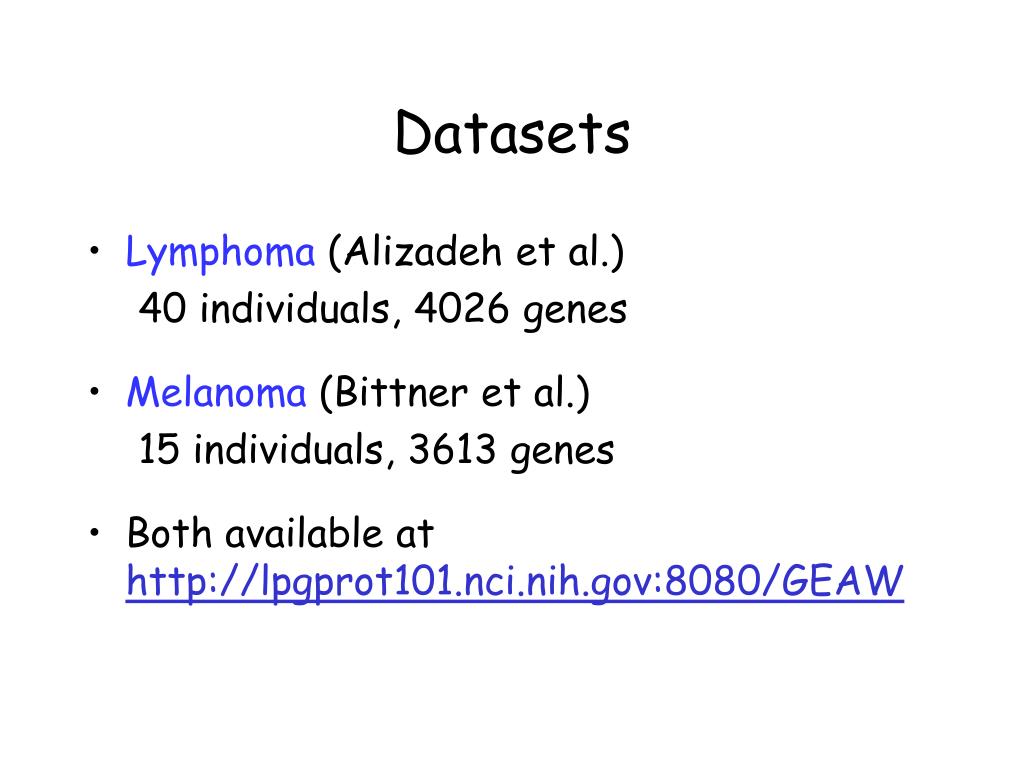

  17. Datasets • Lymphoma(Alizadeh et al.) 40 individuals, 4026 genes • Melanoma(Bittner et al.) 15 individuals, 3613 genes • Both available at http://lpgprot101.nci.nih.gov:8080/GEAW

  18. Results: Lymphoma

  19. Results: Melanoma

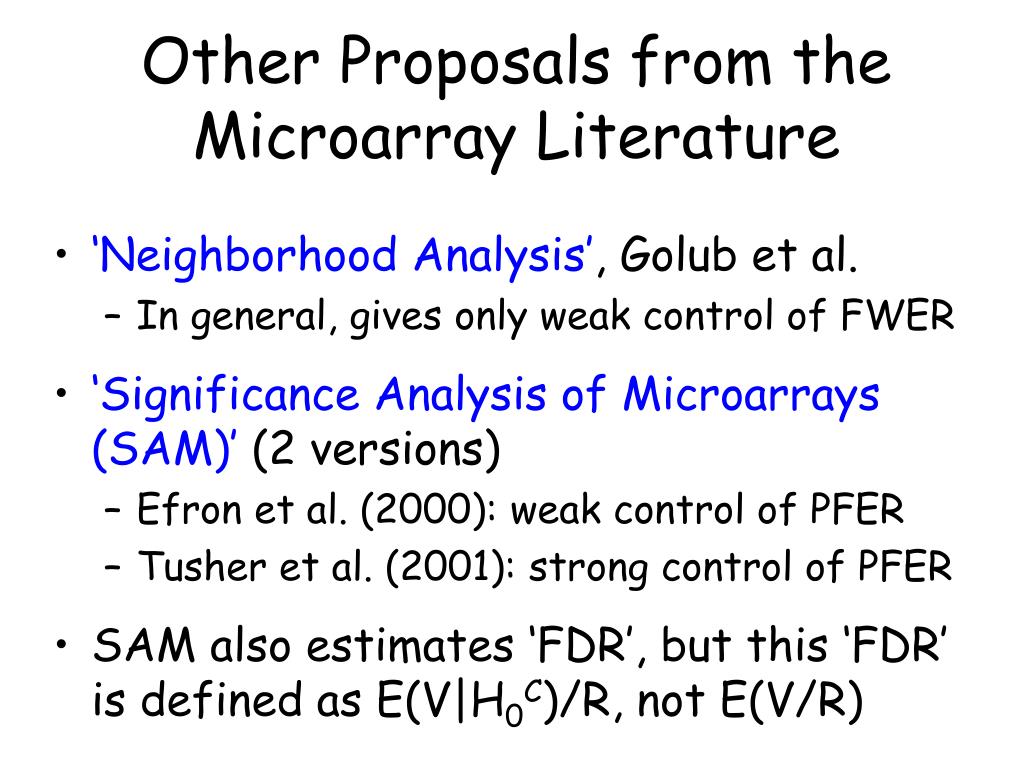

  20. Other Proposals from the Microarray Literature • ‘Neighborhood Analysis’, Golub et al. • In general, gives only weak control of FWER • ‘Significance Analysis of Microarrays (SAM)’ (2 versions) • Efron et al. (2000): weak control of PFER • Tusher et al. (2001): strong control of PFER • SAM also estimates ‘FDR’, but this ‘FDR’ is defined as E(V|H0C)/R, not E(V/R)

  21. Controversies • Whether multiple testing methods (adjustments) should be applied at all • Which tests should be included in the family (e.g. all tests performed within a single experiment; define ‘experiment’) • Alternatives • Bayesian approach • Meta-analysis

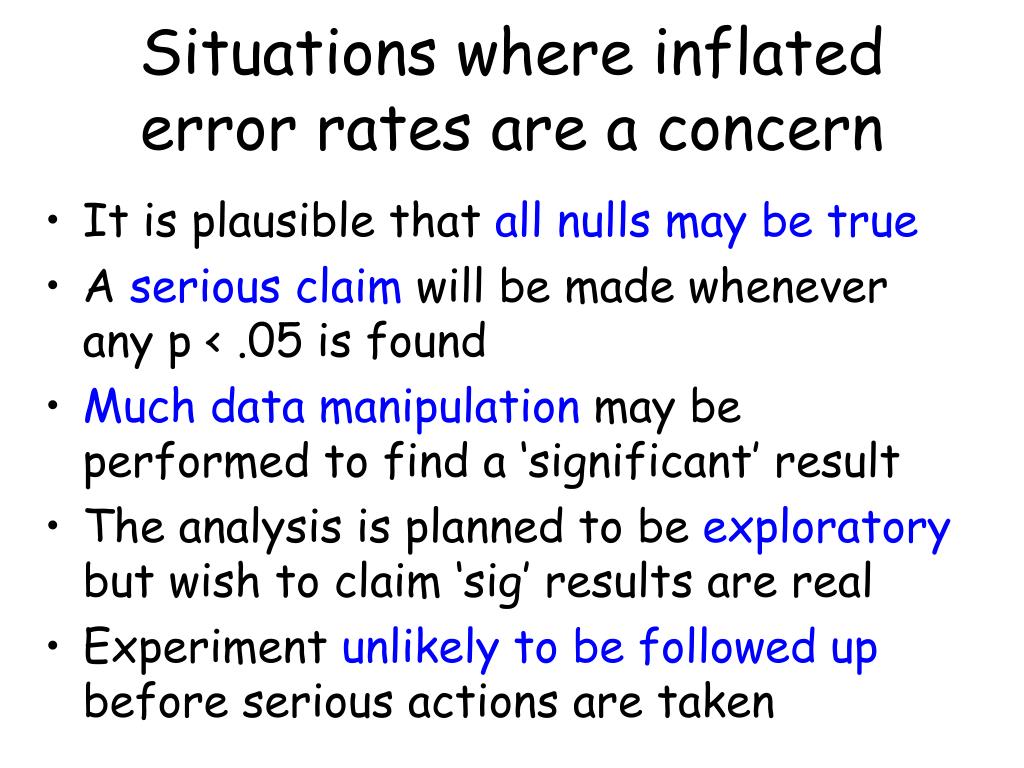

  22. Situations where inflated error rates are a concern • It is plausible that all nulls may be true • A serious claim will be made whenever any p < .05 is found • Much data manipulation may be performed to find a ‘significant’ result • The analysis is planned to be exploratory but wish to claim ‘sig’ results are real • Experiment unlikely to be followed up before serious actions are taken

  23. Discussion (I) • Lack of significant findings • Small sample sizes • FWER-controlling procedures may be too stringent in microarray applications • FDR could perhaps be made even more powerful by taking into account the joint distribution of gene expression levels

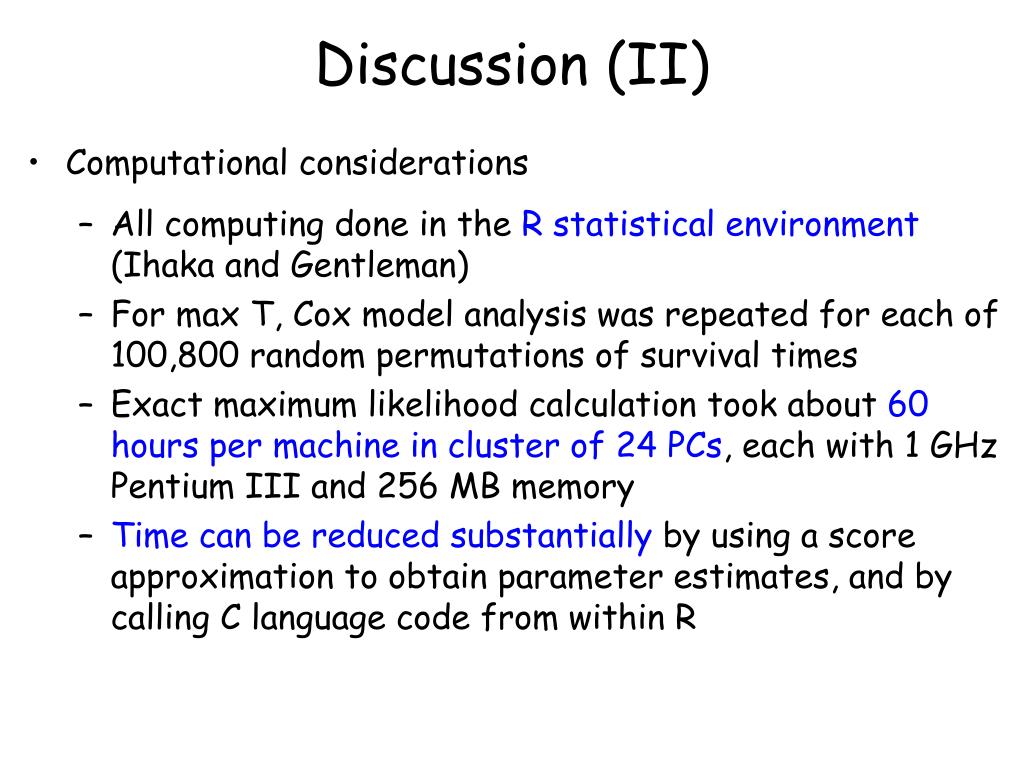

  24. Discussion (II) • Computational considerations • All computing done in the R statistical environment (Ihaka and Gentleman) • For max T, Cox model analysis was repeated for each of 100,800 random permutations of survival times • Exact maximum likelihood calculation took about 60 hours per machine in cluster of 24 PCs, each with 1 GHz Pentium III and 256 MB memory • Time can be reduced substantially by using a score approximation to obtain parameter estimates, and by calling C language code from within R

  25. References • Alizadeh et al. (2000) Distinct types of diffuse large B-cell lymphoma identified by gene expression profiling. Nature 403: 503-511 • Benjamini and Hochberg (1995) Controlling the false discovery rate: a practical and powerful approach to multiple testing. JRSSB 57: 289-200 • Benjamini and Yuketieli (2001) The control of false discovery rate in multiple hypothesis testing under dependency. Annals of Statistics • Bittner et al. (2000) Molecular classification of cutaneous malignant melanoma by gene expression profiling. Nature 406: 536-540 • Efron et al. (2000) Microarrays and their use in a comparative experiment. Tech report, Stats, Stanford • Golub et al. (1999) Molecular classification of cancer. Science 286: 531-537

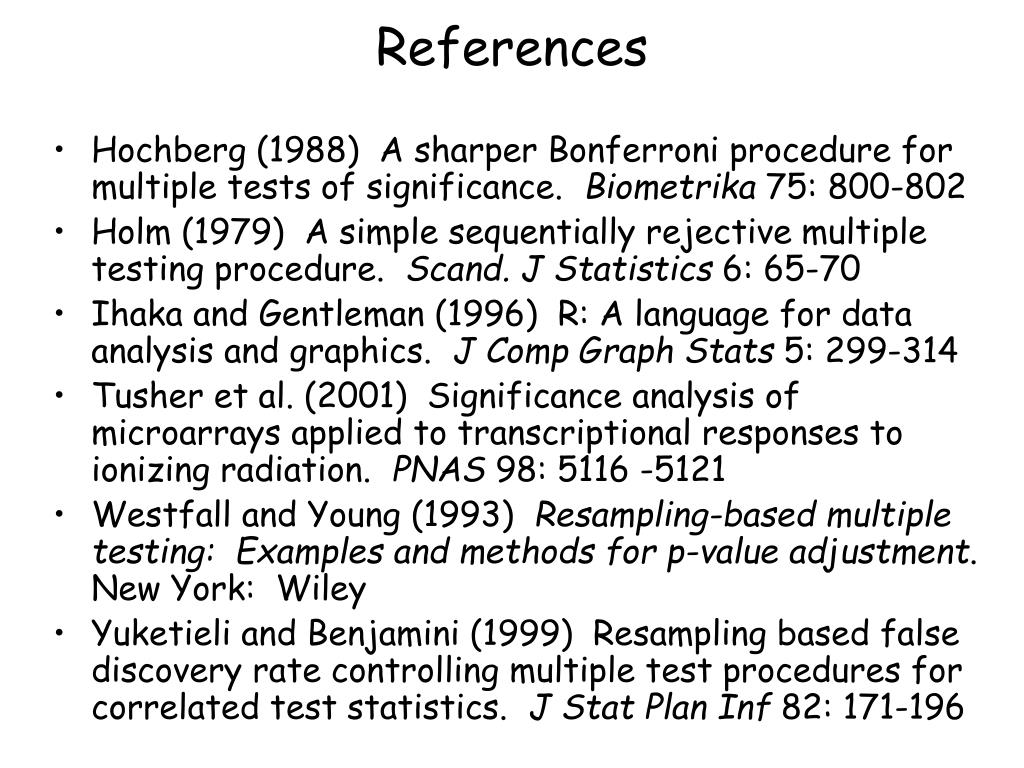

  26. References • Hochberg (1988) A sharper Bonferroni procedure for multiple tests of significance. Biometrika 75: 800-802 • Holm (1979) A simple sequentially rejective multiple testing procedure. Scand. J Statistics 6: 65-70 • Ihaka and Gentleman (1996) R: A language for data analysis and graphics. J Comp Graph Stats 5: 299-314 • Tusher et al. (2001) Significance analysis of microarrays applied to transcriptional responses to ionizing radiation. PNAS 98: 5116 -5121 • Westfall and Young (1993) Resampling-based multiple testing: Examples and methods for p-value adjustment. New York: Wiley • Yuketieli and Benjamini (1999) Resampling based false discovery rate controlling multiple test procedures for correlated test statistics. J Stat Plan Inf 82: 171-196

  27. Acknowledgements • Debashis Ghosh • Erin Conlon
