Complex scripts in internet explorer 5 0

Complex Scripts* in Internet Explorer 5.0

*and Multilingual text

F. Avery Bishop

Senior Program Manager

Microsoft Corporation


Agenda using complex scripts such as arabic in web pages

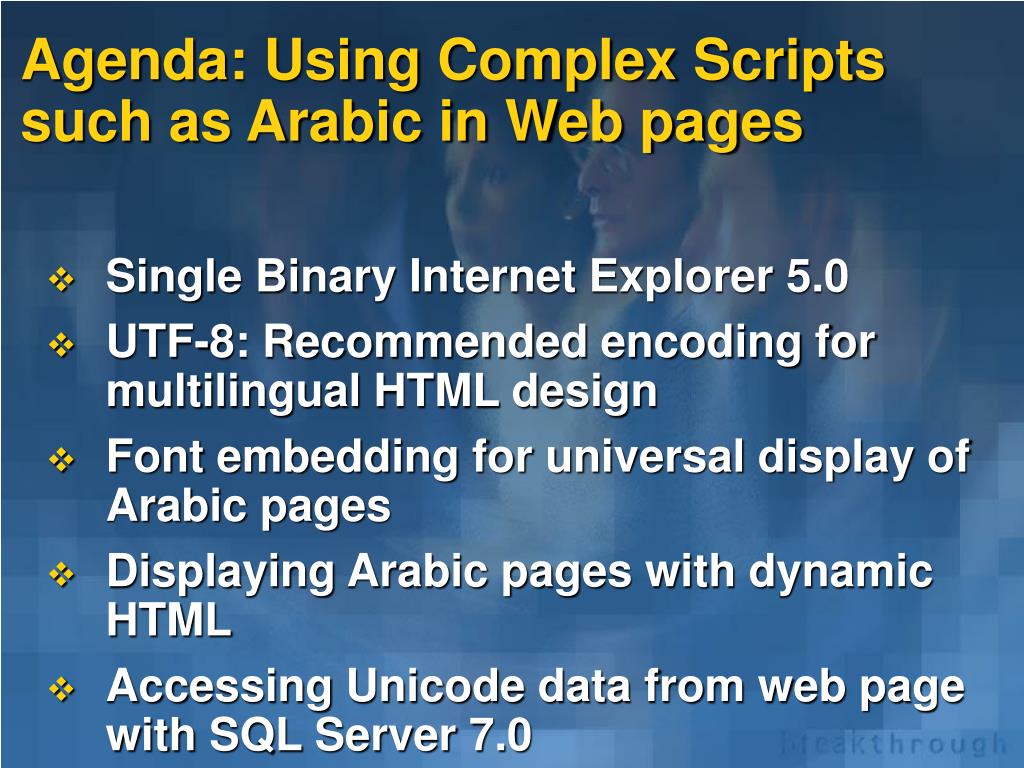

Agenda: Using Complex Scripts such as Arabic in Web pages

  • Single Binary Internet Explorer 5.0

  • UTF-8: Recommended encoding for multilingual HTML design

  • Font embedding for universal display of Arabic pages

  • Displaying Arabic pages with dynamic HTML

  • Accessing Unicode data from web page with SQL Server 7.0


Internet explorer 5 0 on win32 platforms

Internet Explorer 5.0 on Win32 Platforms

  • Displays complex scripts (e.g., Arabic) on all language platforms

  • Supports complex scripts in Document Object Model


Encodings for multi lingual text in web pages

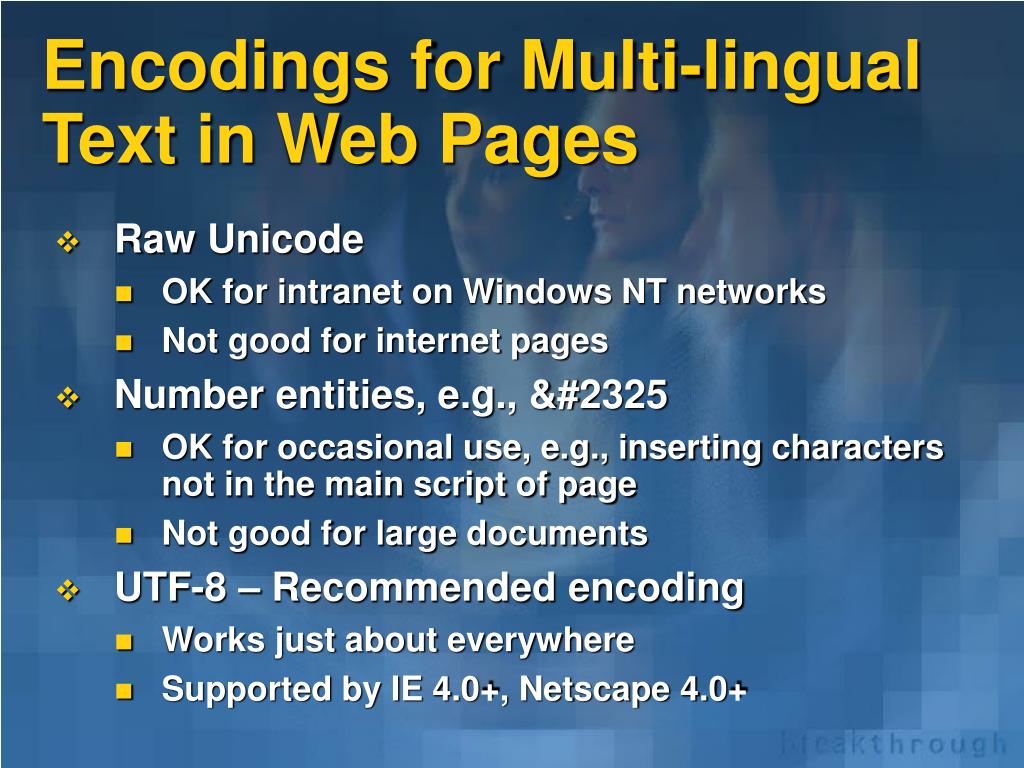

Encodings for Multi-lingual Text in Web Pages

  • Raw Unicode

    • OK for intranet on Windows NT networks

    • Not good for internet pages

  • Number entities, e.g., &#2325

    • OK for occasional use, e.g., inserting characters not in the main script of page

    • Not good for large documents

  • UTF-8 – Recommended encoding

    • Works just about everywhere

    • Supported by IE 4.0+, Netscape 4.0+


Creating utf 8 webpages

Creating UTF-8 Webpages

  • Use charset=UTF-8 in META tag

  • Save HTML page as UTF-8 using notepad, Word, etc.

  • Saving as UTF-8 in Word:

    • Select File/Save As WebPage/Tools

    • Select Web Options/Encoding

    • Change charset designation to UTF-8


Embedded fonts in web pages

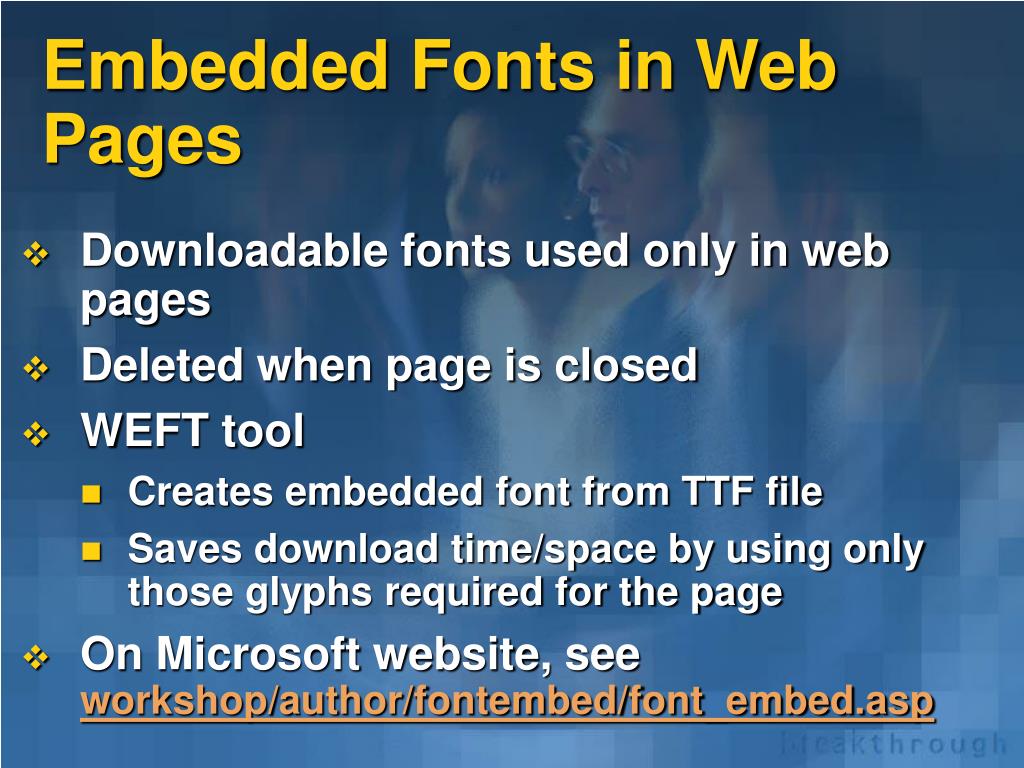

Embedded Fonts in Web Pages

  • Downloadable fonts used only in web pages

  • Deleted when page is closed

  • WEFT tool

    • Creates embedded font from TTF file

    • Saves download time/space by using only those glyphs required for the page

  • On Microsoft website, see workshop/author/fontembed/font_embed.asp


Introduction to dhtml

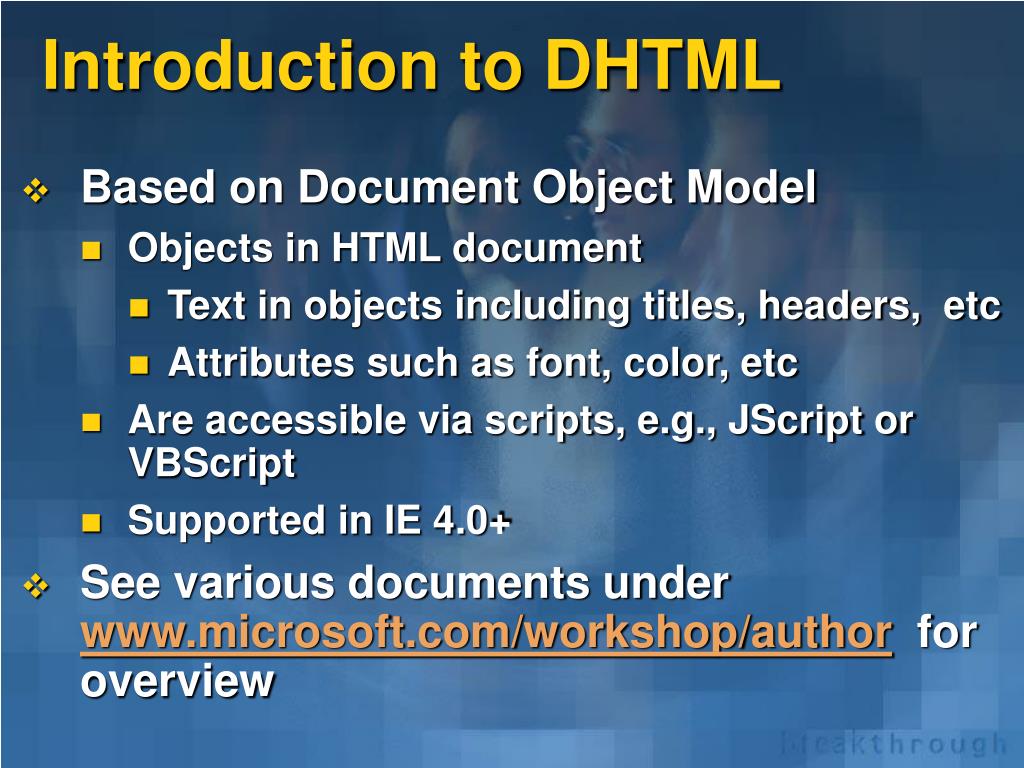

Introduction to DHTML

  • Based on Document Object Model

    • Objects in HTML document

      • Text in objects including titles, headers, etc

      • Attributes such as font, color, etc

    • Are accessible via scripts, e.g., JScript or VBScript

    • Supported in IE 4.0+

  • See various documents under www.microsoft.com/workshop/author for overview


Examples of dhtml

Examples of DHTML

<H1 id=Head1 style=“font-weight: normal”

onmouseover = “makeitalic() ;”

onmouseout = “makenormal() ;” >

Sample Dynamic HTML </H1>

<script language=JavaScript>

function makeItalic() {

Head1.style.fontstyle = “Italic” ;

}

function makeNormal() {

Head1.style.fontstyle = “Normal” ;

}

</script>

Heading tag

Jscript functions that change style of heading text


Using bidi text e g arabic and hebrew in dhtml

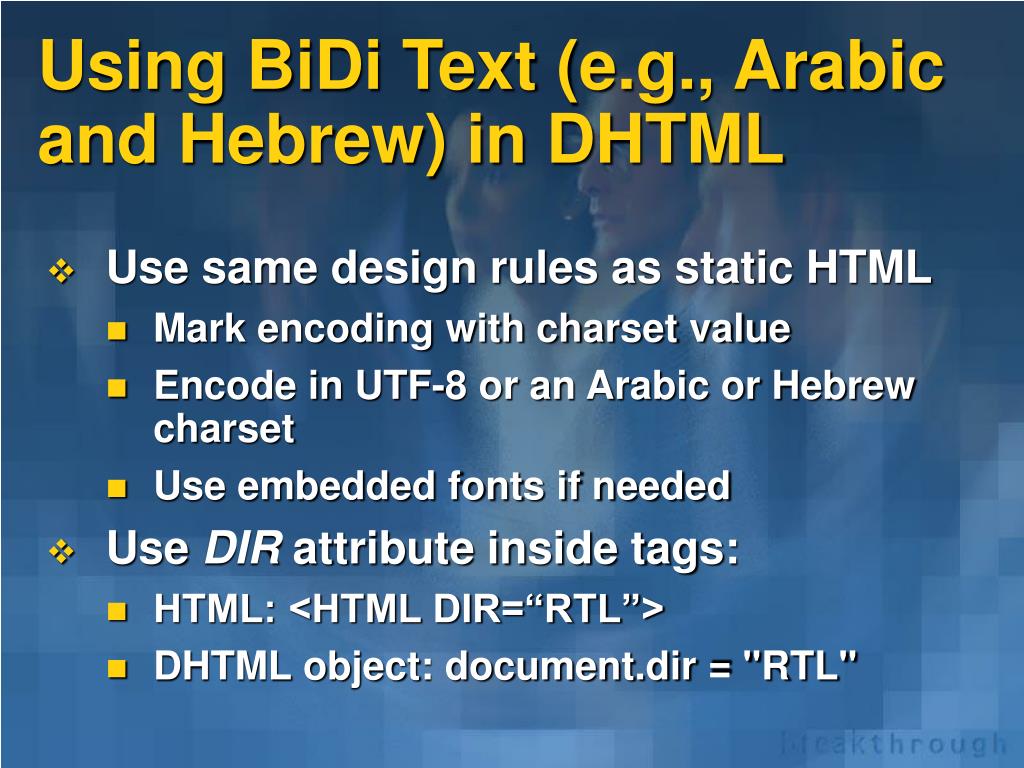

Using BiDi Text (e.g., Arabic and Hebrew) in DHTML

  • Use same design rules as static HTML

    • Mark encoding with charset value

    • Encode in UTF-8 or an Arabic or Hebrew charset

    • Use embedded fonts if needed

  • Use DIR attribute inside tags:

    • HTML: <HTML DIR=“RTL”>

    • DHTML object: document.dir = "RTL"


Unicode support in sql server 7 0

Unicode Support in SQL Server 7.0

  • Unicode datatypes in SQL Server 7.0

    • NCHAR

    • NVARCHAR

    • NTEXT

    • Indicate Unicode text by N’text’, in SQL queries:

      create table myTable (col1 CHAR(8), col2 NCHAR(8))

      insert into myTable (col1,col2) (‘Japan’, N‘日本')

  • Utilities for entering/retrieving Unicode data:

    • Query Analyzer

    • Data Transformation Services

    • Client application using ODBC


Accessing sql server 7 0 unicode data through asp webpages

Accessing SQL Server 7.0 Unicode Data through ASP Webpages

  • Use standard encodings:

    • UTF-8 in web pages

    • Unicode in SQL Server 7.0

  • Access data through Jscript/ODBC

  • Jscript automatically translates Unicode to current codepage in web page

    • Defaults to system codepage

    • Specify UTF-8 “codepage” using:

      • <%Session.CodePage=65001%> // Scope=session

      • <[email protected]=65001%>// Scope=page


Complex scripts in internet explorer 5 0

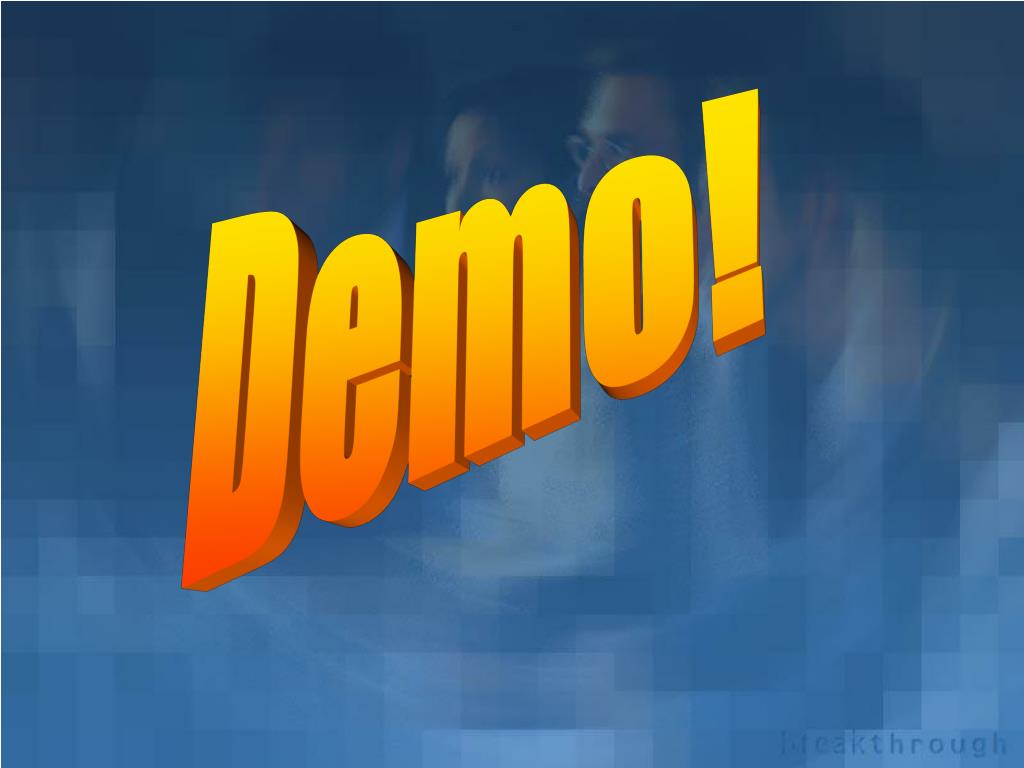

Demo!


Complex scripts in internet explorer 5 0

Questions?
