Building add ons that work cross browser joshua allen joshuaa@microsoft com

Building Add-Ons that Work Cross-Browser

Joshua Allen <>

From Firefox to IE

Why did you start with firefox

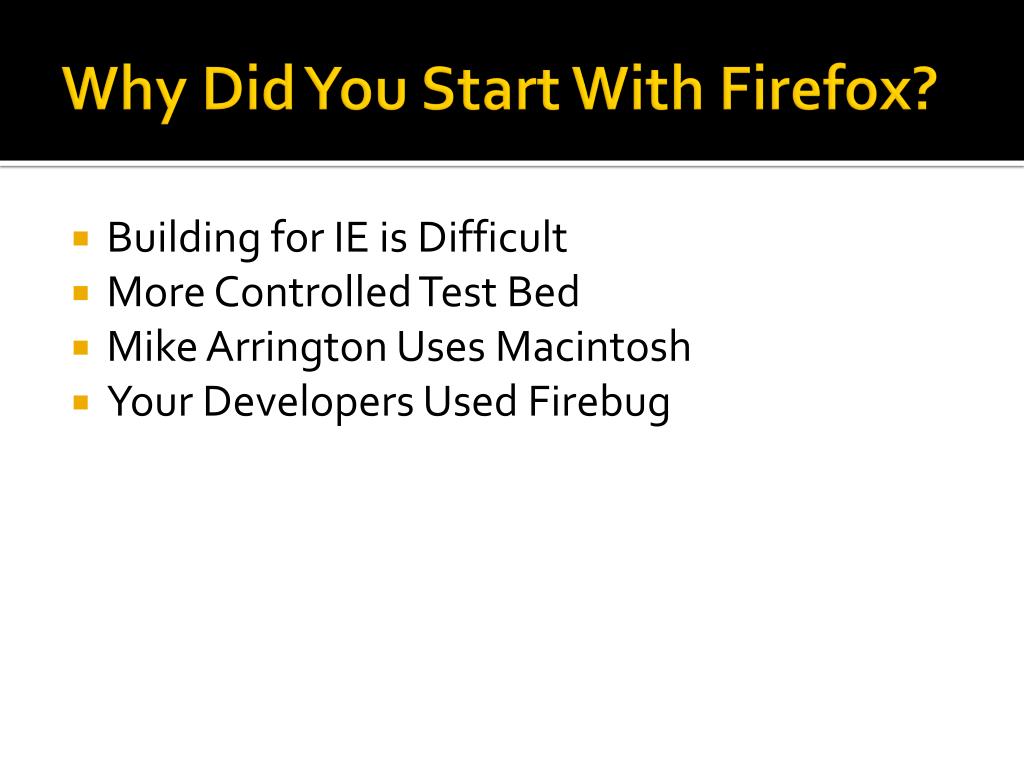

Why Did You Start With Firefox?

  • Building for IE is Difficult

  • More Controlled Test Bed

  • Mike Arrington Uses Macintosh

  • Your Developers Used Firebug

Why port to ie

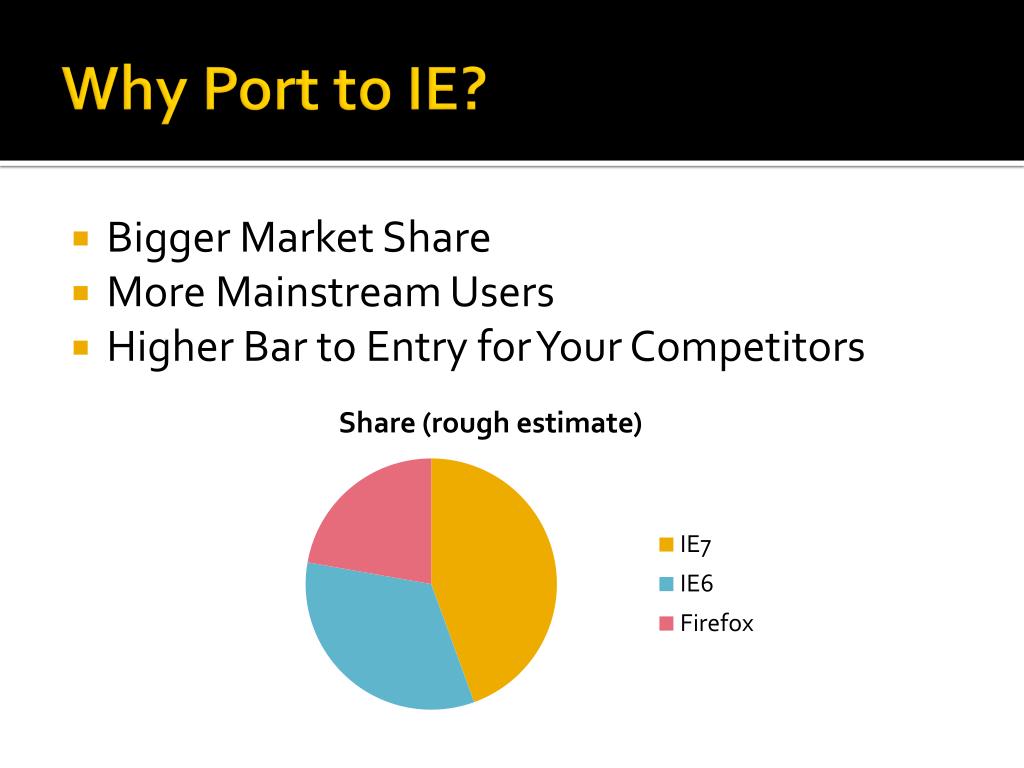

Why Port to IE?

  • Bigger Market Share

  • More Mainstream Users

  • Higher Bar to Entry for Your Competitors

The web is about interop

The Web is About Interop

  • Users: Things Work The Same on All Browsers

  • Developers: My Skills Work on All Browsers

  • Consider Starting With Both Browsers

Creating your add on

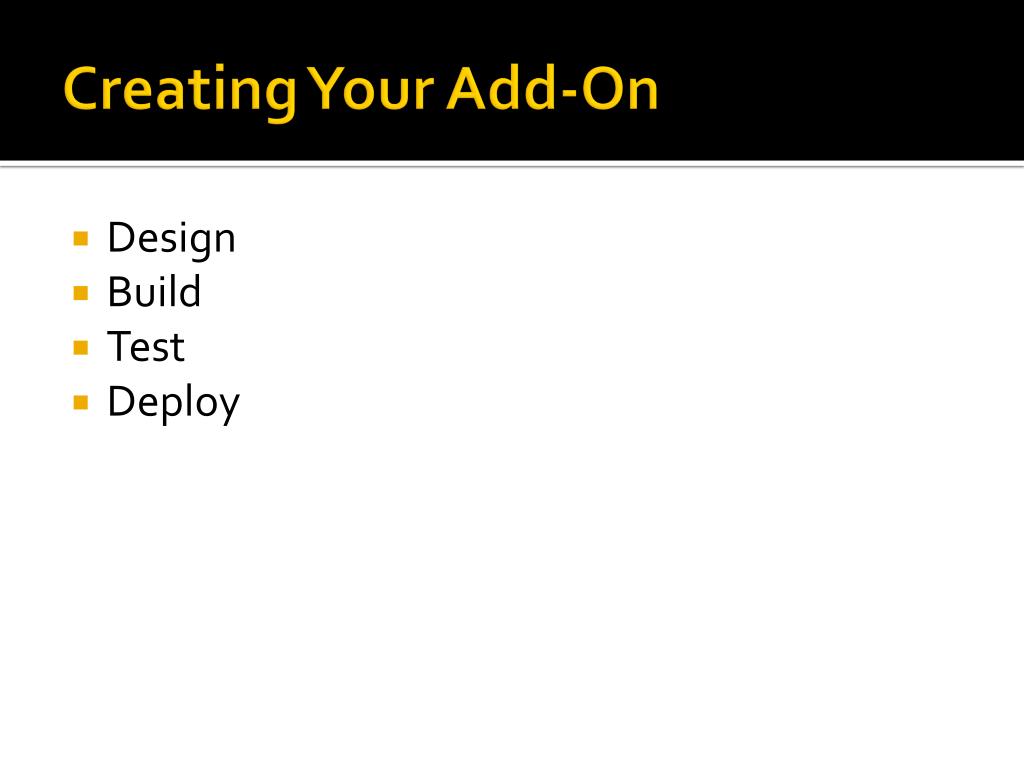

Creating Your Add-On

  • Design

  • Build

  • Test

  • Deploy

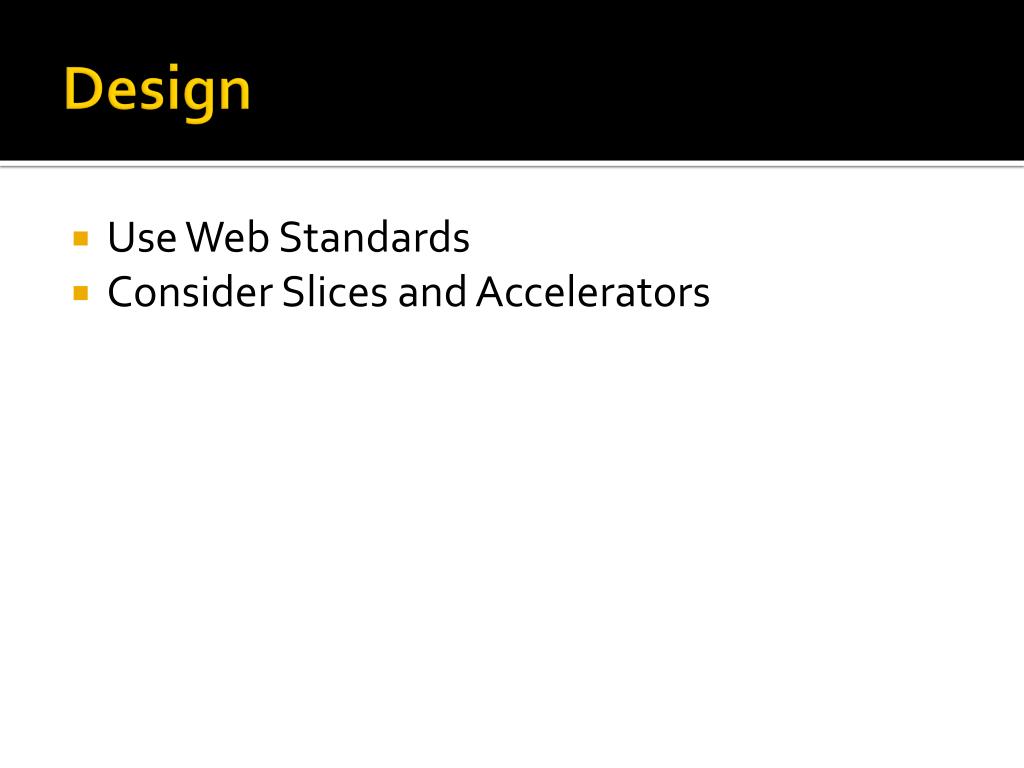

  • Use Web Standards

  • Consider Slices and Accelerators

An idealistic example oomph

An Idealistic Example: Oomph

  • Detect Microformats from Browser

    • Cross-Browser Tag for Page Owners

    • IE Toolbar – NOT for Firefox, Safari, etc.

  • Export to Outlook, Google Calendar, etc.



Demo code oomph

Demo + Code: Oomph

The purple is your code

The Purple is Your Code


Adding oomph to ie

Adding Oomph to IE

<script language="javascript" type="text/javascript" src="">


  • Adding to Google Chrome with User Script

  • The same code in IE

Zomg c

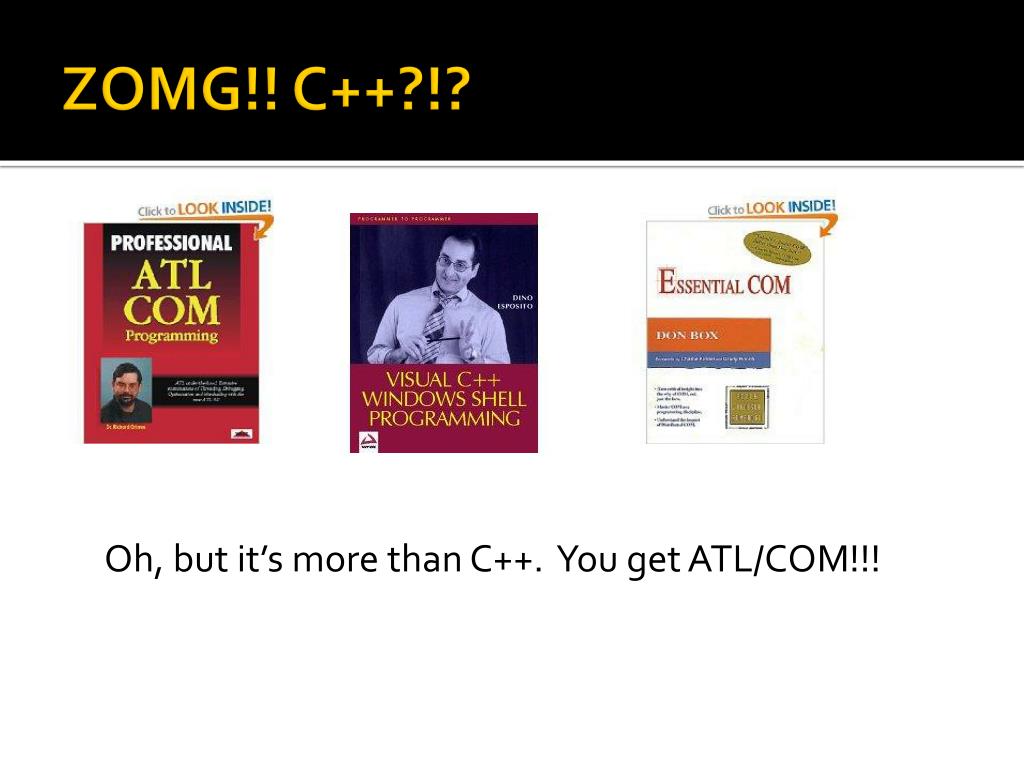

ZOMG!! C++?!?

Oh, but it’s more than C++. You get ATL/COM!!!

Can i use c or python etc

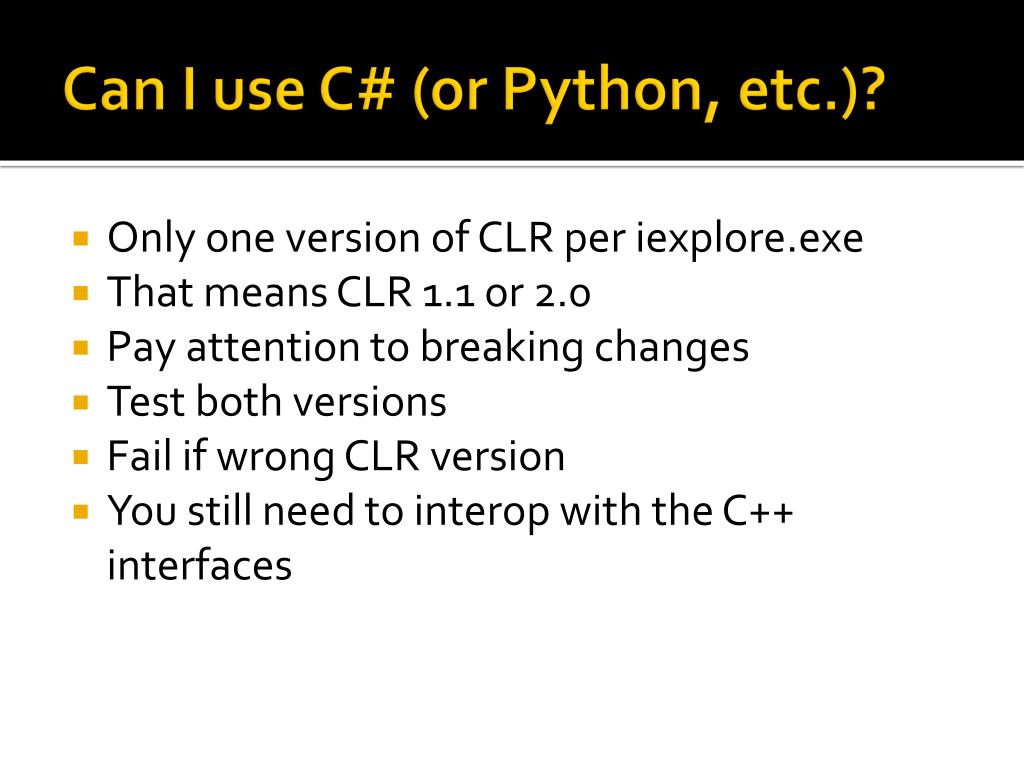

Can I use C# (or Python, etc.)?

  • Only one version of CLR per iexplore.exe

  • That means CLR 1.1 or 2.0

  • Pay attention to breaking changes

  • Test both versions

  • Fail if wrong CLR version

  • You still need to interop with the C++ interfaces

Like xul only in c

Like XUL, Only in C++

  • IWebBrowser2

  • IHTMLDocument2

  • DWebBrowserEvents2

  • HTMLDocumentEvents2

Loading your add on

Loading Your Add-On

  • Finds Your DLL in Registry and Loads it

  • In-Process With Iexplore.exe

  • One Instance Per Tab

  • First DllMain, then SetSite

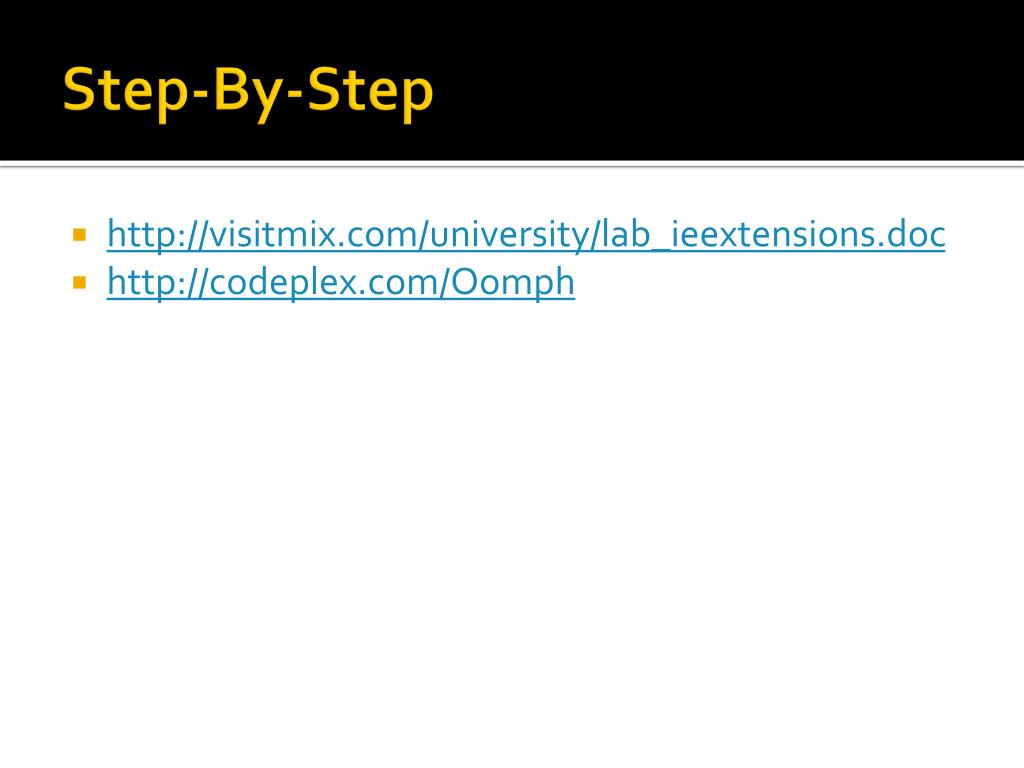

Step by step




Sidebar ui

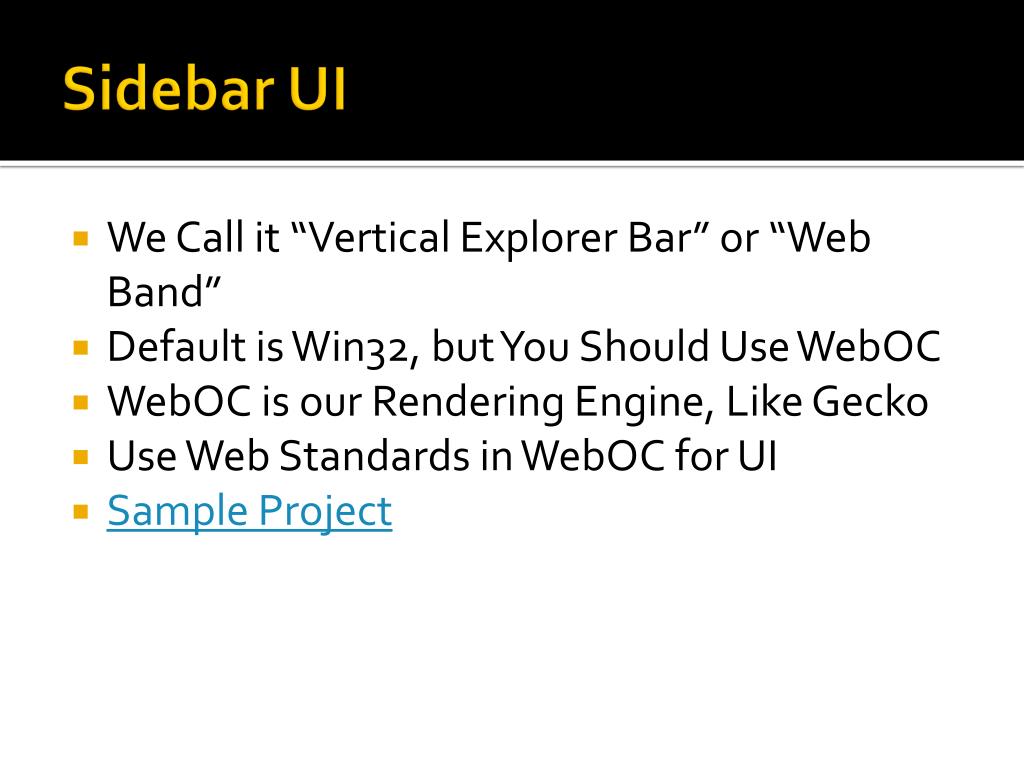

Sidebar UI

  • We Call it “Vertical Explorer Bar” or “Web Band”

  • Default is Win32, but You Should Use WebOC

  • WebOC is our Rendering Engine, Like Gecko

  • Use Web Standards in WebOC for UI

  • Sample Project

Toolbar ui

Toolbar UI

  • Buttons: No Code Needed! But…

    • No Dynamic UI

    • No Split Button

    • No Forced Ordering

  • Tool Bands

    • All Win32

Protected mode

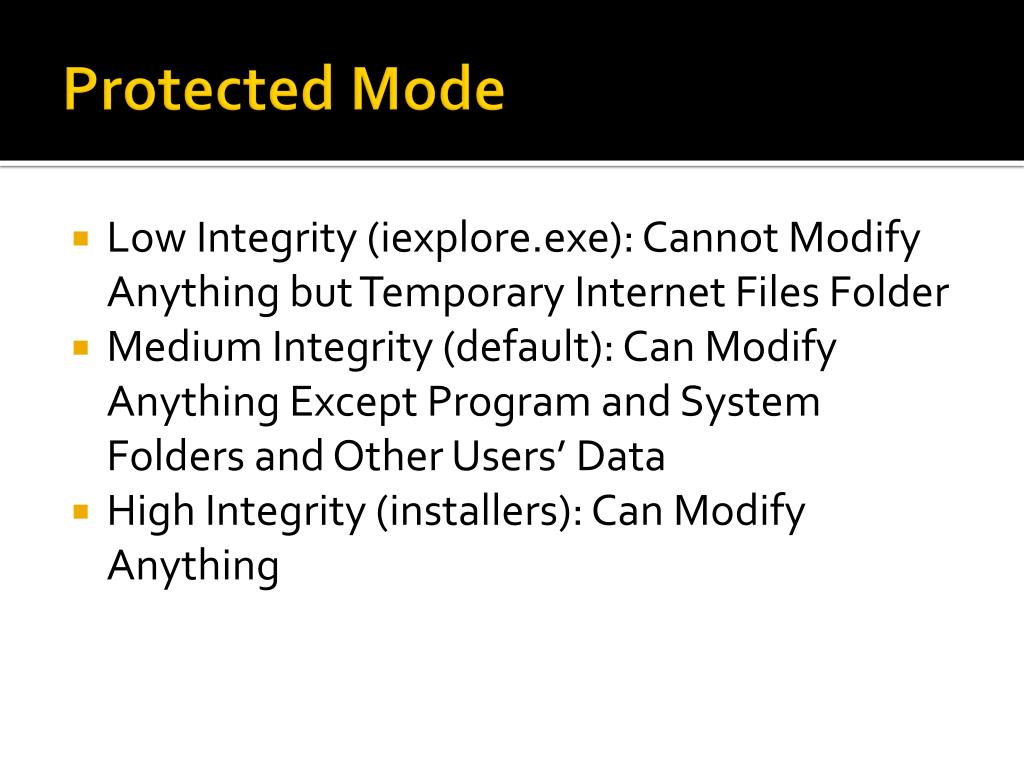

Protected Mode

  • Low Integrity (iexplore.exe): Cannot Modify Anything but Temporary Internet Files Folder

  • Medium Integrity (default): Can Modify Anything Except Program and System Folders and Other Users’ Data

  • High Integrity (installers): Can Modify Anything

Common issues

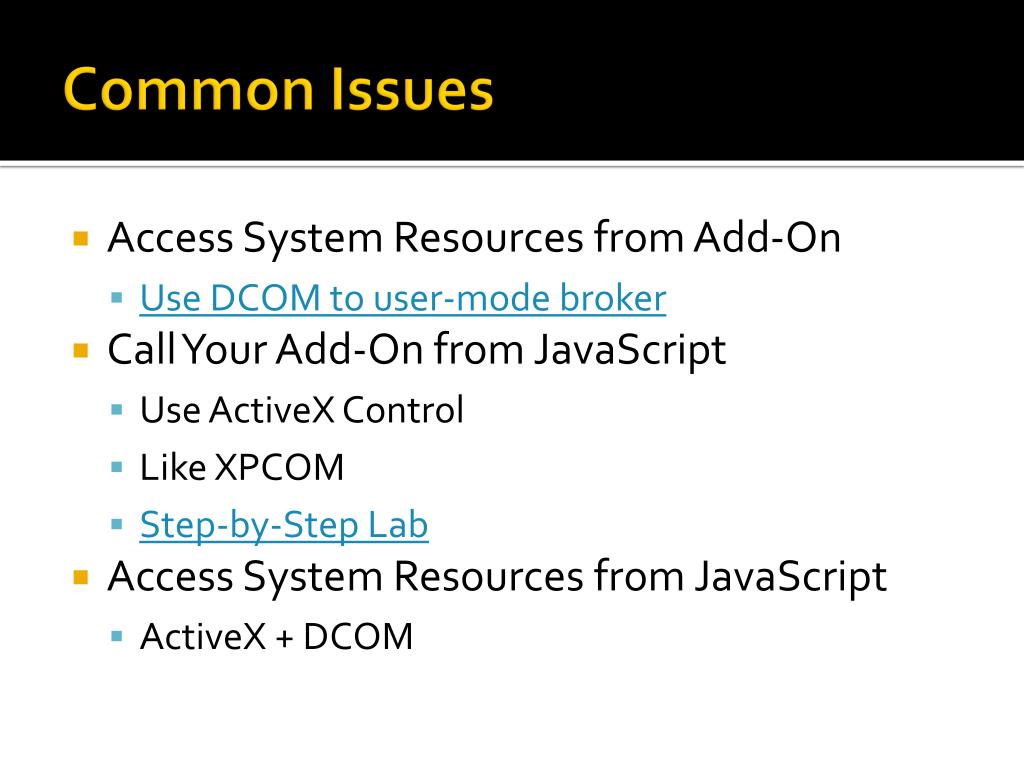

Common Issues

  • Access System Resources from Add-On

    • Use DCOM to user-mode broker

  • Call Your Add-On from JavaScript

    • Use ActiveX Control

    • Like XPCOM

    • Step-by-Step Lab

  • Access System Resources from JavaScript

    • ActiveX + DCOM

Common issues1

Common Issues

  • Web Services

    • Use Web Standards from AJAX (JSON, XML)

  • Persistence

    • Use cookies, Server State, or Plugin Library

  • Detect Tab Switching

  • Background Processing – Call Service Via DCOM

Common issues2

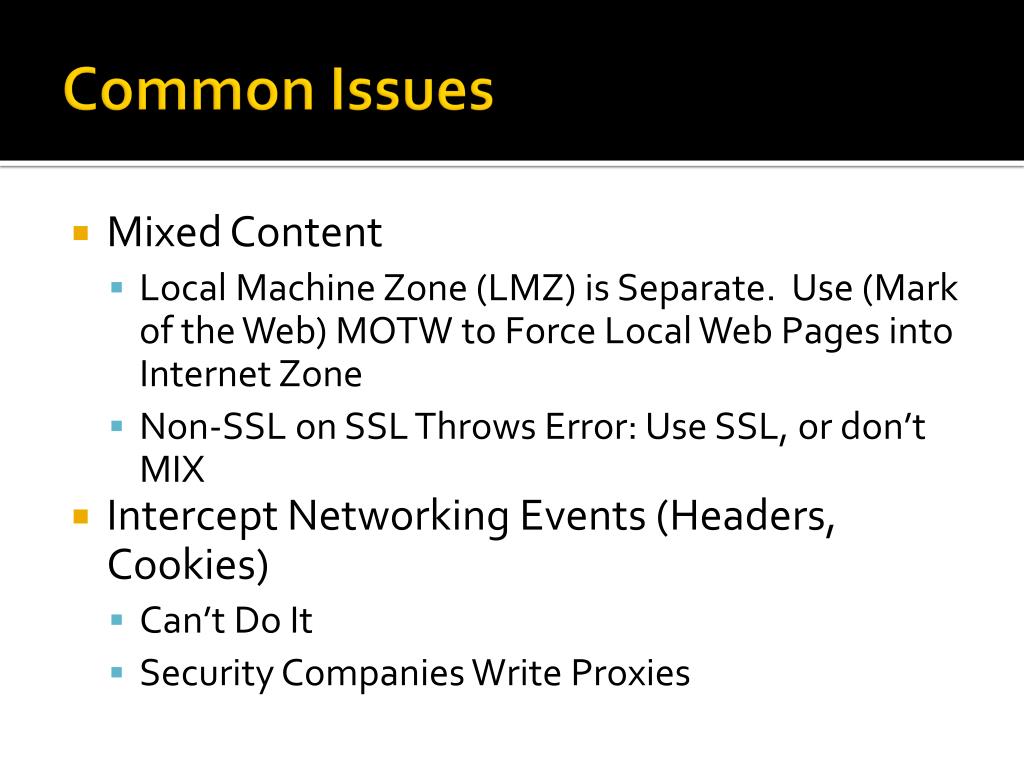

Common Issues

  • Mixed Content

    • Local Machine Zone (LMZ) is Separate. Use (Mark of the Web) MOTW to Force Local Web Pages into Internet Zone

    • Non-SSL on SSL Throws Error: Use SSL, or don’t MIX

  • Intercept Networking Events (Headers, Cookies)

    • Can’t Do It

    • Security Companies Write Proxies

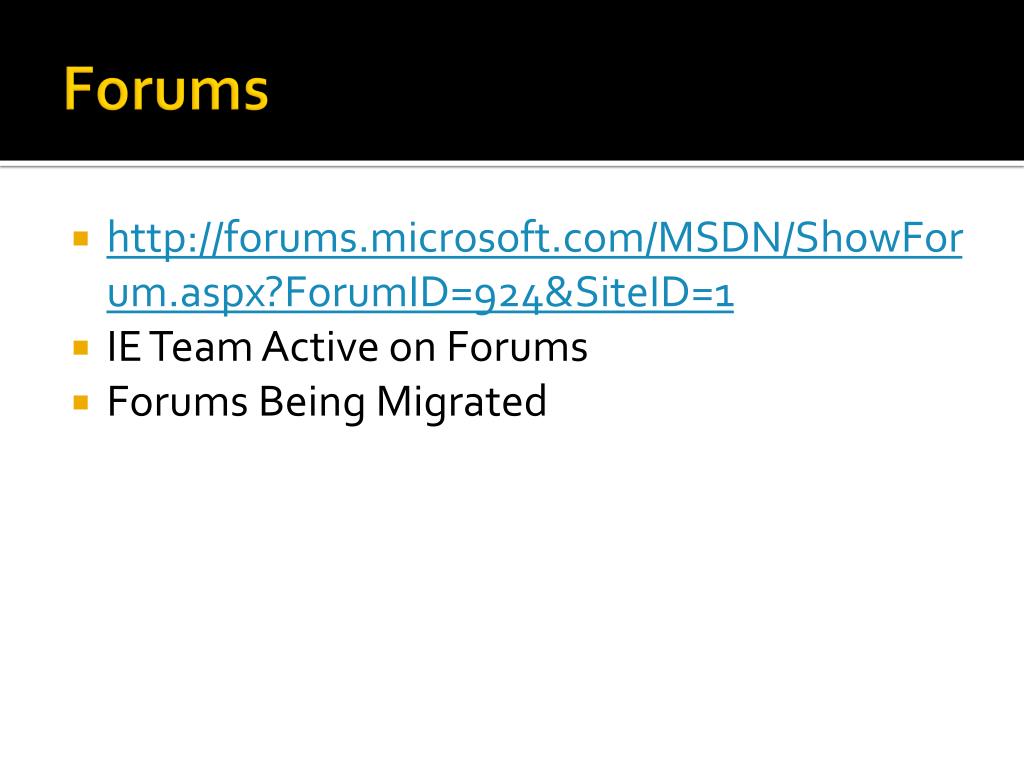

  • IE Team Active on Forums

  • Forums Being Migrated

Testing and debugging

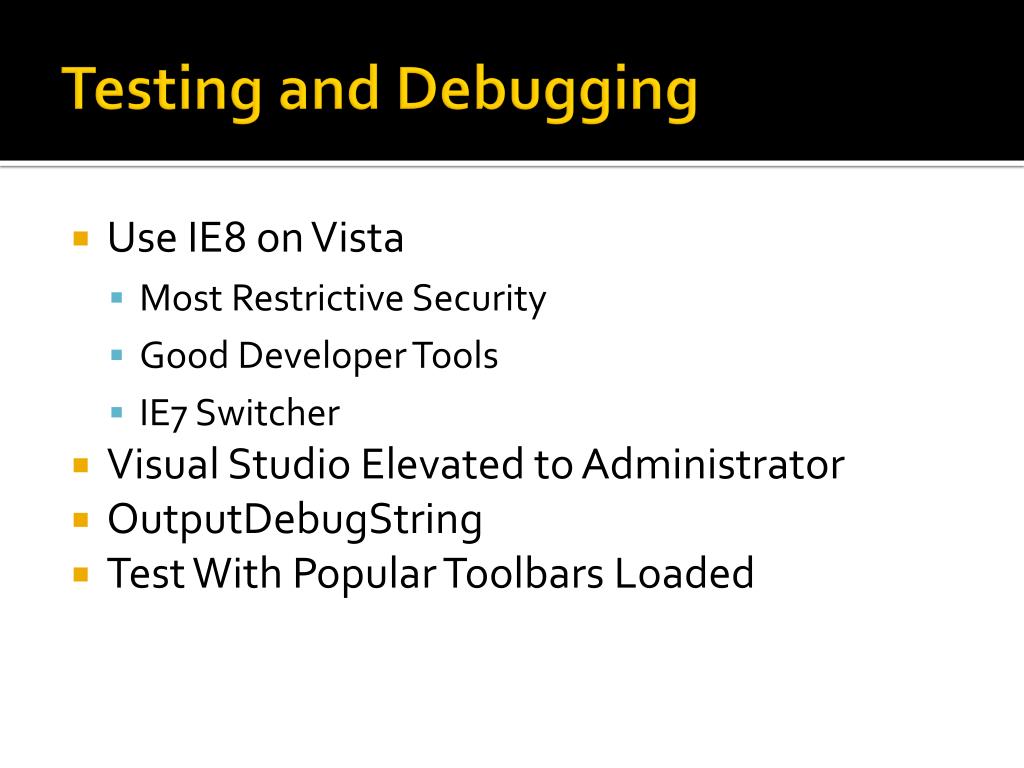

Testing and Debugging

  • Use IE8 on Vista

    • Most Restrictive Security

    • Good Developer Tools

    • IE7 Switcher

  • Visual Studio Elevated to Administrator

  • OutputDebugString

  • Test With Popular Toolbars Loaded



  • Use WiX v3 to create MSI

  • Need to Deploy DLL and Registry

  • Don’t do DllRegisterServer anymore


  • Per-User ActiveX
