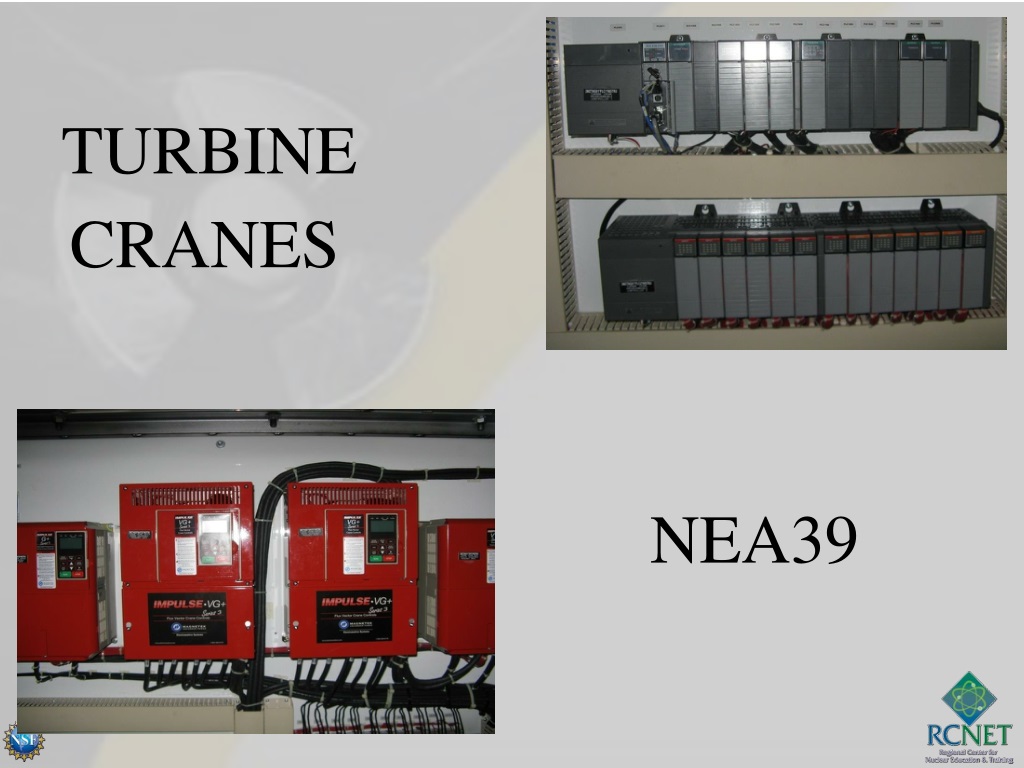

  1. TURBINE CRANES NEA39 Turbine Crane

  2. PLANT STATUS! General System Diagram of Palo Verde Nuclear Generating Station Legend:: Safety Injection Systems Reactor Coolant System To Switchyard Containment Building Main Steam System Main Feedwater System Main Condensate System CONTAINMENT SPRAY Circulating Water System Transformer Turbine Building Auxiliary Feedwater System Cooling Tower and Fans Safety Injection Tank Moisture Separator Reheaters MSSVs ADVs 8 8 8 Steam Generator Auxiliary Building MSIV Pressurizer MTSV Control Rods MSSS Shutdown Heat Exchanger HP LP LP LP Generator Bldg. Turbine Turbine Turbine Turbine Equipment Cooling MTCV Z From Auxiliary Feedwater Pumps Containment Spray Pump Turbine Bypass Valves Reactor Core Refueling Water Tank Condensate Pump Reactor Coolant Pump Main Condenser Low Pressure Safety Injection Pump (HP) Feedwater Heaters (LP) Feedwater Heaters Circulating Water Pump High Pressure Safety Injection Pump Feedwater Regulation Valve Main Feedwater Pump Polishing Demineralizers Containment Sump Turbine Crane PV Daily Status Report

  3. Turbine Crane

  4. Walk downs • Review instructions to ensure workable and adequate • Right Parts/materials/tools • Permits • Relevant Operating Experience Turbine Crane

  5. Pre Job Briefs • Understand the Task • Critical Steps identified and OE used AND what actions are being taken in reference to these two areas • Two Minute Drills: • Hazards identified AND what are actions are you taking Turbine Crane

  6. Procedure Use & Adherence • WO / procedure in hand & latest revision • Place keepers being used • Sign steps as you go • Follow & understand steps - STOP if can't or don't Turbine Crane

  7. TURBINE CRANE • Terminal Objective Given references provided by the Instructor, the Plant Electrician will maintain Turbine Building Cranes as demonstrated by achieving a minimum of 80% on a written examination. Turbine Crane

  8. Enabling Objectives 1.1 Discuss the Function of the Turbine Building Crane. 1.2 Discuss the Design of the Turbine Building Crane 1.3 Discuss the Design of the Magnetek Impulse VG+ series 3 Variable Frequency Drives 1.4 Describe the Programming of the Magnetek Impulse VG+ series 3 Variable Frequency Drive Controller . Turbine Crane

  9. Enabling Objectives 1.5 Discuss the Design of the Allen Bradley SLC 5/04 Programmable Logic Controller. 1.6 Describe the Programming of the Allen Bradley SLC 5/04 Programmable Logic Controller. 1.7 Discuss the Operation of the Turbine Building Crane. . Turbine Crane

  10. Enabling Objectives 1.8 Describe the Corrective and Preventive maintenance performed on the Turbine Crane. 1.9 Discuss the Troubleshooting Techniques performed on the Turbine building crane including fault code identification. 1.10 Describe the safety and human performance factors associated with the turbine building crane. . Turbine Crane

  11. . Multi Stud Tensioner

  12. PRE-JOB BRIEF • Identify Critical Steps • Identify Error Precursors • Worst thing that can happen • Error prevention defenses to be used • Actions to assure proper configuration control Turbine Crane

  13. TURBINE CRANE EO.1.1 Discuss the Function of the Turbine Crane.

  14. Turbine Crane

  15. Turbine Crane

  16. Design Basis Statement • “Overhead crane equipment located in the Turbine Building used for handling various loads including radioactive material. Failures may lead to regulatory consequences and unacceptable increased risk in personnel and radiological safety hazards. Some failures are considered hidden since equipment is normally parked and not operating” Turbine Crane

  17. Generic Function To perform various lifts and moves in support of maintenance of turbine, generator equipment and ancillary equipment in the turbine building. Turbine Crane

  18. EQID XMZTNG01*MECFUN Turbine Crane

  19. EQID’s Continued • 2MZTNG01*APPL*SOFTWR 280/50 TON TURBINE CRANE PLC APPLICATION SOFTWARE NQR SOFTWR ASBLT • 2MZTNG01*02*MOTORX 280/50 TON TURBINE CRANE SOUTH BRIDGE MOTOR NQR MOTORX ASBLT • 2MZTNG01*01*MOTORX 280/50 TON TURBINE CRANE NORTH BRIDGE MOTOR NQR MOTORX ASDSN • 2MZTNG01*03*MOTORX TROLLEY MOTOR NQR MOTORX DELETE • 2MZTNG01*04*MOTORX NORTH BRIDGE HOIST MOTOR NQR MOTORX DELETE • 2MZTNG01*05*MOTORX SOUTH BRIDGE HOIST MOTOR NQR MOTORX DELETE • 2MZTNG01*06*MOTORX SERVICE HOIST MOTOR NQR MOTORX DELETE • 2MZTNG01*07*MOTORX SERVICE TROLLEY MOTOR 1 NQR MOTORX DELETE • 2MZTNG01*08*MOTORX SERVICE TROLLEY MOTOR 2 NQR MOTORX DELETE • 2MZTNG01*HAFD*INSTRU 280/50 TON TURBINE CRANE MAIN HOIST ADJUSTABLE FREQUENCY DRIVE NQR INSTRU ASBLT • 2MZTNG01*AHAFD*INSTRU AUXILIARY HOIST ADJUSTABLE FREQUENCY DRIVE NQR INSTRU ASDSN • 2MZTNG01*TAFD*INSTRU MAIN TROLLEY ADJUSTABLE FREQUENCY DRIVE NQR INSTRU ASBLT • 2MZTNG01*BAFD1*INSTRU NORTH BRIDGE ADJUSTABLE FREQUENCY DRIVE NQR INSTRU ASBLT • 2MZTNG01*BAFD2*INSTRU SOUTH BRIDGE ADJUSTABLE FREQUENCY DRIVE NQR INSTRU ASBLT Turbine Crane

  20. EQID’s Continued • 2MZTNG01*SHAFD*INSTRU SERVICE HOIST ADJUSTABLE FREQUENCY DRIVE NQR INSTRU ASBLT • 2MZTNG01*STAFD*INSTRU SERVICE TROLLEY ADJUSTABLE FREQUENCY DRIVE NQR INSTRU ASBLT • 2MZTNG01*PLC1*INSTRU TURBINE CRANE PROGRAMMABLE CONTROLLER 1 NQR INSTRU ASBLT • 2MZTNG01*PLC2*INSTRU TURBINE CRANE PROGRAMMABLE CONTROLLER 2 NQR INSTRU ASBLT • 2MZTNGO1*APPL-01*SOFTWR TURBINE CRANE PANELVIEW DISPLAY SOFTWARE NQR SOFTWR ASBLT • 2MZTNG01*21B*IXMITR 280/50 TON TURBINE CRANE MAIN HOIST ENCODER "B" FOR DRUM NQR IXMITR ASBLT • 2MZTNG01*31*MECFUN 280/50 TON TURBINE CRANE AUX HOIST ASSEMBLY NQR MECFUN ASBLT • 2MZTNG01*31*MOTORX 280/50 TON TURBINE CRANE AUX HOIST MOTOR NQR MOTORX ASBLT • 2MZTNG01*34*MECFUN 280/50 TON TURBINE CRANE AUX HOIST MOTOR HOLDING BRAKE #1 NQR MECFUN ASBLT • 2MZTNG01*35*MECFUN 280/50 TON TURBINE CRANE AUX HOIST MOTOR HOLDING BRAKE #2 NQR MECFUN ASBLT • 2MZTNG01*31A*IXMITR 280/50 TON TURBINE CRANE AUX HOIST ENCODER "A" FOR MOTOR NQR IXMITR ASBLT Turbine Crane

  21. EQID’s Continued • 2MZTNG01*31B*IXMITR 280/50 TON TURBINE CRANE AUX HOIST ENCODER "B" FOR DRUM NQR IXMITR ASBLT • 2MZTNG01*11*MECFUN 280/50 TON TURBINE CRANE TROLLEY DRIVE STRUCTURE NQR MECFUN ASBLT • 2MZTNG01*12*MECFUN 280/50 TON TURBINE CRANE TROLLEY DRIVE ASSEMBLY NQR MECFUN ASBLT • 2MZTNG01*11*MOTORX 280/50 TON TURBINE CRANE TROLLEY MOTOR NQR MOTORX ASBLT • 2MZTNG01*14*MECFUN 280/50 TON TURBINE CRANE MAIN TROLLEY BRAKE NQR MECFUN ASBLT • 2MZTNG01*11*IXMITR 280/50 TON TURBINE CRANE TROLLEY ENCODER NQR IXMITR ASBLT • 2MZTNG01*41*INSTRU 280/50 TON TURBINE CRANE CAB CHAIR NQR INSTRU ASBLT • 2MZTNG01*42*ELECON 280/50 TON TURBINE CRANE CAB CONTROL ENCLOSURE NQR ELECON ASBLT • 2MZTNG01*43*CKTBRK 280/50 TON TURBINE CRANE CAB AIR CONDITIONER BREAKER NQR CKTBRK ASBLT • 2MZTNG01*43*HTEXCH 280/50 TON TURBINE CRANE CAB AIR CONDITIONER NQR HTEXCH ASBLT • 2MZTNG01*44*INSTRU 280/50 TON TURBINE CRANE WEIGHT SCALE INSTRUMENT NQR INSTRU ASBLT • 2MZTNG01*45*TRANSF 280/50 TON TURBINE CRANE LIGHTING TRANSFORMER NQR TRANSF ASBLT Turbine Crane

  22. EQID’s Continued • 2MZTNG01*46*TRANSF 280/50 TON TURBINE CRANE MAIN CONTROL ENCLOSURE A/C DISCONNECT ENCLOSU NQR TRANSF ASBLT • 2MZTNG01*4601*MOTORX 280/50 TON TURBINE CRANE MAIN CONTROL ENCLOSURE EVAPORATOR #1 MOTOR NQR MOTORX ASBLT • 2MZTNG01*4602*FILTER 280/50 TON TURBINE CRANE MAIN CONTROL ENCLOSURE EVAPORATOR #2 NQR FILTER ASBLT • 2MZTNG01*4602*MOTORX 280/50 TON TURBINE CRANE MAIN CONTROL ENCLOSURE EVAPORATOR #2 MOTOR NQR MOTORX ASBLT • 2MZTNG01*47*INSTRU 280/50 TON TURBINE CRANE PANELVIEW INTERFACE ENCLOSURE NQR INSTRU ASBLT • 2MZTNG01*48*TRANSF 280/50 TON TURBINE CRANE CONTROL TRANSFORMER XMR114 (2000 VA) NQR TRANSF ASBLT • 2MZTNG01*01*INSTRU 280/50 TON TURBINE CRANE NORTH BRIDGE DYNAMIC BRAKING RESISTOR NQR INSTRU ASBLT • 2MZTNG01*02*INSTRU 280/50 TON TURBINE CRANE SOUTH BRIDGE DYNAMIC BRAKING RESISTOR NQR INSTRU ASBLT • 2MZTNG01*21*INSTRU 280/50 TON TURBINE CRANE MAIN HOIST DYNAMIC BRAKING RESISTOR NQR INSTRU ASBLT • 2MZTNG01*31*INSTRU 280/50 TON TURBINE CRANE AUX HOIST DYNAMIC BRAKING RESISTOR NQR INSTRU ASBLT • 2MZTNG01*11*INSTRU 280/50 TON TURBINE CRANE TROLLEY DYNAMIC BRAKING RESISTOR NQR INSTRU ASBLT Turbine Crane

  23. EQID’s Continued • 2MZTNG01*22*MOTORX TURBINE CRANE SERVICE HOIST MOTOR NQR MOTORX ASBLT • 2MZTNG01*12*MOTORX TURBINE CRANE SERVICE HOIST TROLLEY MOTOR NQR MOTORX ASBLT • 2MZTNG01*26*MECFUN TURBINE CRANE SERVICE HOIST BRAKE NQR MECFUN ASBLT • 2MZTNG01*12*INSTRU TURBINE CRANE SERVICE TROLLEY DYNAMIC BRAKING RESISTOR NQR INSTRU ASBLT • 2MZTNG01*48*ELECON 280/50 TON TURBINE CRANE UTILITY DISTRIBUTION PANEL NQR ELECON ASBLT • 2MZTNG01*49*ELECON 280/50 TON TURBINE CRANE MAIN POWER DISCONNECT ENCLOSURE NQR ELECON ASBLT • 2MZTNG01*21*CKTBRK TURBINE CRANE MAIN HOIST FUSE FU228 NQR CKTBRK ASBLT • 2MZTNG01*31*CKTBRK AUXILIARY HOIST FUSE FU309 NQR CKTBRK ASBLT • 2MZTNG01*11*CKTBRK TROLLEY DRIVE FUSE FU328 NQR CKTBRK ASBLT • 2MZTNG01*01*CKTBRK NORTH BRIDGE MOTOR FUSE FU409 NQR CKTBRK ASBLT • 2MZTNG01*02*CKTBRK SOUTH BRIDGE MOTOR FUSE FU428 NQR CKTBRK ASBLT • 2MZTNG01*01*MECFUN 280/50 TON TURBINE CRANE BRIDGE STRUCTURE NQR MECFUN ASBLT • 2MZTNG01*02*MECFUN 280/50 TON TURBINE CRANE BRIDGE DRIVE ASSEMBLY NQR MECFUN ASBLT Turbine Crane

  24. EQID’s Continued • 2MZTNG01*03*MECFUN 280/50 TON TURBINE CRANE NORTH BRIDGE BRAKE NQR MECFUN ASBLT • 2MZTNG01*04*MECFUN 280/50 TON TURBINE CRANE SOUTH BRIDGE BRAKE NQR MECFUN ASBLT • 2MZTNG01*01*IXMITR 280/50 TON TURBINE CRANE NORTH BRIDGE MOTOR ENCODER NQR IXMITR ASBLT • 2MZTNG01*02*IXMITR 280/50 TON TURBINE CRANE SOUTH BRIDGE MOTOR ENCODER NQR IXMITR ASBLT • 2MZTNG01*21*MECFUN 280/50 TON TURBINE CRANE MAIN HOIST ASSEMBLY NQR MECFUN ASBLT • 2MZTNG01*24*MECFUN 280/50 TON TURBINE CRANE MAIN HOIST MOTOR HOLDING BRAKE #1 NQR MECFUN ASBLT • 2MZTNG01*25*MECFUN 280/50 TON TURBINE CRANE MAIN HOIST MOTOR HOLDING BRAKE #2 NQR MECFUN ASDSN • 2MZTNG01*21A*IXMITR 280/50 TON TURBINE CRANE MAIN HOIST ENCODER "A" FOR MOTOR NQR IXMITR ASBLT • 2MZTNG01*22*CKTBRK TURBINE CRANE SERVICE HOIST FUSE FU509 (3 FUSES) NQR CKTBRK ASBLT • 2MZTNG01*12*CKTBRK TURBINE CRANE SERVICE HOIST TROLLEY FUSE FU528 (3 FUSES) NQR CKTBRK ASBLT Turbine Crane

  25. EQID’s Continued • 2MZTNG01*22*INSTRU TURBINE CRANE SERVICE HOIST MOTOR DYNAMIC BRAKING RESISTOR NQR INSTRU ASBLT • 2MZTNG01*13*MOTORX TURBINE CRANE SERVICE TROLLEY MOTOR 2 NQR MOTORX ASBLT • 2MZTNG01*4601*FILTER 280/50 TON TURBINIE CRANE MAIN CONTROL ENCLOSURE EVAPORATOR #1 NQR FILTER ASBLT Turbine Crane

  26. Turbine Crane

  27. Loads • Based on the overall rating of the Turbine Building Crane. Turbine Crane

  28. Loads COMPONENT WEIGHTS AND VERIFICATION DOCUMENTS 2/03/11 Turbine Crane

  29. Loads Turbine Crane

  30. Loads Turbine Crane

  31. Loads Turbine Crane
