Presentation Transcript
s4 industrial cranes
S4 Industrial Cranes
  • Space saving solutions
  • Easy and most effective
  • Load handling
  • High class performance
  • Superior safety and reliability
  • Best return on investment

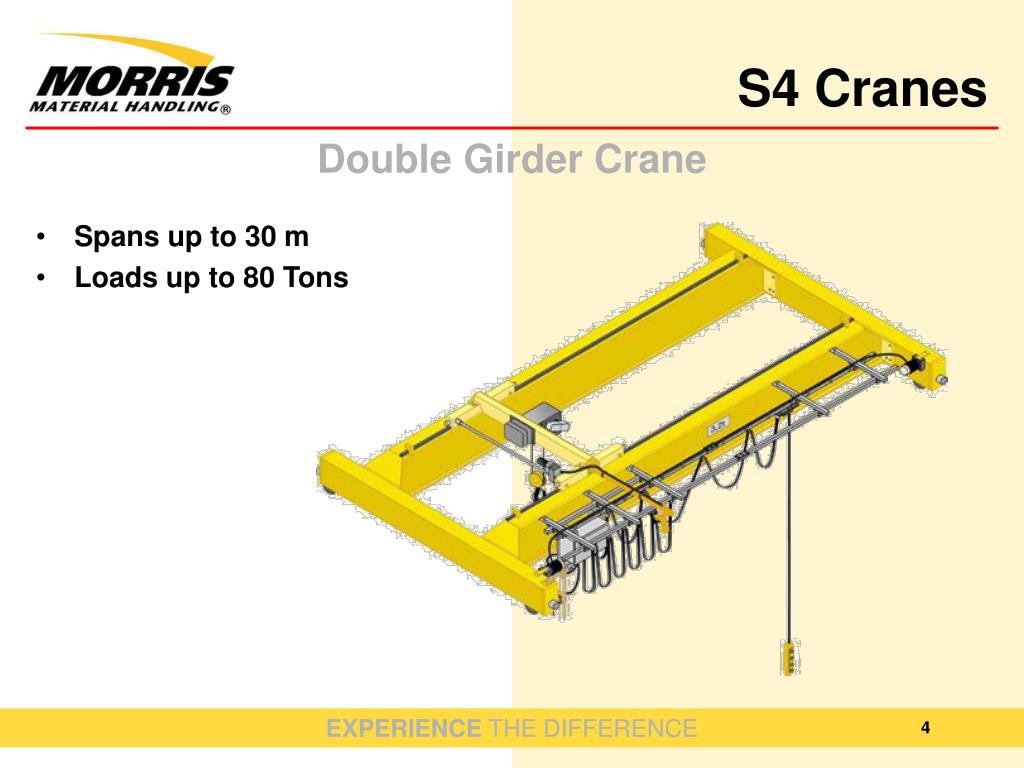

double girder crane
Double Girder Crane
  • Spans up to 30 m
  • Loads up to 80 Tons
single girder crane
Single Girder Crane
  • Spans up to 30 m
  • Loads up to 2 x 12.5 Tons
under running crane
Under Running Crane
  • Spans up to 20 m
  • Loads up to 2 x 12.5 Tons

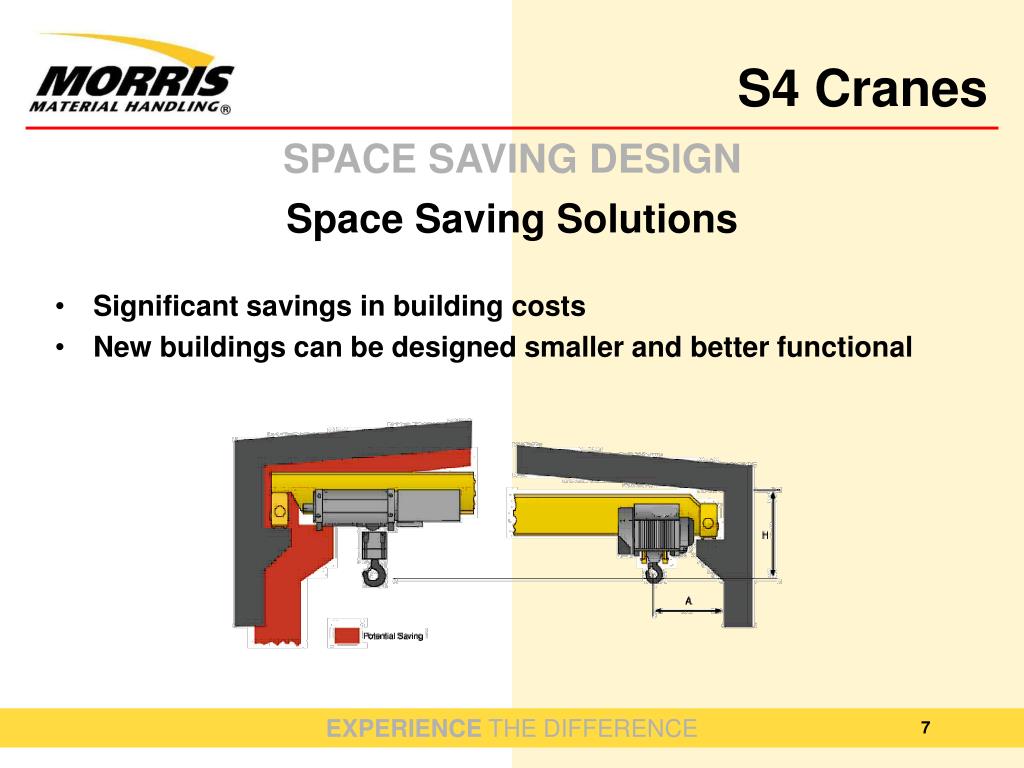

space saving design
SPACE SAVING DESIGN

Space Saving Solutions

  • Significant savings in building costs
  • New buildings can be designed smaller and better functional
space saving design1
SPACE SAVING DESIGN

Space Saving Solutions

  • Take every cubic metre in use
  • S4 cranes have excellent hook approaches at both ends of the crane
easy load handling

Speed

Speed

Time

Time

EASY LOAD HANDLING

VFT Inverter Control as standard

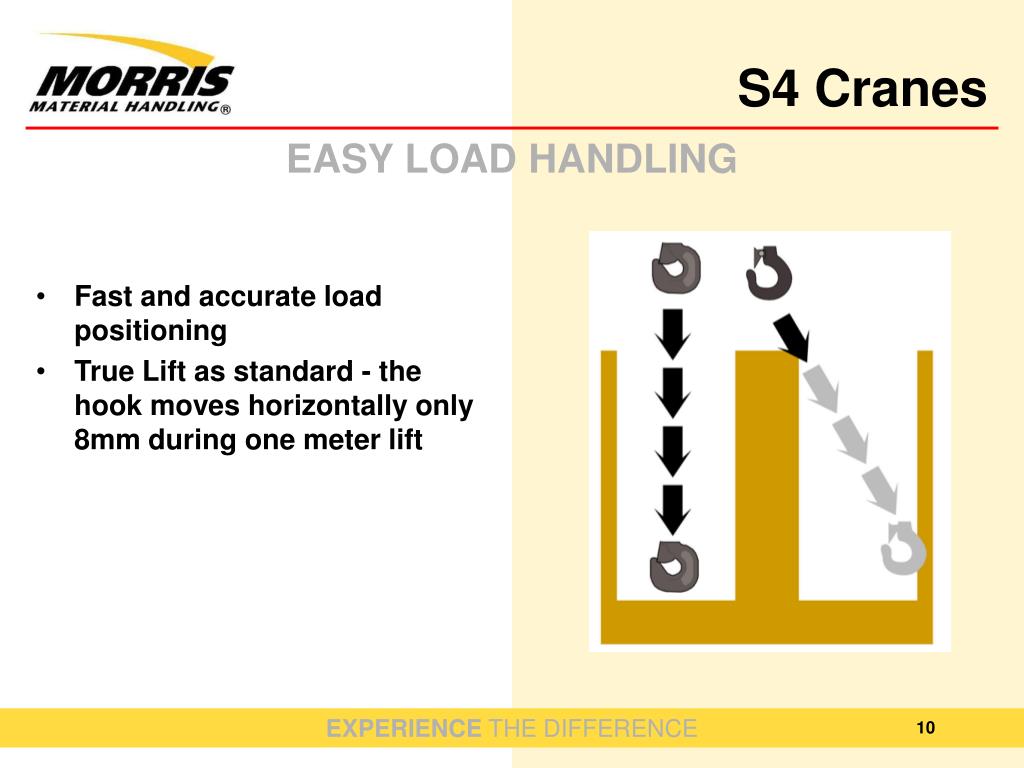

easy load handling1
EASY LOAD HANDLING
  • Fast and accurate load positioning
  • True Lift as standard - the hook moves horizontally only 8mm during one meter lift
high performance
HIGH PERFORMANCE

Hoisting Motors

  • Heavy duty type 60% ED rating
  • Class F insulation and IP55 protection
  • Optimum cooling
  • Thermistors as standard (cut off (170°C)
superior safety
SUPERIOR SAFETY

Hoisting Brakes

  • Brake lining designed for hoist lifetime, over 1 million operations
  • Dustproof
  • Heavy duty brake
  • Easy to check airgap
superior safety1
SUPERIOR SAFETY

Limit Switches

  • 4 fully adjustable switching points
  • Slow-down operation to extend safety
  • Phase mismatch control
