The 2D Fourier Transform

f ( x,y ). y. x. The 2D Fourier Transform. F (2) { f ( x,y )} = F ( k x ,k y ) = f ( x,y ) exp[- i ( k x x+k y y )] dx dy If f ( x,y ) = f x ( x ) f y ( y ) , then the 2D FT splits into two 1D FT's. But this doesn’t always happen. F (2) { f ( x,y )}.

Download Presentation

The 2D Fourier Transform

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

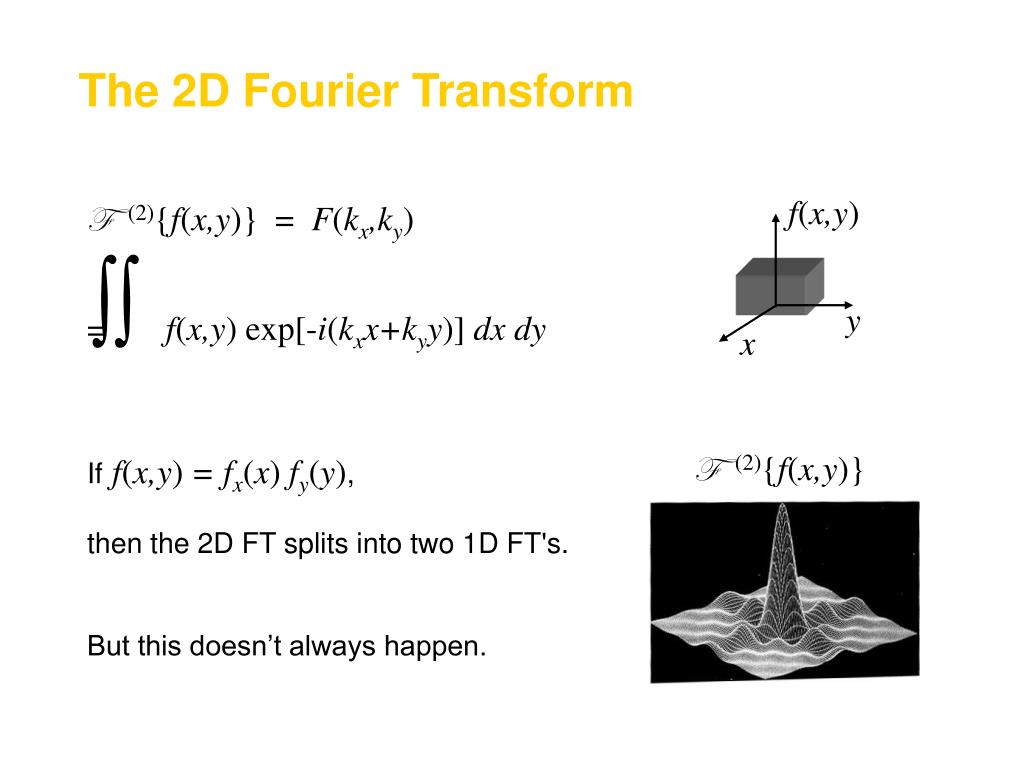

  1. f(x,y) y x The 2D Fourier Transform F(2){f(x,y)} = F(kx,ky) = f(x,y) exp[-i(kxx+kyy)] dx dy Iff(x,y) = fx(x) fy(y), then the 2D FT splits into two 1D FT's. But this doesn’t always happen. F (2){f(x,y)}

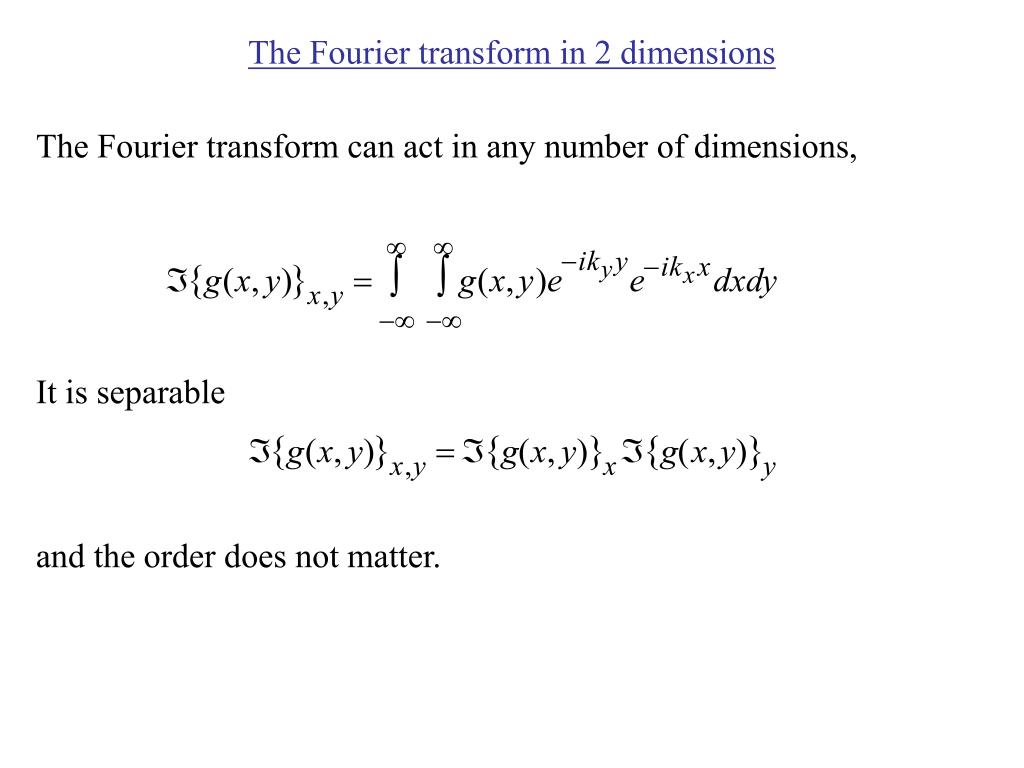

  2. The Fourier transform in 2 dimensions The Fourier transform can act in any number of dimensions, It is separable and the order does not matter.

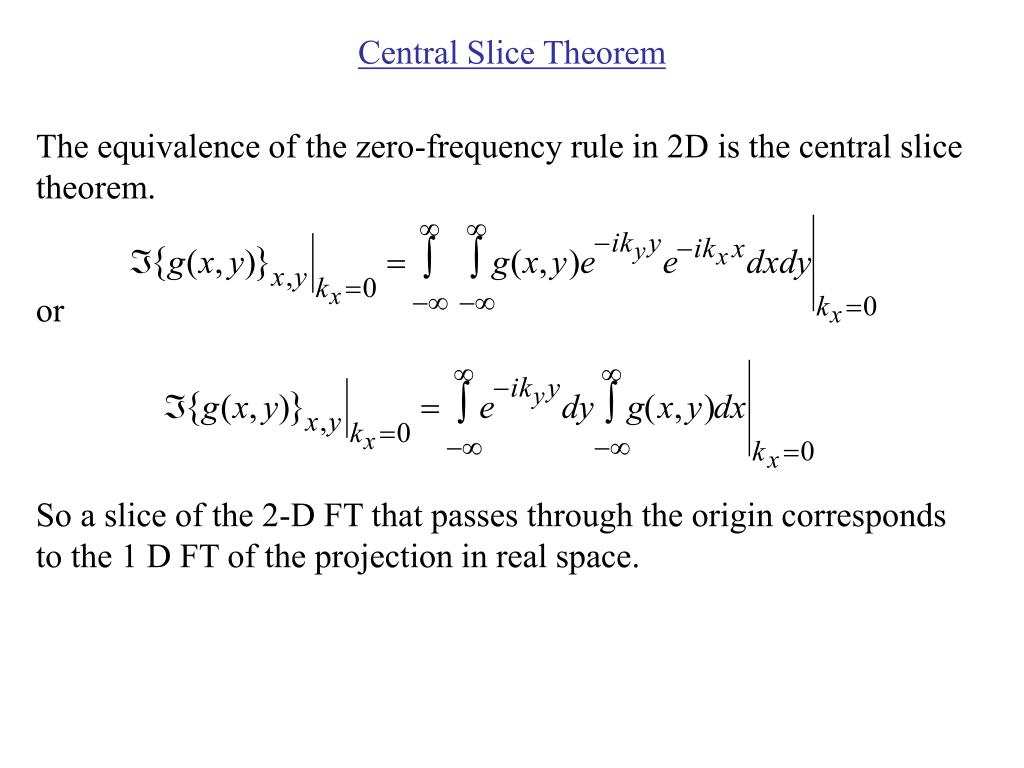

  3. Central Slice Theorem The equivalence of the zero-frequency rule in 2D is the central slice theorem. or So a slice of the 2-D FT that passes through the origin corresponds to the 1 D FT of the projection in real space.

  4. Filtering We can change the information content in the image by manipulating the information in reciprocal space. Weighting function in k-space.

  5. Filtering We can also emphasis the high frequency components. Weighting function in k-space.

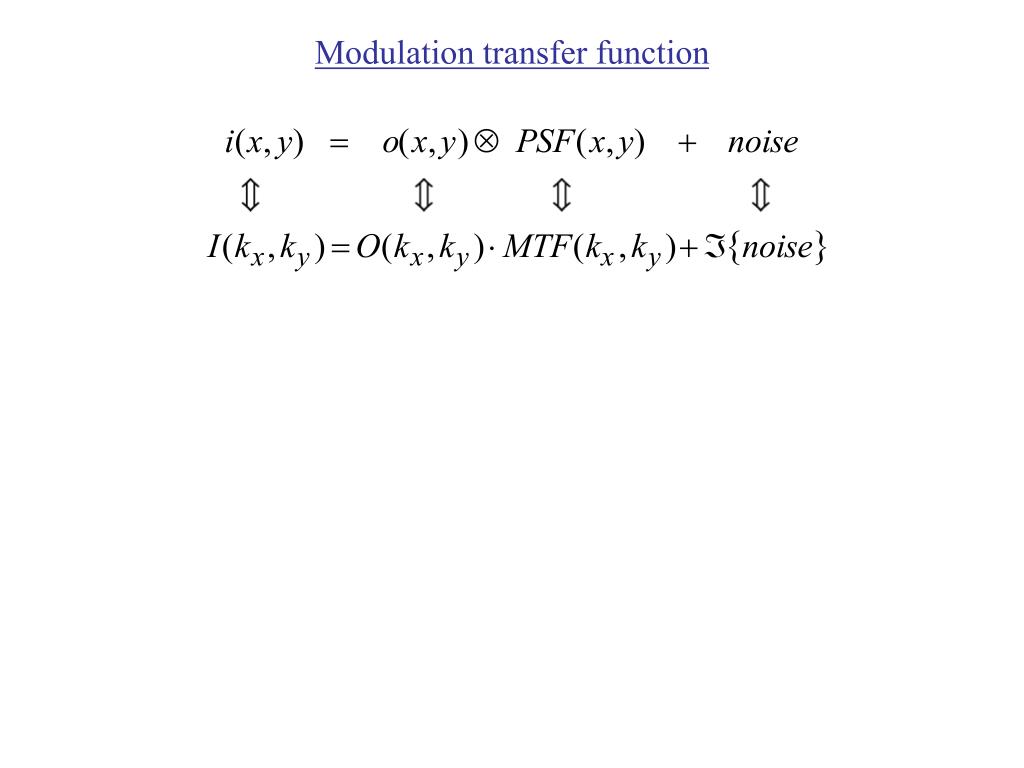

  6. Modulation transfer function

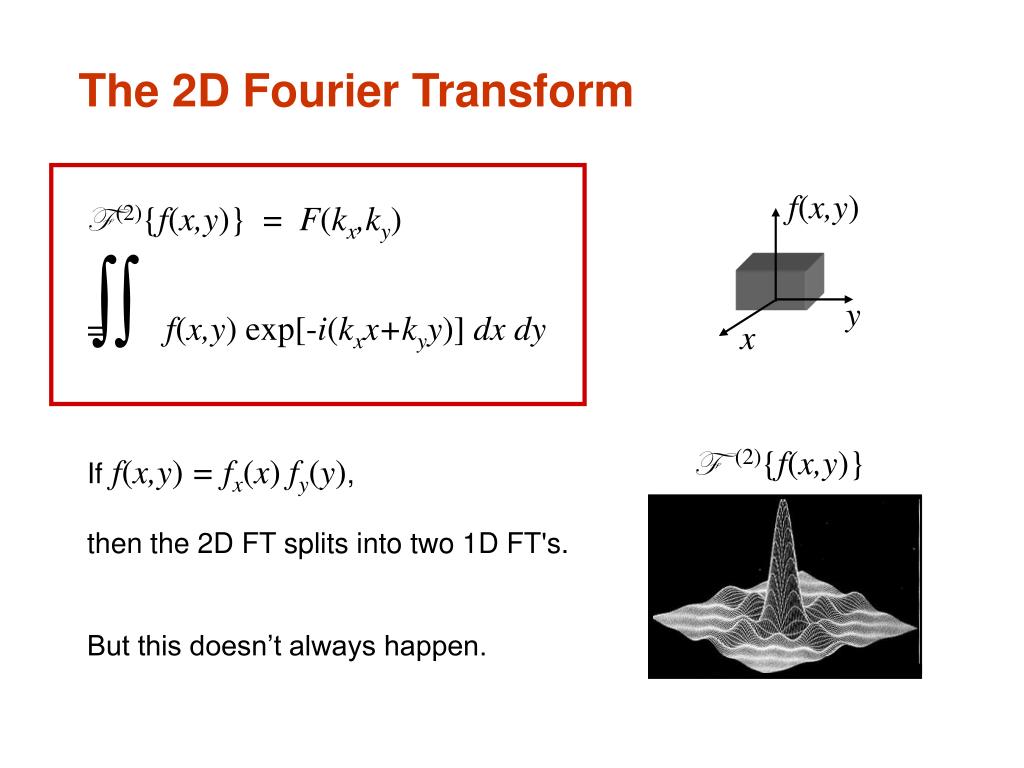

  7. f(x,y) y x The 2D Fourier Transform F (2){f(x,y)} = F(kx,ky) = f(x,y) exp[-i(kxx+kyy)] dx dy Iff(x,y) = fx(x) fy(y), then the 2D FT splits into two 1D FT's. But this doesn’t always happen. F (2){f(x,y)}

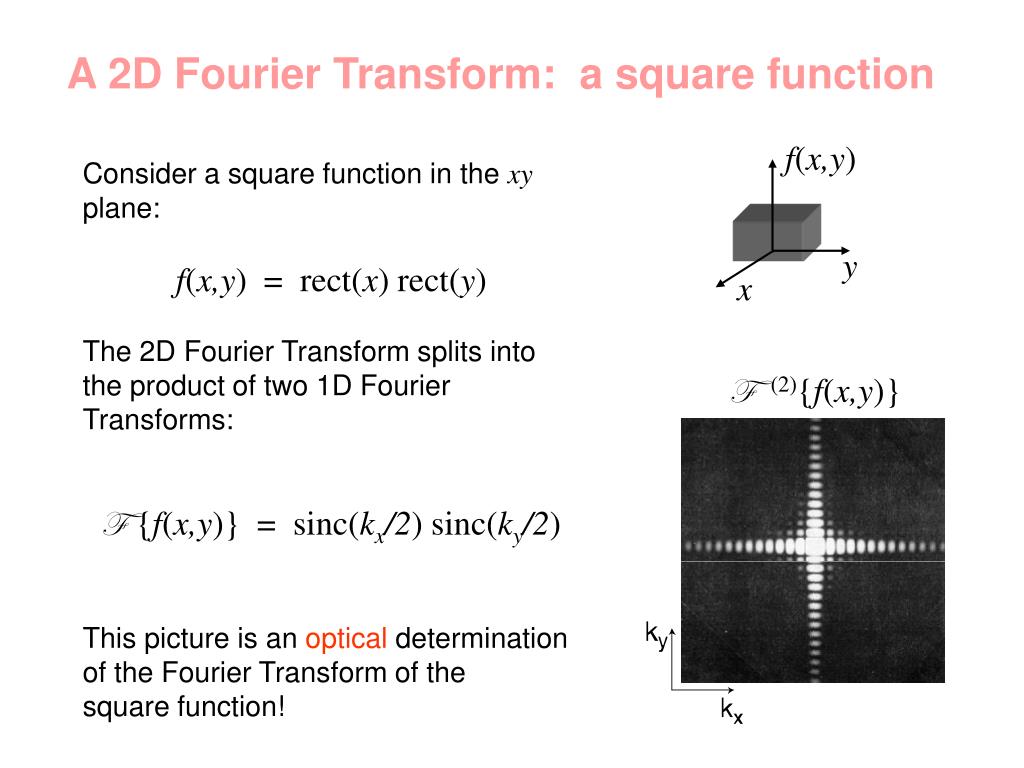

  8. f(x,y) y x A 2D Fourier Transform: a square function Consider a square function in the xy plane: f(x,y) = rect(x) rect(y) The 2D Fourier Transform splits into the product of two 1D Fourier Transforms: F {f(x,y)} = sinc(kx/2) sinc(ky/2) This picture is an optical determination of the Fourier Transform of the square function! F (2){f(x,y)}

  9. Rick Linda Fourier Transform Magnitude and Phase Pictures reconstructed using the spectral phase of the other picture Mag{F [Linda]} Phase{F [Rick]} Mag{F [Rick]} Phase{F {Linda]} The phase of the Fourier transform (spectral phase) is much more important than the magnitude in reconstructing an image.
