Training Discriminative Computer Vision Models with Weak Supervision

2. Training Discriminative Computer Vision Models with Weak Supervision Boris Babenko PhD Defense University of California, San Diego

3. Outline • Overview • Supervised Learning • Weakly Supervised Learning • Weakly Labeled Location • Object Localization and Recognition • Object Detection with Parts • Object Tracking • Weakly Labeled Categories • Object Detection with Sub-categories • Object Recognition with Super-categories • Theoretical Analysis of Multiple Instance Learning • Conclusions & Future Work

4. Outline • Overview • Supervised Learning • Weakly Supervised Learning • Weakly Labeled Location • Object Localization and Recognition • Object Detection with Parts • Object Tracking • Weakly Labeled Categories • Object Detection with Sub-categories • Object Recognition with Super-categories • Theoretical Analysis of Multiple Instance Learning • Conclusions & Future Work

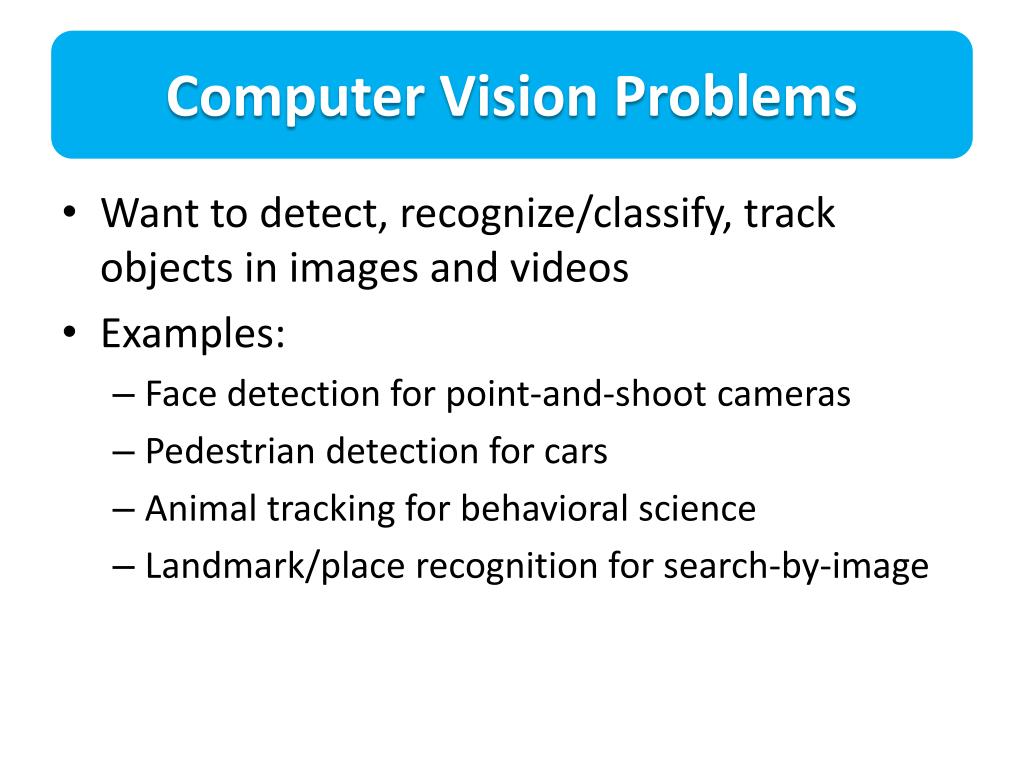

5. Computer Vision Problems • Want to detect, recognize/classify, track objects in images and videos • Examples: • Face detection for point-and-shoot cameras • Pedestrian detection for cars • Animal tracking for behavioral science • Landmark/place recognition for search-by-image

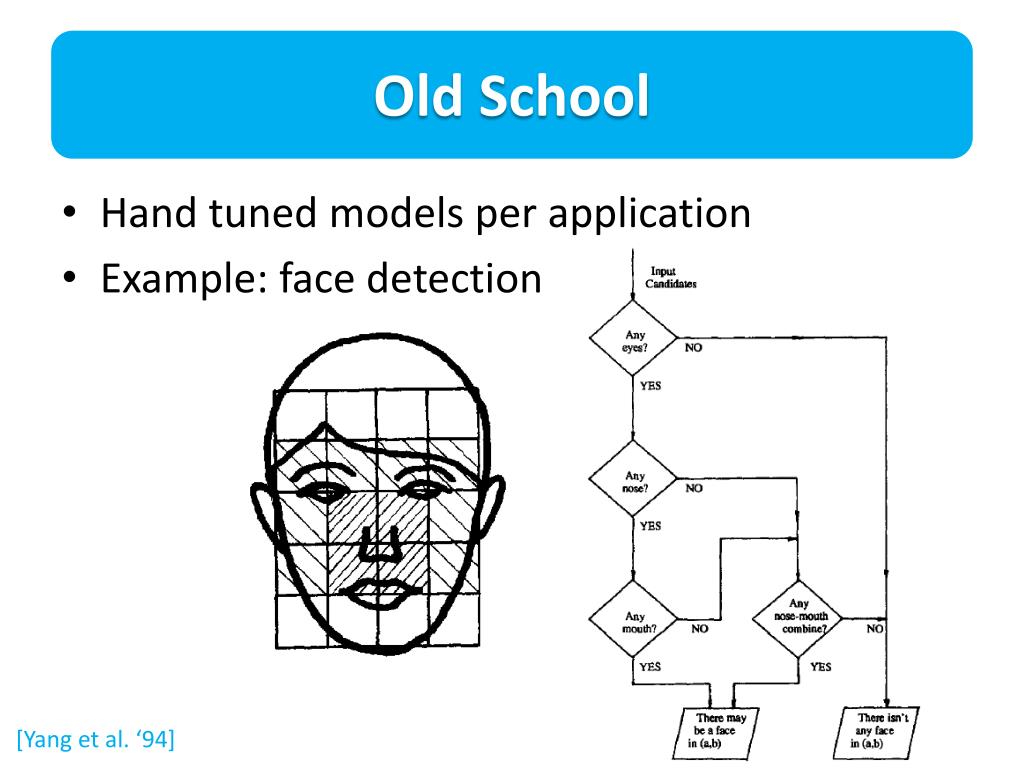

6. Old School • Hand tuned models per application • Example: face detection [Yang et al. ‘94]

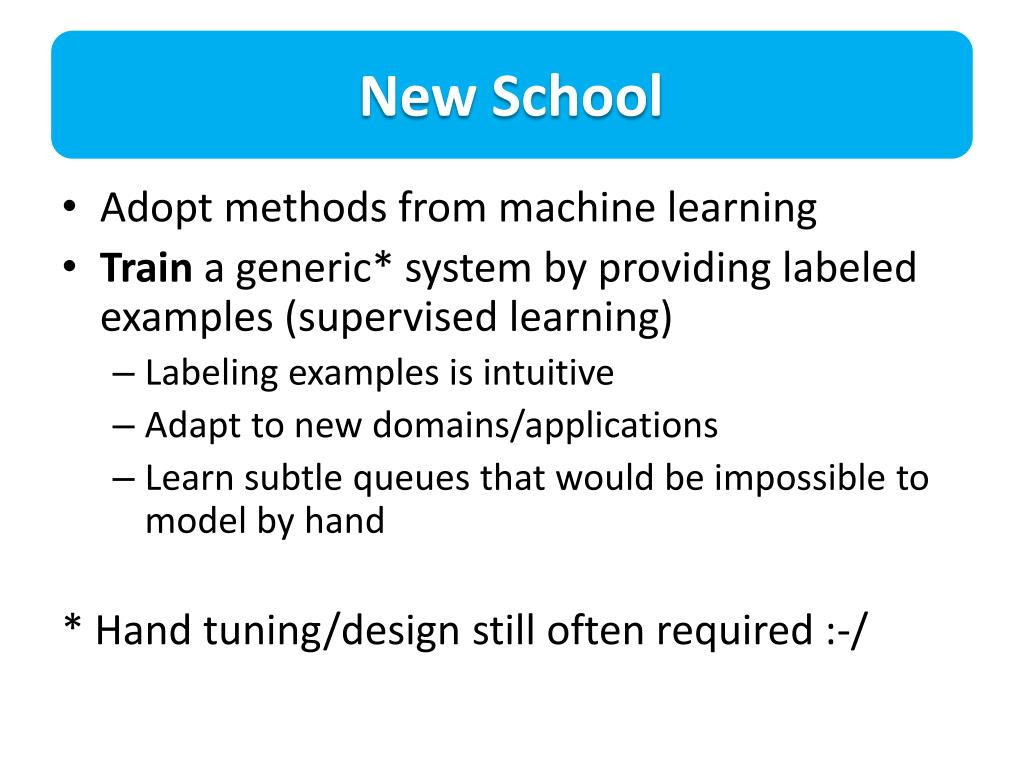

7. New School • Adopt methods from machine learning • Train a generic* system by providing labeled examples (supervised learning) • Labeling examples is intuitive • Adapt to new domains/applications • Learn subtle queues that would be impossible to model by hand * Hand tuning/design still often required :-/

8. Supervised Learning • Training data: pairs of inputs and labels • Train classifier to predict label for novel input TRAINING RUN TIME ( ,non-face) ( ) ( , face) ( , face) ( ,non-face)

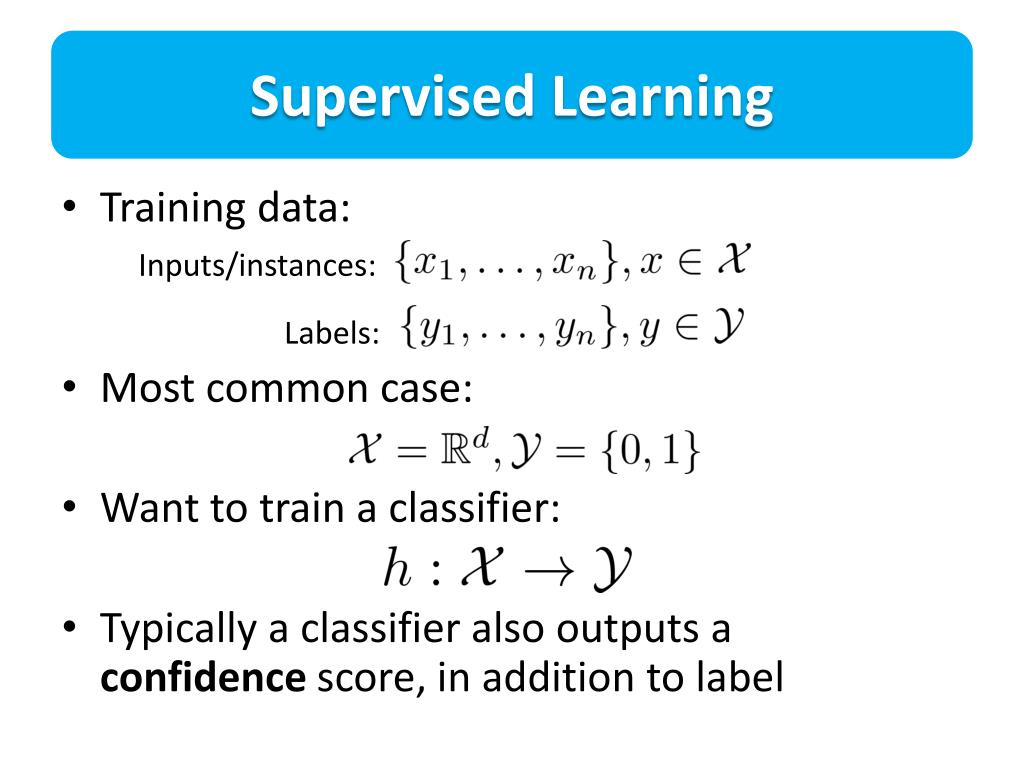

9. Supervised Learning • Training data: • Most common case: • Want to train a classifier: • Typically a classifier also outputs a confidence score, in addition to label Inputs/instances: Labels:

10. Discriminative vs Generative • Generative: model the distribution of the data • Discriminative: directly minimize classification error, model the boundary • E.g. SVM, AdaBoost, Perceptron • Tends to outperform generative models

11. Training Discriminative Model • Objective (minimize training error) • Loss function, , is typically a convex upper bound on 0/1 loss • Regularization term can help avoid over-fitting

12. Weak Supervision • Slightly overloaded term… • Any form of learning where the training data is missing some labels (i.e. latent variables)

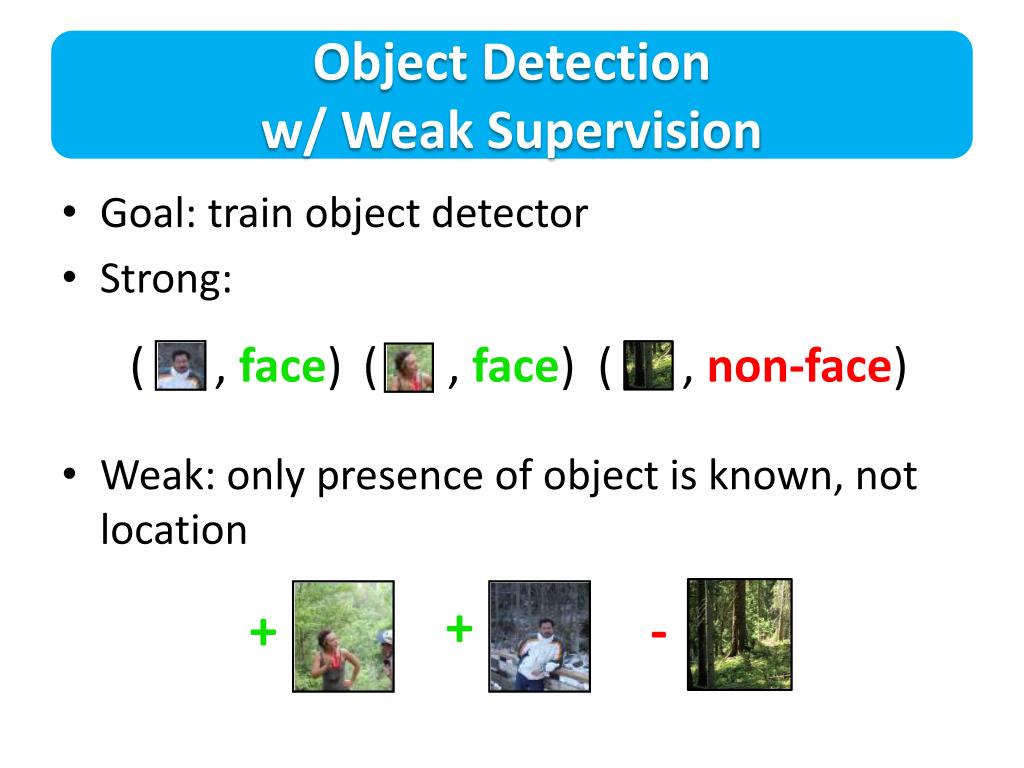

13. Object Detection w/ Weak Supervision • Goal: train object detector • Strong: • Weak: only presence of object is known, not location + ( , face) + ( , face) ( ,non-face) -

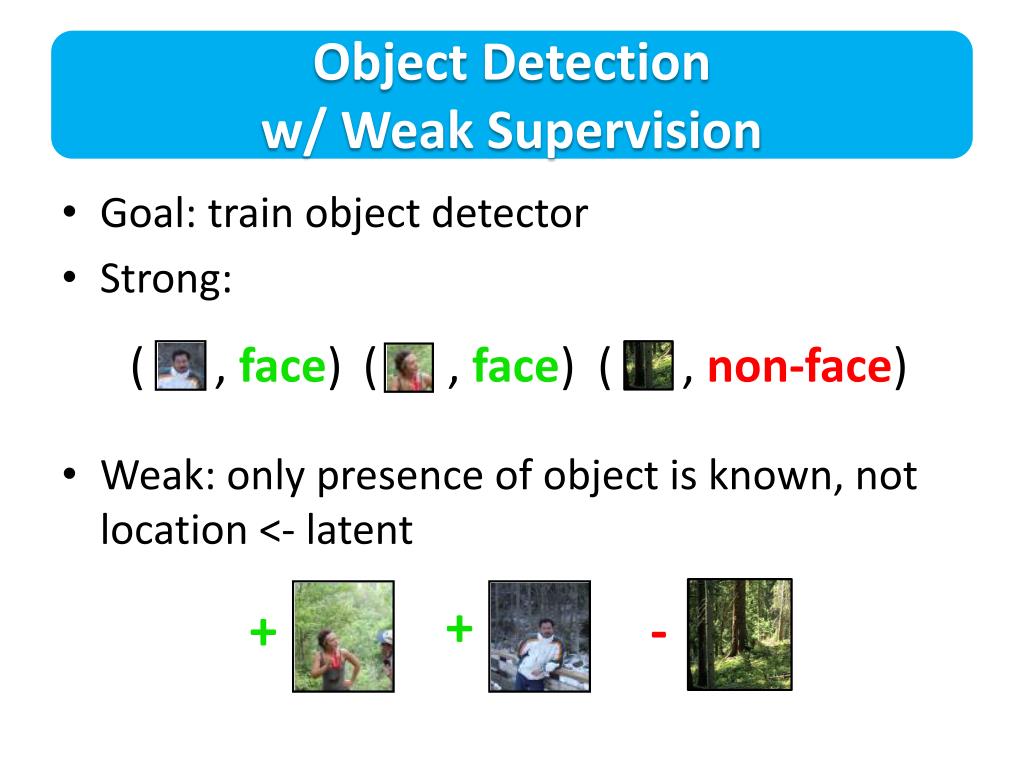

14. Object Detection w/ Weak Supervision • Goal: train object detector • Strong: • Weak: only presence of object is known, not location <- latent + ( , face) + ( , face) ( ,non-face) -

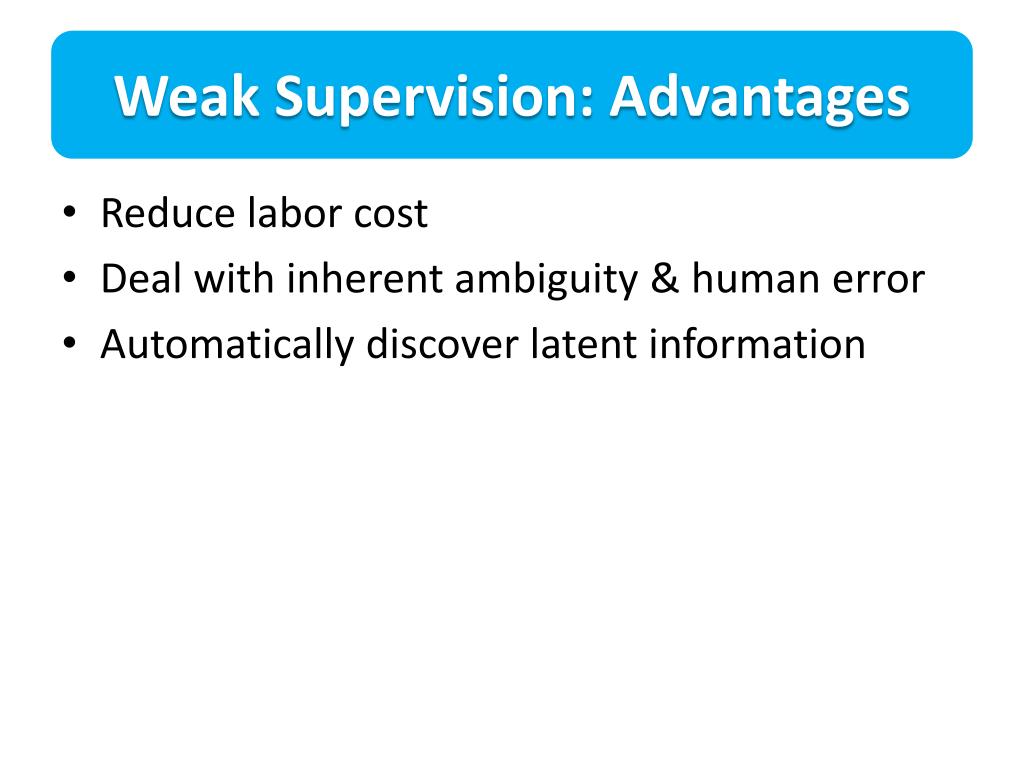

15. Weak Supervision: Advantages • Reduce labor cost • Deal with inherent ambiguity & human error • Automatically discover latent information

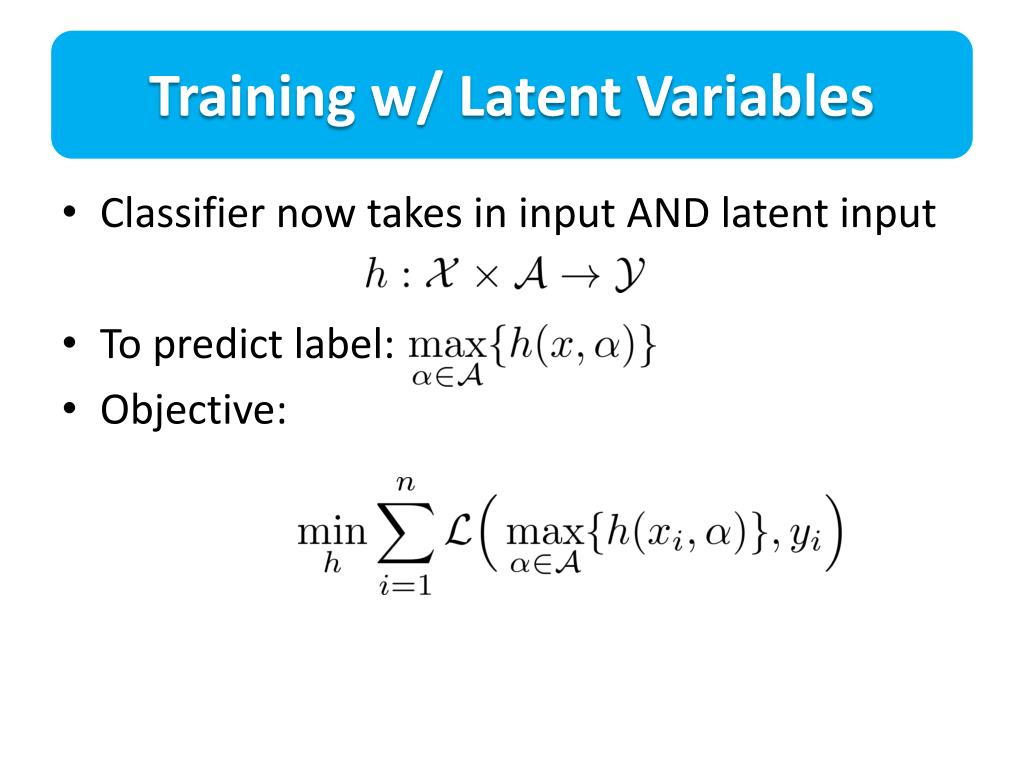

16. Training w/ Latent Variables • Classifier now takes in input AND latent input • To predict label: • Objective:

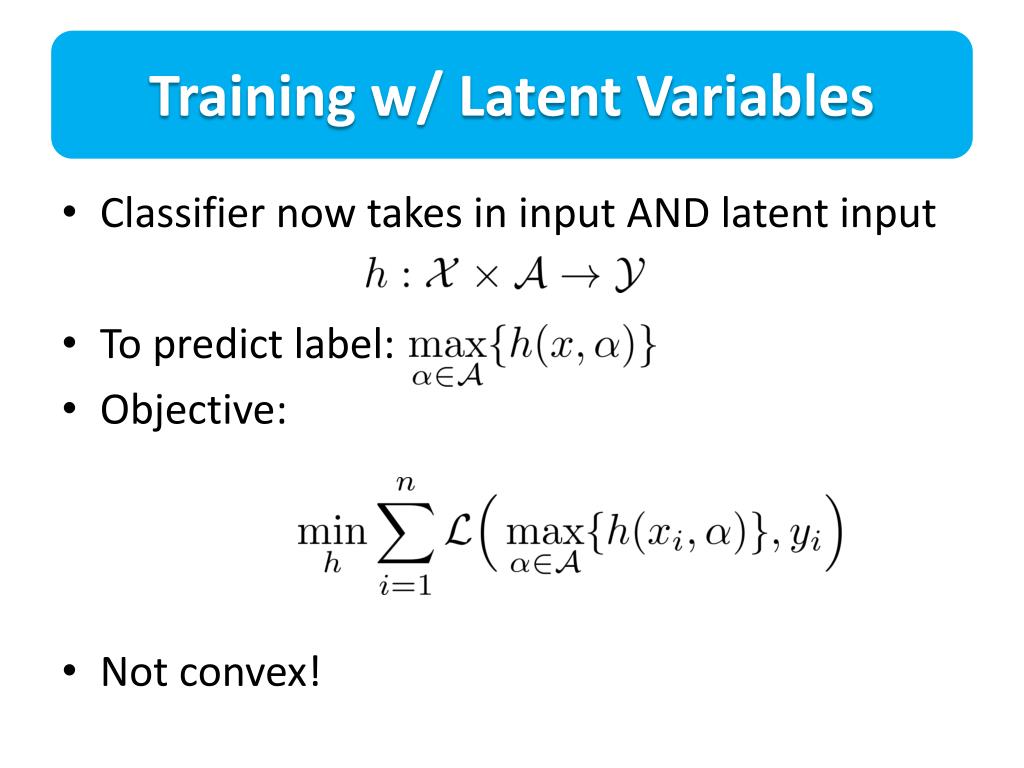

17. Training w/ Latent Variables • Classifier now takes in input AND latent input • To predict label: • Objective: • Not convex!

18. Training w/ Latent Variables • Two ways of solving • Method 1: Alternate between finding latent variables and training classifier • Finding latent variables given a fixed classifier may require domain knowledge • E.g. EM (Dempster et al.), Latent Structural SVM (Yu & Joachims) – based on CCCP (Yuille & Rangarajan), Latent SVM (Felzenszwalb et al.), MI-SVM (Andrews et al.)

19. Training w/ Latent Variables • Method 2: Replace the hard max with “soft” approximation, and then do gradient descent • E.g. MILBoost (Viola et al.), MIL-Logistic Regression (Ray et al.)

20. Outline • Overview • Supervised Learning • Weakly Supervised Learning • Weakly Labeled Location • Object Detection, Localization and Recognition • Object Detection with Parts • Object Tracking • Weakly Labeled Categories • Object Detection with Sub-categories • Object Recognition with Super-categories • Theoretical Analysis of Multiple Instance Learning • Conclusions & Future Work

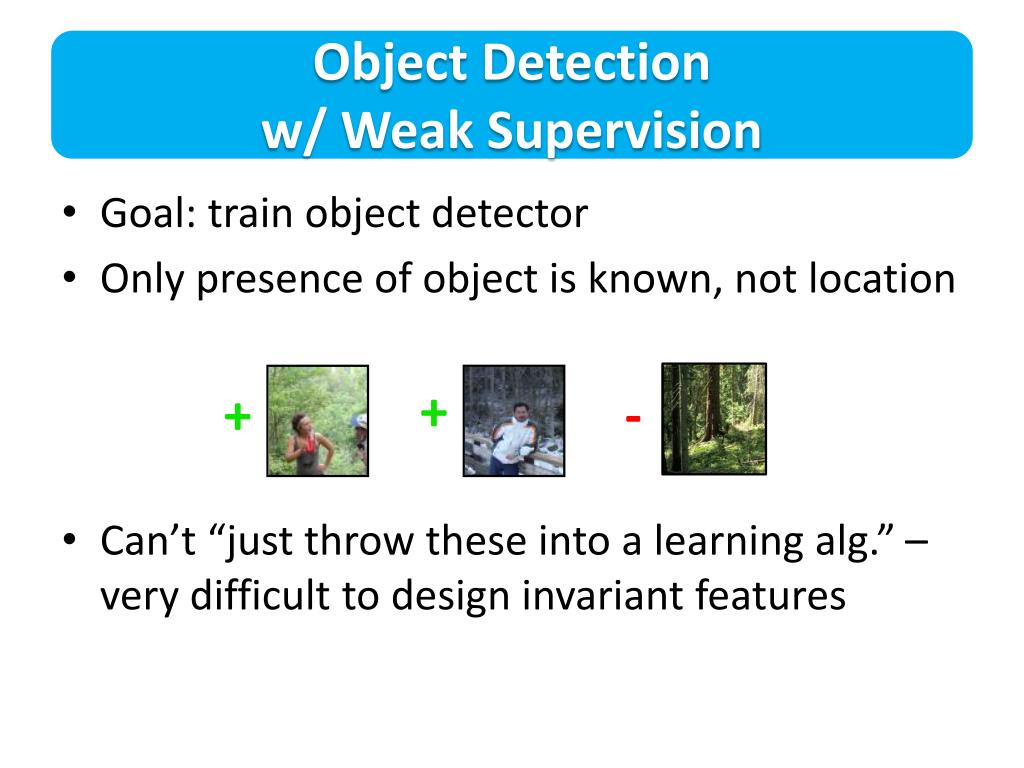

21. Object Detection w/ Weak Supervision • Goal: train object detector • Only presence of object is known, not location • Can’t “just throw these into a learning alg.” – very difficult to design invariant features + + -

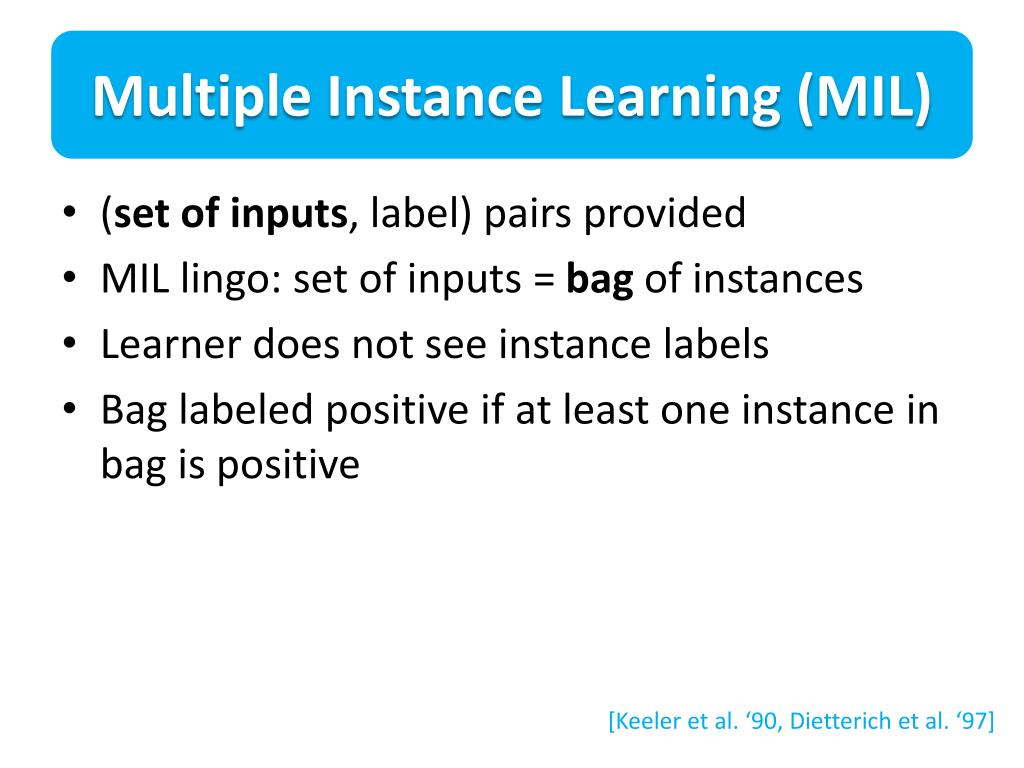

22. Multiple Instance Learning (MIL) • (set of inputs, label) pairs provided • MIL lingo: set of inputs = bag of instances • Learner does not see instance labels • Bag labeled positive if at least one instance in bag is positive [Keeler et al. ‘90, Dietterich et al. ‘97]

23. Object Detection w/ MIL { … } + Instance: image patch Instance Label: is face? Bag: whole image Bag Label: contains face? { … } + { … } - [Andrews et al. ’02, Viola et al. ’05, Dollar et al. 08, Galleguillos et al. 08]

24. MIL Notation • Training input: Bags: Bag Labels: Instance Labels: (unknown during training)

25. MIL • Positive bag contains at least one positive instance • Goal: learning instance classifier • Corresponding bag classifier

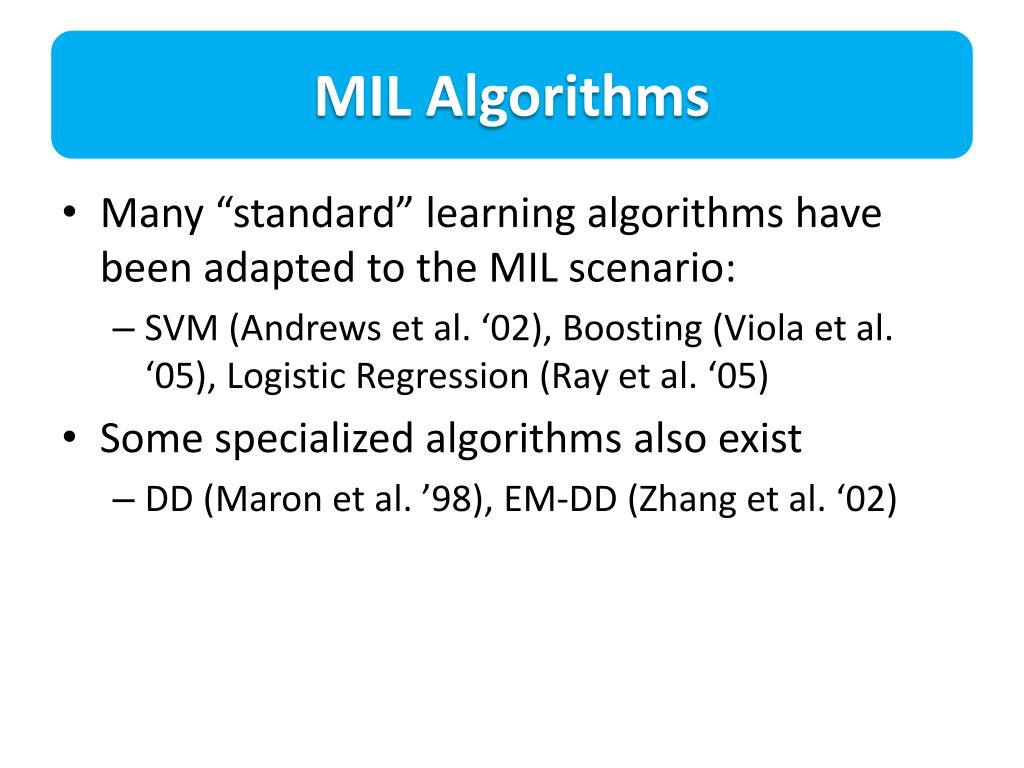

26. MIL Algorithms • Many “standard” learning algorithms have been adapted to the MIL scenario: • SVM (Andrews et al. ‘02), Boosting (Viola et al. ‘05), Logistic Regression (Ray et al. ‘05) • Some specialized algorithms also exist • DD (Maron et al. ’98), EM-DD (Zhang et al. ‘02)

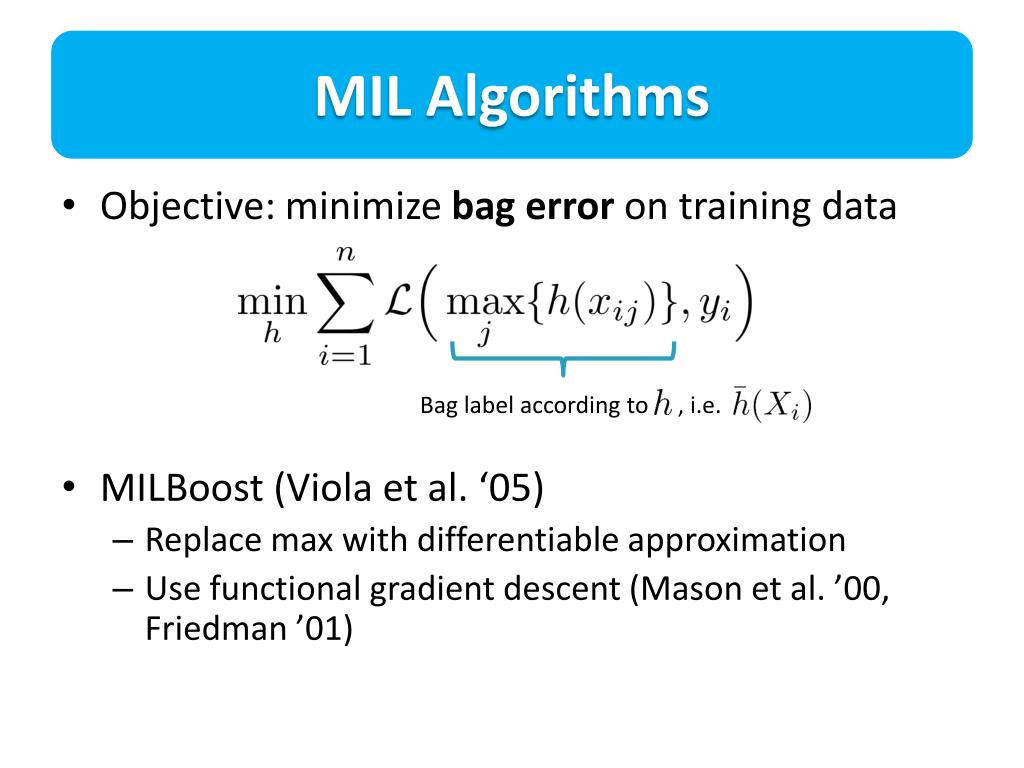

27. MIL Algorithms • Objective: minimize bag error on training data • MILBoost (Viola et al. ‘05) • Replace max with differentiable approximation • Use functional gradient descent (Mason et al. ’00, Friedman ’01) Bag label according to , i.e.

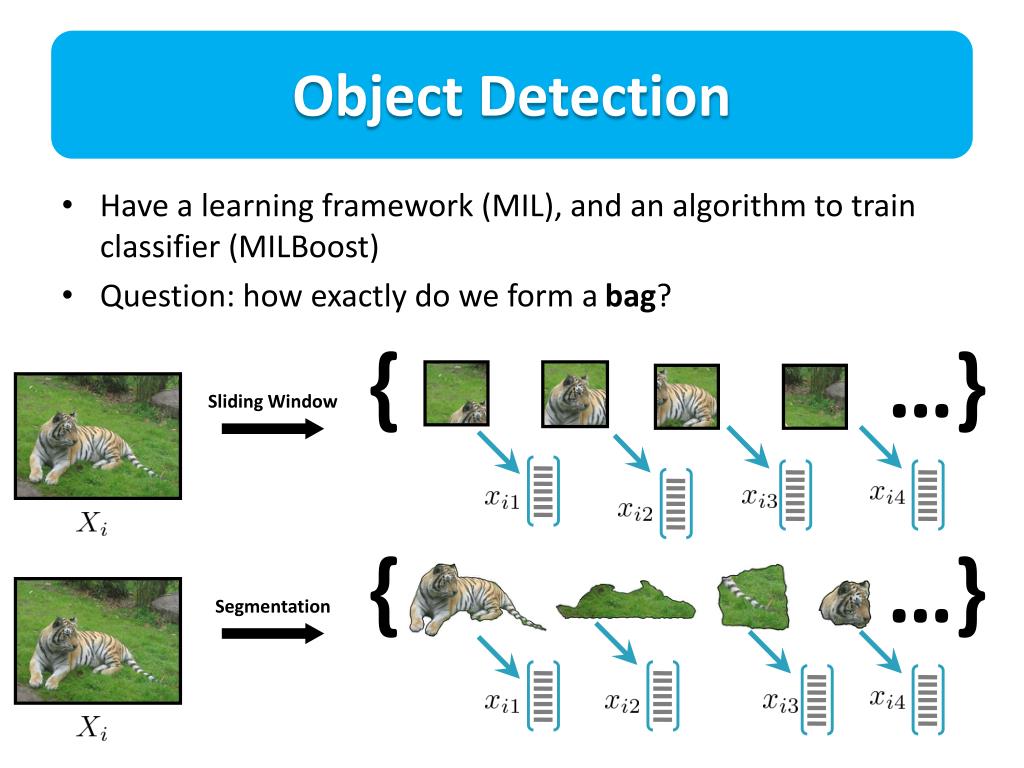

28. Object Detection • Have a learning framework (MIL), and an algorithm to train classifier (MILBoost) • Question: how exactly do we form a bag? { …} Segmentation { …} Sliding Window

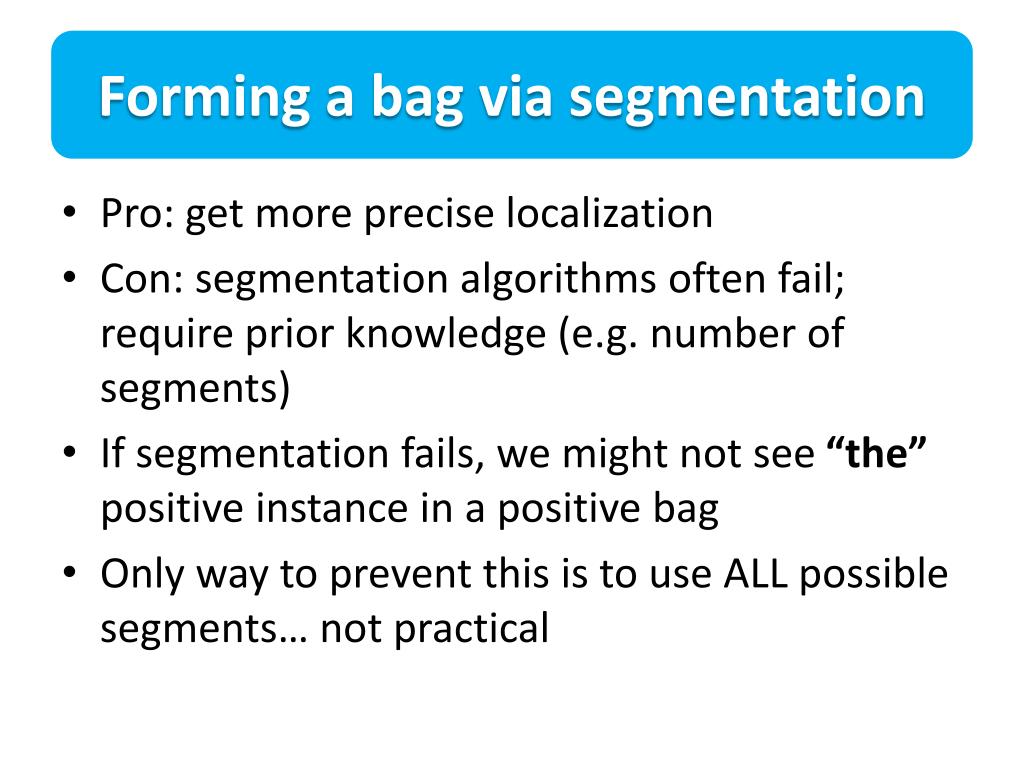

29. Forming a bag via segmentation • Pro: get more precise localization • Con: segmentation algorithms often fail; require prior knowledge (e.g. number of segments) • If segmentation fails, we might not see “the” positive instance in a positive bag • Only way to prevent this is to use ALL possible segments… not practical

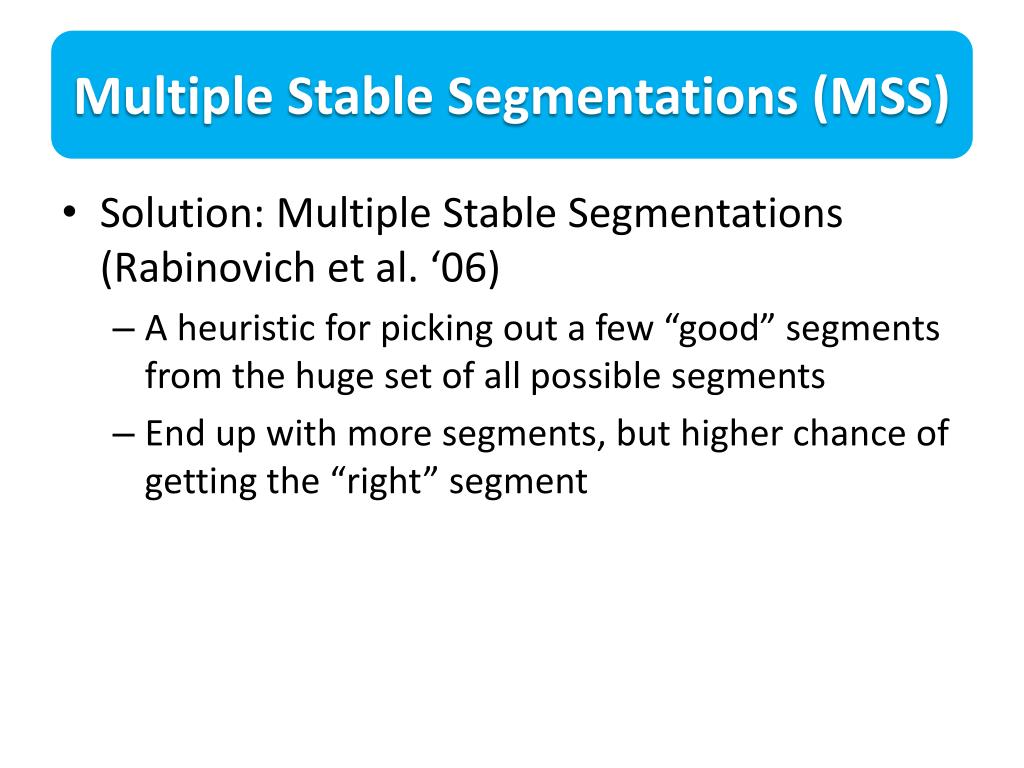

30. Multiple Stable Segmentations (MSS) • Solution: Multiple Stable Segmentations (Rabinovich et al. ‘06) • A heuristic for picking out a few “good” segments from the huge set of all possible segments • End up with more segments, but higher chance of getting the “right” segment

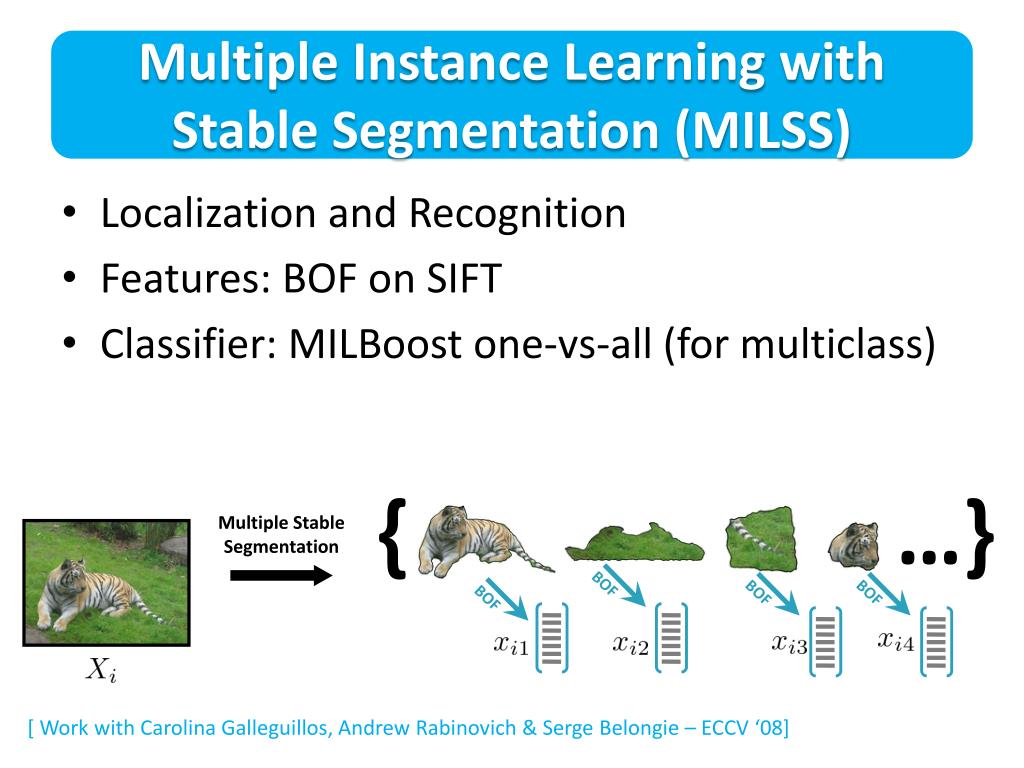

31. { …} Multiple Instance Learning with Stable Segmentation (MILSS) Multiple Stable Segmentation BOF BOF BOF BOF • Localization and Recognition • Features: BOF on SIFT • Classifier: MILBoost one-vs-all (for multiclass) [ Work with Carolina Galleguillos, Andrew Rabinovich & Serge Belongie – ECCV ‘08]

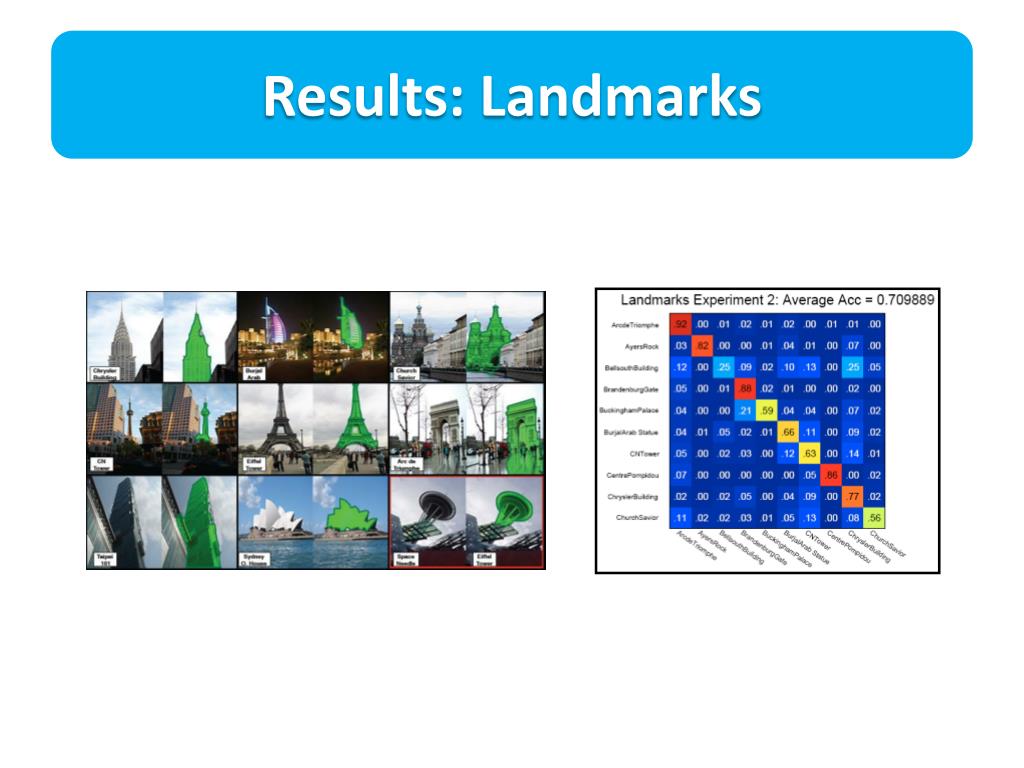

32. Results: Landmarks

33. Results: Landmarks

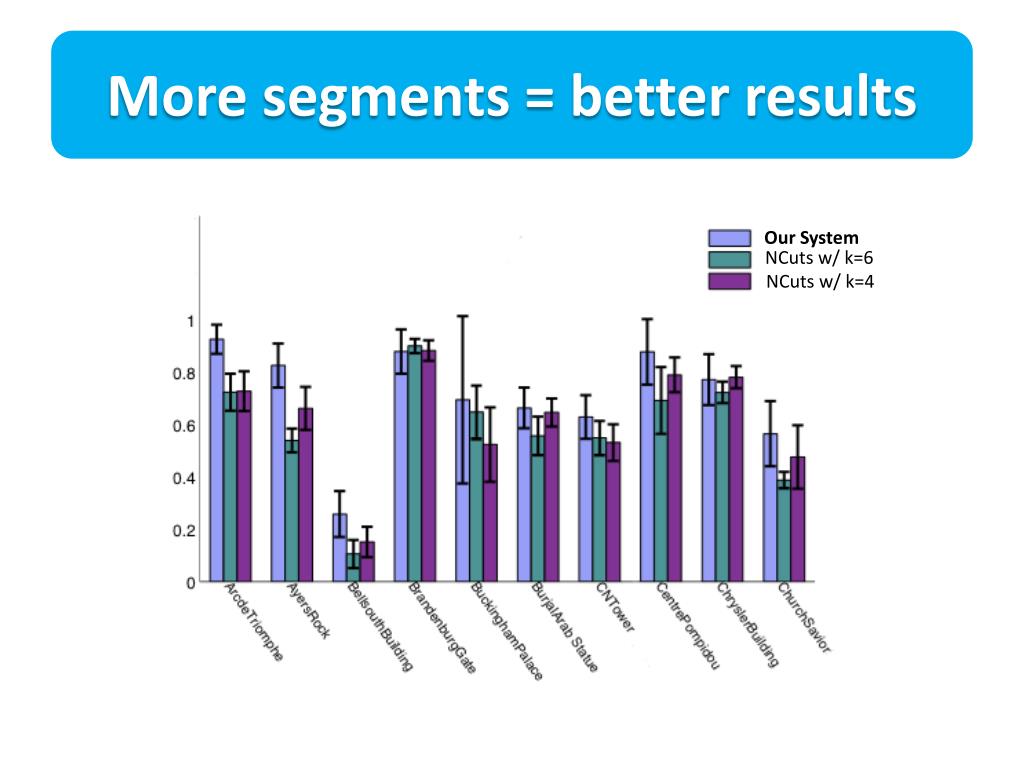

34. More segments = better results Our System NCuts w/ k=6 NCuts w/ k=4

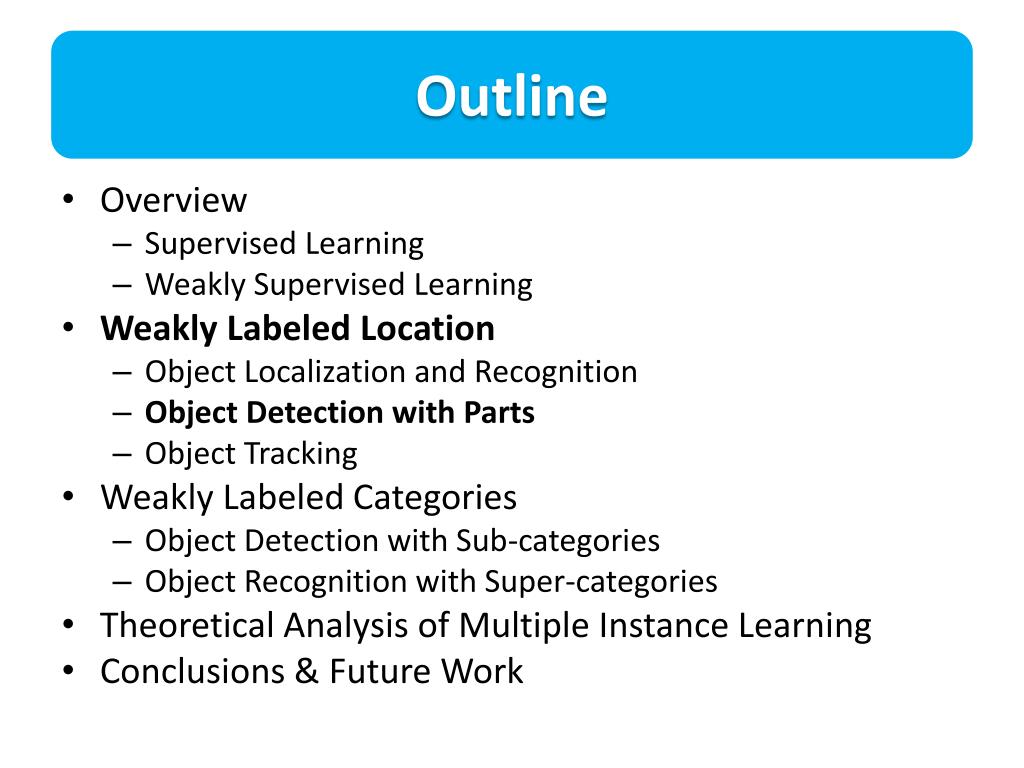

35. Outline • Overview • Supervised Learning • Weakly Supervised Learning • Weakly Labeled Location • Object Localization and Recognition • Object Detection with Parts • Object Tracking • Weakly Labeled Categories • Object Detection with Sub-categories • Object Recognition with Super-categories • Theoretical Analysis of Multiple Instance Learning • Conclusions & Future Work

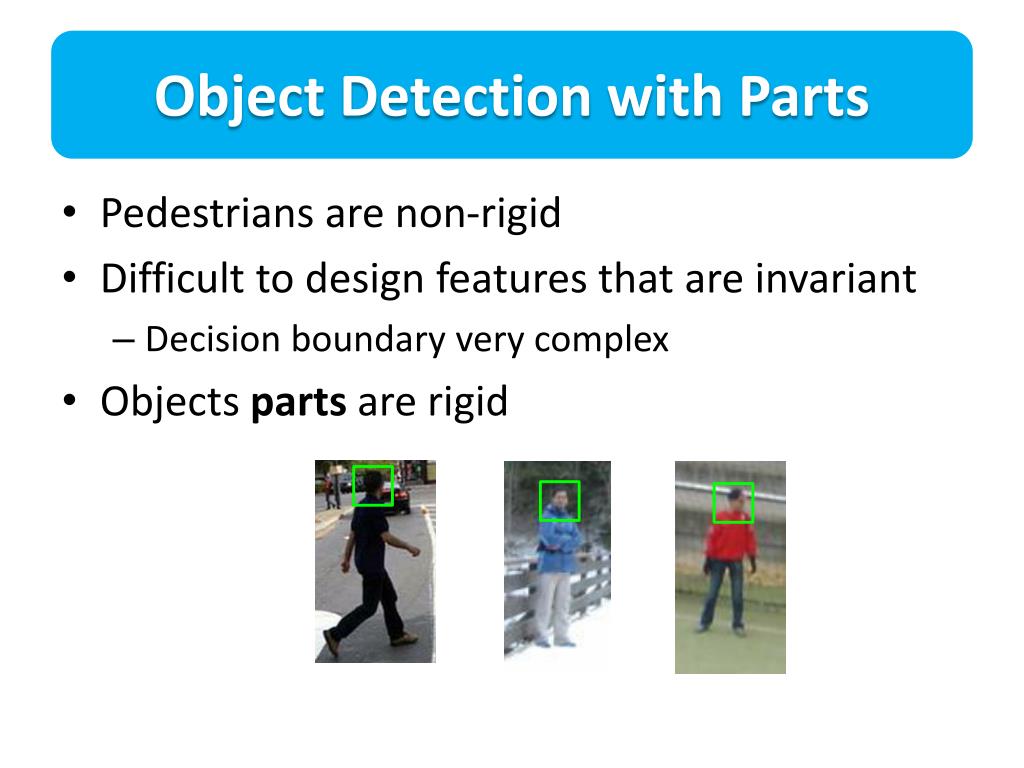

36. Object Detection with Parts • Pedestrians are non-rigid • Difficult to design features that are invariant • Decision boundary very complex • Objects parts are rigid

37. Object Detection with Parts • Naïve sol’n: label parts and train detectors • Labor intensive • Sub-optimal (e.g. “space between the legs”) • Better sol’n: • Use rough location of objects • Treat part locations as latent variables [Mohan et al. ’01, Mikolajczyk et al. ‘04]

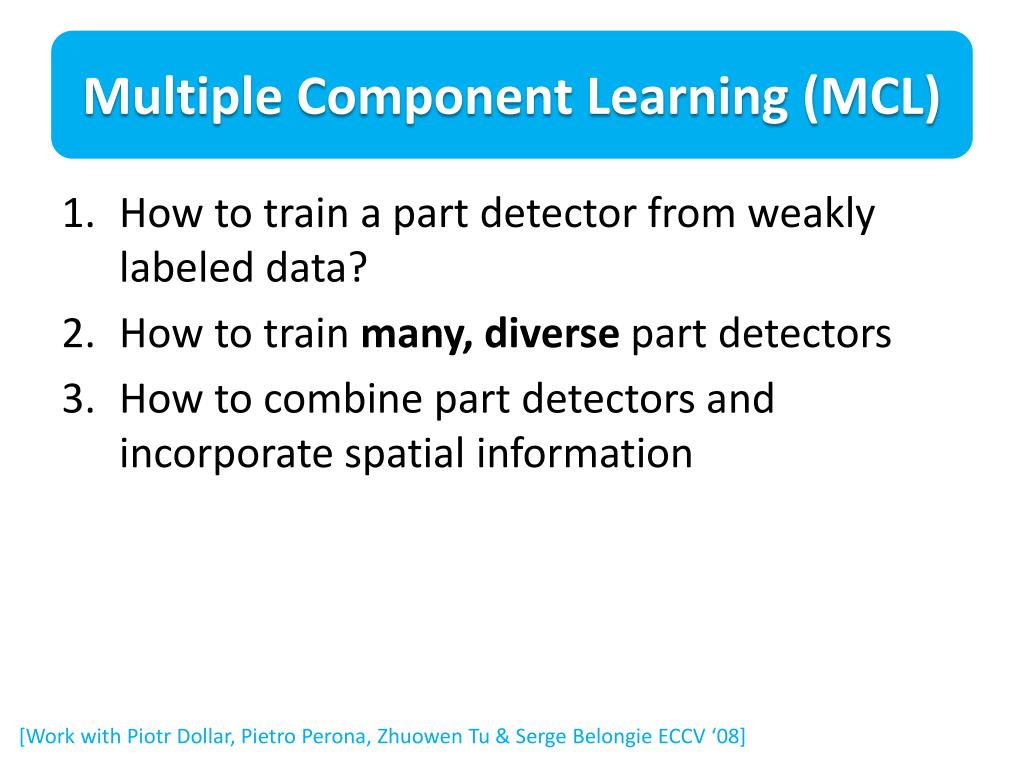

38. Multiple Component Learning (MCL) • How to train a part detector from weakly labeled data? • How to train many, diverse part detectors • How to combine part detectors and incorporate spatial information [Work with Piotr Dollar, PietroPerona, ZhuowenTu & Serge Belongie ECCV ‘08]

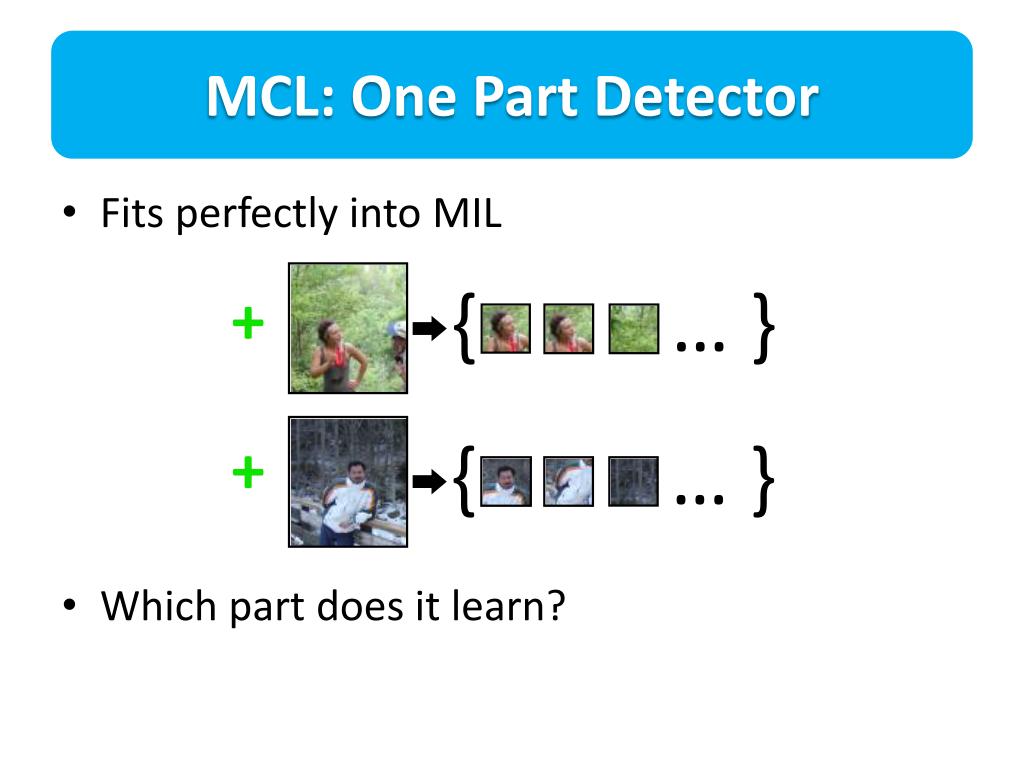

39. MCL: One Part Detector • Fits perfectly into MIL • Which part does it learn? { … } + { … } +

40. MCL: Diverse Parts • Pedestrian images are “roughly aligned” • Choose random sections of the images to feed into MIL

41. MCL: Top 5 Learned Detectors

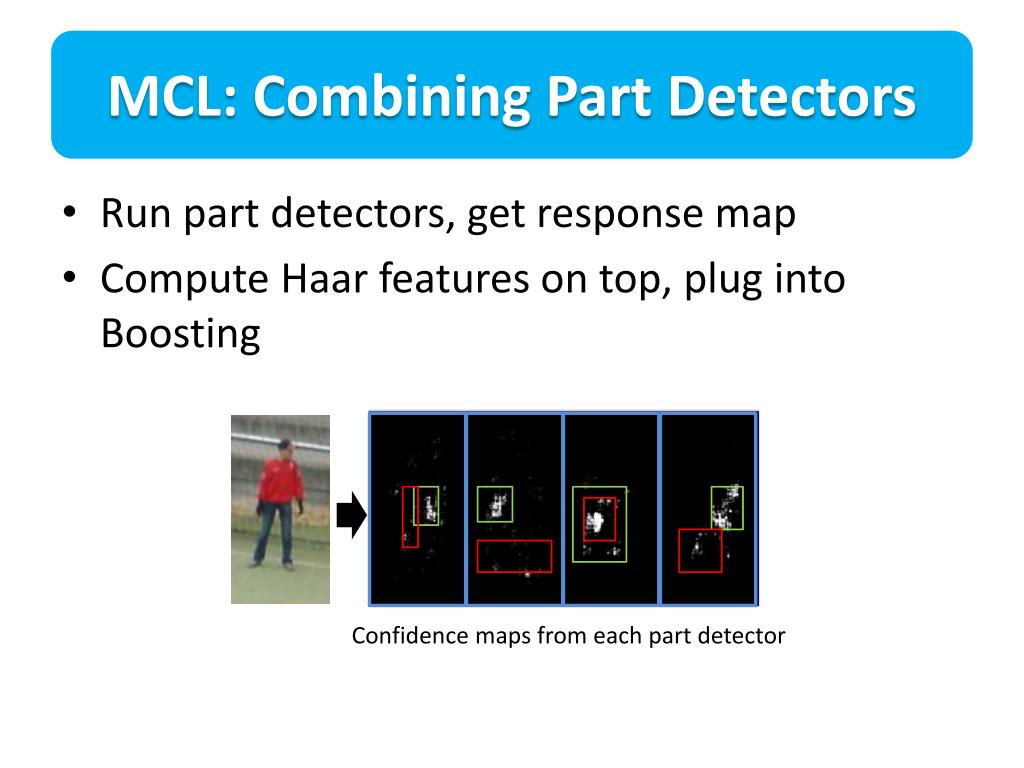

42. MCL: Combining Part Detectors • Run part detectors, get response map • Compute Haar features on top, plug into Boosting Confidence maps from each part detector

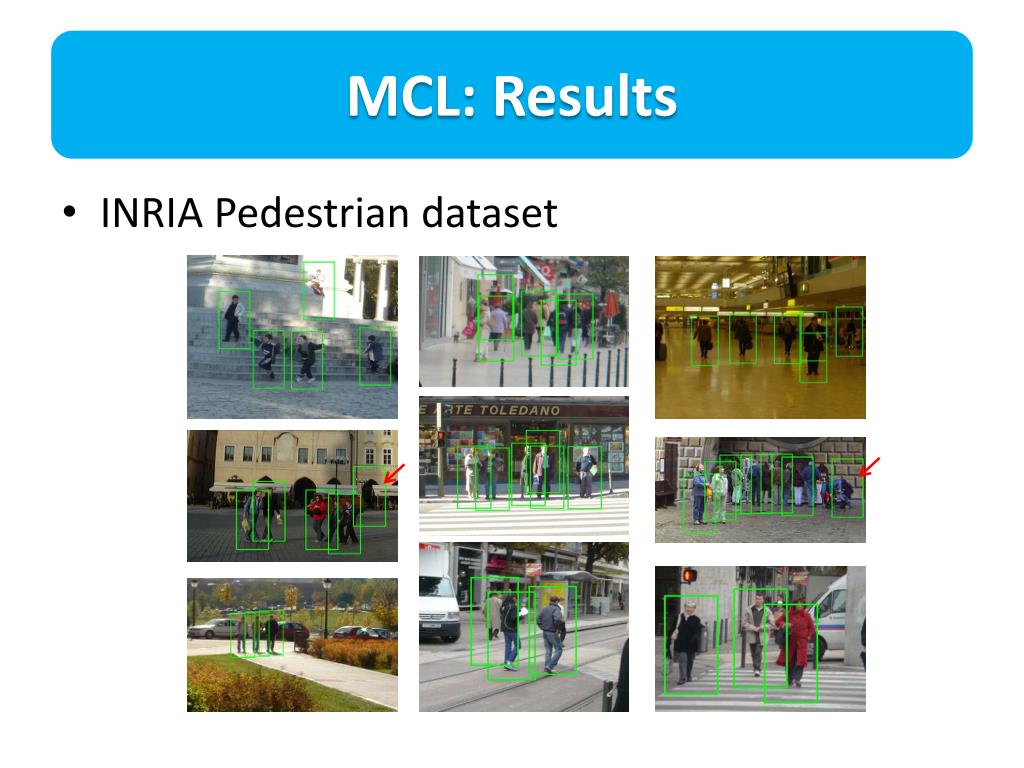

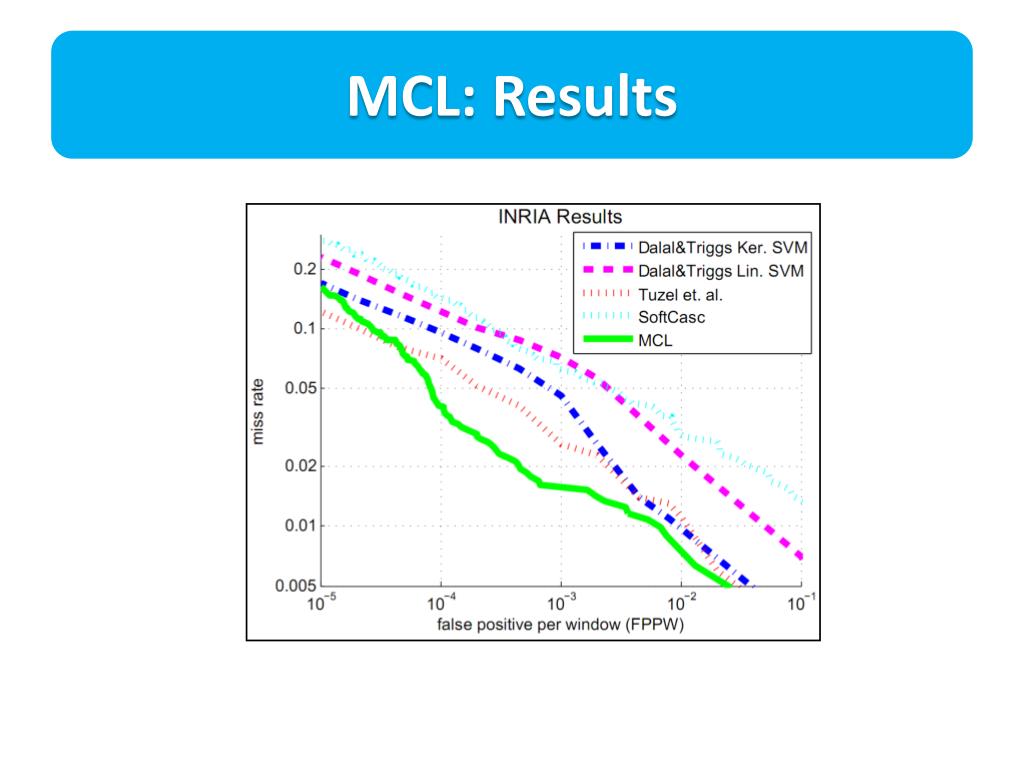

43. MCL: Results • INRIA Pedestrian dataset

44. MCL: Results

45. MCL: Related Work • P. Felzenszwalb, R. Girshick, D. McAllester, D. Ramanan. "Object Detection with Discriminatively Trained Part-Based Models" IEEE PAMI. Sept 2009. • Very similar model, uses SVM instead of Boosting, and an explicit shape model • L. Bourdev, S. Maji, T. Brox, J. Malik. “Detecting people using mutually consistent poselet activations” ECCV 2010.

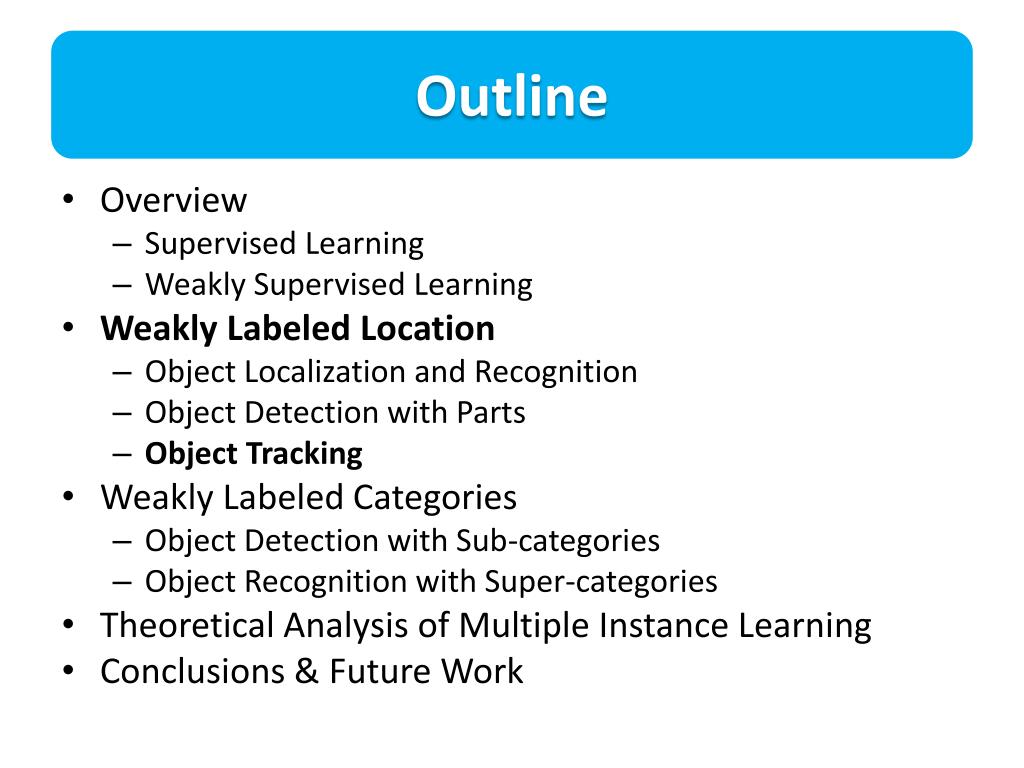

46. Outline • Overview • Supervised Learning • Weakly Supervised Learning • Weakly Labeled Location • Object Localization and Recognition • Object Detection with Parts • Object Tracking • Weakly Labeled Categories • Object Detection with Sub-categories • Object Recognition with Super-categories • Theoretical Analysis of Multiple Instance Learning • Conclusions & Future Work

47. Object Tracking • Problem: given location of object in first frame, track object through video • Tracking by Detection: alternate training detector and running it on each frame

48. Tracking by Detection • First frame is labeled

49. Tracking by Detection • First frame is labeled Online classifier (i.e. Online AdaBoost) Classifier

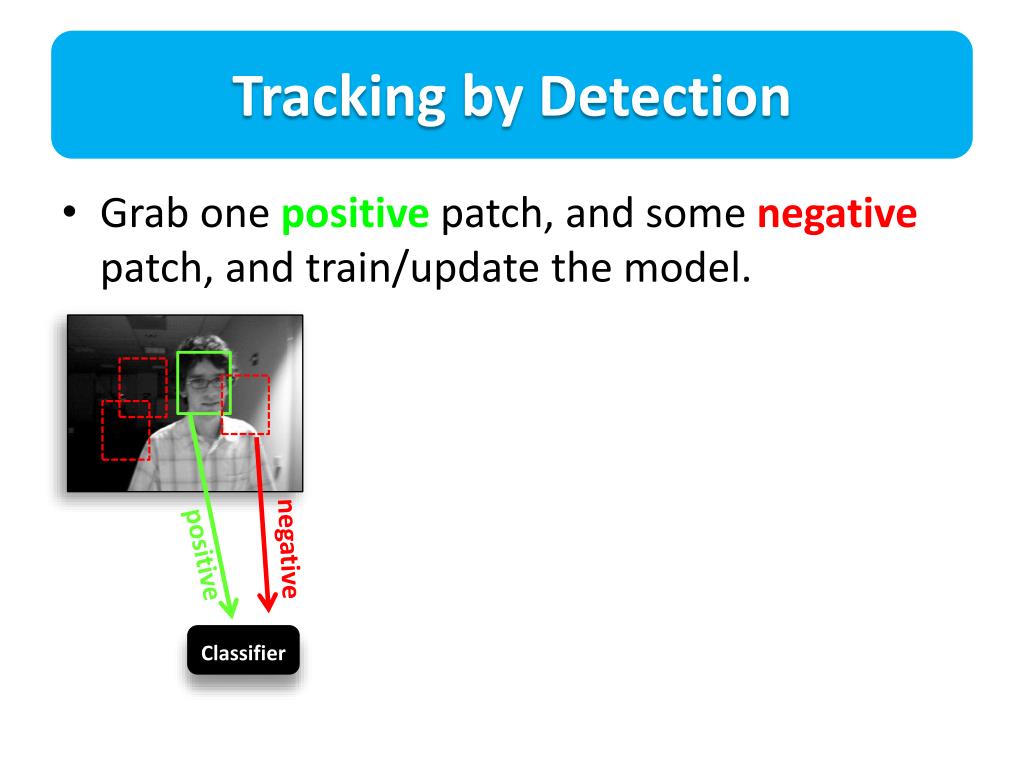

50. Tracking by Detection • Grab one positive patch, and some negative patch, and train/update the model. negative positive Classifier
