1. Loss-based Visual Learning with Weak Supervision M. Pawan Kumar Joint work with Pierre-Yves Baudin, Danny Goodman, Puneet Kumar, Nikos Paragios, NouraAzzabou, Pierre Carlier

2. SPLENDID Self-Paced Learning for Exploiting Noisy, Diverse or Incomplete Data Machine Learning Weak Annotations Noisy Annotations Applications Computer Vision Medical Imaging Nikos Paragios Equipe Galen INRIA Saclay Daphne Koller DAGS Stanford 2 Visits from INRIA to Stanford 2012 ICML 1 Visit from Stanford to INRIA 3 Visits Planned 2013 MICCAI

3. Medical Image Segmentation MRI Acquisitions of the thigh

4. Medical Image Segmentation MRI Acquisitions of the thigh Segments correspond to muscle groups

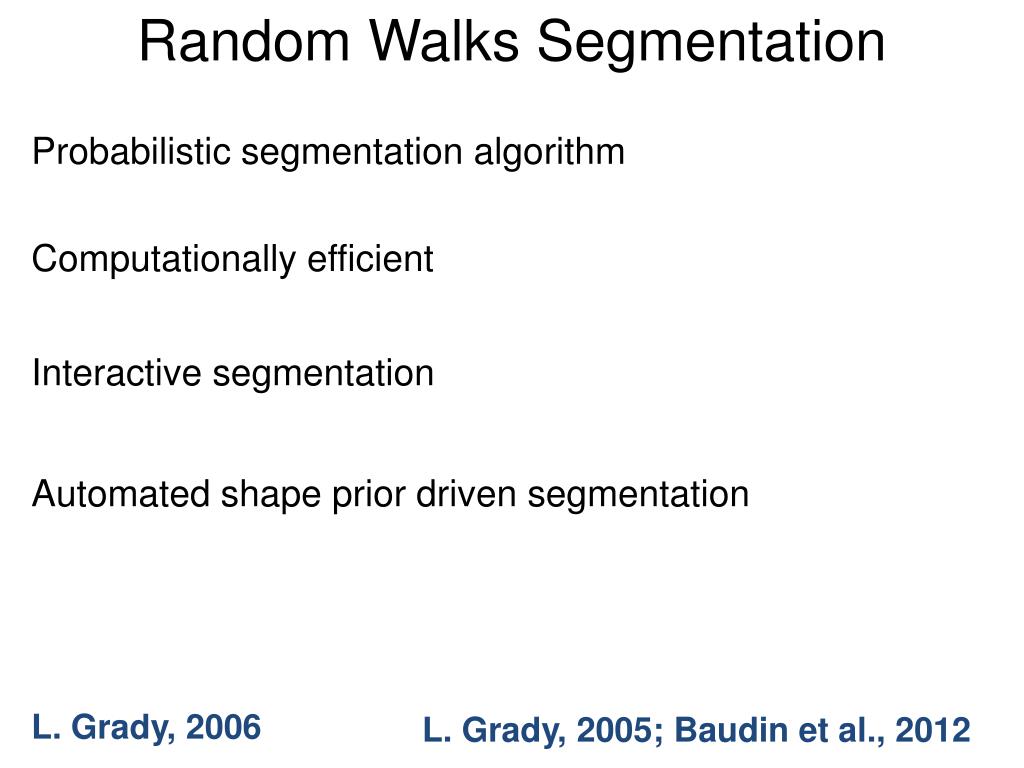

5. Random Walks Segmentation Probabilistic segmentation algorithm Computationally efficient Interactive segmentation Automated shape prior driven segmentation L. Grady, 2006 L. Grady, 2005; Baudin et al., 2012

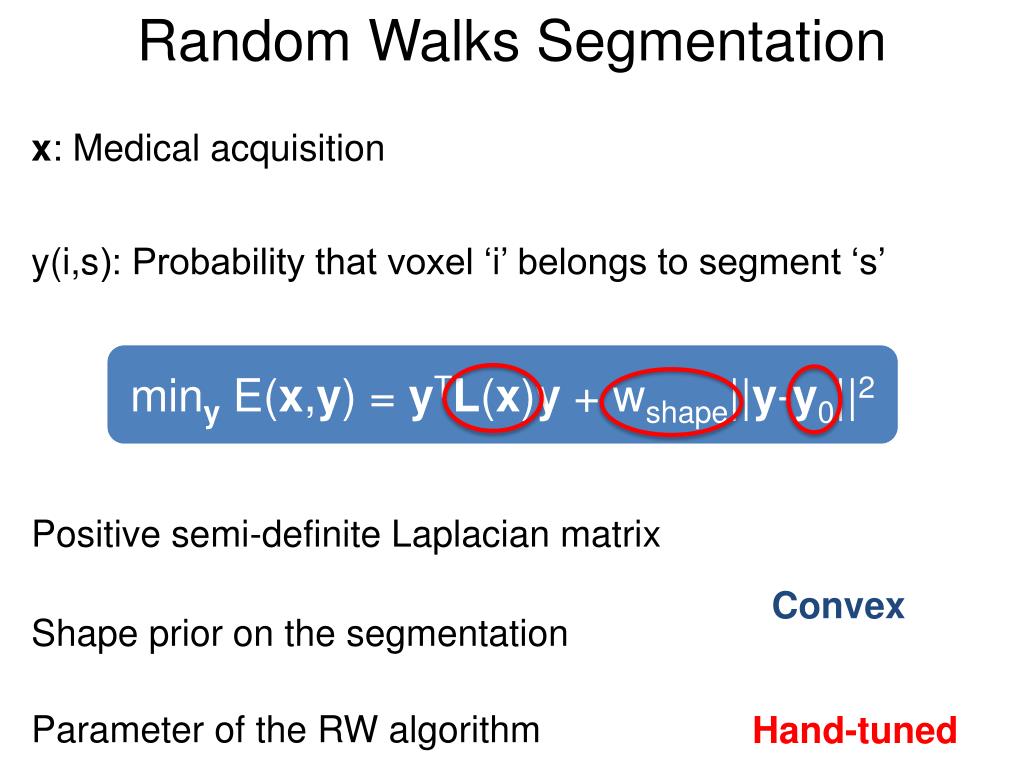

6. Random Walks Segmentation x: Medical acquisition y(i,s): Probability that voxel ‘i’ belongs to segment ‘s’ miny E(x,y) = yTL(x)y + wshape||y-y0||2 Positive semi-definite Laplacian matrix Convex Shape prior on the segmentation Parameter of the RW algorithm Hand-tuned

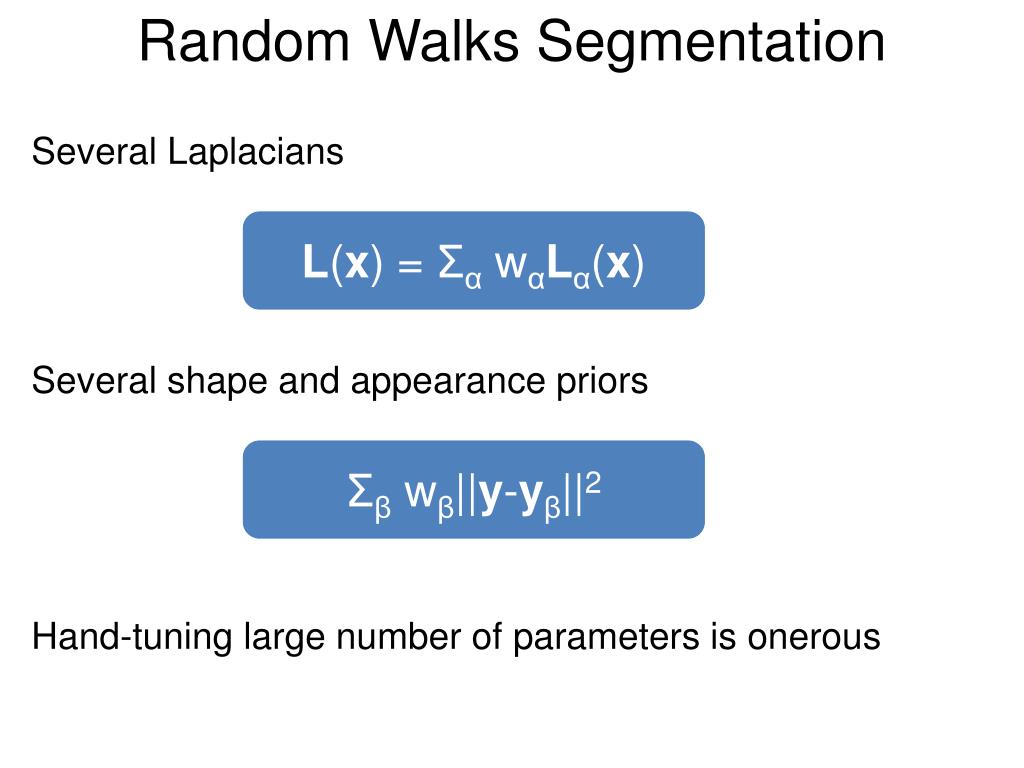

7. Random Walks Segmentation Several Laplacians L(x) = Σα wαLα(x) Several shape and appearance priors Σβ wβ||y-yβ||2 Hand-tuning large number of parameters is onerous

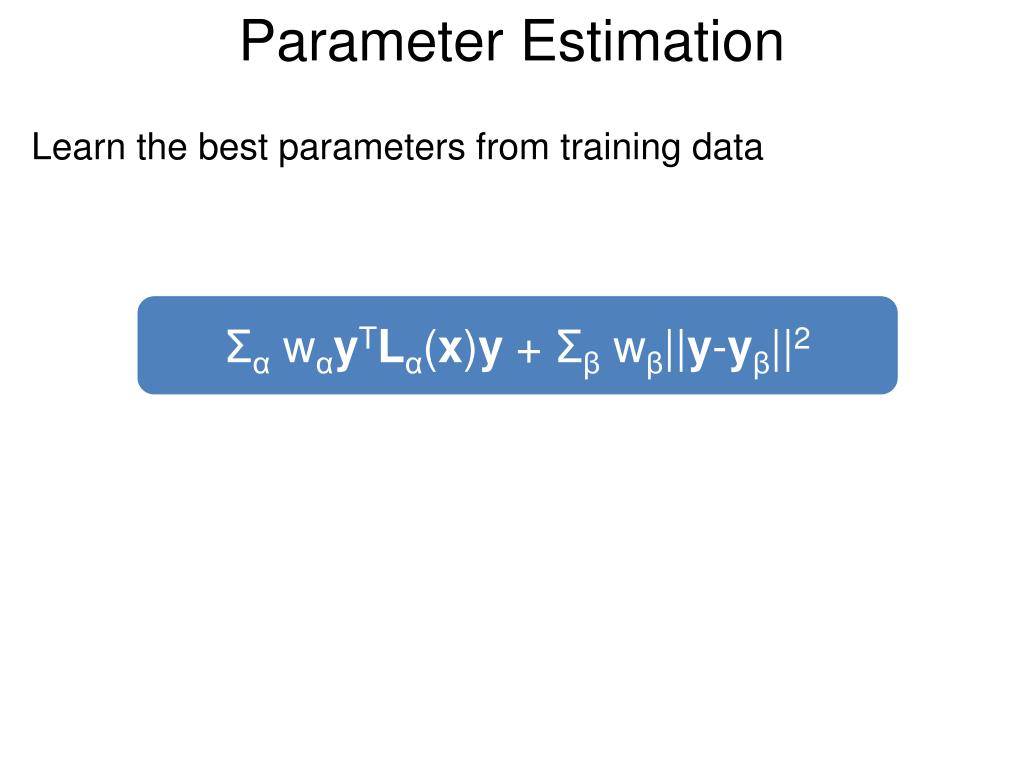

8. Parameter Estimation Learn the best parameters from training data Σα wαyTLα(x)y+ Σβ wβ||y-yβ||2

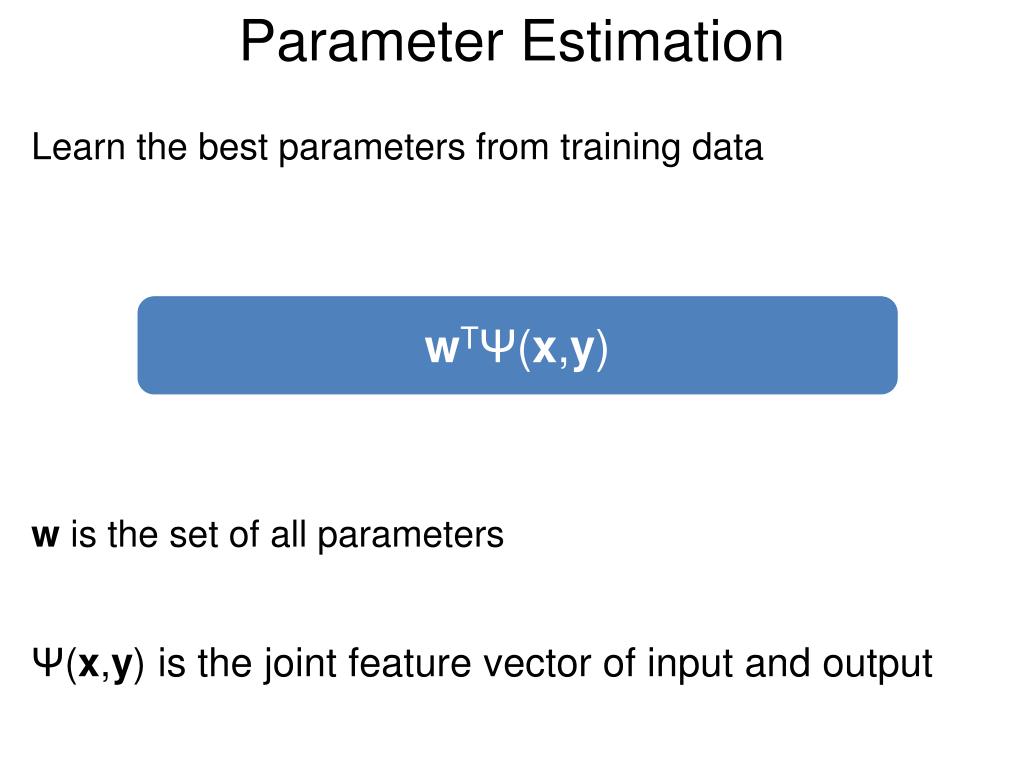

9. Parameter Estimation Learn the best parameters from training data wTΨ(x,y) w is the set of all parameters Ψ(x,y) is the joint feature vector of input and output

10. Outline • Parameter Estimation • Supervised Learning • Hard vs. Soft Segmentation • Mathematical Formulation • Optimization • Experiments • Related and Future Work in SPLENDID

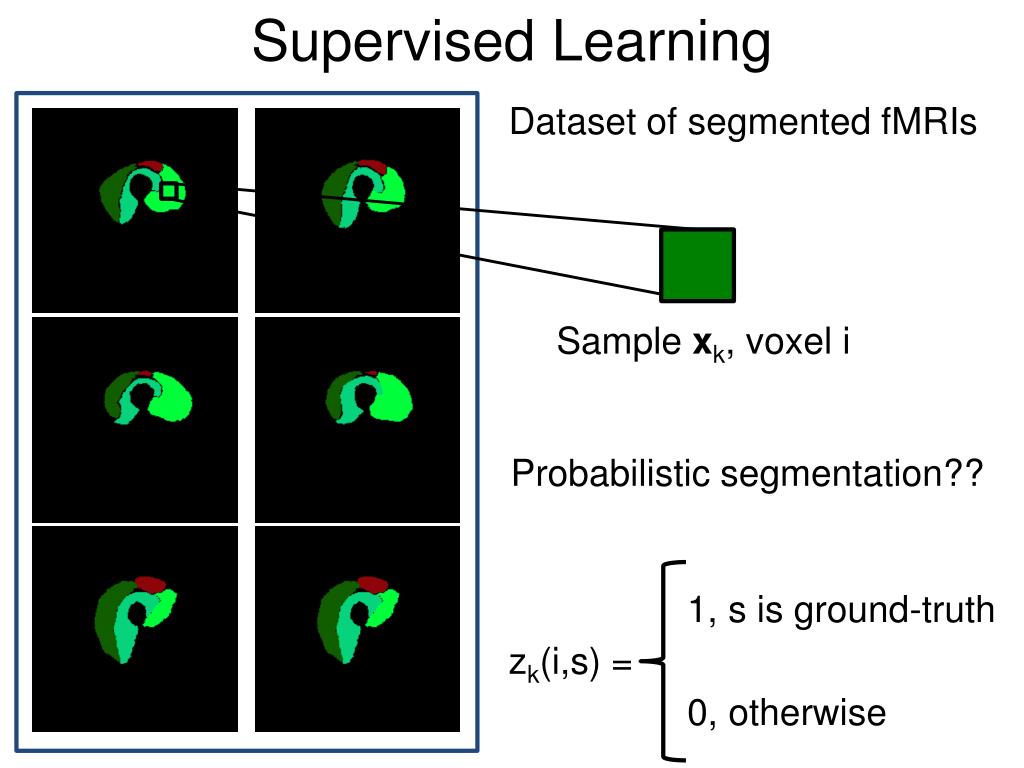

11. Supervised Learning Dataset of segmented fMRIs Sample xk, voxel i Probabilistic segmentation?? 1, s is ground-truth zk(i,s) = 0, otherwise

12. Supervised Learning minwΣkξk+ λ||w||2 wTΨ(xk,ŷ) - wTΨ(xk,zk) Δ(ŷ,zk) - ξk ≥ Energy of Segmentation Energy of Ground-truth Δ(ŷ,zk) = Fraction of incorrectly labeled voxels Structured-output Support Vector Machine Taskar et al., 2003; Tsochantardis et al., 2004

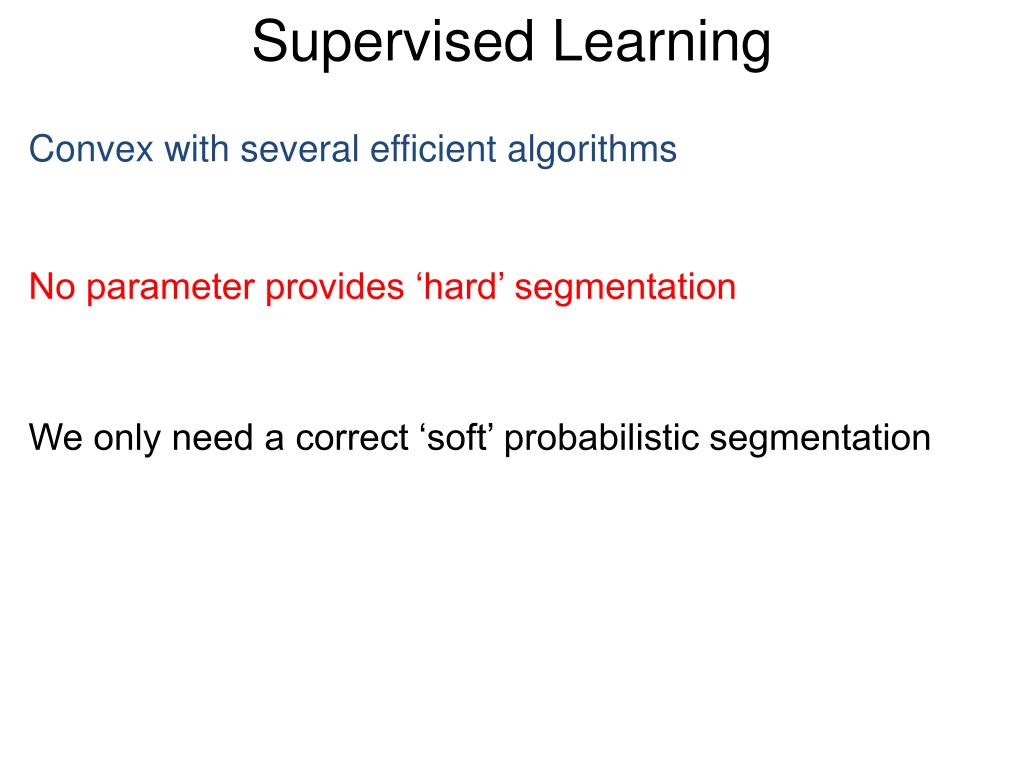

13. Supervised Learning Convex with several efficient algorithms No parameter provides ‘hard’ segmentation We only need a correct ‘soft’ probabilistic segmentation

14. Outline • Parameter Estimation • Supervised Learning • Hard vs. Soft Segmentation • Mathematical Formulation • Optimization • Experiments • Related and Future Work in SPLENDID

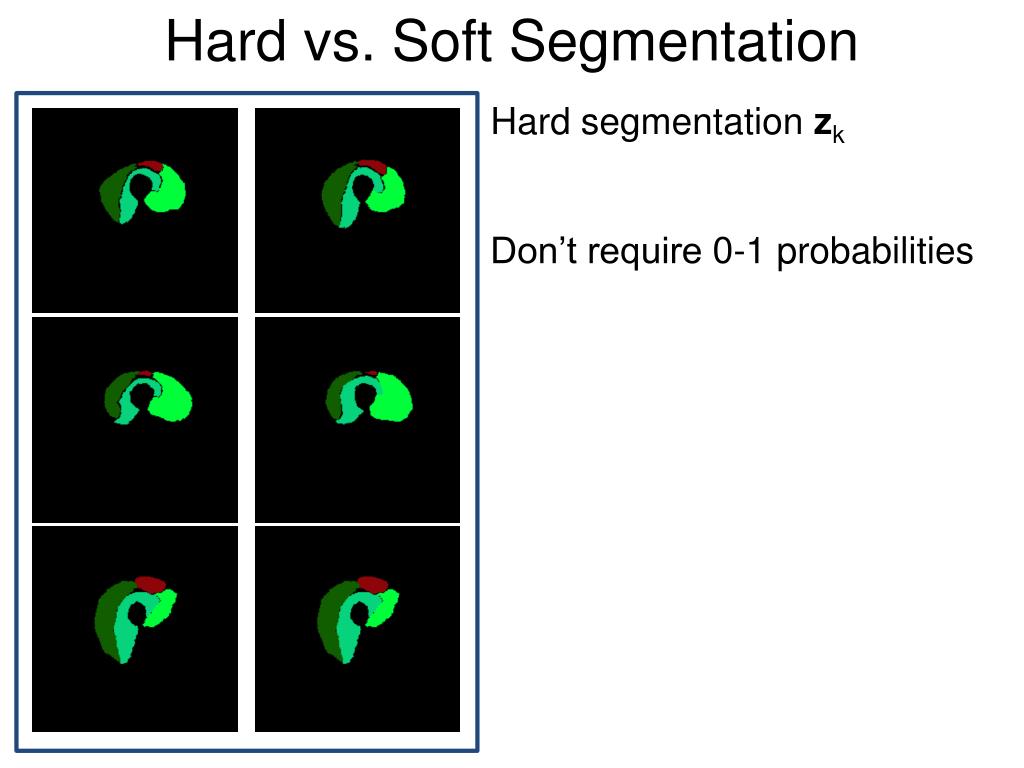

15. Hard vs. Soft Segmentation Hard segmentation zk Don’t require 0-1 probabilities

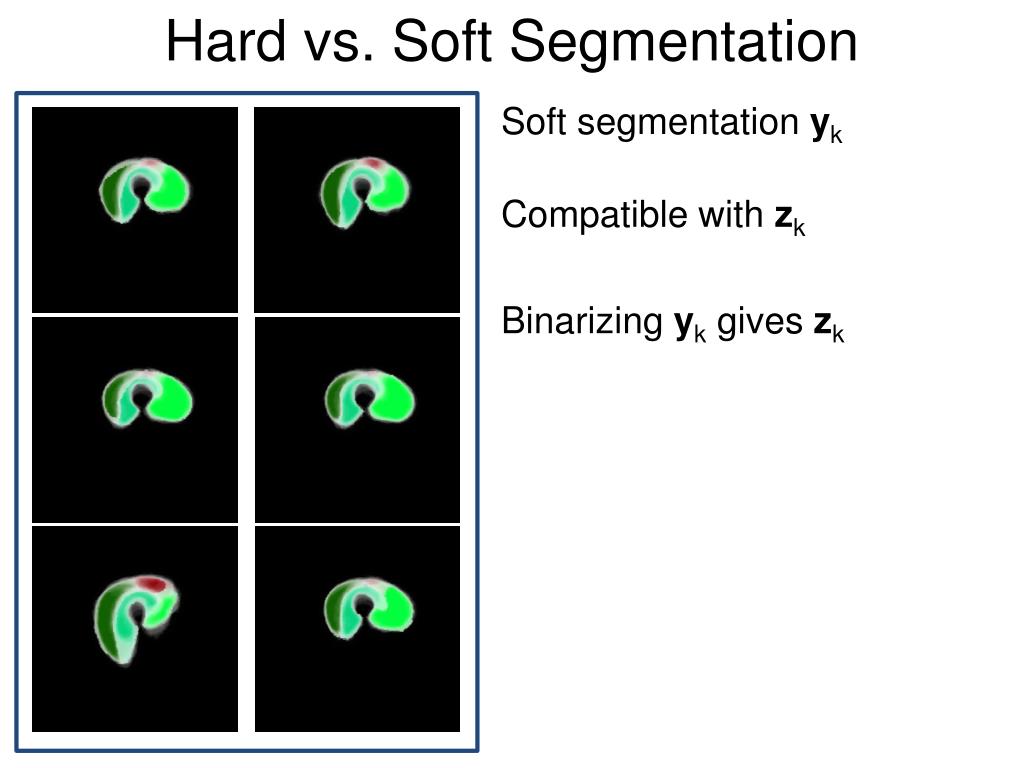

16. Hard vs. Soft Segmentation Soft segmentation yk Compatible with zk Binarizingyk gives zk

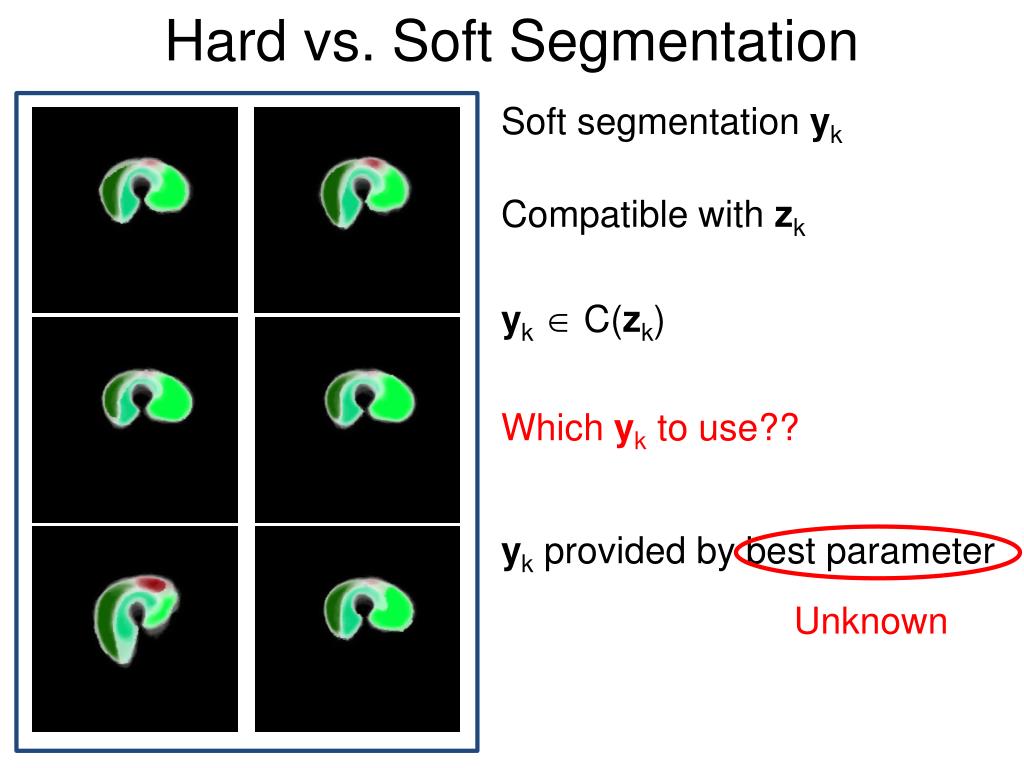

17. Hard vs. Soft Segmentation Soft segmentation yk Compatible with zk yk C(zk) Which yk to use?? yk provided by best parameter Unknown

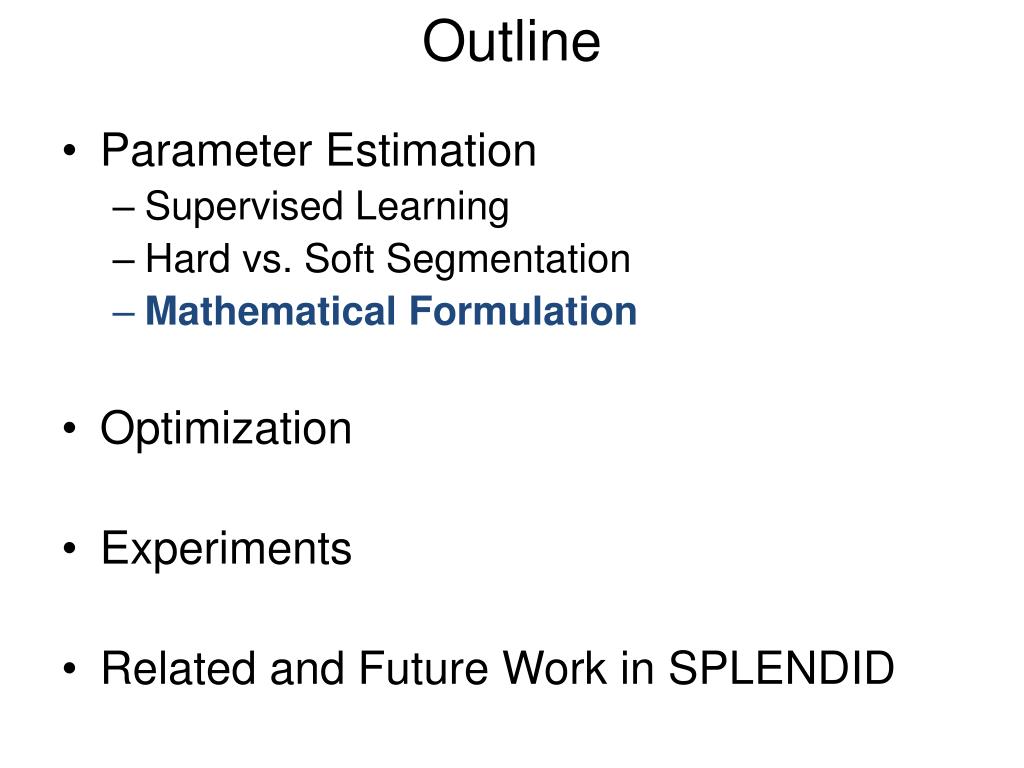

18. Outline • Parameter Estimation • Supervised Learning • Hard vs. Soft Segmentation • Mathematical Formulation • Optimization • Experiments • Related and Future Work in SPLENDID

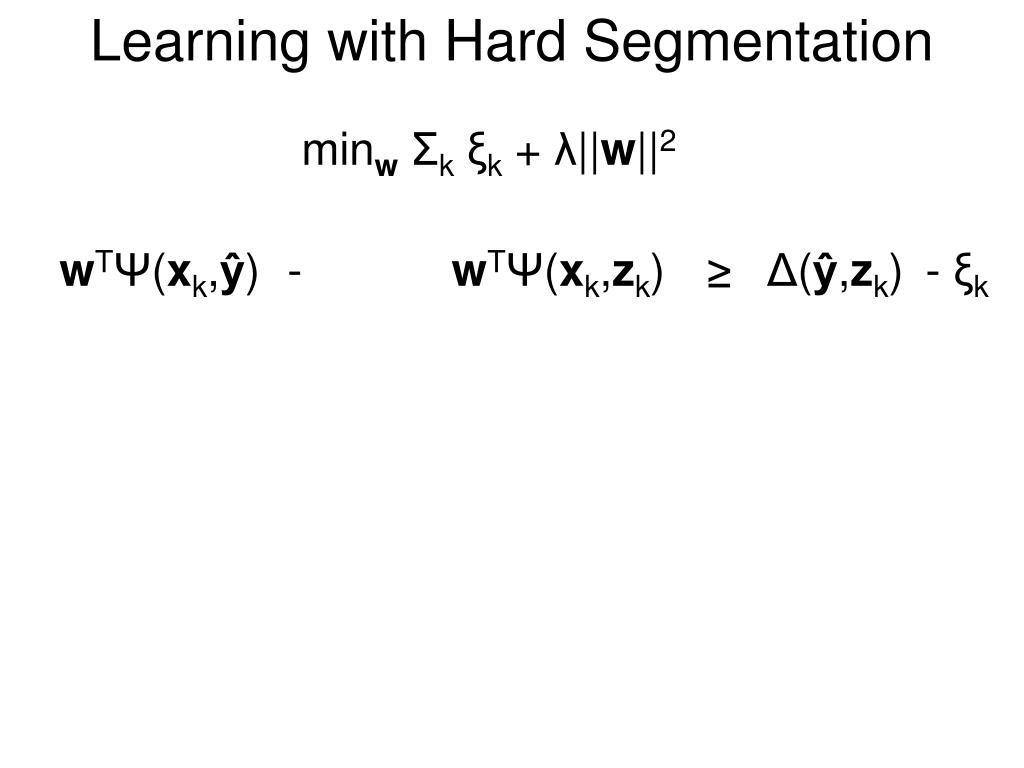

19. Learning with Hard Segmentation minwΣkξk+ λ||w||2 wTΨ(xk,ŷ) - wTΨ(xk,zk) Δ(ŷ,zk) - ξk ≥

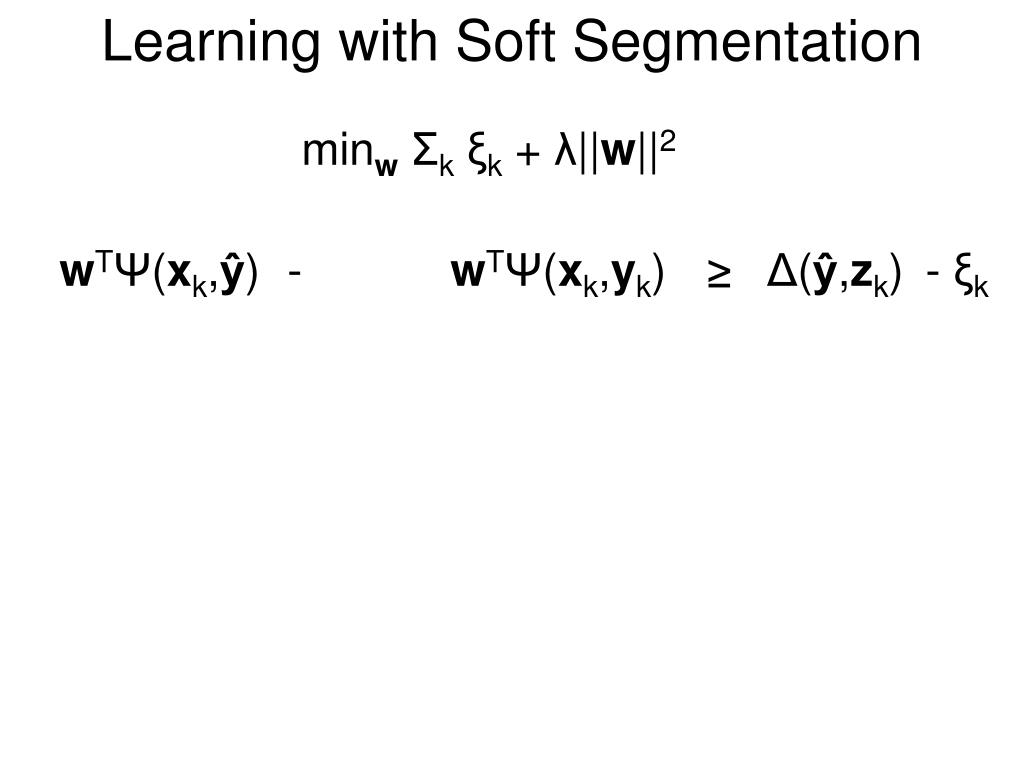

20. Learning with Soft Segmentation minwΣkξk+ λ||w||2 wTΨ(xk,ŷ) - wTΨ(xk,yk) Δ(ŷ,zk) - ξk ≥

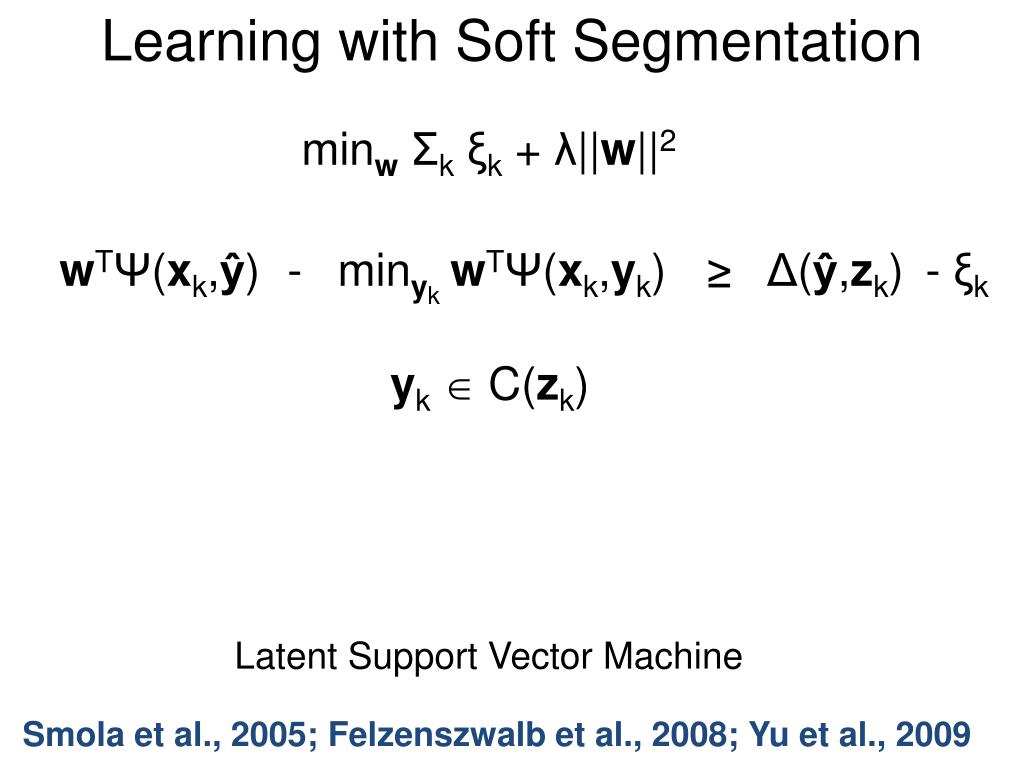

21. Learning with Soft Segmentation minwΣkξk+ λ||w||2 wTΨ(xk,ŷ) - minyk wTΨ(xk,yk) Δ(ŷ,zk) - ξk ≥ yk C(zk) Latent Support Vector Machine Smola et al., 2005; Felzenszwalb et al., 2008; Yu et al., 2009

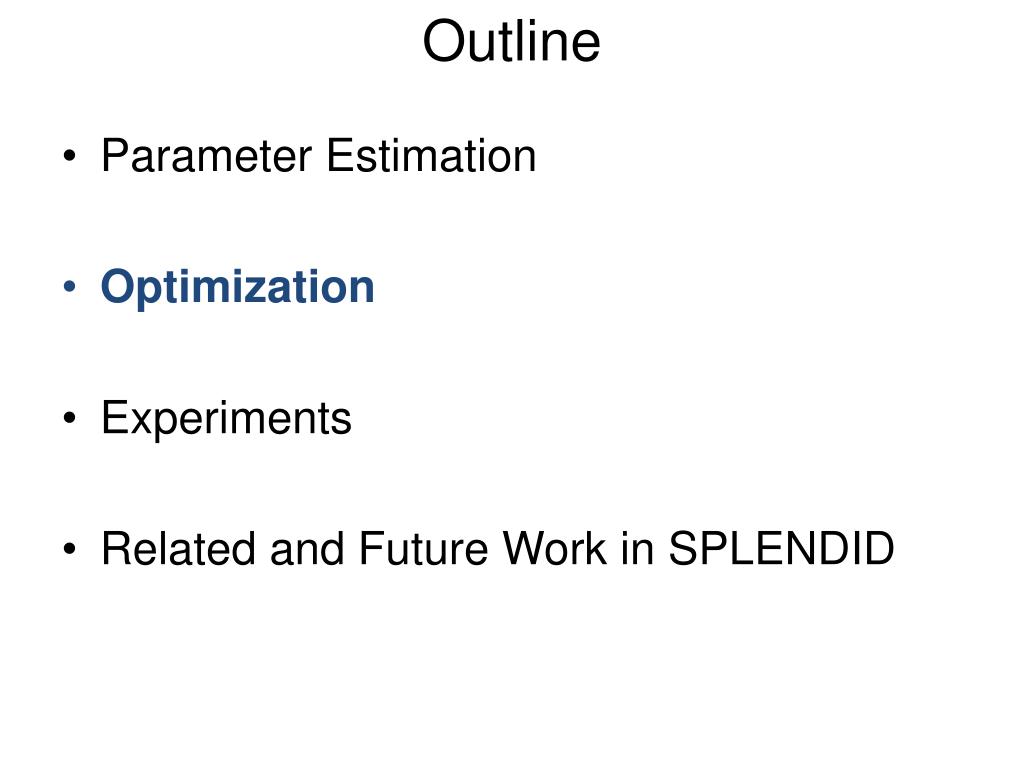

22. Outline • Parameter Estimation • Optimization • Experiments • Related and Future Work in SPLENDID

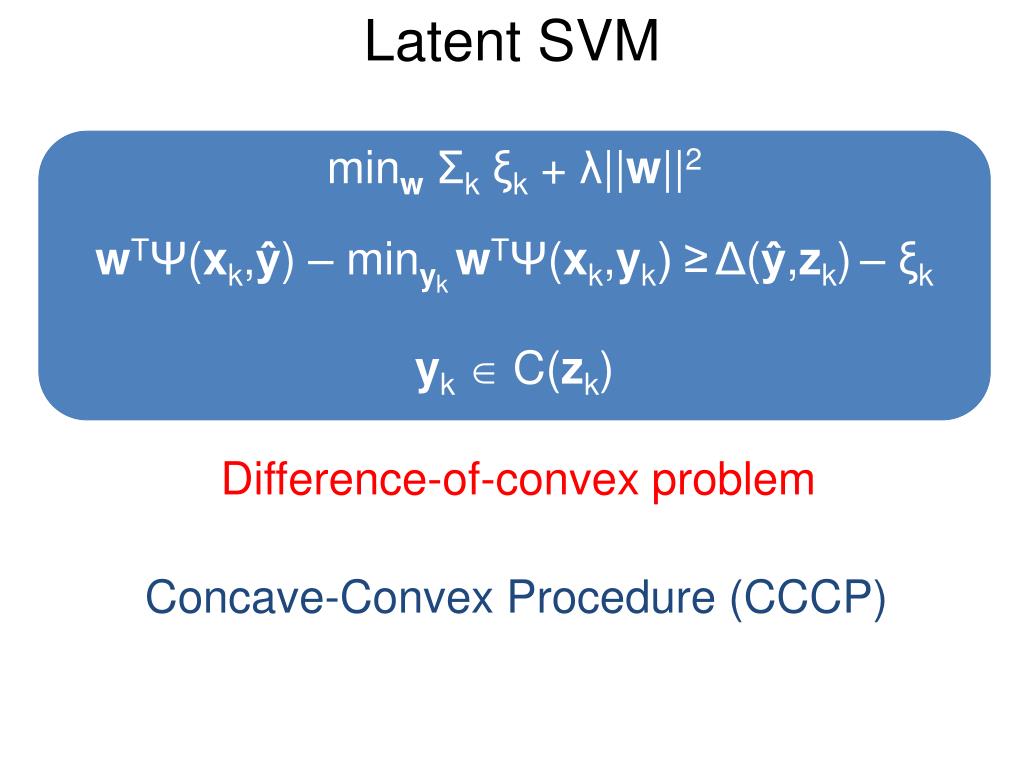

23. Latent SVM minwΣkξk + λ||w||2 wTΨ(xk,ŷ) – minyk wTΨ(xk,yk) ≥Δ(ŷ,zk)– ξk yk C(zk) Difference-of-convex problem Concave-Convex Procedure (CCCP)

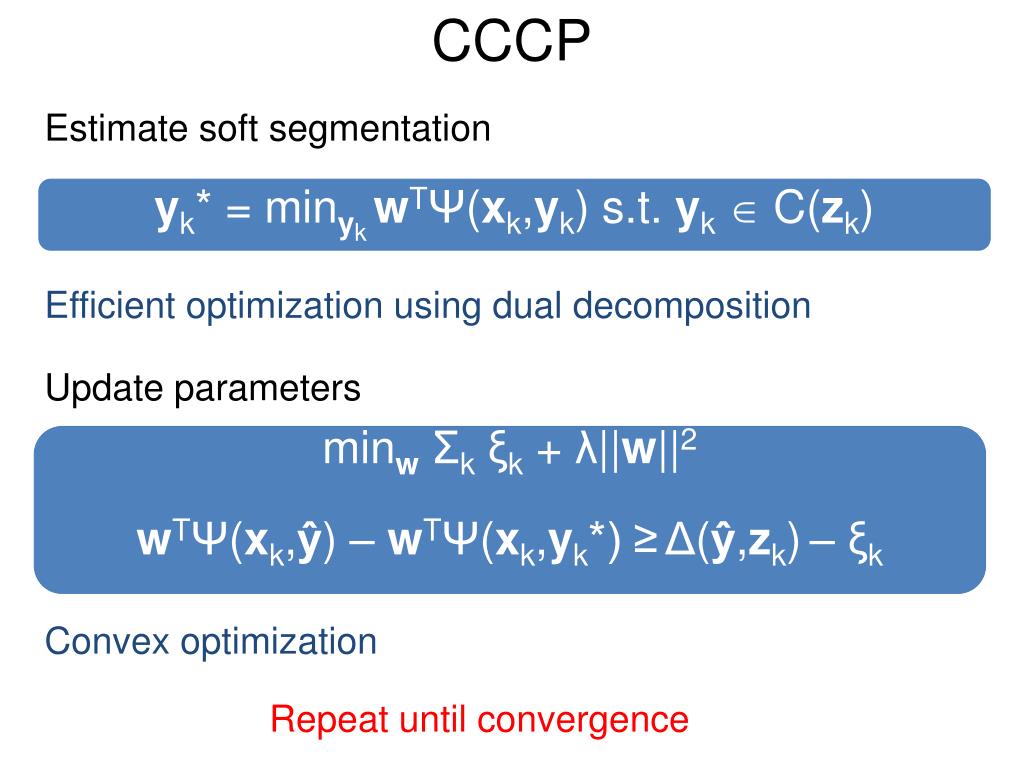

24. CCCP Estimate soft segmentation yk* = minyk wTΨ(xk,yk) s.t.yk C(zk) Efficient optimization using dual decomposition Update parameters minwΣkξk + λ||w||2 wTΨ(xk,ŷ) – wTΨ(xk,yk*) ≥Δ(ŷ,zk)– ξk Convex optimization Repeat until convergence

25. Outline • Parameter Estimation • Optimization • Experiments • Related and Future Work in SPLENDID

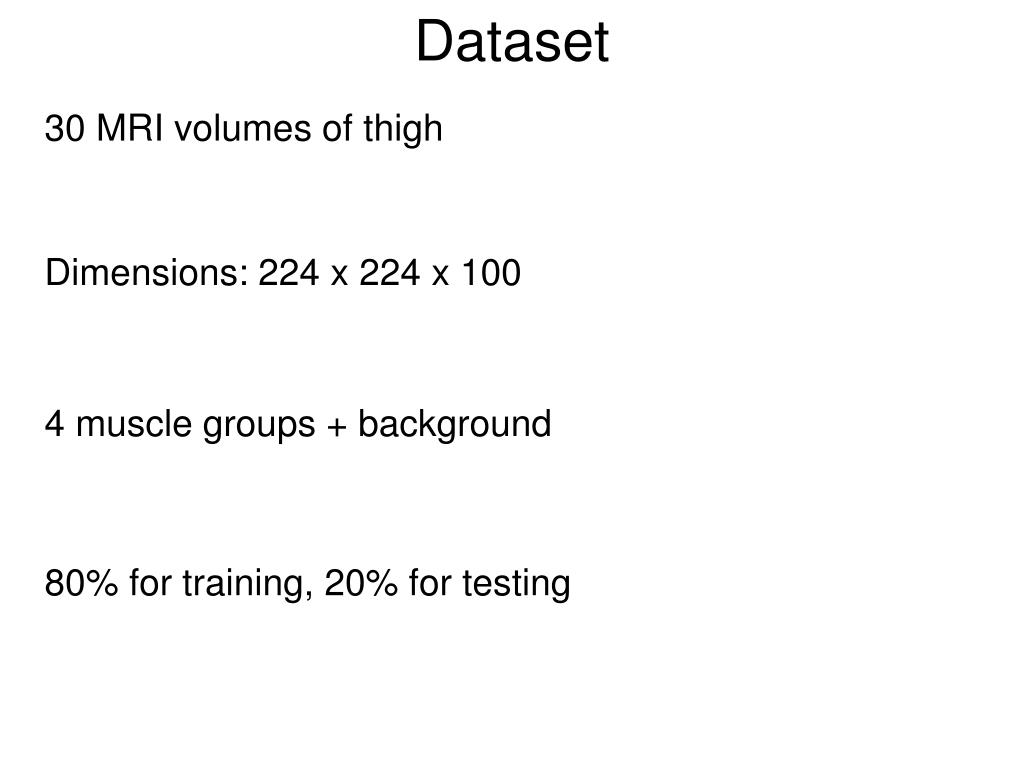

26. Dataset 30 MRI volumes of thigh Dimensions: 224 x 224 x 100 4 muscle groups + background 80% for training, 20% for testing

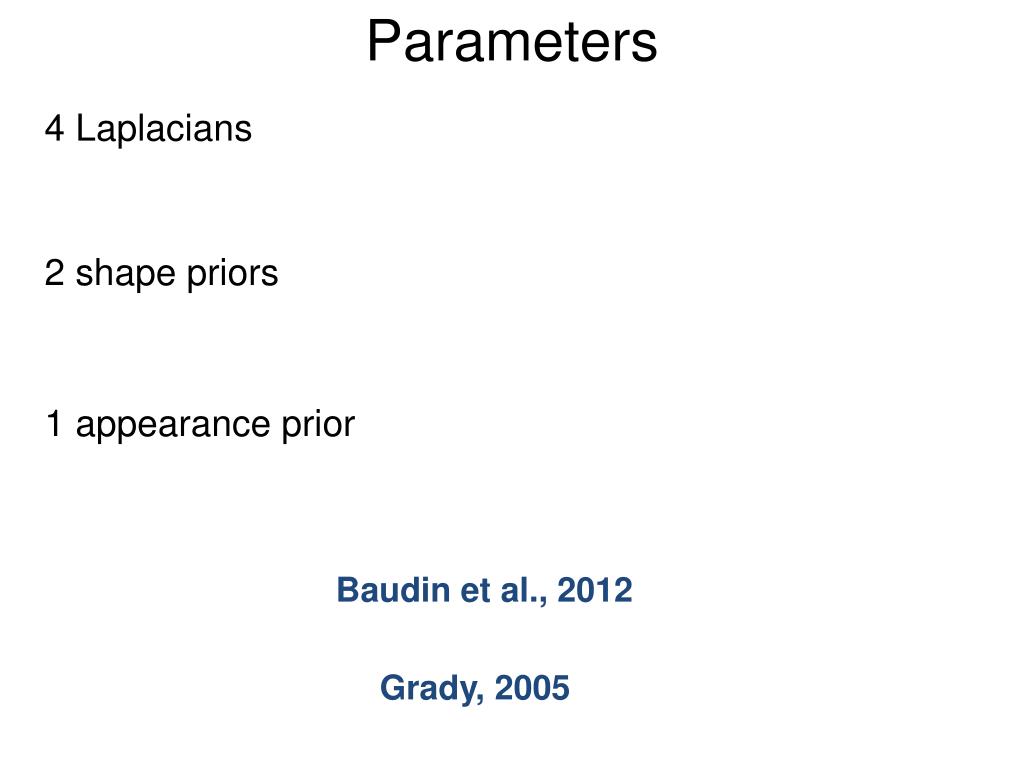

27. Parameters 4 Laplacians 2 shape priors 1 appearance prior Baudin et al., 2012 Grady, 2005

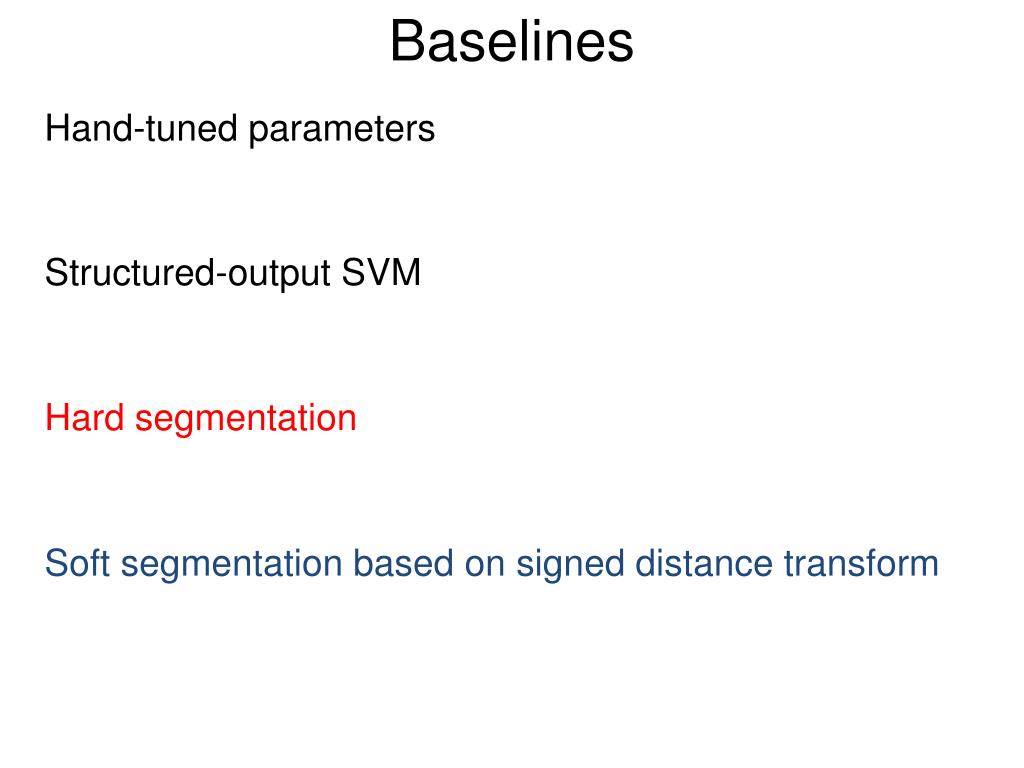

28. Baselines Hand-tuned parameters Structured-output SVM Hard segmentation Soft segmentation based on signed distance transform

29. Results Small but statistically significant improvement

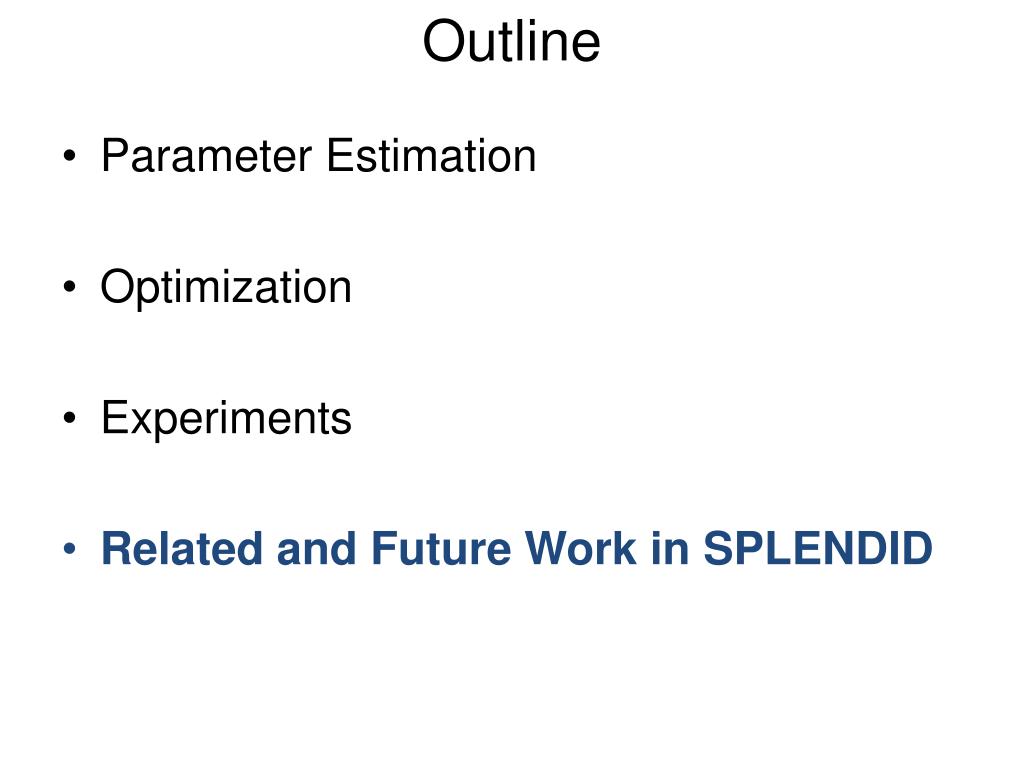

30. Outline • Parameter Estimation • Optimization • Experiments • Related and Future Work in SPLENDID

31. Loss-based Learning x: Input a: Annotation

32. Loss-based Learning x: Input a: Annotation h: Hidden information h h = “soft-segmentation” a = “jumping”

33. Loss-based Learning Annotation Mismatch minΣkΔ(correct ak, predicted ak) x: Input a: Annotation h: Hidden information h h = “soft-segmentation” a = “jumping”

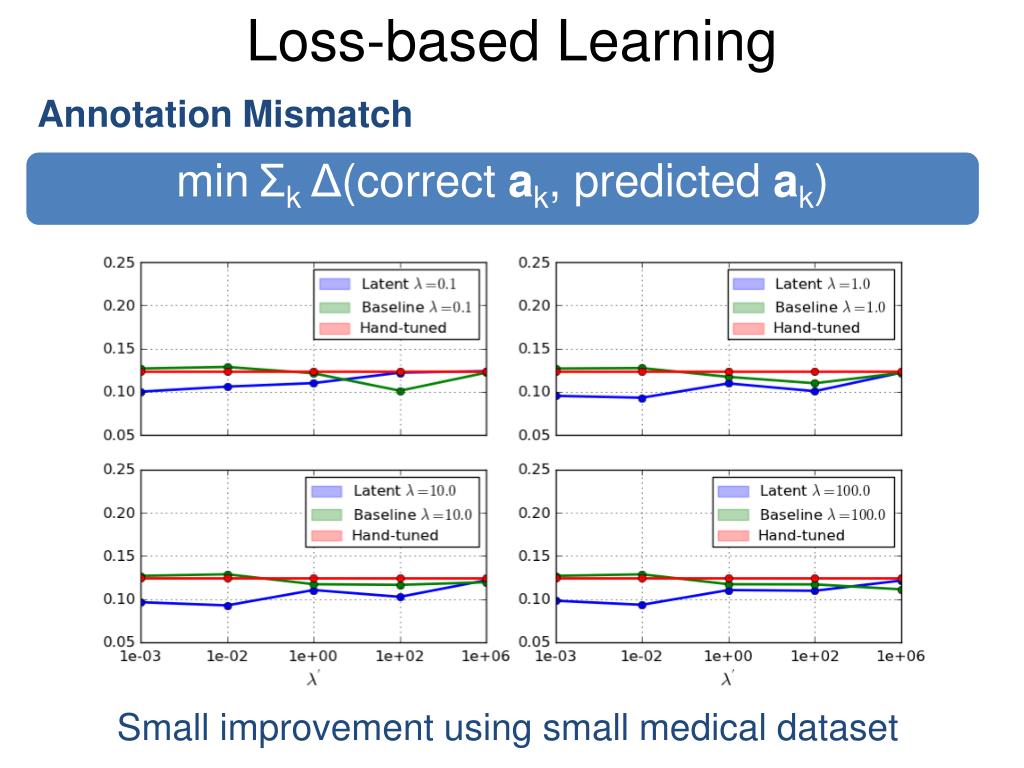

34. Loss-based Learning Annotation Mismatch minΣkΔ(correct ak, predicted ak) Small improvement using small medical dataset

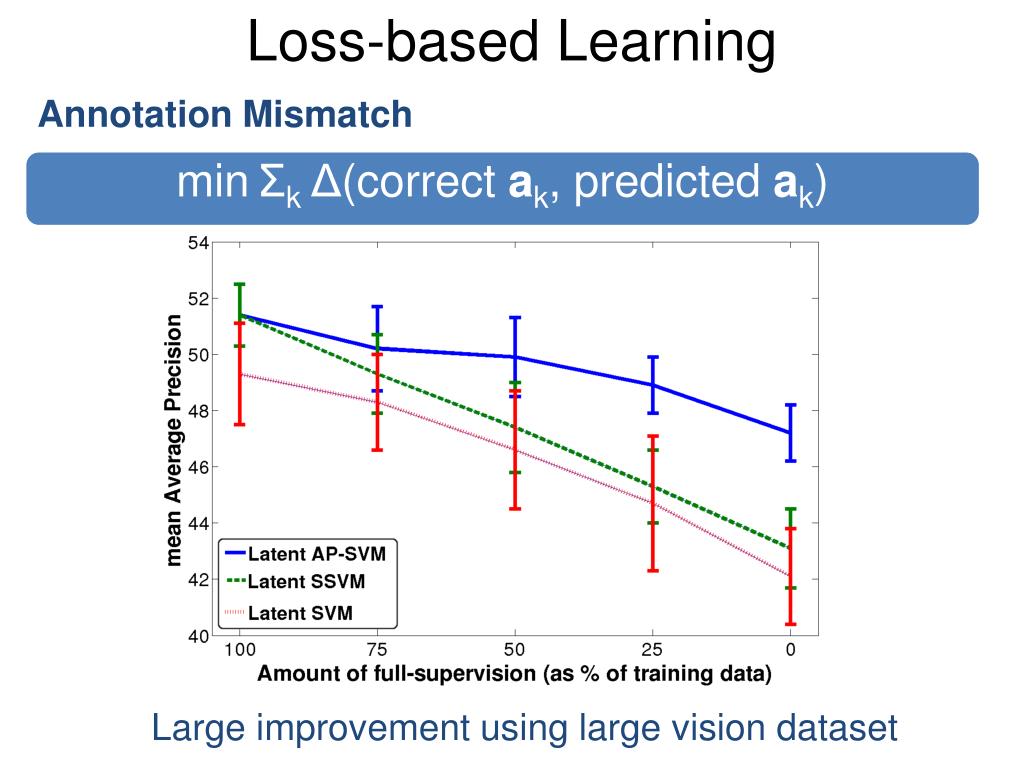

35. Loss-based Learning Annotation Mismatch minΣkΔ(correct ak, predicted ak) Large improvement using large vision dataset

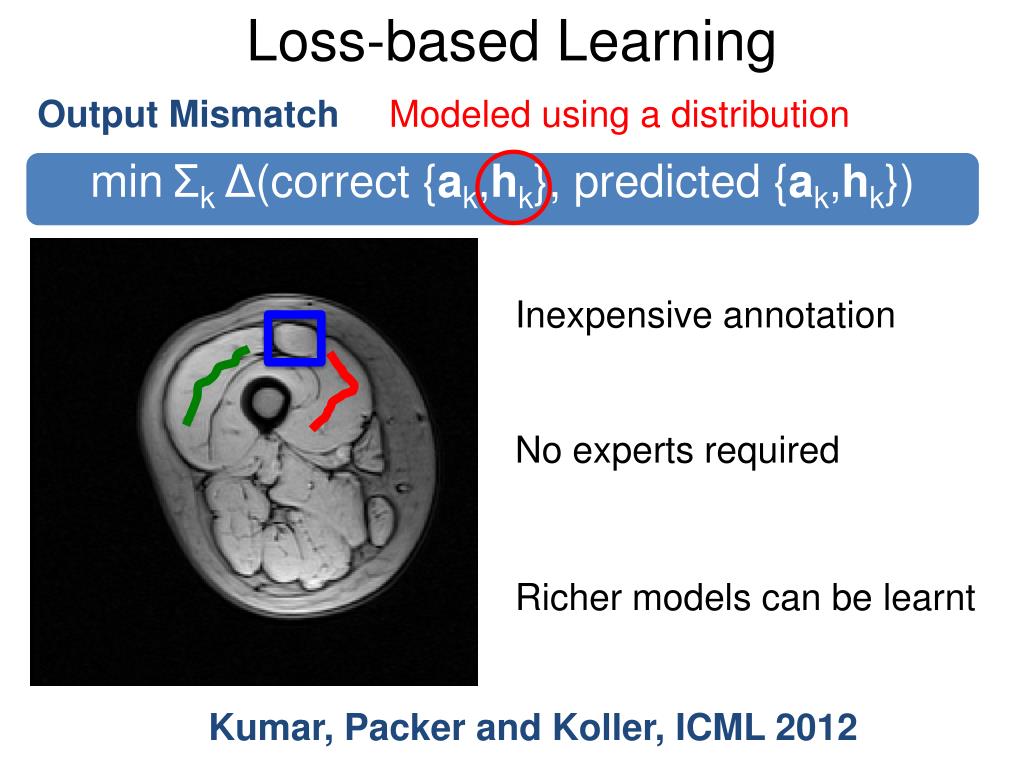

36. Loss-based Learning Output Mismatch Modeled using a distribution minΣkΔ(correct {ak,hk}, predicted {ak,hk}) Inexpensive annotation No experts required Richer models can be learnt Kumar, Packer and Koller, ICML 2012

37. Questions?
