  1. Similarity-based Classifiers:Problems and Solutions

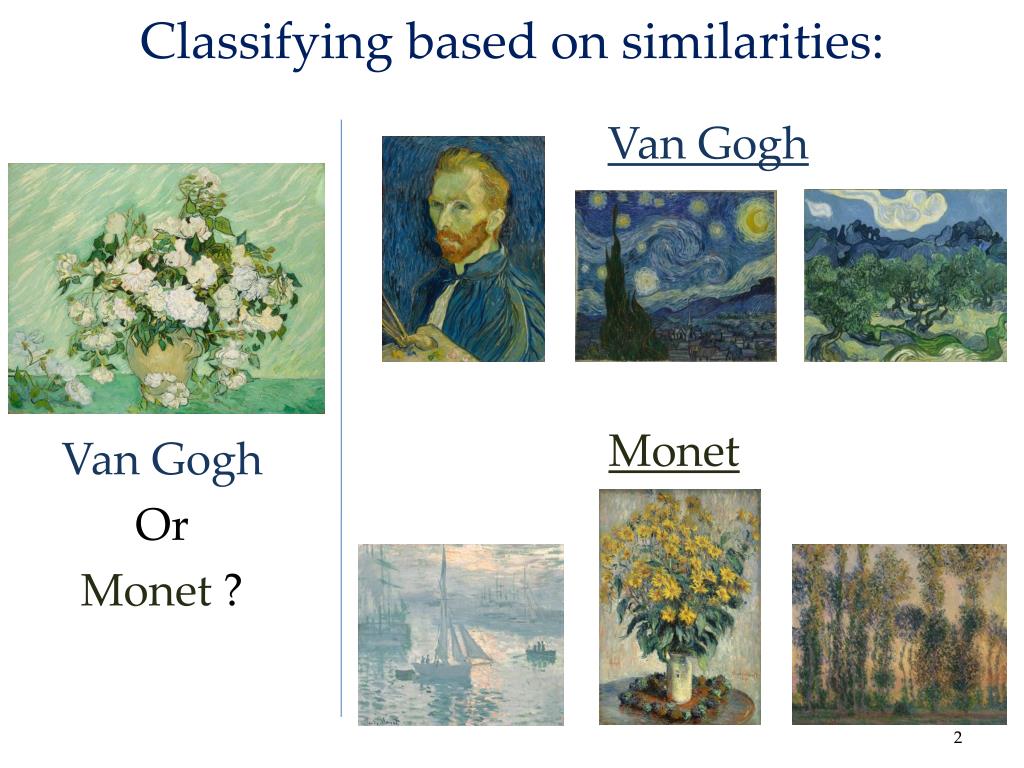

  2. Classifying based on similarities: Van Gogh Monet Van Gogh Or Monet ?

  3. the Similarity-based Classification Problem (paintings) (painter)

  4. the Similarity-based Classification Problem

  5. the Similarity-based Classification Problem ?

  6. Examples of Similarity Functions Computational Biology • Smith-Waterman algorithm (Smith & Waterman, 1981) • FASTA algorithm (Lipman & Pearson, 1985) • BLAST algorithm (Altschul et al., 1990) Computer Vision • Tangent distance (Duda et al., 2001) • Earth mover’s distance (Rubner et al., 2000) • Shape matching distance (Belongie et al., 2002) • Pyramid match kernel (Grauman & Darrell, 2007) Information Retrieval • Levenshtein distance (Levenshtein, 1966) • Cosine similarity between tf-idf vectors (Manning & Schütze, 1999)

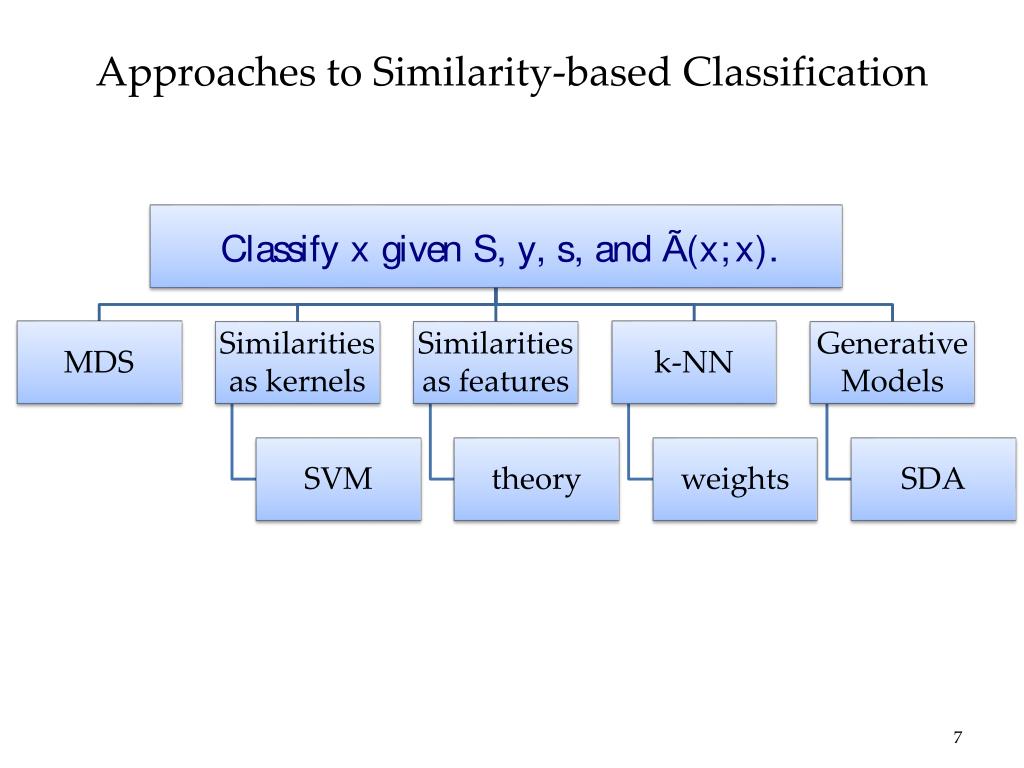

  7. Approaches to Similarity-based Classification

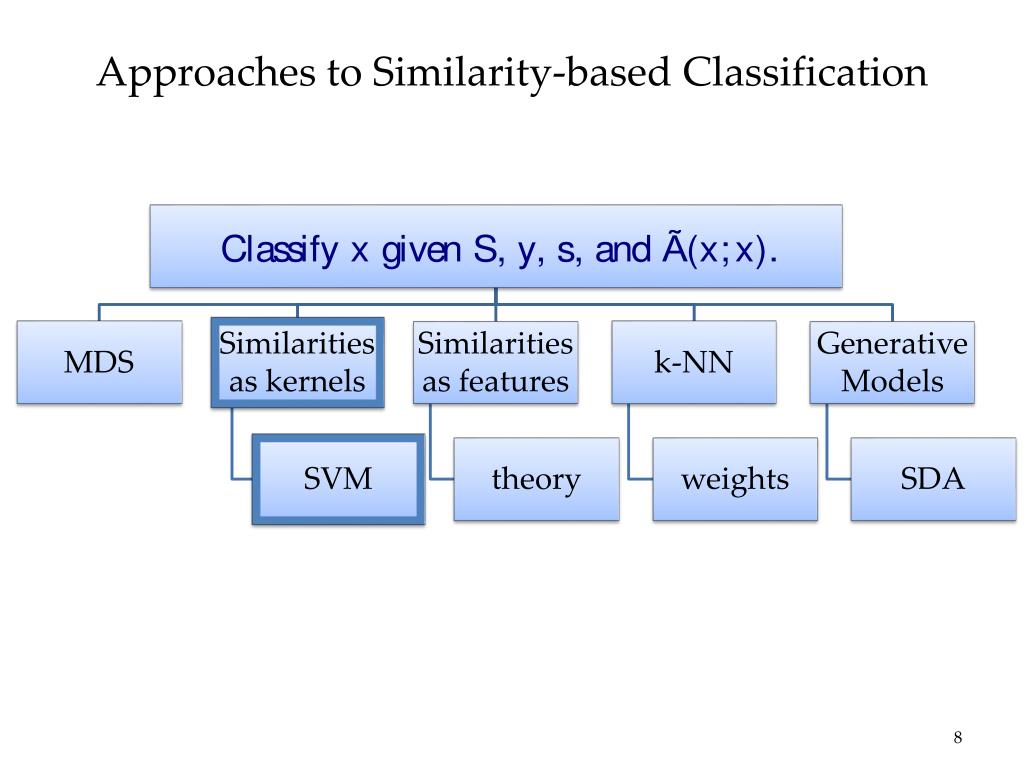

  8. Approaches to Similarity-based Classification

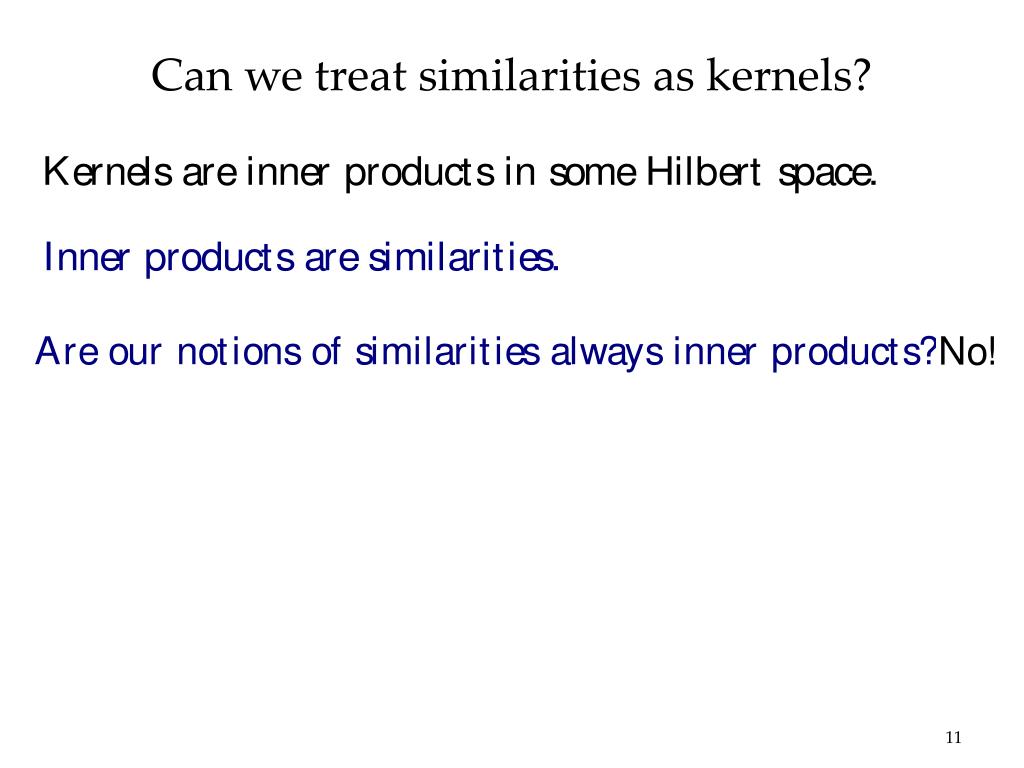

  9. Can we treat similarities as kernels?

  10. Can we treat similarities as kernels?

  11. Can we treat similarities as kernels?

  12. Example: Amazon similarity 96 books 96 books

  13. Example: Amazon similarity 96 books 96 books

  14. Example: Amazon similarity 96 books Eigenvalues Rank 96 books

  15. Well, let’s just make S be a kernel matrix 0 0

  16. Well, let’s just make S be a kernel matrix 0 0

  17. Well, let’s just make S be a kernel matrix 0 0

  18. Well, let’s just make S be a kernel matrix Flip, Clip or Shift? Best bet is Clip. 0 0

  19. Well, let’s just make S be a kernel matrix Learn the best kernel matrix for the SVM: (Luss NIPS 2007, Chen et al. ICML 2009)

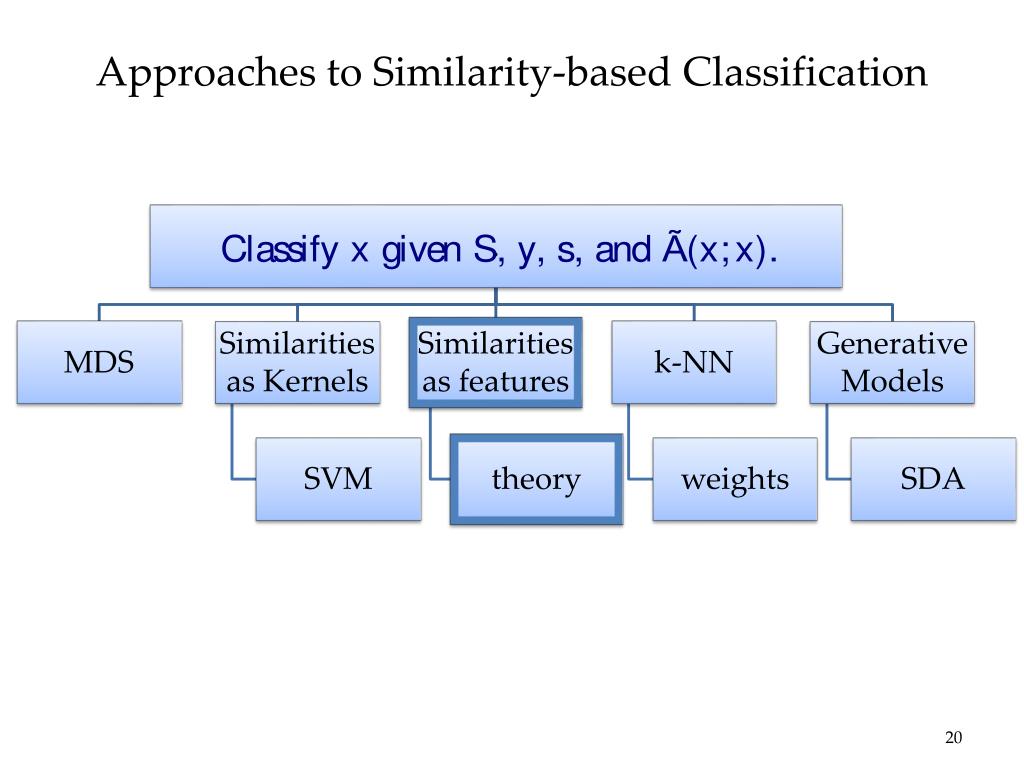

  20. Approaches to Similarity-based Classification

  21. Let the similarities to the training samples be features • SVM (Graepel et al., 1998; Liao & Noble, 2003) • Linear programming (LP) machine (Graepel et al., 1999) • Linear discriminant analysis (LDA) (Pekalska et al., 2001) • Quadratic discriminant analysis (QDA) (Pekalska & Duin, 2002) • Potential support vector machine (P-SVM) (Hochreiter & Obermayer, 2006; Knebel et al., 2008)

  22. Approaches to Similarity-based Classification

  23. Weighted Nearest-Neighbors Take a weighted vote of the k-nearest-neighbors: Algorithmic parallel of the exemplar model of human learning. ?

  24. Weighted Nearest-Neighbors Take a weighted vote of the k-nearest-neighbors: Algorithmic parallel of the exemplar model of human learning.

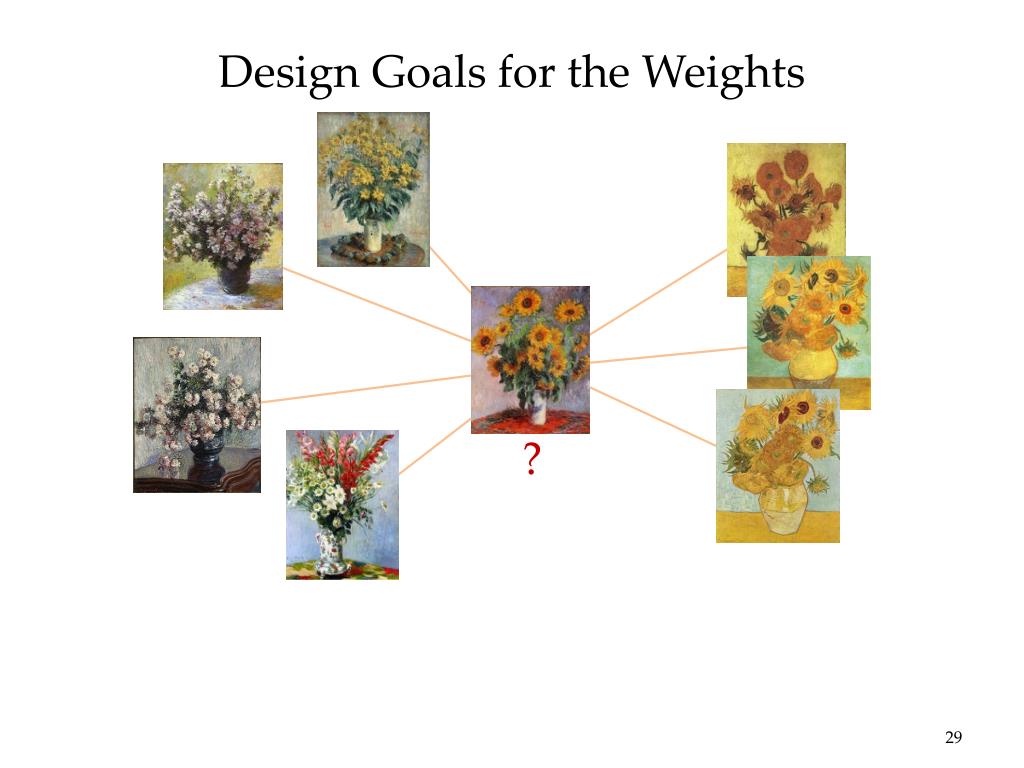

  25. Design Goals for the Weights ?

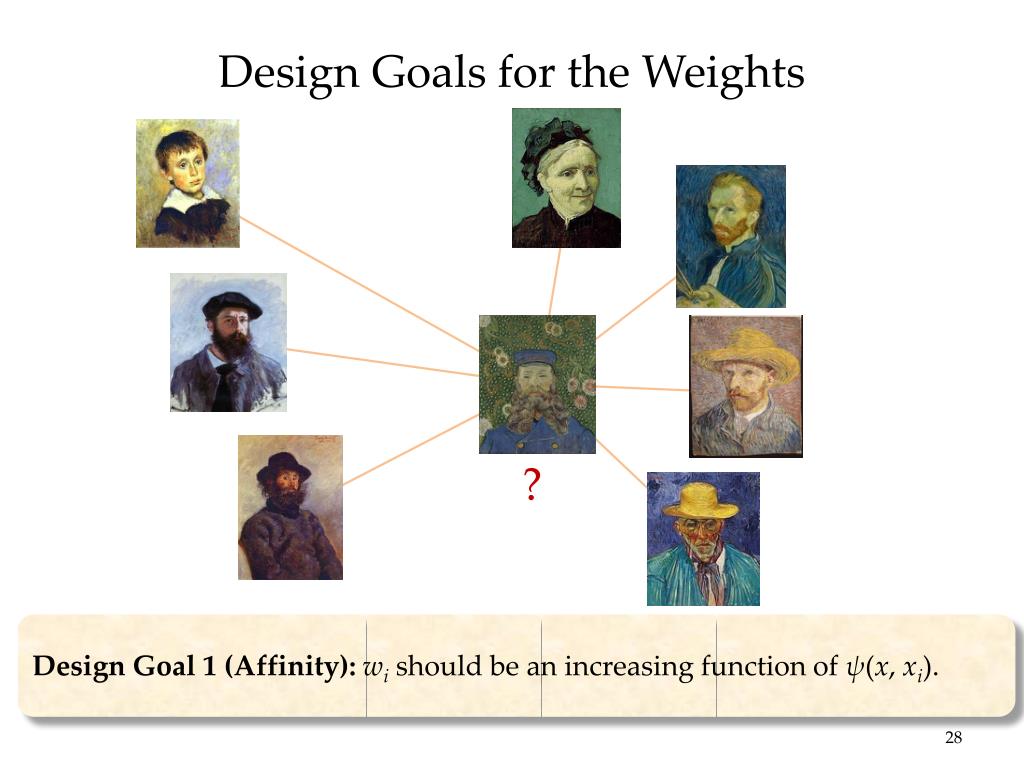

  26. Design Goals for the Weights ? Design Goal 1 (Affinity):wi should be an increasing function of ψ(x, xi).

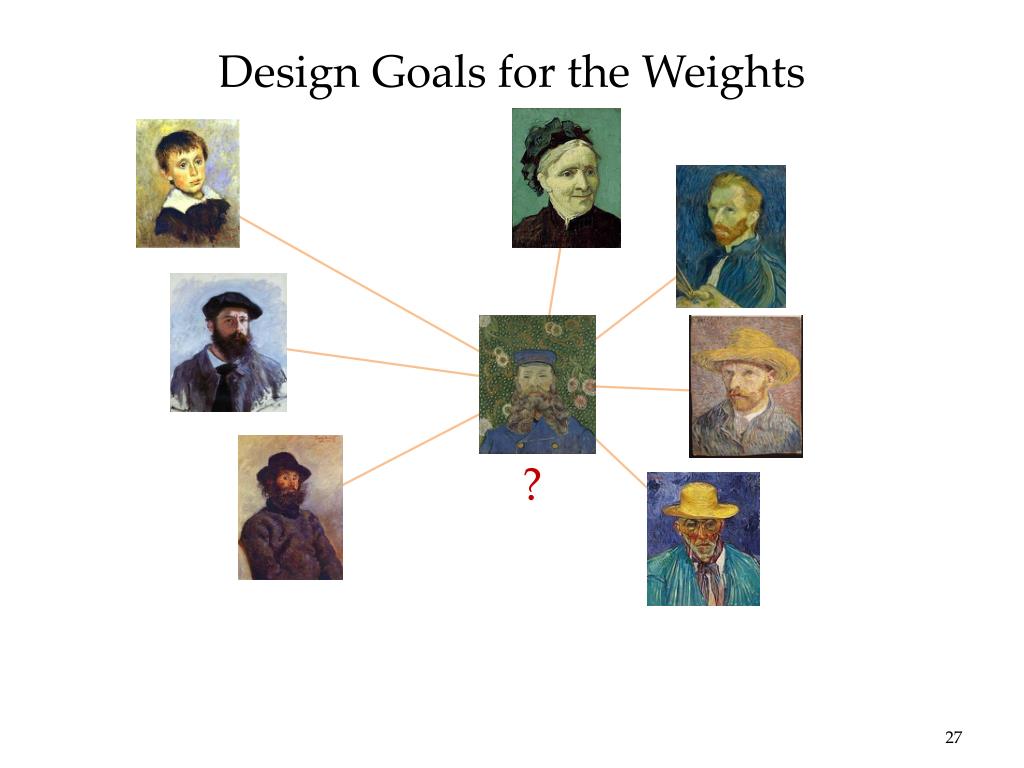

  27. Design Goals for the Weights ?

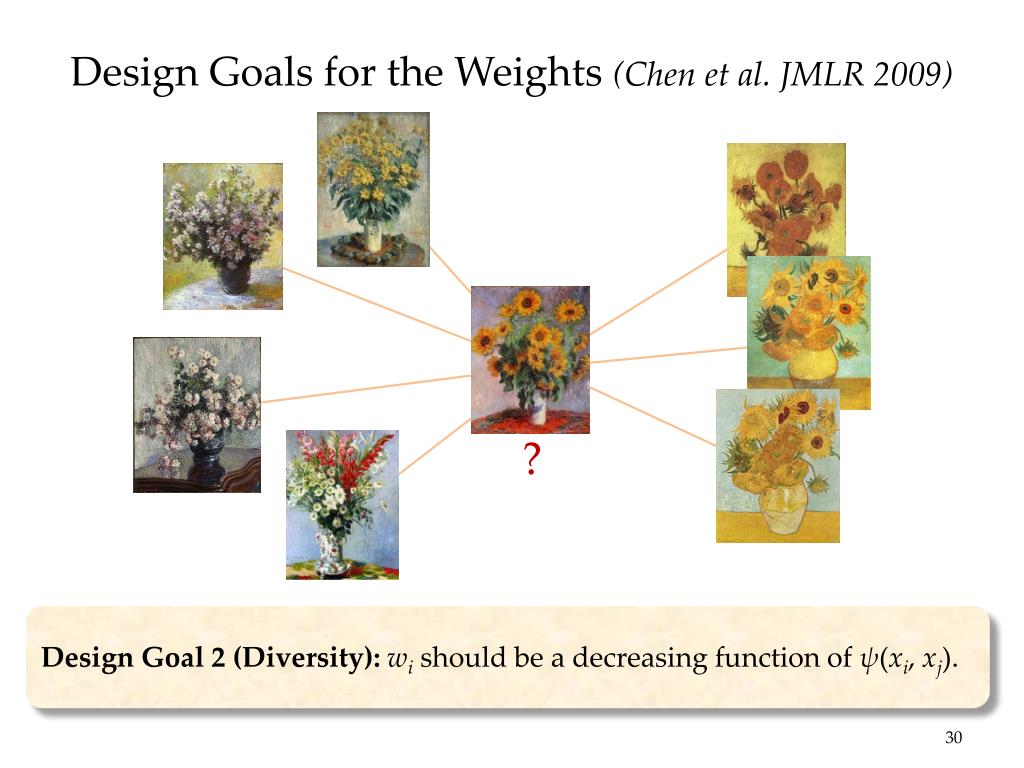

  28. Design Goals for the Weights (Chen et al. JMLR 2009) ? Design Goal 2 (Diversity):wi should be a decreasing function of ψ(xi, xj).

  29. Linear Interpolation Weights Linear interpolation weights will meet these goals:

  30. Linear Interpolation Weights Linear interpolation weights will meet these goals:

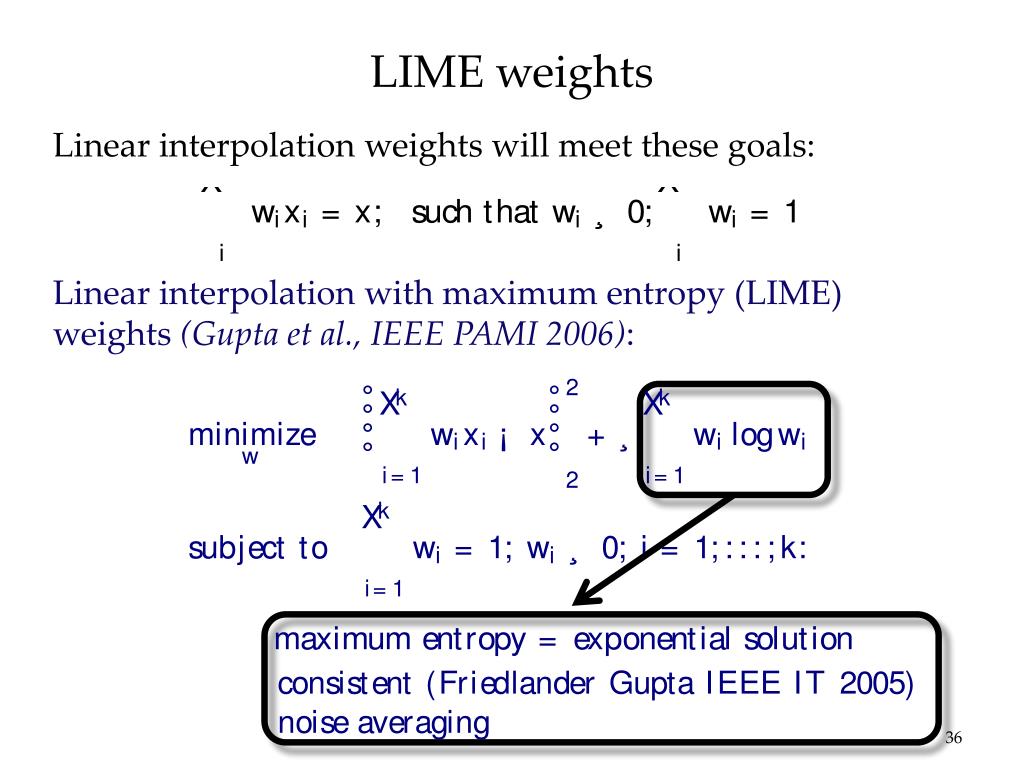

  31. LIME weights Linear interpolation weights will meet these goals: Linear interpolation with maximum entropy (LIME) weights (Gupta et al., IEEE PAMI 2006):

  32. LIME weights Linear interpolation weights will meet these goals: Linear interpolation with maximum entropy (LIME) weights (Gupta et al., IEEE PAMI 2006):

  33. LIME weights Linear interpolation weights will meet these goals: Linear interpolation with maximum entropy (LIME) weights (Gupta et al., IEEE PAMI 2006):

  34. LIME weights Linear interpolation weights will meet these goals: Linear interpolation with maximum entropy (LIME) weights (Gupta et al., IEEE PAMI 2006):

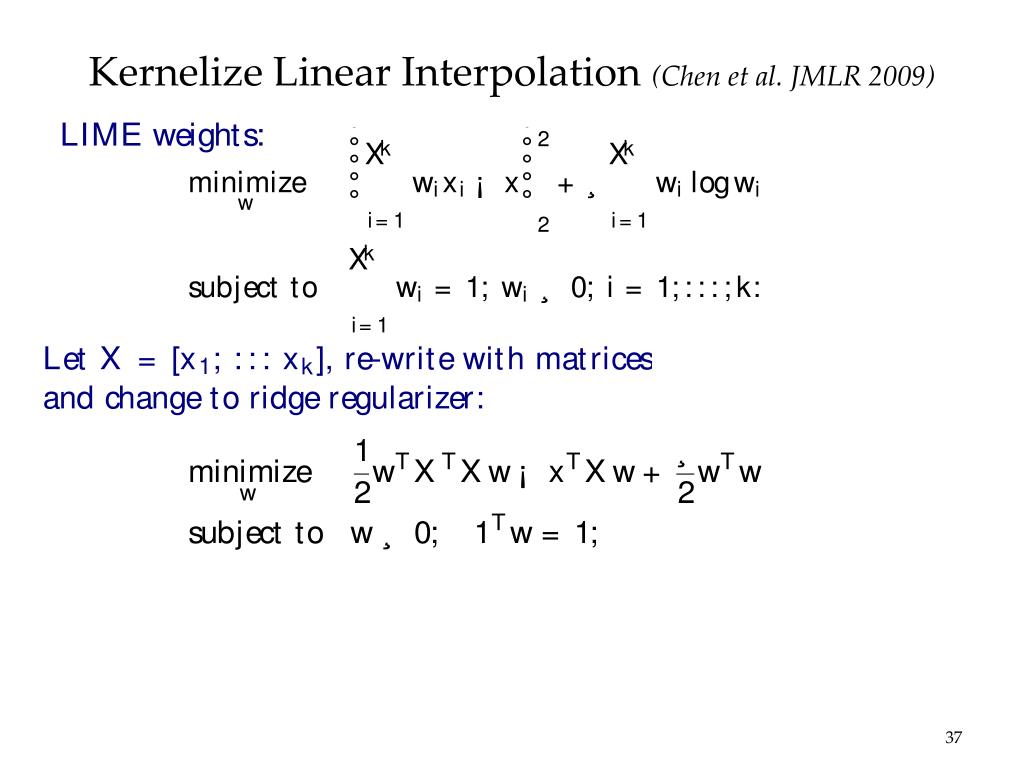

  35. Kernelize Linear Interpolation (Chen et al. JMLR 2009)

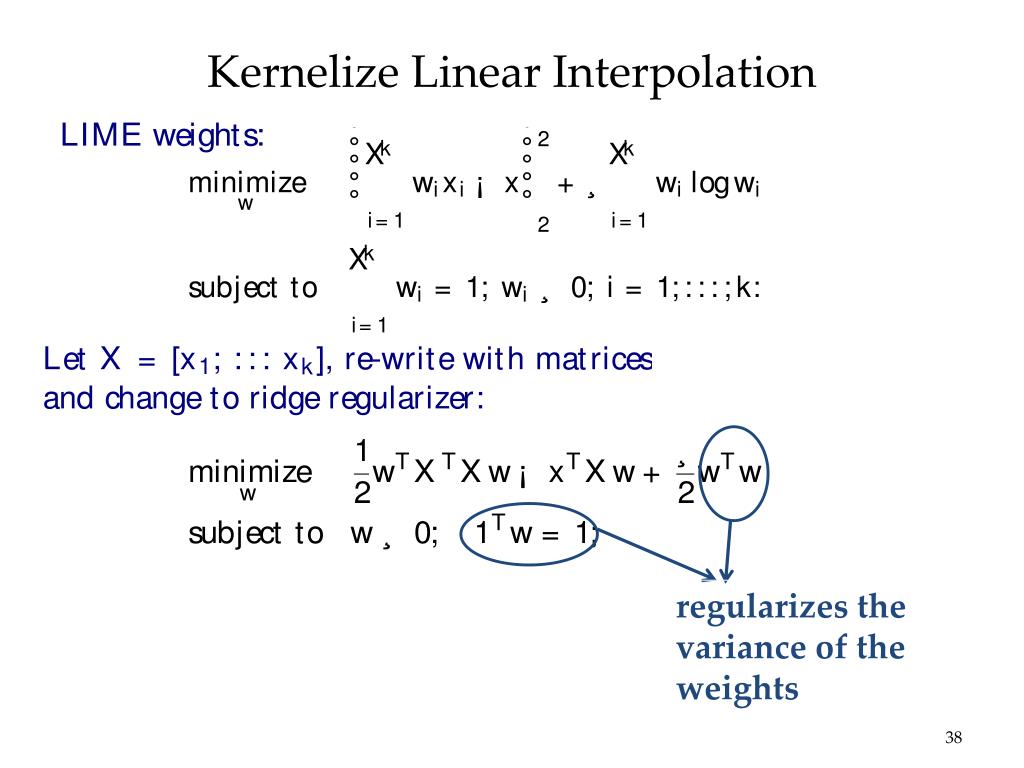

  36. Kernelize Linear Interpolation regularizes the variance of the weights

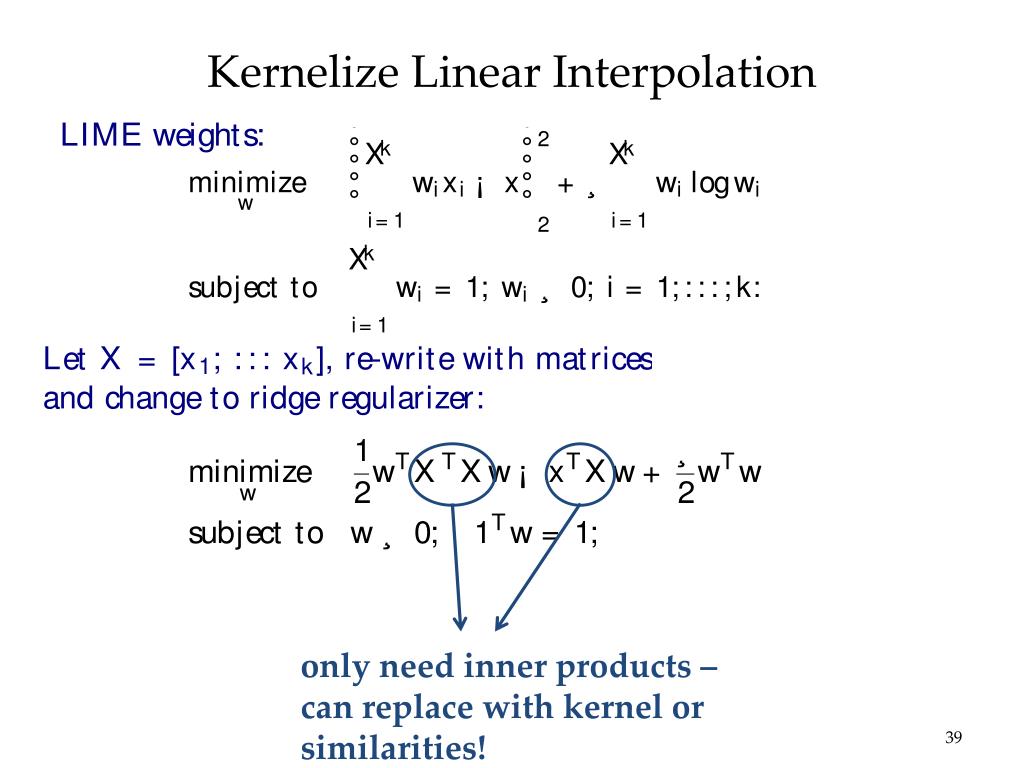

  37. Kernelize Linear Interpolation only need inner products – can replace with kernel or similarities!

  38. KRI Weights Satisfy Design Goals Kernel ridge interpolation (KRI) weights:

  39. KRI Weights Satisfy Design Goals Kernel ridge interpolation (KRI) weights: affinity:

  40. KRI Weights Satisfy Design Goals Kernel ridge interpolation (KRI) weights: diversity:

  41. KRI Weights Satisfy Design Goals Kernel ridge interpolation (KRI) weights:

  42. KRI Weights Satisfy Design Goals Kernel ridge interpolation (KRI) weights: Remove the constraints on the weights: Can show equivalent to local ridge regression: KRR weights.

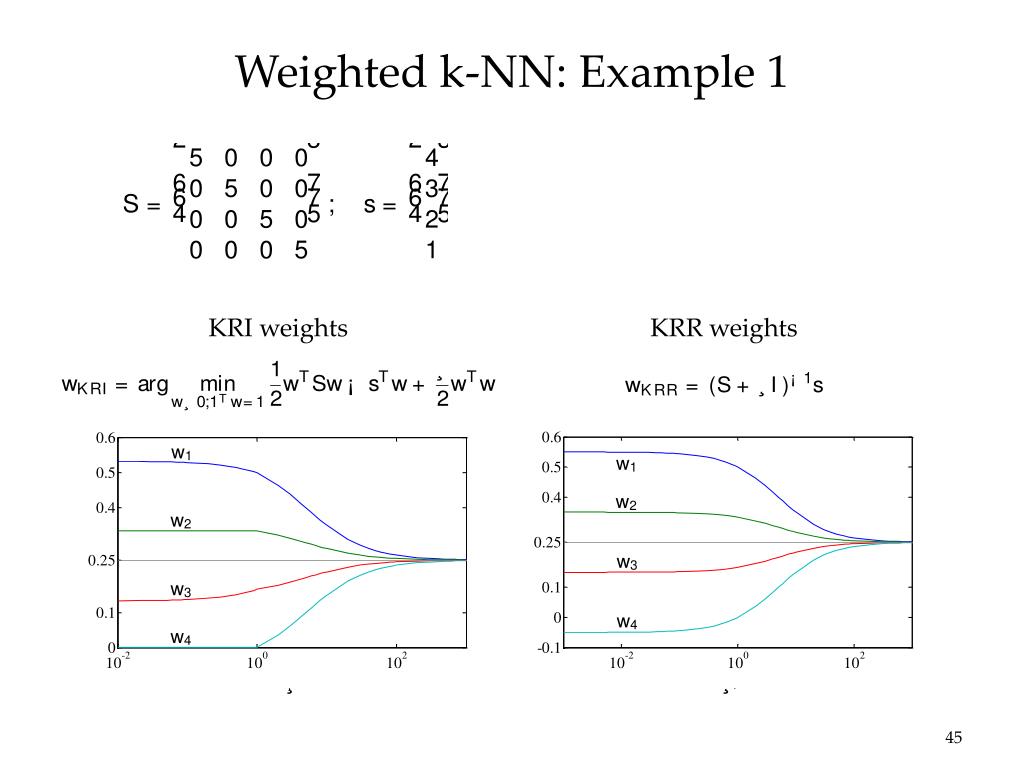

  43. Weighted k-NN: Example 1 KRI weights KRR weights

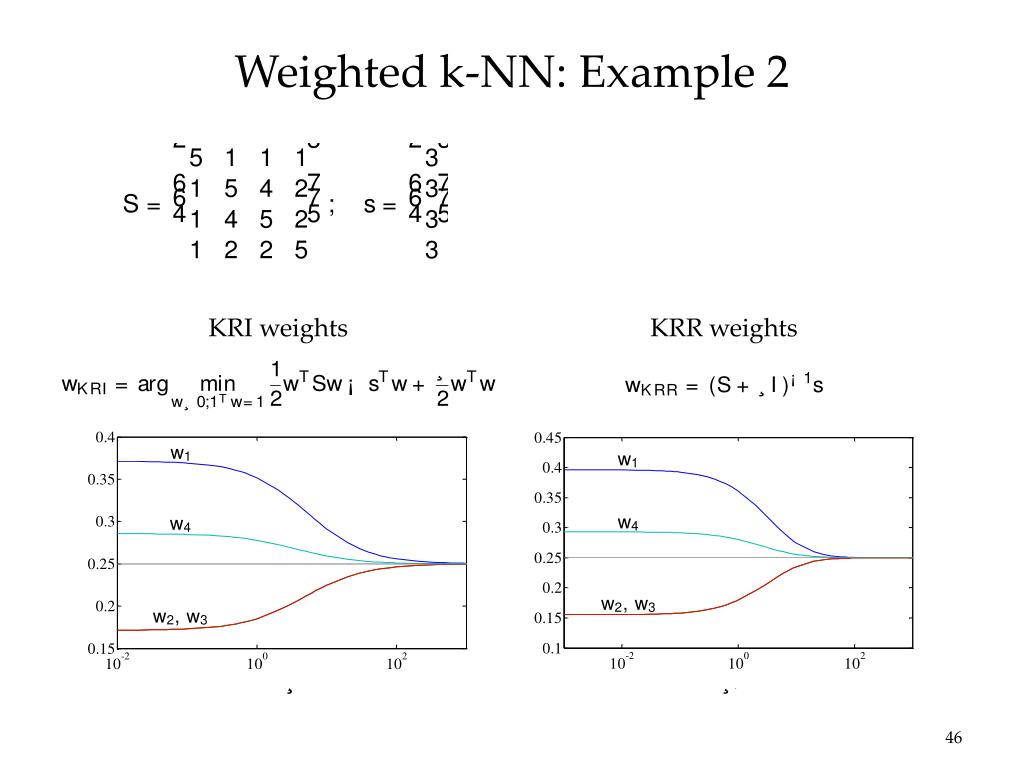

  44. Weighted k-NN: Example 2 KRI weights KRR weights

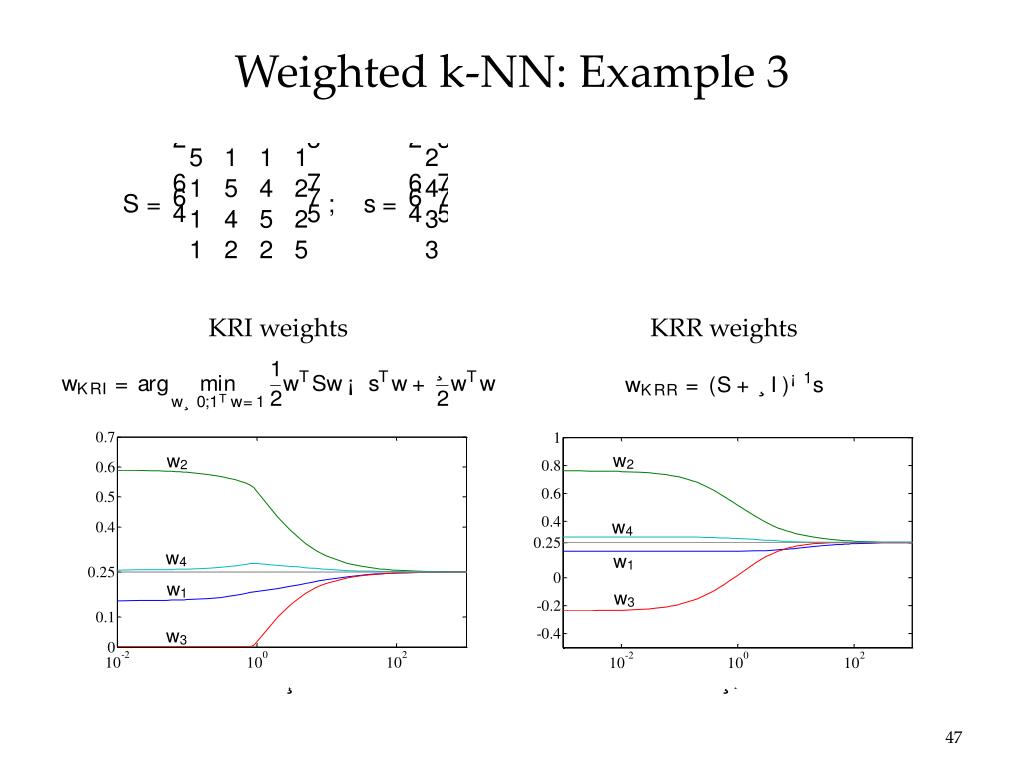

  45. Weighted k-NN: Example 3 KRI weights KRR weights
