Presentation Transcript

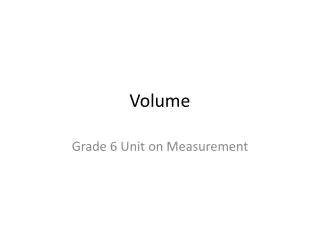

  1. Volume Grade 6 Unit on Measurement

  2. How many cubes can you fit perfectly into your box?

  3. VOLUME • The number of cubes that you just counted is called the VOLUMEof your box. • So, what do you think VOLUME means?

  4. VOLUME VOLUMEis the amount of liquid or solid that will FILLa3-Dimensional object! *Always measured in units cubed (u3)

  5. QUICK DEFINITION • 3-Dimensionalobjects are NOT FLAT. • They have 3 measurements: • Length • Width • Height

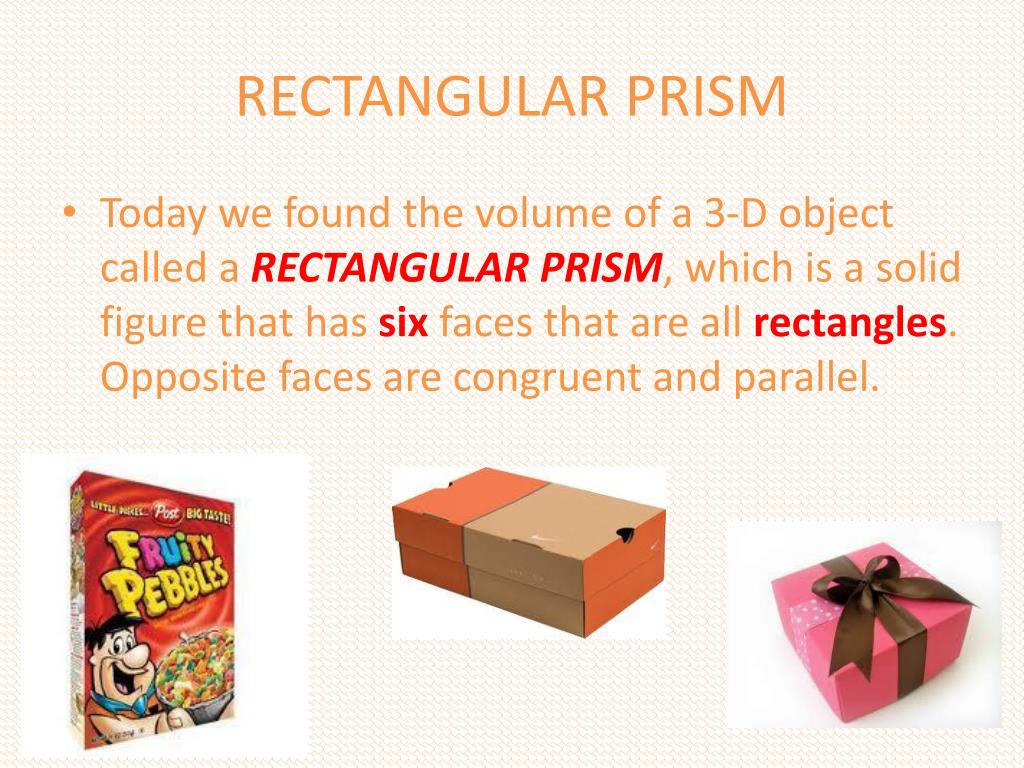

  6. RECTANGULAR PRISM • Today we found the volume of a 3-D object called a RECTANGULAR PRISM, which is a solid figure that has six faces that are all rectangles. Opposite faces are congruent and parallel.

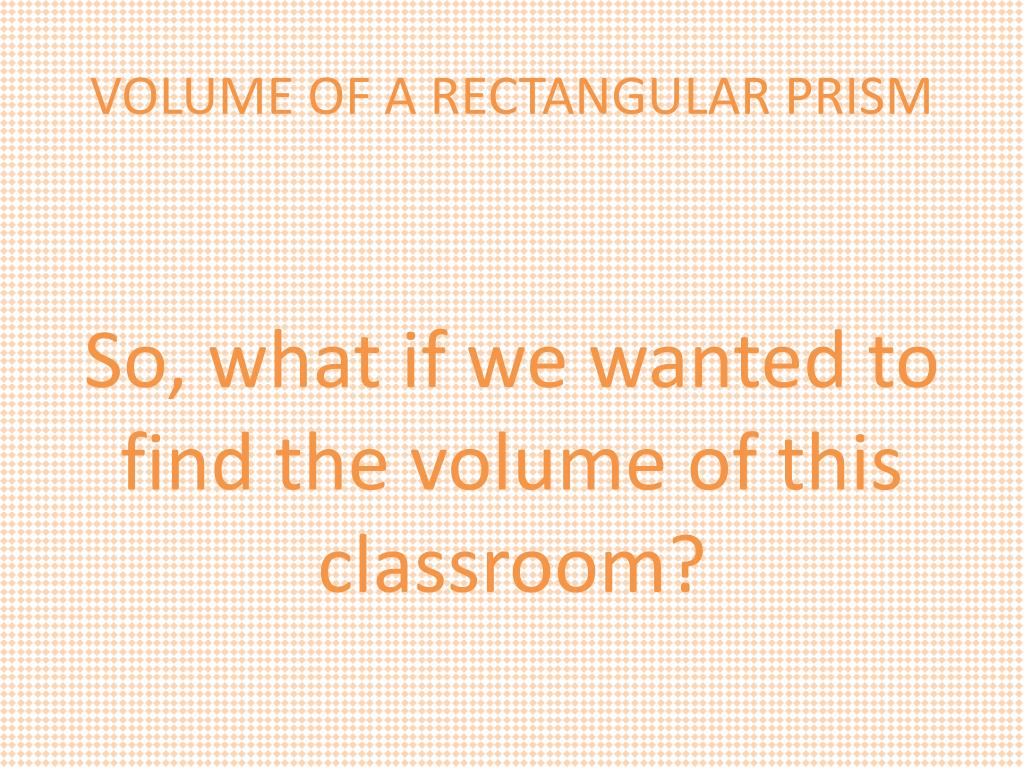

  7. VOLUME OF A RECTANGULAR PRISM So, what if we wanted to find the volume of this classroom?

  8. FORMULA Luckily, we have a formula for that! Volume = length × width × height

  9. FIND THE VOLUME OF THIS RECTANGULAR PRISM: NOTES! 3 mm 2 mm 12 mm

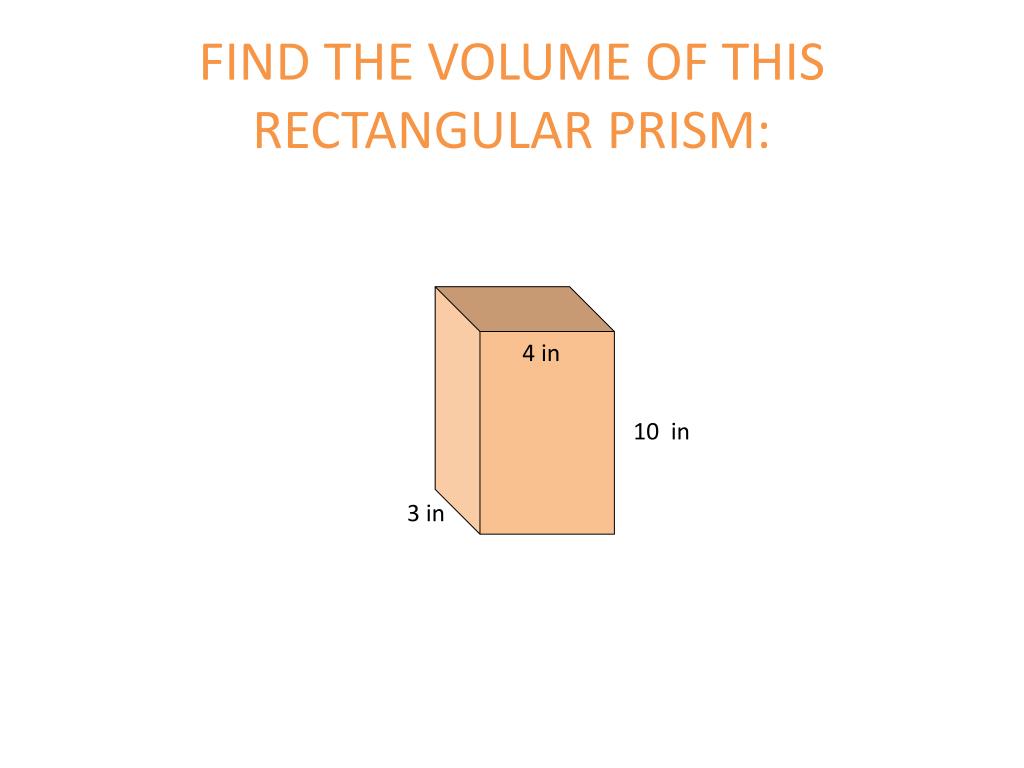

  10. FIND THE VOLUME OF THIS RECTANGULAR PRISM: 4 in 10 in 3 in

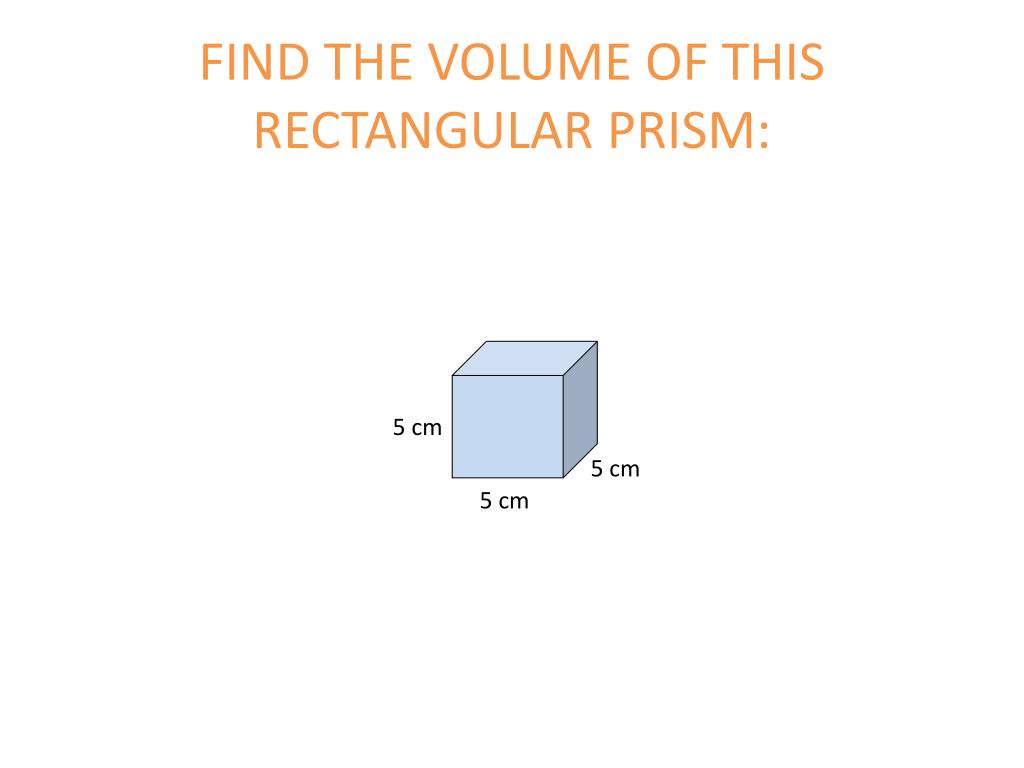

  11. FIND THE VOLUME OF THIS RECTANGULAR PRISM: 5 cm 5 cm 5 cm

  12. NOTES! A cereal box has a length of 8 inches, a width of 1.75 inches, and a height of 12.125 inches? How much cereal will the box hold?

  13. Alexia’s bathroom has a tubin the shape of a rectangular prismwith a length of 1.5 meters, a width of0.5 meter, and a height of 0.4 meter.How many cubic feet of water can ithold?

  14. FIND THE VOLUME OF THIS RECTANGULAR PRISM: 11 in 40 in 9 in

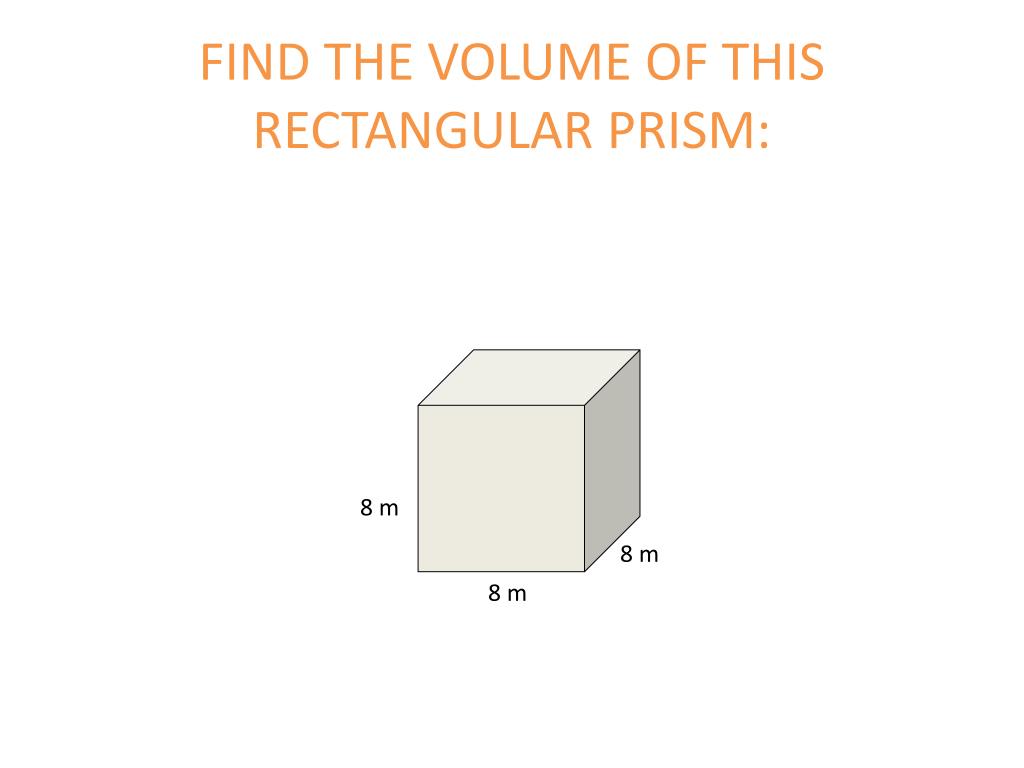

  15. FIND THE VOLUME OF THIS RECTANGULAR PRISM: 8 m 8 m 8 m

  16. Trailers that travel on the road behind trucks are rectangular prisms. A typical height for the inside of these trailers is 108 inches. If the trailer is 8 ft wide and 20 ft long, what is the volume of the trailer?

  17. An aquarium shaped likea rectangular prism has a lengthof 120 centimeters, a width of60 centimeters, and a height of100 centimeters. How much wateris needed to fill the aquarium?

  18. A rectangular prism has a length of 2 inches, a height of 5 inches, and a width of 3 inches. What is the volume of this rectangular prism? One last question:

  19. What would happen to the volume if we multiplied the height by a scale factor of 3?
