Phase Contrast Optics

Theory & Appl. Light Microscopy


Abb theory l.jpg

Abbé Theory

  • Designed optics for amplitude objects

  • Absorb light without change in phase of light waves

  • Based on assumption of no difference in index of refraction between specimen and background

Theory & Appl. Light Microscopy


Slide3 l.jpg

Theory & Appl. Light Microscopy


Slide4 l.jpg

Theory & Appl. Light Microscopy


Slide5 l.jpg

Theory & Appl. Light Microscopy


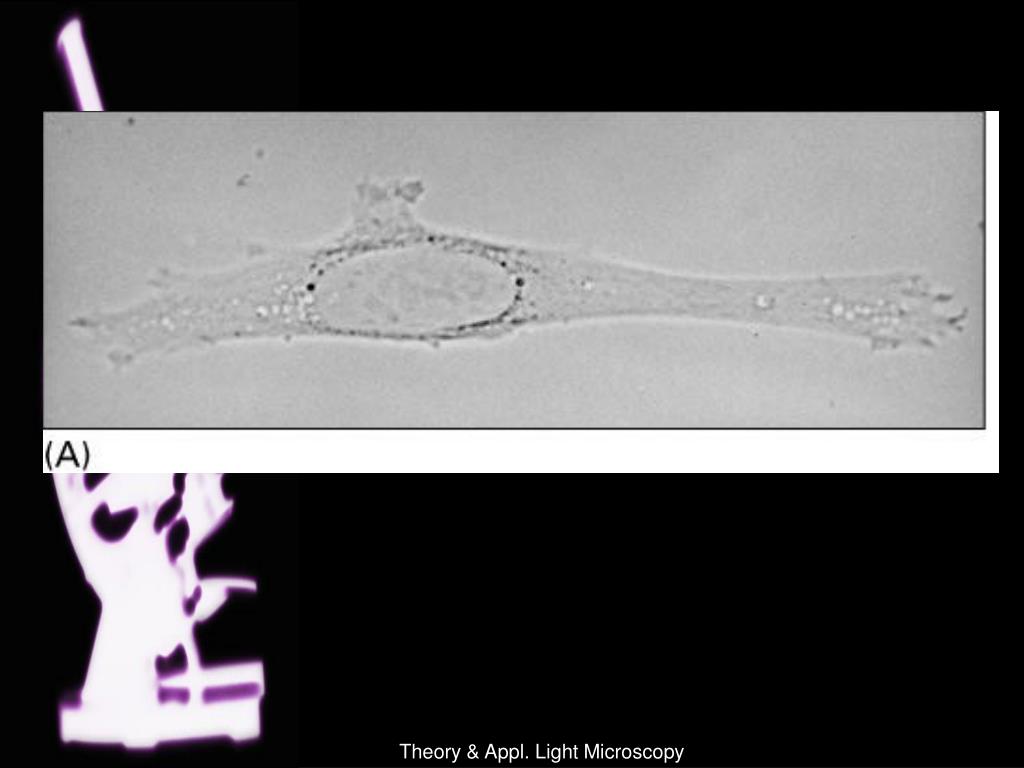

Slide6 l.jpg

Theory & Appl. Light Microscopy


Criterion for resolution l.jpg

Criterion for Resolution

  • Lens must capture undiffracted light plus at least first order of diffracted rays

  • Combine these in image plane by interference

  • But — most biological specimens (esp. living) are not amplitude objects

  • Phase Objects

Theory & Appl. Light Microscopy


Phase objects l.jpg

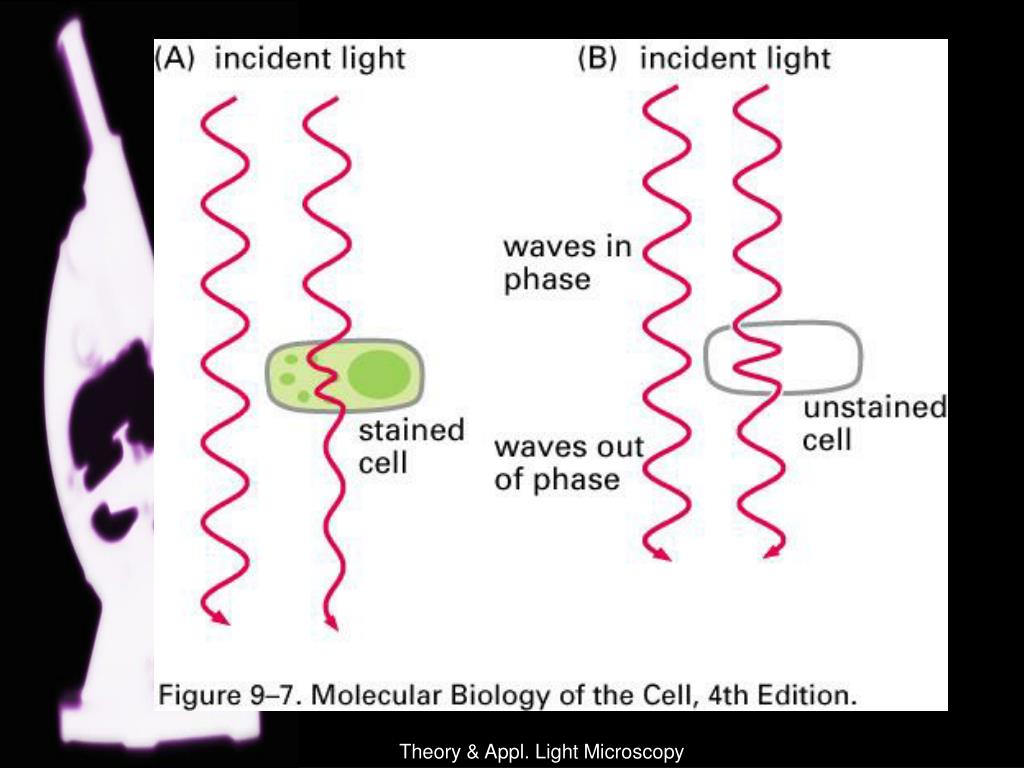

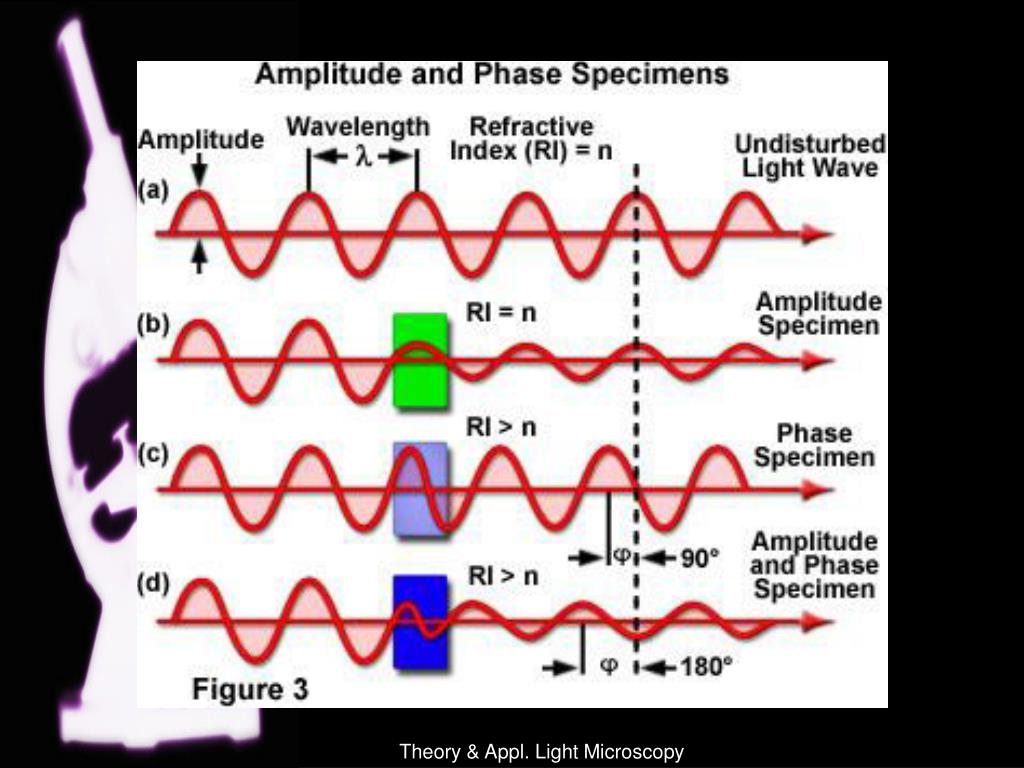

Phase Objects

  • Do not absorb light

  • Difference in index of refraction between specimen and background

Theory & Appl. Light Microscopy


Slide9 l.jpg

Theory & Appl. Light Microscopy


Example cell l.jpg

Example: Cell

  • Object 1.25 m thick, i.r. = 1.35; i.r. water = 1.30 (0.05 difference)

  • Difference in path length for light = 1.25 (0.05) = 0.0625 m

  • 62.5/500 nm = 1/8 wavelength

  • /8 = /4 radians = 45°

  • This is difference in phase of wave passing through cell against wave passing next to cell

Theory & Appl. Light Microscopy


Slide11 l.jpg

Theory & Appl. Light Microscopy


Phase differences l.jpg

Phase Differences

  • Our eyes cannot see this

  • Eyes set for amplitude differences, so cell is essentially transparent

  • But — information is present in light beams from specimen and in image

  • How do we see this?

Theory & Appl. Light Microscopy


Frits zernike 1888 1966 l.jpg

Frits Zernike (1888–1966)

  • Dutch physicist

  • Developed vector notation for theory of light propagation through phase objects

  • Invented phase contrast optics in 1930; not manufactured until 1941 by Zeiss

Theory & Appl. Light Microscopy


Slide14 l.jpg

Zernike Phase Vector Diagram

For propagation of light through phase object

S

S = incindent wave

P = particle wave

P = phase shift of ray through specimen

(S = U, undiffracted (0-order) ray

P

Length of P = amplitude specimen/amplitude medium =

transmission ratio

Theory & Appl. Light Microscopy


Slide15 l.jpg

Calculate P by vector addition

D

U + D = P

By the law of sines

U

P

D =  of all diffracted orders of light from specimen

U = undiffracted light

P = resulting specimen light, produced by interference between U and D in image formation

Theory & Appl. Light Microscopy


Slide16 l.jpg

Theory & Appl. Light Microscopy


Brightfield optics l.jpg

Brightfield Optics

  • Shifts all vectors in phase equally, and may change all amplitudes equally:

    U + D = P

    U = P

  • No amplitude image

  • Information in P is present in , not in amplitude — eye cannot see this

Theory & Appl. Light Microscopy


Slide18 l.jpg

Theory & Appl. Light Microscopy


Phase contrast imaging l.jpg

Phase Contrast Imaging

  • Basic principle:

    • Shift phases (s) and/or amplitudes of U and D differentially

    • This can produce a change in amplitude of P (length of vector)

Theory & Appl. Light Microscopy


Slide20 l.jpg

In microscope

At image plane

In specimen

D'

D'

D

D

P'

U

U'

U'

P

U' P'

Amplitude!

U = P


Phase contrast optics21 l.jpg

Phase Contrast Optics

  • Physically separates U and D light and subjects one or the other to phase shift and/or amplitude shift

  • In theory, any shift of U and D are possible

  • In practice, a shift of  90° (/4) is appropriate for most biological specimens

Theory & Appl. Light Microscopy


Slide22 l.jpg

Theory & Appl. Light Microscopy


Optical arrangements l.jpg

Optical Arrangements

  • Several possible, but major design challenge to keep U and D rays separate and handled differently

  • In practice, use a hollow cone of light to illuminate specimen

    • Phase Annulus below condenser

    • Phase plate at back focal plane of objective

  • Only 0 order rays from annulus pass through plate

Theory & Appl. Light Microscopy


Slide24 l.jpg

Theory & Appl. Light Microscopy


Slide25 l.jpg

Theory & Appl. Light Microscopy


Slide26 l.jpg

Theory & Appl. Light Microscopy


Phase plate l.jpg

Phase Plate

  • Rings in phase plate can include

    • Attenuating layer (absorption but no phase shift), or

    • Phase-shifting layer (no absorption, phase shift only), or

    • Any combination of the two

Theory & Appl. Light Microscopy


Positive negative phase l.jpg

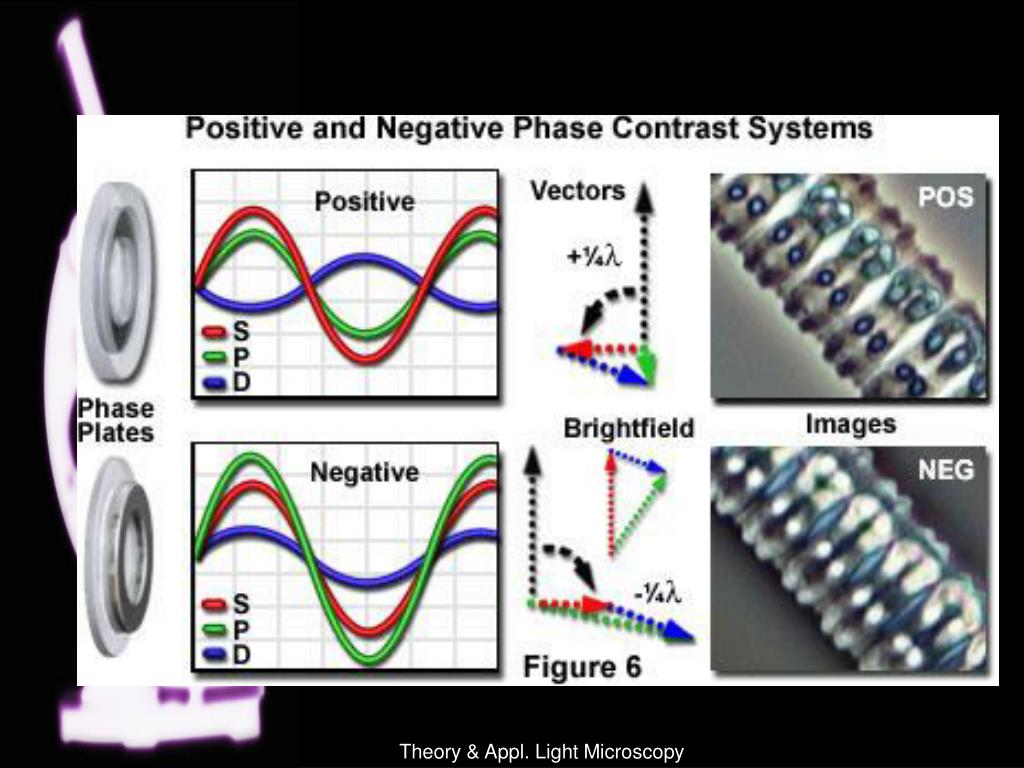

Positive/Negative Phase

  • Positive Phase Specimen dark against light background (usual now)

  • Negative Phase Specimen bright against dark background (looks like darkfield optics)

Theory & Appl. Light Microscopy


Slide29 l.jpg

Positive Phase

D

D'

U'

U

P

P'

U = P

U'> P'

Retard D relative to U (move D vector clockwise)


Slide30 l.jpg

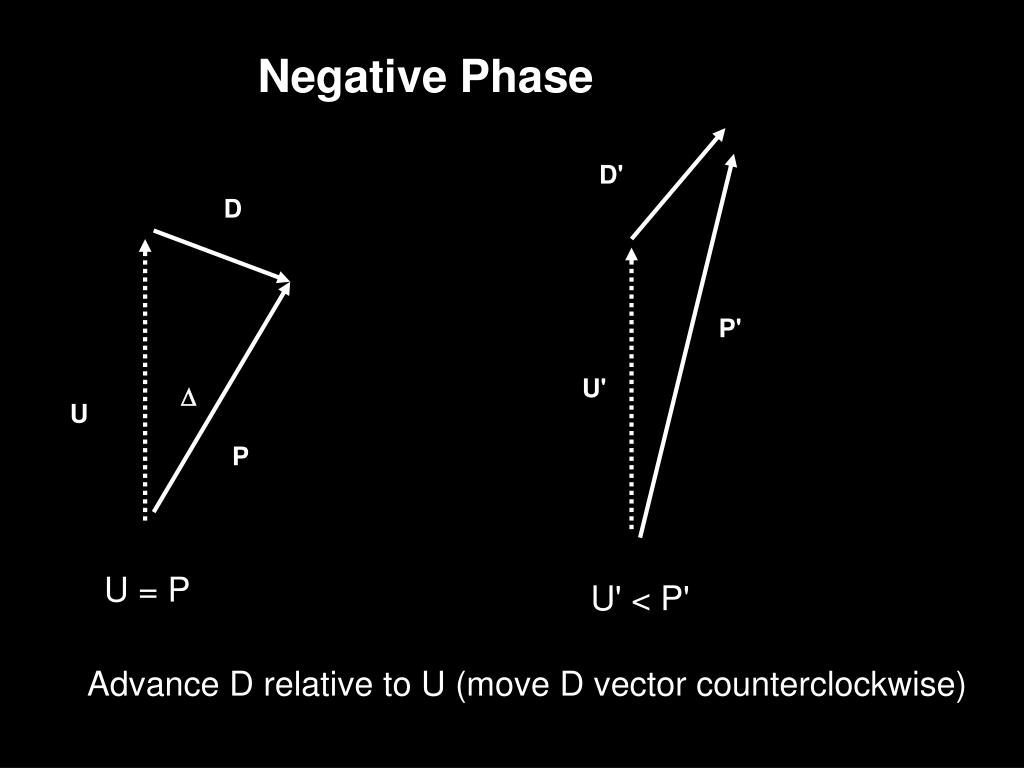

Negative Phase

D'

D

P'

U'

U

P

U = P

U'< P'

Advance D relative to U (move D vector counterclockwise)


Slide31 l.jpg

Theory & Appl. Light Microscopy


Slide32 l.jpg

Theory & Appl. Light Microscopy


Slide33 l.jpg

Theory & Appl. Light Microscopy


Slide34 l.jpg

Theory & Appl. Light Microscopy


Example systems l.jpg

Example Systems

  • Anoptral Phase Contrast Change amplitude of U (soot on ring), no phase shifts for either U or D rays. Bright image — negative phase

    Popular among algae workers in Great Britain in 50s–60s

Theory & Appl. Light Microscopy


Slide36 l.jpg

Anoptral Phase

D

No phase shifts on ring

D'

U

U'

P

P'

U = P

U'< P'

Produces delicate image against brown background


Slide37 l.jpg

Theory & Appl. Light Microscopy


Example systems38 l.jpg

Example Systems

  • Zernike Phase Contrast Differential changes in amplitude and phase of U and D rays.

  • All combinations possible:

    • Amplitude absorption with no phase shift (metal coating)

    • Phase shift wavefront with no absorption (silica coating)

Theory & Appl. Light Microscopy


Slide39 l.jpg

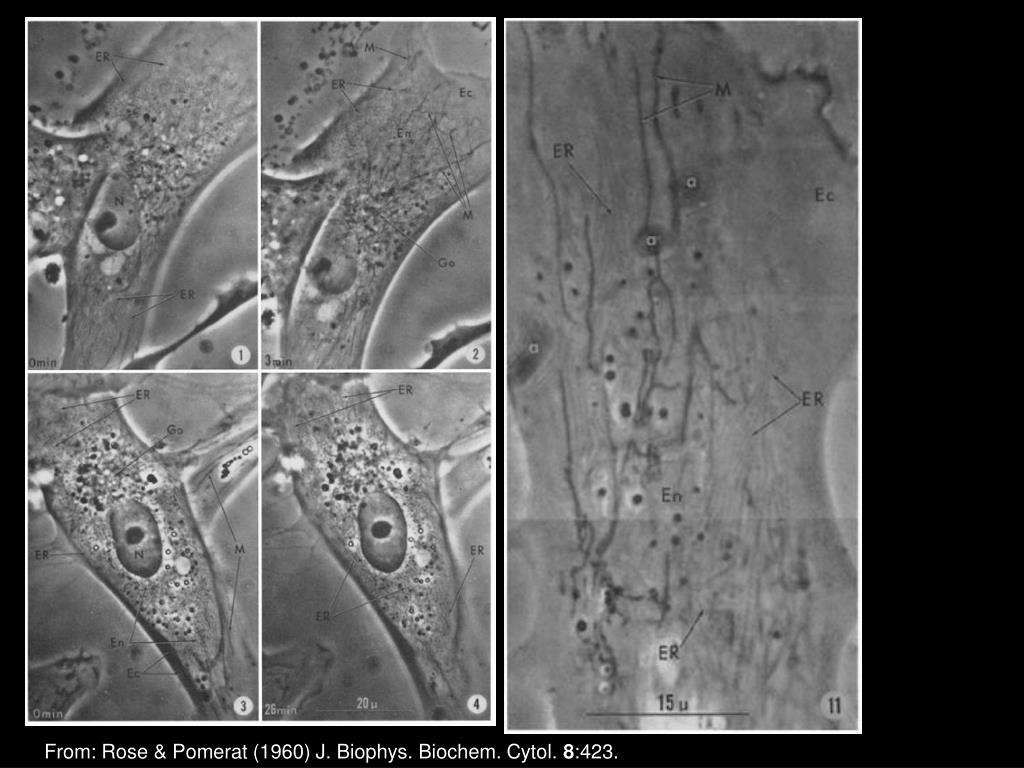

From: Rose & Pomerat (1960) J. Biophys. Biochem. Cytol. 8:423.


Use limitation of phaseco l.jpg

Use/Limitation of Phaseco

  • Use for qualitative, not quantitative evaluation of specimens

  • Reasons:

    • Intensity differences in image not uniquely related to index of refraction differences of specimen

    • Phase halo— optical artifact Cannot completely separate U and D rays in optics

Theory & Appl. Light Microscopy


Intensity differences l.jpg

Intensity Differences

  • Two points may have same image intensity, but have different  values (different i.r.s)

  • I.e., if IP/IU of  at 240° identical to ratio at 320°, then how distinguish different i.r.?

Theory & Appl. Light Microscopy


Phase halo l.jpg

Phase Halo

  • Serious artifact, most prominent at boundaries of sharp differences in i.r.

  • Exceeds ability of optics to produce an accurate image

  • So identification of exact boundary of specimen from image is very difficult

Theory & Appl. Light Microscopy


Slide43 l.jpg

Theory & Appl. Light Microscopy


Slide44 l.jpg

Theory & Appl. Light Microscopy


Reducing phase halo l.jpg

Reducing Phase Halo

  • Modification of design of phase plate

  • Apodized Phase Contrast Addition of neutral density filters to phase plate to suppress halo

  • Optical Process

Theory & Appl. Light Microscopy


Slide46 l.jpg

Theory & Appl. Light Microscopy


Slide47 l.jpg

Theory & Appl. Light Microscopy


Reducing phase halo48 l.jpg

Reducing Phase Halo

  • Modification of specimen and medium

  • Worst halo comes from abrupt i.r. difference between specimen (cell) and medium it is in

  • Match i.r. of medium to i.r. of specimen to reduce halo

  • Barer & Joseph (1957) Symp. Soc. Exp. Biol. 10:160–184.

  • Use of non-osmotic solutes to increase medium index of refraction

Theory & Appl. Light Microscopy


Interference microscopy l.jpg

Interference Microscopy

  • Like phaseco in that imaging produces amplitude differences from phase differences in specimen

  • Quantitative Techniques

  • Qualitative Techniques

Theory & Appl. Light Microscopy


Optical path difference l.jpg

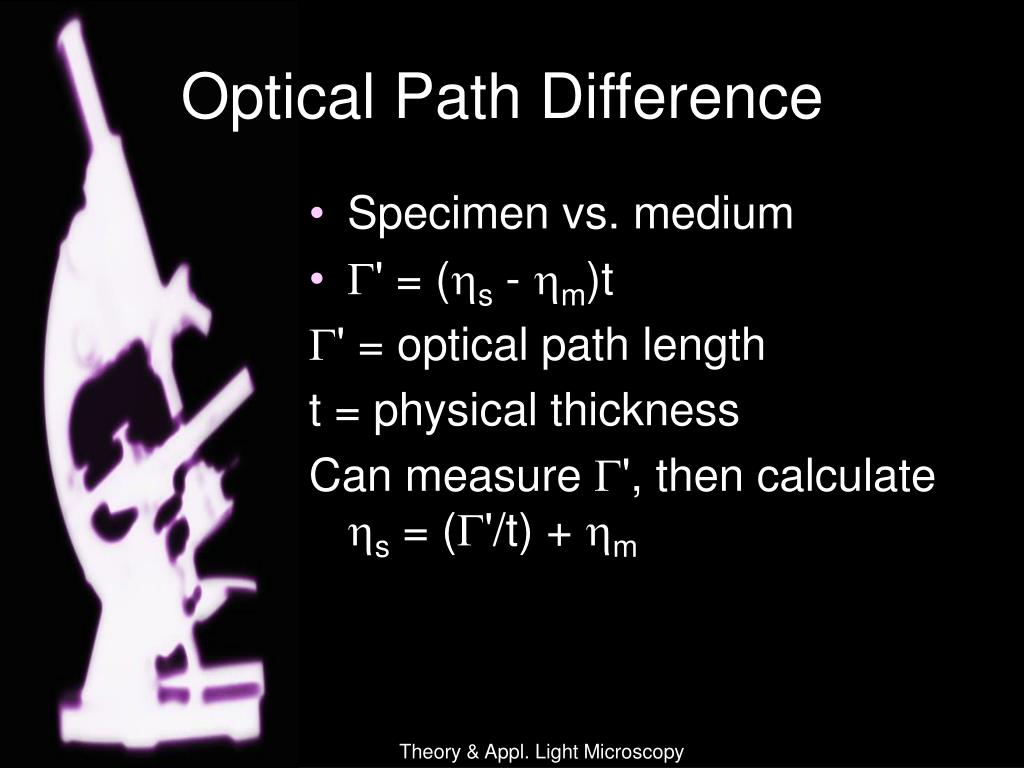

Optical Path Difference

  • Specimen vs. medium

  • ' = (s - m)t

    ' = optical path length

    t = physical thickness

    Can measure ', then calculate s = ('/t) + m

Theory & Appl. Light Microscopy


Dry mass calculations l.jpg

Dry Mass Calculations

  • Derived from '

  • Need to determine , the refractive increment (difficult)

    (For most biological specimens,  = 1.8 x 10-3 i.r./gm solute/100 ml)

Theory & Appl. Light Microscopy


Slide52 l.jpg

  • C (dry weight concentration) = (specimen - water)/ = (s – 1.33)/1.8 x 10-3 = gm/100 ml = gm solids x 100/(area x thickness)

  • ' =  C t

  • Mass of solids per cell = (' x area)/100 = (' x area)/0.18

Theory & Appl. Light Microscopy


Double beam interference l.jpg

Double Beam Interference

  • Phaseco — image formed from interference between 0 order and diffracted orders from specimen

  • Double Beam Interference — image arises from interference between light from specimen and from a reference beam that does not pass through specimen

  • (No phase halos from incomplete separation of U and D rays)

Theory & Appl. Light Microscopy


Vector diagrams l.jpg

Vector Diagrams

R = reference beam = U = P = A0

R

R

U

P

U'

P'

U' = 2 A0 1.4 A0

Interference between P and R produces P' 1.8 A0


Slide55 l.jpg

  • Image

    • Specimen bright against background

    • Ratio of intensities

      (1.8/1.4)2  1.6

  • Can vary amplitude and phase of R vector to produce negative contrast as well

Theory & Appl. Light Microscopy


Coherent optics l.jpg

Coherent Optics

  • For this to work, the specimen and reference beams must be coherent to one another

  • (Not needed for phaseco: U and D emerge from same point in specimen and are automatically coherent)

  • Light from source must be split into 2 beams and reunite these in image

Theory & Appl. Light Microscopy


Mach zender double microscope l.jpg

Mach-Zender Double Microscope

  • Classical form

  • Difficult to construct

  • Difficult to set up optics

  • Difficult to interpret images

  • Beam splitter system must have twin matched objectives and condensers (and add appropriate compensators)

Theory & Appl. Light Microscopy


Slide58 l.jpg

  • Image contains interference fringes in a gradient across field: /2, 3/2, 5/2, 7/2, etc.

  • Displacement of fringe is related to difference in optical path through the specimen: '

  • Measure physical thickness of specimen and calculate C and dry weight

Theory & Appl. Light Microscopy


Not commonly used l.jpg

Not Commonly Used

  • Mach-Zender expensive and specialized

  • More commonly used systems: split beam interference optics

  • Single condenser and objective used

  • Reference and Specimen beams present in same system

  • Double Beam Interference Optics

Theory & Appl. Light Microscopy


Jamin lebedeff microscope l.jpg

Jamin-Lebedeff Microscope

  • Special attachments applied to condenser and objective, as well as polarizer and analyzer system

  • About 2/3 of field has useable image (rest has ghost image)

  • Rotation of analyzer allows quantification of image information

  • Angle information produces '

  • Then measure vertical thickness of specimen to calculate dry weight

Theory & Appl. Light Microscopy


Slide61 l.jpg

Theory & Appl. Light Microscopy


Problems with designs l.jpg

Problems with Designs

  • Image deteriorates with higher magnification objectives (40x max)

  • Optical path differences in different scopes

  • Contrast is lost with open aperture

  • Condenser and Objective must be specially modified and are not useable for other optics

Theory & Appl. Light Microscopy


Common biological use l.jpg

Common Biological Use

  • Nomarski Differential Interference Contrast (DIC)

  • Qualitative, not quantitative use

  • Nomarski 1952 patent

  • (Allen, et al. (1969) Zeit. fur Wiss. Mikros. 69:193)

  • DIC sensitive to d/ds, so shows refractive gradients or interfaces

Theory & Appl. Light Microscopy


Georges jerzy nomarski 1919 1997 l.jpg

Georges (Jerzy) Nomarski (1919–1997)

  • Polish-born, lived in France after World War II

  • Physicist, many inventions

  • Developed modification of interference microscopes now known as differential interference contrast (DIC) optics

Theory & Appl. Light Microscopy


Robert day allen 1927 1986 l.jpg

Robert Day Allen (1927–1986)

  • Pioneered practical applications of Nomarski’s system

Theory & Appl. Light Microscopy


Slide66 l.jpg

DIC

  • Complicated optical arrangement involving polarizer, analyzer, double wollaston prisms.

  • Polarizer produces light; lower wollaston prism separates that into 2 component beams polarized at right angles to one another

Theory & Appl. Light Microscopy


Slide67 l.jpg

  • Lower wollaston also modified to separate two beams in space

  • Each beam is R for the other

  • Displacement of beams is set for each objective’s resolution:

    • 100x, NA 1.25 — 0.2 m

    • 40x, NA 0.65 — 0.55 m

    • 16x, NA 0.32 — 1.32 m

  • Upper wollaston recombines 2 beams into same path, but is adjustable

  • Usually displace from precise recombination

Theory & Appl. Light Microscopy


Nomarski image l.jpg

Nomarski Image

  • Result is extinction (shadow) on one side of specimen and reinforcement (bright) on the other

  • Shear of image

  • False relief 3D image

  • Consider wavefront diagrams

Theory & Appl. Light Microscopy


Slide69 l.jpg

Theory & Appl. Light Microscopy


Slide70 l.jpg

Theory & Appl. Light Microscopy


Slide71 l.jpg

Theory & Appl. Light Microscopy


Shear in image l.jpg

Shear in Image

  • Degree of shear is set by wollaston combination

  • Bias of shear adjustable by shifting upper wollaston position to retard one beam more or less relative to other

  • Cannot be used for quantitative measurements of dry mass

  • But extremely useful for observing living cells

Theory & Appl. Light Microscopy


Slide73 l.jpg

Theory & Appl. Light Microscopy


Slide74 l.jpg

Theory & Appl. Light Microscopy


Slide75 l.jpg

Theory & Appl. Light Microscopy


Comparison of nomarski and phase contrast optics l.jpg

Phase Contrast

Cheaper

Easier to set up

Uses less than full aperture of objective

Phase Halo — surrounds specimen and other changes in i.r.

Nomarski

More expensive

Fussy alignment

Uses full aperture — closet to theoretical limit

Shadow Effect — contrast greatest at shear direction maximum

Comparison of Nomarski and Phase Contrast Optics


Slide77 l.jpg

Phase Contrast

Insensitive to birefringence in specimen or slides

Extremely large depth of field — sensitive to artifacts far out of plane of specimen

Doesn’t work well with stained specimens

Nomarski

Optics disrupted by birefriengence

Extremely shallow depth of field — useful for optical sectioning of specimen

Works well with stained specimens; optics can be adjusted to enhance contrast


Slide78 l.jpg

Theory & Appl. Light Microscopy


Slide79 l.jpg

Theory & Appl. Light Microscopy


Slide80 l.jpg

Theory & Appl. Light Microscopy


Slide81 l.jpg

Theory & Appl. Light Microscopy


  • Login
