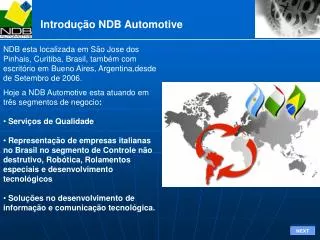

  1. Introdução NDB Automotive • NDB esta localizada em São Jose dos Pinhais, Curitiba, Brasil, também com escritório em Bueno Aires, Argentina,desde de Setembro de 2006. • Hoje a NDB Automotive esta atuando em três segmentos de negocio: • Serviços de Qualidade • Representação de empresas italianas no Brasil no segmento de Controle não destrutivo, Robótica, Rolamentos especiais e desenvolvimento tecnológicos • Soluções no desenvolvimento de informação e comunicação tecnológica. NEXT

  2. A NDB Automotive e a Gilardoni em parceria disponibiliza no mercado brasileiro os equipamentos para controle não destrutivo (Raio-x e Ultra-som) oferecendo aos nossos clientes: • Equipamentos modernos, tecnologicamente avançado com alta confiabilidade; • Experiência de mais de 60 anos no mercado Europeu; • Alto conhecimento em NDT, trabalhamos com profissionais altamente qualificados; • Inovação continua e desenvolvimento de novas tecnologia no ramo de NDT; • Suporte técnico pós-venda; • Ética e competência profissional GILARDONI no Brasil NEXT EXIT

  3. GILARDONI A planta da Gilardoni esta localizada em Mandello del Lario (LC) – Italy, onde são produzidos unidades de ultra-som e Raio-X, também produzimos unidades especiais conforme especificação dos nossos clientes. NEXT EXIT INFO DATA

  4. Gilardoni S.p.A. Divisao de X-ray Medical Divisão Industrial Divisão Segurança Para selecionar a divisao click na figura EXIT EXIT

  5. DIVISAO INDUSTRIAL CABINE X-RAY SISTEMAS ESPECIAIS CONTROLE EM OBRAS DE ARTE SISTEMA ULTRA-SOM Para selecionar a divisao click na figura EXIT HOME NEXT

  6. CABINES PADRAO PEQUENA MEDIA GRANDE BASICA Para selecionar a divisao click na figura EXIT HOME NEXT

  7. CABINES ESPECIAIS Cabines Automaticas EXIT BACK HOME NEXT

  8. CABINES ESPECIAIS Cabine Automatica cabine com C-arm manipulator 1 Posição para expecao 2 Posição para carregamento 3 Posição para descarregamento EXIT BACK HOME NEXT

  9. CABINES ESPECIAIS Posição Carregar/descarregar queijo Maquina para controle de queijos Controle EXIT BACK HOME NEXT

  10. CABINES ESPECIAIS Maquina controla rodas Maquina de controle para freios EXIT BACK HOME NEXT

  11. SISTEMAS ESPECIAIS Automático X-Ray Sistema de Bunker EXIT BACK HOME NEXT

  12. CABINE “C” ARM Nova Cabine Grande Sistema “C” Arm Console Controle EXIT BACK HOME NEXT

  13. CABINE X-ray Tubo Generator Intensificador Image Cabine Manipulador EXIT BACK HOME NEXT

  14. CONTROLE CONSOLE DSA Real time monitor Image processador X-Ray Lab Automático sistema Zeus Painel de controle Manual Controle X-Ray Controle Eletronico Mecânica console EXIT BACK HOME NEXT

  15. ANALISE AUTOMATICA DE DEFEITOS Analise da imagem Imagem real Imagem filtrada Imagem processada com os defeitos Software do sistema Analise do defeito EXIT BACK HOME NEXT

  16. CONTROLE CONSOLE Console Padrão EXIT BACK HOME NEXT

  17. SOFTWARE Processador de Image X-RayLab System Software automatic Zeus EXIT BACK HOME NEXT

  18. GENERATOR X-RAY Bipolar Generator X-ray 20 ÷ 320 30 ÷ 350 40 ÷ 450 Monoblock Generator X-ray 30 ÷ 160 Unipolar Generator X-ray 10 ÷ 160 20 ÷ 225 Comando de Controle para generator x-ray Para maiores detalhes click na figura EXIT BACK HOME NEXT

  19. SISTEMAS ESPECIAL MHF200D MHF 300D GXL306D UNIDADES DE X-RAY PORTATEIS Para maiores detalhes click na figura EXIT BACK HOME NEXT

  20. CABINES ESPECIAIS Sistema para teste de cabos submarinos Sistema de topografia Fainel de controle da imagem EXIT BACK HOME

  21. TECHNICAL DATA – CABINET TYPE “BASE” Range of application’s Manual CST-4-BM-100 CST-4-BM-160 Automatic --- --- KV A.T. regolation range 10-100 10-160 mm 300 x 400 Max. dimensions of the casting Kg Max. weight of the casting 15 Direct 4 Diffuse 2,5 Direct 6 Diffuse 4 mm X-Ray Protection External dimensions (w x d x h) mm 900+650x1020x2000 mm Internal dimensions (w x d x h) 800x900x1400 Weight Kg 900 1000 mm 500 x 650 Load / Unload Door mm LD inspections glass 350 x 350 N° 4 Number of axes mm 300 X axis Horizontal mm Y axis Vertical 400 mm 300 Z axis Magnification (Zoom) no ° U axis Tilt 360 ° V axis Rotation mm 300 Dish diamiter Reserving the right to improve and modify EXIT BACK HOME NEXT

  22. TECHNICAL DATA – CABINET TYPE “LITTLE” Range of application’s Manual CST-5-PM-160 CST-5-PM-225 CST-5-PA-225 Automatic CST-5-PA-160 KV A.T. regolation range 10-100 10-160 mm 300 x 400 Max. dimensions of the casting Kg Max. weight of the casting 15 mm Direct 6 Diffuse 4 Direct 10 Diffuse 7 X-Ray Protection External dimensions (w x d x h) mm 900+650x1020x2000 mm Internal dimensions (w x d x h) 800x900x1400 Weight Kg 1000 1100 mm 450 x 600 Load / Unload Door mm LD inspections glass 350 x 160 N° 5 Number of axes mm 300 X axis Horizontal mm Y axis Vertical 400 mm 300 Z axis Magnification (Zoom) ° ±20 U axis Tilt 360 ° V axis Rotation mm 300 Dish diamiter Reserving the right to improve and modify EXIT BACK HOME NEXT

  23. TECHNICAL DATA – CABINET TYPE “MEDIUM” Range of application’s Manual CST-5-MM-160 CST-5-MM-225 Automatic CST-5-MA-160 CST-5-MA-225 A.T. regolation range KV 10-160 20-225 mm 400 x 500 Max. dimensions of the casting Kg 30 Max. weight of the casting mm X-Ray Protection Direct 6 Diffuse 4 Direct 10 Diffuse 7 External dimensions(w x d x h) mm 1500+450x1270x2000 mm 1400x1100x1750 Internal dimensions(w x d x h) 1900 Weight Kg 1700 mm Load / Unload Door 500 x 1200 mm LD inspections glass 350 x 350 N° Number of axes 5 mm X axis Horizontal 400 mm Y axis Vertical 500 mm Z axis Magnification (Zoom) 300 ° ±20 U axis Tilt ° 360 V axis Rotation mm 400 Dish diamiter Reserving the right to improve and modify EXIT BACK HOME NEXT

  24. TECHNICAL DATA – CABINET TYPE “LARGE WITH C” Range of application’s Manual CST-5-GM-160 CST-5-GM-225 Automatic CST-5-GA-160 CST-5-GA-225 KV A.T. regolation range 10-160 20-225 mm 600 x 700 Max. dimensions of the casting Kg 50 Max. weight of the casting mm Direct 6 Diffuse 4 Direct 10 Diffuse 7 X-Ray Protection External dimensions (w x d x h) mm 20200x1670x2170 mm 1900x1670x1885 Internal dimensions (w x d x h) 2600 Weight Kg 2300 mm Load / Unload Door 700 x 1400 mm LD inspections glass 400 x 400 N° Number of axes 5 mm X axis Horizontal 650 mm Y axis Vertical 700 mm Z axis Magnification (Zoom) 400 ° ±20 U axis Tilt ° 360 V axis Rotation mm 500 Dish diamiter Reserving the right to improve and modify EXIT BACK HOME NEXT

  25. TECHNICAL SPECIFICATIONS GXL 306D: Technology: Constant power (900 W) medium frequency tube head with metalceramic tube Performance: kV adjustment: from 120 kV to 300 kV mA adjustment: from 4 mA to 6 mA Max power: 3500 W Duty cycle: 50% at 20° C X-ray beam: 50° Focal spot: 3 x 3 mm (IEC 336) 4,5 mm (EN 12543) Inherent filtration: 1 mm Be X-ray tube: Penetration: 55 mm Fe, E=5’, d=1.8 DFF 700 mm, Gevaert D7 or Kodak AA 400 films, Pb screens. Tube head size and weight: Length: 790 mm Diameter: 263 mm (295 mm with handles) Weight: 41 kg Control unit size and weight: Dimensions: 514 x 350 x 280 mm (L x H x W). Weight: 26 kg (without protection cage). CE Marking Reserving the right to improve and modify EXIT BACK HOME NEXT

  26. TECHNICAL SPECIFICATIONS MHF 200D: Technology: Constant power (900 W) high frequency tube head with metalceramic tube. Performance: kV adjustment: from 30 kV to 200 kV mA adjustment: from 1 mA to 8 mA Max power: 900 W Duty cycle: 100% at 20° C X-ray tube: X-ray beam: 40° x 60° Focal spot: 1.5 x 1.5 mm (IEC 336) 3 mm (EN 12543) Inherent filtration: 1 mm Be Penetration: 42 mm Fe, E=10’, d=2.2 DFF 700 mm, Gevaert D7 or Kodak AA 400 films, Pb screens. Tube head size and weight: Length: 672 mm Diameter: 228 mm (295 mm with handles) Weight: 24 kg Control unit size and weight: Dimensions: 460 x 340 x 250 mm (L x H x W). Weight: 14 kg (without protection cage). CE Marking Reserving the right to improve and modify EXIT BACK HOME NEXT

  27. TECHNICAL SPECIFICATIONS MHF 300D: Technology: Constant power (900 W) high frequency tube head with metalceramic tube Performance: kV adjustment: from 50 kV to 300 kV mA adjustment: from 1 mA to 6 mA Max power: 900 W Duty cycle: 100% at 20° C X-ray beam: 40° x 60° Focal spot: 1.5 x 1.5 mm (IEC 336) 3 mm (EN 12543) Inherent filtration: 1 mm Be X-ray tube: Penetration: 65 mm Fe, E=10’, d=2.0 (3mA, 300 kV) Tube head size and weight: Length: 1150 mm Diameter: 262 mm (295 mm withhandles) Weight: 40 kg Control unit size and weight: Dimensions: 460 x 340 x 250 mm (L x H x W). Weight: 14 kg (without protection cage). CE Marking Reserving the right to improve and modify EXIT BACK HOME NEXT

  28. TECHNICAL FEATURES OF CHF GENERATORS Aion tubehead Description CHF 100S Unipolar CHF 160 Unipolar CHF 160 Unipolar CHF 225 Unipolar CHF 320 Bipolar CHF 450 Bipolar W Power (costant watt) 500 600 640 3200 4200 3200 4200 kV 40÷160 10÷100 10÷160 10÷160 20÷225 30÷320 40÷450 KV range mA mA range precision 0÷7 0÷12 0÷10 0÷30 0÷30 0÷20 0÷20 % 1 % 0,1 % Reproducibility current/voltage % 1 % 0,2 % kV ripple % 0,1 % 2 % for kV and 1 % for mA kV and mA accurancy % 500 0,05 % / h / short term - 0,1 % /h / Long term Stabilità kV e mA mm 165x435x43585x300x430 360x610x480 360x610x480 410x660x730 410x815x780 410x660x730410x660x730 525x815x780410x815x780 Dimensions Kg 345 102 102 220 240 (-) 220(+) 160 (-) 240(+) 180 Weight Reserving the right to improve and modify EXIT HOME NEXT

  29. TECHNICAL FEATURES OF CHF TUBEHEADS Aion monobloc CHF 160D (1) CHF 160DS (2) CHF 320G (4) CHF 350G (5) CHF 450G (5) Description CHF 225D (3) CHF 320S (4) mA max (*) mA 7 4 - 10 4 - 4 3 - 7 2 - 5 4 - 10 4 - 12 2 - 10 Focus (IEC 336) (En 12543) 0,71,1 0,4-1,51 - 3 0,4 – 0,41 - 1 0,4-1,51 - 3 0,8-1,81,9 – 3,6 1,5 - 43 - 7 1,5 - 43 - 7 1,5 - 32,5 – 5,5 mm Penetration 30 mm Fe 110 mm Fe 37 mm Fe 30 mm Fe 50 mm Fe 80 mm Fe 85 mm Fe 92 mm Fe Filtering 2,3mm Fe + 1mm Cu mm 1 Be 3 Be 40° ° Beam angle (*) max current at the max. voltage (1) With CHF 160 generator (**) 20’. d=1,8. D7 Film+Pb. ffd= 700mm (2) With CHF 160S generator (3) With CHF 225 generator (4) With CHF 320 generator (5) With CHF 450 generator EXIT BACK HOME Reserving the right to improve and modify

  30. GILARDONI S.p.A. GENERAL INFORMATION Established in..........................…..… 1947 Trade-Name...............................…... Gilardoni S.p.A. (Private Company) Company Capital.………………..…... Euro 4.800.000 Fiscal Code.....................................… 00734000151 Legal Domicile.................................. 20124 Milano – P.zza L. di Savoia, 28 - Tel. +39 02.66.00.538 Branch Office................................... 00162 Roma – Via dei Foscari, 7 - Tel. +39 06 44.29.07.17 Headquarter...........................…....... 23826 Mandello Lario – Via Arturo Gilardoni, 1 STAFF Staff Number……............................. 200 (approximately) President............................................ Maria Cristina Gilardoni Mktg – Sales Manager……….......…. Marco Taccani Gilardoni R & D Quality Manager...............…. Andrea Ascani Orsini Telefonoes para contatos: Ricardo Augusto Kaefer ...................... +55 41 8862-1148 Davide Baratto........................................+ 55 41 9994-4169 EXIT HOME

  31. GILARDONI S.p.A. Head office and facilities: Via Arturo Gilardoni, 1 - 23826 Mandello del Lario (LC) - Italy tel. (+39) 0341.705.111 - fax (+39) 0341.735.046 e-mail: gx@gilardoni.it - www.gilardoni.it tel. (+55) 41 3384-5105 e-mail: ricardo@ndbautomotive.com Export department: Acknowledged as “HIGHLY QUALIFIED LABORATORY” with decree D.M. 9-10-1985 - L.46/82 art.4 By Michele Brigida
