Postulates

Postulates. Definition: An assumption that needs no explanation. Examples :. Through any two points there is exactly one line. A line contains at least two points. Through any three points, there is exactly one plane. A plane contains at least three points. Postulates.

gerald
Download Presentation

Postulates

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Postulates Definition: An assumption that needs no explanation. Examples: • Through any two points there is • exactly one line. • A line contains at least two points. • Through any three points, there is • exactly one plane. • A plane contains at least three points.

  2. Postulates Examples: • If two planes intersect, • then the intersecting is a line. • If two points lie in a plane, • then the line containing the two • points lie in the same plane.

  3. The Ruler Postulate • The Ruler Postulate:Points on a line can be paired with the real numbers in such a way that: • Any two chosen points can be paired with 0 and 1. • The distance between any two points on a number line is the absolute value of the difference of the real numbers corresponding to the points. Formula: To find the distance between any two points, take the absolute value of the difference of the two coordinates a and b: │a – b │

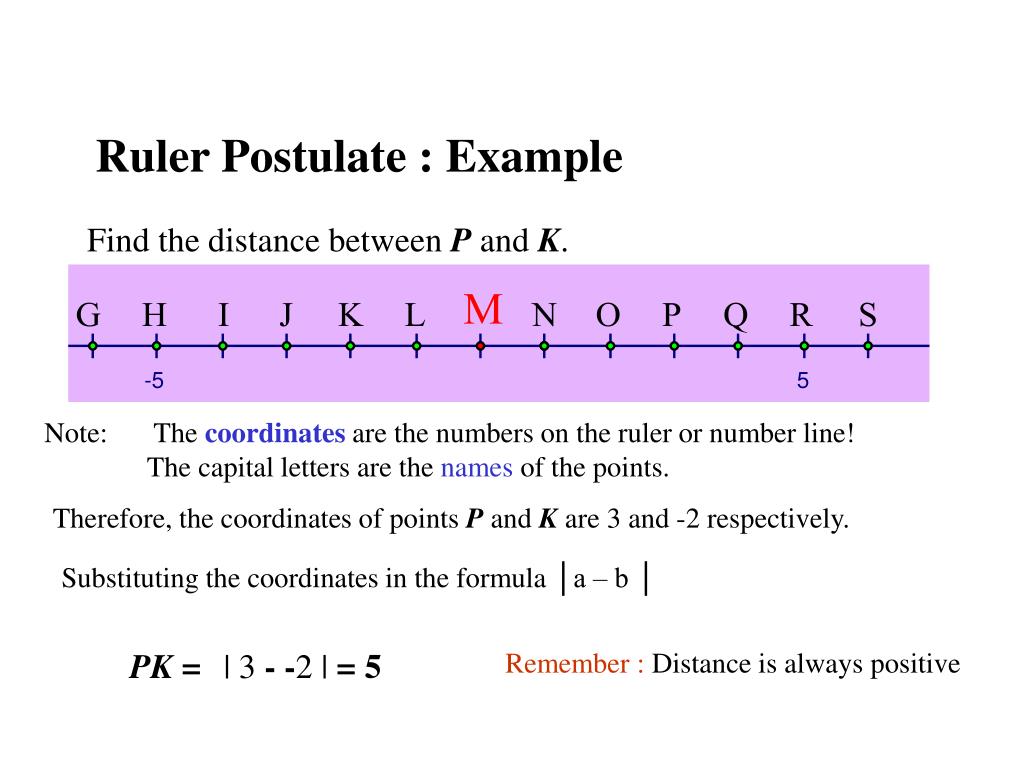

  4. Ruler Postulate : Example Find the distance between P and K. Note: The coordinates are the numbers on the ruler or number line! The capital letters are the names of the points. Therefore, the coordinates of points P and K are 3 and -2 respectively. Substituting the coordinates in the formula │a – b │ PK = | 3 --2 | = 5 Remember : Distance is always positive

  5. Between Definition: X is between A and B if AX + XB = AB. AX + XB = AB AX + XB > AB

  6. Segment Part of a line that consists of two points called the endpoints and all points between them. Definition: How to sketch: How to name: AB (without a symbol) means the length of the segment or the distance between points A and B.

  7. 12 AC + CB = AB x + 2x = 12 3x = 12 x = 4 The Segment Addition Postulate Postulate: If C is between A and B, then AC + CB = AB. If AC = x , CB = 2x and AB = 12, then, find x, AC and CB. Example: 2x x Step 1: Draw a figure Step 2: Label fig. with given info. Step 3: Write an equation x = 4 AC = 4 CB = 8 Step 4: Solve and find all the answers

  8. If numbers are equal the objects are congruent. AB: the segment AB ( an object ) AB: the distance from A to B ( a number ) Congruent Segments Definition: Segments with equal lengths. (congruent symbol: ) Congruent segments can be marked with dashes. Correct notation: Incorrect notation:

  9. Midpoint Definition: A point that divides a segment into two congruent segments Formulas: On a number line, the coordinate of the midpoint of a segment whose endpoints have coordinates a and b is .

  10. Midpoint on Number Line - Example Find the coordinate of the midpoint of the segment PK. Now find the midpoint on the number line.

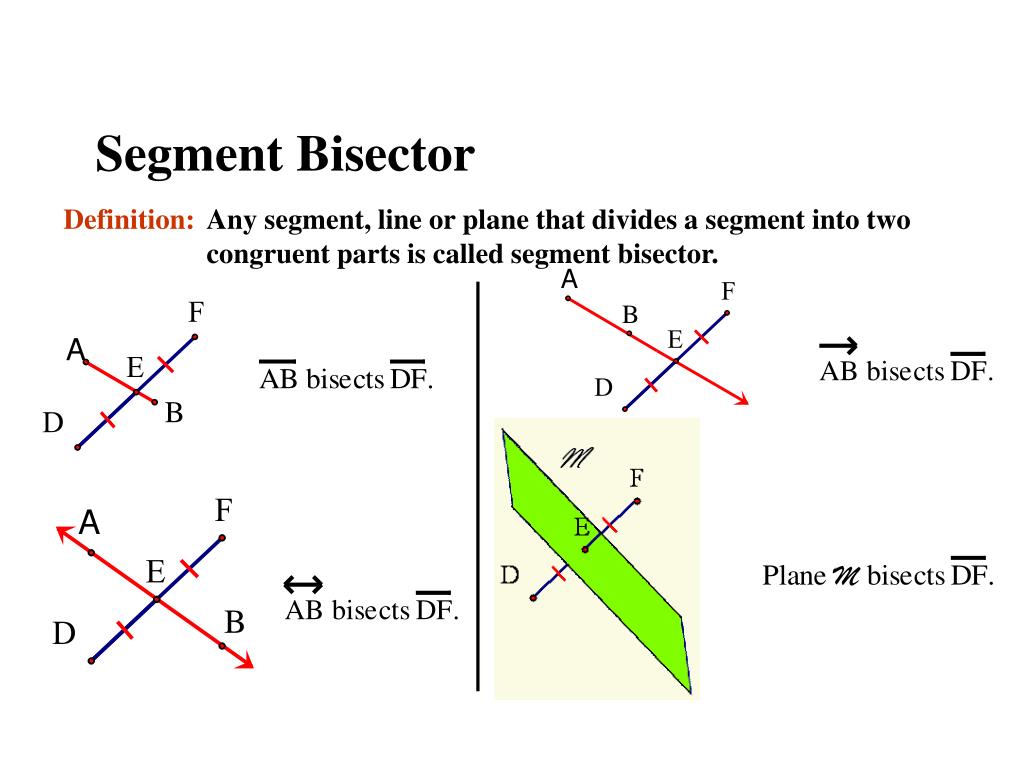

  11. Segment Bisector Definition: Any segment, line or plane that divides a segment into two congruent parts is called segment bisector.

  12. RA : RA and all points Y such that A is between R and Y. ( the symbol RA is read as “ray RA” ) Ray Definition: How to sketch: How to name:

  13. Opposite Rays Definition: If A is between X and Y, AX and AY are opposite rays. ( Opposite rays must have the same “endpoint” ) opposite rays not opposite rays
