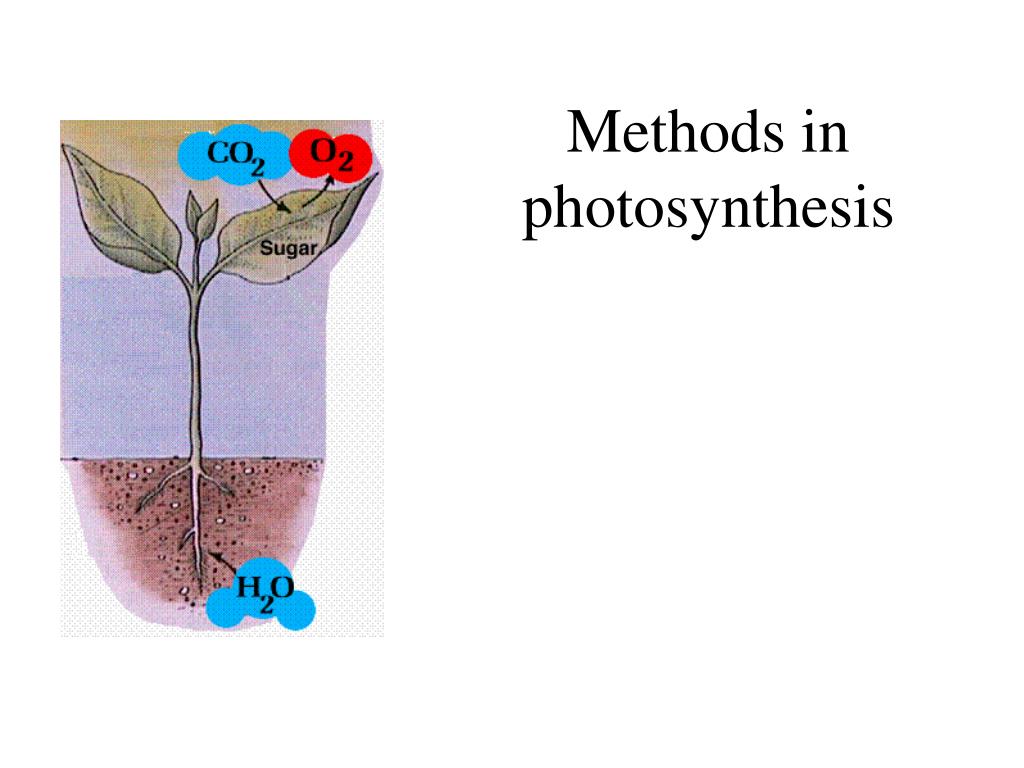

  1. Methods in photosynthesis

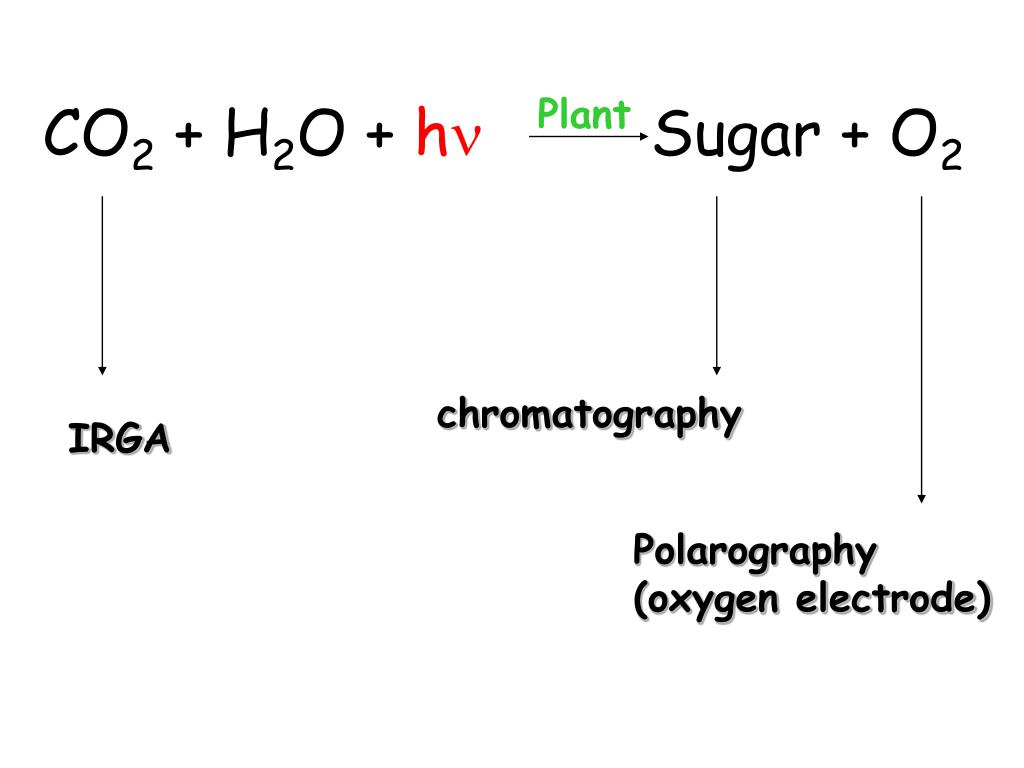

  2. CO2 + H2O + hn Sugar + O2 Plant chromatography IRGA Polarography (oxygen electrode)

  3. Chlorophyll-a fluorescence induction

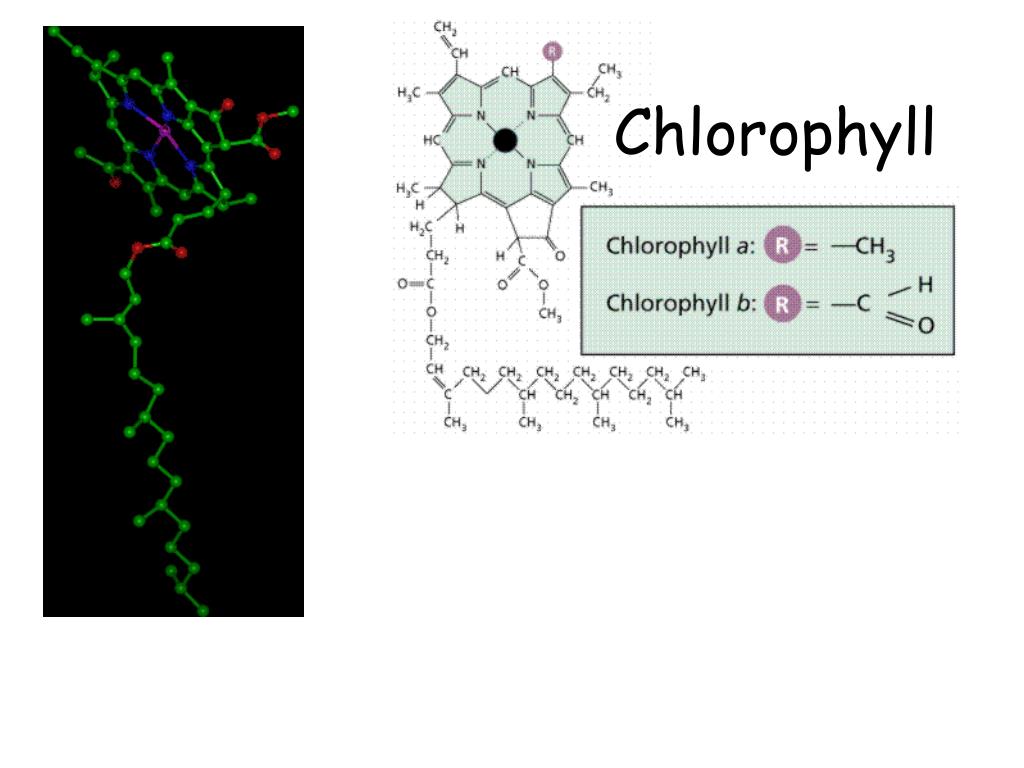

  4. Chlorophyll

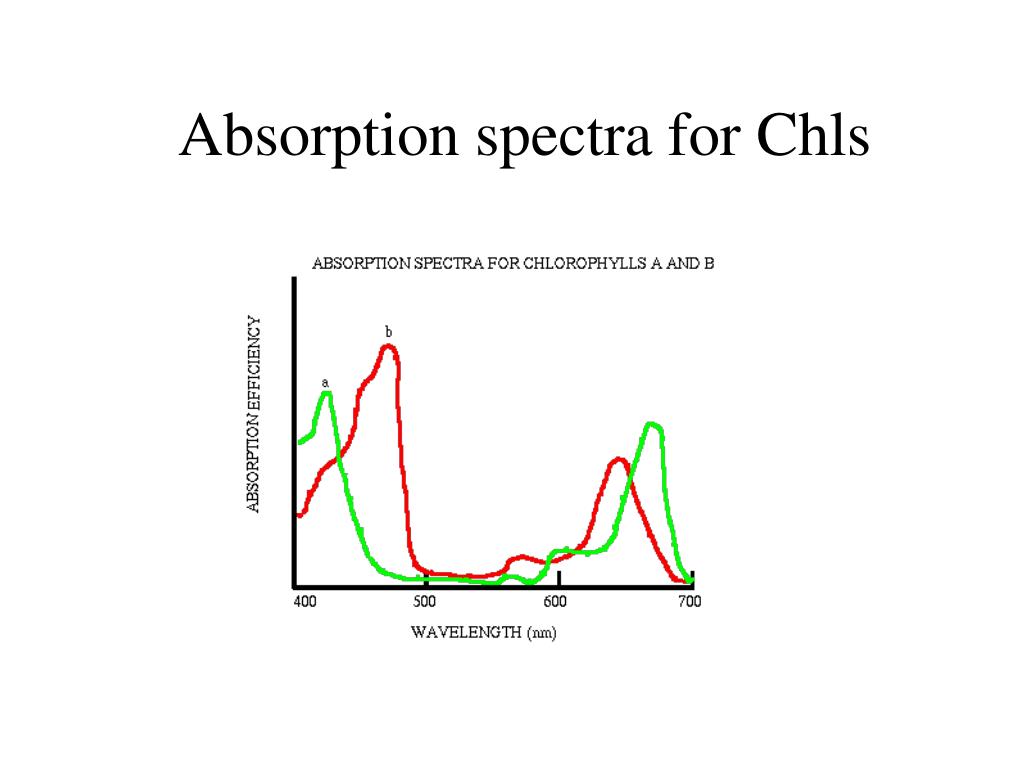

  5. Absorption spectra for Chls

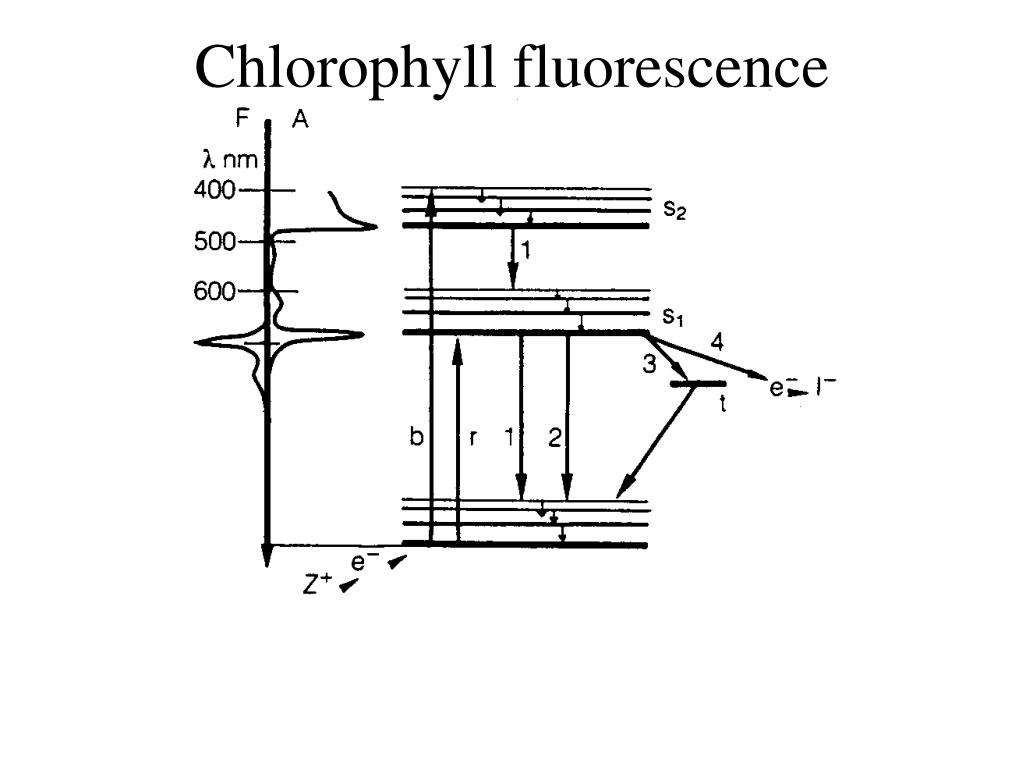

  6. Chlorophyll fluorescence

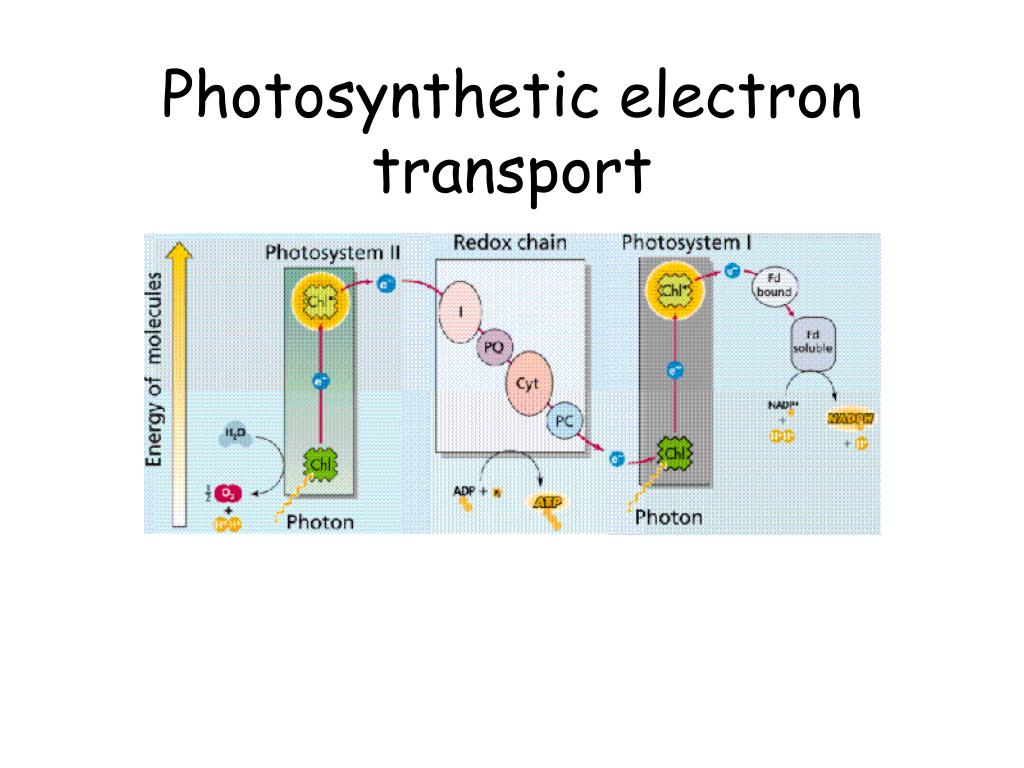

  7. Photosynthetic electron transport

  8. PS2

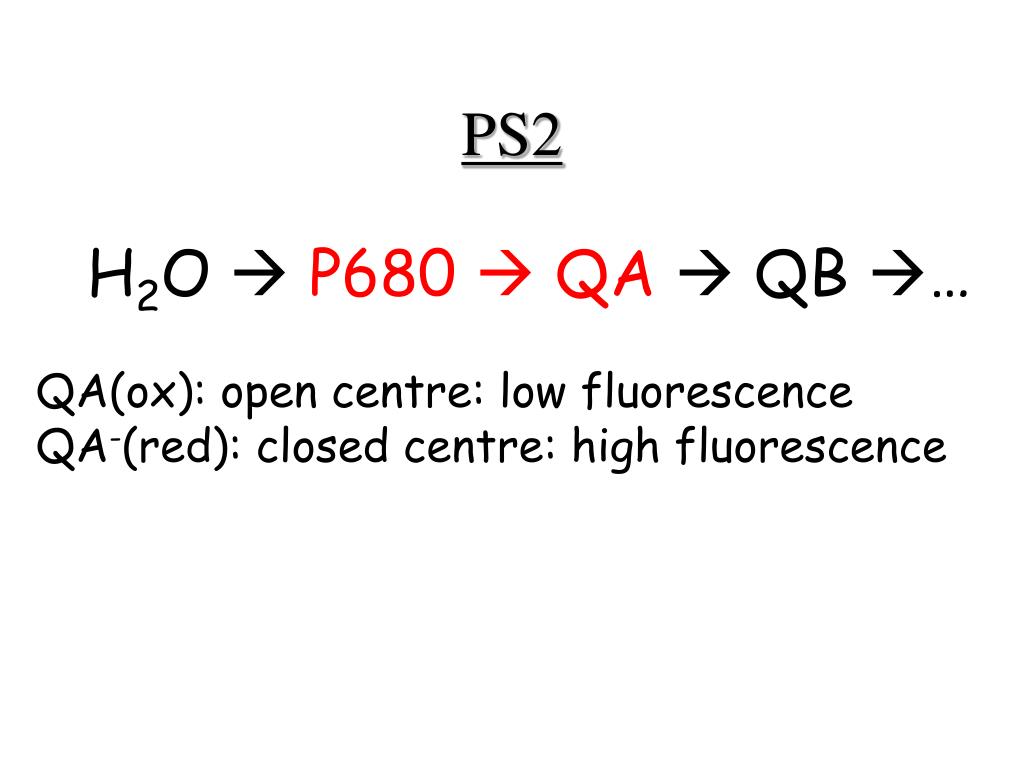

  9. PS2 H2O P680  QA QB … QA(ox): open centre: low fluorescence QA-(red): closed centre: high fluorescence

  10. FI curve using PAM system

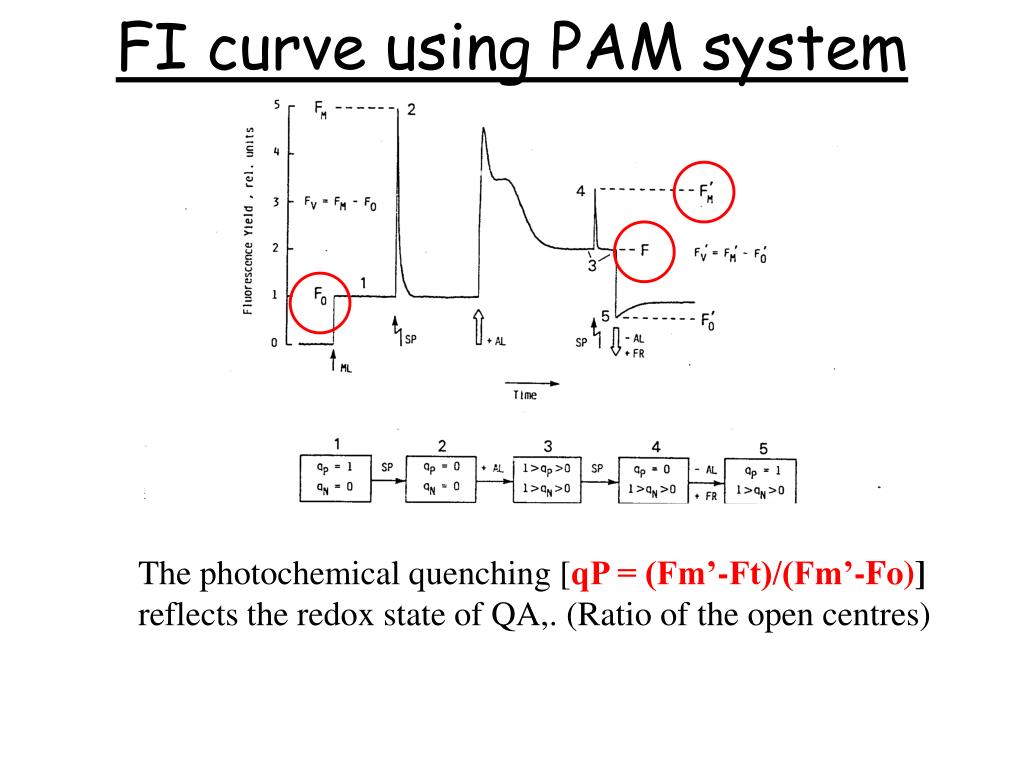

  11. The photochemical quenching [qP = (Fm’-Ft)/(Fm’-Fo)] reflects the redox state of QA,. (Ratio of the open centres) FI curve using PAM system

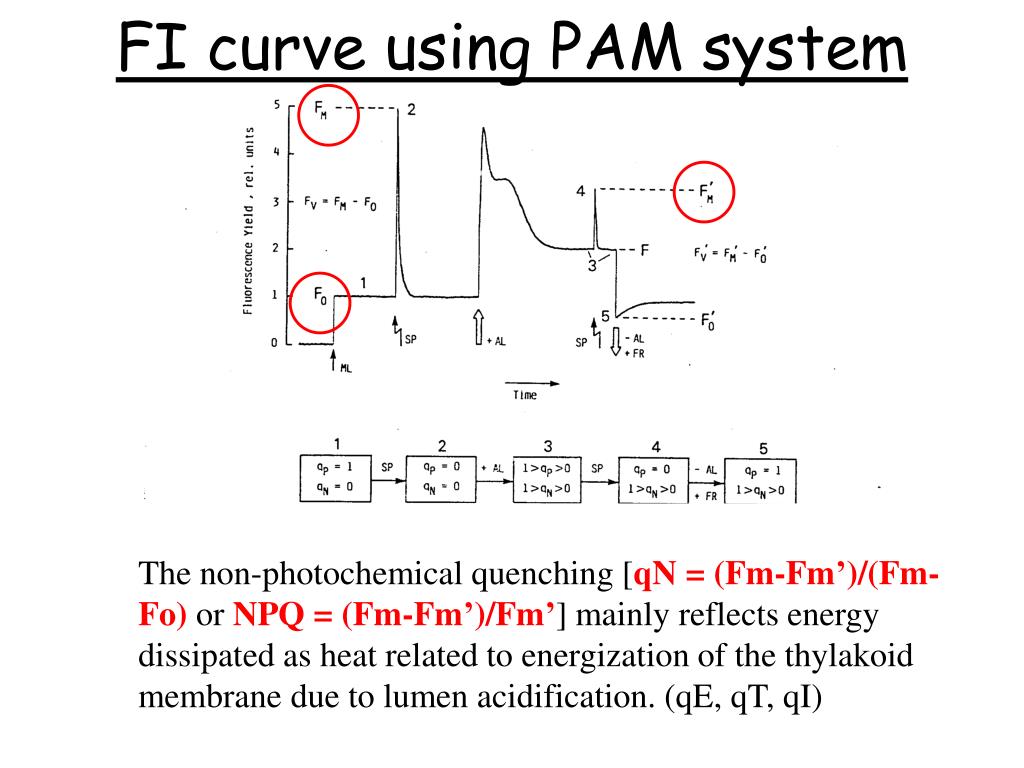

  12. The non-photochemical quenching [qN = (Fm-Fm’)/(Fm-Fo) or NPQ = (Fm-Fm’)/Fm’] mainly reflects energy dissipated as heat related to energization of the thylakoid membrane due to lumen acidification. (qE, qT, qI) FI curve using PAM system

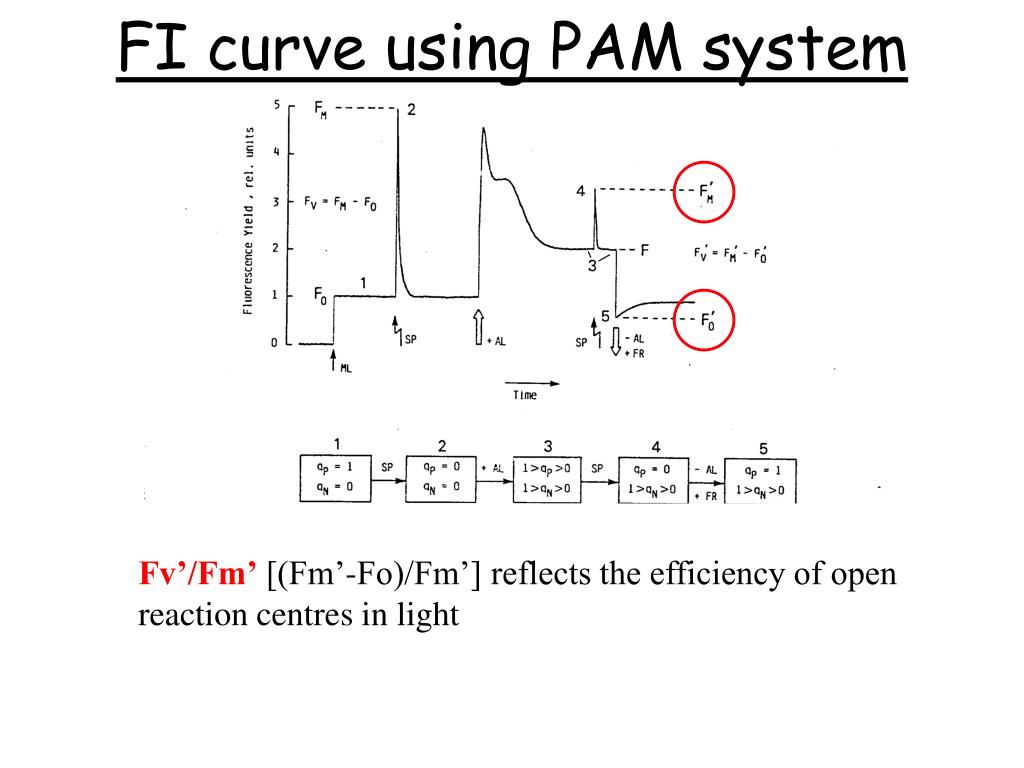

  13. Fv’/Fm’ [(Fm’-Fo)/Fm’] reflects the efficiency of open reaction centres in light FI curve using PAM system

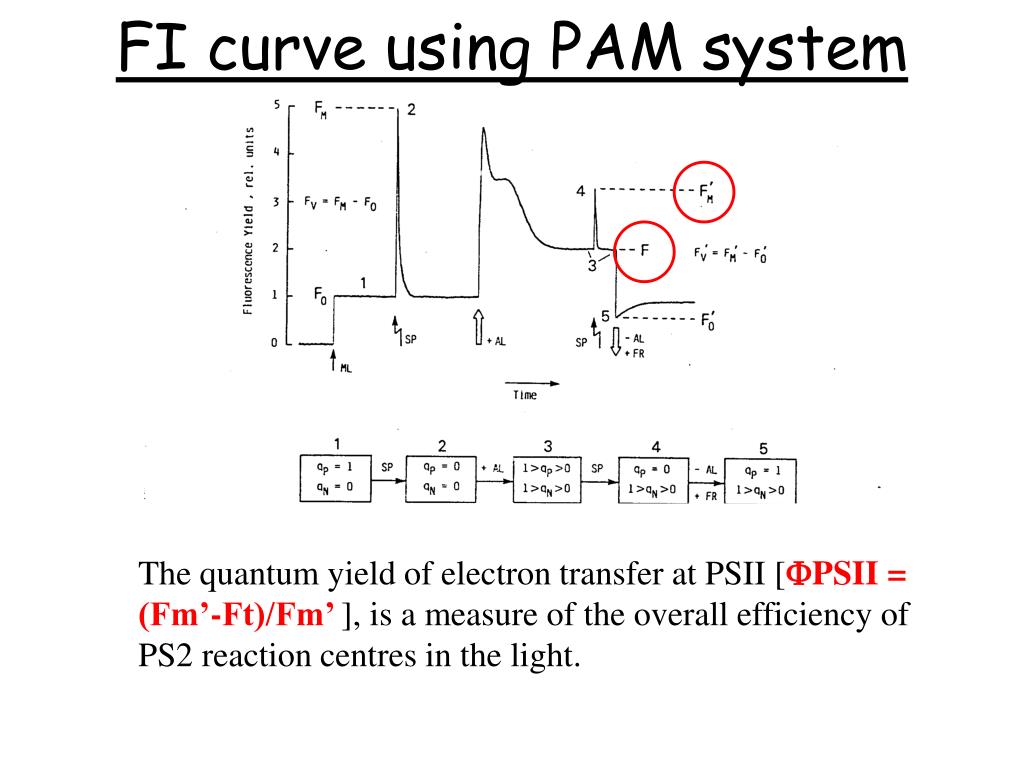

  14. The quantum yield of electron transfer at PSII [FPSII =(Fm’-Ft)/Fm’ ], is a measure of the overall efficiency of PS2 reaction centres in the light. FI curve using PAM system
