  1. Power Quicc(MC8536EEC)Microprocessor Presented By: Mohsin Abbas

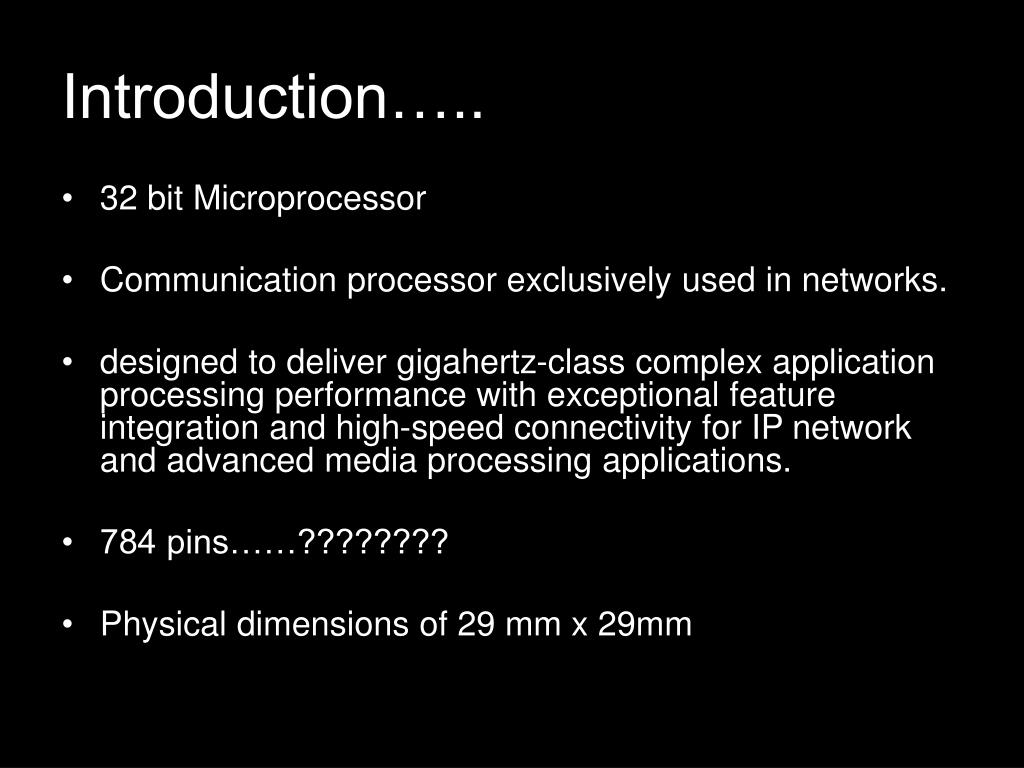

  2. Introduction….. • 32 bit Microprocessor • Communication processor exclusively used in networks. • designed to deliver gigahertz-class complex application processing performance with exceptional feature integration and high-speed connectivity for IP network and advanced media processing applications. • 784 pins……???????? • Physical dimensions of 29 mm x 29mm

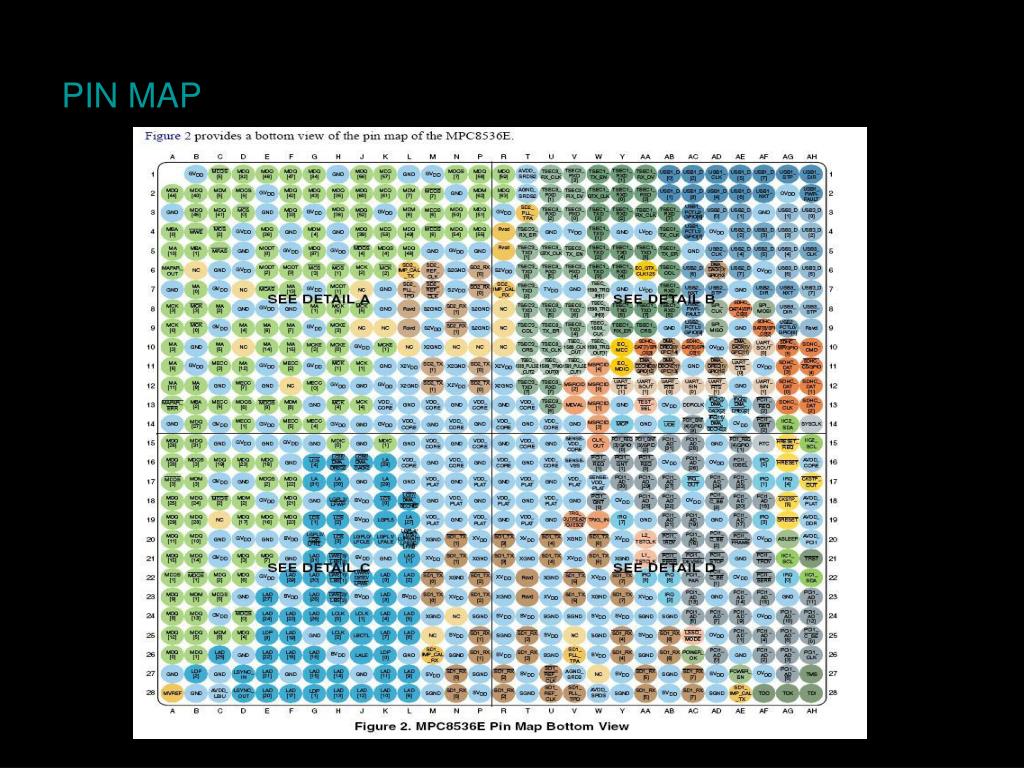

  3. PIN MAP

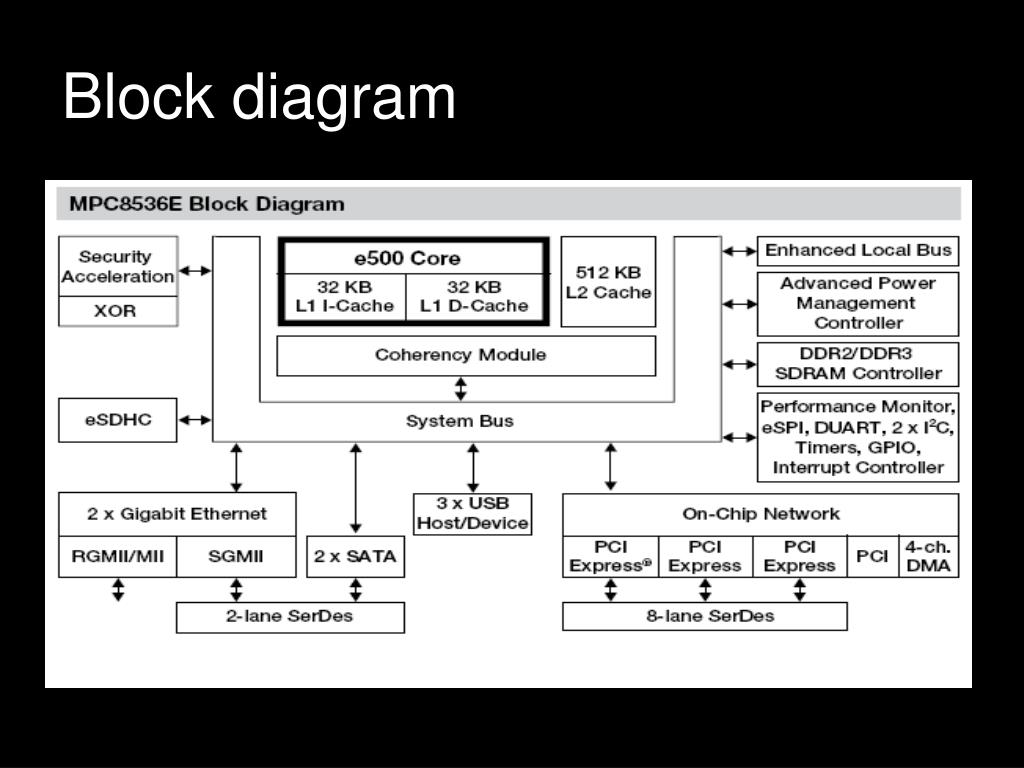

  4. Block diagram

  5. Features • e500 core processor(36 bit physical addressing,3450 Dhrystone -MIPS at 1.5 GHz). • Enhanced peripheral and interconnect technology • Clock speed 1.5Ghz • High speed connectivity • Advanced energy efficient modes

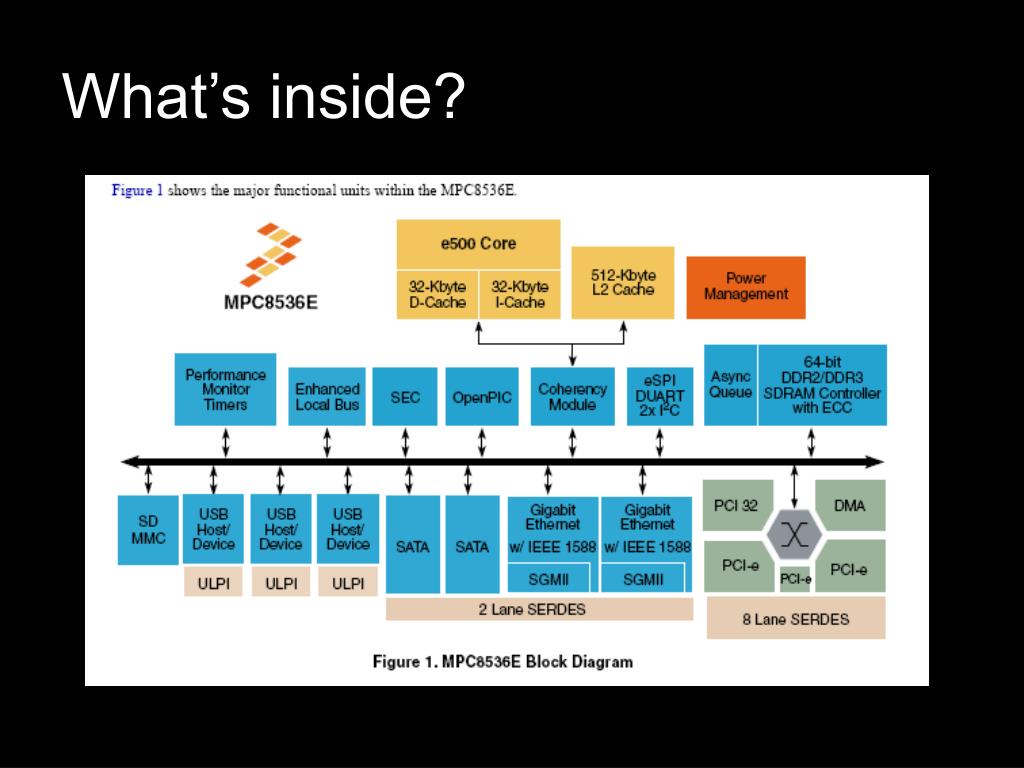

  6. What’s inside?

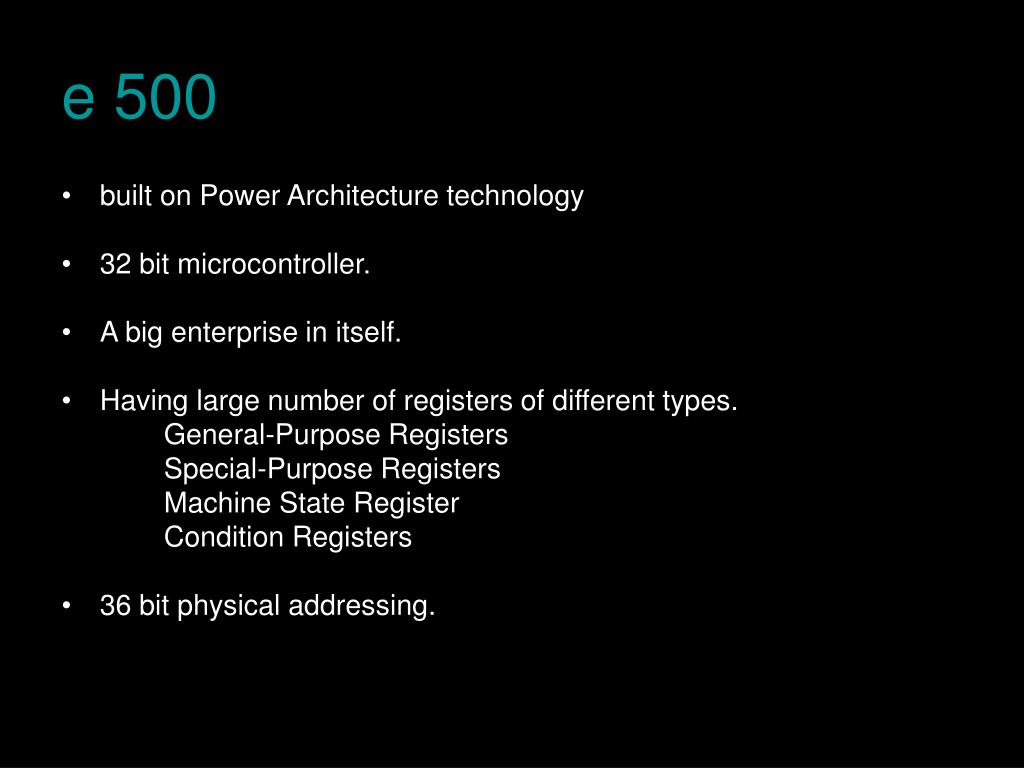

  7. e 500 • built on Power Architecture technology • 32 bit microcontroller. • A big enterprise in itself. • Having large number of registers of different types. General-Purpose Registers Special-Purpose Registers Machine State Register Condition Registers • 36 bit physical addressing.

  8. L1/L2 cache • L1 cache-32 KB data cache and 32 KB instruction cache. • instruction and data cachesto provide the execution units and registers rapid access to instructions and data. • Eight-way set associative, non-blocking caches • L2 cache-512 KB, 256/128/64/32 KB can be used as SRAM, L1 and L2 hardware coherency, I/O transactions can be stashed into L2 cache regions.

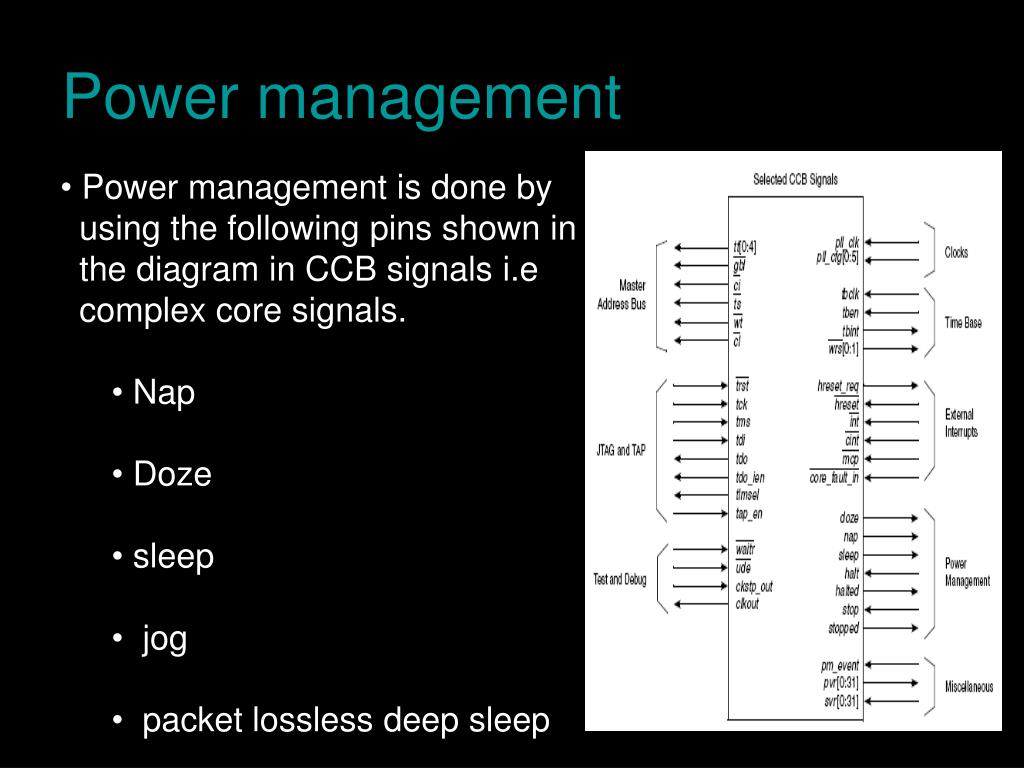

  9. Power management • Power management is done by • using the following pins shown in • the diagram in CCB signals i.e • complex core signals. • Nap • Doze • sleep • jog • packet lossless deep sleep

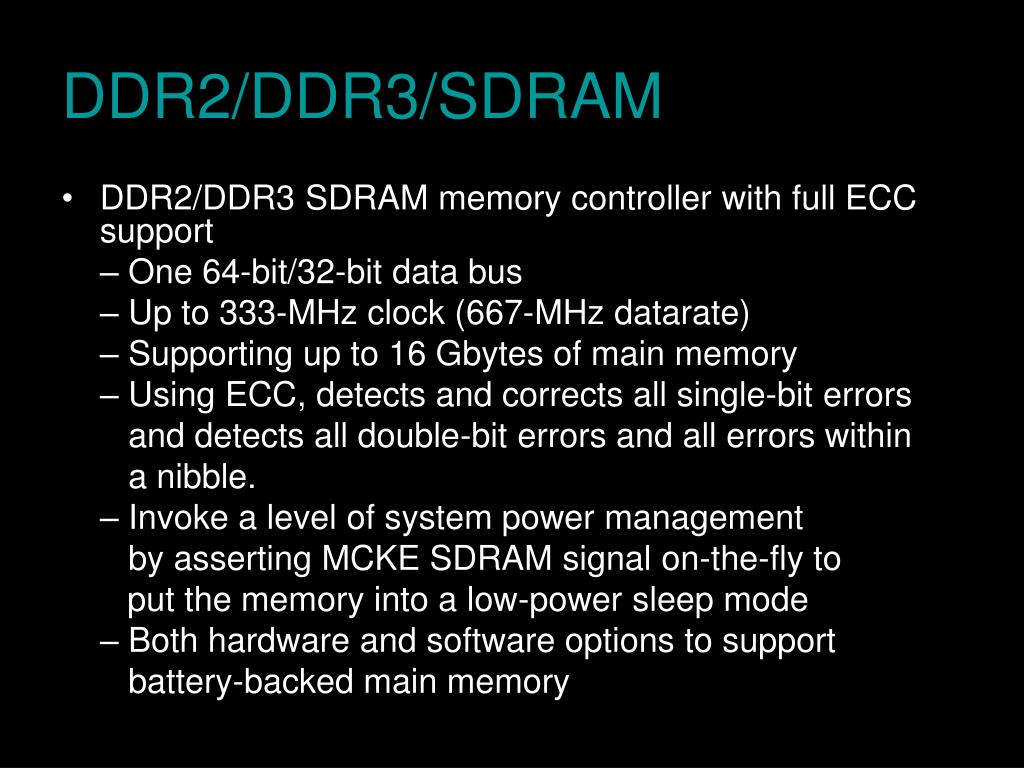

  10. DDR2/DDR3/SDRAM • DDR2/DDR3 SDRAM memory controller with full ECC support – One 64-bit/32-bit data bus – Up to 333-MHz clock (667-MHz datarate) – Supporting up to 16 Gbytes of main memory – Using ECC, detects and corrects all single-bit errors and detects all double-bit errors and all errors within a nibble. – Invoke a level of system power management by asserting MCKE SDRAM signal on-the-fly to put the memory into a low-power sleep mode – Both hardware and software options to support battery-backed main memory

  11. What else? • Dual universal asynchronous receiver/transmitter (DUART) support. • It contains the programmable interrupt controller PIC. • Three PCI Express interfaces – PCI Express 1.0a compatible – One x8/x4/x2/x1 PCI Express interface – Two x4/x2/x1 ports, or, – One x4/x2/x1 port and Two x2/x1 ports • PCI 2.2 compatible PCI controller • High speed serdes interface. The MPC8536E features two Serializer/Deserializer (SerDes) interfaces to be used for high-speed serial interconnect applications. The SerDes1 interface is dedicated for PCI Express data transfers. The SerDes2 can be used for SGMII or SATA.

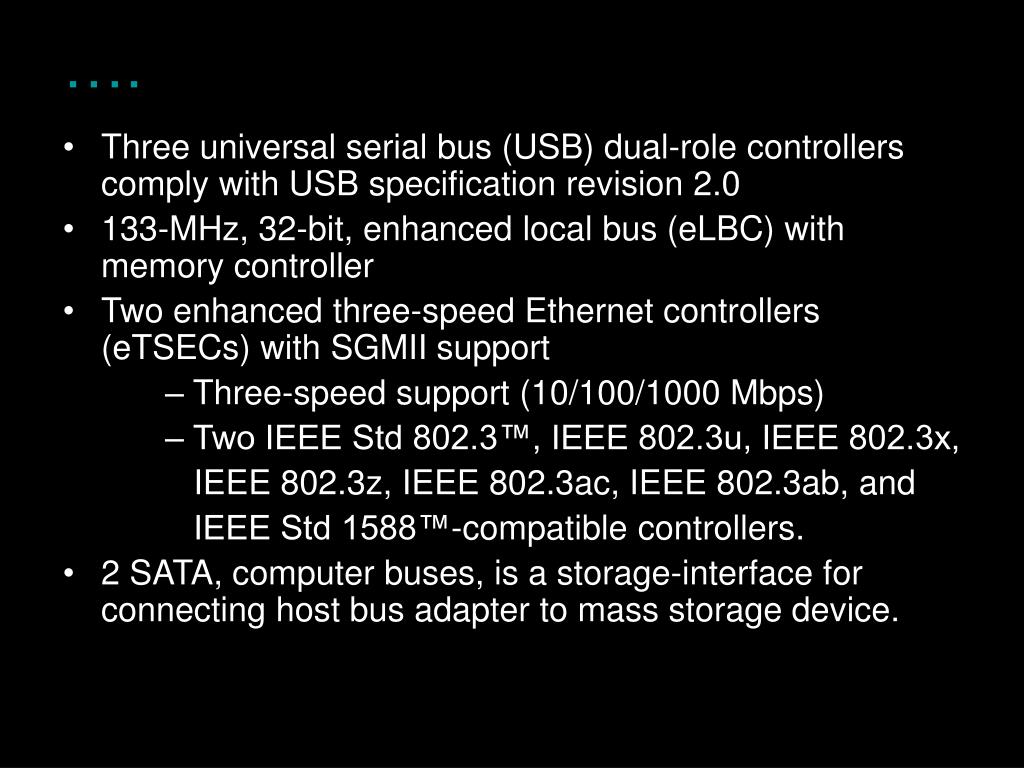

  12. …. • Three universal serial bus (USB) dual-role controllers comply with USB specification revision 2.0 • 133-MHz, 32-bit, enhanced local bus (eLBC) with memory controller • Two enhanced three-speed Ethernet controllers (eTSECs) with SGMII support – Three-speed support (10/100/1000 Mbps) – Two IEEE Std 802.3™, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ac, IEEE 802.3ab, and IEEE Std 1588™-compatible controllers. • 2 SATA, computer buses, is a storage-interface for connecting host bus adapter to mass storage device.

  13. Comparison with Hc11 • Clock speed • Address lines • Have high peripheral connectivity speed • Diversity in serial communication, that is, more than one way to do serial communication • Cache’s • Power management • On chip network, that is, ethernet controllers • Enhanced capability of Error correction techniques
