Power and power factor

POWER AND POWER FACTOR


Impedance ohm

Impedance (Ohm)

  • Impedance is a ratio between voltage and current

  • Unit of impendance is Ohm and simbolized by Z

Series Impedance

Pararel Impedance

The Operation is same with Resistant

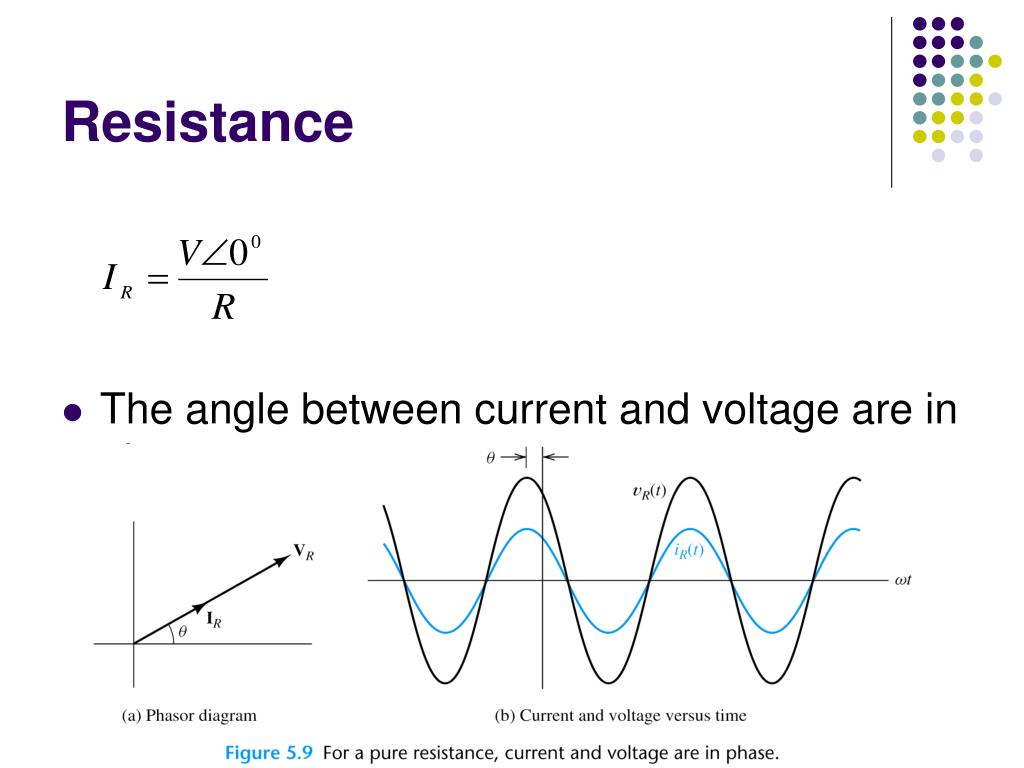

Resistance

Resistance

  • The angle between current and voltage are in phase


Inductance

Inductance


Capacitance

Capacitance


Phasor diagram for impedance and current voltage relationship

Phasor Diagram for Impedance and Current-Voltage Relationship

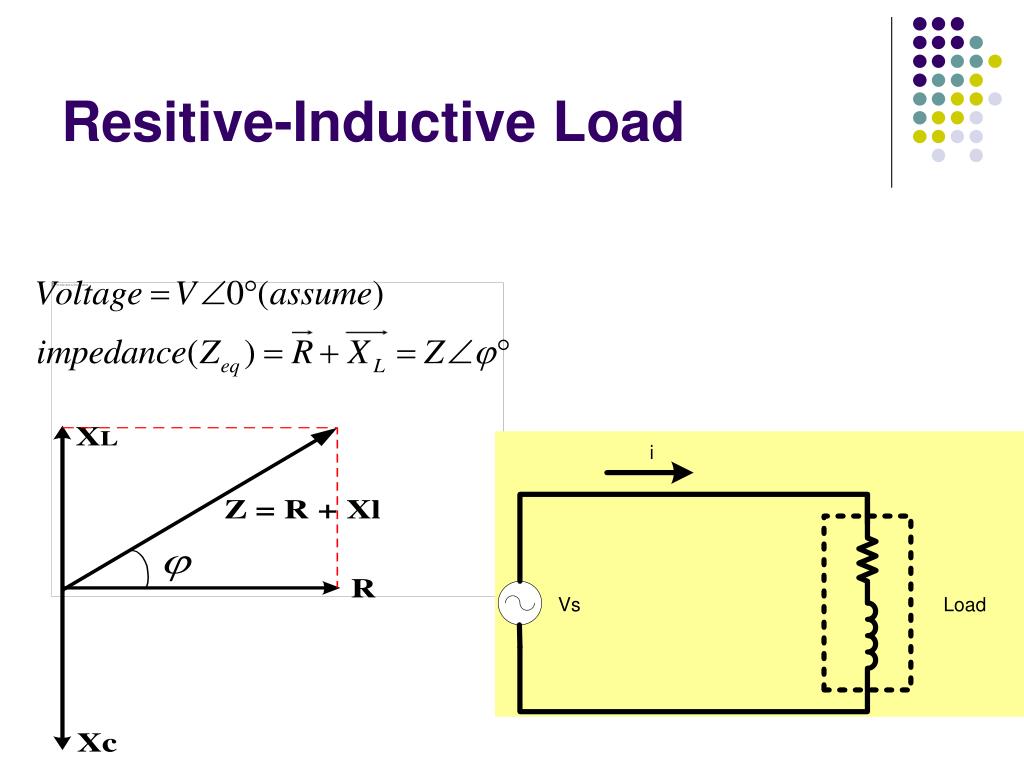

Resitive inductive load

Resitive-Inductive Load


Current flow

Current Flow …..

EXAMPLE !!!


Power and power factor

Power

There are three component of Power :

1. S = Complex Power (VA)

S = V.I*

2. P = Real/Active Power (Watt)

P = V x I* x PF (cos phi)

3. Q = Reactive Power (Var)

Q = V x I* x sin phi


Power and power factor

Phasor Diagram for Three Component of Power Relationship :


Power and power factor

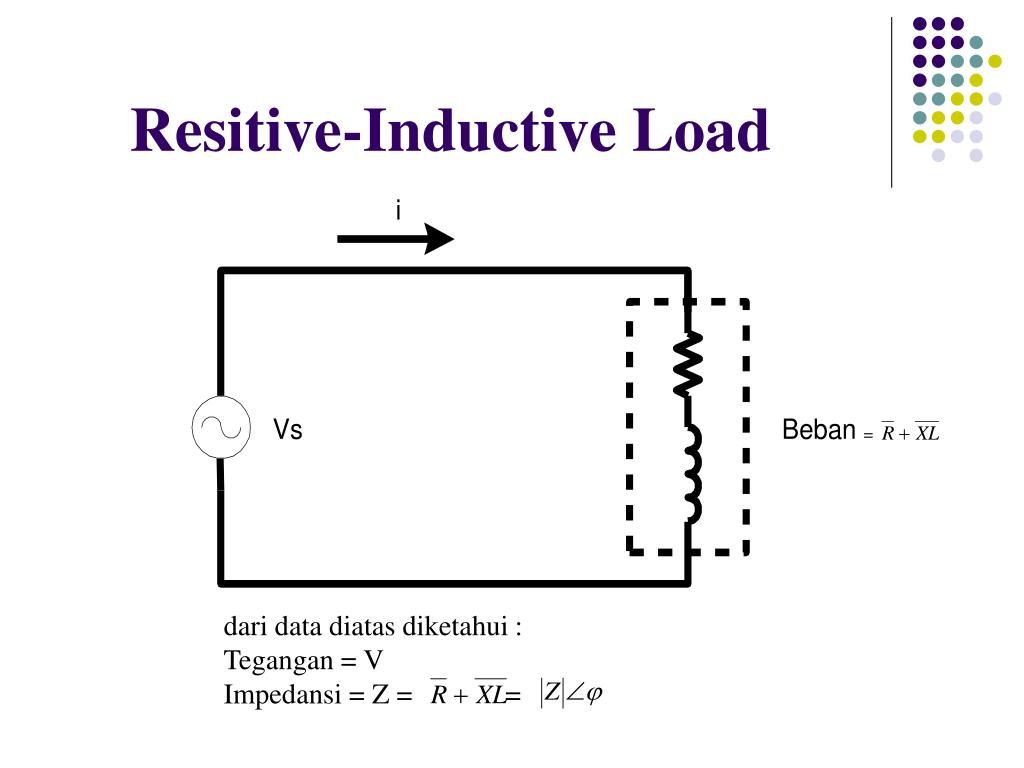

Resitive-Inductive Load

=

dari data diatas diketahui :

Tegangan = V

Impedansi = Z = =


Power and power factor

Phasor Diagram

Power Factor (PF) is ratio between Real Power (P) to Complex Power (S)

Pinalty PLN (Electrical Company)

Cos  = 0,85

The angle () = 31,7o

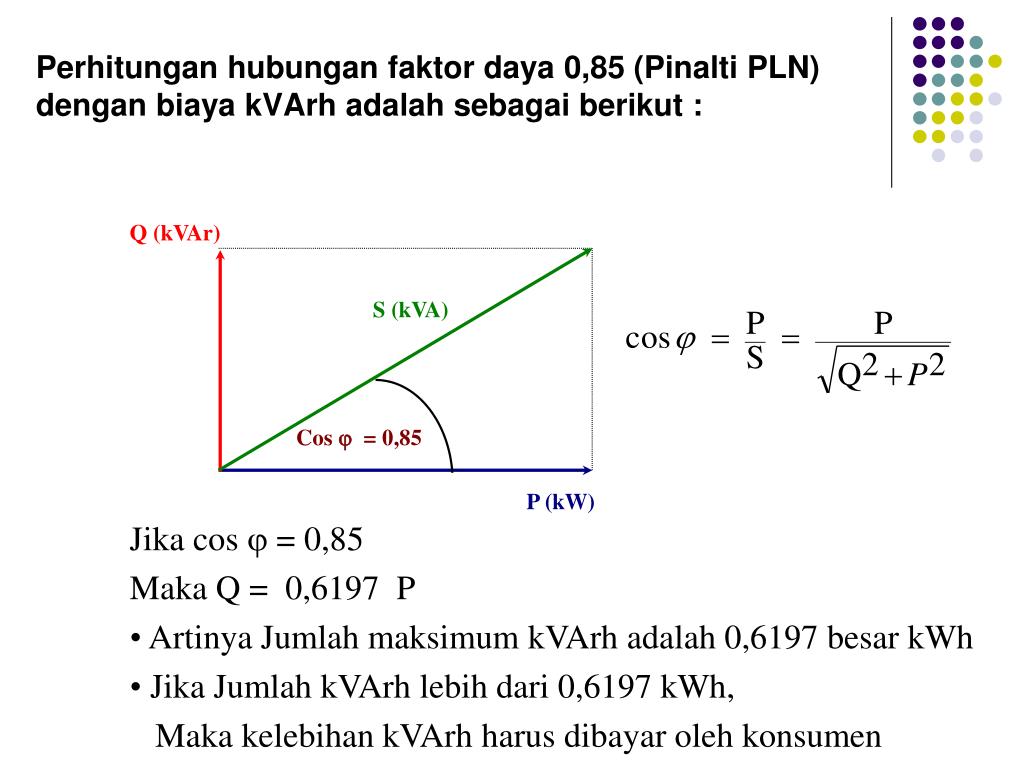

Perhitungan hubungan faktor daya 0 85 pinalti pln dengan biaya kvarh adalah sebagai berikut

Q (kVAr)

S (kVA)

Cos  = 0,85

P (kW)

Perhitungan hubungan faktor daya 0,85 (Pinalti PLN) dengan biaya kVArh adalah sebagai berikut :

  • Jika cos  = 0,85

  • Maka Q = 0,6197 P

  • Artinya Jumlah maksimum kVArh adalah 0,6197 besar kWh

  • Jika Jumlah kVArh lebih dari 0,6197 kWh,

  • Maka kelebihan kVArh harus dibayar oleh konsumen


Power and power factor

Example --- Electrical Bill :

If sum of our total energy (kWh) consume (LWBP + WBP) are 1000 kWh, so the totals kVArh permitted :

0,6197 x 1000 = 619,7 kVArh


Impact of power factor

Impact of Power Factor

Lower Power Factor cause negative impact, there are :

  • Increase Line Losses (I2R).

  • Decrease system efficiency.

  • Increase abondement cost

  • Increase Electrical Bill (cost) --- if get pinalty

  • Need to increase the capacity of equipment (Trafo) --- increase investation cost


Example of impact lower pf

Example of Impact lower PF

Decrease Maximum Capacity Load

Contoh

Power Contract (VA) = 1000 VA

  • Lamp 100 Watt, PF = 0,5

  • Lamp 100 Watt, PF= 1


Power and power factor

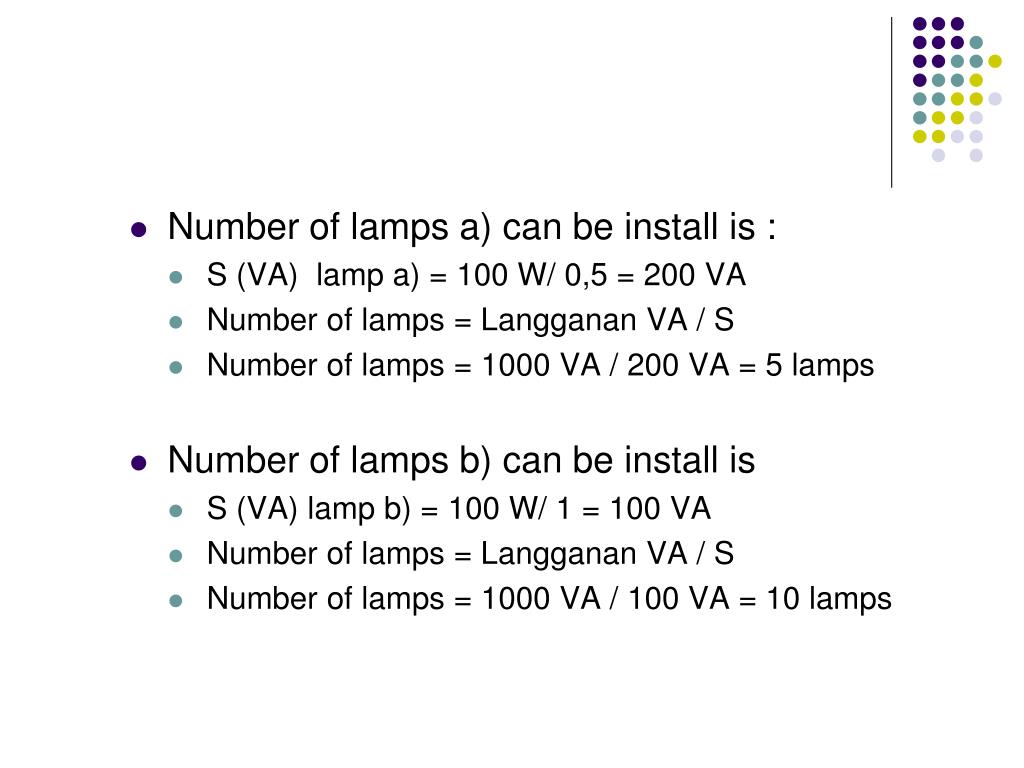

  • Number of lamps a) can be install is :

    • S (VA) lamp a) = 100 W/ 0,5 = 200 VA

    • Number of lamps = Langganan VA / S

    • Number of lamps = 1000 VA / 200 VA = 5 lamps

  • Number of lamps b) can be install is

    • S (VA) lamp b) = 100 W/ 1 = 100 VA

    • Number of lamps = Langganan VA / S

    • Number of lamps = 1000 VA / 100 VA = 10 lamps


Equipment to increase power factor is

Equipment to Increase Power Factor is

Capasitor Bank/Power Factor Correction


Power and power factor

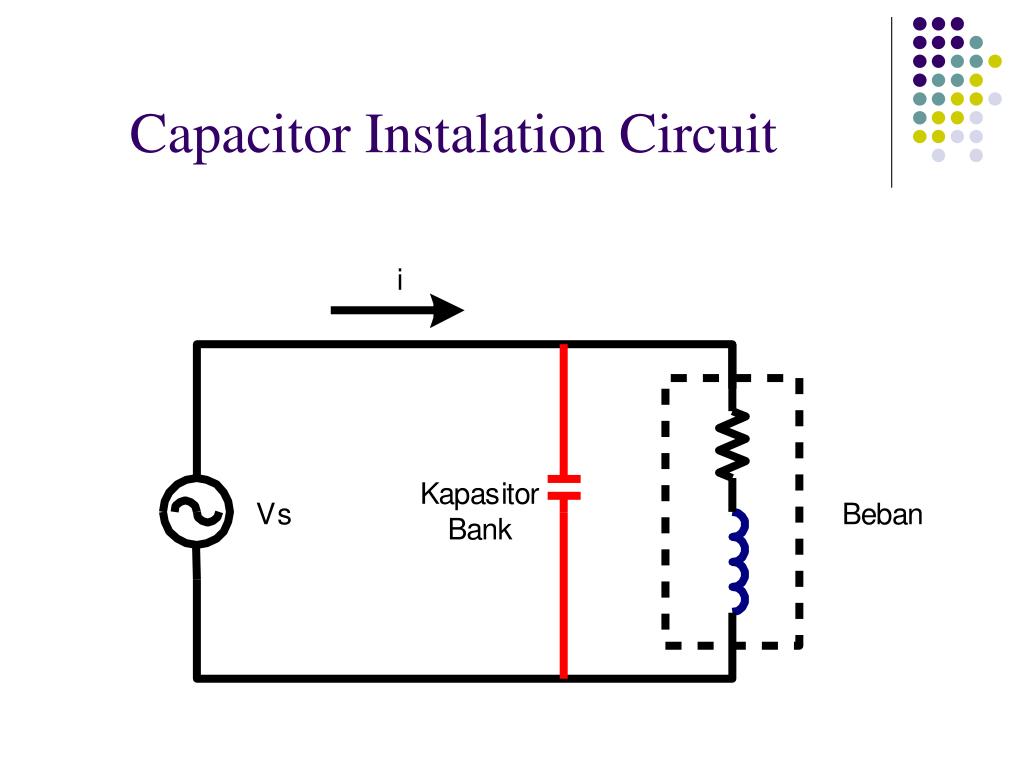

Capacitor Instalation Circuit

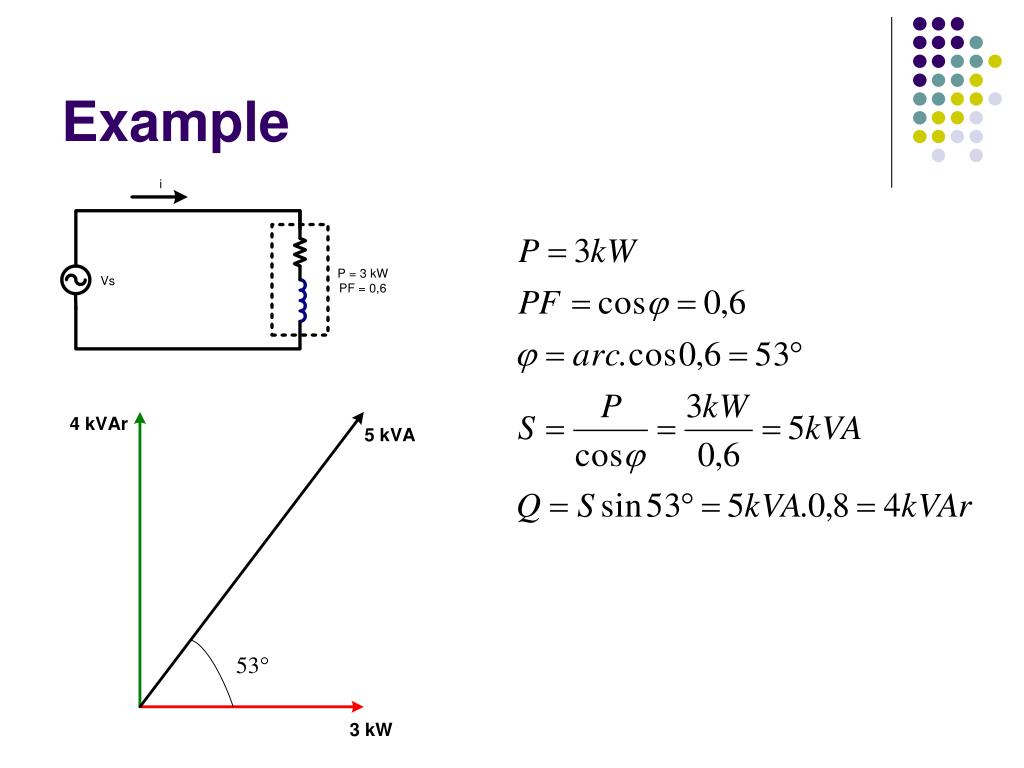

Example

Example

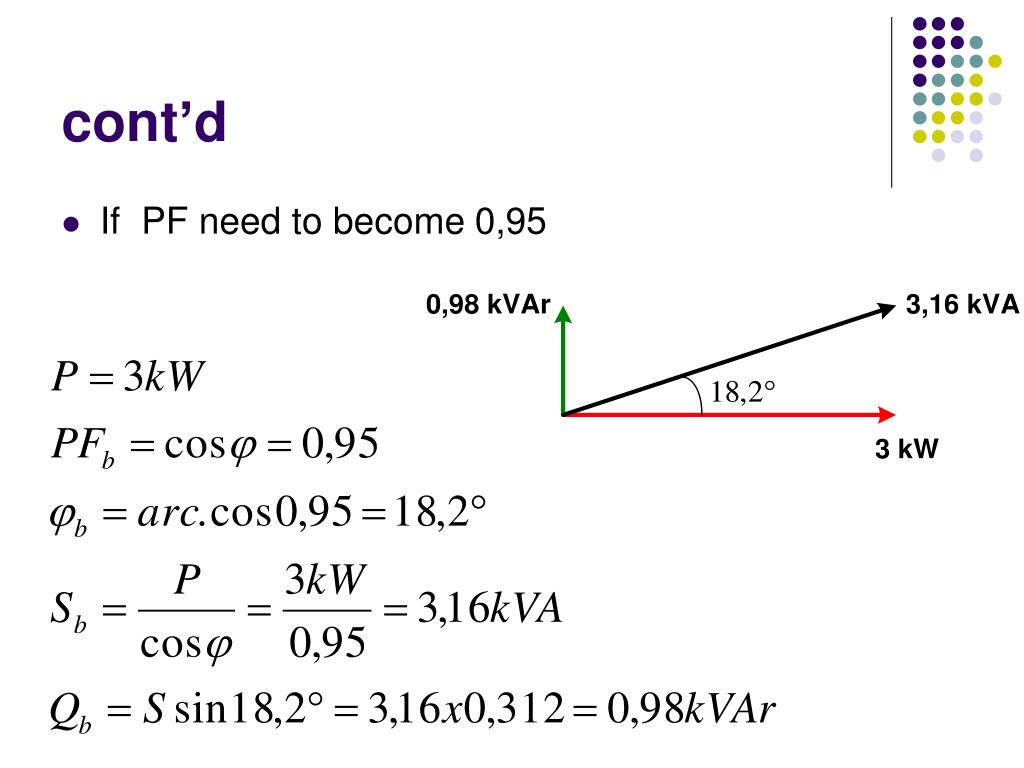

Cont d

cont’d

  • If PF need to become 0,95
