Debugging under linux
Debugging Under Linux

  • Sebastien Ponce

  • Friday, 8 March 2002


Overview
Overview

  • When to use a debugger ?

  • Available debuggers

  • Very short introduction to gvd (GNU Visual Debugger)

  • Some hints on debugging Gaudi Jobs

  • Demo


When to use a debugger
When to Use a Debugger ?

  • If you compiled in debug mode :

    • When you want to trace an application execution (breakpoints, step in, ...)

    • When you want to know where the execution crashes (segmentation fault is handled)

  • If you compiled in optimize mode :

    • You can still know which functions were called and which one failed


What to do with a core
What to Do With a Core ?

  • You can still debug a program after a segmentation fault if you have a core file

  • You can learn about

    • Where it failed

    • What were the values of variables at this time

    • What was the call stack at this time


Available debuggers

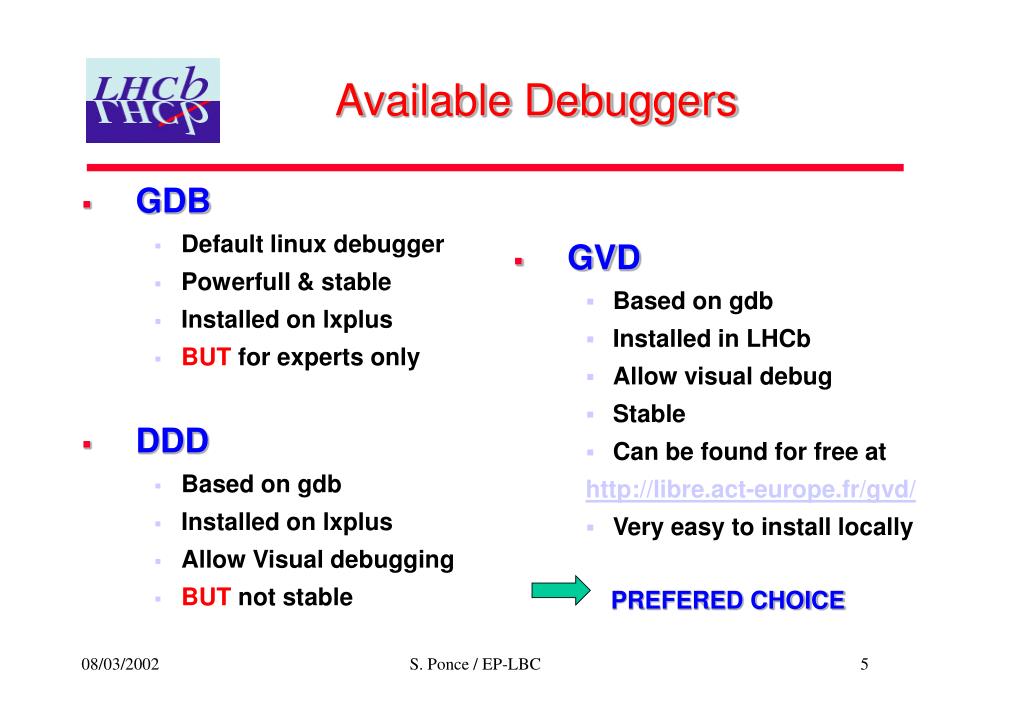

Available Debuggers

  • GDB

    • Default linux debugger

    • Powerfull & stable

    • Installed on lxplus

    • BUT for experts only

  • DDD

    • Based on gdb

    • Installed on lxplus

    • Allow Visual debugging

    • BUT not stable

  • GVD

    • Based on gdb

    • Installed in LHCb

    • Allow visual debug

    • Stable

    • Can be found for free at

      http://libre.act-europe.fr/gvd/

    • Very easy to install locally

      PREFERED CHOICE


Launching gvd
Launching gvd

  • Launching gvd :

    source setup.csh

    gvd <executable>

  • Inside gvd :

    [set breaking points]

    run <options>

  • In case of core dump :

    source setup.csh

    gvd <executable>

  • Inside gvd :

    FileOpen Core Dump <core>


Gvd basics
gvd Basics

Menu bar

Tool bar

Data display

Call stack

Source files

Source code

Current Line

Gdb window


Some hints for gaudi jobs

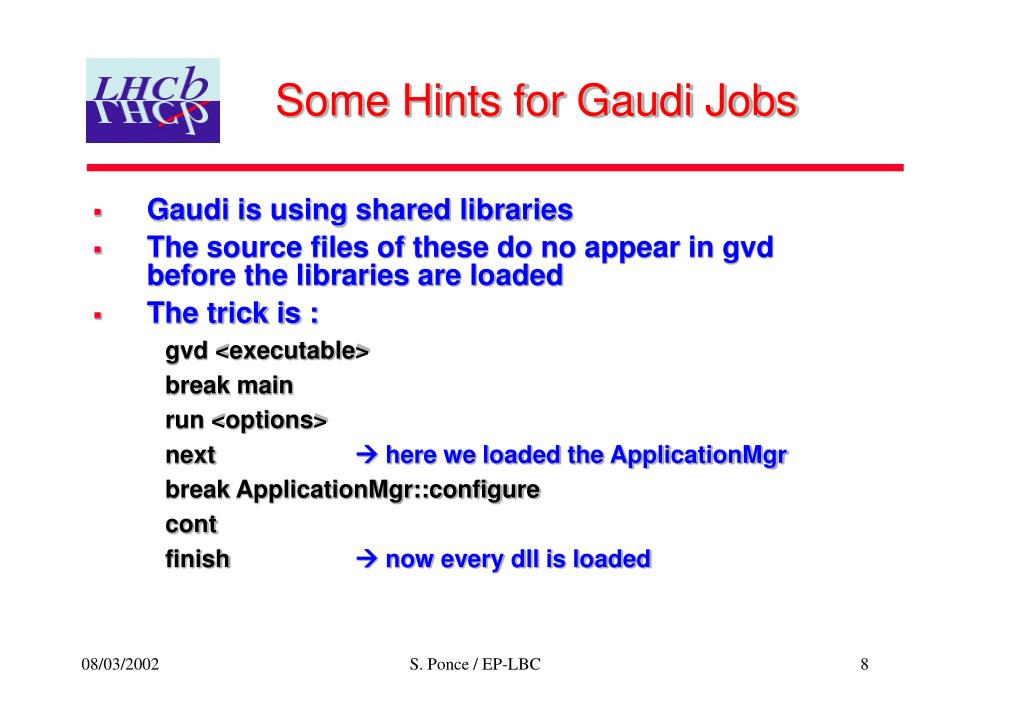

Some Hints for Gaudi Jobs

  • Gaudi is using shared libraries

  • The source files of these do no appear in gvd before the libraries are loaded

  • The trick is :

    gvd <executable>

    break main

    run <options>

    next  here we loaded the ApplicationMgr

    break ApplicationMgr::configure

    cont

    finish  now every dll is loaded


Demo 1
Demo (1)

  • Launch :

    tar xvf demo.tar

    cd demo

    make

    ./hello

    Segmentation Fault

    gvd hello


Demo 2
Demo (2)

  • gdb windows :

    (gdb) run

    Starting Program: /home/sponce/demo/hello

    Program received signal SIGSEGV, Segmentation fault

    0x400e1630 in strcmp() from /lib/libc.so.6

    (gdb)

  • In menu

    Data  Call Stack

  • In Tool Bar

    Up


Demo 3

strcmp called from

Hello::print

argument line was 0x0

Click "Up" once more to see where the line argument was set to 0x0

Demo (3)

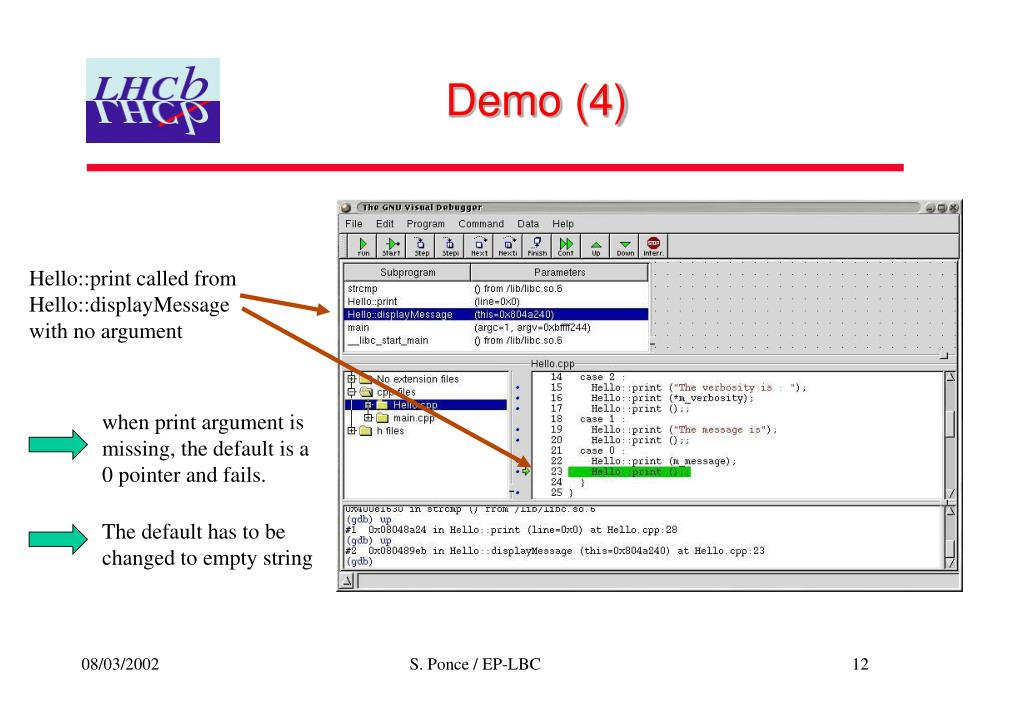

Demo 4

when print argument is missing, the default is a 0 pointer and fails.

The default has to be changed to empty string

Demo (4)

Hello::print called from Hello::displayMessage with no argument


Demo 5
Demo (5) and fails.

  • Edition of Hello.h :

    static void print (char* line = 0);

    becomes :

    static void print (char* line = "");

  • In a shell :

    make

    ./hello

    Segmentation Fault

    gvd hello

  • In gvd

    run

There is another bug !


Demo 6
Demo (6) and fails.

  • In gvd :

    display Call Stack

    “Up"

  • The bug is still in strcmp, line is still 0x0

  • In gvd :

    “Up"

    DataDisplay Any Expression ”this”

    Then click on the fields of this to see the internal values


Demo 7

We'll try to place a breakpoint where the initialization of m_message is done, i.e. In the constructor of Hello.

Demo (7)

thism_message is 0x0


Demo 8
Demo (8) m_message is done, i.e. In the constructor of Hello.

  • In gvd :

    Click on the blue point in front of line 4 of Hello.cpp to set a break point there

    Click run

    Say you want to start from beginning

  • gvd stops when the program reaches line 4

    obviously the constructor was called with message = 0x0

    Click "Up" to see where we came from


Demo 9

We were suppose to go through line 20, not 22 since we gave no argument

This should have been 1 == argc !!!

Fix and run. All Right !

Demo (9)


Demo 10
Demo (10) no argument

This is an example of what you get in case of non debug mode

You still have the call stack but not the values of the arguments


Demo 11
Demo (11) no argument

This show you what you get from a core :

gvd hello

File->Open Core

It’s equivalent to run the program inside the debugger
