  1. EM-Line Multi Touch screen Series (4 touch points)BDT3215EM/04 Multi User Touch screen (4 touch points) This multi user touch screens can be used in landscape and in portrait position. With it’s steel housing the monitor is very solid.

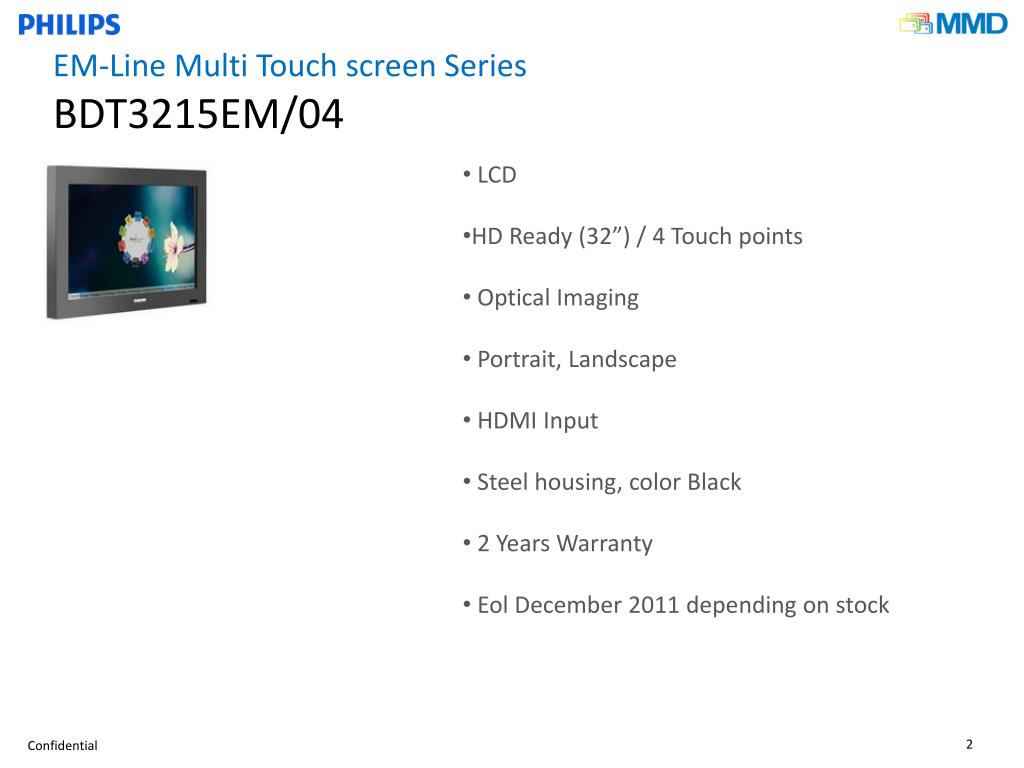

  2. EM-Line Multi Touch screen Series BDT3215EM/04 • LCD • HD Ready (32”) / 4 Touch points • Optical Imaging • Portrait, Landscape • HDMI Input • Steel housing, color Black • 2 Years Warranty • Eol December 2011 depending on stock

  3. EM-Line Multi Touch screen SeriesBDT3215EM/04

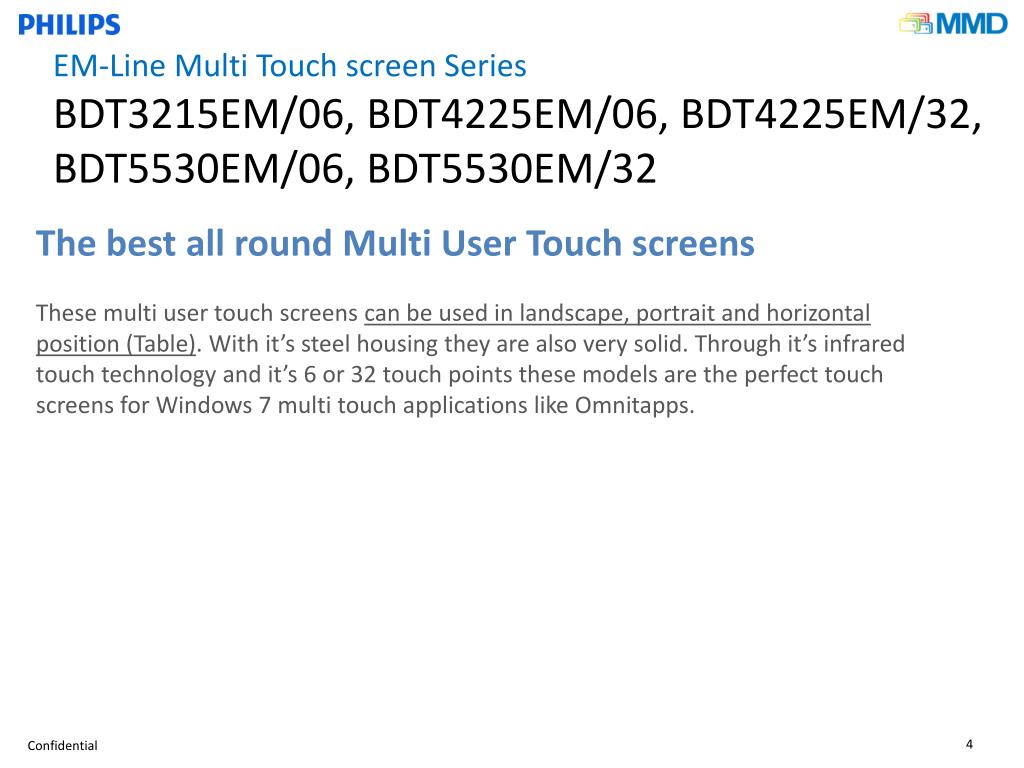

  4. EM-Line Multi Touch screen SeriesBDT3215EM/06, BDT4225EM/06, BDT4225EM/32, BDT5530EM/06, BDT5530EM/32 The best all round Multi User Touch screens These multi user touch screens can be used in landscape, portrait and horizontal position (Table). With it’s steel housing they are also very solid. Through it’s infrared touch technology and it’s 6 or 32 touch points these models are the perfect touch screens for Windows 7 multi touch applications like Omnitapps.

  5. EM-Line Multi Touch screen Series BDT3215EM/06,BDT4225EM/06, BDT4225EM/32 • The Best all round Multi User Touch screens • LCD • HD Ready (32”) / 6 Touch points • Full HD (42”) / 6 and 32 Touch points • Portrait, Landscape, Horizontal (Table) • HDMI Input • Steel housing, color Black • 2 Years Warranty

  6. EM-Line Multi Touch screen SeriesBDT3215EM/06

  7. EM-Line Multi Touch screen SeriesBDT3215EM/06 Drawing

  8. EM-Line Multi Touch screen Series BDT4225EM/06

  9. EM-Line Multi Touch screen Series BDT4225EM/06 Drawing

  10. EM-Line Multi Touch screen Series BDT4225EM/32

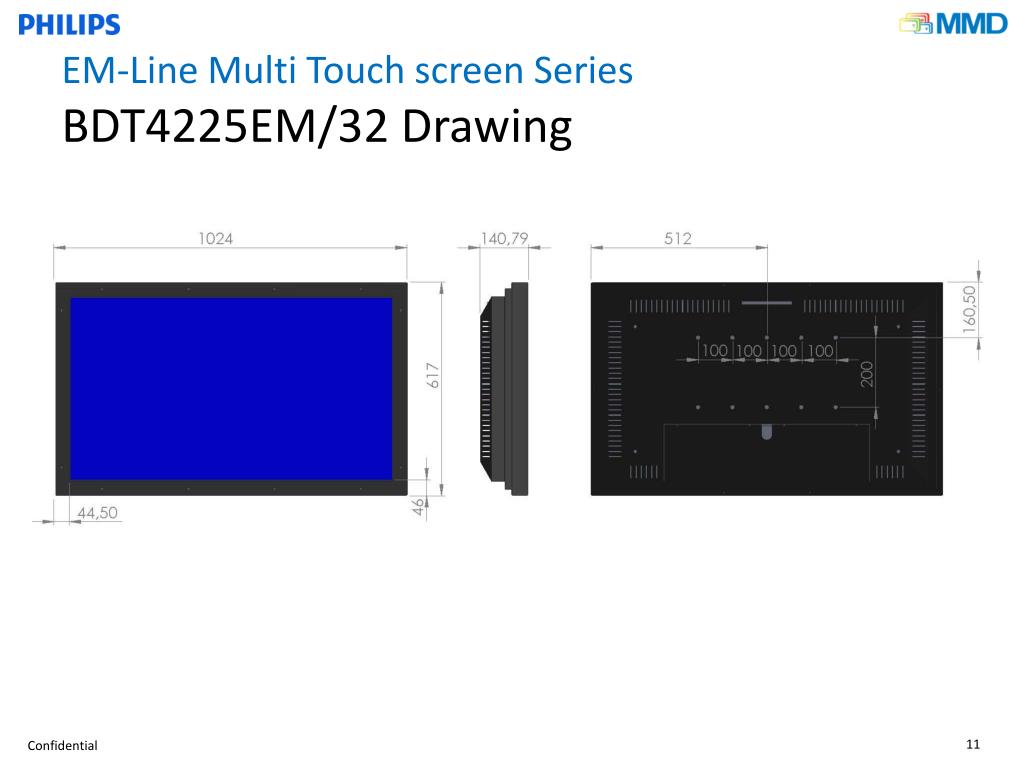

  11. EM-Line Multi Touch screen Series BDT4225EM/32 Drawing

  12. EM-Line Multi Touch screen Series BDT5530EM/06,BDT5530EM/32 • The Best all round Multi User Touch screens • Edge LED • Full HD (55”) / 6 and 32 Touch points • Portrait, Landscape, Horizontal (Table) • HDMI Input • Steel housing, color Black • 2 Years Warranty

  13. EM-Line SeriesBDT5530EM/06

  14. EM-Line SeriesBDT5530EM/06 Drawing

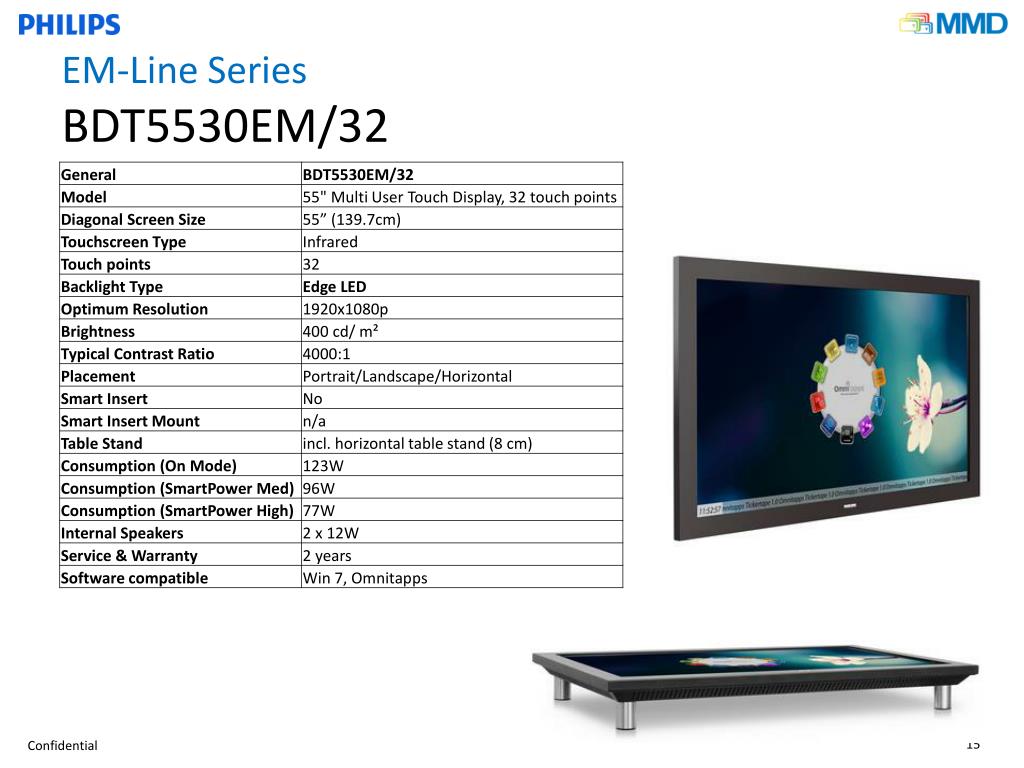

  15. EM-Line SeriesBDT5530EM/32

  16. EM-Line SeriesBDT5530EM/32 Drawing

  17. EM-Line Multi Touch screen Series BDT6531EM/06 The entry model 65” Multi User Touch screen This model can only be used in landscape position. It is based on the BDL6531 and has standard the smart insert. It is only available as a 6 touch point version. This model is the perfect touch screen for Windows 7 multi touch applications like Omnitapps.

  18. EM-Line Multi Touch screen Series BDT6531EM/06 • The Entry Level Multi User Touch screen • LCD • Full HD / 6 Touch points • Only Landscape • HDMI Input • 3 Years Warranty

  19. EM-Line Multi Touch screen Series BDT6531EM/06

  20. EM-Line Multi Touch screen Series BDT6531EM/06 Drawing

  21. VM-Line Multi Touch screen Series BDT4251VM/06, BDT5571VM/06, BDT6551VM/06 The Multi User Touch screens with standard smart insert These models can only be used in landscape and portrait position. They are based on the BDL4251, BDL5571 and BDL6551 displays. They all are delivered standard with the smart insert. They are only available as a 6 touch point version. These models are the perfect touch screens for Windows 7 multi touch applications like Omnitapps.

  22. VM-Line Multi Touch screen Series BDT4251VM/06, BDT5571VM/06, BDT6551VM/06 • Multi User Touch screens with standard Smart Insert • LCD, 42”/55”/65” • Full HD / 6 Touch points • Only Landscape and Portrait position • HDMI Input • 3 Years Warranty

  23. VM-Line Multi Touch screen Series BDT4251VM/06

  24. VM-Line Multi Touch screen Series BDT4251VM/06 Drawing

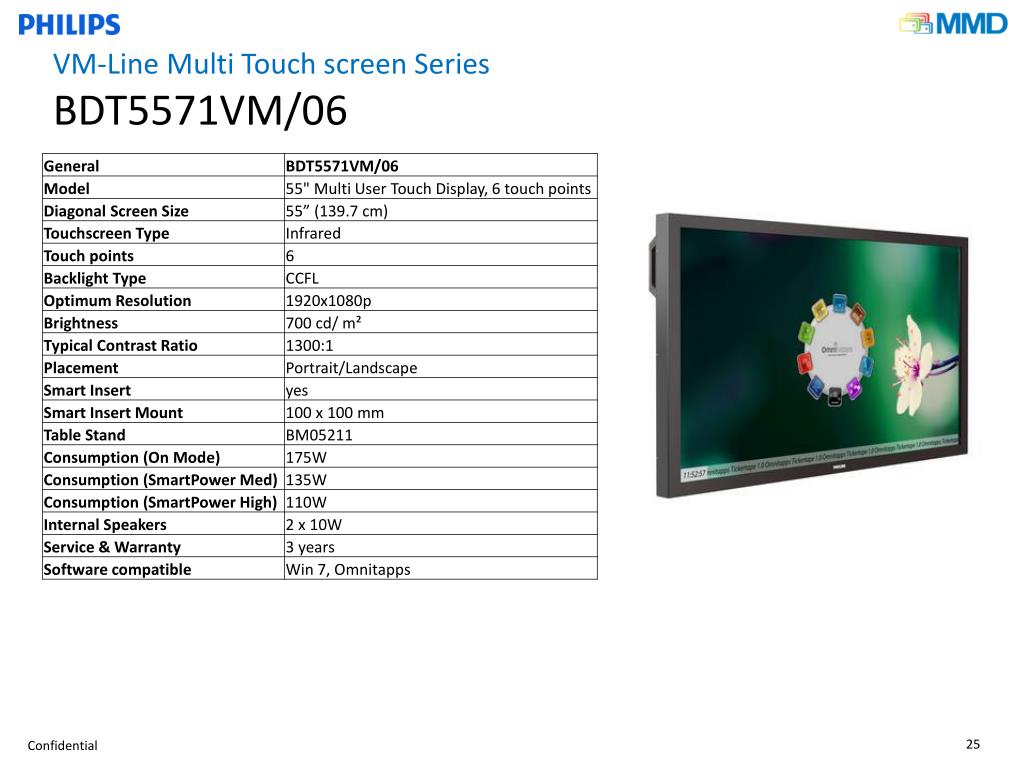

  25. VM-Line Multi Touch screen SeriesBDT5571VM/06

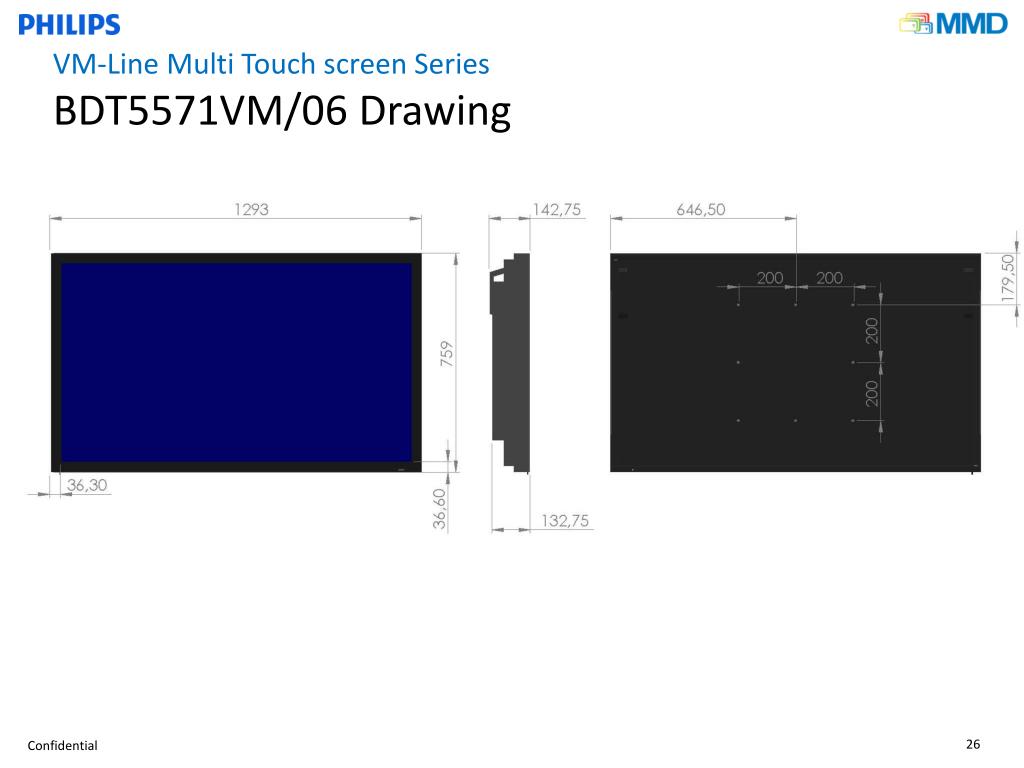

  26. VM-Line Multi Touch screen SeriesBDT5571VM/06 Drawing

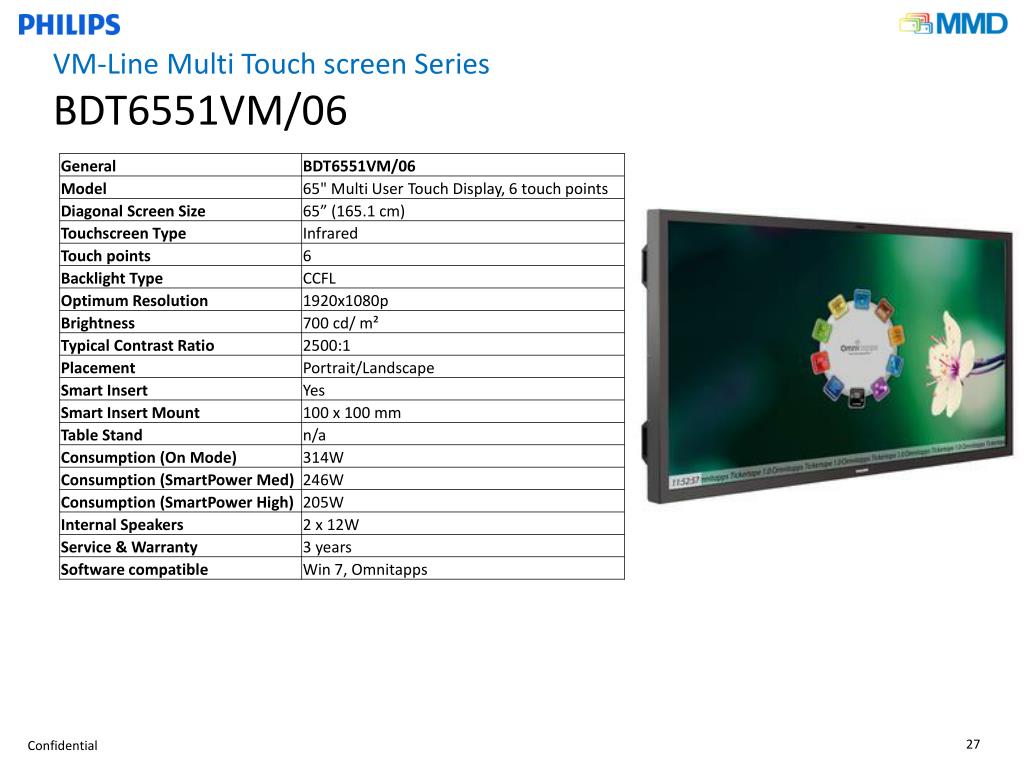

  27. VM-Line Multi Touch screen SeriesBDT6551VM/06

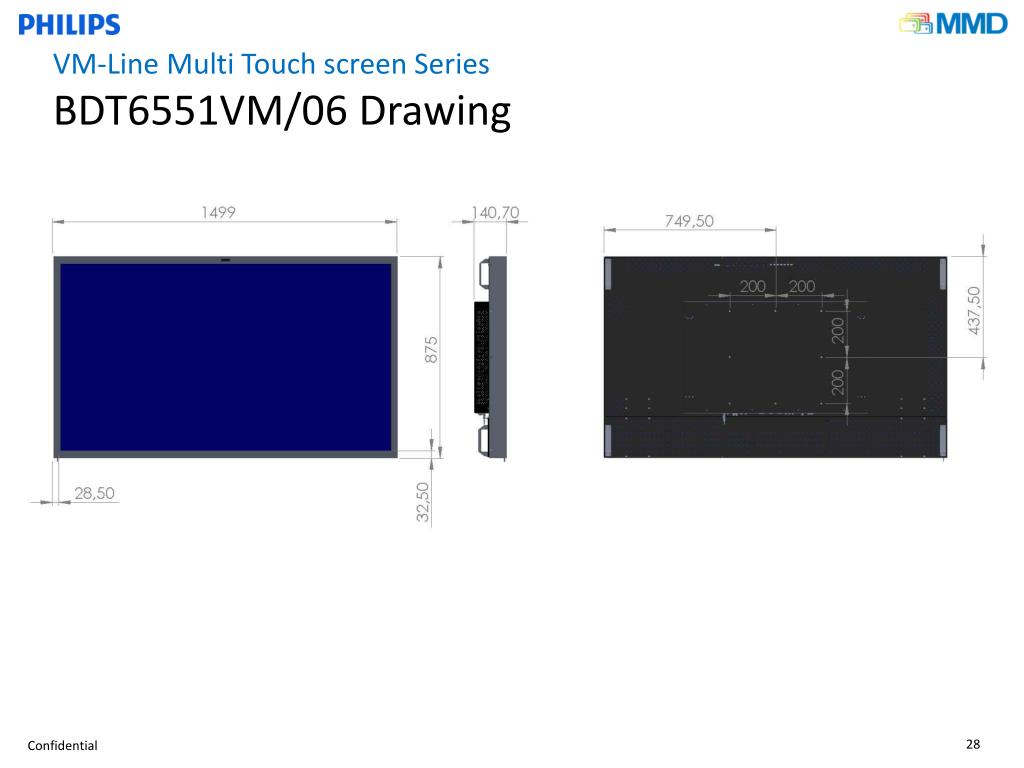

  28. VM-Line Multi Touch screen SeriesBDT6551VM/06 Drawing

  29. ET-Line Touch Table SeriesBDT4225ET/06, BDT4225ET/32, BDT5530ET/06, BDT5530ET/32 Four Multi User Touch Tables These multi user touch tables have a cabinet where a midi tower can be place in. The door is closed by a key. Inside the cabinet there are two vans. With it’s steel housing they are also very solid. Through it’s infrared touch technology and it’s 6 or 32 touch points these models are the perfect touch screens for Windows 7 multi touch applications like Omnitapps.

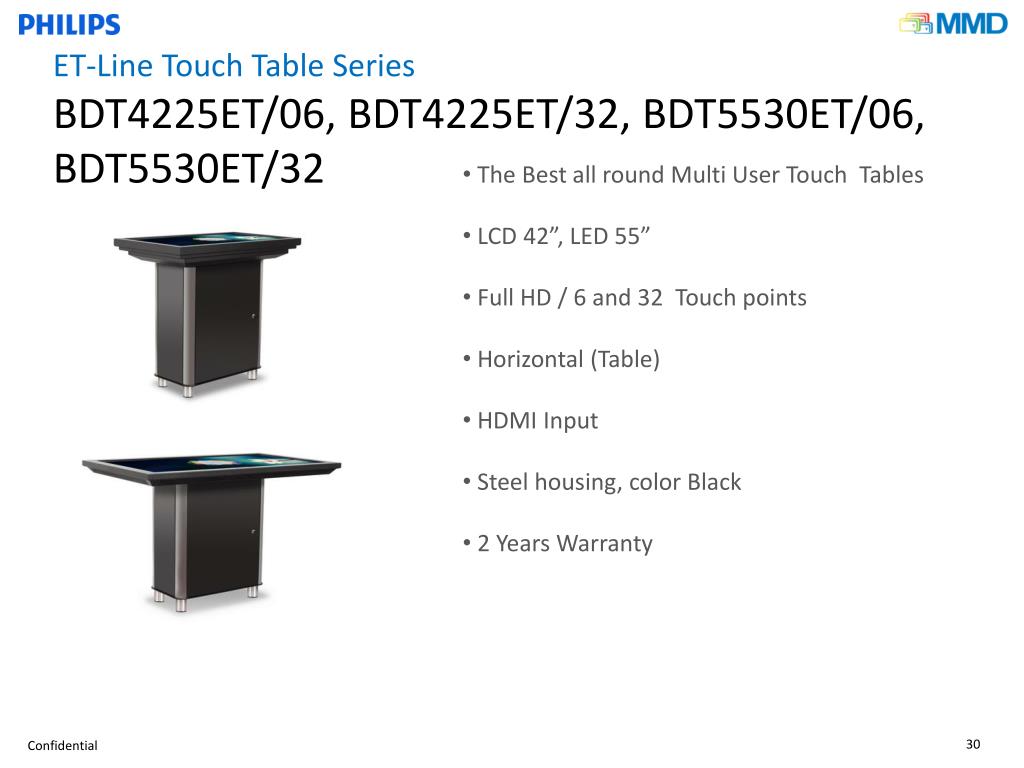

  30. ET-Line Touch Table Series BDT4225ET/06, BDT4225ET/32, BDT5530ET/06, BDT5530ET/32 • The Best all round Multi User Touch Tables • LCD 42”, LED 55” • Full HD / 6 and 32 Touch points • Horizontal (Table) • HDMI Input • Steel housing, color Black • 2 Years Warranty

  31. ET-Line Touch Table SeriesBDT4225ET/06

  32. ET-Line Touch Table SeriesBDT4225ET/32

  33. ET-Line Touch Table SeriesBDT5530ET/06

  34. ET-Line Touch Table SeriesBDT5530ET/32

  35. EK-Line Touch Information Kiosk SeriesBDT3215EK/06, BDT4225EK/06, BDT4225EK/32 BDT5530EK/06, BDT5530EK/32 Multi User Touch Information Kiosks The information kiosks of Philips are equipped with multi user touchscreens. In robust steel kiosk housing there is room for a mini tower. The door is closed by a key. Through it’s infrared touch technology and it’s 6 or 32 touch points these models are the perfect touch screens for Windows 7 multi touch applications like Omnitapps.

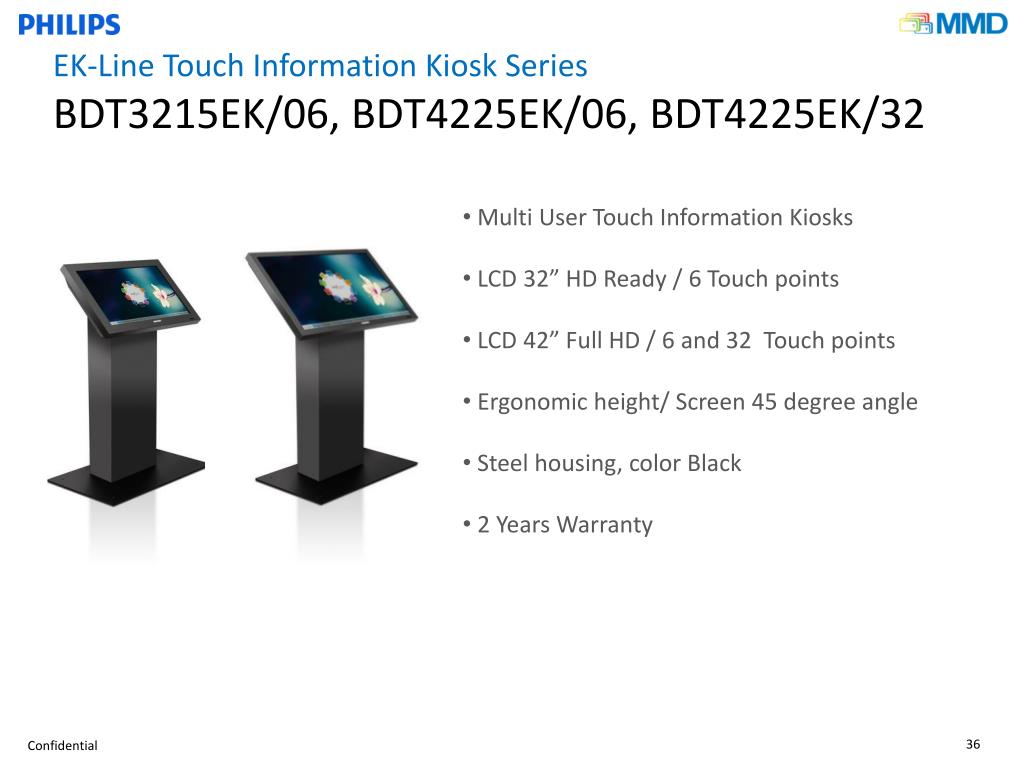

  36. EK-Line Touch Information Kiosk Series BDT3215EK/06, BDT4225EK/06, BDT4225EK/32 • Multi User Touch Information Kiosks • LCD 32” HD Ready / 6 Touch points • LCD 42” Full HD / 6 and 32 Touch points • Ergonomic height/ Screen 45 degree angle • Steel housing, color Black • 2 Years Warranty

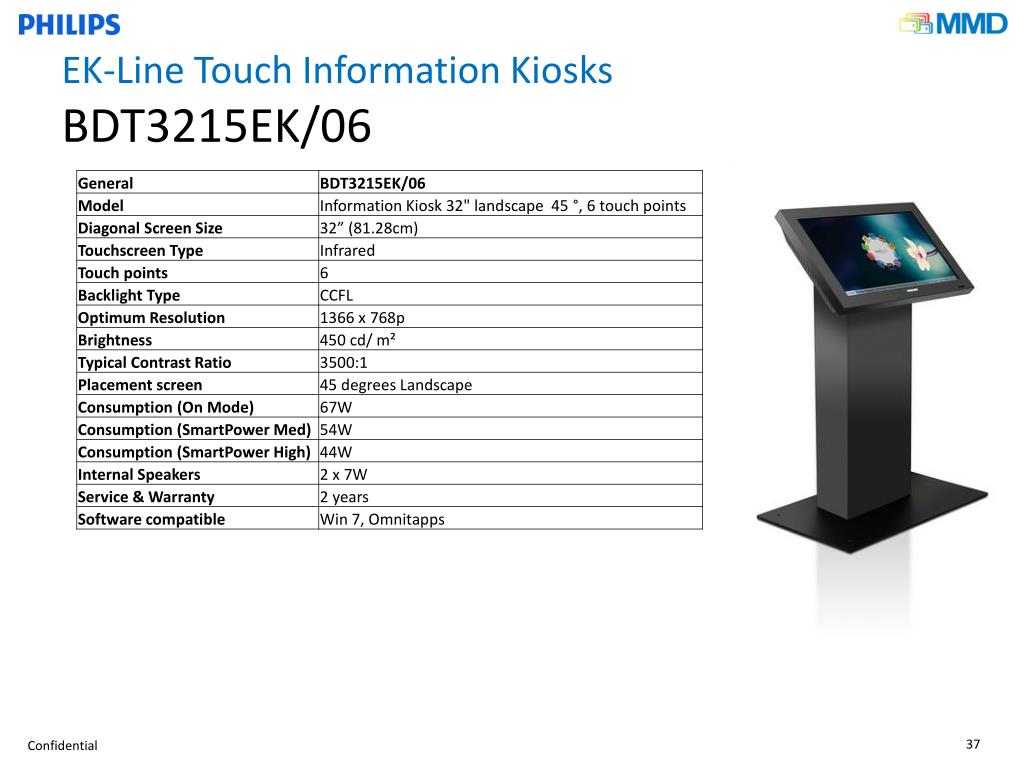

  37. EK-Line Touch Information KiosksBDT3215EK/06

  38. EK-Line Touch Information KiosksBDT4225EK/06

  39. EK-Line Touch Information KiosksBDT4225EK/32

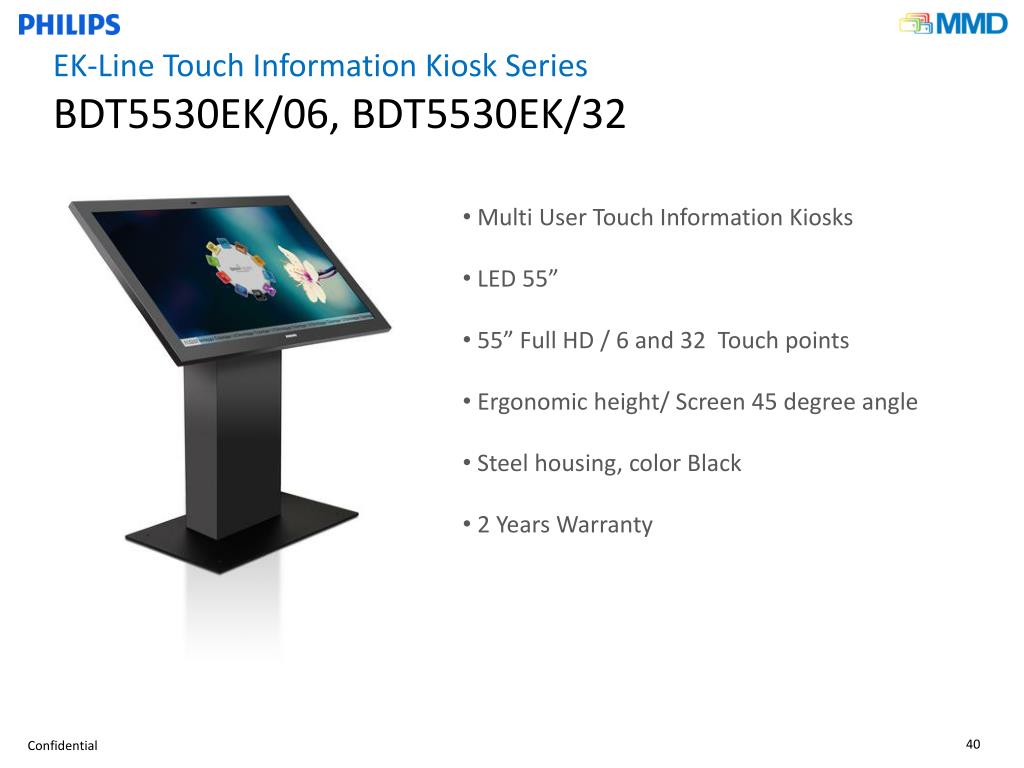

  40. EK-Line Touch Information Kiosk Series BDT5530EK/06, BDT5530EK/32 • Multi User Touch Information Kiosks • LED 55” • 55” Full HD / 6 and 32 Touch points • Ergonomic height/ Screen 45 degree angle • Steel housing, color Black • 2 Years Warranty

  41. EK-Line Touch Information Kiosk Series BDT5530EK/06

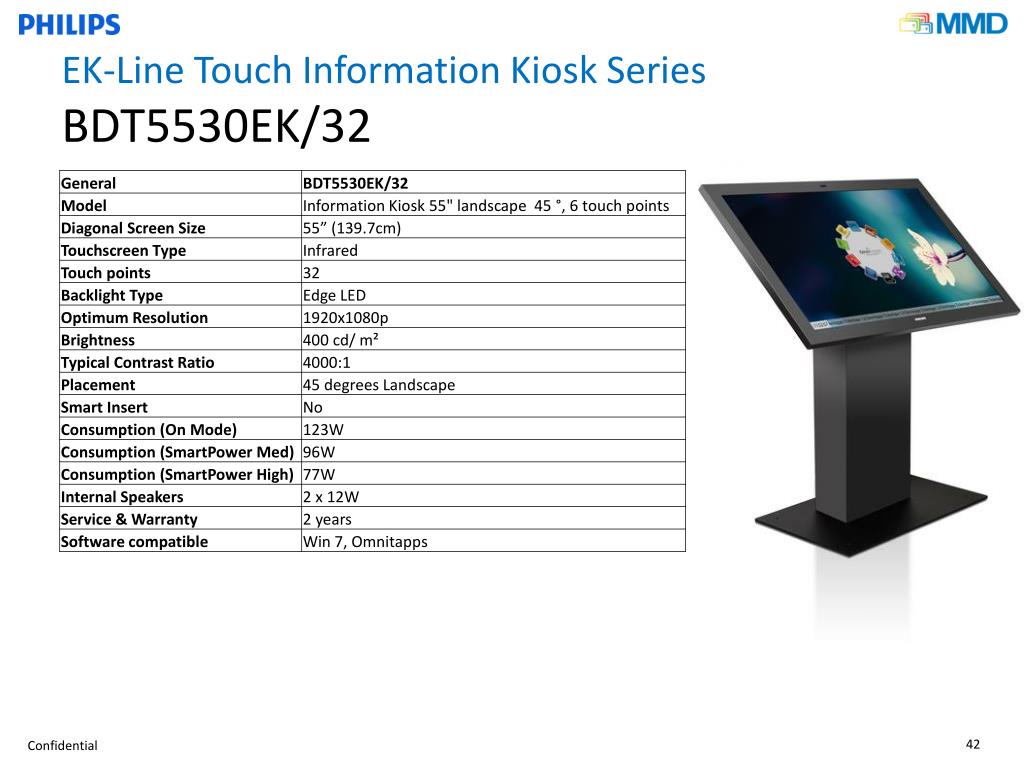

  42. EK-Line Touch Information Kiosk Series BDT5530EK/32

  43. Totem SeriesBDT4251TX/00, BDT4251TX/02, BDT4251TI/06, BDT5571TX/00, BDT5571TX/02, BDT5571TI/06 Totems The 42” and 55” Totems from Philips are available without touch screen, touch screen behind glass and with 6 touch point multi user touch. In the robust steel Totem housing there is room for a mini pc like a Aopen pc. The totems are accessible from the back and from the front. The capacitive totems have a 6 mm thick glass. This makes this totem very robust. The 2 touch point versions are multi touch and the 6 Touch Point versions are multi user touch and can be used in combination with multi touch applications like Omnitapps.

  44. Totem SeriesBDT4251TX/00, BDT4251TX/02, BDT4251TI/06, BDT5571TX/00, BDT5571TX/02, BDT5571TI/06 • Totems • LCD 42” / 55” Full HD • TX/00 versions, without touch, 6 mm protection glass • TX/02, 2 touch points, 6 mm protection glass • TI/06, 6 touch points, Multi User touch • Steel housing, color Black • 2 Years Warranty

  45. Totem Series BDT4251TX/00

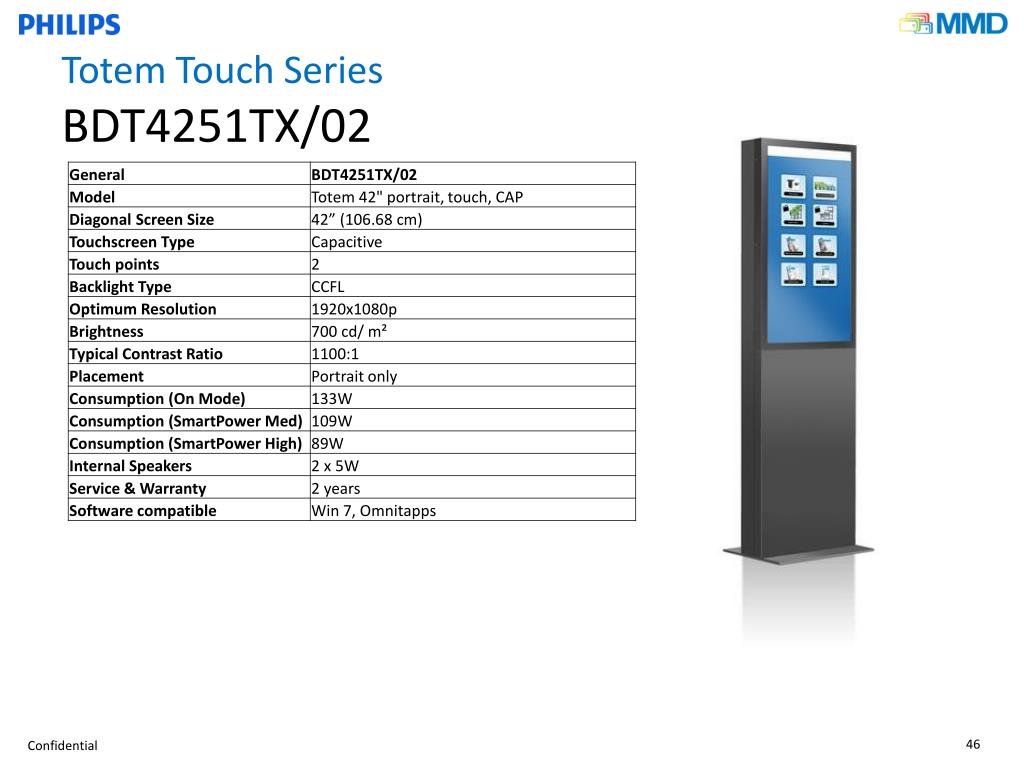

  46. Totem Touch Series BDT4251TX/02

  47. Totem Touch Series BDT4251TI/06

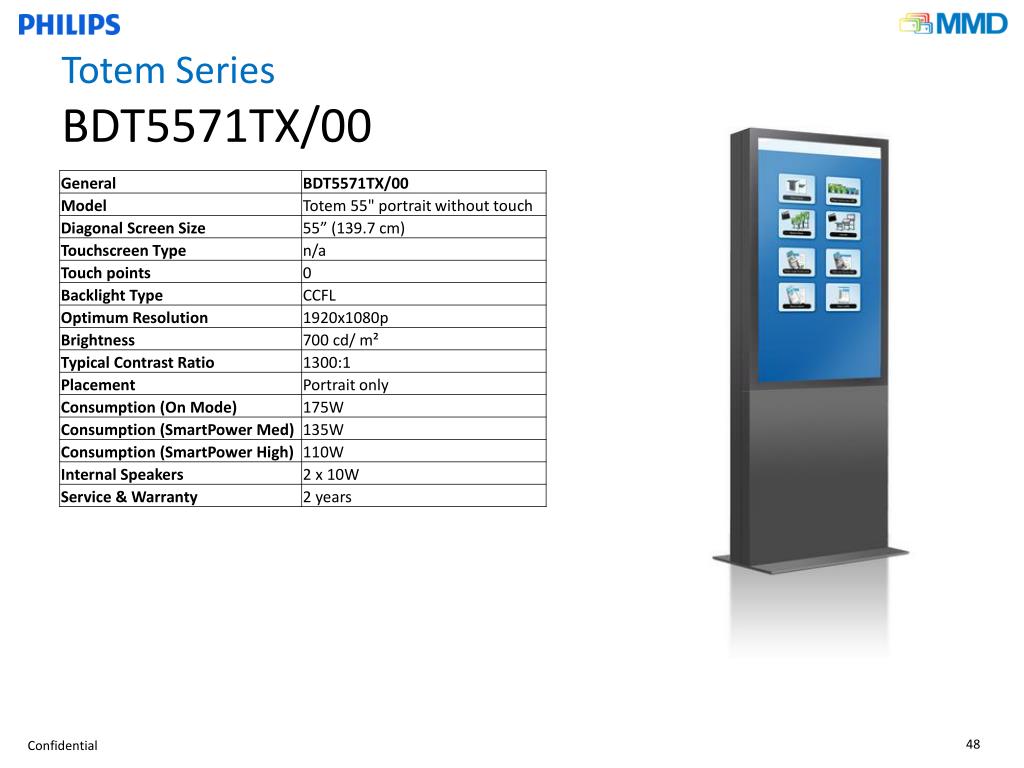

  48. Totem Series BDT5571TX/00

  49. Totem Touch Series BDT5571TX/02

  50. Totem Touch Series BDT5571TI/06
