  1. Igneous Rocks From lava or magma Can be either extrusive (formed on Earth’s surface, from lava) Or intrusive (formed inside of the Earth’s surface, from magma)

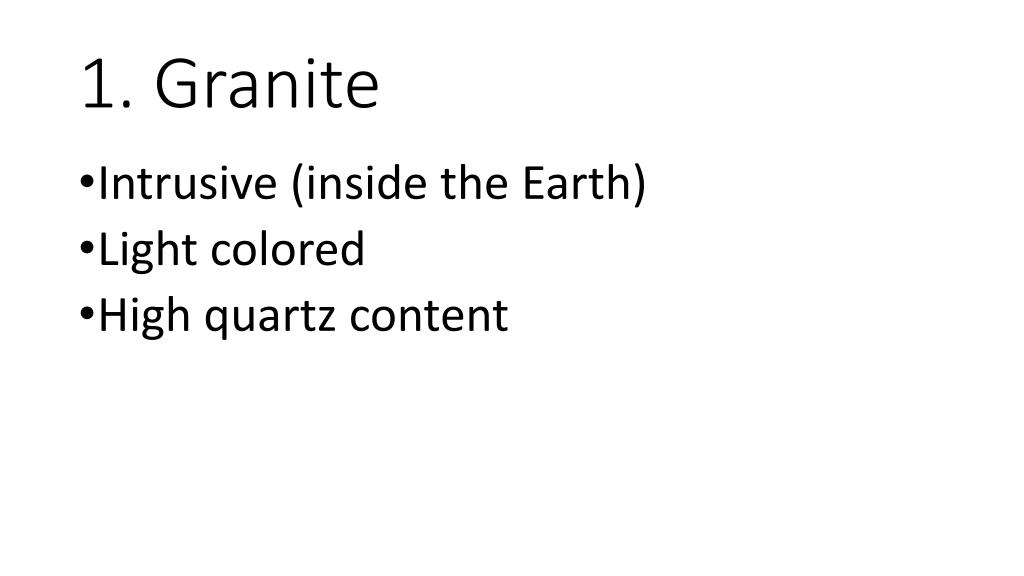

  2. 1. Granite • Intrusive (inside the Earth) • Light colored • High quartz content

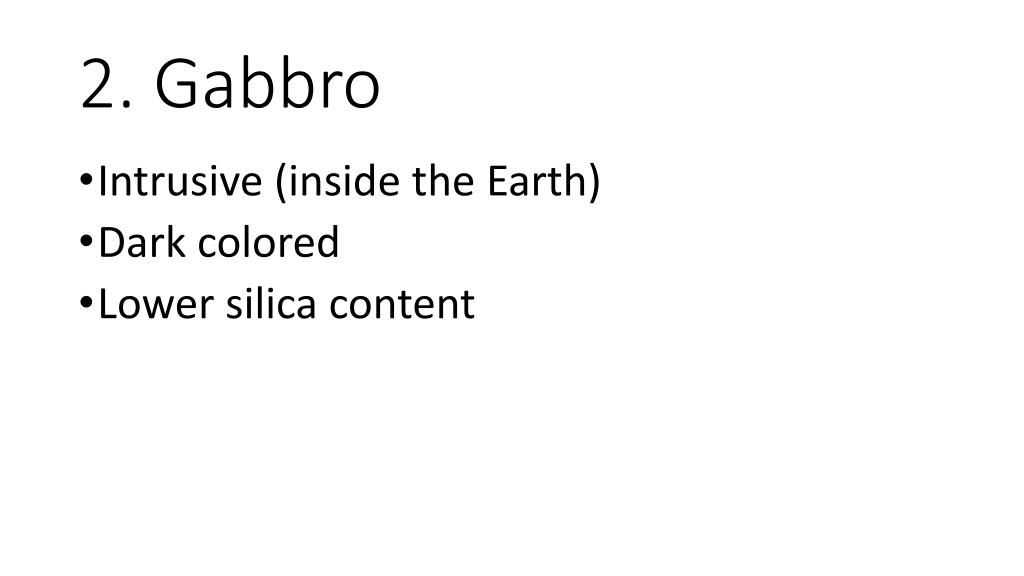

  3. 2. Gabbro • Intrusive (inside the Earth) • Dark colored • Lower silica content

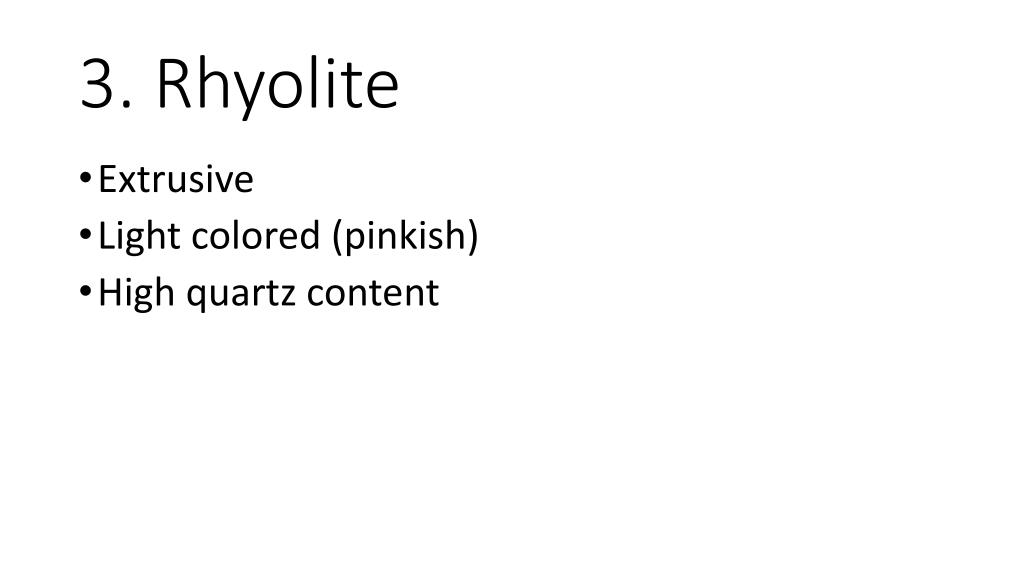

  4. 3. Rhyolite • Extrusive • Light colored (pinkish) • High quartz content

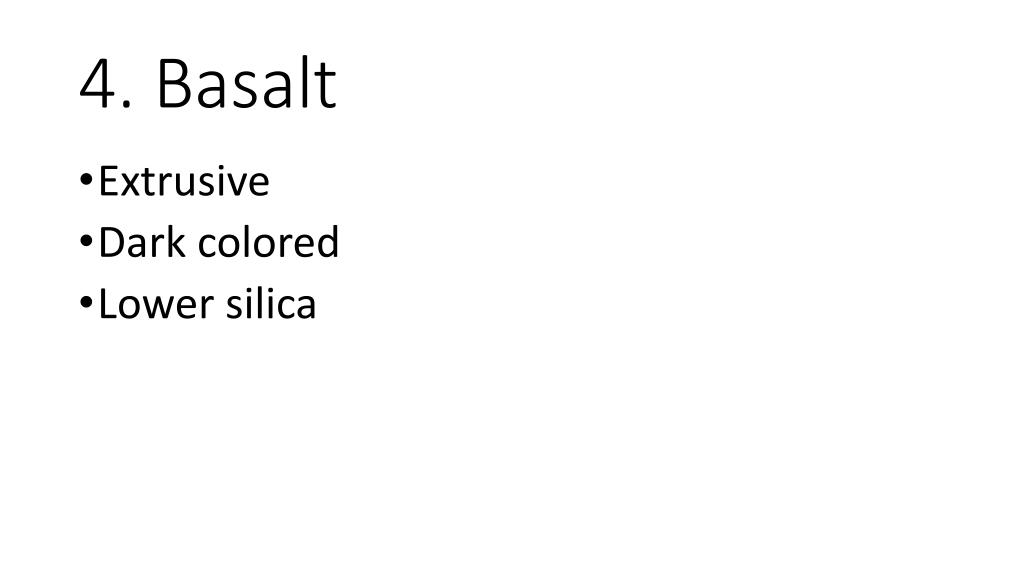

  5. 4. Basalt • Extrusive • Dark colored • Lower silica

  6. 5. Felsite • Extrusive • Light colored (light gray or whitish) • High in quartz

  7. 6. Pumice • Extrusive • “Fluffy” rock • Will float in water (until it gets water-logged)

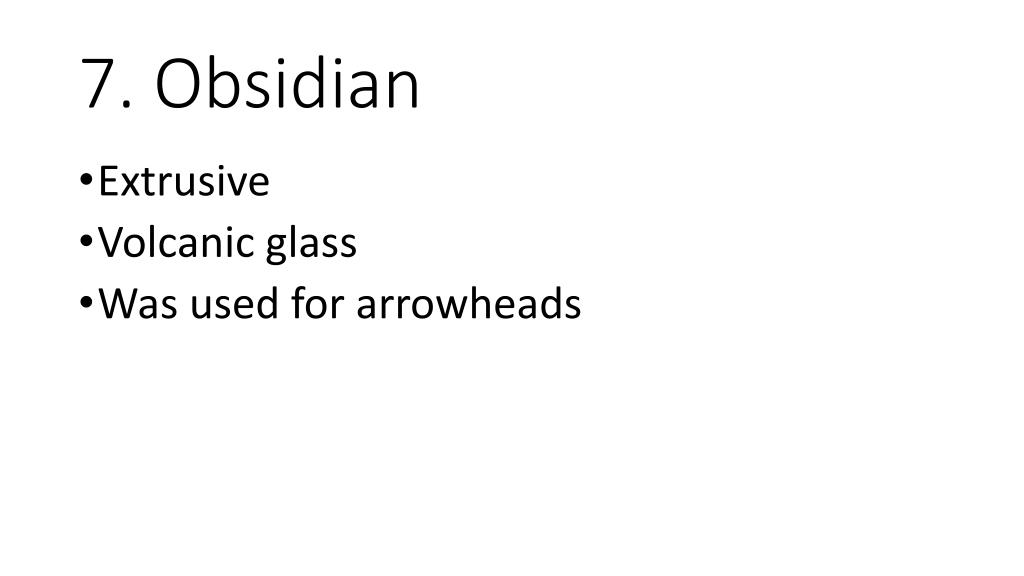

  8. 7. Obsidian • Extrusive • Volcanic glass • Was used for arrowheads

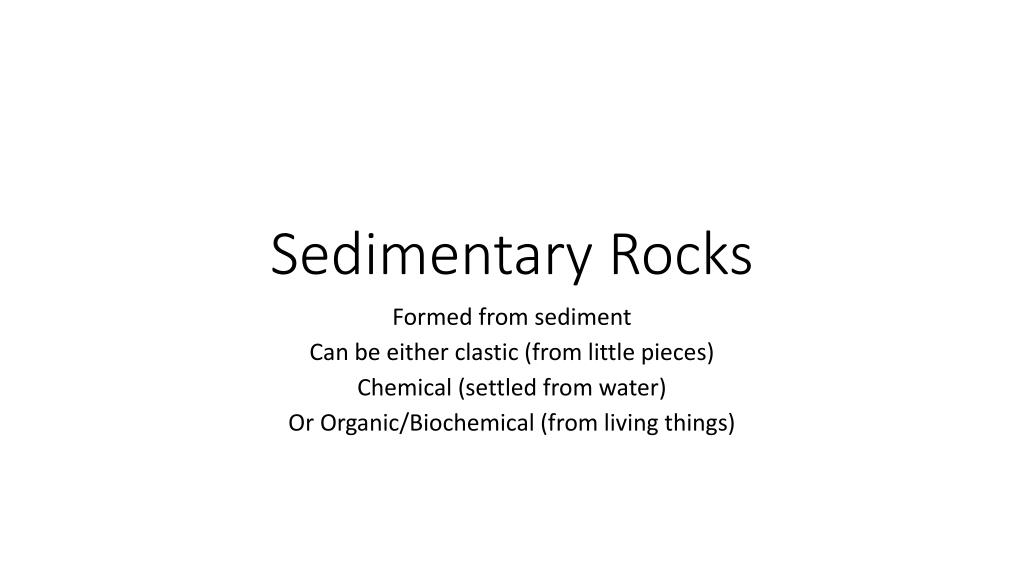

  9. Sedimentary Rocks Formed from sediment Can be either clastic (from little pieces) Chemical (settled from water) Or Organic/Biochemical (from living things)

  10. 1. Conglomerate • Clastic • Contains larger rounded clasts (parts)

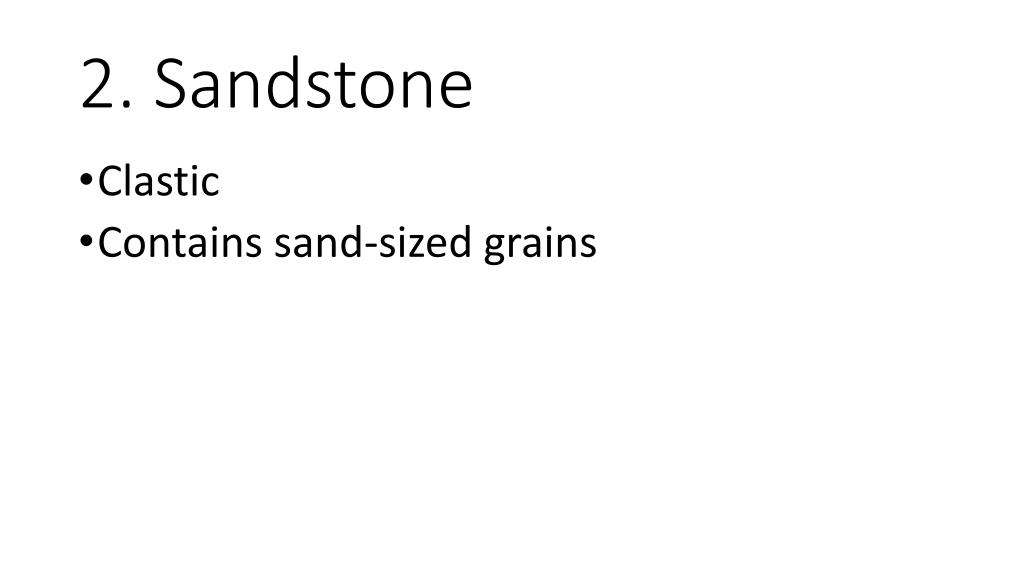

  11. 2. Sandstone • Clastic • Contains sand-sized grains

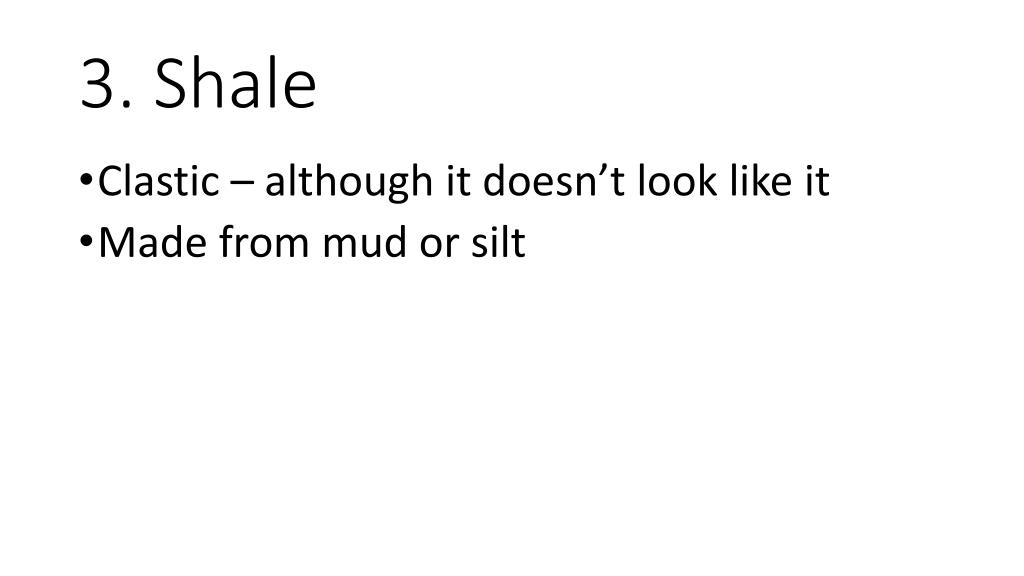

  12. 3. Shale • Clastic – although it doesn’t look like it • Made from mud or silt

  13. 4. Rock Salt • Chemical • Forms from the evaporation of water from salty oceans or lakes

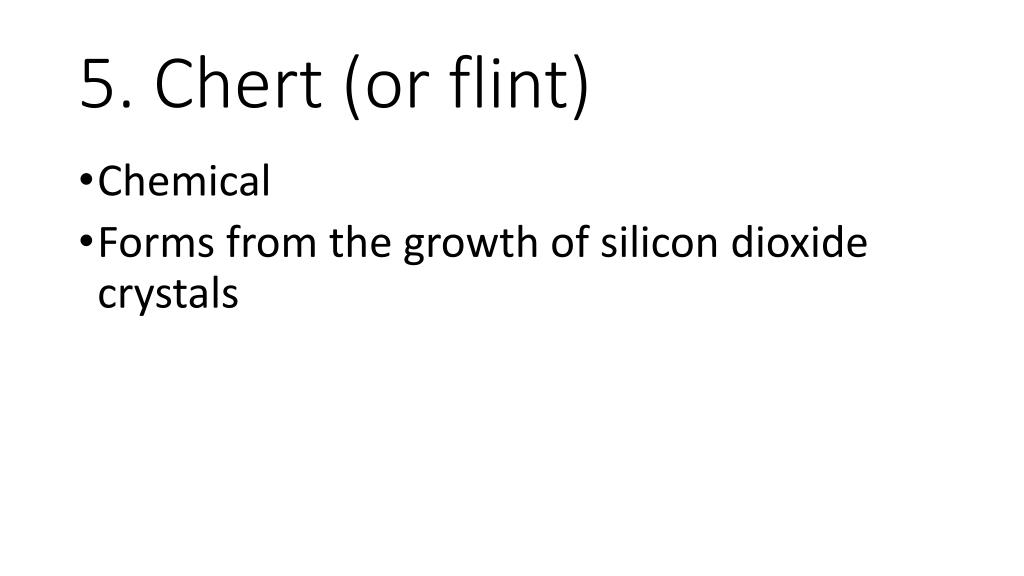

  14. 5. Chert (or flint) • Chemical • Forms from the growth of silicon dioxide crystals

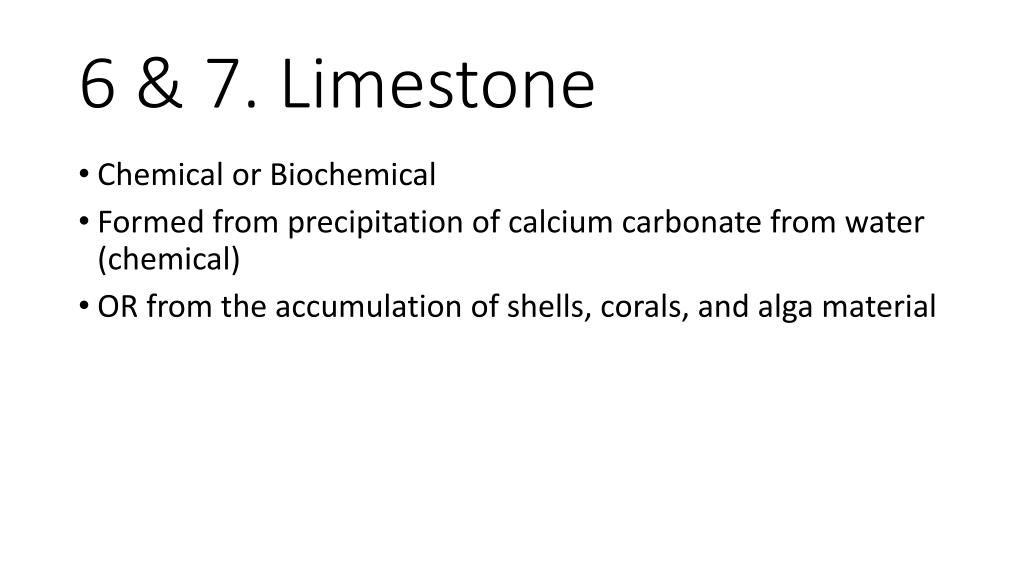

  15. 6 & 7. Limestone • Chemical or Biochemical • Formed from precipitation of calcium carbonate from water (chemical) • OR from the accumulation of shells, corals, and alga material

  16. 8. Coal • Biochemical • Formed from the accumulation of plant material, usually in a swampy environment

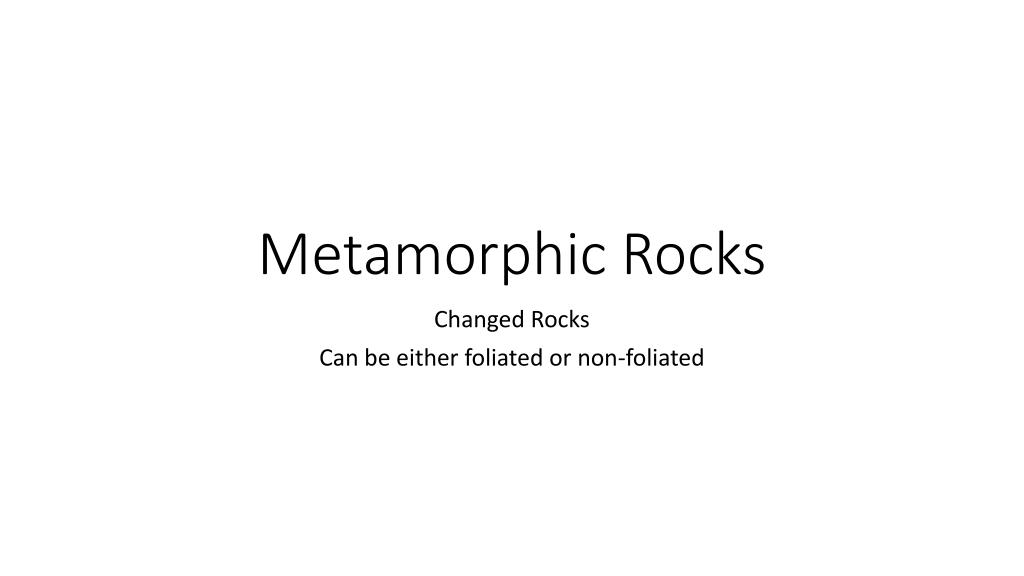

  17. Metamorphic Rocks Changed Rocks Can be either foliated or non-foliated

  18. 1. Marble • Non-foliated (not stripe-y) • Made from limestone (calcium carbonate)

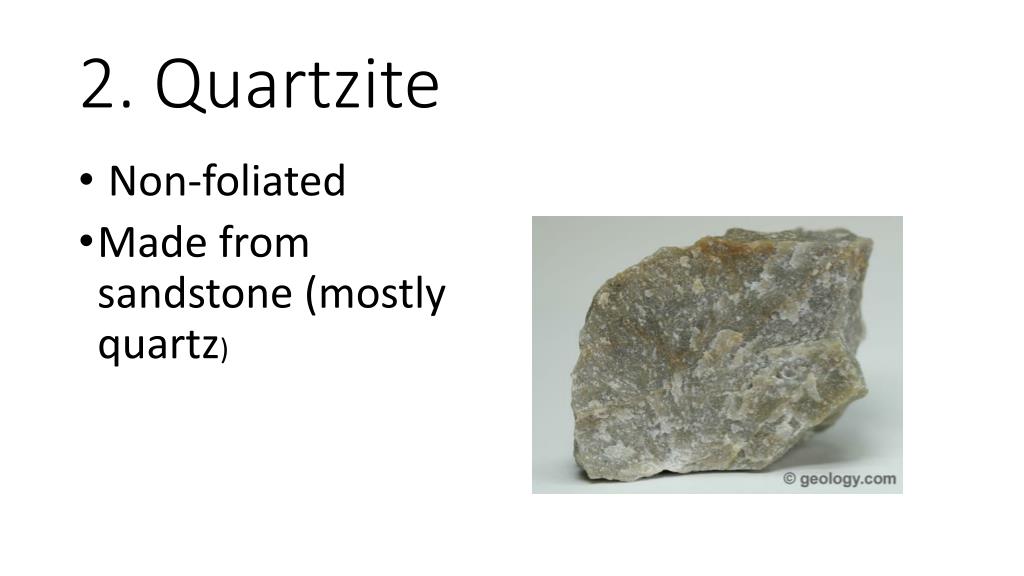

  19. 2. Quartzite • Non-foliated • Made from sandstone (mostly quartz)

  20. 3. Amphibolite • Non-foliated • Made of amphibole and plagioclase, very little quartz

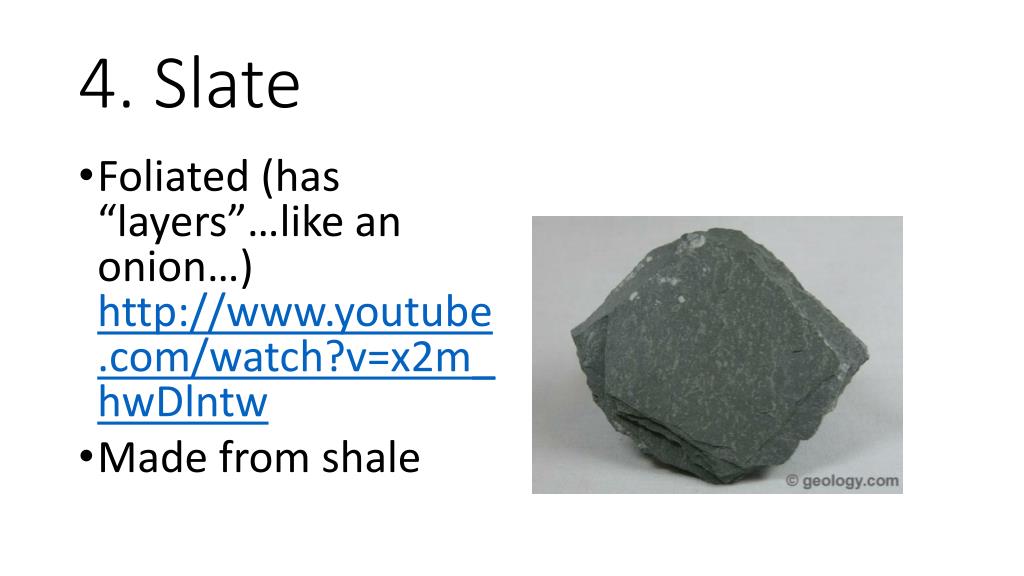

  21. 4. Slate • Foliated (has “layers”…like an onion…) http://www.youtube.com/watch?v=x2m_hwDlntw • Made from shale

  22. 5. Phyllite • Foliated • Made of fine grained mica • Usually lustrous

  23. 6. Gneiss • Foliated • Has lots of quartz and feldspar

  24. 7. Schist • Foliated • Contains mica, which allows it to split often
